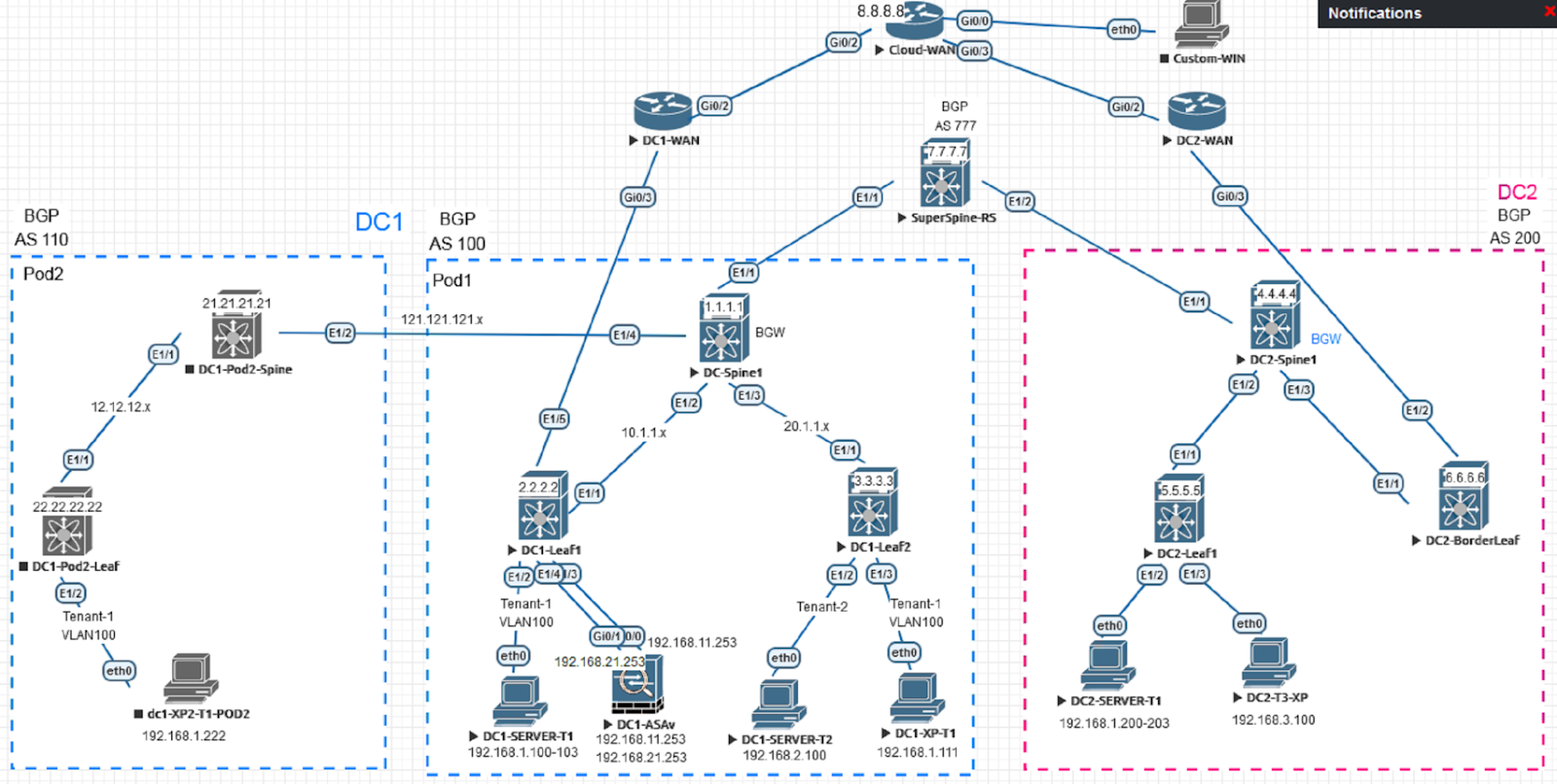

Core Knowledge & Topology

VXLAN EVPN Deployment

Configure Multi-Pod Interconnection

VXLAN Multi-site Options

VXLAN Multi-Site Deployment Part 1

VXLAN Multi-Site Deployment Part 2

VXLAN Multi-Tenant Design 1 -Firewall Insert

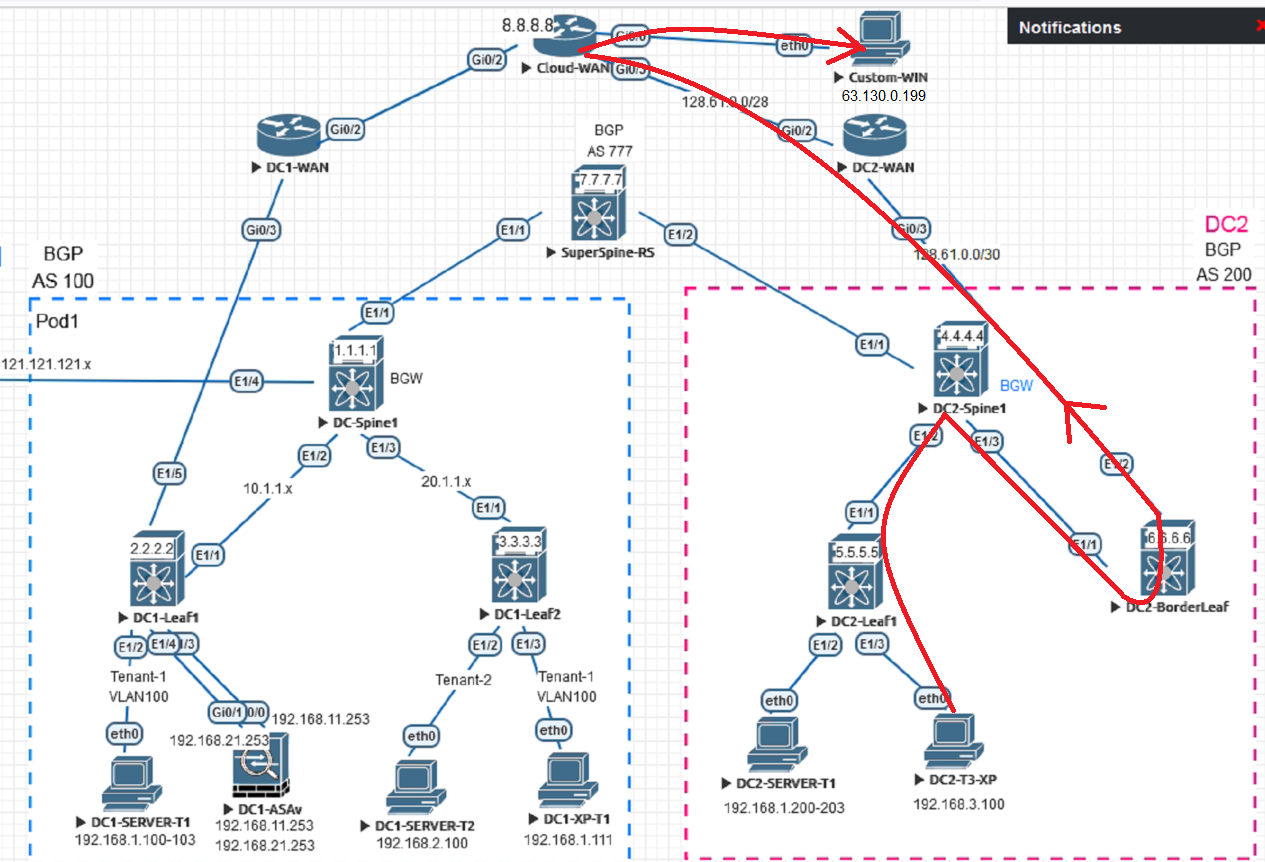

Custom Tenant Internet Access

Inter-Tenant Communication and Internet Access

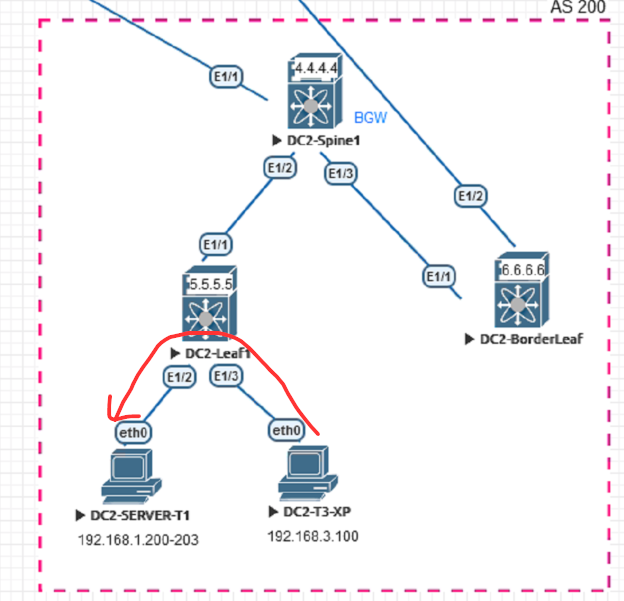

Requirement 1: T1 and T3 Communications and T1 access Internet

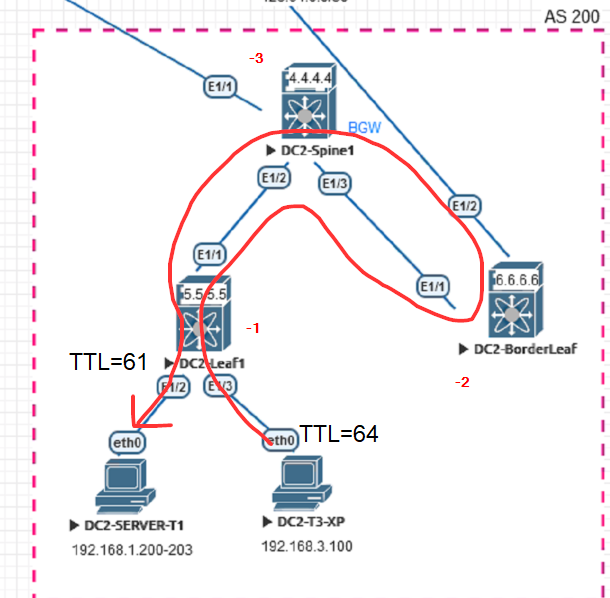

Requirement 2: Suboptimal routing inter-tenant communication

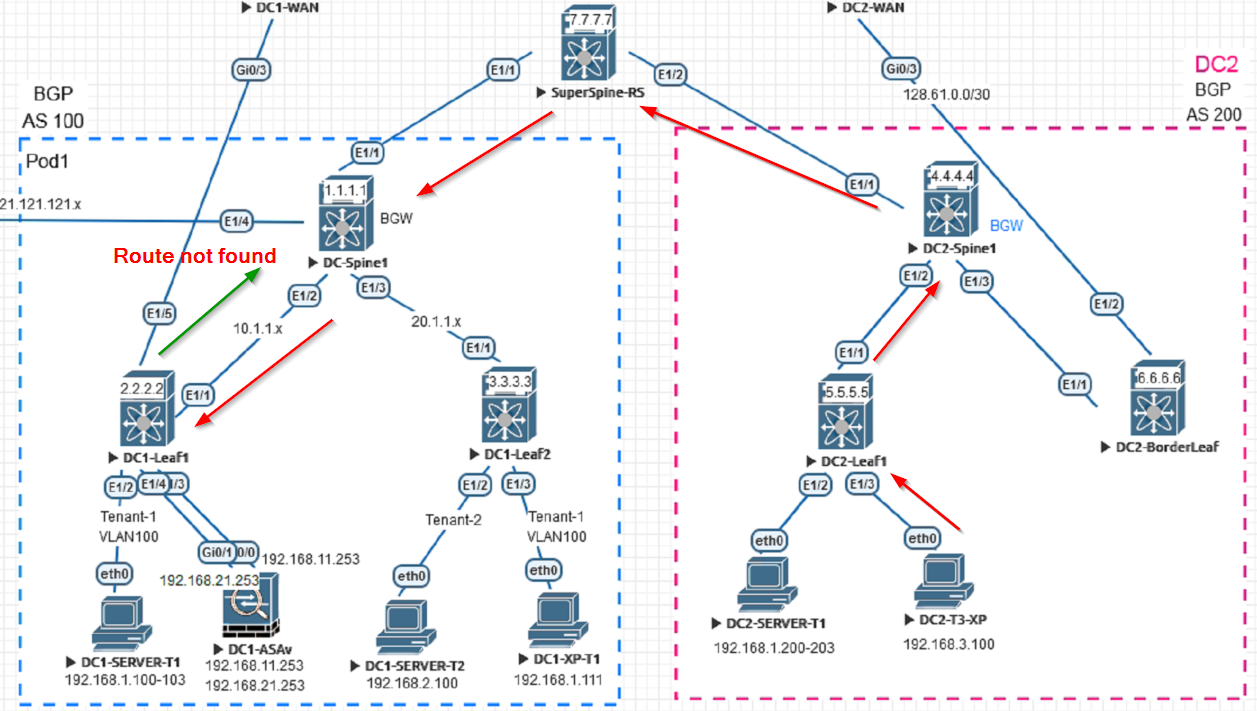

Requirement 3: Inter-Tenants communications across DCs

Requirement 4: DC2-Leaf1 manipulates default route from T1 and







--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Core Knowledge & Topology



VXLAN Forwarding Plane

If the source and destination MAC addresses live on the same switch, traffic is switched locally:

No VXLAN encapsulation or de-capsulation is performed

If the destination MAC is known

Frame if encapsulation by local VTEP and unicasted to the remote VTEP

Frame is de-capsulated by remote VETEP and delivered to destination as a classical Ethernet frame

If the destination is unknown ( or broadcasts and multicasts)

See BUM Traffic Handling



VXLAN Control Plane Operation

The VXLAN standard does not define a control plane signaling protocol for determining the location of end points

For discovery of MAC address and forwarding multicast and broadcast traffic then IP multicast groups are used that map directly to the VXLAN IDs being used (VNID)



No VXLAN Control Plane

Data driven flood-&-learn

BUM Traffic - multi-destination traffic

• Broadcast

• Unknown Layer-2 Unicast

• Multicast



BUM Traffic transport mechanisms

• Multicast replication in the underlay network

• Requests the underlay network to run IP multicast

• Ingress unicast replication

• One unicast replica per remote VTEP

• Increase traffic load throughout the network



Challenges with Flood-&-Learn VXLAN Deployments

Scale, Mobility and Security Limitations

Limited Scale
Flood and learn (BUM) - inefficient bandwidth utilization

Resource Intensive - Large MAC tables

Limited Workload Mobility

Centralized Gateways - Traffic Hair pining
sub-optimal traffic flow

Security Risk
no authentication for VXLAN devices(VTEPs)



What is VXLAN/EVPN

• Standard based Overlay(VXLAN) with standards based Control-Plane(BGP)

• Layer-2 MAC and Layer-3 IP information distribution by Control-Plane(BGP)

• Forwarding decision based on Control-Plane(minimizes flooding)

• Integrated Routing/Bridging(IRB) for optimized forwarding in the overlay



Function of VXLAN/EVPN

Advertise host/network reachability information through control protocol(MP-BGP)

Authenticate VTEPs through BGP peer authentication

Seamless and Optimal vm-mobility

Early ARP termination

Localize ARP learning process

Minimize network flooding

Unicast Alternative to Multicast underlay



 EVPN Primer - MP-BGP Review

Virtual Routing and Forwarding (VRF)

Layer-3 segmentation of tenants' routing space

Route distinguisher (RD):

8-byte field, VRF parameters; unique value

VPN IP routes unique: VPN RD + IP prefix

Selective distribute VPN routes:

Route Target (RT): 8-byte field, VRF parameter, unique value to define the import/export rules for VPNv4 routes

VPN Address-family: L2VPN EVPN

Distribute the MP-BGP VPN routes



EVPN Control Plane - Reachability Distribution

• Use MP-BGP with EVPN address family on leaf nodes to distribute internal host MAC/IP addresses, subnet routes and external reachability information

• MP-BGP enhancements to carry up to 100s of thousands of routes with reduced convergence time



EVPN Control Plane - Host Advertisement

Route-Reflector deployed for scaling purposes





Distributed Anycast Gateway in MP-BGP EVPN

Centralized Gateway

Extra bridging hop before and after routing

Centralized gateway(aggregation) for routing

Large amounts of state => convergence issues

Scale problem for large Layer-2 domains

Works with VXLAN Flood & Lear

Distributed Gateway

Route or Bridge at Leaf

Distributed Gateway (Anycast)

Disaggregate state by scale out

Optimal Scalability

Requires VXLAN/EVPn



VXLAN Routing

VXLAN EVPN has two slightly different IRB semantics

Asymmetric

Routing on the ingress VTEP and bridging on the egress VTEP

Requires each VTEP to have all VNIs - can result in forwarding table resource wastage

Symmetric (Cisco)

Routing on both the ingress and the egress VTEP

A VTEP only needs to have VNIs in which they have local hosts. Optimal utilization of forwarding table resources



ARP Suppression

Minimize flood-&-Learn behavior for host learning

Hardware access-list tcam region arp-ether 256

Show ip arp supression -cache-detail



Head-end Replication

Head-end replication (aka ingress replication)

Eliminate the need for underlay multicast to transport overlay BUM traffic



VXLAN EVPN Parameters

The network virtualization overlay requires a mechanism to know which end hosts are behind which overlay edge device. This allows the tunnel edge devices to build the location-identity mapping database.

The mapping information may be facilitated via a central SDN controller ( such as a cisco APIC or an Opendaylight controller) via an overlay end host distribution protocol (such as BGP EVPN or OVSDB) or via a data plane - based discovery scheme (such as Flood and Learn)

In a nutshell the EVPN address family allows the host MAC, IP network, vrf AND vtep INFORMATION to be carried over MP-BGP.



MP-BGP address families are used to transport specific reachability information. Popular address families include VPNv4 and VPNv6, WHICH are widely used for Multiprotocol Label Switching (MPLS ) between different datacenter sites with Layer 3 VPNs. Other VPN address families (for example, Multicast VPN [MPVPN]) are used to transport reachability of multicast group information within MPLS or other encapsulations in a multitenant environment. In case of VXLAN, the focus is on the address family L2VPN EVPN, which describes the method of transporting tenant-aware Layer 2 (MAC) and Layer 3 (IP) information across a single MPLS BGP peering session.



MP-BGP is well known for its multitenancy and routing policy capabilities in order to differentiate between routes stored in the BGP tables, MP-BGP uses Route Distinguishers(RDs). An RD is 8 bytes (64 bits).



MP-BGP also uses route policies to prioritize routes in a particular logical instance. This is achieved via an attribute called a Route Target (RT). By using RTs routes can be identified and placed in different VRF tables. RTs are also 8 bytes long, but formatting can be rather freely used, apart from the prefix:suffix notation. For automatic derivation of RT, the format is ASN:VNI(RT:65501:50001)

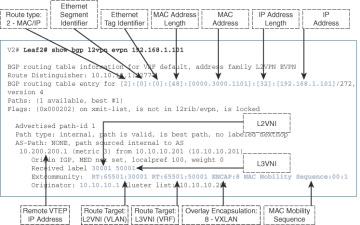

MP-BGP EVPN has different NLRI definitions as part of RFC 7432. Likewise, MP-BGP EVPN route types have different defining sections in RFC 7432 for route type 1 through 4 and also Route type 5 indraft-ietf-bess-evpn-prefix-advertisement. Route type 1 (Ethernet auto discovery [A-D] ROUTE) AND ROUTE TYPE 4 (Ethernet segment routes are presently not used in Cisco's EVPN implementation for VXLAN but route type 2,3, and 5 are rather important.

L2 VNI

Automated derivation of the RD uses the type 1 format with RID loopback IP internal MAC/IP VRF ID (RD:10.10.10.1:32777). The internal MAC VRF ID is derived from VLAN ID(mapped to the L2VNI) plus 32767. for automatic derivation of the RTs. The format is ASN:VNI (RT:65501:30001).

L3 VNI

Automated derivation of the RD uses the type 1 format with RID loopback IP: Internal MAC/IP VRF ID (RD:10.10.10.1:30) for automatic derivation of Route Targets. The format is ASN: VNI (RT: 65501:50001)

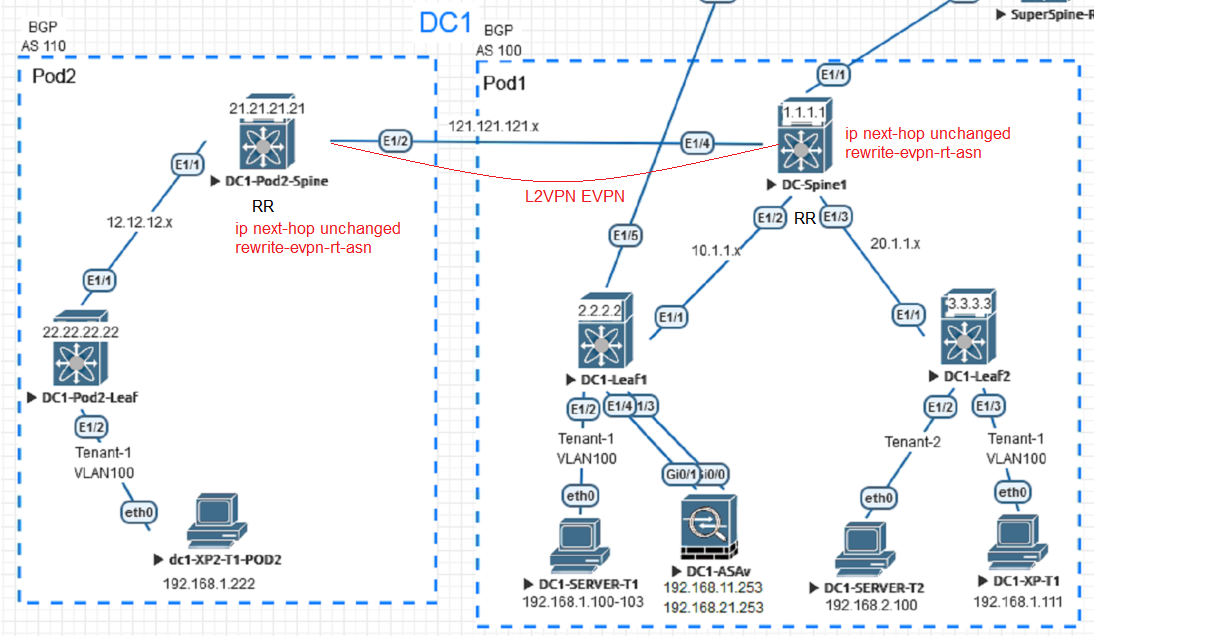

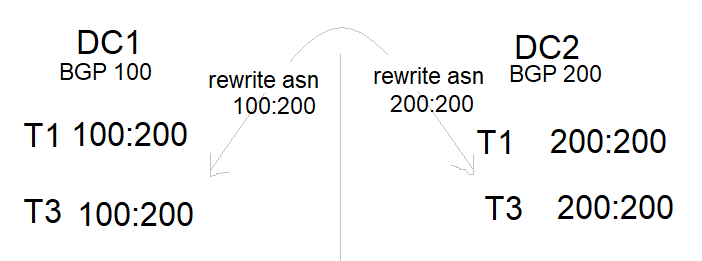

rewrite-evpn-rt-asn

It should be noted that RTs cannot be autogenerated in some cases when external BGP (eBGP) issued for the underlay. Specifically, with the Ebgp Underlay, the autonomous system number may vary on different edge devices. Consequently the Ebgp USE case requires manual configuration of the  Route Targets, and they must match between the respective edge devices. This is the only situation where manual configuration of Route Targets is required.



MAC routes, IP routes and prefix routes are all being carried in BGP EVPN messages.

Given that the MAC routes are applicable for MAC VRRF identified by the L2VNI and the IP routes are applicable for the IP VRF identified by the L3 VNI.

The command show bgp l2vpn evpn vni-id XXXX has been introduced to show these routes. The command show bgp ip unicast vrf VRF-NAME provides that IP prefix information for a given IP VRF.

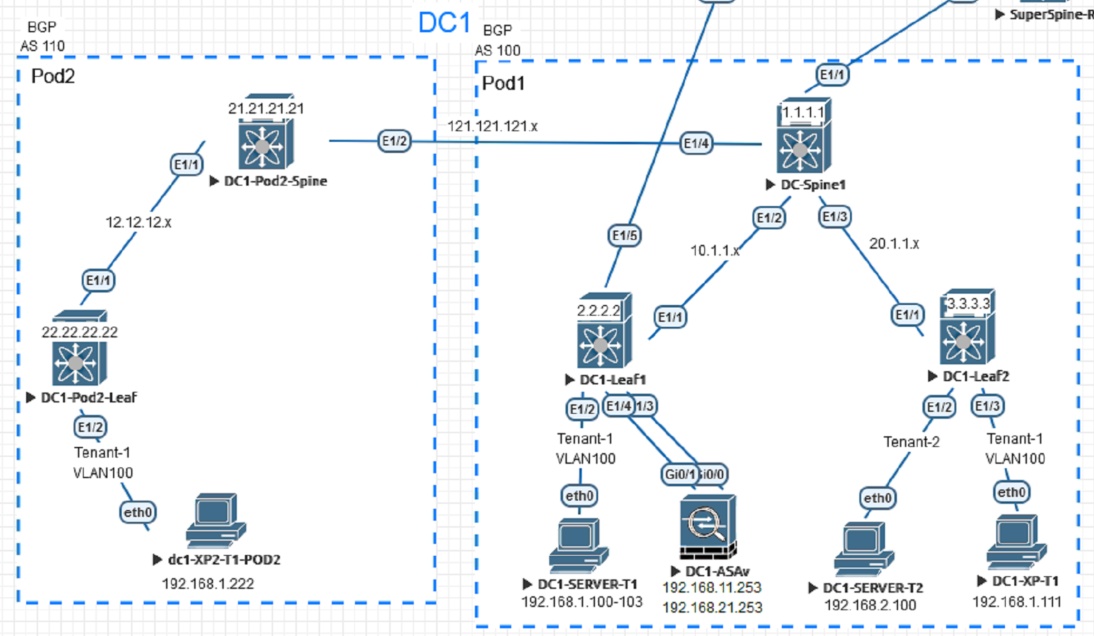

Multi-pod

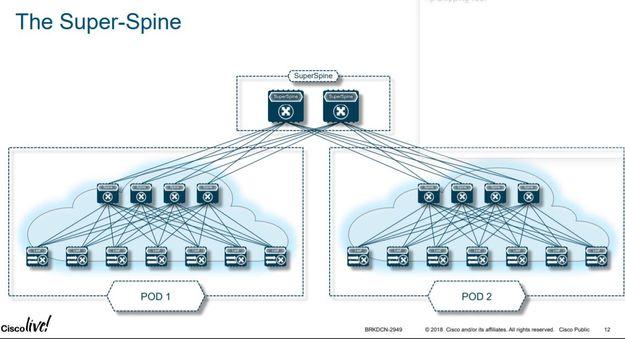

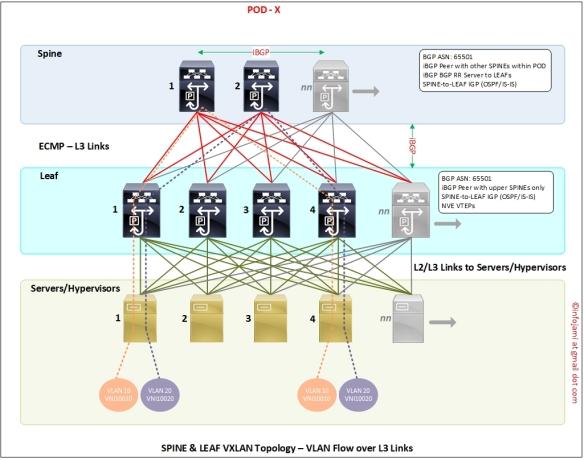

Initially, a standard two-tier spine-leaf topology that typically contains two spines and N leafs may be used. As the demands of the data center grow, more leafs and spines may be required. At some point, a new pod is added, with an additional set of spines serving at the same tier level as the initially deployed one. The new pod includes a new set of leafs as well.



Because some leafs connect to some spines and other leafs connect to other spines, it is important that these different pods are interconnected. A multi-pod design is simplified by introducing a super-spine layer.



Having multiple pods minimizes the impact of one pod on other pods. For example, if some maintenance needs to be performed on one of the pods while all other pods continue to carry production traffic, the maintenance at the one pod might impact the overlay connectivity toward that pod, but all other pods would continue to operate independently, without any impact.



Multi-pod designs provide the option of hierarchical network design in the underlay and potentially in the overlay control plane. As a result, a single data plane domain remains. In other words, the VXLAN tunnels always begin and terminate at leafs, regardless of whether the traffic is being forwarded between endpoints in the same pod or across pods. This means the same consistent configuration of Layer 2 and Layer 3 services is required across all pods.



Overlay control plane separation in the different pods can be achieved by using different BGP autonomous system (AS) numbers in each pod. However the separation only involves the handling functions within the control protocol provided by the BGP EVPN feature set. As a result, per MAC and IP becomes a global consideration in the entire multi-pod environment.



Interconnection at the Leaf, back-to-back

Interconnection at the Spine, back-to-back



While multi-pod deployments follow the concept of multiple control protocol domains in the underlay as well as in the overlay, a single data plane that extends end to end across all the pods exists. Therefore, a multi-pod environment is considered a single fabric



In a multifabric deployment, complete segregation at the control plane level typically occurs, as does segregation at the data plane level. In other words, a single VXLAN BGP EVPN fabric can sist of its own delay, its own overlay control protocol, and related data plane encapsulation.

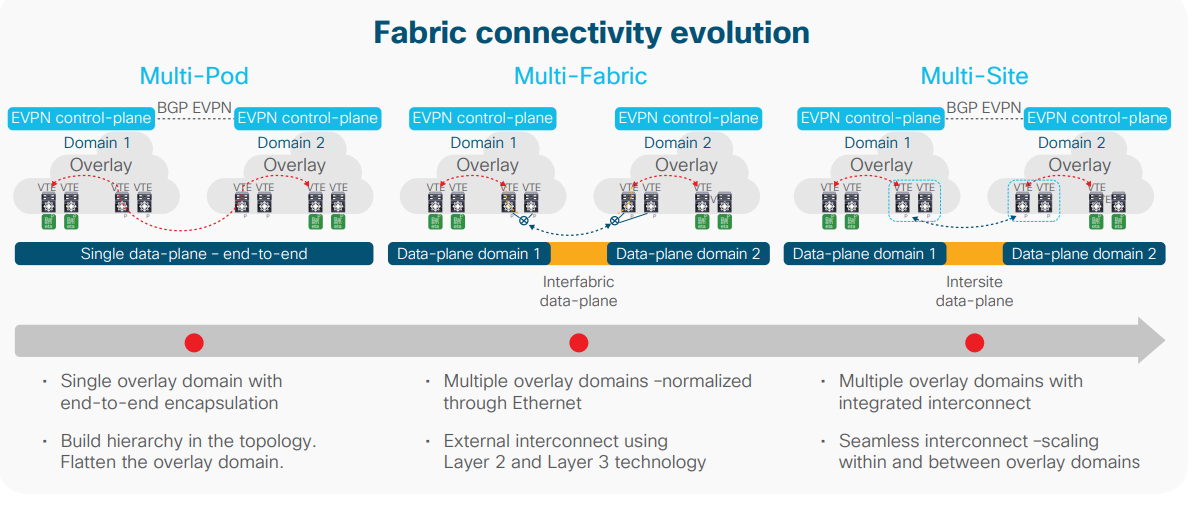

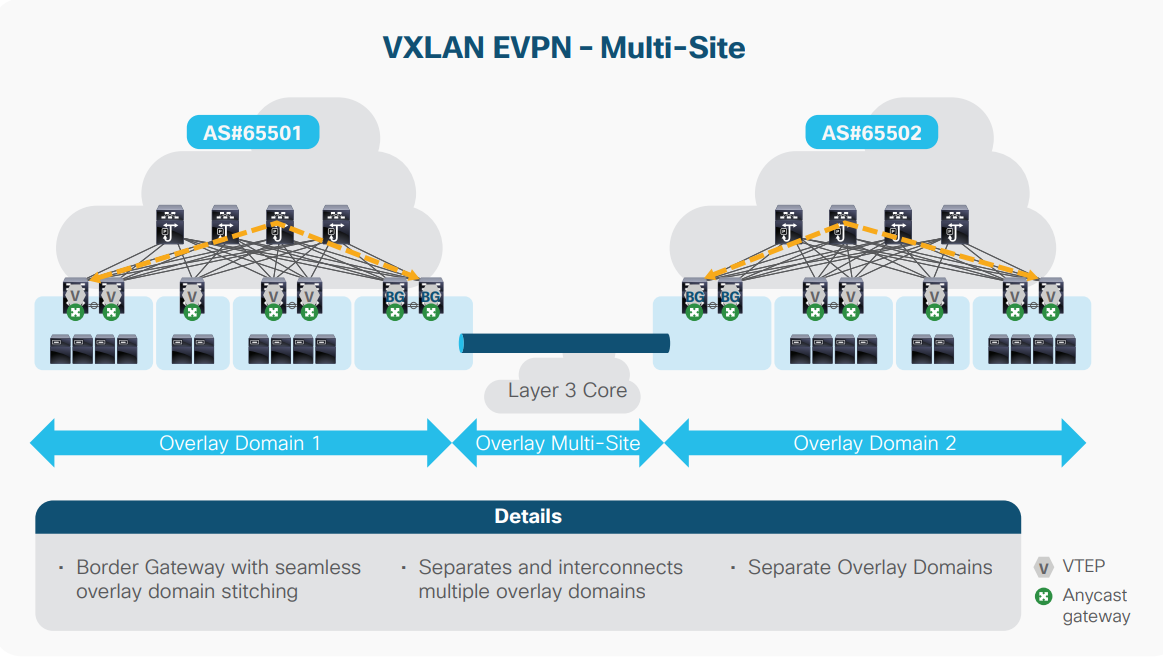

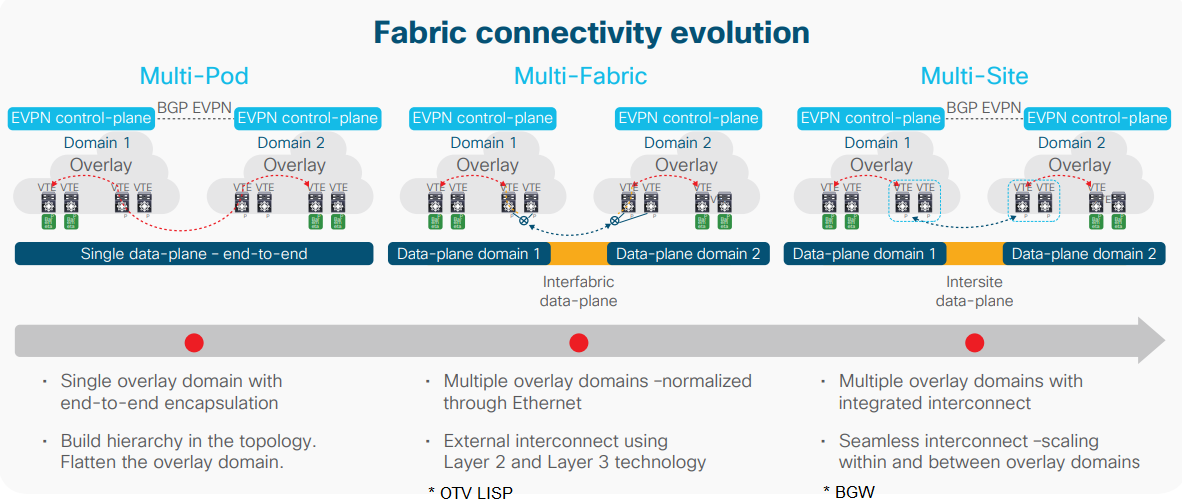

Multi-fabric/Multi-site

The advantage of such a multifabric design not only involves the option of having true separation of the traffic but also benefits from an administrative domain perspective. In regard to the administrative domain, benefits relate to the BGP autonomous system as well as the numbering of VNIs , multicast groups, and other components that are completely independent between different fabrics



  show cli history unformatted | last 20





--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



VXLAN EVPN Deployment



OSPF

    feature ospf

    router ospf 1

      router-id <loopback 0 IP>

    int loopback 0

      ip router ospf 1 area 0

    int ex/x

      ip router ospf 1 area 0





PIM

    feature pim

    interface loopback 0

      ip pim sparse-mode

    int lo 1  // DC1-Spine1

      ip pim sparse-mode

    int ex/x

      ip pim sparse-mode



ip pim rp-address 100.1.1.1





MP-BGP



DC1-Spine1

nv overlay evpn             //enable vxlan evpn control-plane

feature bgp



router bgp 100

  neighbor 2.2.2.2

    remote-as 100

    update-source loopback0

    address-family l2vpn evpn      // MAC to VTEP mapping, instead of IP routes

      send-community

      send-community extended   // extended community has RT values,   send MAC-VTEP, IP-VTEP tables, ej. route type 2 includes them

      route-reflector-client

  neighbor 3.3.3.3

    remote-as 100

    update-source loopback0

    address-family l2vpn evpn

      send-community

      send-community extended

      route-reflector-client





DC1-Leaf1 and DC1-Leaf2

nv overlay evpn                                         //enable VXLAN control-plane EVPN

feature ospf

feature bgp

feature pim

feature vn-segment-vlan-based             //enable VLAN based VXLAN mapping

feature nv overlay                                    //enable VXLAN



router bgp 100

  neighbor 1.1.1.1

    remote-as 100

    update-source loopback0

    address-family l2vpn evpn

      send-community

      send-community extended





DC1-Pod2-Spine

nv overlay evpn

feature bgp



router bgp 110

  neighbor 22.22.22.22

    remote-as 110

    update-source loopback0

    address-family l2vpn evpn

      send-community

      send-community extended

      route-reflector-client







DC1-Pod2-Leaf

nv overlay evpn

feature bgp

feature vn-segment-vlan-based

feature nv overlay



router bgp 110

  router-id 22.22.22.22

  neighbor 21.21.21.21

    remote-as 110

    update-source loopback0

    address-family l2vpn evpn

      send-community

      send-community extended





DC-Spine1# show bgp sessions

Total peers 2, established peers 2

ASN 100

VRF default, local ASN 100

peers 2, established peers 2, local router-id 1.1.1.1

State: I-Idle, A-Active, O-Open, E-Established, C-Closing, S-Shutdown



Neighbor        ASN    Flaps LastUpDn|LastRead|LastWrit St Port(L/R)  Notif(S/R)

2.2.2.2           100 0     00:08:58|00:00:56|00:00:57 E   179/48058      0/0

3.3.3.3           100 0     00:07:23|00:00:25|00:00:22 E   179/42096      0/0





DC1-Pod2-Spine# show bgp sessions

Total peers 1, established peers 1

ASN 110

VRF default, local ASN 110

peers 1, established peers 1, local router-id 21.21.21.21

State: I-Idle, A-Active, O-Open, E-Established, C-Closing, S-Shutdown



Neighbor        ASN    Flaps LastUpDn|LastRead|LastWrit St Port(L/R)  Notif(S/R)

22.22.22.22       110 0     00:02:03|00:00:02|00:00:02 E   179/18022      0/0







VXLAN



DC1-Leaf1,  DC1-Leaf2 and DC1-Pod2-Leaf



feature interface-vlan                                                                                  // enable for SVI interface

fabric forwarding anycast-gateway-mac 0000.2222.3333                   // enable anycast gateway consistant

                                                                                                                        // VLAN to VNI mapping

vlan 100

  name L2VNI1

  vn-segment 10100

vlan 110

  name L2VNI2

  vn-segment 10110

vlan 111

  name L3VNI

  vn-segment 11111



                                                                                                                     // To enable ARP suppression, need to adjust TCAM table resource, ARP change to 256k, other table to 0k,  reboot need

hardware access-list tcam region vpc-convergence 0

hardware access-list tcam region arp-ether 256







vrf context Tenant-1

  vni 11111

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn



interface Vlan100

  no shutdown

  vrf member Tenant-1

  ip address 192.168.1.254/24

  fabric forwarding mode anycast-gateway



interface Vlan110

  no shutdown

  vrf member Tenant-1

  ip address 192.168.11.254/24

  fabric forwarding mode anycast-gateway



interface Vlan111

  no shutdown

  vrf member Tenant-1

  no ip redirects

  ip forward                                                                                               //  L2 VNI to L2 VNI for routing, Layer 3 VNI just use to forward so no IP needed





interface nve1                                                                                        // Interface used for encap/decap vxlan

  no shutdown

  host-reachability protocol bgp                                                        // use bgp evpn control plane

  source-interface loopback0

  member vni 10100

    mcast-group 225.1.1.1

  member vni 10110

    mcast-group 225.1.1.11

  member vni 11111 associate-vrf                                                   // L3 VNI





evpn                                                                                                   // define layer 2 VNI RD and RT, make bridging in same VNI

  vni 10100 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10110 l2

    rd auto

    route-target import auto

    route-target export auto







interface Ethernet1/X

  sw

  switchport access vlan 100

  no shut









DC1-Leaf2# show bgp l2vpn evpn 192.168.1.111

BGP routing table information for VRF default, address family L2VPN EVPN

Route Distinguisher: 3.3.3.3:32867    (L2VNI 10100)

BGP routing table entry for [2]:[0]:[0]:[48]:[0050.7966.6810]:[32]:[192.168.1.111]/272, version 9

Paths: (1 available, best #1)

Flags: (0x000102) (high32 00000000) on xmit-list, is not in l2rib/evpn



  Advertised path-id 1

  Path type: local, path is valid, is best path, no labeled nexthop

  AS-Path: NONE, path locally originated

    3.3.3.3 (metric 0) from 0.0.0.0 (3.3.3.3)

      Origin IGP, MED not set, localpref 100, weight 32768

      Received label 10100 11111

      Extcommunity: RT:100:10100 RT:100:11111 ENCAP:8 Router MAC:5000.0009.0007



  Path-id 1 advertised to peers:

    1.1.1.1







DC1-Leaf2# show bgp l2 evpn 0050.7966.6810

BGP routing table information for VRF default, address family L2VPN EVPN

Route Distinguisher: 3.3.3.3:32867    (L2VNI 10100)

BGP routing table entry for [2]:[0]:[0]:[48]:[0050.7966.6810]:[0]:[0.0.0.0]/216, version 8

Paths: (1 available, best #1)

Flags: (0x000102) (high32 00000000) on xmit-list, is not in l2rib/evpn



  Advertised path-id 1

  Path type: local, path is valid, is best path, no labeled nexthop

  AS-Path: NONE, path locally originated

    3.3.3.3 (metric 0) from 0.0.0.0 (3.3.3.3)

      Origin IGP, MED not set, localpref 100, weight 32768

      Received label 10100

      Extcommunity: RT:100:10100 ENCAP:8



  Path-id 1 advertised to peers:

    1.1.1.1

BGP routing table entry for [2]:[0]:[0]:[48]:[0050.7966.6810]:[32]:[192.168.1.111]/272, version 9

Paths: (1 available, best #1)

Flags: (0x000102) (high32 00000000) on xmit-list, is not in l2rib/evpn



  Advertised path-id 1

  Path type: local, path is valid, is best path, no labeled nexthop

  AS-Path: NONE, path locally originated

    3.3.3.3 (metric 0) from 0.0.0.0 (3.3.3.3)

      Origin IGP, MED not set, localpref 100, weight 32768

      Received label 10100 11111

      Extcommunity: RT:100:10100 RT:100:11111 ENCAP:8 Router MAC:5000.0009.0007



  Path-id 1 advertised to peers:

    1.1.1.1









DC1-Leaf1# show bgp l2vpn evpn vni-id 10100

BGP routing table information for VRF default, address family L2VPN EVPN

BGP table version is 15, Local Router ID is 2.2.2.2

Status: s-suppressed, x-deleted, S-stale, d-dampened, h-history, *-valid, >-best

Path type: i-internal, e-external, c-confed, l-local, a-aggregate, r-redist, I-i

njected

Origin codes: i - IGP, e - EGP, ? - incomplete, | - multipath, & - backup, 2 - b

est2



   Network            Next Hop            Metric     LocPrf     Weight Path

Route Distinguisher: 2.2.2.2:32867    (L2VNI 10100)

*>l[2]:[0]:[0]:[48]:[0050.7966.680e]:[0]:[0.0.0.0]/216

                      2.2.2.2                           100      32768 i

*>i[2]:[0]:[0]:[48]:[0050.7966.6810]:[0]:[0.0.0.0]/216

                      3.3.3.3                           100          0 i

*>l[2]:[0]:[0]:[48]:[0050.7966.680e]:[32]:[192.168.1.100]/272

                      2.2.2.2                           100      32768 i

*>i[2]:[0]:[0]:[48]:[0050.7966.6810]:[32]:[192.168.1.111]/272

                      3.3.3.3                           100          0 i







--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Configure Multi-Pod Interconnection



When there is no multi-pod, there is 192.168.1.222 on Pod2 leaf



DC1-Pod2-Leaf# show bgp l2vpn evpn



   Network            Next Hop            Metric     LocPrf     Weight Path

Route Distinguisher: 22.22.22.22:32867    (L2VNI 10100)

*>l[2]:[0]:[0]:[48]:[0050.7966.680d]:[0]:[0.0.0.0]/216

                      22.22.22.22                       100      32768 i

*>l[2]:[0]:[0]:[48]:[0050.7966.680d]:[32]:[192.168.1.222]/272

                      22.22.22.22                       100      32768 i







T1-POD2> ping 192.168.1.111



84 bytes from 192.168.1.111 icmp_seq=1 ttl=64 time=82.746 ms

84 bytes from 192.168.1.111 icmp_seq=2 ttl=64 time=30.864 ms



Multipod spines advertise EVPN routes to each other, Spine pod 1 and Spine pod 2 need EBGP L2VPN neighbour.

BGP by default changes next hop itself, we need unchange next hop and use local leaf VTEP as next hop.  - set ip next-hop unchanged
Pod 2 : RT 110:10100, Pod1 RT: 100:10100 are different RTs. We need to rewrite to same local RT in both pods -  rewrite-evpn-rt-asn








DC1-Spine



route-map 121 permit 10

  set ip next-hop unchanged



router bgp 100

  neighbor 121.121.121.2

    remote-as 110

    update-source Ethernet1/4

    address-family l2vpn evpn

      send-community

      send-community extended

      route-map 121 out

      rewrite-evpn-rt-asn







DC1-Pod2-Spine


route-map 121 permit 10

  set ip next-hop unchanged



router bgp 110



  neighbor 121.121.121.1

    remote-as 100

    update-source Ethernet1/2

    address-family l2vpn evpn

      send-community

      send-community extended

      route-map 121 out

      rewrite-evpn-rt-asn





After that leafs in different pods can see update

DC1-Pod2-Leaf# show bgp l2vpn evpn

…

Route Distinguisher: 22.22.22.22:32867    (L2VNI 10100)

*>l[2]:[0]:[0]:[48]:[0050.7966.680d]:[0]:[0.0.0.0]/216

                      22.22.22.22                       100      32768 i

*>i[2]:[0]:[0]:[48]:[0050.7966.680e]:[0]:[0.0.0.0]/216

                      2.2.2.2                           100          0 100 i

*>i[2]:[0]:[0]:[48]:[0050.7966.6810]:[0]:[0.0.0.0]/216

                      3.3.3.3                           100          0 100 i

*>l[2]:[0]:[0]:[48]:[0050.7966.680d]:[32]:[192.168.1.222]/272

                      22.22.22.22                       100      32768 i

*>i[2]:[0]:[0]:[48]:[0050.7966.680e]:[32]:[192.168.1.100]/272

                      2.2.2.2                           100          0 100 i

*>i[2]:[0]:[0]:[48]:[0050.7966.6810]:[32]:[192.168.1.111]/272

                      3.3.3.3                           100          0 100 i







DC1-Leaf1# show bgp l2vpn evpn 192.168.1.222

BGP routing table information for VRF default, address family L2VPN EVPN

Route Distinguisher: 2.2.2.2:32867    (L2VNI 10100)

BGP routing table entry for [2]:[0]:[0]:[48]:[0050.7966.680d]:[32]:[192.168.1.222]/272, version 1716

Paths: (1 available, best #1)

Flags: (0x000212) (high32 00000000) on xmit-list, is in l2rib/evpn, is not in HW



  Advertised path-id 1

  Path type: internal, path is valid, is best path, no labeled nexthop, in rib

             Imported from 22.22.22.22:32867:[2]:[0]:[0]:[48]:[0050.7966.680d]:[32]:[192.168.1.222]/272

  AS-Path: 110 , path sourced external to AS

    22.22.22.22 (metric 121) from 1.1.1.1 (1.1.1.1)

      Origin IGP, MED not set, localpref 100, weight 0

      Received label 10100 11111

      Extcommunity: RT:100:10100 RT:100:11111 ENCAP:8 Router MAC:5000.000b.0007



  Path-id 1 not advertised to any peer



Route Distinguisher: 22.22.22.22:32867

BGP routing table entry for [2]:[0]:[0]:[48]:[0050.7966.680d]:[32]:[192.168.1.222]/272, version 1714

Paths: (1 available, best #1)

Flags: (0x000202) (high32 00000000) on xmit-list, is not in l2rib/evpn, is not in HW



  Advertised path-id 1

  Path type: internal, path is valid, is best path, no labeled nexthop

             Imported to 2 destination(s)

  AS-Path: 110 , path sourced external to AS

    22.22.22.22 (metric 121) from 1.1.1.1 (1.1.1.1)

      Origin IGP, MED not set, localpref 100, weight 0

      Received label 10100 11111

      Extcommunity: RT:100:10100 RT:100:11111 ENCAP:8 Router MAC:5000.000b.0007



  Path-id 1 not advertised to any peer









--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



VXLAN Multi-site Options



VXLAN Evolves as the Control Plane Evolves

Before Yesterday

Yet another encapsulation

Flood & learn (Multicast-based)

Data-Plane only

Yesterday

VXLAN for the datacenter - infra-dc

Control-plane

Active VTEP Discovery

Multicast and Unicast

Today

VXLAN for DCI - Inter-DC

DCI ready

ARP/ND caching/supress

Multi-homing

Failure domain isolation

Loop protection





Multi-pod Characteristics - "The Single" physically separate less connections

• Single overlay domain - End-to-End Encapsulation/Encapsulation

• Single Overlay Control-Plane Domain - End-to-End EVPN Updates

• Single Underlay Domain End-to-End (OSPF, BGP, EIGRP etc;)

• Single Replication domain for BUM  (single multicast)

• Single VNI Administrative Domain



Multi-pod Challenges  - "the Single"

Single Overlay Domain - End-to-End Encapsulation

• Scaling the VXLAN EVPN Network

Single overlay Control-Plane Domain - End-to-End EVPN Updates

• Overlay Control-Plane Update Propagation

Single Underlay Domain End-to-End

• Network must be extended in Underlay (VTEP to VTEP reachability)

Single Replication Domain for BUM

• One BUM flooding domain through out all connected Pods

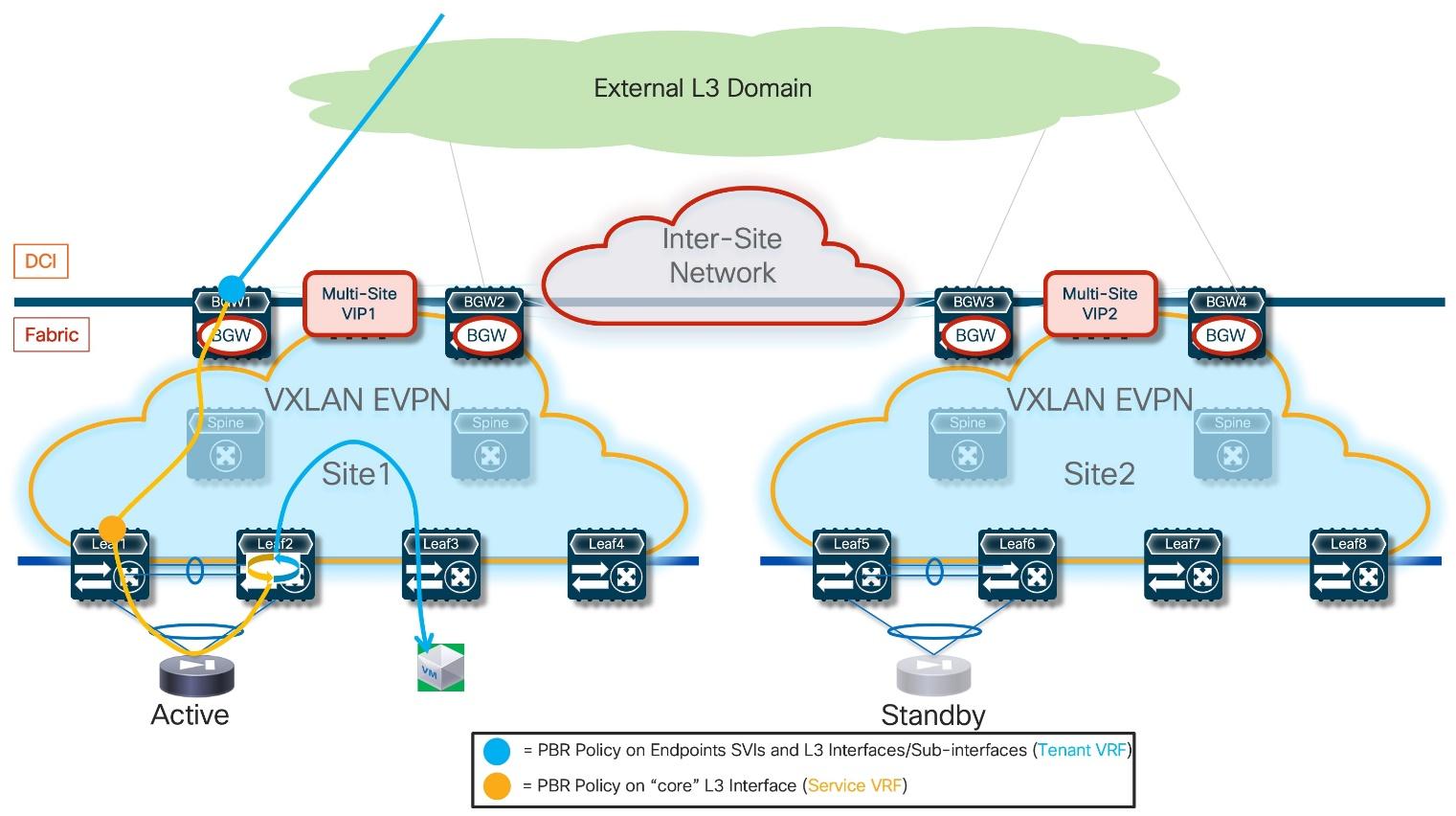

Multi-Site

Border Gateways (Key Functional Components of VXLAN Multi-Site Architecture) maximum 14

Normal Leaf

Border Gateway Leaf

Border Service Leaf  (connecting FW, Loadbalancer)



VXLAN Multi-Site Characteristics

Multiple Overlay Domains - Interconnected & Controlled

Multiple Overlay Control-Plane Domains - Interconnected & Controlled

Multiple Underlay Domains - Isolated (DC1 OSPF, DC2 EIGRP)

Multiple Replication Domains for BUM - Interconnected & Controlled

Multiple VNI Administrative Domains (vni/rt/rd can be different)



Cloud/Super-Spine/back-to-back topology



Super-Spine (BGP EVPN)



Anycast Border Gateway

• Up to 4 Border Gateways

• Border Gateway

• Deploying at Leaf - 7.0(3)I7(1)

• Deploying at Spine - 7.0(3)I7(2)

• Common Multicast-Site Virtual IP (Multi-Site VIP) across BGWs

• Multi-Site VIP for communication between the Border Gateways in different sites

• Multi-Site VIP for communication between Border Gateways and Leaf nodes within a site

• Individual Primary IP (PIP) per BGW

• Used for Broadcast, Unknown Unicast and Multicast (BUM) replication

• PIP for communication with Single-Homed endpoints (route only), intra- and inter site

• Per-VNI Designated Forwarder (DF) election

• Each BGW can serve as DF for a single or a set of Layer-2 VNIs

• DF election and assignment is automatic

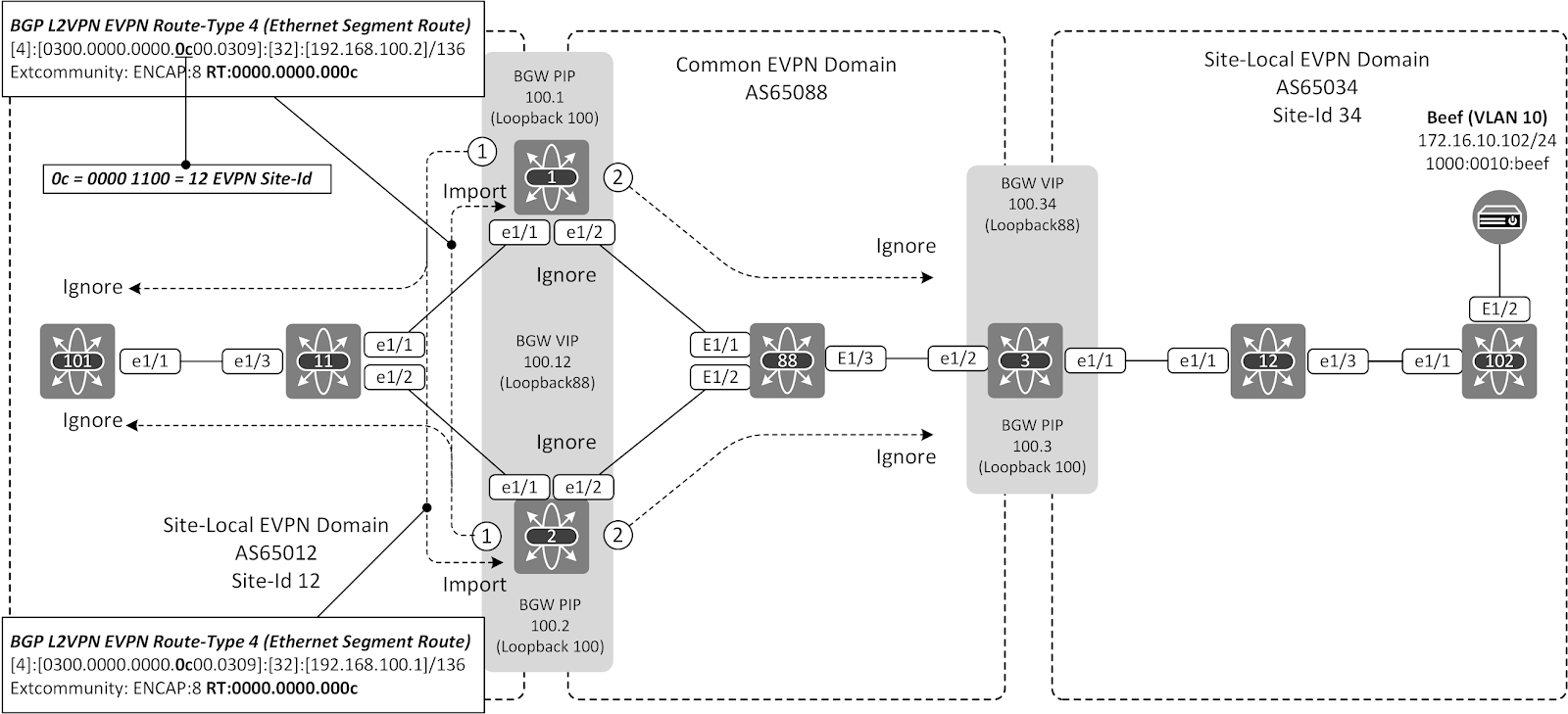

• Using BGP EVPN Route Type 4 for DF election

• Six Octet Site Identifier (System MAC: 00:00:00:00:00:01)

• Originators IP (PIP): 1.1.1101

• Layer-2 VNI: 30010

• Single-homed end-points only connected with L3 links

• Service appliance (i.e. firewall, ADC and etc.)

• External routers

• No SVI support on BGW nodes

• Advertised and reachable through individual primary IP address (PIP)

• Intra-site: Leaf nodes uses PIP to reach the device connected to Border Gateways

• Inter-site: Remote Border Gateway uses PIP to reach the device connected to Border Gateways



Control Plane Deployment Considerations

• Two main options for underlay and overlay control plane deployment

• I-E-I (Recommended)

Intra-site: IGP (OSPF, IS-IS) as underlay CP, iBGP as overlay CP

Inter-Site: eBGP for both underlay and overlay CPs.

• E-E-E*

Intra-Site and Inter-Sites: eBGP for both underlay and overlay CPs



• Full mesh of MP-eBGP EVPN adjacencies across sites

Recommended to deploy a couple of route-servers with 3 or more sites

RS in a separate AS only perform control functions ("eBGP route-reflectors, IETF RFC 7947)

RS functions: EVPN routes reflection, next-hop-unchanged, route-target rewrite



• Only MP-eBGP EVPN in inter-sites

Next-hop behavior (VXLAN tunnel termination and reorgination) and loop protection (as-path attribute)





Selective Advertisements

• Multi-site architecture provides granular control on how layer-2 and layer-3 communication is extended across sites

• Layer-2 and/or Layer-3 VNIs configured on the Border Gateways (BGW) control the Control-Plane advertisement towards DCI

• Enhances the overall scalability of the solution

Scale up the total number of end-points supported across sites









--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



VXLAN Multi-Site Deployment Part 1

------------------------------------------- DC2 --------------------------------------------------





DC2-Spine1

feature ospf

feature pim



ip pim rp-address 200.1.1.1



router ospf 1

  router-id 4.4.4.4

!

interface loopback0

  ip address 4.4.4.4/32

 ip router ospf 1 area 0

 ip pim sparse-mode

!

interface loopback1

  description RP-Address

  ip address 200.1.1.0/32

 ip router ospf 1 area 0

 ip pim sparse-mode

!

interface Ethernet1/1

  no switchport

  ip address 47.1.1.1/24

  no shutdown

!

interface Ethernet1/2

  no switchport

  ip address 40.1.1.1/24

 ip router ospf 1 area 0

 ip pim sparse-mode

  no shutdown

!

interface Ethernet1/3

  no switchport

  ip address 50.1.1.1/24

 ip router ospf 1 area 0

 ip pim sparse-mode

  no shutdown



feature bgp

nv overlay evpn

!

router bgp 200

  neighbor 5.5.5.5

    remote-as 200

    update-source loopback0

    address-family l2vpn evpn

      send-community

      send-community extended

      route-reflector-client

  neighbor 6.6.6.6

    remote-as 200

    update-source loopback0

    address-family l2vpn evpn

      send-community

      send-community extended

      route-reflector-client







DC2-Leaf1

feature ospf

feature pim

feature fabric forwarding

feature interface-vlan



fabric forwarding anycast-gateway-mac 0000.2222.3333



ip pim rp-address 200.1.1.1



router ospf 1

  router-id 5.5.5.5

!

interface loopback0

  ip address 5.5.5.5/32

 ip router ospf 1 area 0

 ip pim sparse-mode

!

interface Ethernet1/1

  no switchport

  ip address 40.1.1.2/24

 ip router ospf 1 area 0

 ip pim sparse-mode

  no shutdown





nv overlay evpn

feature bgp

feature vn-segment-vlan-based

feature nv overlay

!

router bgp 200

  neighbor 4.4.4.4

    remote-as 200

    update-source loopback0

    address-family l2vpn evpn

      send-community

      send-community extended



vlan 100

  name L2VNI1

  vn-segment 10100

vlan 110

  name L2VNI2

  vn-segment 10110

vlan 111

  name L3VNI

  vn-segment 11111

vlan 200

  name L2VNI1-2

  vn-segment 10200

vlan 210

  name L2VNI2-2

  vn-segment 10210

vlan 222

  name L3VNI-2

  vn-segment 22222

!

hardware access-list tcam region vpc-convergence 0

hardware access-list tcam region arp-ether 256



vrf context Tenant-1

  vni 11111

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn



interface Vlan100

  no shutdown

  vrf member Tenant-1

  ip address 192.168.1.254/24

  fabric forwarding mode anycast-gateway



interface Vlan110

  no shutdown

  vrf member Tenant-1

  ip address 192.168.11.254/24

  fabric forwarding mode anycast-gateway



interface Vlan111

  no shutdown

  vrf member Tenant-1

  no ip redirects

  ip forward





vrf context Tenant-2

  vni 22222

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn

!

interface Vlan200

  no shutdown

  vrf member Tenant-2

  ip address 192.168.2.254/24

  fabric forwarding mode anycast-gateway



interface Vlan210

  no shutdown

  vrf member Tenant-2

  ip address 192.168.21.254/24

  fabric forwarding mode anycast-gateway



interface Vlan222

  no shutdown

  vrf member Tenant-2

  no ip redirects

  ip forward



interface nve1

  no shutdown

  host-reachability protocol bgp

  source-interface loopback0

  member vni 10100

    suppress-arp

    mcast-group 225.1.1.1

  member vni 10110

    mcast-group 225.1.1.11

  member vni 10200

    suppress-arp

    mcast-group 225.1.1.2

  member vni 10210

    mcast-group 225.1.1.21

  member vni 11111 associate-vrf

  member vni 22222 associate-vrf





evpn

  vni 10100 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10110 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10200 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10210 l2

    rd auto

    route-target import auto

    route-target export auto





interface Ethernet1/2

  switchport access vlan 100







DC2-BorderLeaf

feature ospf

feature pim

feature fabric forwarding

feature interface-vlan



fabric forwarding anycast-gateway-mac 0000.2222.3333



ip pim rp-address 200.1.1.1



router ospf 1

  router-id 6.6.6.6



interface loopback0

  ip address 6.6.6.6/32

 ip router ospf 1 area 0

 ip pim sparse-mode

!

interface Ethernet1/1

  no switchport

  ip address 50.1.1.2/24

 ip router ospf 1 area 0

 ip pim sparse-mode

  no shutdown





nv overlay evpn

feature bgp

feature vn-segment-vlan-based

feature nv overlay

!

router bgp 200

  neighbor 4.4.4.4

    remote-as 200

    update-source loopback0

    address-family l2vpn evpn

      send-community

      send-community extended



vlan 100

  name L2VNI1

  vn-segment 10100

vlan 110

  name L2VNI2

  vn-segment 10110

vlan 111

  name L3VNI

  vn-segment 11111

vlan 200

  name L2VNI1-2

  vn-segment 10200

vlan 210

  name L2VNI2-2

  vn-segment 10210

vlan 222

  name L3VNI-2

  vn-segment 22222



hardware access-list tcam region vpc-convergence 0

hardware access-list tcam region arp-ether 256



vrf context Tenant-1

  vni 11111

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn



interface Vlan100

  no shutdown

  vrf member Tenant-1

  ip address 192.168.1.254/24

  fabric forwarding mode anycast-gateway



interface Vlan110

  no shutdown

  vrf member Tenant-1

  ip address 192.168.11.254/24

  fabric forwarding mode anycast-gateway



interface Vlan111

  no shutdown

  vrf member Tenant-1

  no ip redirects

  ip forward





vrf context Tenant-2

  vni 22222

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn

!

interface Vlan200

  no shutdown

  vrf member Tenant-2

  ip address 192.168.2.254/24

  fabric forwarding mode anycast-gateway



interface Vlan210

  no shutdown

  vrf member Tenant-2

  ip address 192.168.21.254/24

  fabric forwarding mode anycast-gateway



interface Vlan222

  no shutdown

  vrf member Tenant-2

  no ip redirects

  ip forward





interface nve1

  no shutdown

  host-reachability protocol bgp

  source-interface loopback0

  member vni 10100

    suppress-arp

    mcast-group 225.1.1.1

  member vni 10110

    mcast-group 225.1.1.11

  member vni 10200

    suppress-arp

    mcast-group 225.1.1.2

  member vni 10210

    mcast-group 225.1.1.21

  member vni 11111 associate-vrf

  member vni 22222 associate-vrf





evpn

  vni 10100 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10110 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10200 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10210 l2

    rd auto

    route-target import auto

    route-target export auto





------------------------------------------- DC1 --------------------------------------------------



DC1-Spine1

interface Ethernet1/1

  no switchport

  ip address 17.1.1.1/24

  no shutdown





DC1-Leaf1

vlan 200

  name L2VNI1-2

  vn-segment 10200

vlan 210

  name L2VNI2-2

  vn-segment 10210

vlan 222

  name L3VNI-2

  vn-segment 22222



vrf context Tenant-2

  vni 22222

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn

!

interface Vlan200

  no shutdown

  vrf member Tenant-2

  ip address 192.168.2.254/24

  fabric forwarding mode anycast-gateway

!

interface Vlan210

  no shutdown

  vrf member Tenant-2

  ip address 192.168.21.254/24

  fabric forwarding mode anycast-gateway

!

interface Vlan222

  no shutdown

  vrf member Tenant-2

  no ip redirects

  ip forward



interface nve1

  no shutdown

  host-reachability protocol bgp

  source-interface loopback0

  member vni 10100

    suppress-arp

    mcast-group 225.1.1.1

  member vni 10110

    mcast-group 225.1.1.11

  member vni 10200

    suppress-arp

    mcast-group 225.1.1.2

  member vni 10210

    mcast-group 225.1.1.21

  member vni 11111 associate-vrf

  member vni 22222 associate-vrf





evpn

  vni 10100 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10110 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10200 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10210 l2

    rd auto

    route-target import auto

    route-target export auto





DC1-Leaf2

vlan 200

  name L2VNI1-2

  vn-segment 10200

vlan 210

  name L2VNI2-2

  vn-segment 10210

vlan 222

  name L3VNI-2

  vn-segment 22222



vrf context Tenant-2

  vni 22222

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn

!

interface Vlan200

  no shutdown

  vrf member Tenant-2

  ip address 192.168.2.254/24

  fabric forwarding mode anycast-gateway

!

interface Vlan210

  no shutdown

  vrf member Tenant-2

  ip address 192.168.21.254/24

  fabric forwarding mode anycast-gateway

!

interface Vlan222

  no shutdown

  vrf member Tenant-2

  no ip redirects

  ip forward





interface nve1

  no shutdown

  host-reachability protocol bgp

  source-interface loopback0

  member vni 10100

    suppress-arp

    mcast-group 225.1.1.1

  member vni 10110

    mcast-group 225.1.1.11

  member vni 10200

    suppress-arp

    mcast-group 225.1.1.2

  member vni 10210

    mcast-group 225.1.1.21

  member vni 11111 associate-vrf

  member vni 22222 associate-vrf





evpn

  vni 10100 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10110 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10200 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10210 l2

    rd auto

    route-target import auto

    route-target export auto





interface Ethernet1/2

  switchport access vlan 200

!

interface Ethernet1/3

  switchport access vlan 100









--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



VXLAN Multi-Site Deployment Part 2



Route type 4 is election for DF among BGWs(different PIP) in same site-id;

VXLAN EVPN Multi-Site



From <https://nwktimes.blogspot.com/2019/08/vxlan-evpn-multi-site.html>


----------------------------------------------DC2 --------------------------------------------------



SuperSpine-RS



interface Ethernet1/1

  no switchport

  ip address 17.1.1.7/24

  no shutdown

!

interface Ethernet1/2

  no switchport

  ip address 47.1.1.7/24

  no shutdown

!

interface loopback0

  ip address 7.7.7.7/32 tag 1234



nv overlay evpn

feature bgp



route-map REDIST-TO-BGP permit 10

  match tag 1234

route-map RETAIN-NEXT-HOP permit 10

  set ip next-hop unchanged

!

router bgp 777

  router-id 7.7.7.7

  address-family ipv4 unicast

    redistribute direct route-map REDIST-TO-BGP

  address-family l2vpn evpn

    retain route-target all                                       //Route server has no tenant, retain RTs from DCs; default remove all RTs

  template peer Control-Plane                            // overlay template

    update-source loopback0

    ebgp-multihop 5

    address-family l2vpn evpn

      send-community

      send-community extended                             //send community attributes

      route-map RETAIN-NEXT-HOP out               /  Route server next hop un-change; ebgp default will change nexthop

  neighbor 11.11.11.11                                         // DC1 BGW/Spine loopback

    inherit peer Control-Plane

    remote-as 100

    address-family l2vpn evpn

      rewrite-evpn-rt-asn                                       // ASN:RTs rewrite to local; 100 -> 200; normalizing the outgoing RT's AS number to match the remote AS number. Uses bgp configured neighbors remote AS

  neighbor 17.1.1.1                                              // phy interface as update source

    remote-as 100

    address-family ipv4 unicast

  neighbor 44.44.44.44                                        //  DC2 BGW/Spine loopback

    inherit peer Control-Plane

    remote-as 200

    address-family l2vpn evpn

      rewrite-evpn-rt-asn                                       // ASN:RTs rewrite to local; 200 -> 100

  neighbor 47.1.1.1                                              // phy interface as update source

    remote-as 200

    address-family ipv4 unicast





DC1-Spine1 as BGW

interface loopback0                                             // PIP(Primary IP) NVE interface update source; local site; must advertise out to DCI due to BUM source update address

  description VTEP-IP

  ip address 1.1.1.1/32 tag 1234

!

interface loopback100                                        // EBGP EVPN update source to SuperSpine-RS

  description EBGP-L2VPN-source

  ip address 11.11.11.11/32 tag 1234

!

interface loopback101                                       // BGW VIP in same site; a Site maximum support 4 BGW share same VIP

  description Anycast-BGW-IP

  ip address 101.101.101.101/32 tag 1234

  ip router ospf 1 area 0.0.0.0                           // Received tables change to next hop address (VIP), must be in OSPF



route-map REDIST-TO-BGP permit 10

  match tag 1234



router bgp 100

  address-family ipv4 unicast

    redistribute direct route-map REDIST-TO-BGP    // ebgp advertise Loopback0, 100, 101

  neighbor 17.1.1.7

    remote-as 777

    address-family ipv4 unicast





DC-Spine1# show ip bgp summary

…

Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd

17.1.1.7        4   777       9       8        7    0    0 00:02:17 1



DC-Spine1# show ip route 7.7.7.7

…

7.7.7.7/32, ubest/mbest: 1/0

     *via 17.1.1.7, [20/0], 00:02:38, bgp-100, external, tag 777





                                                                                                                               // enable VXLAN and make a BGW as Leaf for VXLAN encapsulation/decapsulation

feature nv overlay

feature vn-segment-vlan-based

feature interface-vlan

feature fabric forwarding



fabric forwarding anycast-gateway-mac 0000.2222.3333                       //BGW doesn't connect clients, no need.  But need L3VNI

hardware access-list tcam region vpc-convergence 0

hardware access-list tcam region arp-ether 256



     // only extend Tenant-1 for now

vlan 100

  name L2VNI1

  vn-segment 10100

vlan 110

  name L2VNI2

  vn-segment 10110

vlan 111

  name L3VNI

  vn-segment 11111

!

vrf context Tenant-1

  vni 11111

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn

!

interface Vlan111                                                                                           // L3VNI SVI required; L3VNI must forward VXLAN;

  no shutdown

  vrf member Tenant-1

  no ip redirects

  ip forward                                                                                                     // L3 interface; for L3 routes



// no need for L2 Interfaces/anycast gateway



evpn                                                                                                                 //L2 VNI RT attributes

  vni 10100 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10110 l2

    rd auto

    route-target import auto

    route-target export auto





router bgp 100

  neighbor 7.7.7.7                                                         // evpn neighbour to router server

    remote-as 777

    update-source loopback100                                  // EBGP EVPN update source to SuperSpine-RS

    ebgp-multihop 5

    peer-type fabric-external                                       // external interconection; bgw changes next-hop to VIP as BGW device   end

    address-family l2vpn evpn

      send-community

      send-community extended

      rewrite-evpn-rt-asn                                               // rewrite RT to local AS



evpn multisite border-gateway 11                           // All BGWs site ID 11 is the same in the same site due to election for which L2VNI DF (in the same VIP) forward BUM traffic

  delay-restore time 30



interface nve1

  no shutdown

  host-reachability protocol bgp

  source-interface loopback0                                                  // PIP interface

  multisite border-gateway interface loopback101           // Assign which interface as VIP address

  member vni 10100

    multisite ingress-replication                                              // BUM internal site through DCI links for unicast instead of multicast (within site); route type 3 BGP update

    mcast-group 225.1.1.1

  member vni 10110

    multisite ingress-replication                                             // BUM internal site through DCI links for unicast instead of multicast (within site); route type 3 BGP update

    mcast-group 225.1.1.11

  member vni 11111 associate-vrf



interface Ethernet1/1

  evpn multisite dci-tracking                                                 // Track interface to DCI; if link down, multisite down & it is not a legit BGW anymore, no forwarding; update tables withdraw

!

interface Ethernet1/2-3

  evpn multisite fabric-tracking


// When all of the DCI links of BGW are down, it stops advertising VIP address to Intra-Site peer just like in case of previously discussed Fabric-Link failure. Naturally, it also stops advertising routes learned via DCI link due to link failure. What it still does, it continues acting as a regular Leaf switch. If it has connected hosts or external peers, it continues to advertise prefix attached/learned from those.



From <https://nwktimes.blogspot.com/2019/08/vxlan-evpn-multi-site.html>









DC2-Spine1 as BGW





interface loopback0

  description vtep-ip

  ip address 4.4.4.4/32 tag 1234

!

interface loopback100

  description ebgp-source

  ip address 44.44.44.44/32 tag 1234

!

interface loopback202

  description anycast-bgw

  ip address 202.202.202.202/32 tag 1234

  ip router ospf 1 area 0



route-map REDIST-TO-BGP permit 10

  match tag 1234



router bgp 200

  router-id 4.4.4.4

  address-family ipv4 unicast

    redistribute direct route-map REDIST-TO-BGP

  neighbor 47.1.1.7

    remote-as 777

    address-family ipv4 unicast



feature nv overlay

feature vn-segment-vlan-based

feature interface-vlan

feature fabric forwarding





vlan 100

  name L2VNI1

  vn-segment 10100

vlan 110

  name L2VNI2

  vn-segment 10110

vlan 111

  name L3VNI

  vn-segment 11111



vrf context Tenant-1

  vni 11111

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn



interface Vlan111

  no shutdown

  vrf member Tenant-1

  no ip redirects

  ip forward



interface nve1

  no shutdown

  host-reachability protocol bgp

  source-interface loopback0

  multisite border-gateway interface loopback202

  member vni 10100

    multisite ingress-replication

    mcast-group 225.1.1.1

  member vni 10110

    multisite ingress-replication

    mcast-group 225.1.1.11

  member vni 11111 associate-vrf



evpn

  vni 10100 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10110 l2

    rd auto

    route-target import auto

    route-target export auto



router bgp 200

  neighbor 7.7.7.7

    remote-as 777

    update-source loopback100

    ebgp-multihop 5

    peer-type fabric-external

    address-family l2vpn evpn

      send-community

      send-community extended

      rewrite-evpn-rt-asn



evpn multisite border-gateway 22

  delay-restore time 30





interface Ethernet1/1

  evpn multisite dci-tracking

!

interface Ethernet1/2-3

  evpn multisite fabric-tracking







//SuperSpine-RS establishes 2 IPV4 bgp and 2 evpn bgp sessions

SuperSpine-RS# show bgp sessions

…

Neighbor        ASN    Flaps LastUpDn|LastRead|LastWrit St Port(L/R)  Notif(S/R)

11.11.11.11       100 0     04:27:42|00:00:51|00:00:50 E   179/50821      0/0                                     // evpn   E state

17.1.1.1          100 0     22:32:36|00:00:52|00:00:53 E   179/36619      0/0                                        // IPv4  E state

44.44.44.44       200 0     01:46:50|00:00:45|00:00:29 E   179/48265      0/0                                    // evpn   E state

47.1.1.1          200 0     02:04:59|00:00:53|00:00:57 E   179/21160      0/0                                       // IPv4   E state





// SuperSpine-RS receives both DC EVPN update

SuperSpine-RS# show bgp l2vpn  evpn

…

*>e[2]:[0]:[0]:[48]:[0050.7966.680e]:[32]:[192.168.1.100]/272

                      101.101.101.101       2000                     0 100 i



…

*>e[2]:[0]:[0]:[48]:[0050.7966.6810]:[32]:[192.168.1.111]/272

                      101.101.101.101       2000                     0 100 i

…

…

*>e[2]:[0]:[0]:[48]:[0050.7966.6811]:[32]:[192.168.1.200]/272

                      202.202.202.202       2000                     0 200 i





// DC2-Spine1 received DC1 update, next hop to DC1's BGW 101.101.101.101

DC2-Spine1# show bgp l2vpn evpn

…

*>e[2]:[0]:[0]:[48]:[0050.7966.680e]:[32]:[192.168.1.100]/272

                      101.101.101.101                                0 777 100 i

…

*>e[2]:[0]:[0]:[48]:[0050.7966.6810]:[32]:[192.168.1.111]/272

                      101.101.101.101





//DC2 Leaf1 received DC1 updates from DC2's BGW; next hop changes to 202.202.202.202

DC2-Leaf1# show bgp l2 evpn
…

*>i[2]:[0]:[0]:[48]:[0050.7966.6810]:[32]:[192.168.1.111]/272

                      202.202.202.202                   100          0 777 100 i

…

*>i[2]:[0]:[0]:[48]:[0050.7966.680e]:[32]:[192.168.1.100]/272

                      202.202.202.202                   100          0 777 100 i

…

*>l[2]:[0]:[0]:[48]:[0050.7966.6811]:[32]:[192.168.1.200]/272

                      5.5.5.5                           100      32768 i







//DC1-Leaf1 also receives update from DC2

DC1-Leaf1# show bgp l2vpn evpn

…

*>i[2]:[0]:[0]:[48]:[0050.7966.6811]:[32]:[192.168.1.200]/272

                      101.101.101.101                   100          0 777 200 I







DC1-Sev-T1> ping 192.168.1.200



84 bytes from 192.168.1.200 icmp_seq=1 ttl=64 time=158.149 ms

84 bytes from 192.168.1.200 icmp_seq=2 ttl=64 time=33.161 ms

84 bytes from 192.168.1.200 icmp_seq=3 ttl=64 time=30.136 ms

84 bytes from 192.168.1.200 icmp_seq=4 ttl=64 time=28.604 ms

84 bytes from 192.168.1.200 icmp_seq=5 ttl=64 time=91.652 ms





DC2-SER-T1> ping 192.168.1.100



84 bytes from 192.168.1.100 icmp_seq=1 ttl=64 time=55.927 ms

84 bytes from 192.168.1.100 icmp_seq=2 ttl=64 time=29.083 ms

84 bytes from 192.168.1.100 icmp_seq=3 ttl=64 time=36.205 ms

84 bytes from 192.168.1.100 icmp_seq=4 ttl=64 time=30.240 ms

84 bytes from 192.168.1.100 icmp_seq=5 ttl=64 time=32.530 ms



DC2-SER-T1> ping 192.168.1.111



84 bytes from 192.168.1.111 icmp_seq=1 ttl=64 time=153.937 ms

84 bytes from 192.168.1.111 icmp_seq=2 ttl=64 time=30.933 ms

84 bytes from 192.168.1.111 icmp_seq=3 ttl=64 time=33.956 ms

84 bytes from 192.168.1.111 icmp_seq=4 ttl=64 time=41.276 ms

84 bytes from 192.168.1.111 icmp_seq=5 ttl=64 time=27.872 ms





DC2-Spine1# show nve peers

Interface Peer-IP          State LearnType Uptime   Router-Mac

--------- ---------------  ----- --------- -------- -----------------

nve1      1.1.1.1          Up    CP        00:39:08 n/a

nve1      5.5.5.5          Up    CP        00:38:57 5000.0008.0007

nve1      101.101.101.101  Up    CP        00:39:08 0200.6565.6565







DC1-Leaf1# show ip route vrf tenant-1

…

192.168.1.100/32, ubest/mbest: 1/0, attached

    *via 192.168.1.100, Vlan100, [190/0], 1d23h, hmm

192.168.1.111/32, ubest/mbest: 1/0

    *via 3.3.3.3%default, [200/0], 1d21h, bgp-100, internal, tag 100 (evpn) segid: 11111 tunnelid: 0x3030303 encap: VXLAN

192.168.1.200/32, ubest/mbest: 1/0

    *via 101.101.101.101%default, [200/0], 15:39:29, bgp-100, internal, tag 777 (evpn) segid: 11111 tunnelid: 0x65656565 encap: VXLAN

…











--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



VXLAN Multi-Tenant Design 1 -Firewall Insert

Centralized gateway VXLAN different tenants communications concerns:

• Tenants communications between Border or service leaf nodes

• Remote/other leaf nodes make traffic to border leaf



Tenant 1	192.168.1.0 192.168.11.0
Tenant 2	192.168.2.0 192.168.21.0







DC1-ASAv

interface GigabitEthernet0/0

 nameif T1

 security-level 50

 ip address 192.168.11.253 255.255.255.0

No shut

!

interface GigabitEthernet0/1

 nameif T2

 security-level 100

 ip address 192.168.21.253 255.255.255.0

No shut



route T1 192.168.1.0 255.255.255.0 192.168.11.254 1

route T2 192.168.2.0 255.255.255.0 192.168.21.254 1



access-list permit-all extended permit ip any any

access-group permit-all in interface T1







DC1-Leaf1



interface Ethernet1/3

  description T1-ASAv

  switchport access vlan 110

!

interface Ethernet1/4

  description T2-ASAv

  switchport access vlan 210



vrf context Tenant-1

  ip route 192.168.2.0/24 192.168.11.253

!

vrf context Tenant-2

  ip route 192.168.1.0/24 192.168.21.253



// static routes will generate route type 5 evpn update to other remote VTEPs



DC1-Leaf1# ping 192.168.21.253 vrf tenant-2

PING 192.168.21.253 (192.168.21.253): 56 data bytes

64 bytes from 192.168.21.253: icmp_seq=0 ttl=254 time=33.027 ms

64 bytes from 192.168.21.253: icmp_seq=1 ttl=254 time=6.36 ms

64 bytes from 192.168.21.253: icmp_seq=2 ttl=254 time=7.484 ms

64 bytes from 192.168.21.253: icmp_seq=3 ttl=254 time=5.234 ms

64 bytes from 192.168.21.253: icmp_seq=4 ttl=254 time=5.183 ms



DC1-Leaf1# ping 192.168.11.254 vrf tenant-1

PING 192.168.11.254 (192.168.11.254): 56 data bytes

64 bytes from 192.168.11.254: icmp_seq=0 ttl=255 time=7.156 ms

64 bytes from 192.168.11.254: icmp_seq=1 ttl=255 time=2.957 ms

64 bytes from 192.168.11.254: icmp_seq=2 ttl=255 time=0.385 ms

64 bytes from 192.168.11.254: icmp_seq=3 ttl=255 time=0.968 ms

64 bytes from 192.168.11.254: icmp_seq=4 ttl=255 time=0.69 ms





ip access-list D2_T1

  10 permit ip 192.168.1.0/24 any

ip access-list D2_T2

  10 permit ip 192.168.2.0/24 any

!

route-map D2_T2 permit 10

  match ip address D2_T2

route-map D2_T1 permit 10

  match ip address D2_T1



router bgp 100

  vrf Tenant-1

    address-family ipv4 unicast

      redistribute static route-map D2_T2

  vrf Tenant-2

    address-family ipv4 unicast

      redistribute static route-map D2_T1





// DC1-Leaf2 have received bgp updates in both tenants

DC1-Leaf2# show ip route 192.168.2.0 vrf tenant-1

…

192.168.2.0/24, ubest/mbest: 1/0

    *via 2.2.2.2%default, [200/0], 00:01:30, bgp-100, internal, tag 100 (evpn) s

egid: 11111 tunnelid: 0x2020202 encap: VXLAN



DC1-Leaf2# show ip route 192.168.1.0 vrf tenant-2

…

192.168.1.0/24, ubest/mbest: 1/0

    *via 2.2.2.2%default, [200/0], 00:41:46, bgp-100, internal, tag 100 (evpn) s

egid: 22222 tunnelid: 0x2020202 encap: VXLAN





// DC1-Leaf2 have EVPN routes (static) as type 5

DC1-Leaf2# show bgp l2 evpn route-type 5

BGP routing table information for VRF default, address family L2VPN EVPN

Route Distinguisher: 2.2.2.2:3

BGP routing table entry for [5]:[0]:[0]:[24]:[192.168.2.0]/224, version 35143

Paths: (1 available, best #1)

Flags: (0x000002) (high32 00000000) on xmit-list, is not in l2rib/evpn, is not i

n HW



  Advertised path-id 1

  Path type: internal, path is valid, is best path, no labeled nexthop

             Imported to 1 destination(s)

  Gateway IP: 0.0.0.0

  AS-Path: NONE, path sourced internal to AS

    2.2.2.2 (metric 81) from 1.1.1.1 (1.1.1.1)

      Origin incomplete, MED 0, localpref 100, weight 0

      Received label 11111

      Extcommunity: RT:100:11111 ENCAP:8 Router MAC:5000.0007.0007

      Originator: 2.2.2.2 Cluster list: 1.1.1.1



  Path-id 1 not advertised to any peer



Route Distinguisher: 2.2.2.2:4

BGP routing table entry for [5]:[0]:[0]:[24]:[192.168.1.0]/224, version 35014

Paths: (1 available, best #1)

Flags: (0x000002) (high32 00000000) on xmit-list, is not in l2rib/evpn, is not i

n HW



  Advertised path-id 1

  Path type: internal, path is valid, is best path, no labeled nexthop

             Imported to 1 destination(s)

  Gateway IP: 0.0.0.0

  AS-Path: NONE, path sourced internal to AS

    2.2.2.2 (metric 81) from 1.1.1.1 (1.1.1.1)

      Origin incomplete, MED 0, localpref 100, weight 0

      Received label 22222

      Extcommunity: RT:100:22222 ENCAP:8 Router MAC:5000.0007.0007

      Originator: 2.2.2.2 Cluster list: 1.1.1.1



  Path-id 1 not advertised to any peer









DC1-XP-T1> ping 192.168.2.100



84 bytes from 192.168.2.100 icmp_seq=1 ttl=59 time=70.994 ms

84 bytes from 192.168.2.100 icmp_seq=2 ttl=59 time=45.666 ms

84 bytes from 192.168.2.100 icmp_seq=3 ttl=59 time=76.157 ms

84 bytes from 192.168.2.100 icmp_seq=4 ttl=59 time=69.631 ms

84 bytes from 192.168.2.100 icmp_seq=5 ttl=59 time=46.373 ms



DC1-XP-T1> trace 192.168.2.100

trace to 192.168.2.100, 8 hops max, press Ctrl+C to stop

 1   192.168.1.254   6.524 ms  4.892 ms  4.671 ms

 2   0.0.0.0   15.516 ms  8.592 ms  7.993 ms

 3   192.168.1.254   13.693 ms  10.957 ms  12.598 ms

 4   192.168.21.254   29.353 ms  29.364 ms  23.273 ms

 5   192.168.2.254   34.362 ms  35.954 ms  37.087 ms

 6   *192.168.2.100   33.560 ms (ICMP type:3, code:3, Destination port unreachable)







// DC2-LEAF1 has 192.168.2.0 in tenant 1 but NOT 192.168.1.0 in tenant 2 because DCI only allows tenant 1

DC2-Leaf1# show ip route 192.168.2.0 vrf tenant-1

IP Route Table for VRF "Tenant-1"

'*' denotes best ucast next-hop

'**' denotes best mcast next-hop

'[x/y]' denotes [preference/metric]

'%<string>' in via output denotes VRF <string>



192.168.2.0/24, ubest/mbest: 1/0

    *via 202.202.202.202%default, [200/0], 00:08:01, bgp-200, internal, tag 777

(evpn) segid: 11111 tunnelid: 0xcacacaca encap: VXLAN





DC2-Leaf1# show ip route 192.168.1.0 vrf tenant-2

IP Route Table for VRF "Tenant-2"

'*' denotes best ucast next-hop

'**' denotes best mcast next-hop

'[x/y]' denotes [preference/metric]

'%<string>' in via output denotes VRF <string>



Route not found



// Tenant 1 in DC2 still able to ping Tenant 2 endpoints;   DC2-Leaf1 --> DC2-Spine1 --> SuperSpine -> DC1-Spine1 -> DC1-Leaf1 --> Tenant2

// question: T2 hosts in DC2, can ping T1 hosts? What is the issue; how to fix?

// Tenant 2 in DC2 can't ping Tenant 1 endpoints; because DC2 Leafs don't have routes to 192.168.2.0; so we need to make DCI for Tenant2

DC2-SER-T1> ping 192.168.2.100



84 bytes from 192.168.2.100 icmp_seq=1 ttl=58 time=141.304 ms

84 bytes from 192.168.2.100 icmp_seq=2 ttl=58 time=58.860 ms

84 bytes from 192.168.2.100 icmp_seq=3 ttl=58 time=92.792 ms

84 bytes from 192.168.2.100 icmp_seq=4 ttl=58 time=58.596 ms

84 bytes from 192.168.2.100 icmp_seq=5 ttl=58 time=75.839 ms









--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Custom Tenant Internet Access



Centralized route leaking scenario:

• Host route communication between different tenants on same leaf

• Host route communication between different tenants on different leafs

• A host communication with another host in different tenants through external network


Leveraging import and export RT attributes to achieve routes advertisement in different tenants



Centralized route leaking uses default route for traffic goes to border Leaf node



Every VRF in each leaf has to configure route leaking used for leaking RT attributes



Hosts route on local leaf (HMM type) does not leak on its own leaf node. Redistribution of HMM is needed.

At Different VRF routes on local leaf node, it routes to centralized border node through a default route and then forwarded to border node; routes the traffic as route table on border node.





Tenant 3 : Share tenant for internet at DC2

Tenant 4 : Share tenant for internet at DC1





Requirement 1: Border leaf T3 Internet





DC2-Leaf1, DC2-BorderLeaf:

vlan 300

  name L2VNI1-3

  vn-segment 10300

vlan 310

  name L2VNI2-3

  vn-segment 10310

vlan 333

  name L3VNI-3

  vn-segment 33333



vrf context tenant-3

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn

  vni 33333





interface Vlan300

  no shutdown

  vrf member tenant-3

  ip address 192.168.3.254/24

  fabric forwarding mode anycast-gateway

!

interface Vlan310

  no shutdown

  vrf member tenant-3

  ip address 192.168.31.254/24

  fabric forwarding mode anycast-gateway

!

interface Vlan333

  no shutdown

  vrf member tenant-3

  no ip redirects

  ip forward



interface nve1

  member vni 10300

    mcast-group 225.1.1.3

  member vni 10310

    mcast-group 225.1.1.31

  member vni 33333 associate-vrf



evpn

  vni 10300 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10310 l2

    rd auto

    route-target import auto

    route-target export auto





DC2-Leaf1 only

interface Ethernet1/3

  switchport access vlan 300







DC2-Spine1

vlan 333

  name L3VNI-3

  vn-segment 33333



vrf context tenant-3

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn

  vni 33333



interface Vlan333

  no shutdown

  vrf member tenant-3

  no ip redirects

  ip forward



interface nve1

  member vni 33333 associate-vrf





Cloud-WAN



interface GigabitEthernet0/3

 ip address 128.61.0.254 255.255.255.240

 no ip proxy-arp

 no  shutdown

!

interface GigabitEthernet0/0

 ip address 63.130.0.254 255.255.255.0



ip route 128.61.0.0 255.255.255.252 128.61.0.253





DC2-WAN



interface GigabitEthernet0/2

 ip address 128.61.0.253 255.255.255.240

 no ip proxy-arp

  no  shutdown

!

interface GigabitEthernet0/3

 ip address 128.61.0.2 255.255.255.252

 no ip proxy-arp

 ip ospf network point-to-point

 no  shutdown



router ospf 1

 network 128.61.0.0 0.0.0.3 area 0

 default-information originate



ip route 0.0.0.0 0.0.0.0 128.61.0.254





DC2-BorderLeaf

// based on per vrf lite, DC2-Borderleaf connects to WAN Router or Edge Router



interface Ethernet1/2

  no switchport

  vrf member tenant-3

  ip address 128.61.0.1/30

  ip ospf network point-to-point

  ip router ospf 1 area 0.0.0.0

  no shutdown



route-map rmap-BGP-to-OSPF permit 10

  match route-type internal

route-map rmap-OSPF-to-BGP permit 10                                                               // Match any



router bgp 200

  vrf tenant-3

    address-family ipv4 unicast

      network 0.0.0.0/0                                                                                                 // Even though default route learned from WAN but still need to network a default route, otherwise it can't redistribute

      redistribute ospf 1 route-map rmap-OSPF-to-BGP                                        // Redistribute all OSPF internal routes into BGP; default route into BGP to other leafs



router ospf 1

  vrf tenant-3

    redistribute bgp 200 route-map rmap-BGP-to-OSPF                                      //  Redistribute all tenant 3 routes to OSPF to WAN

    summary-address 192.168.3.0/24                                                                     //  Summary tenant 3 routes; all routes ends to DC2-WAN and will not populate to Cloud-WAN



// 1. If leverage iGP to WAN, it needs to redistribute OSPF into BGP, vise versa, if leverage eBGP,  it doesn't have to redistribute, because iBGP populates to eBGP.

// 2.  Many ways to use route-maps, match route-type internal is one of them.





DC2-WAN#show ip route

…

O E2  192.168.3.0/24 [110/1] via 128.61.0.1, 00:01:48, GigabitEthernet0/3



DC2-BorderLeaf# show ip route vrf tenant-3

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 128.61.0.2, Eth1/2, [110/1], 02:02:30, ospf-1, type-2, tag 1

…



DC2-Leaf1# show ip route vrf tenant-3

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 00:37:34, bgp-200, internal, tag 200 (evpn) segid: 33333 tunnelid: 0x6060606 encap: VXLAN

…



DC2-Leaf1# show bgp vpnv4 unicast vrf tenant-3

…

   Network            Next Hop            Metric     LocPrf     Weight Path

Route Distinguisher: 5.5.5.5:5    (VRF tenant-3)

*>i0.0.0.0/0          6.6.6.6                           100          0 i





BGP L2VPN EVPN

BGP VPNV4 Unicast                   // type 5

IP Route                                       // best/optimal route table





DC2-Spine1# show ip route vrf tenant-3

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 01:26:21, bgp-200, internal, tag 200 (evpn) segid: 33333 tunnelid: 0x6060606 encap: VXLAN



192.168.3.100/32, ubest/mbest: 1/0

    *via 5.5.5.5%default, [200/0], 00:51:38, bgp-200, internal, tag 200 (evpn) segid: 33333 tunnelid: 0x5050505 encap: VXLAN







DC2-WAN configure NAT address translation



• public address 128.61.0.252 static translate for 192.168.3.100

• Public address 128.61.0.253 port 80 translated to internal address 192.168.1.200 port 80







DC2-WAN



interface GigabitEthernet0/2

 ip nat outside

!

interface GigabitEthernet0/3

 ip nat inside



no ip http server



ip nat inside source static 192.168.1.100 128.61.0.251

ip nat inside source static tcp 192.168.1.200 80 128.61.0.253 80 extendable

ip nat inside source static 192.168.3.100 128.61.0.252









VPCS> ping 128.61.0.252



84 bytes from 128.61.0.252 icmp_seq=1 ttl=59 time=142.041 ms

84 bytes from 128.61.0.252 icmp_seq=2 ttl=59 time=22.491 ms

84 bytes from 128.61.0.252 icmp_seq=3 ttl=59 time=38.776 ms

84 bytes from 128.61.0.252 icmp_seq=4 ttl=59 time=23.589 ms

84 bytes from 128.61.0.252 icmp_seq=5 ttl=59 time=17.518 ms





DC2-T3-XP> ping  63.130.0.199



84 bytes from 63.130.0.199 icmp_seq=1 ttl=59 time=57.689 ms

84 bytes from 63.130.0.199 icmp_seq=2 ttl=59 time=26.722 ms

84 bytes from 63.130.0.199 icmp_seq=3 ttl=59 time=28.521 ms

84 bytes from 63.130.0.199 icmp_seq=4 ttl=59 time=20.654 ms

84 bytes from 63.130.0.199 icmp_seq=5 ttl=59 time=50.418 ms





DC2-WAN#show ip nat translations

Pro Inside global      Inside local       Outside local      Outside global

--- 128.61.0.251       192.168.1.100      ---                ---

tcp 128.61.0.253:80    192.168.1.200:80   ---                ---

--- 128.61.0.252       192.168.3.100      ---                ---





--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Inter-Tenant Communication and Internet Access





--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------





Requirement 1: T1 and T3 Communications and T1 access Internet via T3



• VXLAN multi-tenants design is flexible for production environment, and it meets various businesses and remains simple, easy to configure and understand.

• T3 as shared internet tenants in DC2, can be deployed with public services, such as DNS, DHCP, NTP and etc.

• T3 serves for T1,T2 and Tn multi-tenants for internet access

• Whether leaking is required is based on RT attributes between T1 and T2 or Tn

• Leveraging route-maps is ideal way to control some routes leak into other tenants



DC1-Leaf1, DC1-Leaf2 (will not be used as T3)

vlan 300

  name L2VNI1-3

  vn-segment 10300

vlan 310

  name L2VNI2-3

  vn-segment 10310

vlan 333

  name L3VNI-3

  vn-segment 33333



vrf context tenant-3

  rd auto

  address-family ipv4 unicast

    route-target both auto

    route-target both auto evpn

  vni 33333





interface Vlan300

  no shutdown

  vrf member tenant-3

  ip address 192.168.3.254/24

  fabric forwarding mode anycast-gateway

!

interface Vlan310

  no shutdown

  vrf member tenant-3

  ip address 192.168.31.254/24

  fabric forwarding mode anycast-gateway

!

interface Vlan333

  no shutdown

  vrf member tenant-3

  no ip redirects

  ip forward



interface nve1

  member vni 10300

    mcast-group 225.1.1.3

  member vni 10310

    mcast-group 225.1.1.31

  member vni 33333 associate-vrf



evpn

  vni 10300 l2

    rd auto

    route-target import auto

    route-target export auto

  vni 10310 l2

    rd auto

    route-target import auto

    route-target export auto



// then configure this:



vrf context Tenant-1

  address-family ipv4 unicast

    route-target both 100:200

    route-target both 100:200 evpn

!

vrf context tenant-3

  address-family ipv4 unicast

    route-target both 100:200

    route-target both 100:200 evpn







DC2-Leaf1 and DC2 BorderLeaf



vrf context Tenant-1

  address-family ipv4 unicast

    route-target both 200:200                                           // manual configure 200:200 RT in T1; export matches import for leaking

    route-target both 200:200 evpn                                 // Same for multisite via EVPN

!

vrf context tenant-3

  address-family ipv4 unicast

    route-target both 200:200                                           // manual configure same 200:200 RT in T3

    route-target both 200:200 evpn                                 // Same for multisite via EVPN





// Note:







DC2 BorderLeaf Only



router bgp 200

  vrf tenant-3

    address-family ipv4 unicast

      network 0.0.0.0/0                                                // Already configured in previous lab; populate default route as route-type 5 in T3



router ospf 1

  vrf tenant-3

    summary-address 192.168.1.0/24                     // T3 summary T1 subnet





// T3 default route leaked into T1; will go to T3

DC2-BorderLeaf# show ip route 0.0.0.0. vrf tenant-1

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 128.61.0.2%tenant-3, Eth1/2, [20/0], 15:48:27, bgp-200, external, tag 200



// DC2-Leaf1 T3 default route leaked into T1; will go to T3 (segid: 33333 )

DC2-Leaf1# show ip route vrf tenant-1

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 16:05:30, bgp-200, internal, tag 200 (evpn) segid: 33333 tunnelid: 0x6060606 encap: VXLAN





// T3 host route leaked into T1

DC2-BorderLeaf# show ip route 192.168.3.100 vrf tenant-1

…

192.168.3.100/32, ubest/mbest: 1/0

    *via 5.5.5.5%default, [200/0], 15:48:41, bgp-200, internal, tag 200 (evpn) segid: 33333 tunnelid: 0x5050505 encap: VXLAN



// DC1 T1 routes leaked into T3

DC2-BorderLeaf# show ip rout 192.168.1.100  vrf tenant-3

…

192.168.1.100/32, ubest/mbest: 1/0

    *via 202.202.202.202%default, [200/0], 15:45:21, bgp-200, internal, tag 777 (evpn) segid: 11111 tunnelid: 0xcacacaca encap: VXLAN



// DC2 T1 routes leaked into T3

DC2-BorderLeaf# show ip rout 192.168.1.200  vrf tenant-3

…

192.168.1.200/32, ubest/mbest: 1/0

    *via 5.5.5.5%default, [200/0], 15:52:05, bgp-200, internal, tag 200 (evpn) segid: 11111 tunnelid: 0x5050505 encap: VXLAN





// Find where default imported from

DC2-BorderLeaf# show bgp vpnv4 unicast 0.0.0.0 vrf Tenant-1

BGP routing table information for VRF default, address family VPNv4 Unicast

Route Distinguisher: 6.6.6.6:4    (VRF Tenant-1)

BGP routing table entry for 0.0.0.0/0, version 42

Paths: (1 available, best #1)

Flags: (0x8008001a) (high32 00000000) on xmit-list, is in urib, is best urib route

  vpn: version 62, (0x100002) on xmit-list



  Advertised path-id 1, VPN AF advertised path-id 1

  Path type: local, path is valid, is best path, no labeled nexthop, in rib

             Imported from 6.6.6.6:5:0.0.0.0/0 (VRF tenant-3)

  AS-Path: NONE, path locally originated

    0.0.0.0 (metric 0) from 0.0.0.0 (6.6.6.6)

      Origin IGP, MED not set, localpref 100, weight 32768

      Extcommunity: RT:200:200 RT:200:33333

…



DC2-BorderLeaf# show vrf

VRF-Name                           VRF-ID State   Reason

Tenant-1                                4 Up      --

Tenant-2                                3 Up      --

default                                 1 Up      --

management                              2 Up      --

tenant-3                                5 Up      --





// T1 Ping T3 on same leaf



DC2-T3-XP> ping 192.168.1.200



84 bytes from 192.168.1.200 icmp_seq=1 ttl=61 time=64.358 ms

84 bytes from 192.168.1.200 icmp_seq=2 ttl=61 time=26.183 ms

84 bytes from 192.168.1.200 icmp_seq=3 ttl=61 time=25.004 ms

84 bytes from 192.168.1.200 icmp_seq=4 ttl=61 time=24.237 ms

84 bytes from 192.168.1.200 icmp_seq=5 ttl=61 time=46.338 ms



DC2-T3-XP> trace 192.168.1.200

trace to 192.168.1.200, 8 hops max, press Ctrl+C to stop

 1   192.168.3.254   16.021 ms  6.328 ms  7.718 ms

 2   0.0.0.0   25.033 ms  13.286 ms  12.530 ms

 3   128.61.0.1   30.801 ms  12.114 ms  11.098 ms

 4     *  *  *

 5   192.168.1.254   18.915 ms  21.472 ms  19.290 ms

 6   *192.168.1.200   39.075 ms (ICMP type:3, code:3, Destination port unreachable)



// local leaf inter tenant communication via border leaf

DC2-Leaf1# show ip route  192.168.1.200 vrf tenant-3

…

192.168.1.0/24, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 15:52:18, bgp-200, internal, tag 200 (evpn) segid: 33333 tunnelid: 0x6060606 encap: VXLAN



--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Requirement 2: Suboptimal routing inter-tenant communication





DC1-Leaf1, DC1-Leaf2, DC2-Leaf1 and DC2 BorderLeaf  (All leafs)



// At this moment, local leaf don't have specific routes (/32 routes) to other tenants

DC2-Leaf1# show ip route 192.168.1.200 vrf tenant-3

…

192.168.1.0/24, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 17:27:58, bgp-200, internal, tag 200 (evpn) segid: 33333 tunnelid: 0x6060606 encap: VXLAN



DC2-Leaf1# show ip route 192.168.3.100 vrf tenant-1

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 17:58:21, bgp-200, internal, tag 200 (evpn) segid: 33333 tunnelid: 0x6060606 encap: VXLAN





// At all leaf redistribute local direct connected hmm routes

// Route-map matches all host routes ONLY

ip prefix-list PL_DENY_EXPORT seq 5 permit 0.0.0.0/0

route-map RM_DENY_IMPORT deny 10

  match ip address prefix-list PL_DENY_EXPORT

route-map RM_DENY_IMPORT permit 20

!

router bgp 200  / router bgp 100

  vrf Tenant-1

    address-family ipv4 unicast

      redistribute hmm route-map RM_DENY_IMPORT                 // T3 host routes redistributed into T1

  vrf tenant-3

    address-family ipv4 unicast

      redistribute hmm route-map RM_DENY_IMPORT                 // T1 host routes redistributed into T3





// ebgp /32 routes

DC2-Leaf1# show ip route 192.168.1.200 vrf tenant-3

192.168.1.200/32, ubest/mbest: 1/0, attached

    *via 192.168.1.200%Tenant-1, Vlan100, [20/0], 00:01:57, bgp-200, external, tag 200



DC2-Leaf1#  show ip route 192.168.3.100 vrf tenant-1

…

192.168.3.100/32, ubest/mbest: 1/0, attached

    *via 192.168.3.100%tenant-3, Vlan300, [20/0], 00:01:43, bgp-200, external, tag 200





// traffic inter-tenant directly via local leaf; ttl is 63

DC2-T3-XP> ping 192.168.1.200



84 bytes from 192.168.1.200 icmp_seq=1 ttl=63 time=17.641 ms

84 bytes from 192.168.1.200 icmp_seq=2 ttl=63 time=11.193 ms

84 bytes from 192.168.1.200 icmp_seq=3 ttl=63 time=9.082 ms

84 bytes from 192.168.1.200 icmp_seq=4 ttl=63 time=15.607 ms

84 bytes from 192.168.1.200 icmp_seq=5 ttl=63 time=17.565 ms



DC2-T3-XP> trace 192.168.1.200

trace to 192.168.1.200, 8 hops max, press Ctrl+C to stop

 1   192.168.3.254   9.265 ms  6.003 ms  4.693 ms

 2   *192.168.1.200   10.241 ms (ICMP type:3, code:3, Destination port unreachable)









--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------





Requirement 3: Inter-Tenants communications across DCs
DC1 has no turn routes to Tenant-3



// DC2-T3 can't ping 192.168.1.100 in DC1 while DC2-Leaf1 has host route



DC2-T3-XP> ping 192.168.1.100



192.168.1.100 icmp_seq=1 timeout

192.168.1.100 icmp_seq=1 timeout

192.168.1.100 icmp_seq=1 timeout





// DC2-Leaf1 sends to borderleaf as/32 host route

DC2-Leaf1# show ip route 192.168.1.100 vrf tenant-3

…

192.168.1.100/32, ubest/mbest: 1/0

    *via 202.202.202.202%default, [200/0], 20:03:29, bgp-200, internal, tag 777 (evpn) segid: 11111 tunnelid: 0xcacacaca encap: VXLAN



// DC2-BorderLeaf sends back to 202.202.202.202 (DC2-Spine1 Anycast-BGW)

DC2-BorderLeaf# show ip route 192.168.1.100 vrf tenant-3

..

192.168.1.100/32, ubest/mbest: 1/0

    *via 202.202.202.202%default, [200/0], 22:40:22, bgp-200, internal, tag 777 (evpn) segid: 11111 tunnelid: 0xcacacaca encap: VXLAN





DC-Spine1# show ip route 192.168.1.100 vrf tenant-1

….

192.168.1.100/32, ubest/mbest: 1/0

    *via 2.2.2.2%default, [200/0], 23:38:05, bgp-100, internal, tag 100 (evpn) segid: 11111 tunnelid: 0x2020202 encap: VXLAN





DC1-Leaf1# show ip route 192.168.1.100 vrf tenant-1

192.168.1.100/32, ubest/mbest: 1/0, attached

    *via 192.168.1.100, Vlan100, [190/0], 1w2d, hmm



Why DC1 has no routes?

// DC1-Leafs have no route to 192.168.3.100



DC1-Leaf1# show ip route 192.168.3.100 vrf tenant-1

…

Route not found





DC1-Leaf2#  show ip route 192.168.3.100 vrf tenant-1

…

Route not found



// DC1-Leafs even has no default route



DC1-Leaf1# show ip route 0.0.0.0  vrf tenant-1

…

Route not found





DC2-T3-XP> ping 192.168.1.100

192.168.1.100 icmp_seq=1 timeout

192.168.1.100 icmp_seq=2 timeout

192.168.1.100 icmp_seq=3 timeout



DC2-T3-XP> ping 192.168.1.111

192.168.1.111 icmp_seq=1 timeout

192.168.1.111 icmp_seq=2 timeout

192.168.1.111 icmp_seq=3 timeout





// DCI doesn't support Tennant-3 yet; Default route leaking should also apply to /32 host route

// T3 redistributes default route into T1, T1 will not populate to others; unless it is origin

// DC2-Leaf1 will not populate default route to others;

// DC2-BorderLeaf will not populate to others either; it is not RR or BGW



DC2 BorderLeaf



// eBGP default route from T3 to T1 filter out. And then add T1 originate a defaults route to T3



ip prefix-list PL_DENY_EXPORT seq 5 permit 0.0.0.0/0

route-map RM_DENY_IMPORT deny 10

  match ip address prefix-list PL_DENY_EXPORT

route-map RM_DENY_IMPORT permit 20





vrf context Tenant-1

  ip route 0.0.0.0/0 Vlan333 vrf tenant-3                          // add new default route to T3; Vlan333 is T3 VNI-L3 interface

  address-family ipv4 unicast

    import map RM_DENY_IMPORT                                    // Filter out default route from T3



router bgp 200

  vrf Tenant-1

    address-family ipv4 unicast

      network 0.0.0.0/0                                                           // default route origin





// default route was seg-id 33333, now IT becomes origin segid: 11111 from T1 itself; next-hop border leaf

DC2-Leaf1# show ip route vrf tenant-3

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 00:16:27, bgp-200, internal, tag 200 (evpn) segid: 11111 tunnelid: 0x6060606 encap: VXLAN



// DC2-Spine1 has the default route also

DC2-Spine1# show ip route vrf tenant-1

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 00:19:22, bgp-200, internal, tag 200 (evpn) segid: 11111 tunnelid: 0x6060606 encap: VXLAN





// DC2 T3 host can ping DC1 T1 host now.

DC2-T3-XP> ping 192.168.1.100



84 bytes from 192.168.1.100 icmp_seq=1 ttl=58 time=65.516 ms

84 bytes from 192.168.1.100 icmp_seq=2 ttl=58 time=43.809 ms

84 bytes from 192.168.1.100 icmp_seq=3 ttl=58 time=45.251 ms

84 bytes from 192.168.1.100 icmp_seq=4 ttl=58 time=40.493 ms

84 bytes from 192.168.1.100 icmp_seq=5 ttl=58 time=42.847 ms





// DC1-Leaf1 has default route to DC2 T3 host; segid 111

DC1-Leaf1# show ip route 192.168.3.100 vrf tenant-1

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 101.101.101.101%default, [200/0], 00:23:11, bgp-100, internal, tag 777 (evpn) segid: 11111 tunnelid: 0x65656565 encap: VXLAN





// DC2-Leaf1 sees two default routes in tenant 1

DC2-Leaf1# SHOW BGP VPNv4 unicast 0.0.0.0 vrf tenant-1

…

  Advertised path-id 1, VPN AF advertised path-id 1

  Path type: internal, path is valid, is best path, no labeled nexthop, in rib

             Imported from 6.6.6.6:4:[5]:[0]:[0]:[0]:[0.0.0.0]/224

  AS-Path: NONE, path sourced internal to AS

    6.6.6.6 (metric 81) from 4.4.4.4 (4.4.4.4)

      Origin IGP, MED not set, localpref 100, weight 0

      Received label 11111

      Extcommunity: RT:200:200 RT:200:11111 ENCAP:8 Router MAC:5000.000a.0007

      Originator: 6.6.6.6 Cluster list: 4.4.4.4



  Path type: internal, path is valid, not best reason: Neighbor Address, no labeled nexthop

             Imported from 6.6.6.6:5:[5]:[0]:[0]:[0]:[0.0.0.0]/224

  AS-Path: NONE, path sourced internal to AS

    6.6.6.6 (metric 81) from 4.4.4.4 (4.4.4.4)

      Origin IGP, MED not set, localpref 100, weight 0

      Received label 33333

      Extcommunity: RT:200:200 RT:200:33333 ENCAP:8 Router MAC:5000.000a.0007

      Originator: 6.6.6.6 Cluster list: 4.4.4.4

…





// DC2-Leaf1 sees two default routes in tenant 3



DC2-Leaf1#   SHOW BGP VPNv4 unicast 0.0.0.0 vrf tenant-3

…

  Advertised path-id 1, VPN AF advertised path-id 1

  Path type: internal, path is valid, is best path, no labeled nexthop, in rib

             Imported from 6.6.6.6:4:[5]:[0]:[0]:[0]:[0.0.0.0]/224

  AS-Path: NONE, path sourced internal to AS

    6.6.6.6 (metric 81) from 4.4.4.4 (4.4.4.4)

      Origin IGP, MED not set, localpref 100, weight 0

      Received label 11111

      Extcommunity: RT:200:200 RT:200:11111 ENCAP:8 Router MAC:5000.000a.0007

      Originator: 6.6.6.6 Cluster list: 4.4.4.4



  Path type: internal, path is valid, not best reason: Neighbor Address, no labeled nexthop

             Imported from 6.6.6.6:5:[5]:[0]:[0]:[0]:[0.0.0.0]/224

  AS-Path: NONE, path sourced internal to AS

    6.6.6.6 (metric 81) from 4.4.4.4 (4.4.4.4)

      Origin IGP, MED not set, localpref 100, weight 0

      Received label 33333

      Extcommunity: RT:200:200 RT:200:33333 ENCAP:8 Router MAC:5000.000a.0007

      Originator: 6.6.6.6 Cluster list: 4.4.4.4

…







// DC2-Leaf1 is using /32 host route to DC1 T1 Host

DC1-Leaf1# show ip route 192.168.1.100 vrf tenant-1

…

192.168.1.100/32, ubest/mbest: 1/0, attached

    *via 192.168.1.100, Vlan100, [190/0], 1w5d, hmm







//  DC2-Spine1 default route to borderLeaf then to DC1-Leaf1, because DC1 has not Tenant-3

DC2-Spine1# show ip route 192.168.3.100 vrf tenant-1

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 01:03:30, bgp-200, internal, tag 200 (evpn) segid: 11111 tunnelid: 0x6060606 encap: VXLAN











// DC1 T1 host can also ping Internet

DC1-XP-T1> ping 8.8.8.8



84 bytes from 8.8.8.8 icmp_seq=2 ttl=250 time=34.232 ms

84 bytes from 8.8.8.8 icmp_seq=3 ttl=250 time=38.730 ms

84 bytes from 8.8.8.8 icmp_seq=4 ttl=250 time=28.285 ms

84 bytes from 8.8.8.8 icmp_seq=5 ttl=250 time=33.120 ms







--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------





Requirement 4: DC2-Leaf1 manipulates default route from T1 and T3

Choosing default route from T3 is ideal





// All T1 & T3 default routes use segid 11111

DC2-Leaf1# show ip route 0.0.0.0 vrf tenant-1

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 17:04:31, bgp-200, internal, tag 200 (evpn) segid: 11111 tunnelid: 0x6060606 encap: VXLAN



DC2-Leaf1# show ip route 0.0.0.0 vrf tenant-3

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 17:04:38, bgp-200, internal, tag 200 (evpn) segid: 11111 tunnelid: 0x6060606 encap: VXLAN



// Matches RT attribute

DC2-Leaf1# show bgp vpnv4 unicast 0.0.0.0 vrf tenant-3

…

  Advertised path-id 1, VPN AF advertised path-id 1

  Path type: internal, path is valid, is best path, no labeled nexthop, in rib

             Imported from 6.6.6.6:4:[5]:[0]:[0]:[0]:[0.0.0.0]/224

  AS-Path: NONE, path sourced internal to AS

    6.6.6.6 (metric 81) from 4.4.4.4 (4.4.4.4)

      Origin IGP, MED not set, localpref 100, weight 0

      Received label 11111

      Extcommunity: RT:200:200 RT:200:11111 ENCAP:8 Router MAC:5000.000a.0007

      Originator: 6.6.6.6 Cluster list: 4.4.4.4



  Path type: internal, path is valid, not best reason: Neighbor Address, no labeled nexthop

             Imported from 6.6.6.6:5:[5]:[0]:[0]:[0]:[0.0.0.0]/224

  AS-Path: NONE, path sourced internal to AS

    6.6.6.6 (metric 81) from 4.4.4.4 (4.4.4.4)

      Origin IGP, MED not set, localpref 100, weight 0

      Received label 33333

      Extcommunity: RT:200:200 RT:200:33333 ENCAP:8 Router MAC:5000.000a.0007

      Originator: 6.6.6.6 Cluster list: 4.4.4.4

…



DC2 -Leaf1

ip prefix-list default seq 5 permit 0.0.0.0/0                                                                    // Match default route

ip extcommunity-list standard extrt permit rt 200:33333                                           // default route from T1 and T3; Match T3 extended community 200:3333



route-map MYDC permit 10

  match ip address prefix-list default

  match extcommunity extrt

  set local-preference 200

route-map MYDC permit 20



vrf context Tenant-1

  address-family ipv4 unicast

    import map MYDC



vrf context tenant-3

  address-family ipv4 unicast

    import map MYDC





// DC2-Leaf 1 has chosen default route from T3

DC2-Leaf1# show ip route 0.0.0.0 vrf tenant-1

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 00:15:21, bgp-200, internal, tag 200 (evpn) segid: 33333 tunnelid: 0x6060606 encap: VXLAN





DC2-Leaf1# show ip route 0.0.0.0 vrf tenant-3

…

0.0.0.0/0, ubest/mbest: 1/0

    *via 6.6.6.6%default, [200/0], 00:15:18, bgp-200, internal, tag 200 (evpn) segid: 33333 tunnelid: 0x6060606 encap: VXLAN



// DC2-Leaf 1 has chosen default route from T3

DC2-Leaf1# show bgp vpnv4 unicast 0.0.0.0 vrf tenant-3

…

  Path type: internal, path is valid, not best reason: Local Preference, no labeled nexthop

             Imported from 6.6.6.6:4:[5]:[0]:[0]:[0]:[0.0.0.0]/224

  AS-Path: NONE, path sourced internal to AS

    6.6.6.6 (metric 81) from 4.4.4.4 (4.4.4.4)

      Origin IGP, MED not set, localpref 100, weight 0

      Received label 11111

      Extcommunity: RT:200:200 RT:200:11111 ENCAP:8 Router MAC:5000.000a.0007

      Originator: 6.6.6.6 Cluster list: 4.4.4.4



  Advertised path-id 1, VPN AF advertised path-id 1

  Path type: internal, path is valid, is best path, no labeled nexthop, in rib

             Imported from 6.6.6.6:5:[5]:[0]:[0]:[0]:[0.0.0.0]/224

  AS-Path: NONE, path sourced internal to AS

    6.6.6.6 (metric 81) from 4.4.4.4 (4.4.4.4)

      Origin IGP, MED not set, localpref 200, weight 0

      Received label 33333

      Extcommunity: RT:200:200 RT:200:33333 ENCAP:8 Router MAC:5000.000a.0007

      Originator: 6.6.6.6 Cluster list: 4.4.4.4

…
