VCS-C Phone Registration and Call Routing

VCS-C is licensed for endpoint registration

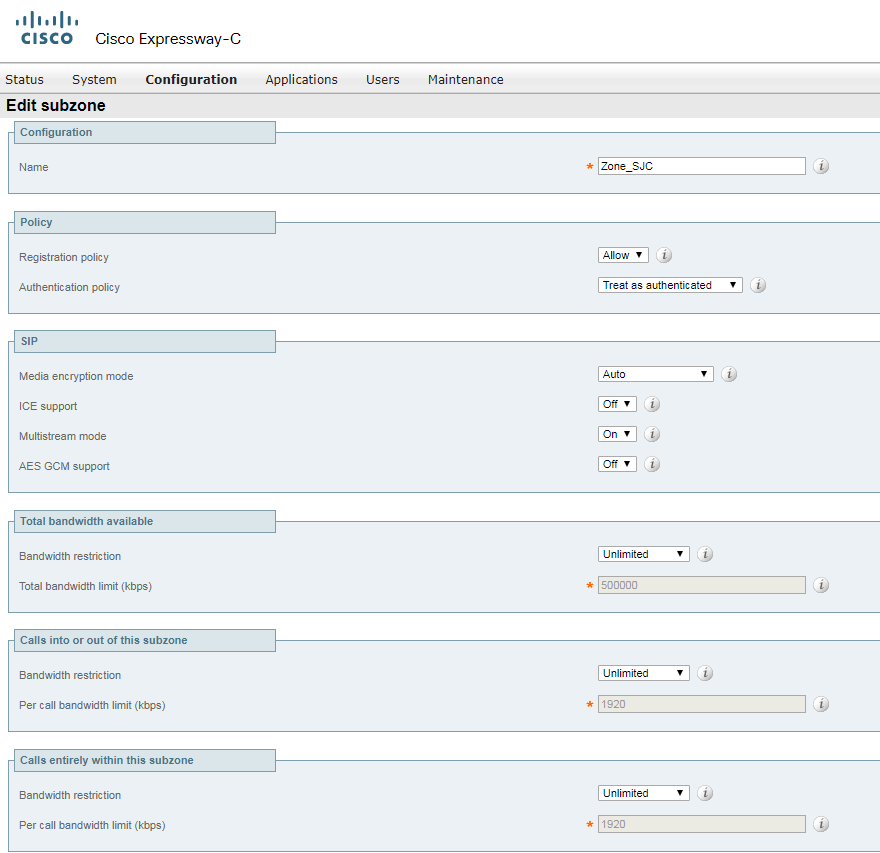

Create Subzone “Zone_SJC”

Create Subzone membership rule

Any Alias starts with 6XXX in @callhub.club domain will fall into “SJC_Zone”

Specify to allow domain for registration

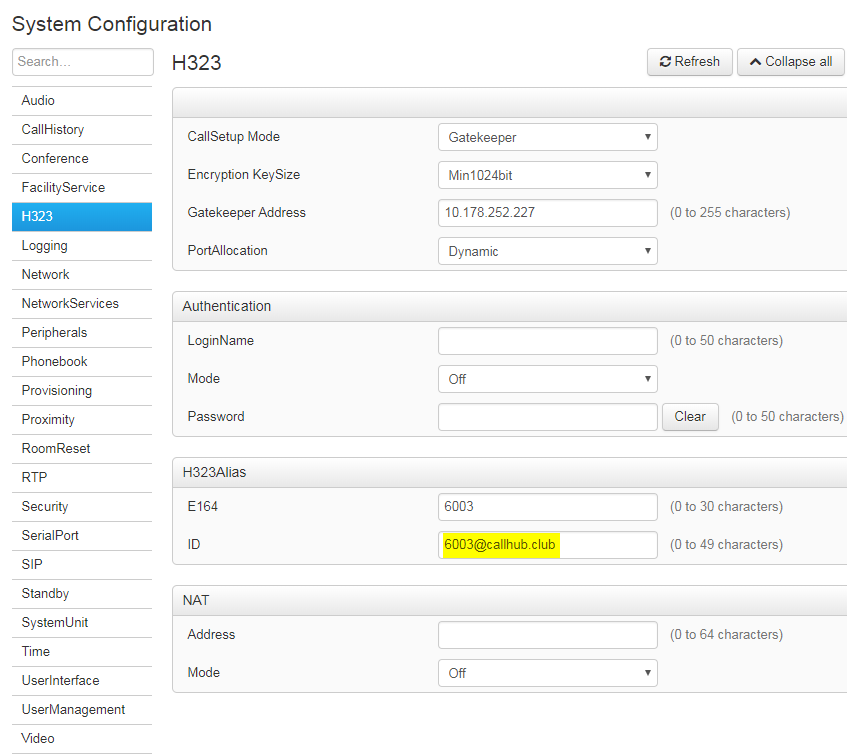

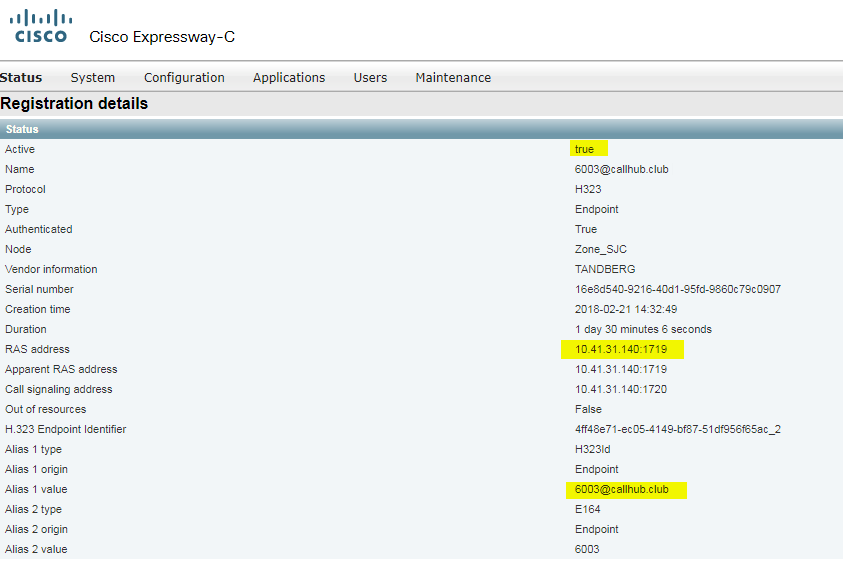

DX80 H323 GK register to VCS-C

Create Neighbor zone to convey calls to CUCM

Choose a different port 5560 for SIP calls, avoiding the conflicts with Jabber MRA.

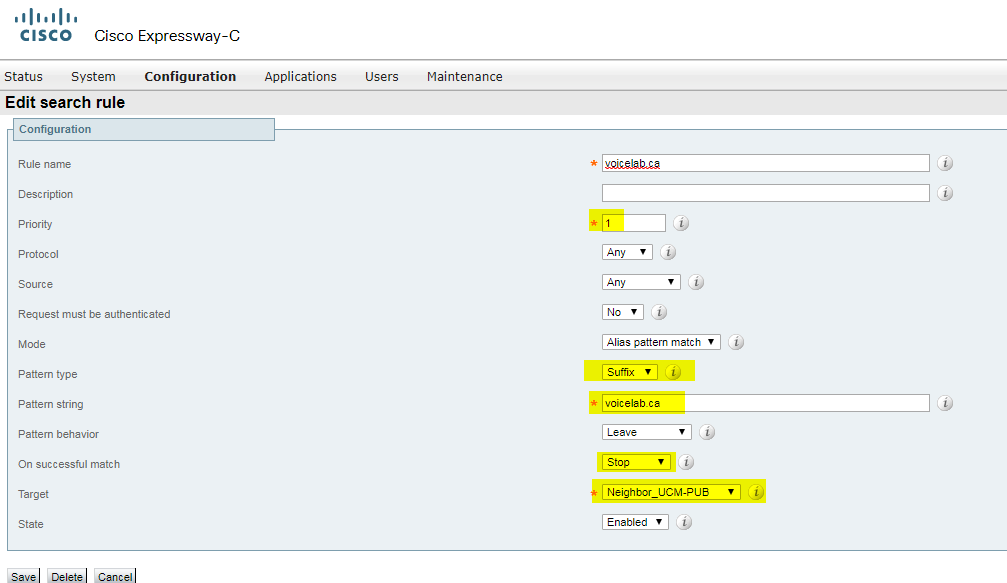

Create a search rule that matches “voicelab.ca” and sends to CUCM

Make sure certificates are properly installed in CUCM

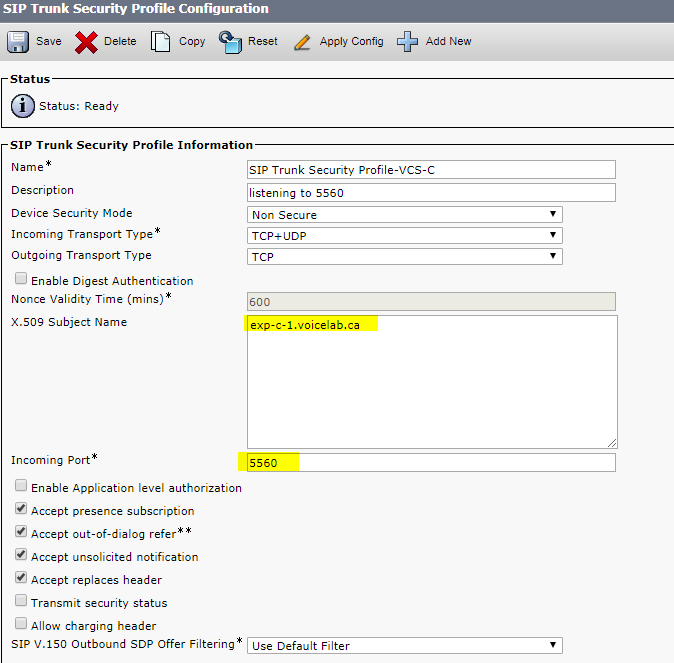

Create Sip Trunk Security Profile for VCS-C

Incoming port matches “5560” as the port number configured on CUCM neighbor zone.

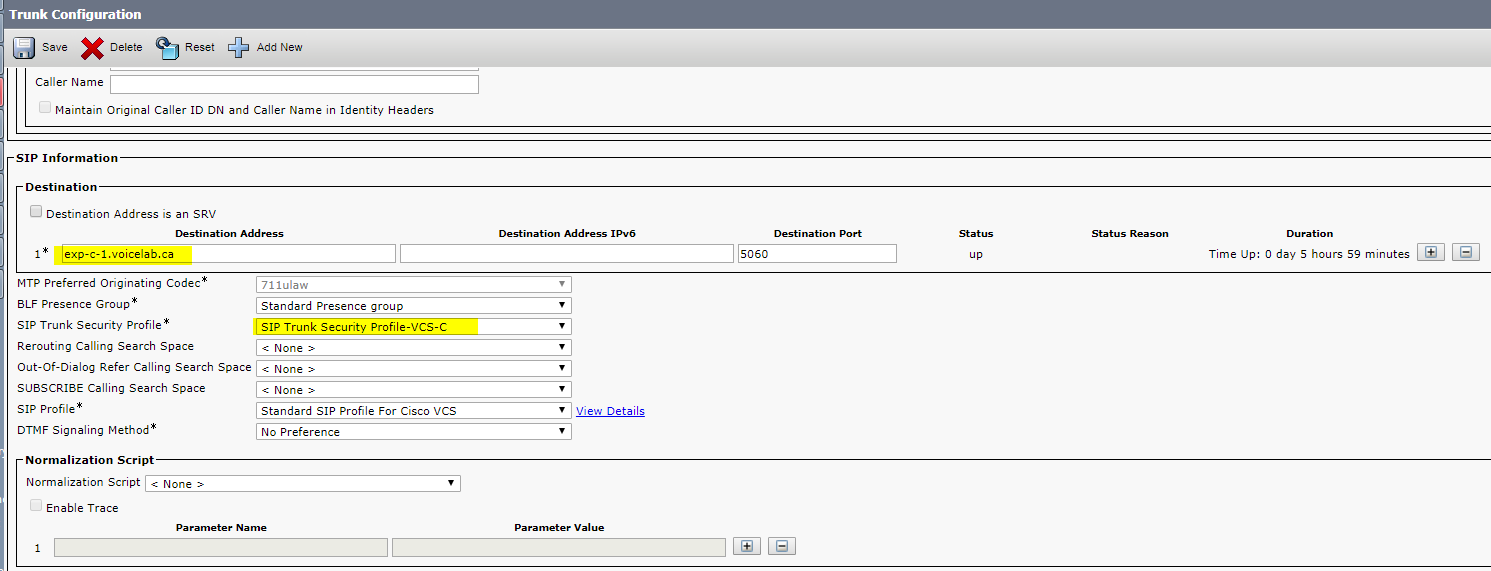

Create SIP Trunk to VCS-C

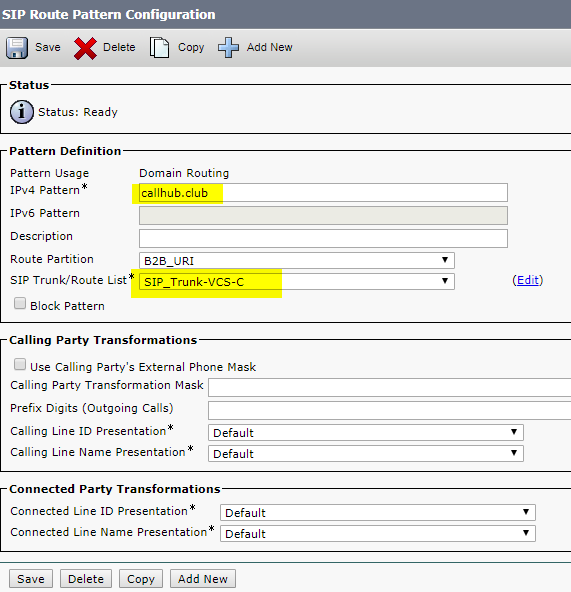

Create SIP Route Pattern to VCS-C

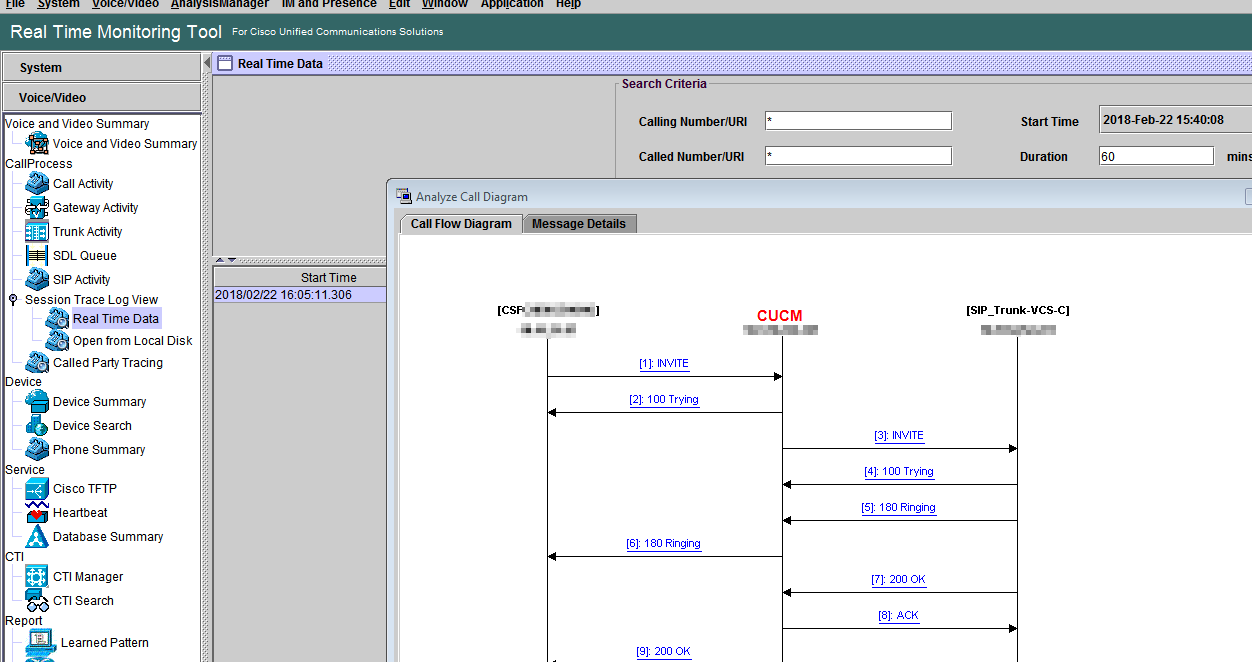

SIP to H323 Transversal call

Monday 19 February 2018

Cisco CMS Branding

Download Customization source files at

https://www.cisco.com/c/dam/en/us/td/docs/conferencing/ciscoMeetingServer/Customisation/Version-2-3/CMS-2-3_callBranding_example_US.zip

https://www.cisco.com/c/dam/en/us/td/docs/conferencing/ciscoMeetingServer/Customisation/Version-2-3/CMS-2-3_ivrBranding_example_US.zip

WebRTC App Customization

Sign_in_settings.json:

{

"panelTopColor" : "#FFFFFF",

"panelBottomColor" : "#FFFFFF",

"panelForegroundTextColor" : "#010101",

"panelErrorTextColor" : "#DD1600",

"panelHyperlinkTextColor" : "#010101",

"panelLoaderColor" : "#010101",

"showFooter" : false,

"browserTabLabel" : "ABC Company Meeting Portal",

"panelLabel" : " ABC Company Meeting Portal"

}


The recommended resolution for the logo image is 254 pixels wide by 64 pixels high; these dimensions fill the space to the edges of the Sign in box horizontally. This file must be less than 250 kB in size.


Maximum size for the background image is 1920 pixels wide and 1200 pixels high, and less than 500 kB in size. It will be scaled isotropically and then cropped at either the right or bottom to fit the browser window.

Zip files and upload to HTTP server directory

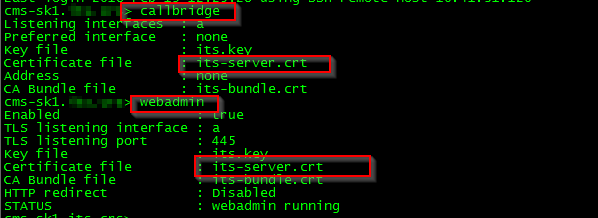

Make sure Webbridge is enabled on Edge and Core server.

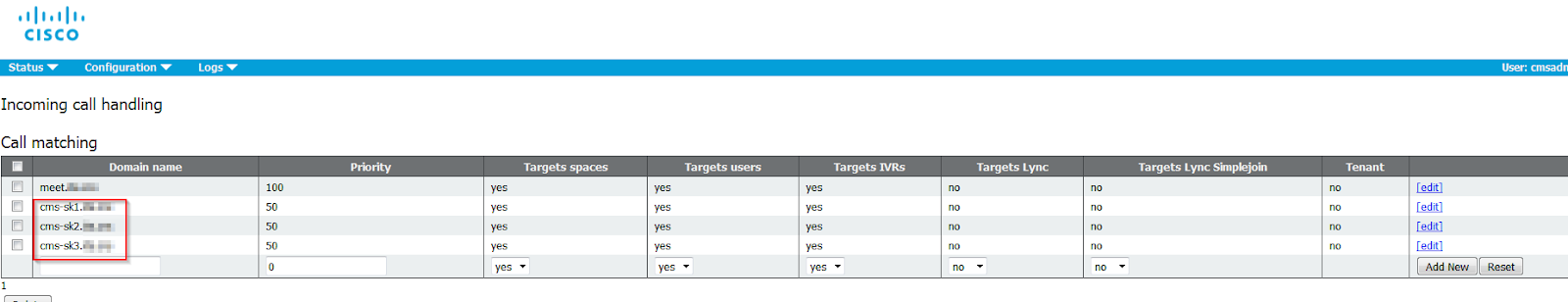

Webbridge link in “<url>…</url>” should be resolved to a different server IP internally and externally

Call Customization

Make your changes and upload files to HTTP directory.

Background.jpg displayed on initial call

Customizing the text shown in invitations

invitation_template.txt

Applying branding to SIP calls and/or customized invitations

Note a bug that WebRTC client for CMS 2.3 - When clicking share copy invitation and send email doesn't pick up the custom template. See here: https://bst.cloudapps.cisco.com/bugsearch/bug/CSCvh30015

Known Affected Releases: 2.3.0
