Installing Oracle Session Monitor (EOM) 5.0



EOM Installation 5.0





Installation Guide

From <https://docs.oracle.com/en/industries/communications/session-monitor/5.0/installation/session-monitor-installation-tasks.html#GUID-4ACAA593-67B2-48CA-BA30-49AE8E10D510>





Software requirements:



OSCM 5.0: V1018224-01_oscm

MySQL Enterprise 5.7.10: p22322140_570_Linux-x86-64

Oracle Linux: V1018224-01 --> V1009690-01_Oracle Linux 7 u9.iso



Install Oracle Linux

8cup/8G RAM/100GHD



Disable SecureLinux

sed -i -e "s/^SELINUX=.*/SELINUX=disabled/" /etc/selinux/config

reboot





Config Proxy  and YUM

proxy=http://XXXX:8080

sslverify=false

export http_proxy=http://XXXX:8080

export https_proxy=$http_proxy

curl -Ok https://yum.oracle.com/public-yum-ol7.repo



mv public-yum-ol7.repo /etc/yum.repos.d/public-yum-ol7.repo



yum install -y yum-utils

yum-config-manager --enable ol7_latest ol7_UEKR4 ol7_developer_EPEL ol7_optional_latest ol7_addons ol7_UEKR3 ol7_UEKR5





Install Mysql and EOM

Cd /opt/mysql/

unzip p22322140_570_Linux-x86-64.zip

yum install -y mysql-commercial-*.rpm

yum-config-manager --enable ol7_latest ol7_UEKR4 ol7_developer_EPEL ol7_optional_latest ol7_addons ol7_UEKR3 ol7_UEKR5

cd eom/

yum install ocsm-5.0.0.0.0-397.x86_64.rpm





Firewall Opening ports

firewall-cmd --permanent --zone=public --add-service=https

firewall-cmd --permanent --zone=public --add-port=4739/tcp

firewall-cmd --permanent --zone=public --add-port=4740/tcp

firewall-cmd --permanent --zone=public --add-port=4741/tcp

firewall-cmd --permanent --zone=public --add-port=4742/tcp

firewall-cmd --reload











NTP Sync

[root@eom eom]# more /etc/ntp.conf

server 10.8.25.131

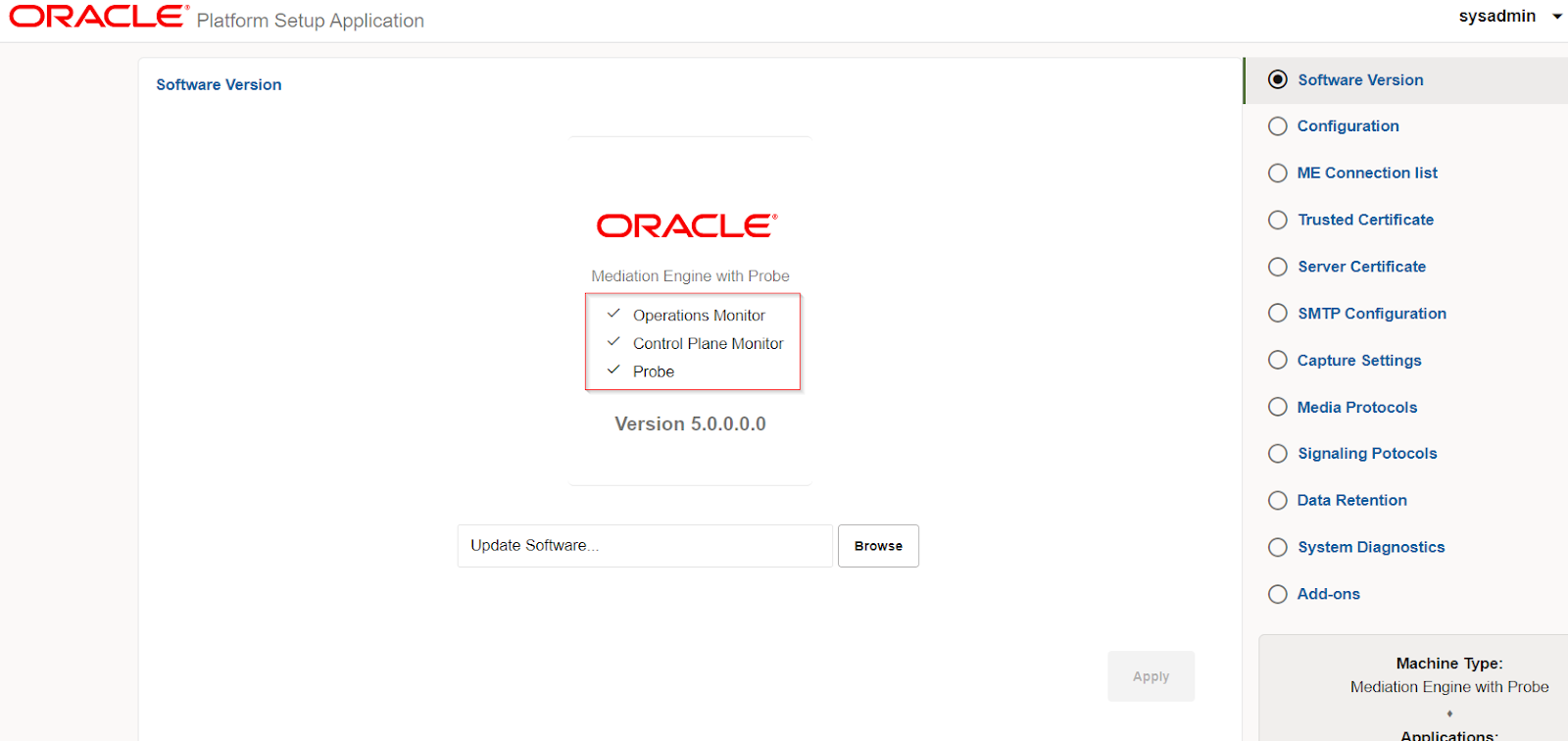

New Setup

Machine generated alternative text: ORACLE Platform Setup Application Software Version ORACLE' Mediation Engine with Probe v' Operations Monitor v' Control Plane Monitor probe Version 5.0.0.0.0 Update Software. _ Browse sysadmin @ Software Version O Configuration O ME Connection list O Trusted Certificate O Server Certificate O SMTP Configuration O Capture Settings O Media Protocols O Signaling Potocols O Data Retention O System Diagnostics O Add-ons Machine Wpe: Apply Mediation Engine with Probe

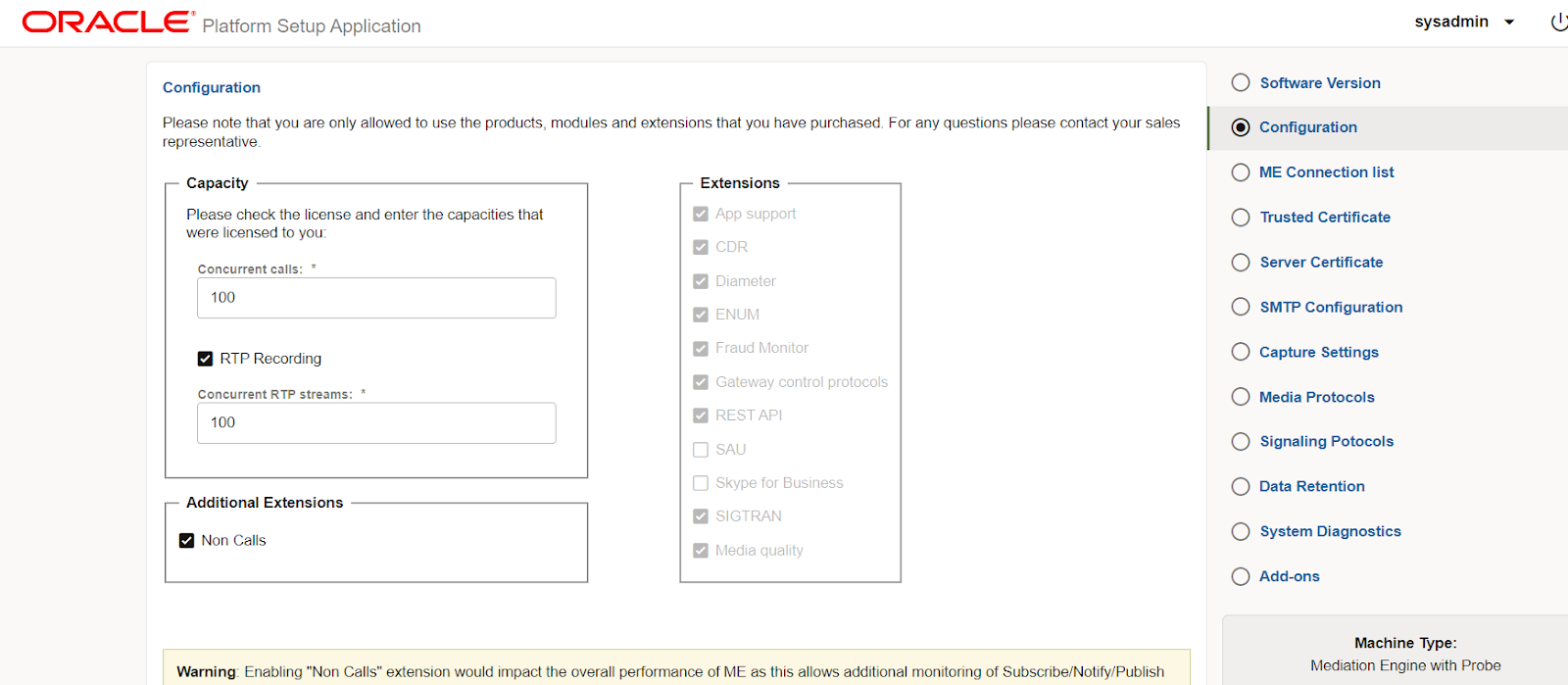

Concurrent call for lab

Machine generated alternative text: ORACLE Platform Setup Application Configuration Please note that you are only allowed to use the products, modules and extensions that you have purchased For any questions please contact your sales representative. Capacity Please check the license and enter the capacities that were licensed to you: Concurrent calls: 100 RTP Recording Concurrent RTP streams: 100 Additional Extensions Non Calls Extensions App support CDR Diameter ENUM Fraud Monitor Gateway contral protocols REST API D SAL' Skype for Business SIGTRAN Media quality Warning. Enabling "Non Calls" extension would impact the overall pefformance of ME as this allows additional monitoring of Subscribe/Notify/Publish sysadmin O Software Version @ Configuration O ME Connection list O Trusted Certificate O Server Certificate O SMTP Configuration O Capture Settings O Media Protocols O Signaling Potocols O Data Retention O System Diagnostics O Add-ons Machine Wpe: Mediation Engine with Probe

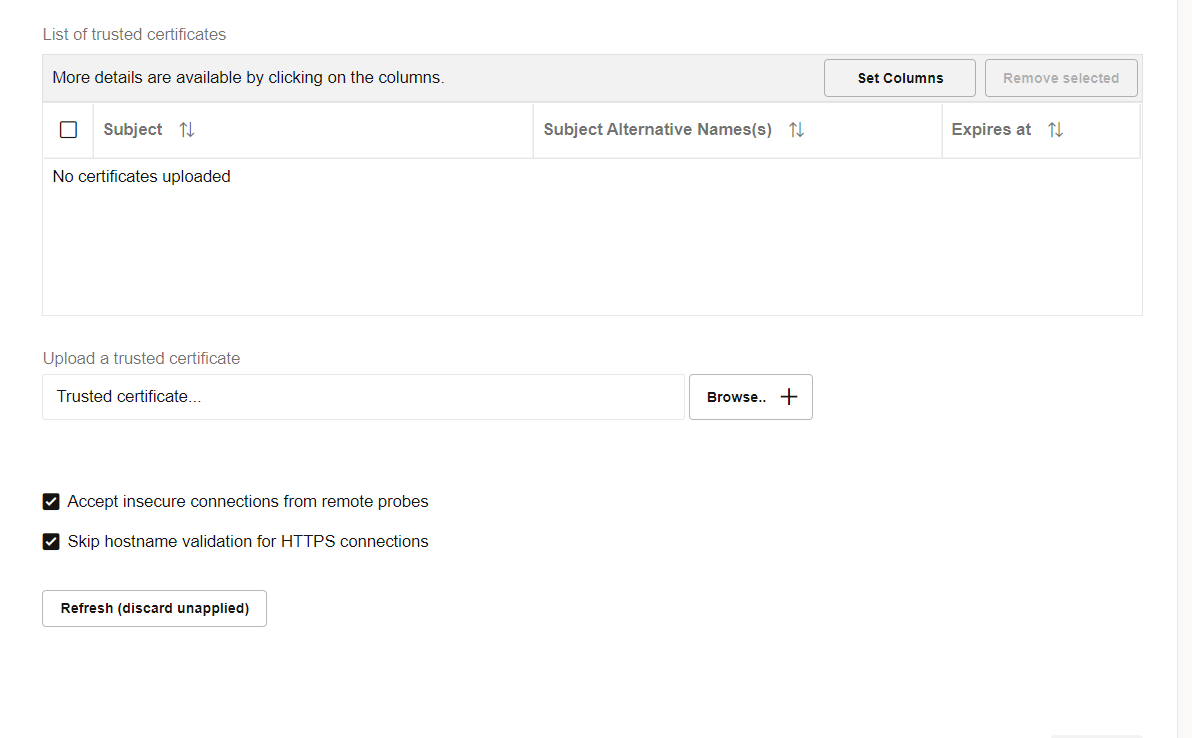

Trusted Certificate

Machine generated alternative text: List of trusted certificates More details are available by clicking on the columns. Subject TJ No certificates uploaded Upload a trusted certificate Trusted cettificate_ Accept insecure connections from remote probes Skip hostname validation for HTTPS connections Refresh (discard unapplied) Set Columns Remove selected Expires at Subject Alternative Names(s) Browse..

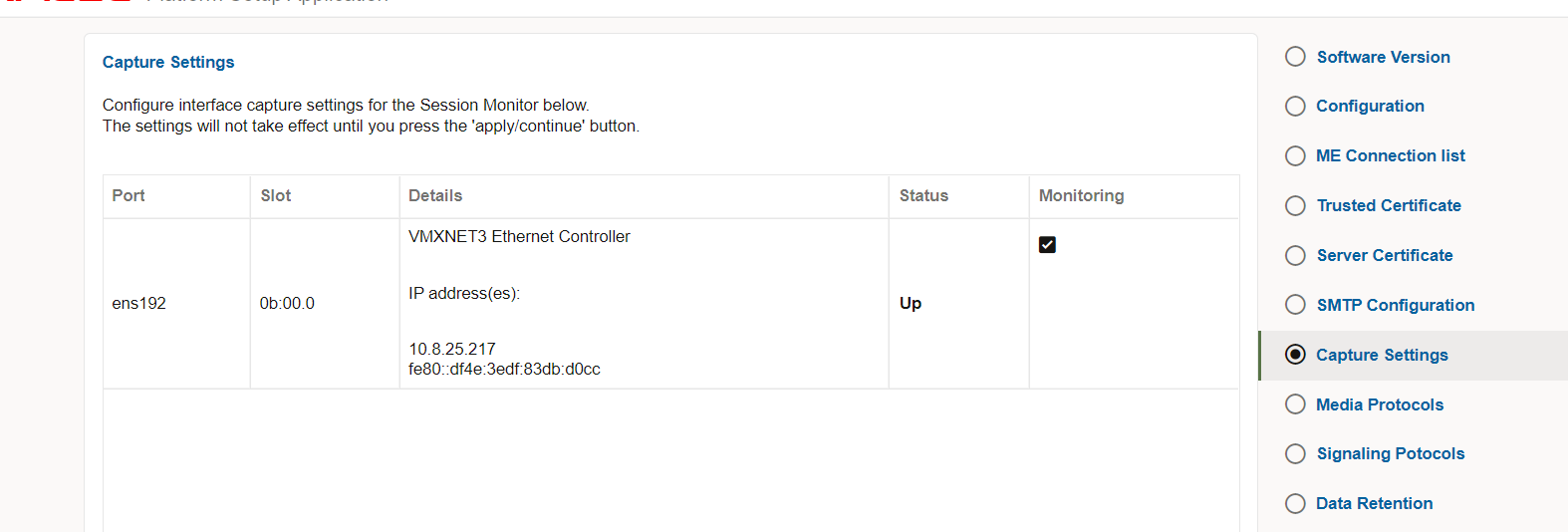

Machine generated alternative text: Capture Settings Configure interface capture settings for the Session Monitor below The settings will not take effect until you press the 'apply/contlnue' button. Port ens192 Slot Ob:OO.O Details VMXNET3 Ethernet Controller IP address(es)_ Status up Monitoring Software Version Configuration ME Connection list Trusted Certificate Server Certificate SMTP Configuration Capture Settings Media Protocols Signaling Potocols Data Retention



Data retention

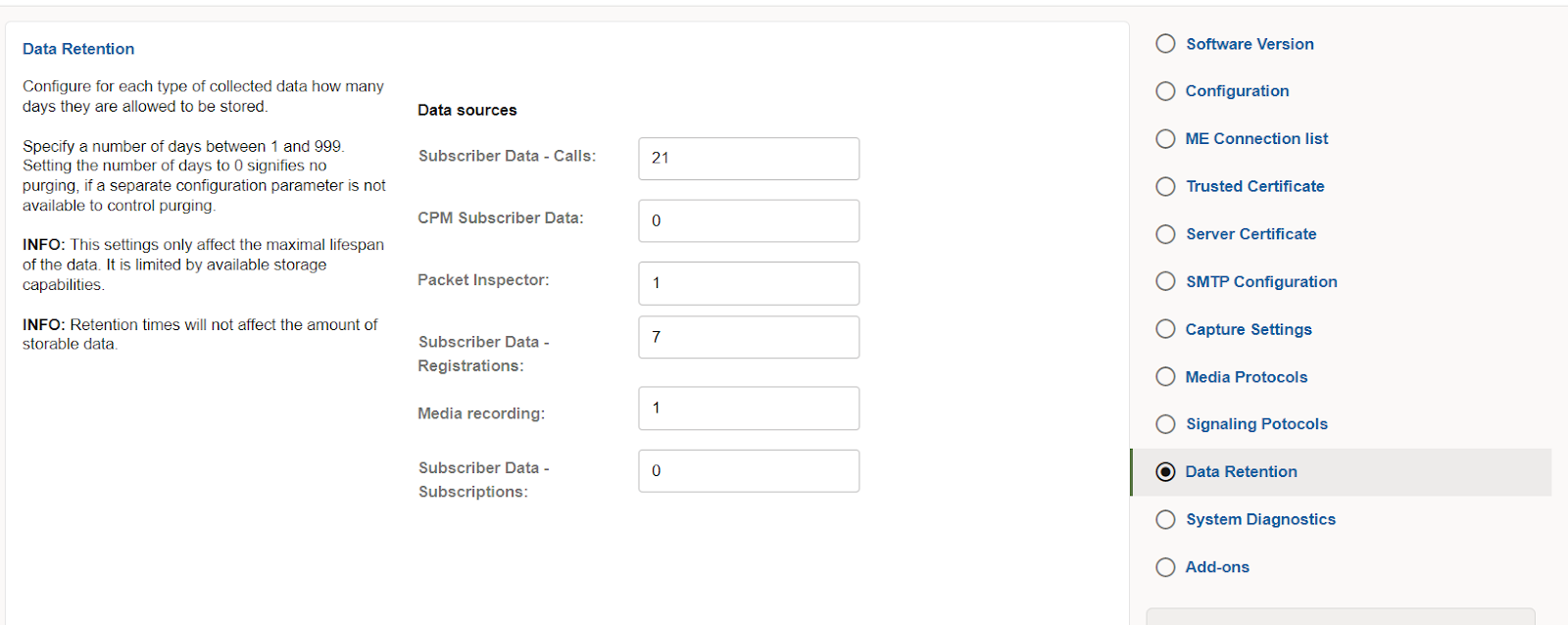

Machine generated alternative text: Data Retention Configure for each type of collected data how many days they are allowed to be stored. Specify a number of days beueen 1 and 999. Setting the number of days to 0 signifies no purging, if a separate configuration parameter is not available to control purging. INFO: This settings only affect the maximal lifespan of the data It is limited by available storage capabilities. INFO: Retention times will not affect the amount of storable data Data sources Subscriber Data - Calls: CPM Subscriber Data: Packet Inspector: Subscriber Data - Registrations: Media recording: Subscriber Data - Subscriptions: 21 7 O Software Version O Configuration O ME Connection list O Trusted Certificate O Server Certificate O SMTP Configuration O Capture Settings O Media Protocols O Signaling Potocols @ Data Retention O System Diagnostics O Add-ons







SBC Monitor Collector

Machine generated alternative text: Enterprise Session Border Controller e-sbc-a 1728888214 GA (Build 46} Dashboard Configuration Configuration mediaqnanager security system fraud—protection hoq--route http-dient http-server network-interface phy*nterface qirnp -community syqem-config trap-receiver Vien Configuration monitor-collector Modify System config / comm monitor Sta te Interim Monitor Collector enable enable Sdect Actio n Add rss 4739 Netw Ork I e wancomO:O

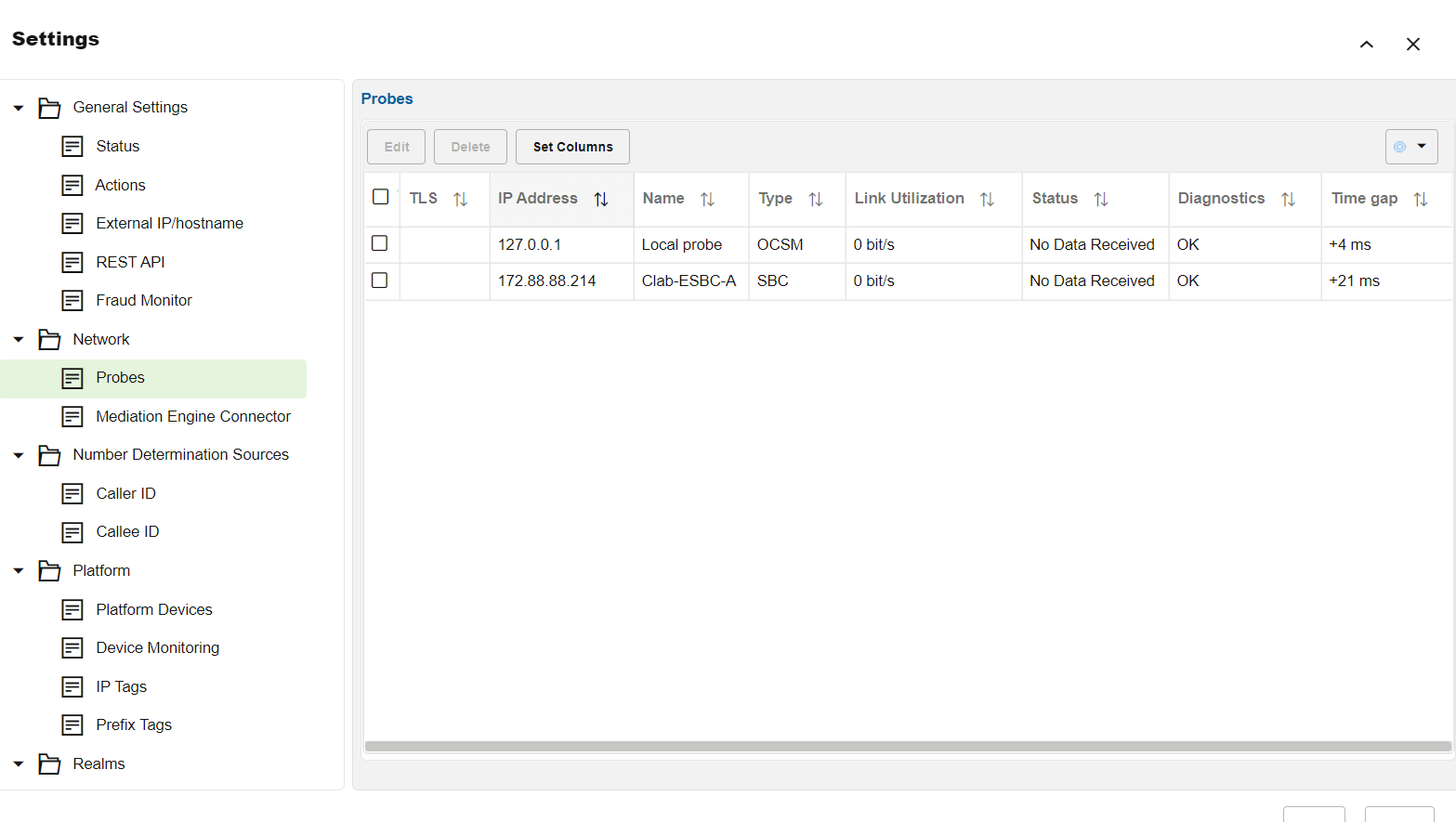

Verifying probe

Machine generated alternative text: Settings General Settings Status Actions External I P/hostname REST API Fraud Monitor Network Probes Mediation Engine Connector Number Determination Sources Caller ID Callee ID Platform Platform Devices Device Monitoring IP Tags Prefix Tags Realms Probes TLS Delete Set Columns IP Address TJ 17288.88214 Name Local probe Clab-ESBC-A Type TJ OCSM sac Link Utilization O bit's O bit's Status TL No Data Received No Data Received Diagnostics OK OK Time gap TJ +4 ms +21 ms





EOM Settings



Platform devices

Machine generated alternative text: Settings General Settings Status Actions External I P/hostname REST API Fraud Monitor Network Probes Mediation Engine Connector Number Determination Sources Caller ID Callee ID Platform Platform Devices Device Monitoring IP Tags Prefix Tags Platform Devices Add [3 [3 [3 [3 Choose Template Import Call Export Device Map Addresses 172.8888214. 10820.126 10825.21 Show in groups . Point VQ status VQ Name CLAB-ECB-A Peer-WLAB-CUCM EnterpriseCore-CLAB-CUCM-A Type TJ SBC/B2B. TRUNK TRUNK Matching Using generic Codes x Visiblity. External? internal internal internal Status No VQ No VQ No VQ Device Map Status Disabl Disabl Disabl. Edit platform device Device identification by address Select the identification addresses for this device. IPS used by this device (space separated). If more devices are sharing the same IP address, but are in different VLANs, you can specify the VLAN IDs here. If left out, all VLAN IDs are matched. Example: "172.23.12.0/24 172.43.34.1 10820.124

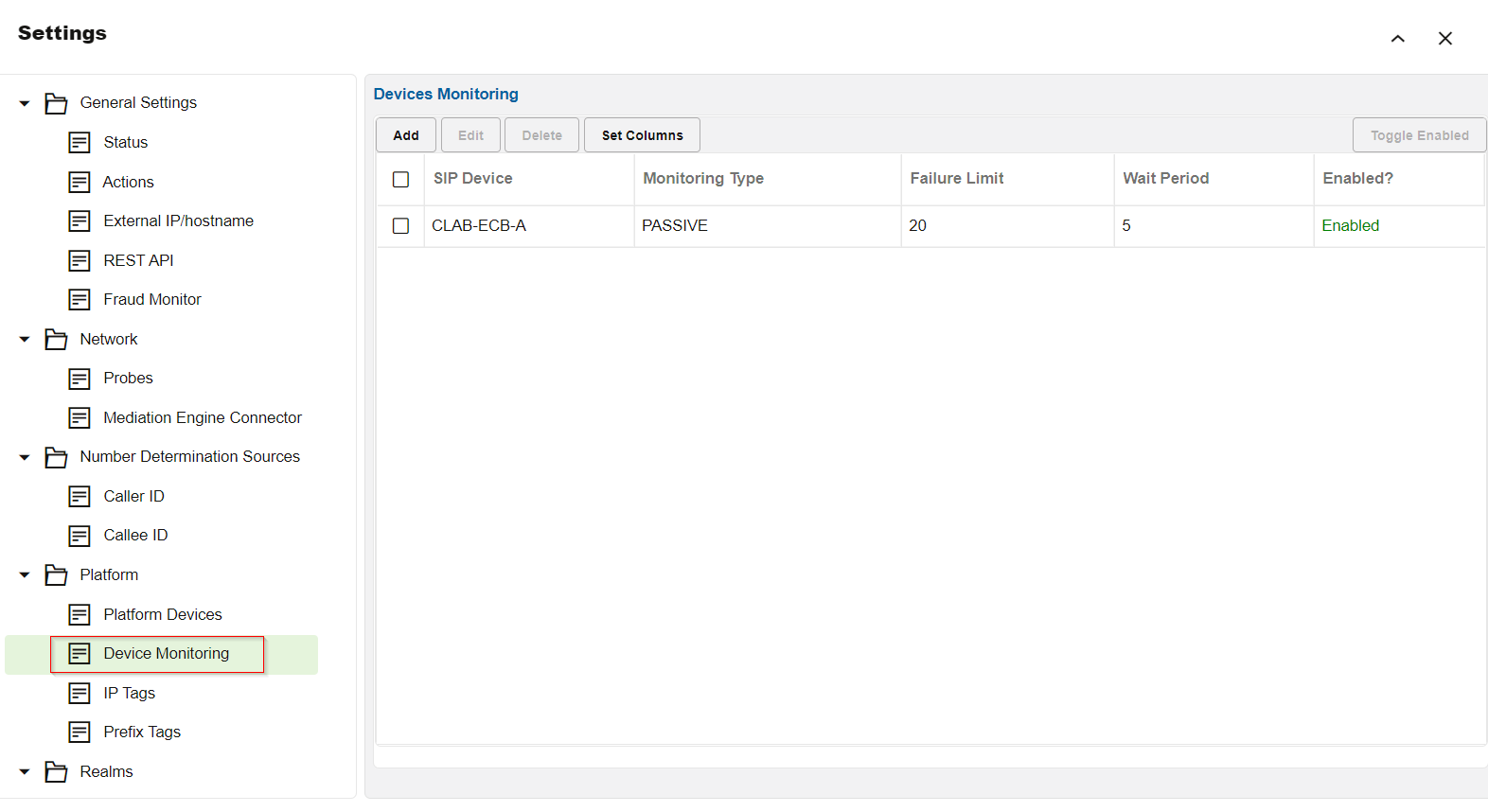

Device monitor

Machine generated alternative text: Settings General Settings Status Actions External I P/hostname REST API Fraud Monitor Network Probes Mediation Engine Connector Number Determination Sources Caller ID Callee ID Platform Platform Devices Device Monitoring IP Tags Prefix Tags Realms Devices Monitoring Add Edit Delete SIP Device CLAB-ECB-A Set Columns Monitoring Wpe PASSIVE Failure Limit 20 Wait Period 5 Toggle Enabled Enabled? Enabled

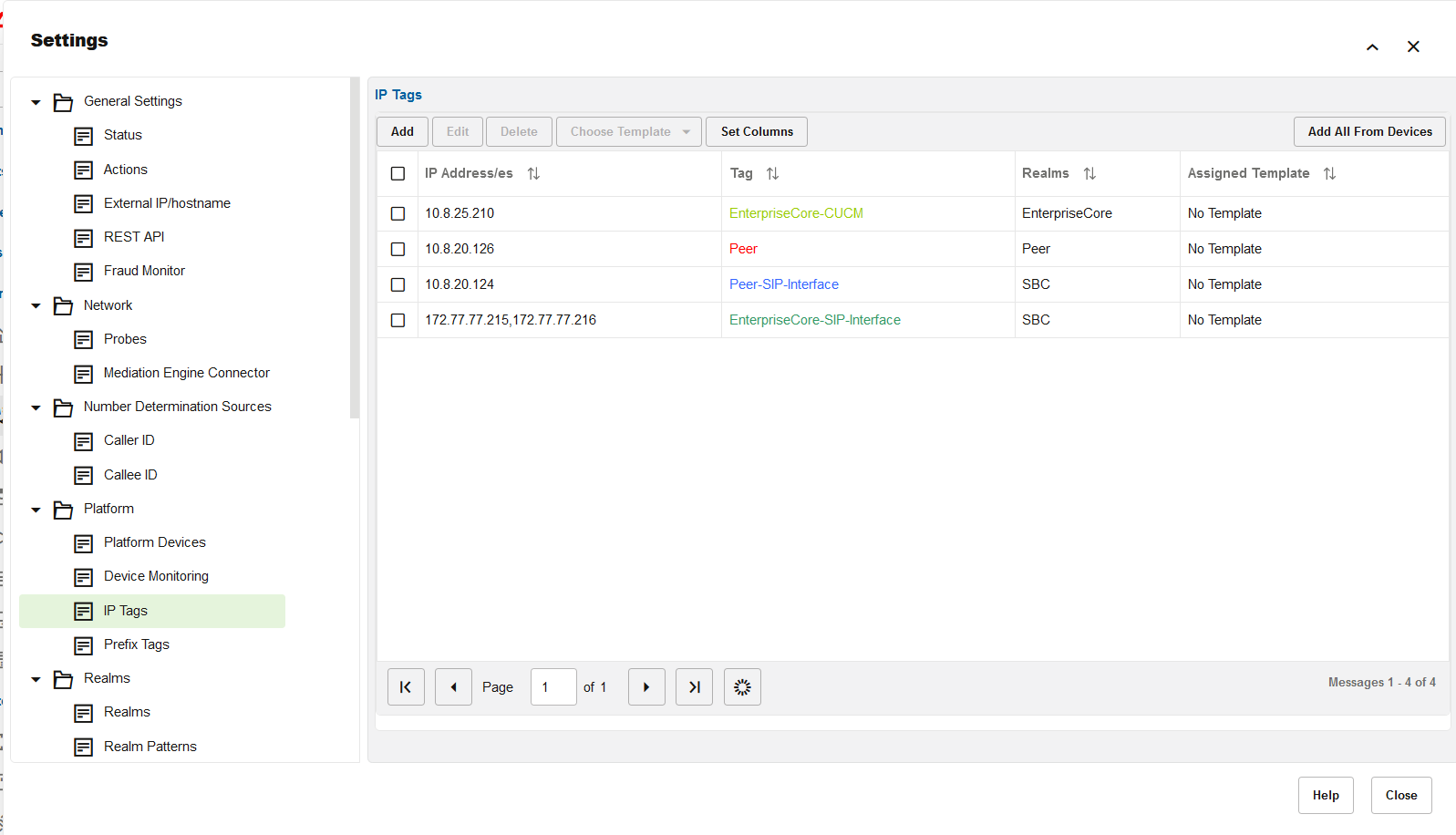

Ip tags

Machine generated alternative text: Settings General Settings Status Actions External IP/hostname REST API Fraud Monitor Network Probes Mediation Engine Connector Number Determination Sources Caller ID Callee ID Platform Platform Devices Device Monitoring E P Tags Prefix Tags Realms Realms Realm Patterns IP Tags Add 0 0 0 0 Edit Delete IP Address/es Page Choose Template of 1 Set Columns Tag EnterpriseCore-CUCM peer Peer-SIP-lnterface EnterpriseCore-SlP-lnterface Realms EnterpriseCore peer SBC SBC x Add All From Devices Assigned Template No Template No Template No Template No Template Messages 1 - 4 of 4 Help Close

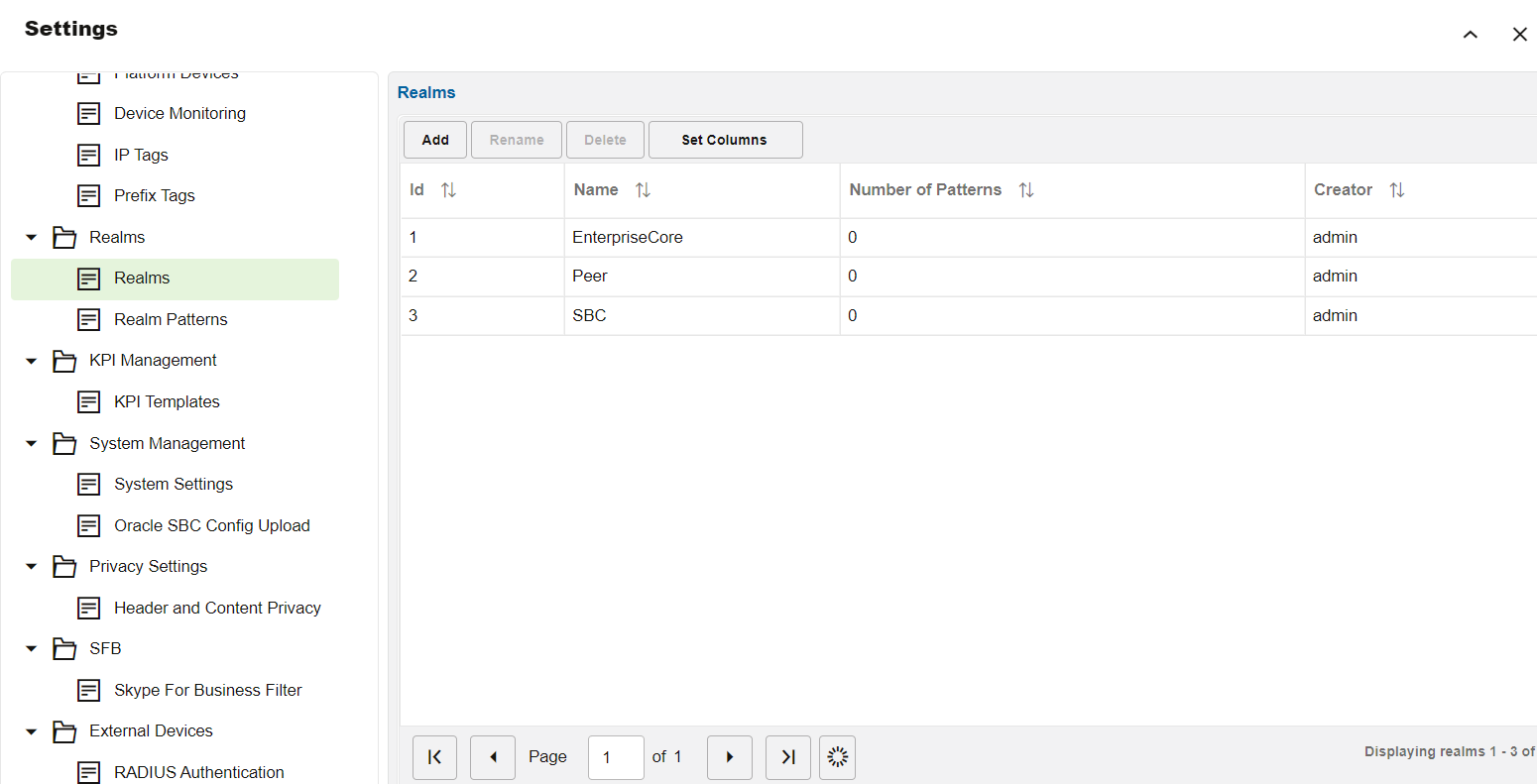

realms



Machine generated alternative text: Settings Device Monitoring IP Tags Prefix Tags Realms Realms Realm Patterns KPI Management KPI Templates System Management System Settings Oracle SBC Config Upload Privacy Settings Header and Content Privacy b SEB Skype For Business Filter External Devices RADIUS Authentication Realms Add 2 3 Rename Page Set Columns Name EnterpriseCore SBC of 1 Number of Patterns Creator admin admin admin Displaying realms 1 •3 ot





Platform Device

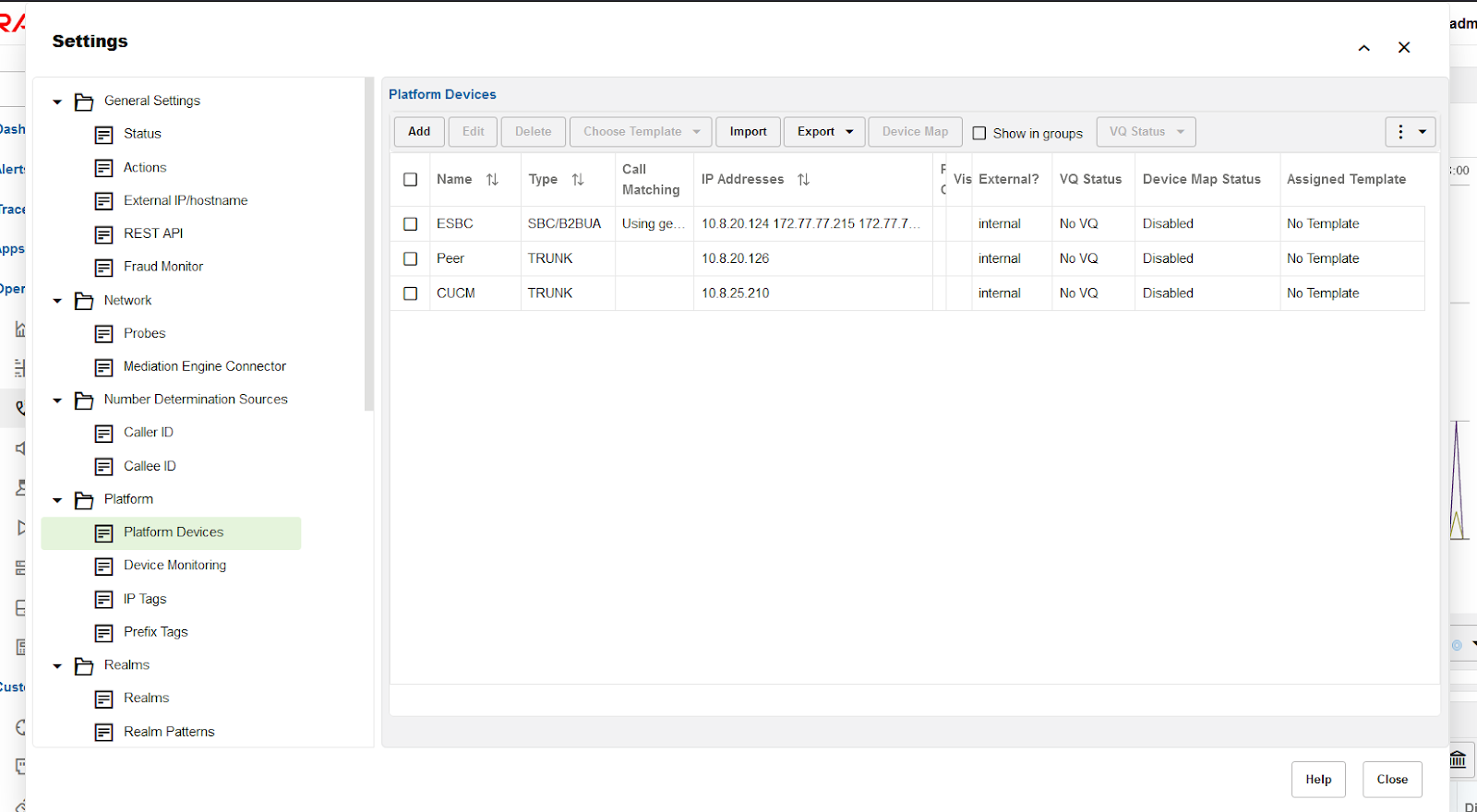

Machine generated alternative text: Platform Devices )ash dert )per :ust Settings General Settings Status Actions External IP/hostname REST API Fraud Monitor Network Probes Mediation Engine Connector Number Determination Sources Caller ID Callee ID Platform Platform Devices Device Monitoring P Tags Prefix Tags Realms Realms Realm Patterns Delete Choose Template Import IP Addresses Export x Assigned Template No Template No Template No Template adm too Add 0 0 Edit Name ESBC peer CUCM Device Map Show in groups VQ Status Vis External? VQ Status Device Map Status Type SBC/B2BUA TRUNK TRUNK Call Matching using ge. _ internal internal internal Disabled Disabled Disabled Help Close







Example Call Recorded

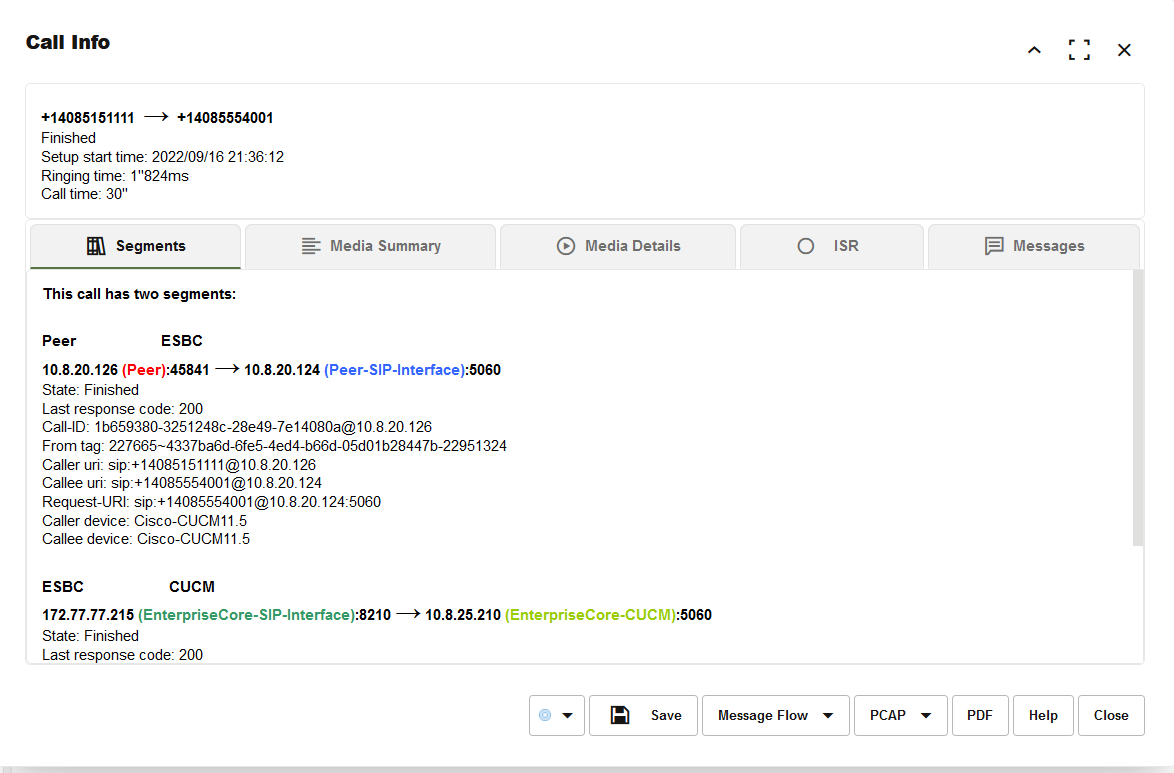

Machine generated alternative text: call Info Finished setup start time: 2022/09/16 Ringing time: 1"824ms Call time: 30" Segments This call has two segments: ESBC Media Summary @ Media Details O Message Flow ISR x Messages 10.8.20.126 —i 10.8.20.124 (Peer-SIP-lnterface): State: Finished Last response code: 200 Call-ID: From tag: 227665-4337ba6d-6fe5-4ed4-b66d-05d015284475-22951324 Callee uri: Request-URI: Spy 14085554001 Caller device: Cisco-CUCMII _5 Callee device: Cisco-CUCMII _5 ESBC CUCM 172.77.77.215 —i 10.8.25.210 (EnterpriseCore-CUCM)• State: Finished Last response code: 200 Save PDF Help Close

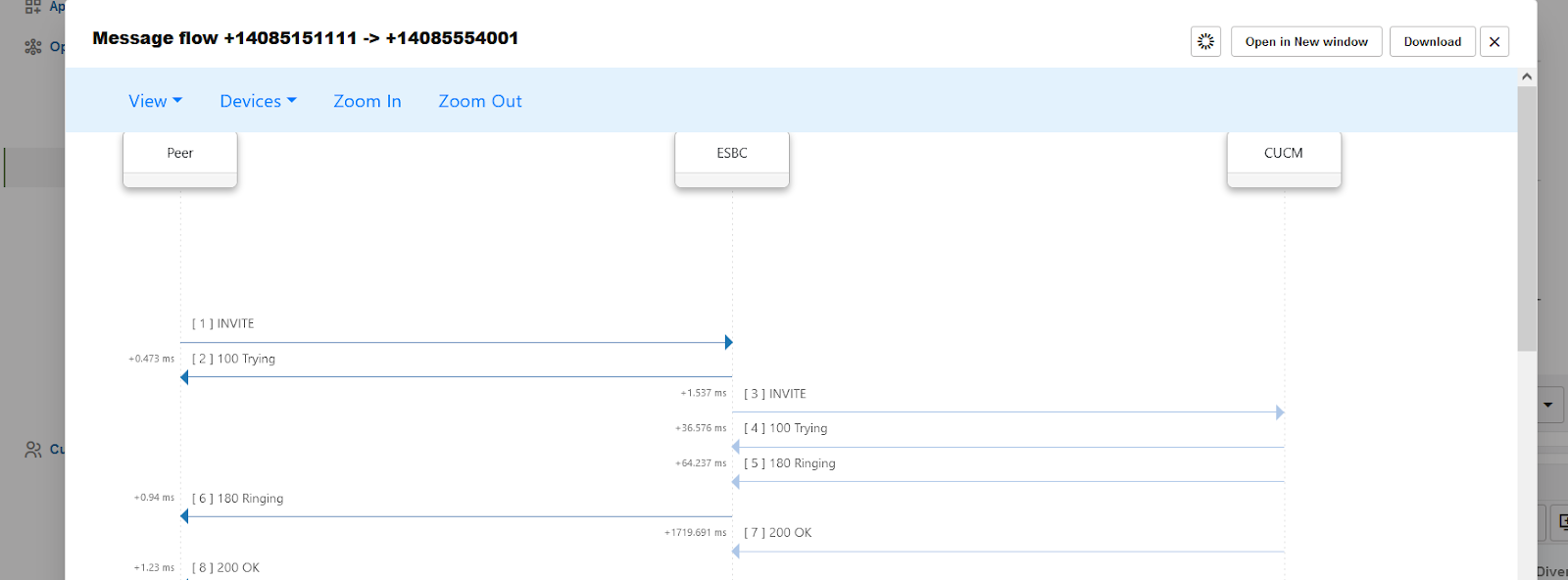

Machine generated alternative text: View peer Open in New window CUCM Download Devices Zoom In Zoom Out ESBC -0.473 ms —0.94 ms -1.23 ms c I ] INVITE C 2] 100 Trying C 6] 180 Ringing [8] 200 OK -1.537 ms -36.576 ms -84.237 ms -1719.691 ms C 3] INVITE C 4] 100 Trying c s ] 180 Ringing [7 ] 200 OK •vel



Posted by at 1 comment:
Labels:

Tuesday, 7 June 2022

Oracle E-SBC Virtual Installation



Oracle E-SBC Virtual Installation









E-SBC 9.1

V1019984-01.zip  ->  nnSCZ910-img-vm_vmware.ova



  • Baud rate: 115,200 bits/second

  • Data bits: 8

  • Parity: No

  • Stop bit: 1

  • Flow control: None



From <https://docs.oracle.com/en/industries/communications/enterprise-session-border-controller/8.4.0/configuration/installation-and-start.html#GUID-3CAAE294-3379-4091-B544-071103059E1F>



Machine generated alternative text: New virtual machine - E-SBC-A-g.1 1 Select creation type 2 select OVF and VMDK files 3 Select storage 4 License agreements 5 Deplmnnent options 6 Additional settings 7 complete •anware Deployment options Select deployment options Network mappings Disk provisioning Power on automatically wancom0 wancoml wancom2 spare v200 v200 v200 media sopo media slp0 media sopl media slpl o v200 v200 Next Cancel



Bootprarm: leave it default



Password: acme

Newpassword:cisco,123

Enable

Password:packet

Newpassword:cisco,123

Setup product: 1 - 5 - d









e-sbc-a# setup product



--------------------------------------------------------------

WARNING:

Alteration of product alone or in conjunction with entitlement

changes will not be complete until system reboot



Last Modified 2022-04-28 14:23:51

--------------------------------------------------------------

 1 : Product       : Enterprise Session Border Controller



Enter 1 to modify, d' to display, 's' to save, 'q' to exit. [s]: s

save SUCCESS

e-sbc-a#

e-sbc-a#

e-sbc-a# setup entitlements



----------------------------------------------------------------

Entitlements for Enterprise Session Border Controller

Last Modified: Never

----------------------------------------------------------------

 1 : Session Capacity                           : 0

 2 :   Advanced                                 :

 3 :   STIR/SHAKEN Client                       :

 4 : Admin Security                             :

 5 : Data Integrity (FIPS 140-2)                :

 6 : Transcode Codec AMR                        :

 7 : Transcode Codec AMR Capacity               : 0

 8 : Transcode Codec AMRWB                      :

 9 : Transcode Codec AMRWB Capacity             : 0

 10: Transcode Codec EVS                        :

 11: Transcode Codec EVS Capacity               : 0

 12: Transcode Codec OPUS Capacity              : 0

 13: Transcode Codec SILK Capacity              : 0



Enter 1 - 13 to modify, d' to display, 's' to save, 'q' to exit. [s]: 1



  Session Capacity (0-512000)                   : 8000



Enter 1 - 13 to modify, d' to display, 's' to save, 'q' to exit. [s]: 2



    Advanced (enabled/disabled)                 : enabled



Enter 1 - 13 to modify, d' to display, 's' to save, 'q' to exit. [s]: d





----------------------------------------------------------------

Entitlements for Enterprise Session Border Controller

Last Modified: Never

----------------------------------------------------------------

 1 : Session Capacity                           : 8000

 2 :   Advanced                                 : enabled

 3 :   STIR/SHAKEN Client                       :

 4 : Admin Security                             :

 5 : Data Integrity (FIPS 140-2)                :

 6 : Transcode Codec AMR                        :

 7 : Transcode Codec AMR Capacity               : 0

 8 : Transcode Codec AMRWB                      :

 9 : Transcode Codec AMRWB Capacity             : 0

 10: Transcode Codec EVS                        :

 11: Transcode Codec EVS Capacity               : 0

 12: Transcode Codec OPUS Capacity              : 0

 13: Transcode Codec SILK Capacity              : 0



Enter 1 - 13 to modify, d' to display, 's' to save, 'q' to exit. [s]: s

SAVE SUCCEEDED

e-sbc-a#



Machine generated alternative text: Boot File IP Address ULAN Netmask Gateway IPv6 Address IPv6 Gateway Host IP FTP username FTP password Flags Target Name Console Device Console Baudrate Other . / boot/bz Image . null . null . null 10.8. 25.214 255. 255. 255. 128 10.8. 25.131 : cisco e—sbc—a VGA 115280



Reboot



Config t

System

http-server

        name                                    clab

        state                                   enabled

        realm

        ip-address

        http-state                              enabled

        http-port                               80

        https-state                             disabled

        https-port                              443

        http-interface-list                     REST,GUI

        http-file-upload-size                   0

        tls-profile

        auth-profile

        last-modified-by                        admin@10.254.169.197

        last-modified-date                      2022-04-28 15:17:41

Done

Exit

Verify-config

Save-config

Activate-config

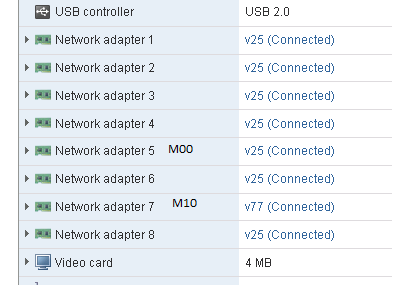

Machine generated alternative text: USB controller Network adapter 1 Network adapter 2 Network adapter 3 Network adapter 4 Network adapter 5 Network adapter 6 Network adapter 7 Network adapter B Video card MOO USB v25 (Connected) v25 (Connected) v25 (Connected) v25 (Connected) v25 (Connected) v25 (Connected) v77 (Connected) v25 (Connected)
