Cisco ACS5.3 AAA in internal and AD

This article aims to let you understand how to configure AAA in Cisco ACS 5.3 for internal group and external users integrated with Microsoft Active Directory by using a demo.

Demo Environment

After the authorized user login to the router through ACS, the user can execute “configure terminal” and all command-sets under “router” only.

Router 1, IP:1.1.1.1 ( use internal group)

Router 2, IP:2.2.2.2 (use AD group)

ACS Server, IP:142.100.64.53

AD domain name: ccievoice.com

Router 1 configuration with AAA:

enable password cisco ! aaa new-model ! ! aaa group server tacacs+ 15lab server 142.100.64.53 ! aaa authentication login noacs line none aaa authentication login 15lab-vty group 15lab aaa authorization config-commands aaa authorization exec vty group tacacs+ aaa authorization commands 5 15lab-command group 15lab aaa accounting exec 15lab-acc start-stop group 15lab aaa accounting commands 0 15lab-acc-cmd start-stop group 15lab aaa accounting commands 1 15lab-acc-cmd start-stop group 15lab aaa accounting commands 5 15lab-acc-cmd start-stop group 15lab ! ip tacacs source-interface Loopback0 ! privilege configure all level 5 router ! tacacs-server host 142.100.64.53 key cisco line con 0 exec-timeout 0 0 logging synchronous login authentication noacs line aux 0 login authentication noacs line vty 0 exec-timeout 0 0 authorization commands 5 15lab-command authorization exec vty accounting commands 0 15lab-acc-cmd accounting commands 1 15lab-acc-cmd accounting commands 5 15lab-acc-cmd accounting exec 15lab-acc logging synchronous login authentication 15lab-vty line vty 1 4 authorization commands 5 15lab-command authorization exec vty accounting commands 0 15lab-acc-cmd accounting commands 1 15lab-acc-cmd accounting commands 5 15lab-acc-cmd accounting exec 15lab-acc login authentication 15lab-vty line vty 5 15 authorization commands 5 15lab-command authorization exec vty accounting commands 0 15lab-acc-cmd accounting commands 1 15lab-acc-cmd accounting commands 5 15lab-acc-cmd accounting exec 15lab-acc login authentication 15lab-vty

Router 2 configuration with AAA:

NOTE: No configurations of accounting yet.

aaa new-model ! ! aaa group server tacacs+ 15lab server 142.100.64.53 aaa authentication login noacs line none aaa authentication login vty group 15lab aaa authorization exec vty group 15lab ! ip tacacs source-interface Loopback0 ! ! tacacs-server host 142.100.64.53 key cisco line con 0 exec-timeout 0 0 privilege level 15 logging synchronous login authentication noacs line aux 0 exec-timeout 3600 0 logging synchronous login authentication noacs line vty 0 4 authorization exec vty login authentication vty line vty 5 14 authorization exec vty login authentication vty line vty 15 authorization exec vty login authentication vty parser view fifteenlab secret 5 cisco. commands configure include all router commands exec include configure terminal commands exec include configure

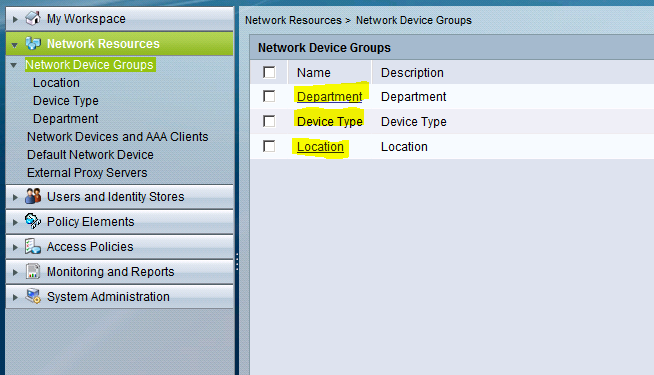

NDG in ACS:

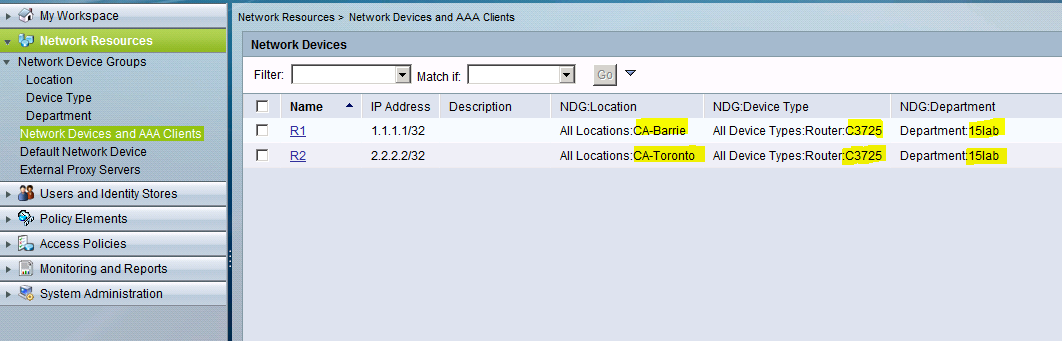

Router1 and Router2 associations with NDGs

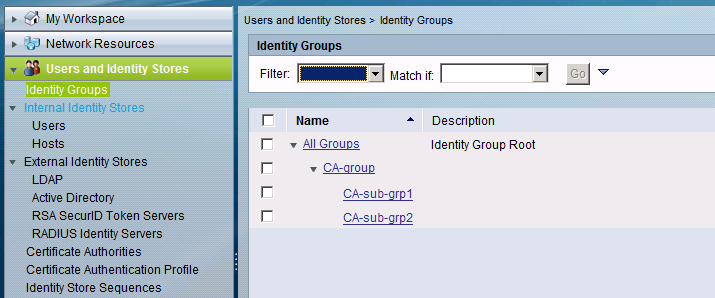

Add internal user group

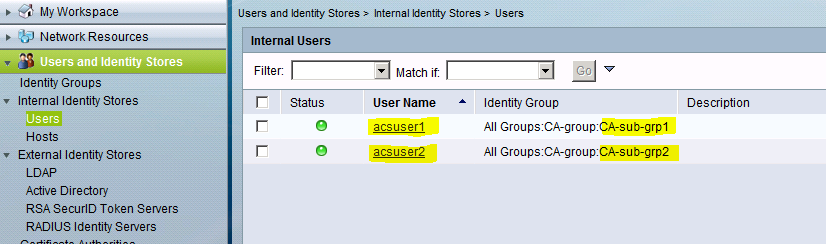

Add internal users to internal groups

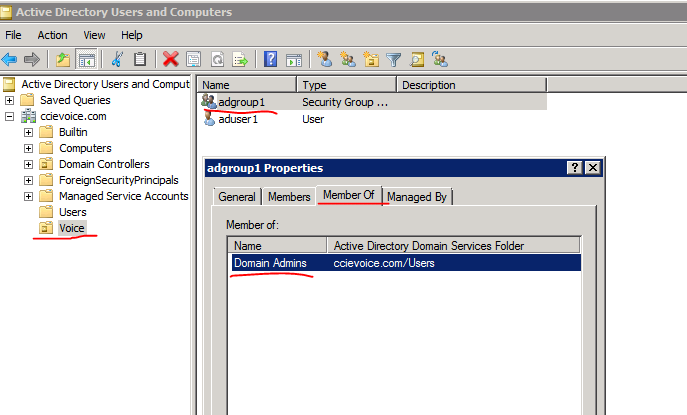

Create a user in Microsoft Active Directory as external user of ACS

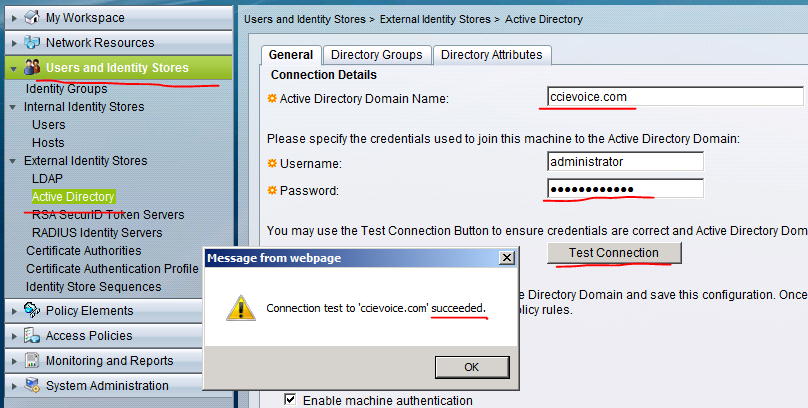

Integration AD into ACS

Add the correct group to Directory Groups

Select sample subject to select “sAMAccountName”Attribute in Directory Attributes tab

Sample user for “aduser1”

Define filters for Router1 and Router2

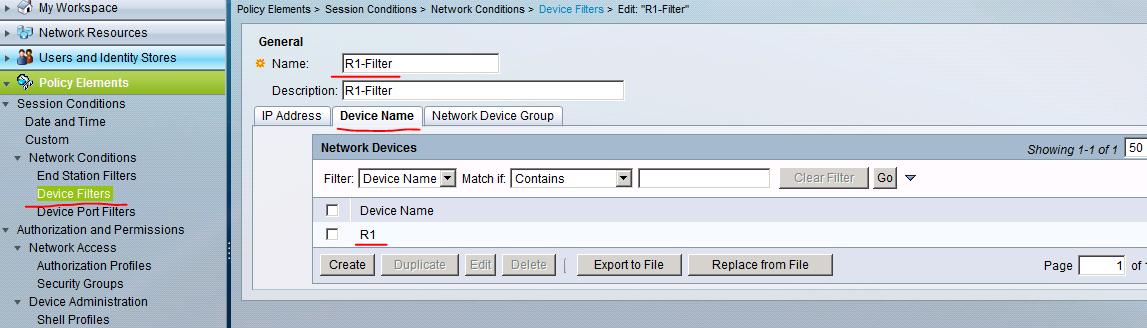

Create R1 filter

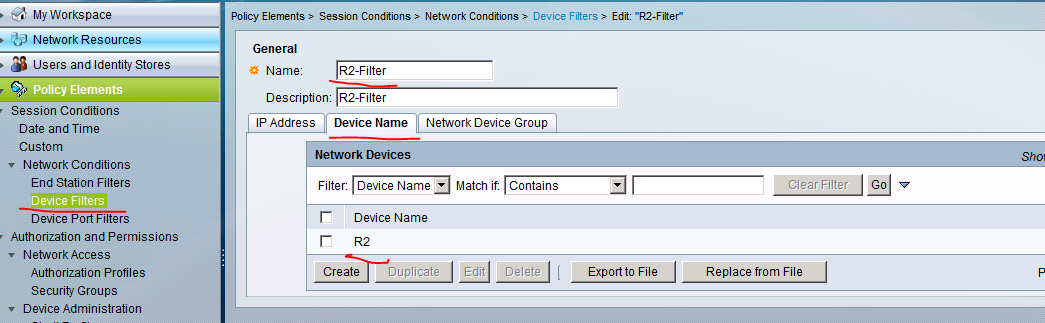

Create R2 filter

Define Shell Profiles for authorization

Name “aduser1-view” is used for AD users

Set Custom Attributes to select correct View in router

“fifteenlab” matches View name that is configured in CLI of Router2:

parser view fifteenlab

secret 5 cisco.

commands configure include all router

commands exec include configure terminal

commands exec include configure

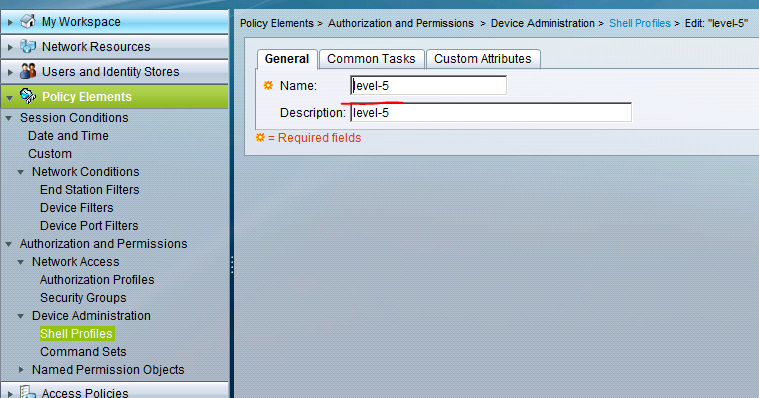

Add another profile “level-5” for internal user :

Set Default Privilege to “5”

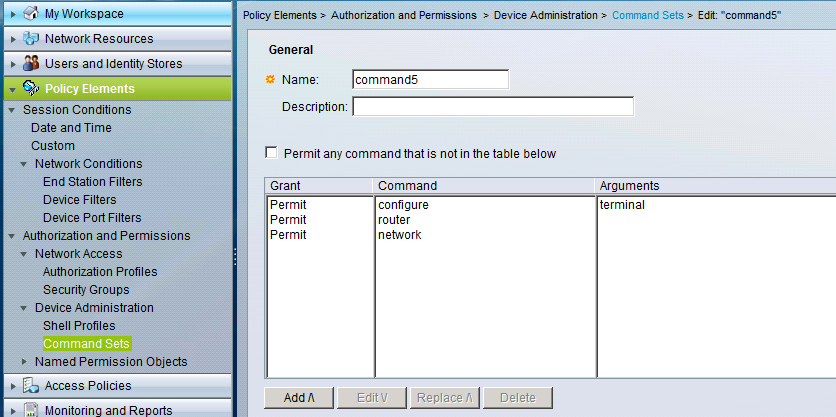

Define Command sets to allow which commands internal users are able to execute

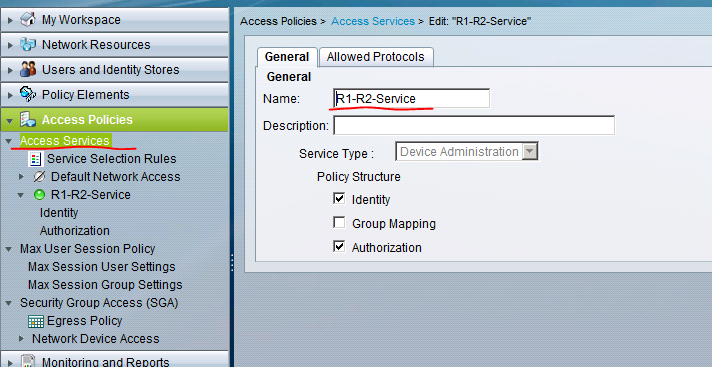

Define Access Services

Go to Identify of defined Access Service and then configure different rules for Router1 and Router2

Customize “Device Filter” to give option for selecting different devices

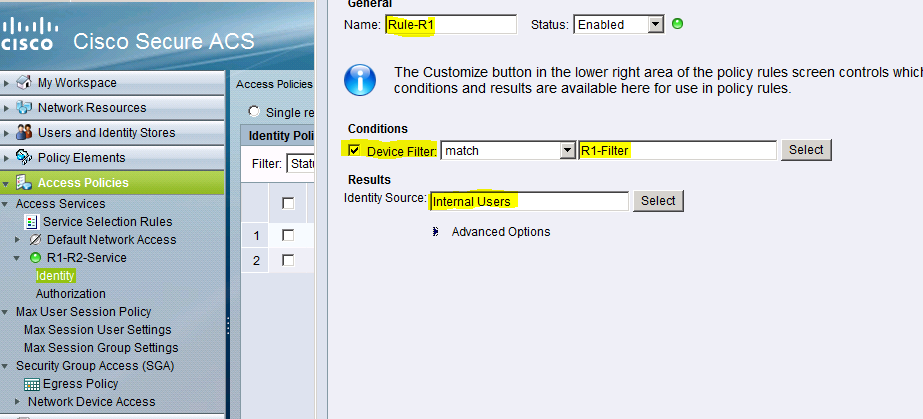

Rule-R1 is supposed to give login user the access by using Internal Users:

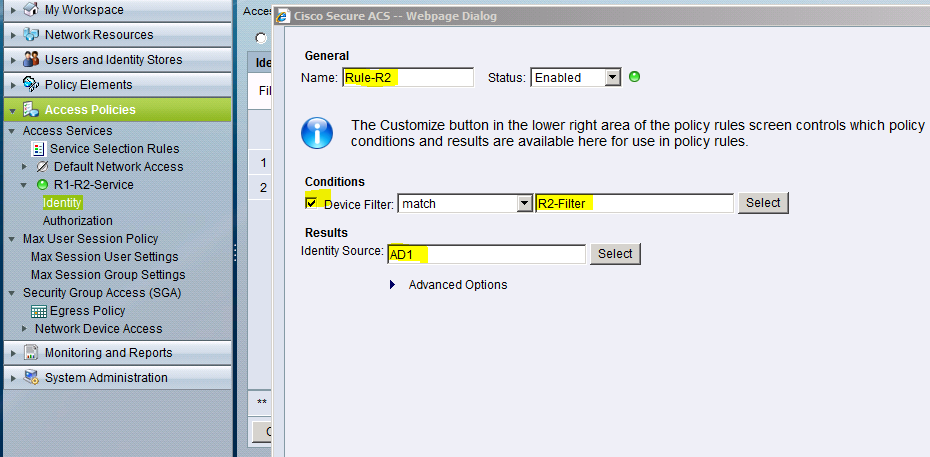

Rule-R2 is supposed to give login user the access by using AD:

Define Authorization

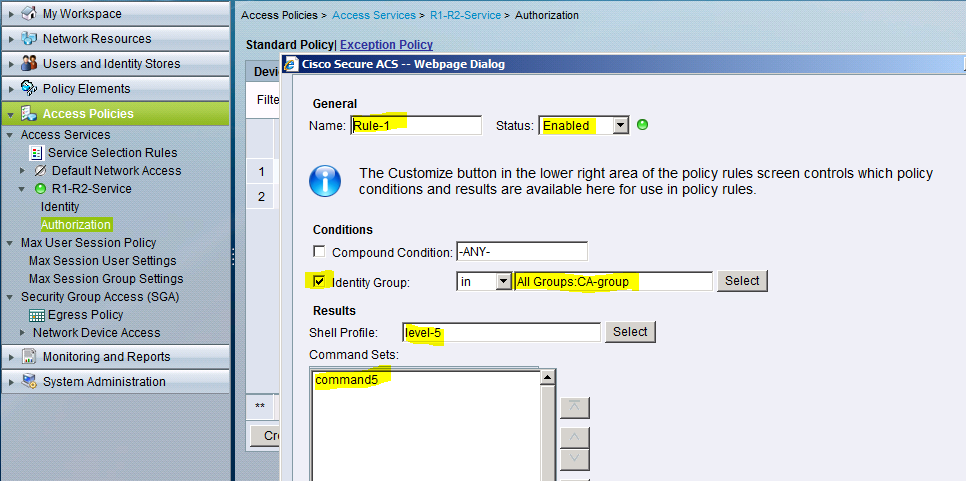

“Rule-1” is used for internal users’ authorization

“Rule-2” is used for AD users’ authorization, Note: DenyAllCommands in Command-sets will not affect anything.

Create Service Selection Rules

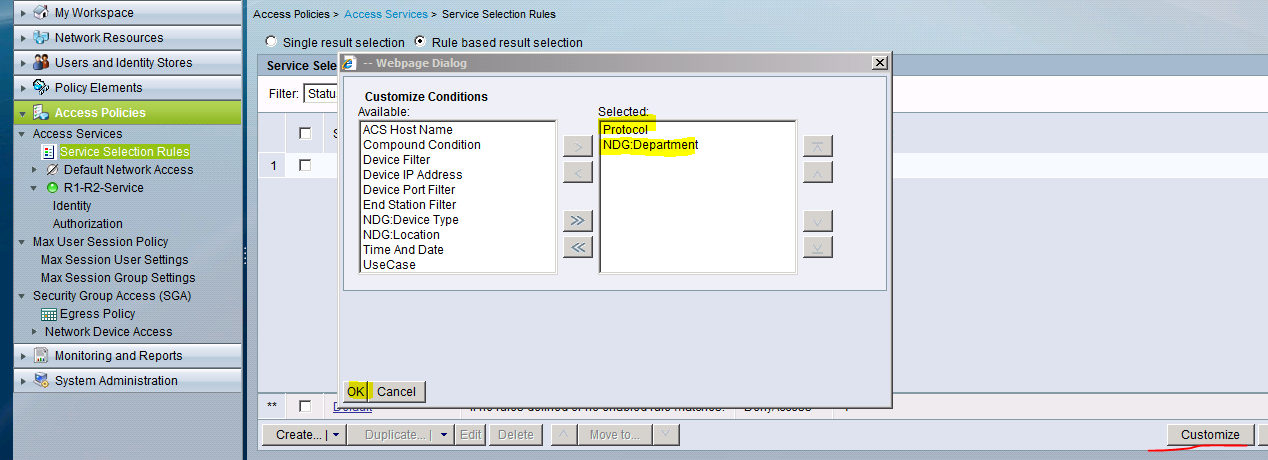

Customize “Protocol” and “NDG:Department” for match Rotuer1 and Router2

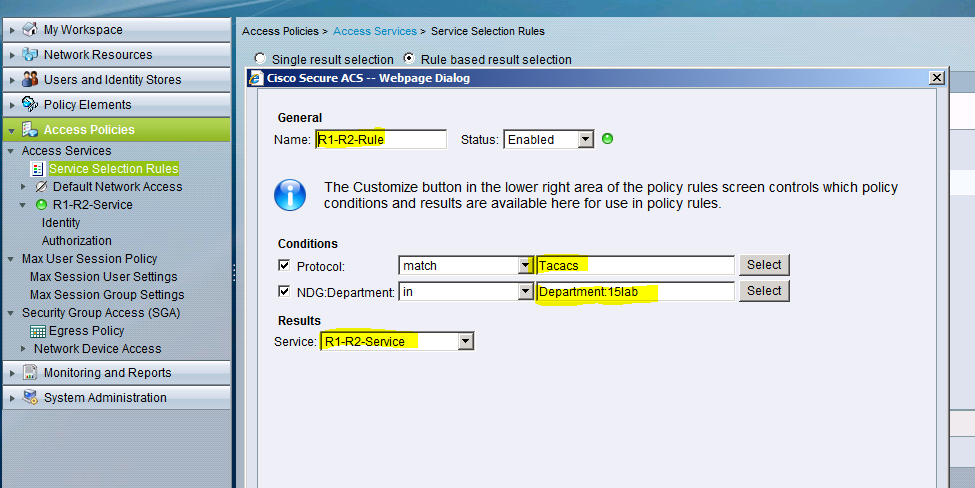

Add a rule and select correct service for it

Test

Proof of concept in Router1

r1#telnet 1.1.1.1 Trying 1.1.1.1 ... Open (15Lab) username: acsuser1 r1#show privi r1#show privilege Current privilege level is 5 r1#conf t Enter configuration commands, one per line.  End with CNTL/Z. r1(config)#? Configure commands:  call     Configure Call parameters  default  Set a command to its defaults  dss      Configure dss parameters  end      Exit from configure mode  exit     Exit from configure mode  help     Description of the interactive help system  no       Negate a command or set its defaults  router   Enable a routing process r1(config)#router ?  bgp       Border Gateway Protocol (BGP)  eigrp     Enhanced Interior Gateway Routing Protocol (EIGRP)  isis      ISO IS-IS  iso-igrp  IGRP for OSI networks  mobile    Mobile routes  odr       On Demand stub Routes  ospf      Open Shortest Path First (OSPF)  rip       Routing Information Protocol (RIP)

Proof of concept in Router2

bb#telnet 2.2.2.2 Trying 2.2.2.2 ... Open (15Lab) username: aduser1 (15Lab) password: bb>show parser view Current view is 'fifteenlab'
