Expressway Edge Deployment

Demo(screenshots)

1. Deployment Guide

original document shared at:
https://drive.google.com/open?id=0B5tzzJsbkWkIc0dwZHdNcVgtZzg&authuser=0

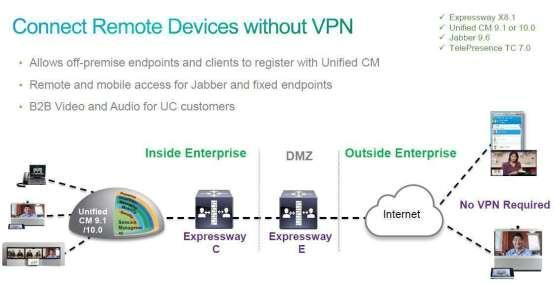

1.1 Topology

1.2 IP allocations

		Domain: uc.dc.com
	Server		Domain name		IP address
		CUCM（Internal）	cm10.uc.dc.com		172.17.20.110/24
	IM&P（Internal）		imp10.uc.dc.com	172.17.20.112/24
			ad-inside.uc.dc.com
		AD/DNS（Internal）			172.17.20.120/24
	Expressway-Core（Internal） expc.uc.dc.com			172.17.20.121/24
		Expressway-Edge（
		External）	expe.uc.dc.com
					10.10.10.121/24
	DNS （External）		dns-outside.uc.dc.com	10.10.10.1/24

2. AD/AD Certificate/DNS

1. Install Windows Server 2008 R2 Enterprise

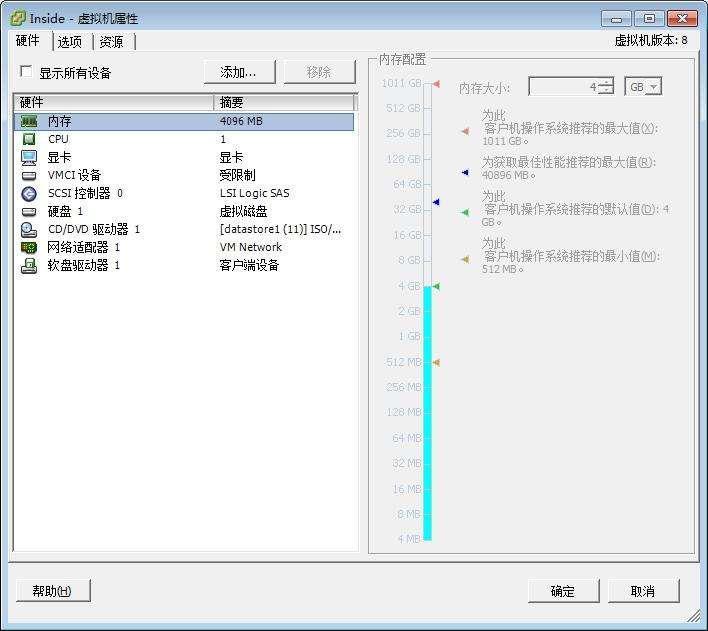

1. Deploy Virtual Machines

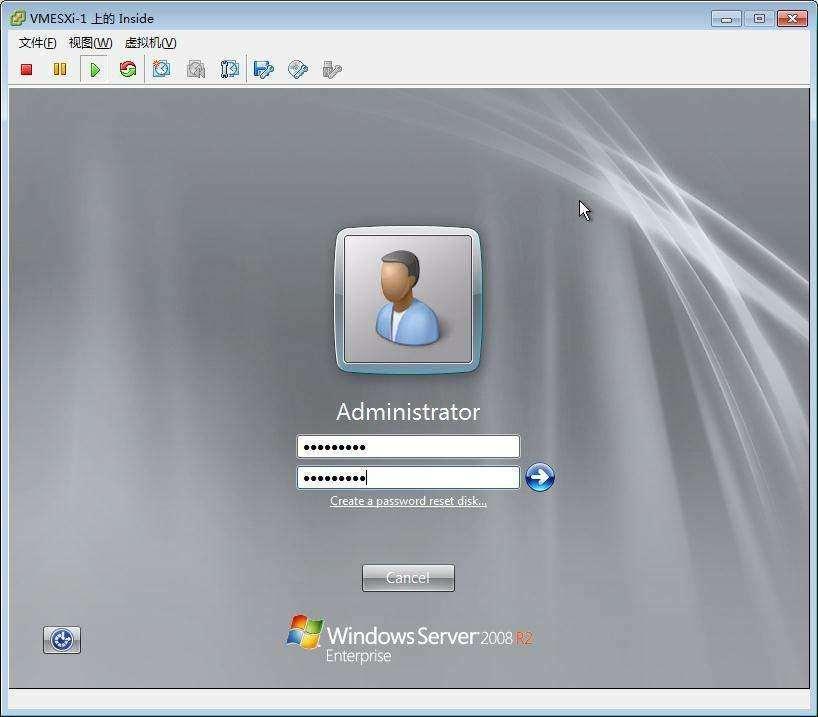

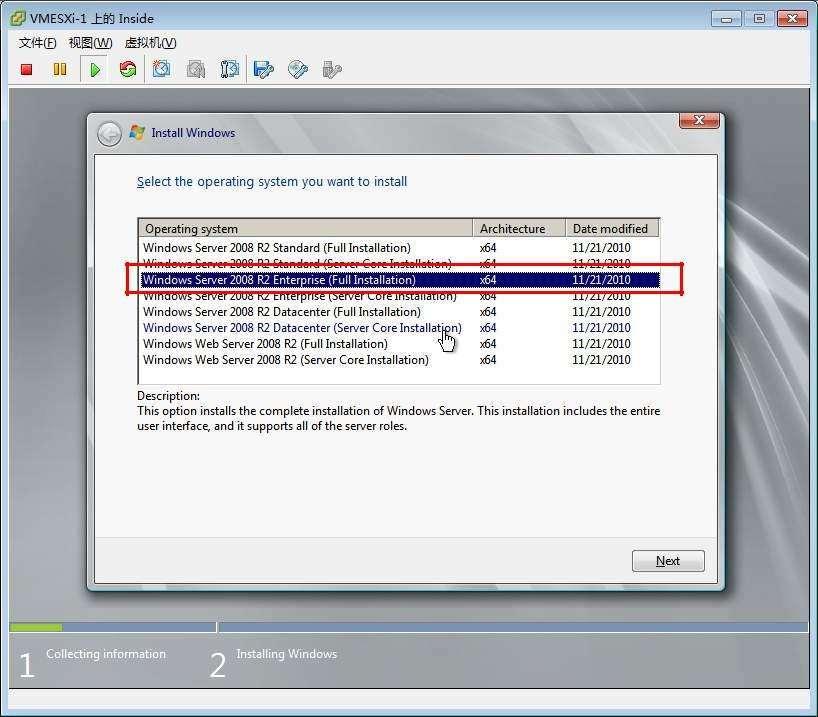

2.1.2 Install Windows Server 2008 R2 Enterprise

2.1.3 Create Administrator

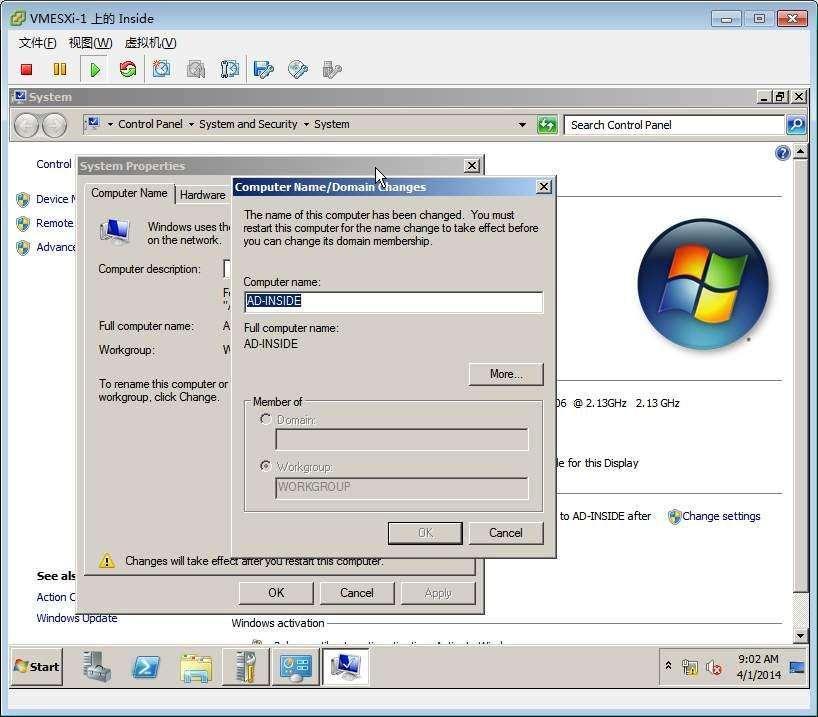

2.1.4 Change hostname->AD-INSIDE

9

2.2 Deploy AD/DNS/AD Certificate

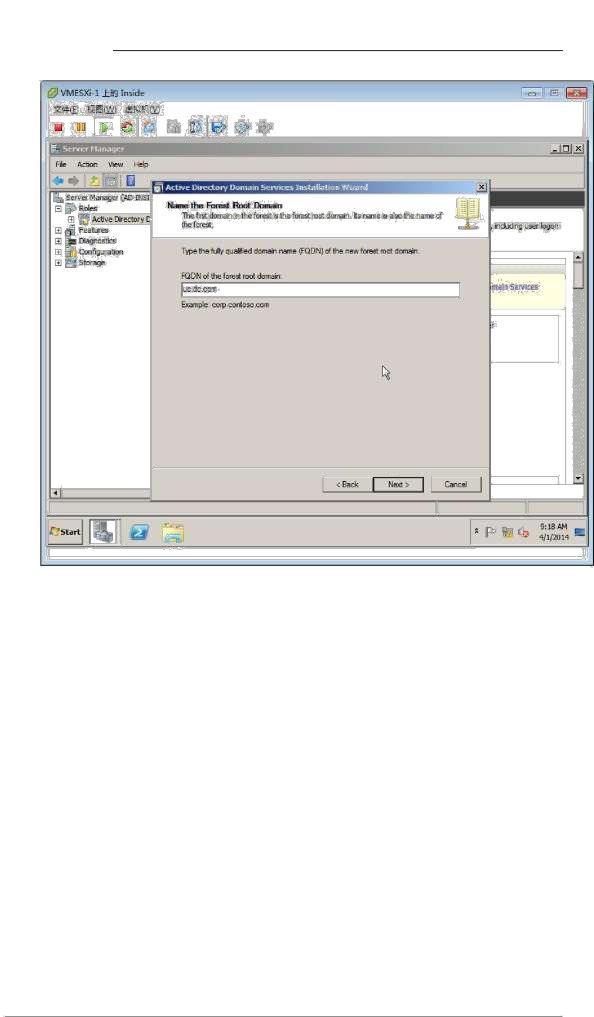

2.2.1 Install AD, Create Domain (uc.dc.com)

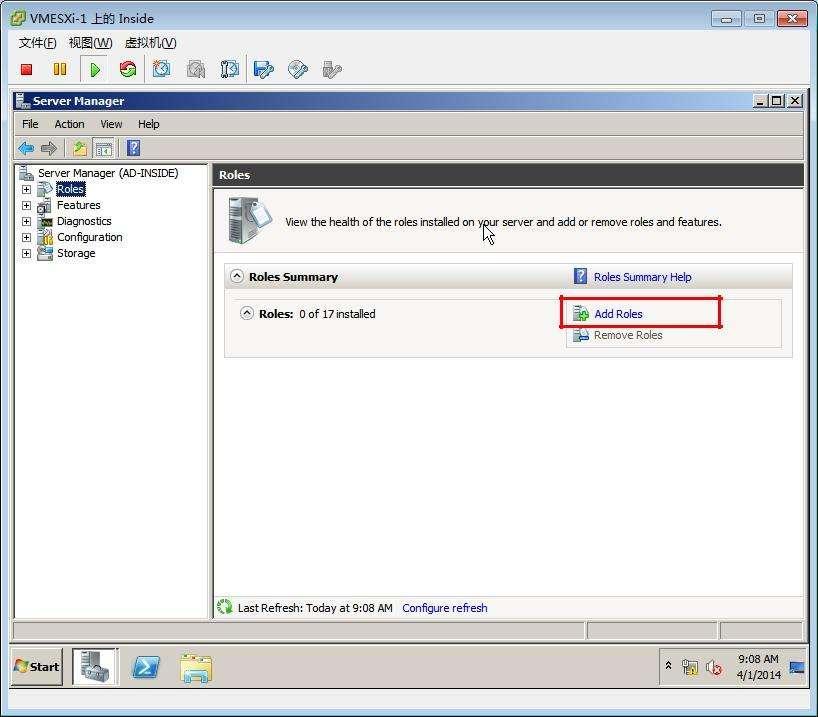

2.2.1.1 Service Manager->Add Roles

10

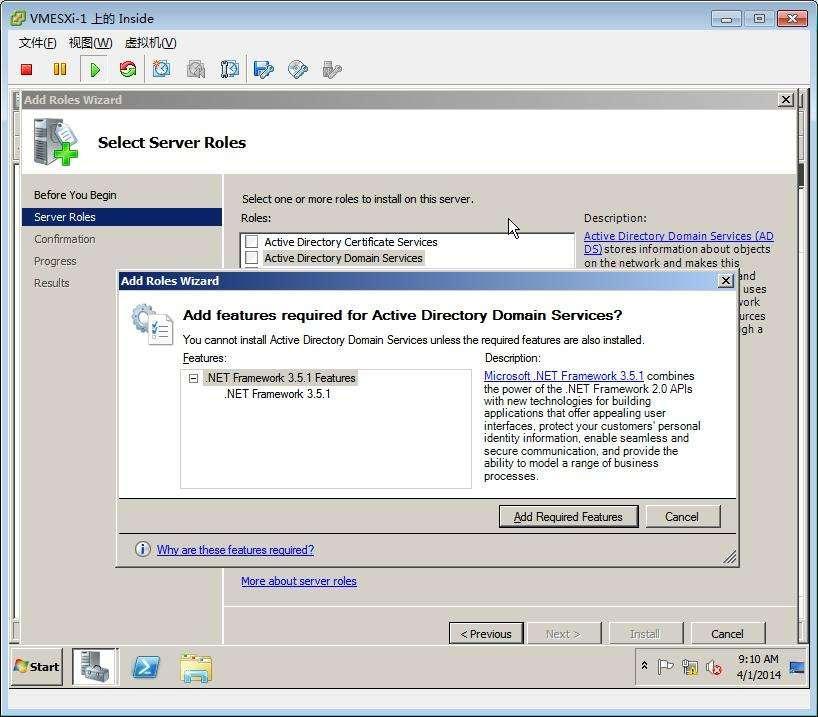

2.2.1.2 Select Server Roles->Active Directory Domain Services

11

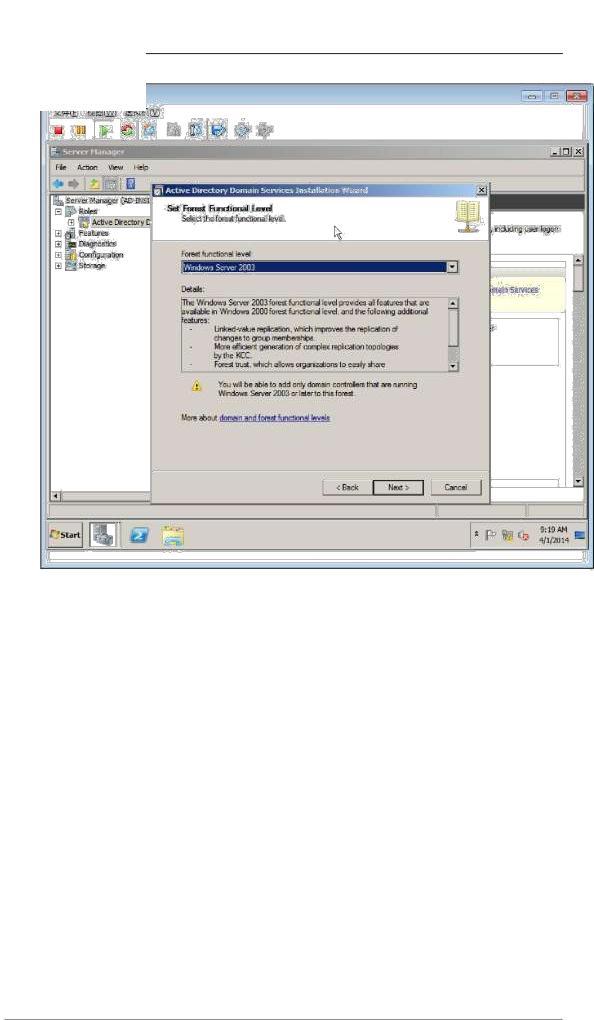

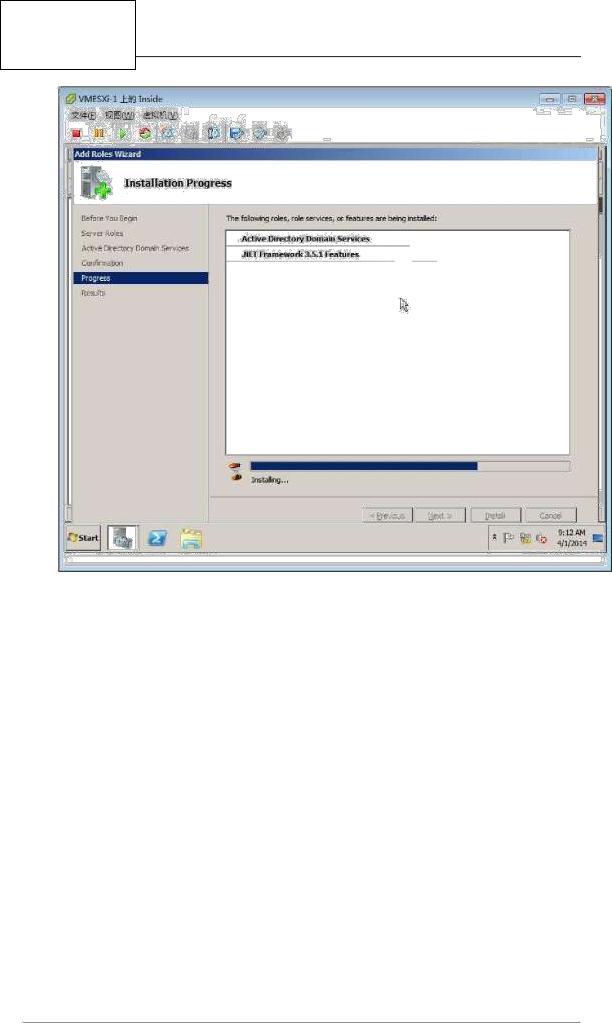

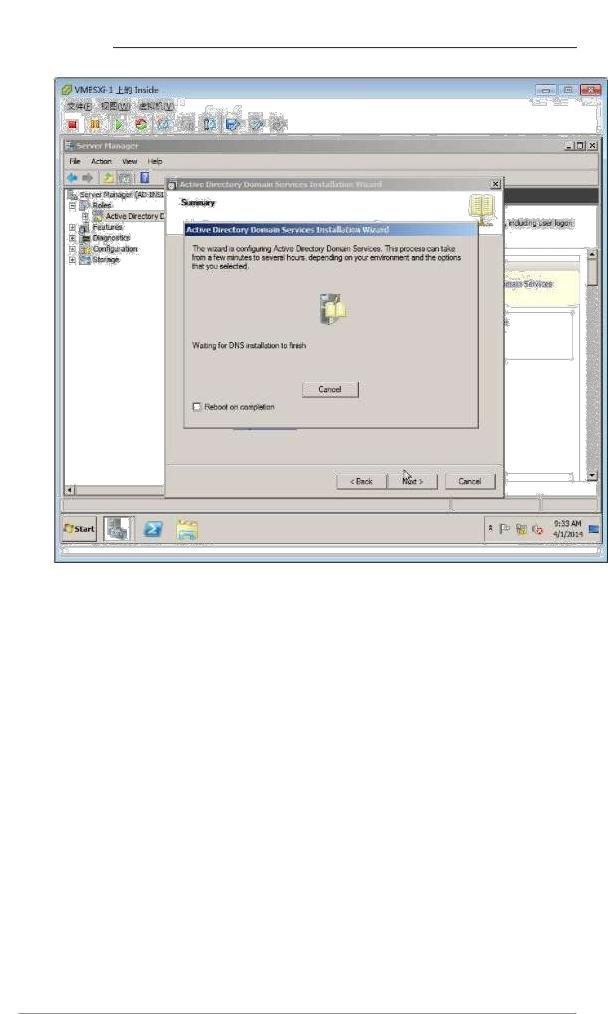

2.2.1.3 Install AD and DNS

12

13

14

15

16

17

18

19

20

21

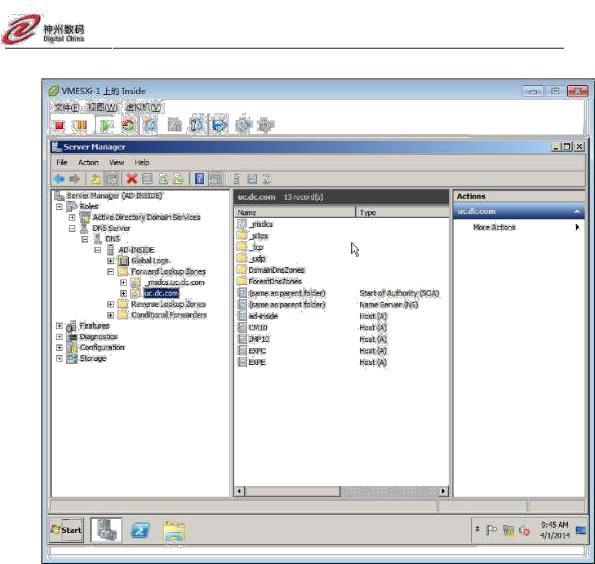

2.2.2 Internal DNS

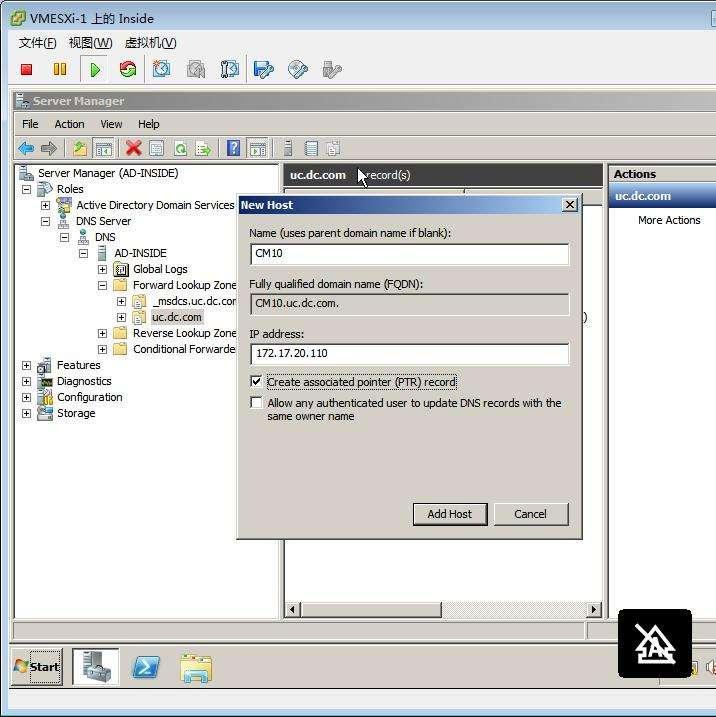

2.2.2.1 Configure CM/IMP/EXPC/EXPE Domain Resolve

22

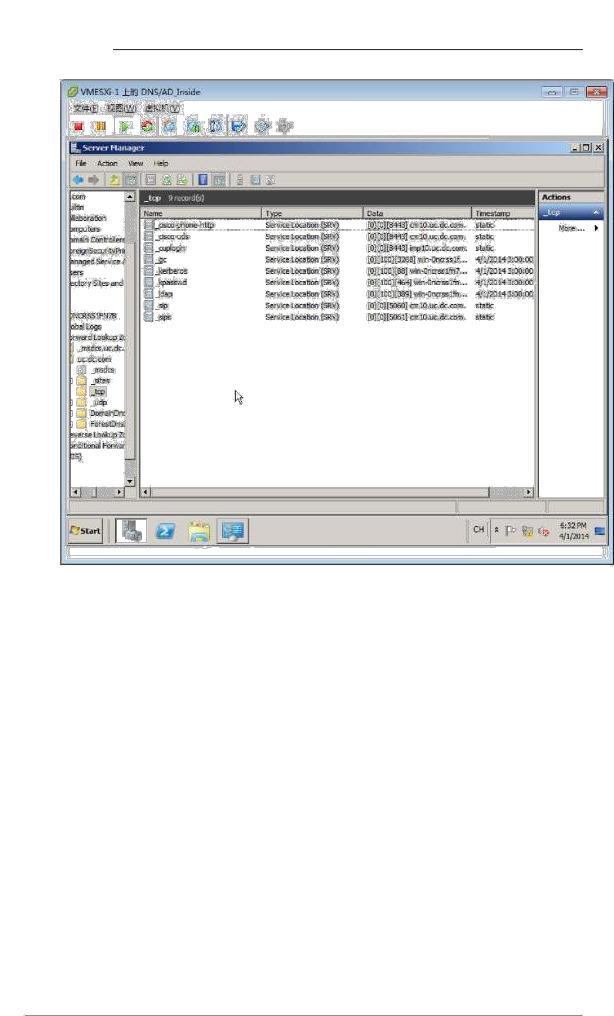

		2.2.2.2 Configure SRV Record
		Service		Protocol	Port number	Host offering this service
		_cisco-phone-http		_tcp	8443	cm10.uc.dc.com.
		_cisco-uds		_tcp	8443	cm10.uc.dc.com
		_cuplogin		_tcp	8443	imp10.uc.dc.com
		_sip		_tcp	5060	cm10.uc.dc.com
		_sips		_tcp	5061	cm10.uc.dc.com
		_sips		_udp	5060	cm10.uc.dc.com

23

24

25

26

27

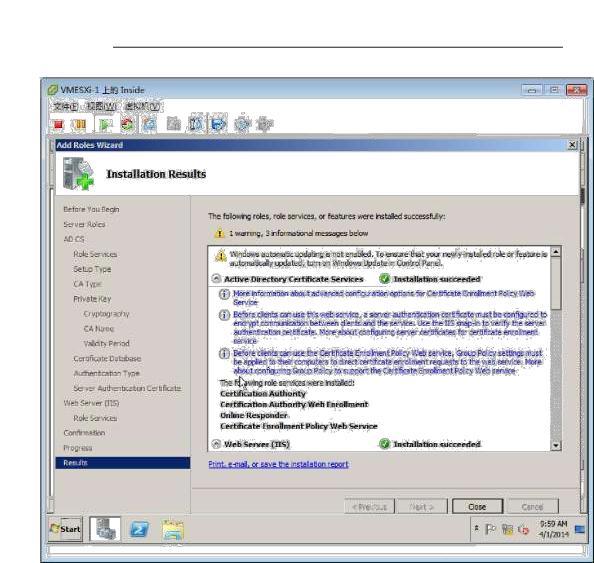

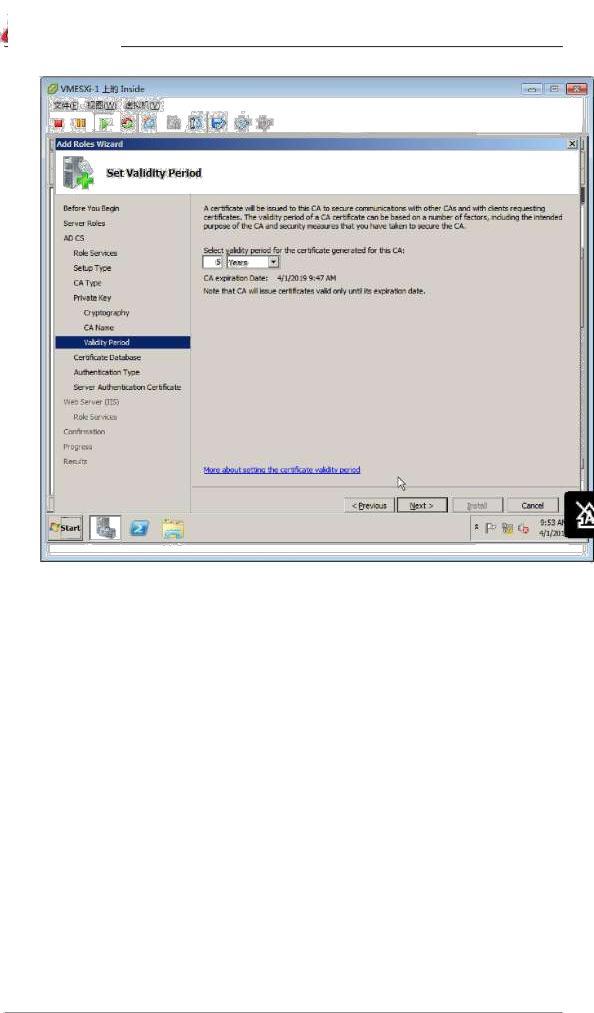

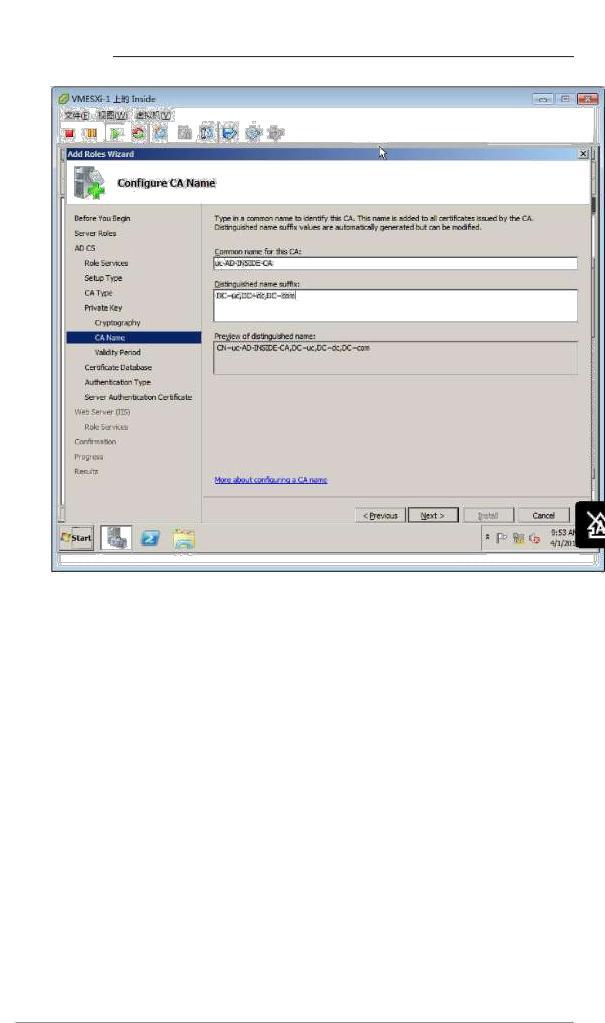

2.2.3 InstallAD Certificate

2.2.3.1 Service Manager->Add Roles

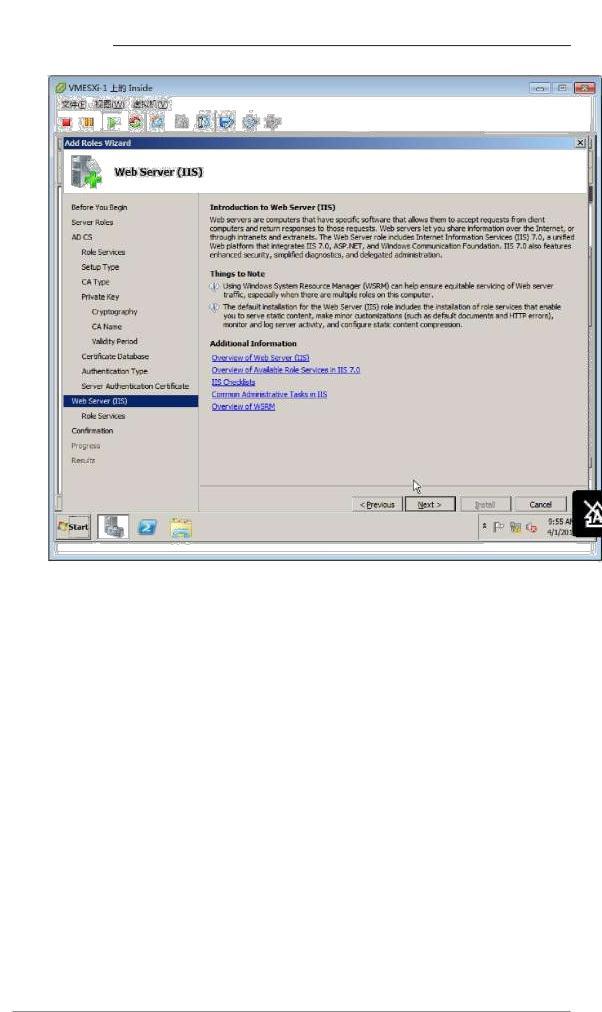

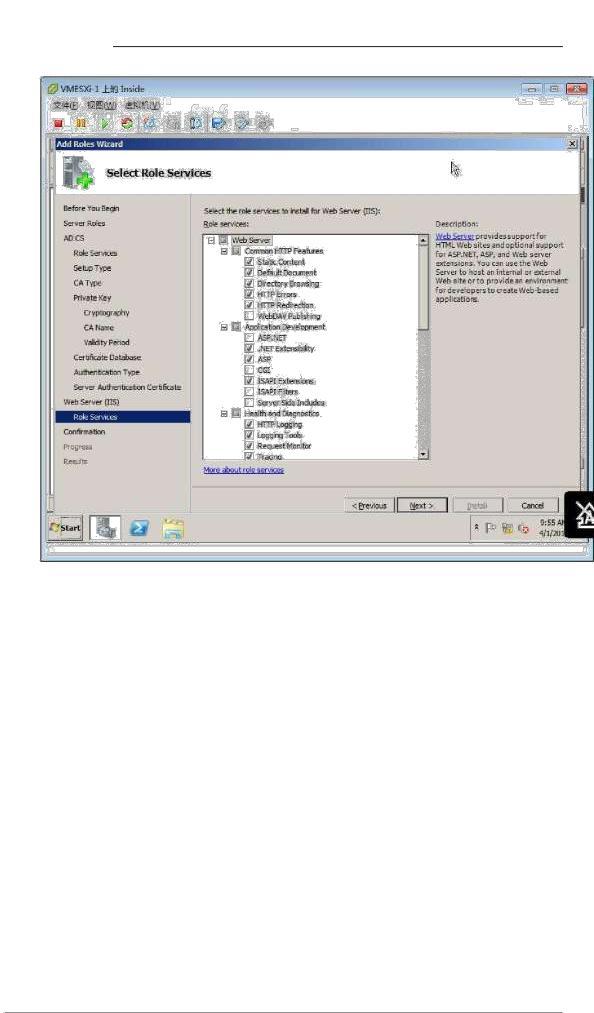

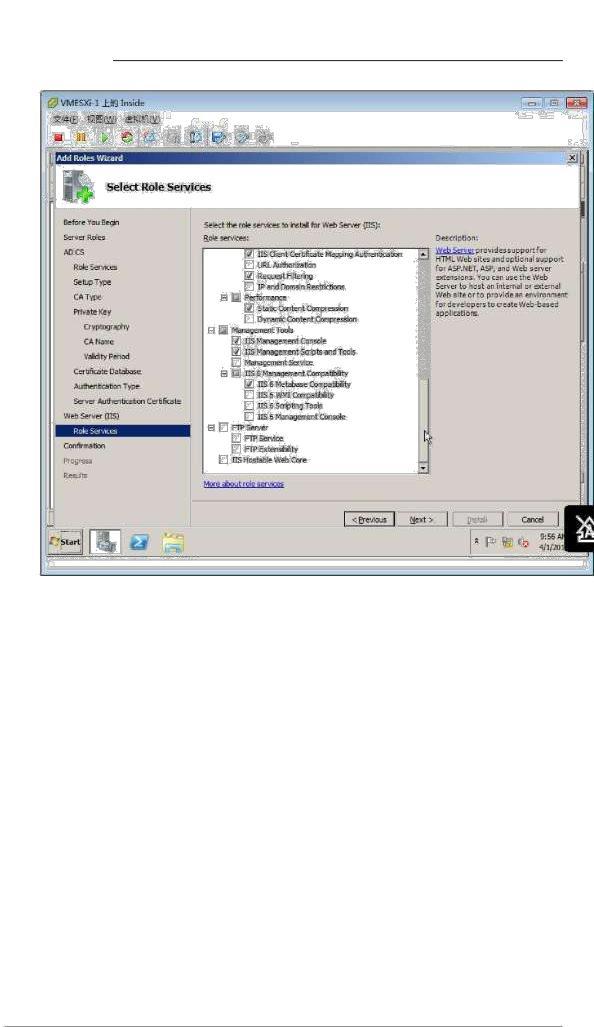

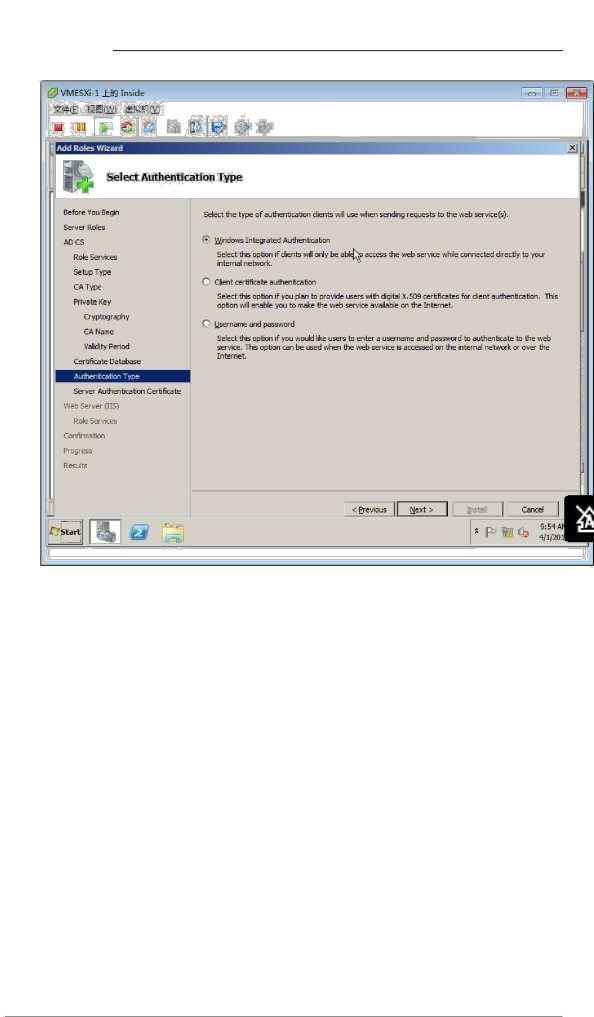

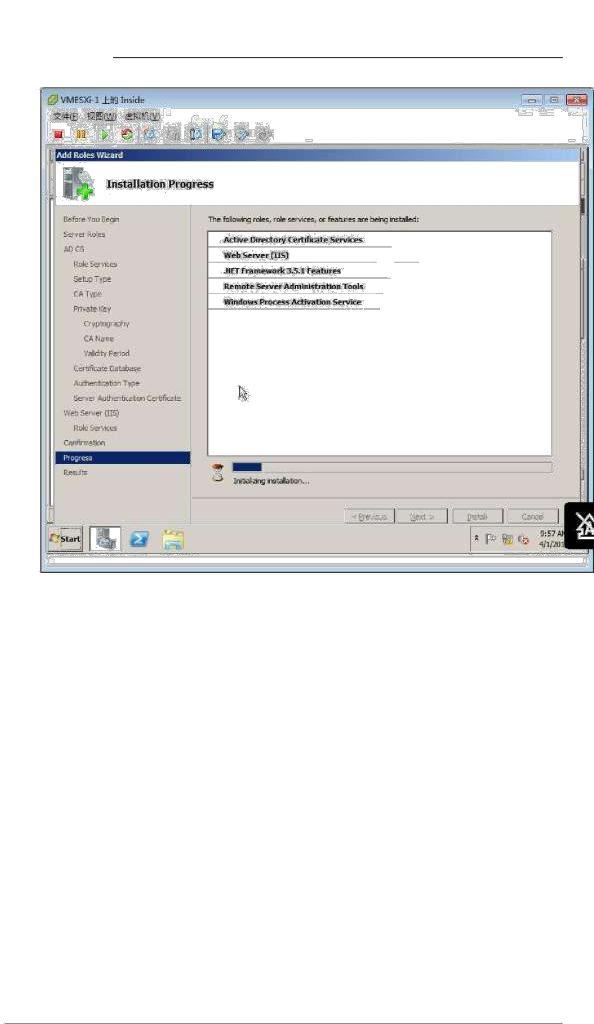

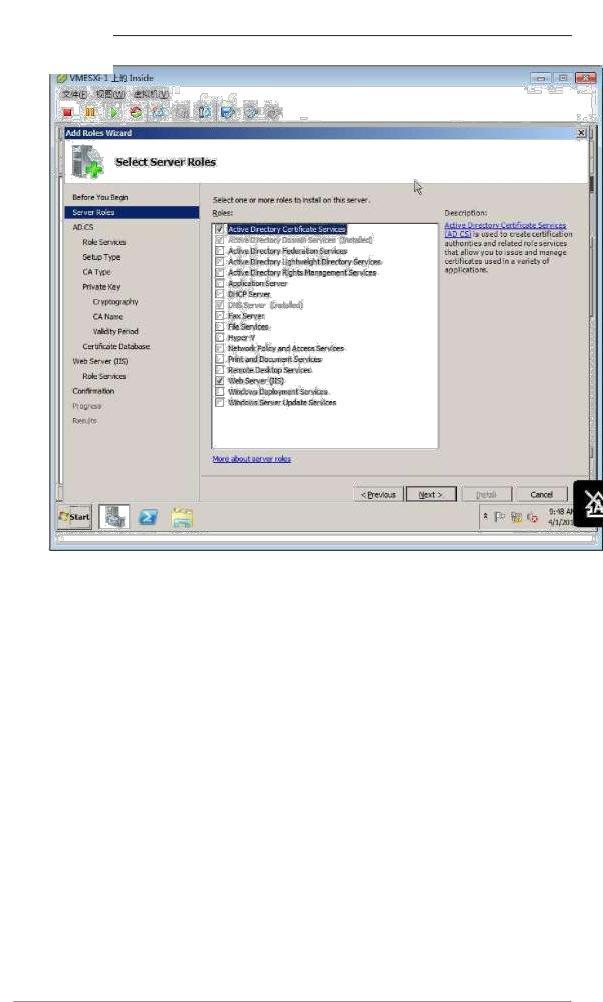

2.2.3.2 Select Server Roles->Active Directory Certificate Services | Web Server (IIS)

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

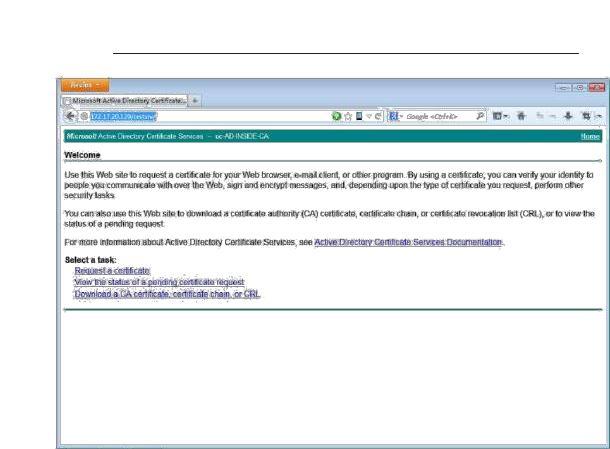

http://172.17.20.120/certsrv/

username:administrator | password:vwic-2mft

47

2.2.4 AD and AD Certificate ‘s Configure

2.2.4.1 In AD add user

Active Directory Users and Computers ->uc.dc.com ->new - >Organizational

Unit

48

collaboration ->new ->user

49

50

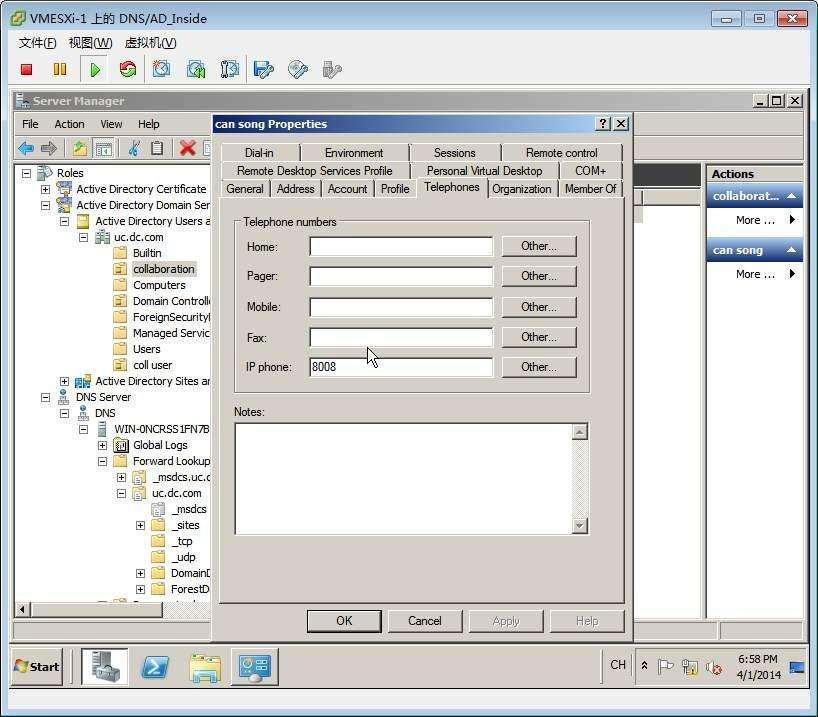

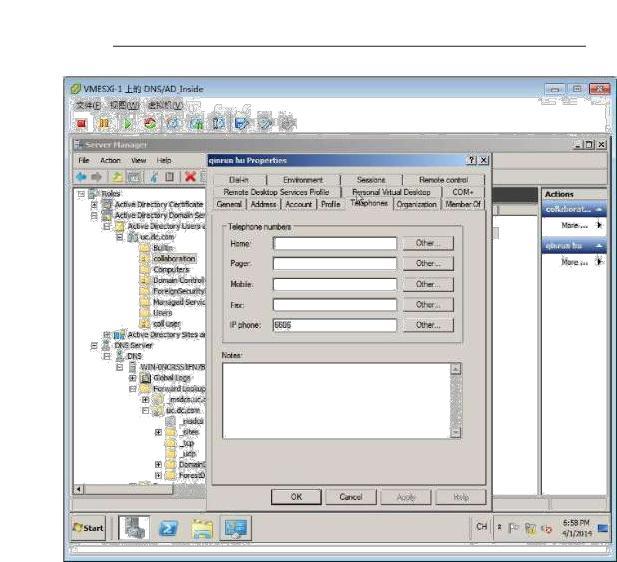

2.2.4.2 useradd number

51

2.2.4.3 create certificate template

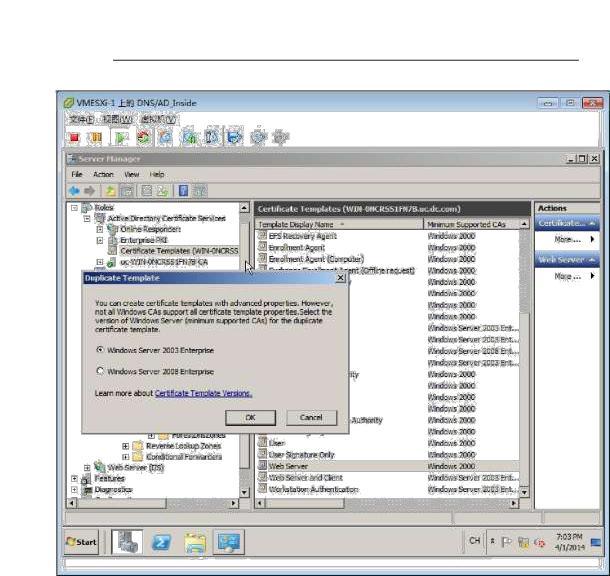

Active Directory Certificate Services ->Certificate Templates ->Web

Server

->Duplicate Template

52

Template display name: Web Server and Client

53

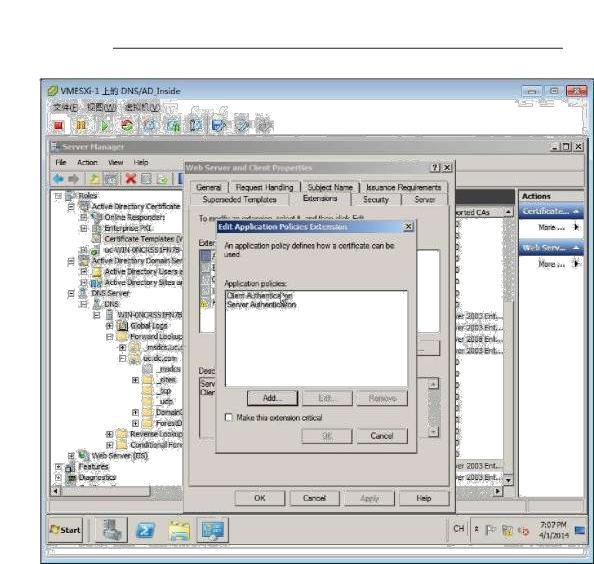

Extensions ->Application Policies ->Edit ->Add ->Client Authentication and

Server Authentication

54

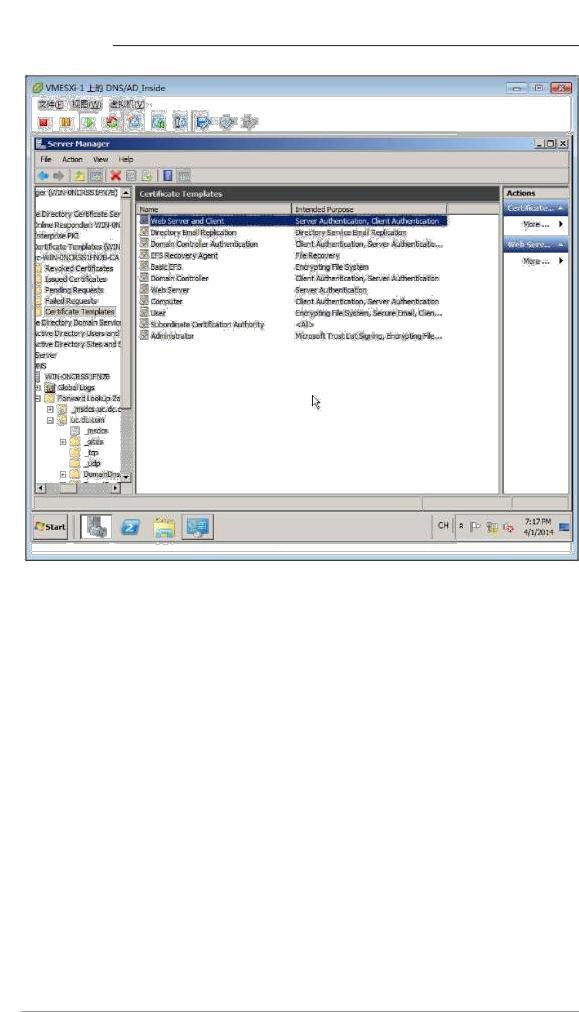

2.2.4.4 publish certificate template

Active Directory Certificate Services ->uc-AD-INSIDE-CA - >Certificate

Templates ->New ->Certificate Templates to Issue

55

56

57

2.2.5 external DNS ‘s Configure 2.2.5.1 Configure external DNS Resolve

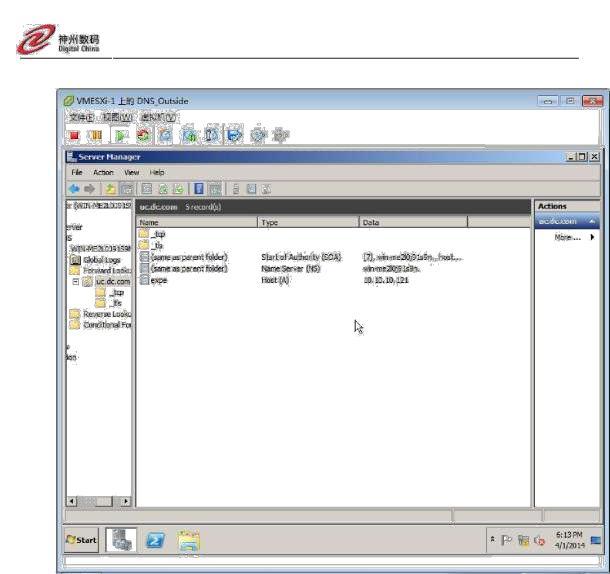

2.2.5.1.1Configure Expressway Edge DomainResolve：

58

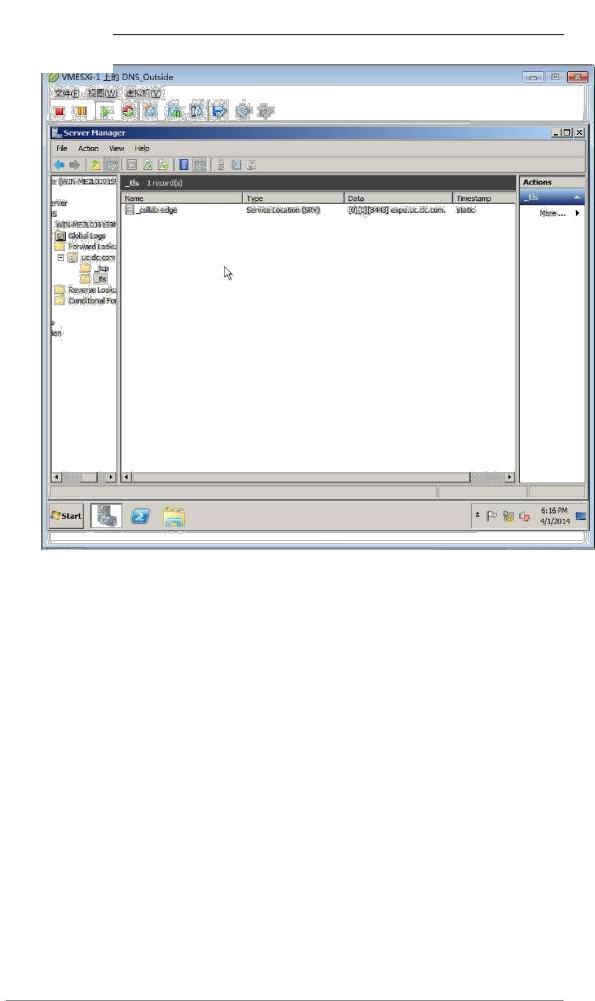

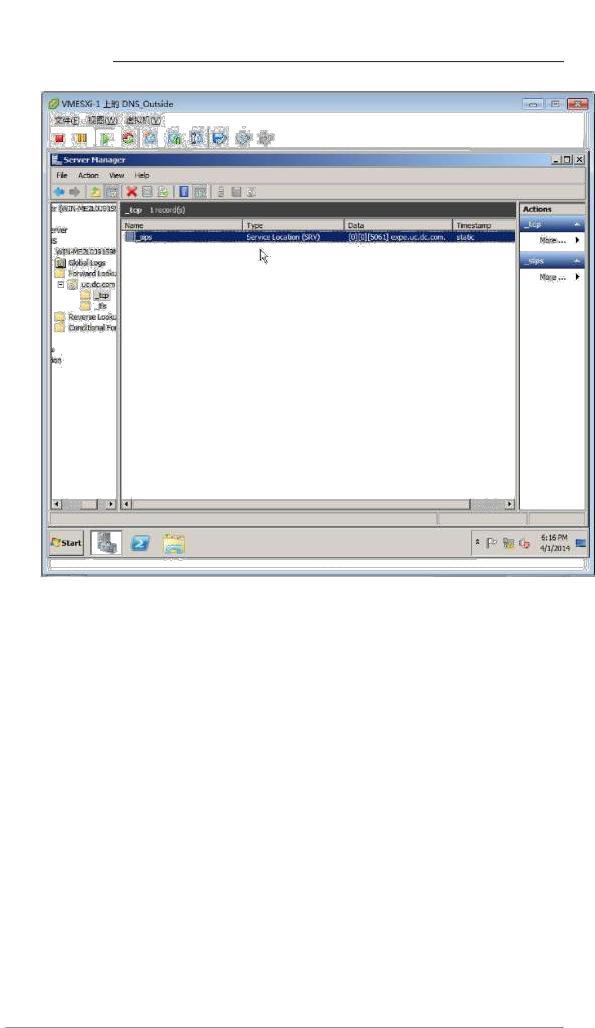

		2.2.5.1.2Configure SRV Record
		Service		Protocol		Port number	Host offering this service
		_collab-edge		_tls		8443	expe.uc.dc.com.
		_sips		_tcp		5061	expe.uc.dc.com

59

60

61

62

3. vRouter install deployment

3.1 vRouter ‘s install

vRouter ‘s install referrer to 《vRouter install guide》

3.2 vRouter ‘s Configure

vrouter is used to imitate real router isolating external and internal networks

3.2.1 Configure interface

63

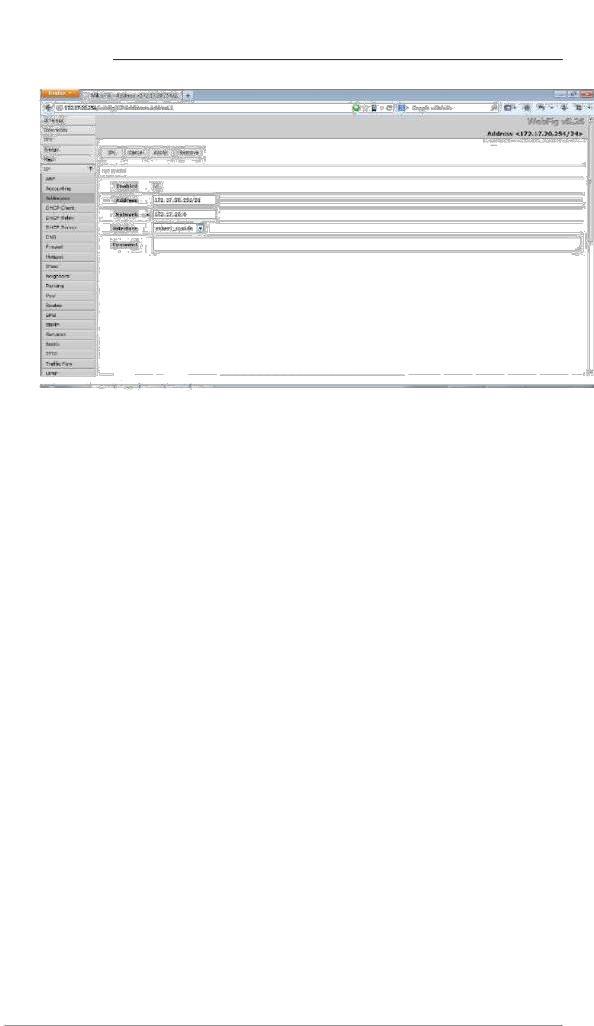

3.2.2 Configure IP address

64

65

4. CUCM ‘s install与Configure

4.1 CUCM ‘s install

10.0.1.10000-24

4.2 CUCM 与 AD integration

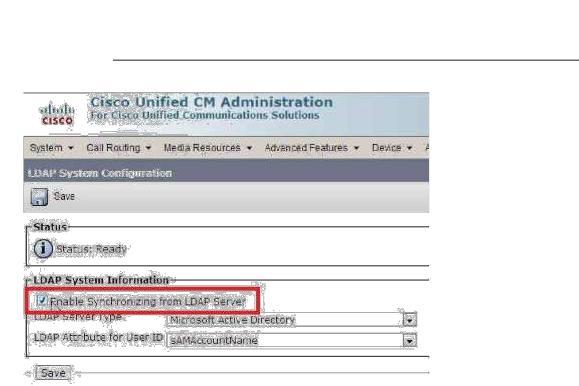

step 1 choose Cisco Unified CM Administration > System > LDAP > LDAP System. step 2 choose Add New.

step 3  choose Enable Synchronizing from LDAP Server.

66

step 4 choose Cisco Unified CM Administration > System > LDAP > LDAP Directory

step 5   click “Add new”，

67

“Save”， execute “Perform Full Sync Now”

step 6 choose Cisco Unified CM Administration > System > LDAP > LDAP Authentication

68

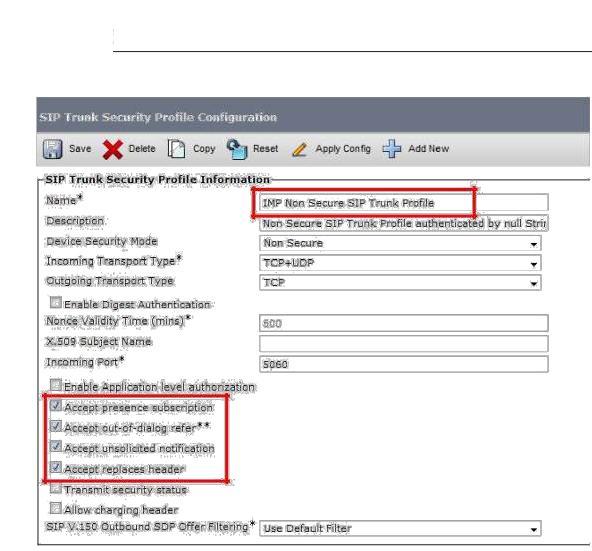

4.3 SIP Trunk Profile

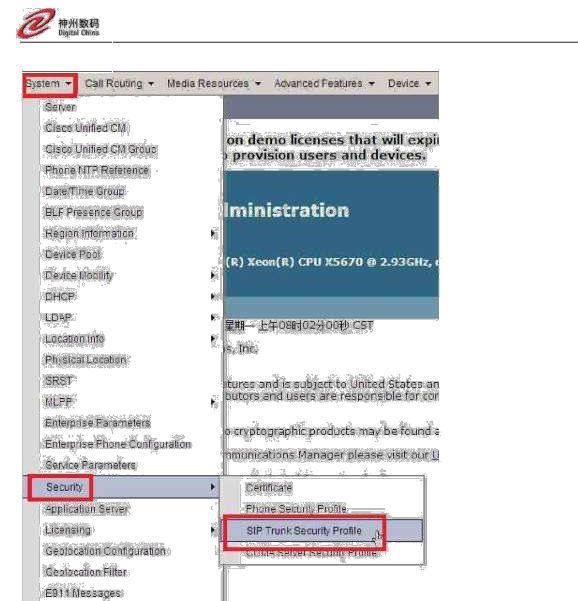

choose Cisco Unified Communications Manager Administration > System
step 1	>
Security > SIP Trunk Security Profile.

69

step	2	choose Find.
step	3	choose Non Secure SIP Trunk Profile.

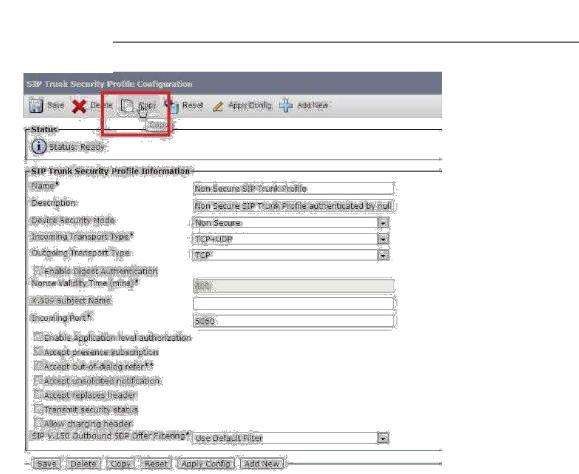

step 4    copy  SIP Trunk Profile，

70

step 5    choose :

Accept Presence Subscription Accept Out-of-Dialog REFER Accept Unsolicited Notification Accept Replaces Header

71

step 6    choose Save.

4.4 SIP Trunk setttings

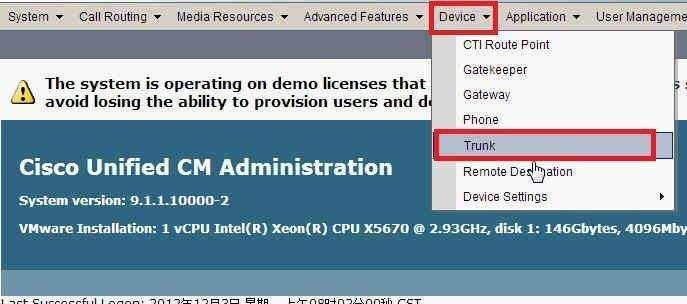

choose Cisco Unified Communications Manager Administration > Device > Trunk.

choose Add New.

72

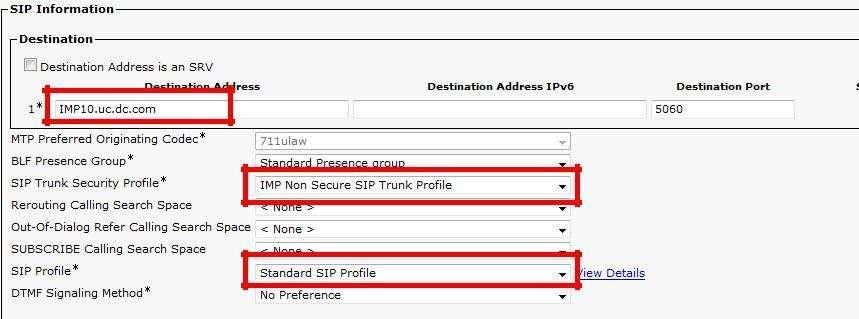

put peer CUPS server ’s hostname Domain address choose for CUPS ‘s Non Secure SIP Trunk Profile choose Standard SIP Profile from the SIP Profile menu

choose Save.

73

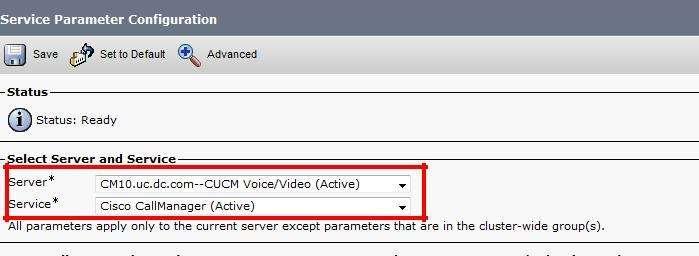

4.5 Presence

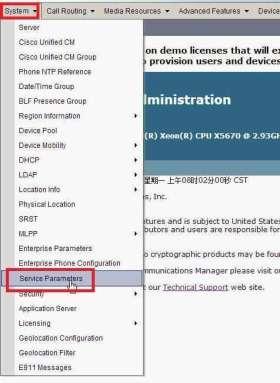

step 1    choose Cisco Unified Communications Manager Administration > System >

Service Parameters.

step 2 choose Cisco Unified Communications Manager server from the Server menu.

step 3    choose Cisco CallManager from the Service menu.

step 4

74

step 5    choose Save.

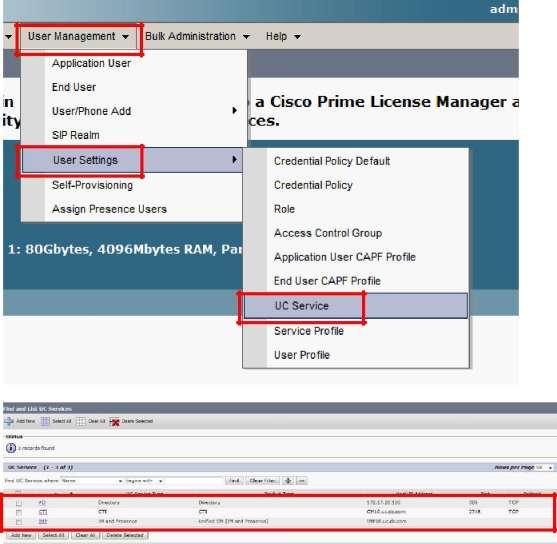

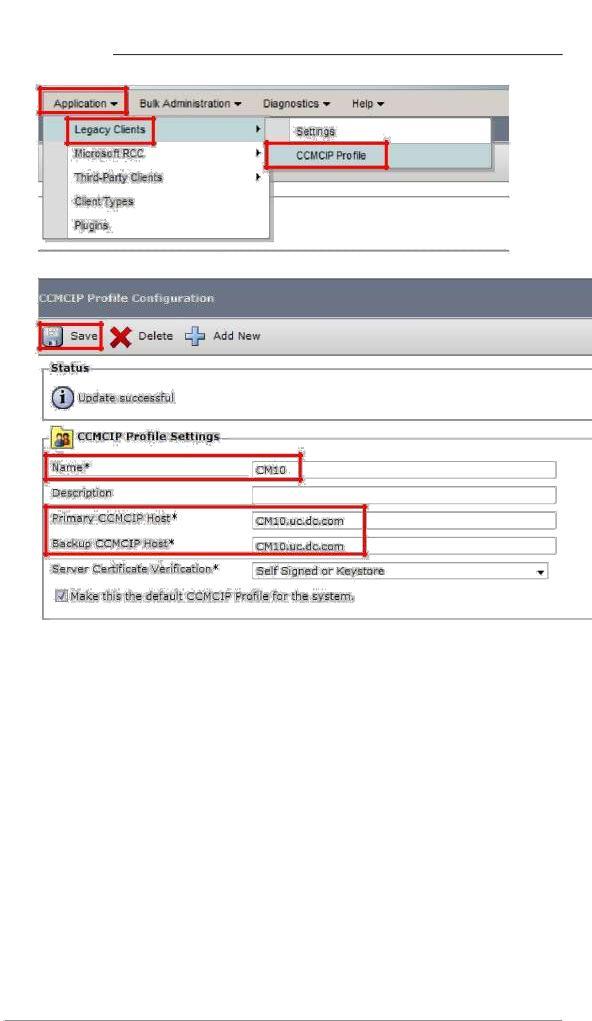

4.6 UC Service and Service Profile

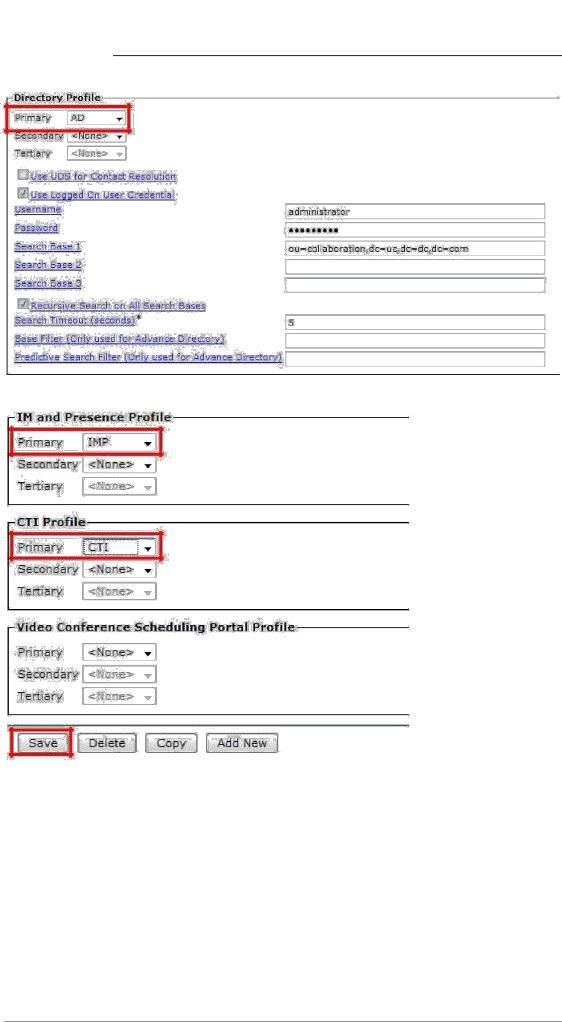

add a Service Profile，

75

76

77

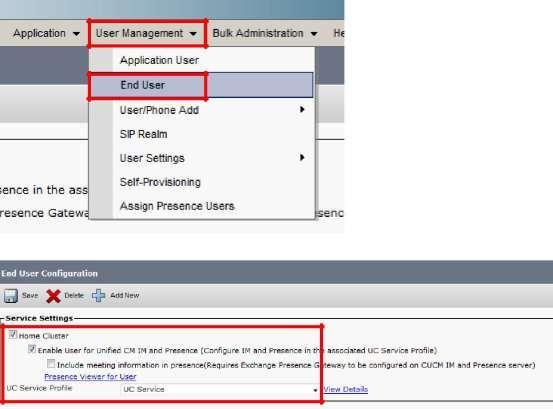

4.7 End User Service Profile

4.8 create Phone Security Profile

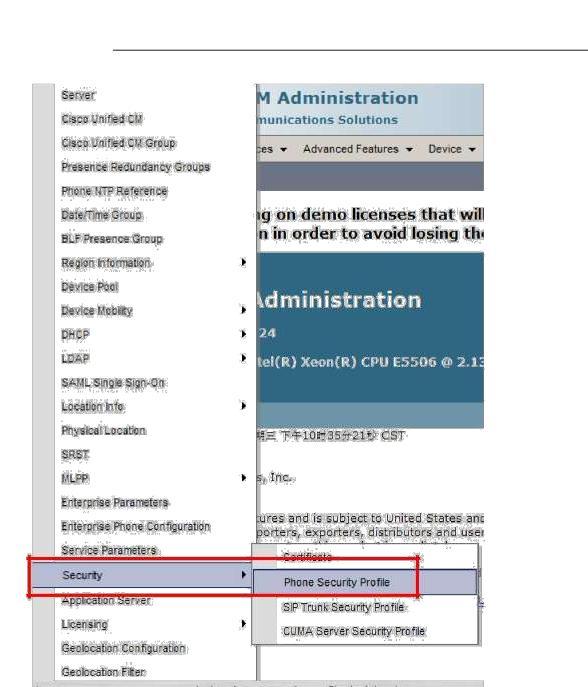

System > Security > Phone Security Profile

78

find Cisco Unified Client Services Framework - Standard SIP Non-Secure

Profile， click Copy，

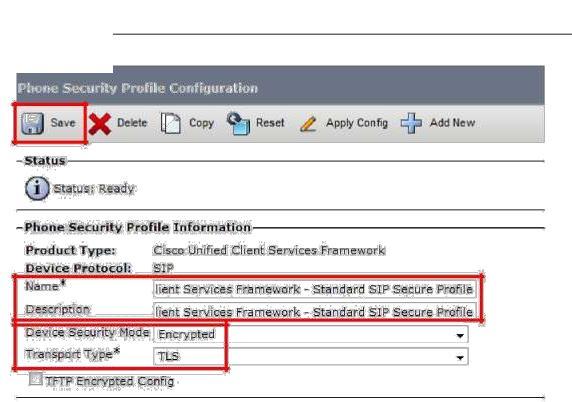

change Cisco Unified Client Services Framework - Standard SIP Secure Profile， change security mode 。

79

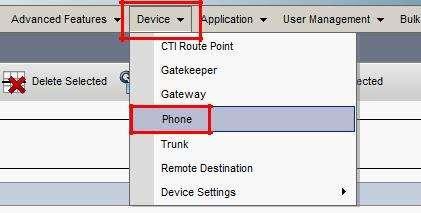

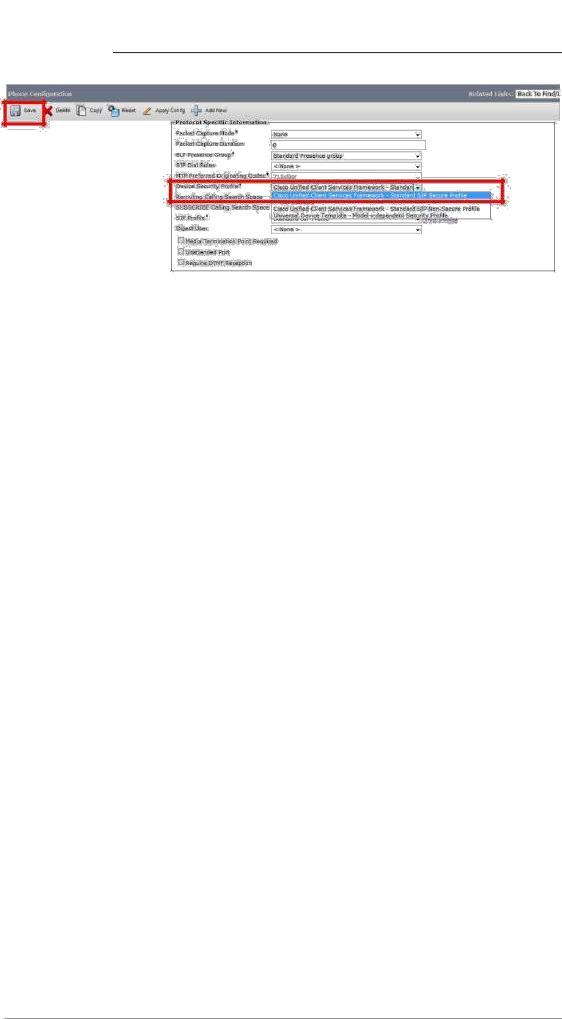

4.9 Jabber Phone use Phone Security Profile

Phone and User。

Device Security Profile choose create ’s SIP Secure Profile， save 。

80

81

5. IM and Presence  integration

1. IM and Presence ‘s Install

82

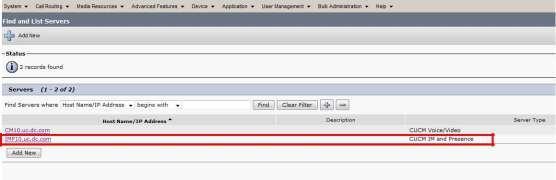

add Sub ‘s address ， choose CUCM IM and Presence。

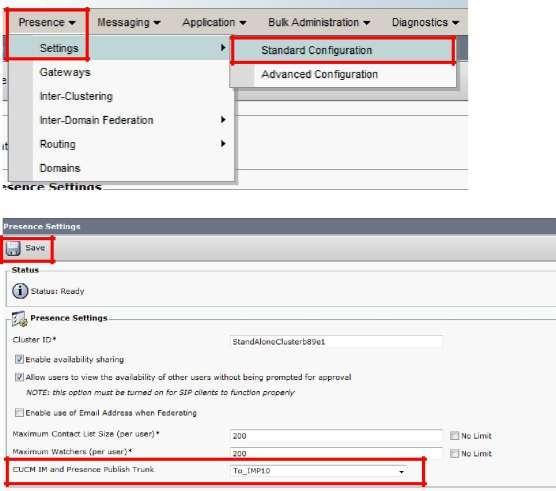

5.2 integration CUCM ‘s setttings

83

84

85

6. Expressway-Core Configure

1. deployment VCS virtual machine

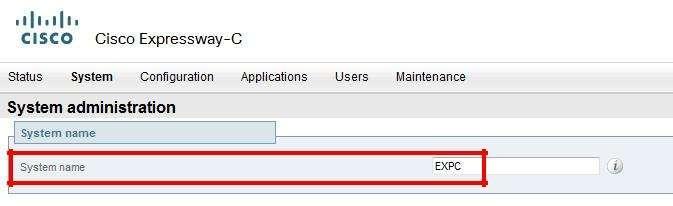

1. change system name

6.1.2 active system

86

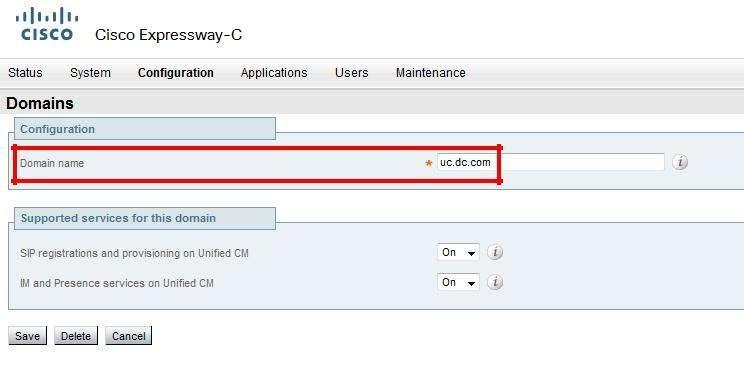

6.1.3 DomainConfigure

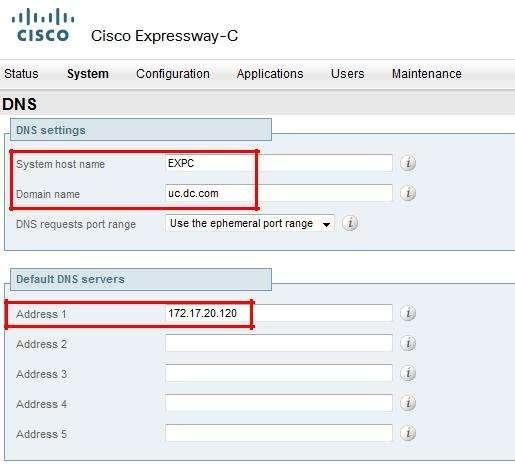

6.1.4 DNS Configure

87

6.2 certificate

6.2.1 generate Root certificate

to certificate server （ internal AD server ）generate certificate 。

http://172.17.20.120/certsrv/

88

89

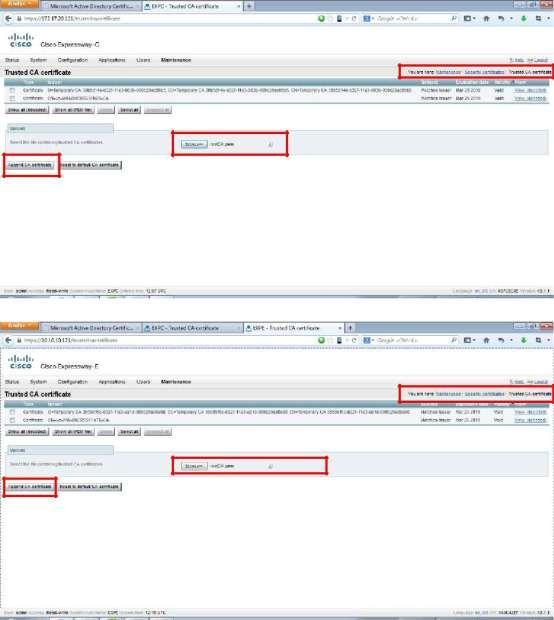

6.2.2 upload Root certificate to Exp-C

restart

90

6.2.3 generate Exp-C Server Certificate

91

copy PEM file all content ， to certificate server to generate Exp-C server certificate ；

92

PEM file content

93

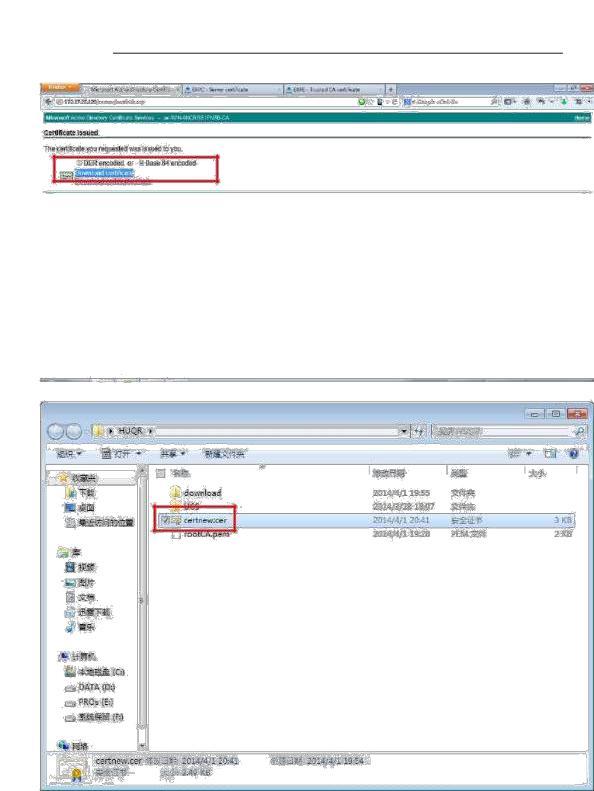

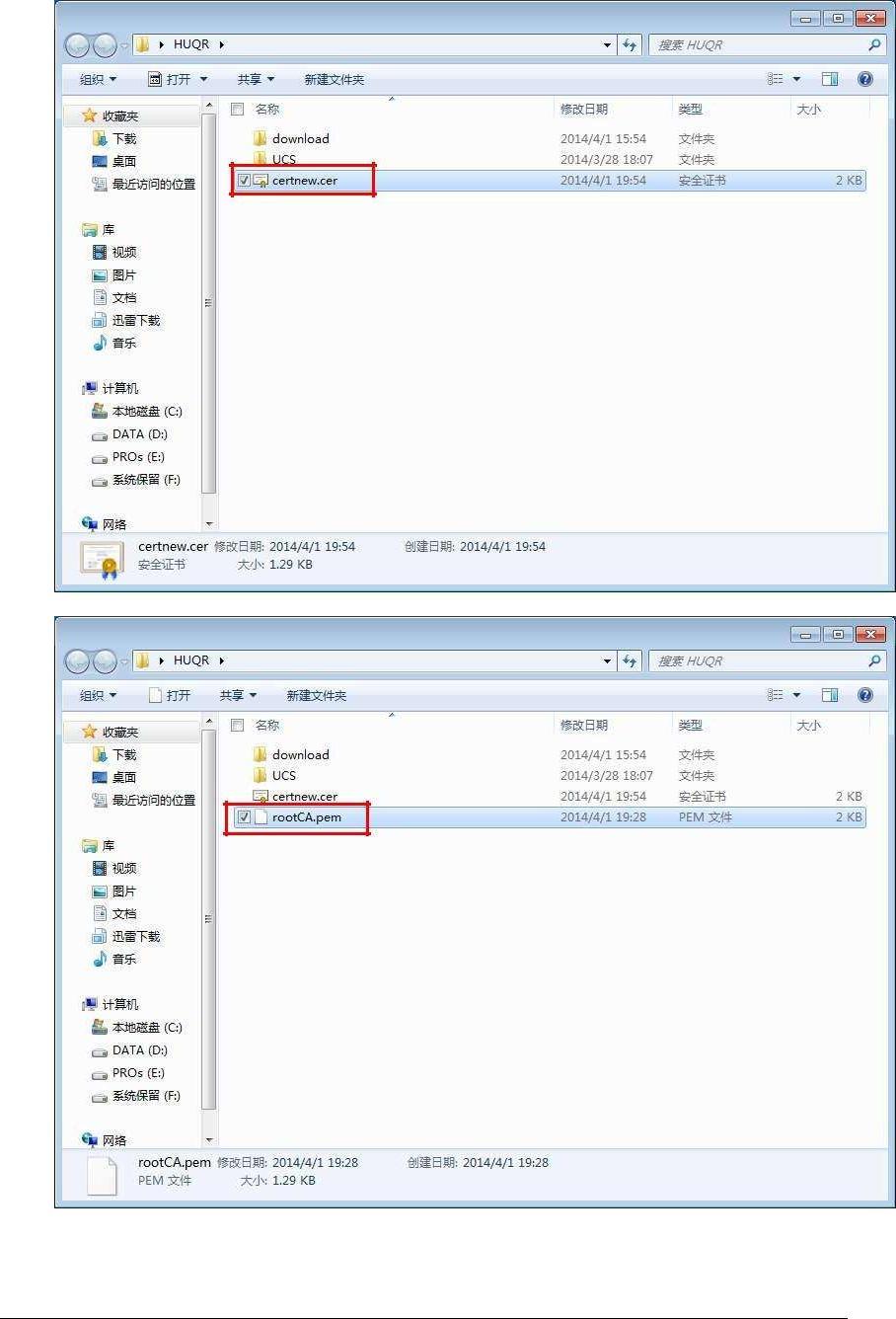

download certificate ，rename certificate to expcCA.pem，

94

6.2.4 upload Server Certificate to Exp-Core

95

6.3 Tunnel

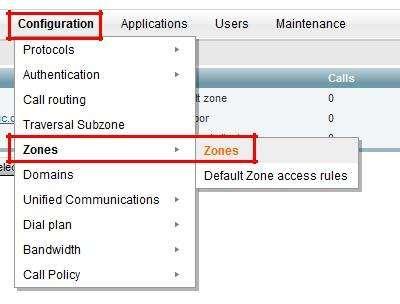

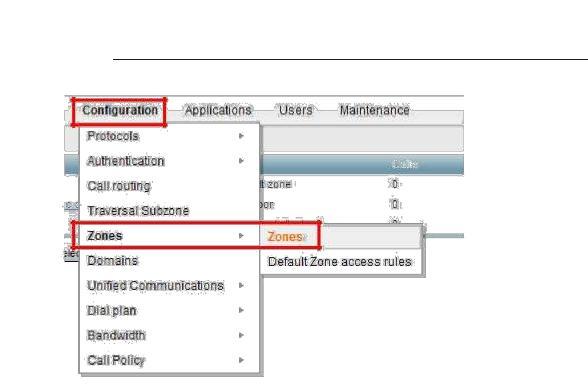

Configuration > Zones > Zones > New

choose Traversal client，

96

Unified Communications server In  Configuration > Unified

Communications > Configuration in Unified Communications Mode open Mobile

97

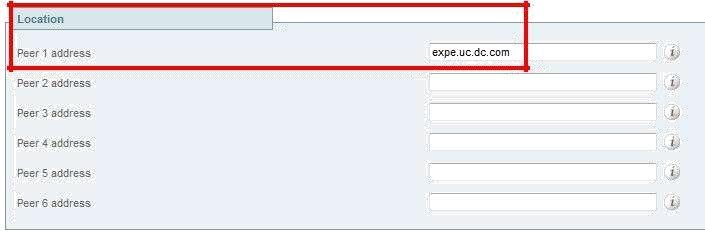

Location Peer add Expressway-E ‘s hostname 加Domain。Save.

Server Active.

6.4 Remote and Acess Configure

6.4.1 open Remote Acess

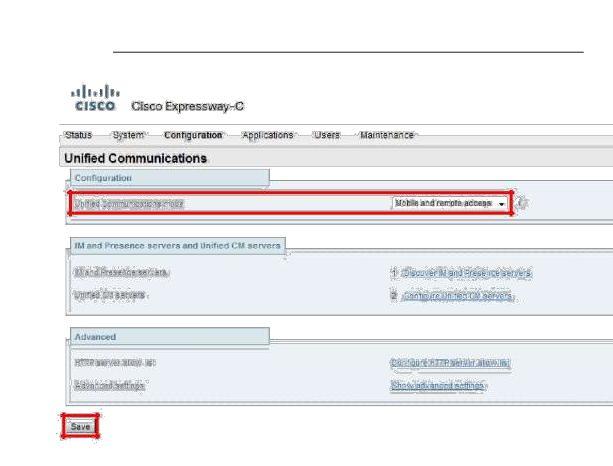

Configuration > Unified Communications > Configuration

98

6.4.2 CUCM create AXL SOAP user

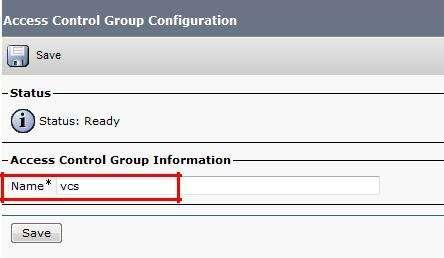

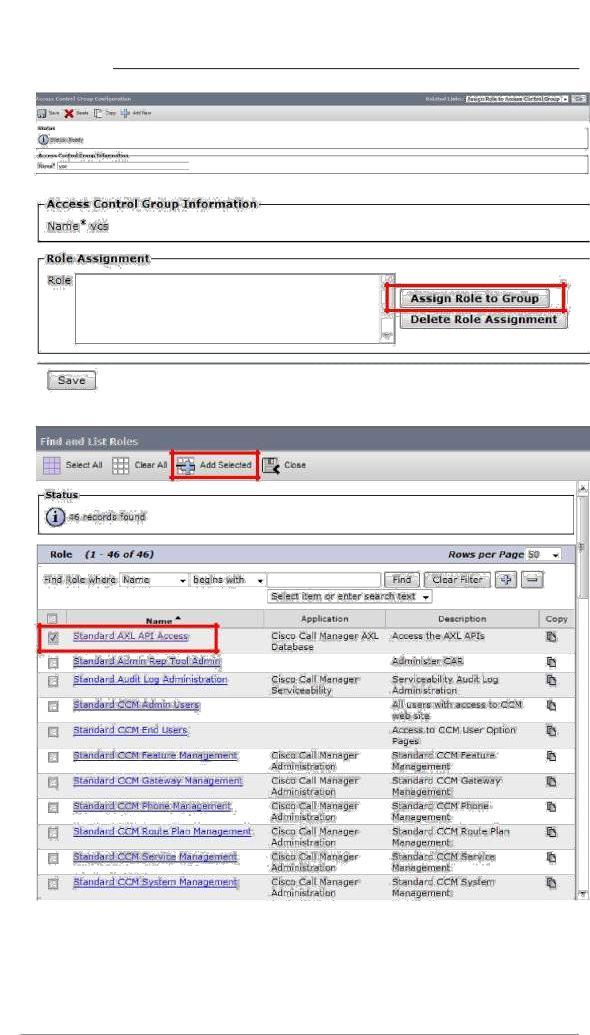

Create a new User Group "AXL Group" in User Management > User Setting > Access Control Group. Add New.

Save.

On the top right drop down list "Related Links", select "Assign Role to User Group" and assign the previously created Role to the new User Group "AXL Group".

99

100

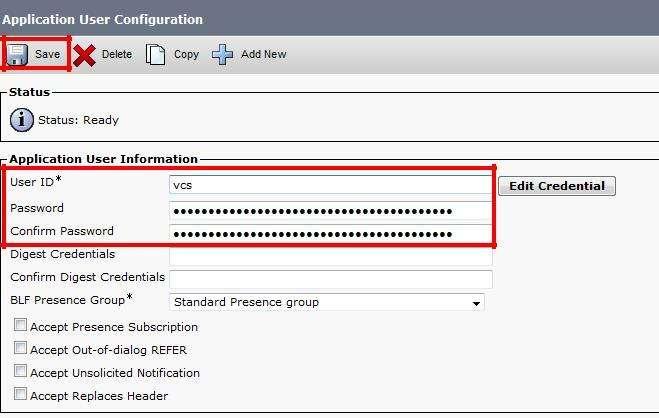

Create a new Application User “AXL” in User Management > Application User.

Add New.

101

6.4.3 add CM Server

create’s Application User.

102

CUCM status : TCP.Active.

6.4.4 add IMP Server

IMP status : Active

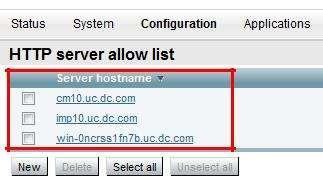

Configure allow list “Configure HTTP server allow list”

6.4.5 verify Configure

Status > Unified Communications

103

104

7. Expressway-Edge Configure

1. deployment VCS virtual machine

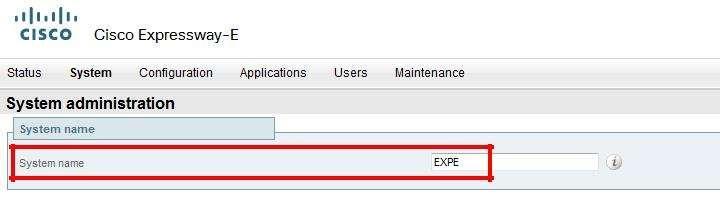

1. change system name

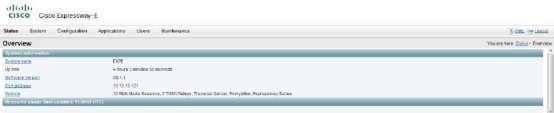

7.1.2 active

105

7.1.3 DNS Configure

2. certificate

3. create tunnel

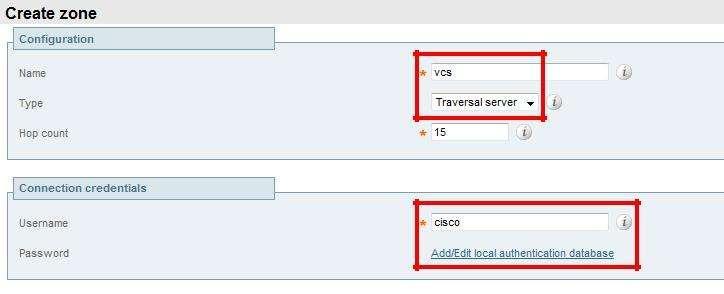

Configuration > Zones > Zones > New

106

add ’s user。

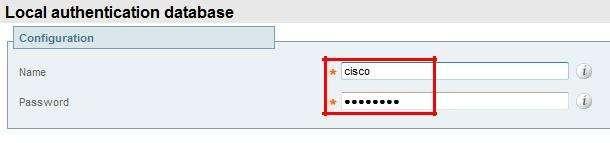

Create user

107

TLS verify subject name add Exp-C ‘s hostname 加Domain。Save.

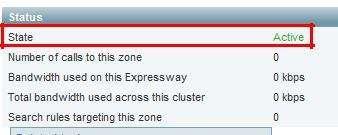

Created : active

7.4 Remote and Acess Configure

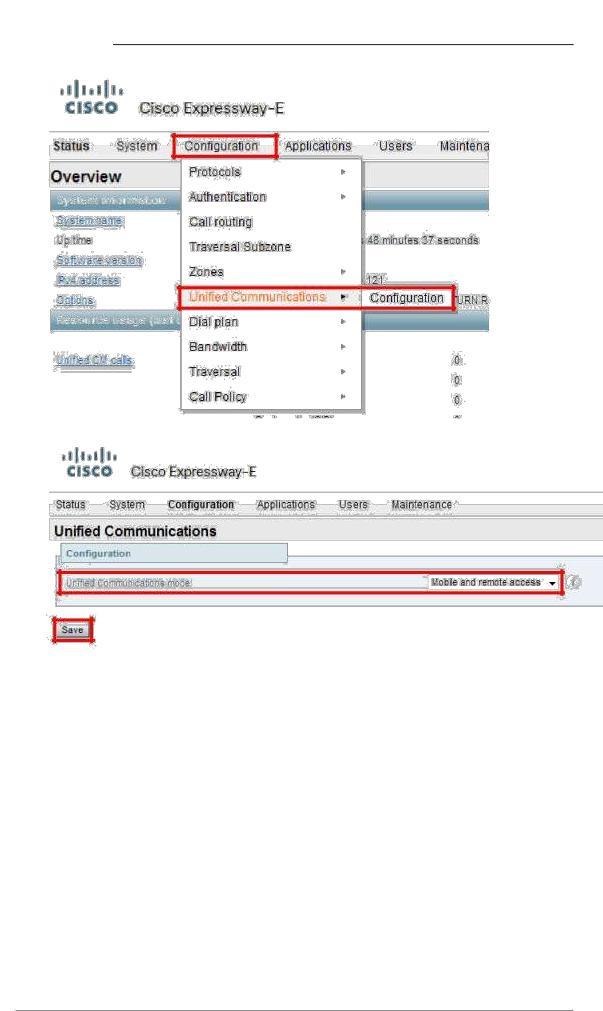

Configuration > Unified Communications > Configuration

108

109

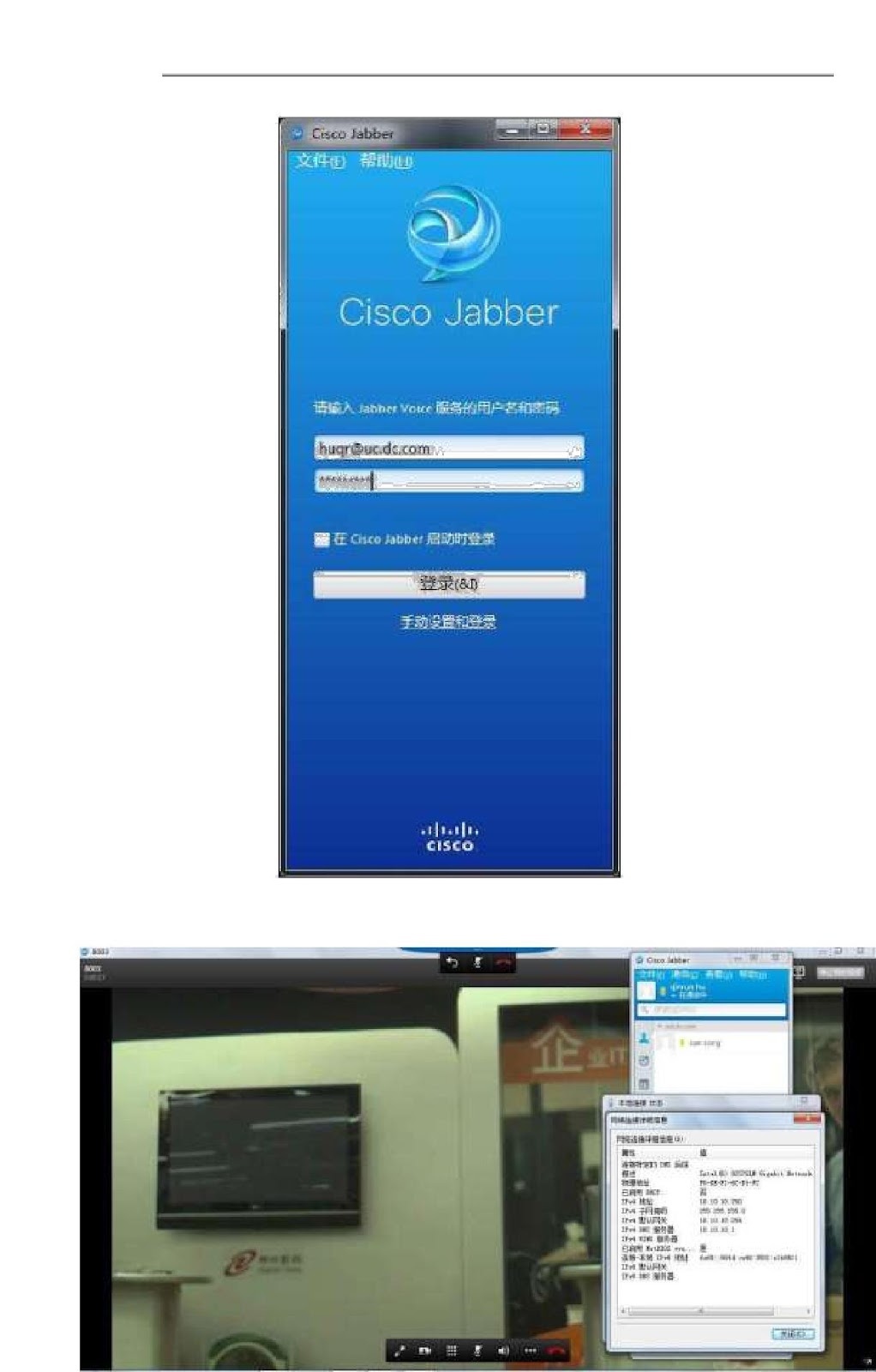

8. Test

110

111
