Not can all video devices register to CUCM AND VSC. In this example ,we use EX60, E20, 9971. First we get video devices registered to CUCM by using several ways, like auto register, manual register, BAT and TAPS.
If not many video devices need to be registered or needed to update, manual is good way.
If you just start your IPT project, use auto register with TAPS.
If it’s easy to get all devices’ info, BAT or even TAPS is used to complete this task.
Because it’s a lab, domo uses manual register.
Registering has two parts, CUCM and VCS-C
Part1：

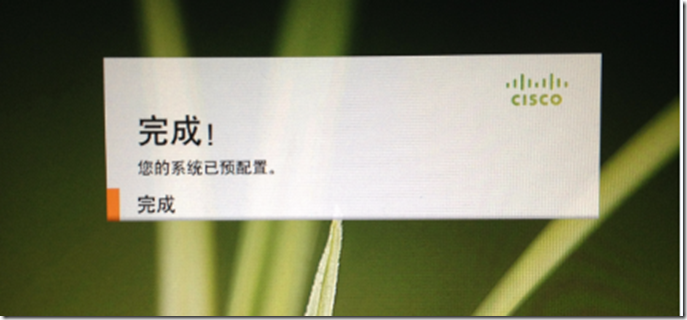

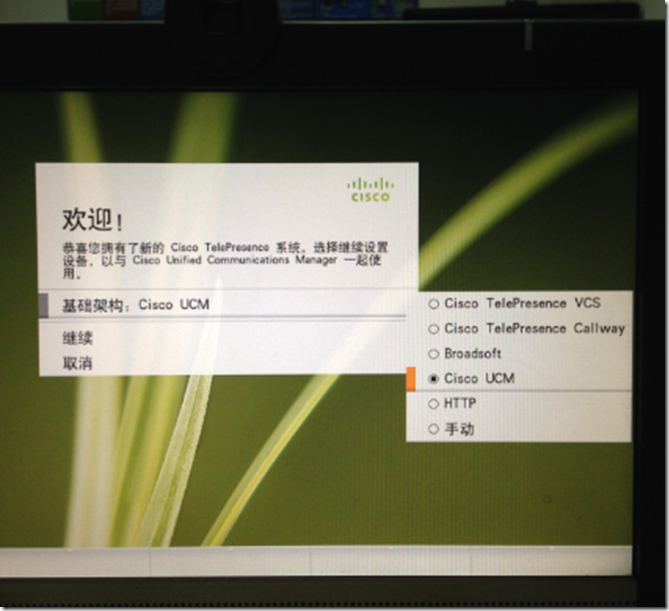

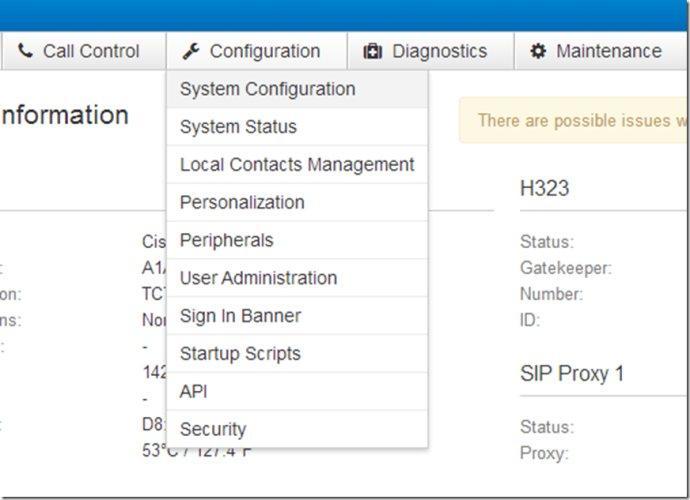

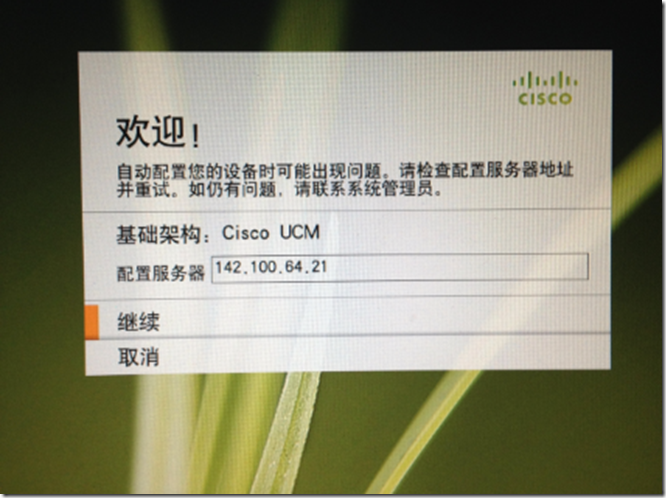

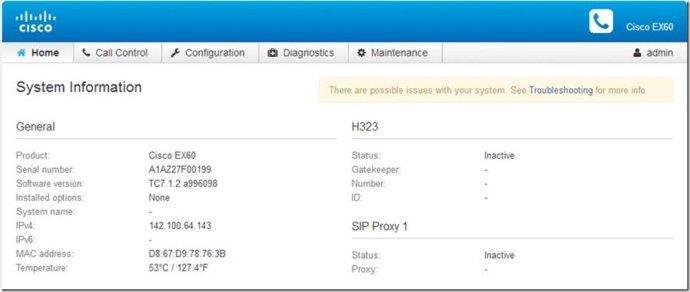

Use register wizard to get EX60 registered into specific server. If an EX60 has configuration already, logon web page of it to setup IP (Touch Pad), login username is admin and password is blank, like below:
I upgraded it to a version above 7.0(many new features need 7.0+)
Client side:

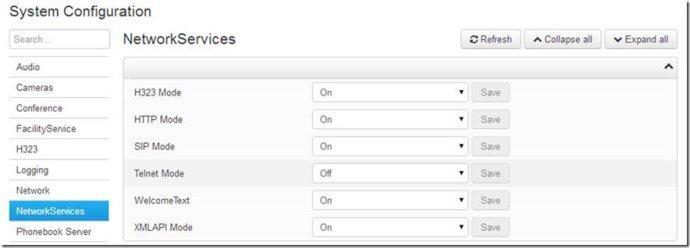

Make sure one of protocols is enabled(h323 or sip), and choose one of them. SIP is recommended, and VCS supports a client registers with both.
Fill out the address of proxy server(CUCM or VCS), and choose transmit protocol and type

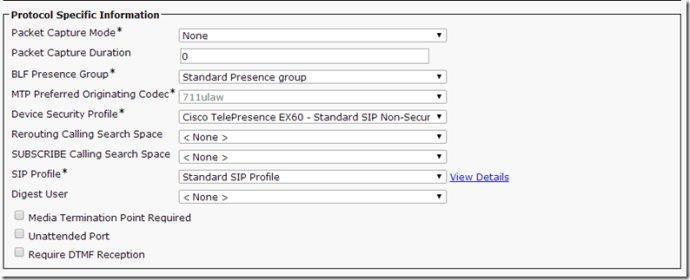

Add device entry on CUCM

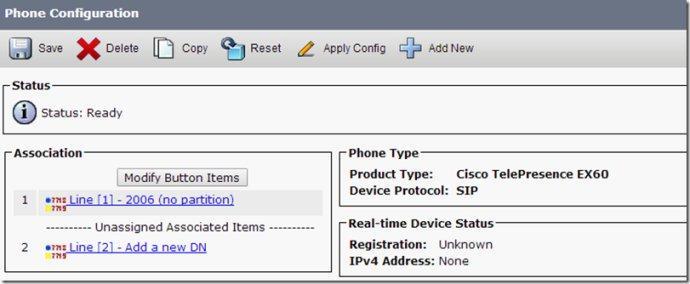

Assign a phone number
You are able to check devices are registered successfully
Enable web snapshot and presentation, and make sure cables and camera is working properly.

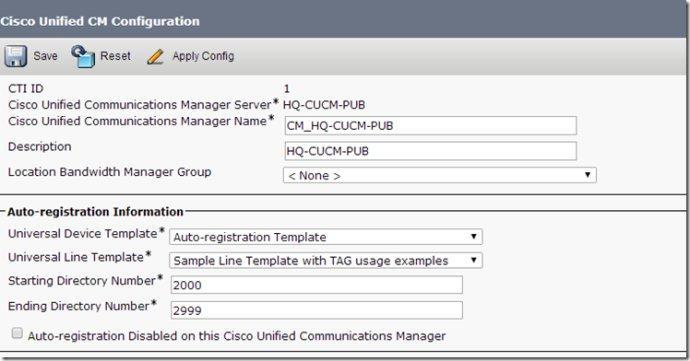

E20 register: setting up IP/DNS on E20, and enable auto-register on CUCM
Register status on E20 and CUCM
Register way on 9971 is same like old 79 series phones. But you have to enable camera function, otherwise, video call won’t work.
Call E20 from EX60, testing auto and video calls between two.
Part 2：
Register EX60 and E20 into VCS-C

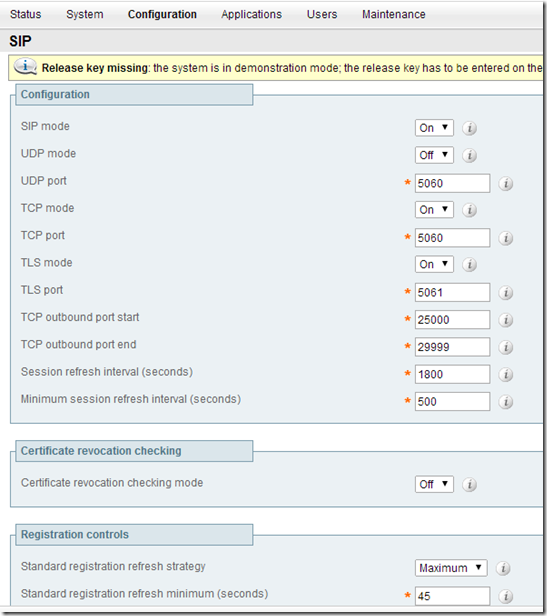

Enable protocol (H323/SIP) on VCS

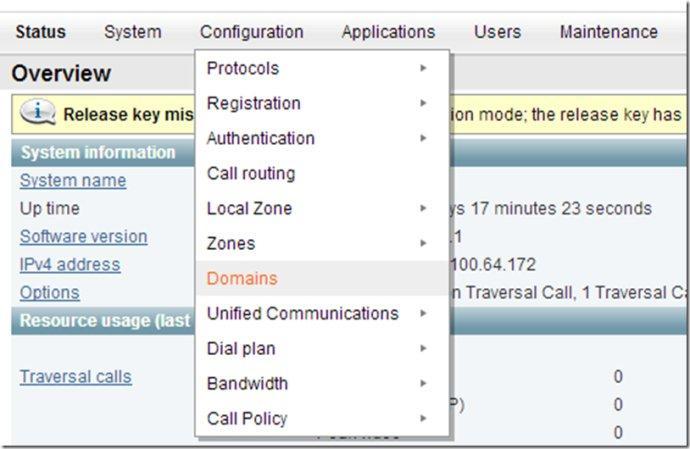

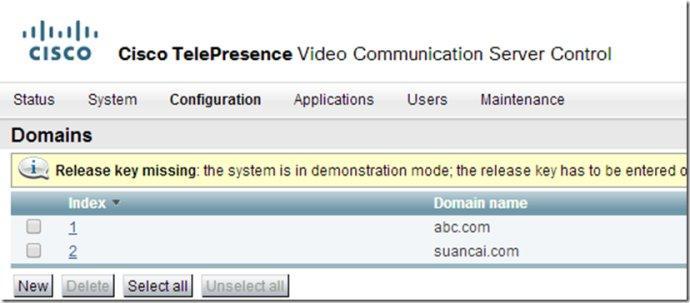

Create domain
Creating domain is for VCS to match Host portion and lookup URI, also to find path for processing routes.
Without domain, register will also work, but we have to fill VCS address in Host portion instead of the format like xxxxsuancai.com. This format is easy to read and remember.
VCS can have one or more domains in terms of design. Here I created two domains, three devices is using different ways to register in.
First, EX60 registered to expressway-c using SIP :
This is URI format
Then two E20 use the same way registering to VCS with URIs:
6001@suancai.com 6002@abc.com
User portion can be user name rather than numbers in terms of user’s habit.

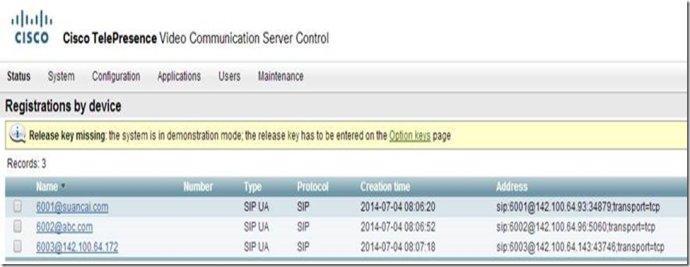

After register, check the VCS:
From the picture above, you find the destination server is the same one, but different names.
Most of Cisco TP devices support not only sip but H323.

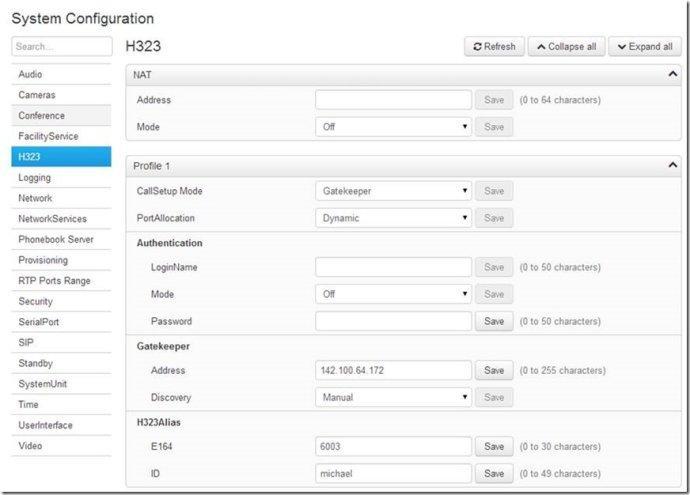

Get EX60 registered to VCS using H323
The callsetup mode is GK, if you want to use peer to peer, then choose direct. Port allocation is dynamic, address is VCS. If you are using DNS, fill out domain name of vcs. H323 alias name is devices with number or id.

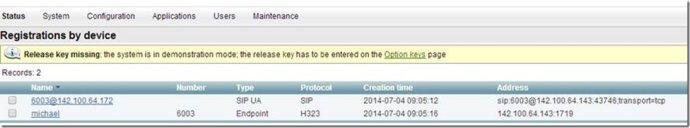

You find device is registered via H323, but only one in Device.

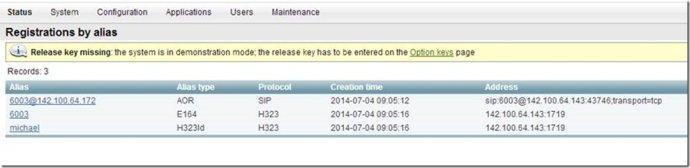

By alias:
