Cisco TrustSec – ISE (Part 2)
AD Domain Install
AD Domain Install
Switch initiation
SW1：
ip routing
interface GigabitEthernet1/0/1 switchport access vlan 2 switchport mode access
!
interface GigabitEthernet1/0/2 switchport access vlan 2 switchport mode access
!
interface GigabitEthernet1/0/3 switchport access vlan 2 switchport mode access
!
interface GigabitEthernet1/0/4 switchport access vlan 2 switchport mode access
!
interface GigabitEthernet1/0/5 switchport mode trunk
!
interface GigabitEthernet1/0/6 switchport access vlan 20 switchport mode access
!
interface GigabitEthernet1/0/10 switchport access vlan 10 switchport mode access
!
interface GigabitEthernet1/0/24 switchport mode trunk
!
interface Vlan2
ip address 202.100.2.254 255.255.255.0
ip helper-address 202.100.1.168
!
interface Vlan10
ip address 202.100.1.254 255.255.255.0
!
interface Vlan20
ip address 202.100.20.254 255.255.255.0
!
ip http server
ip http secure-server
!
logging esm config
!
line con 0
logging synchronous line vty 0 4
login
line vty 5 15 login
!
end SW2：
Install W2K8 R2 AD Domain

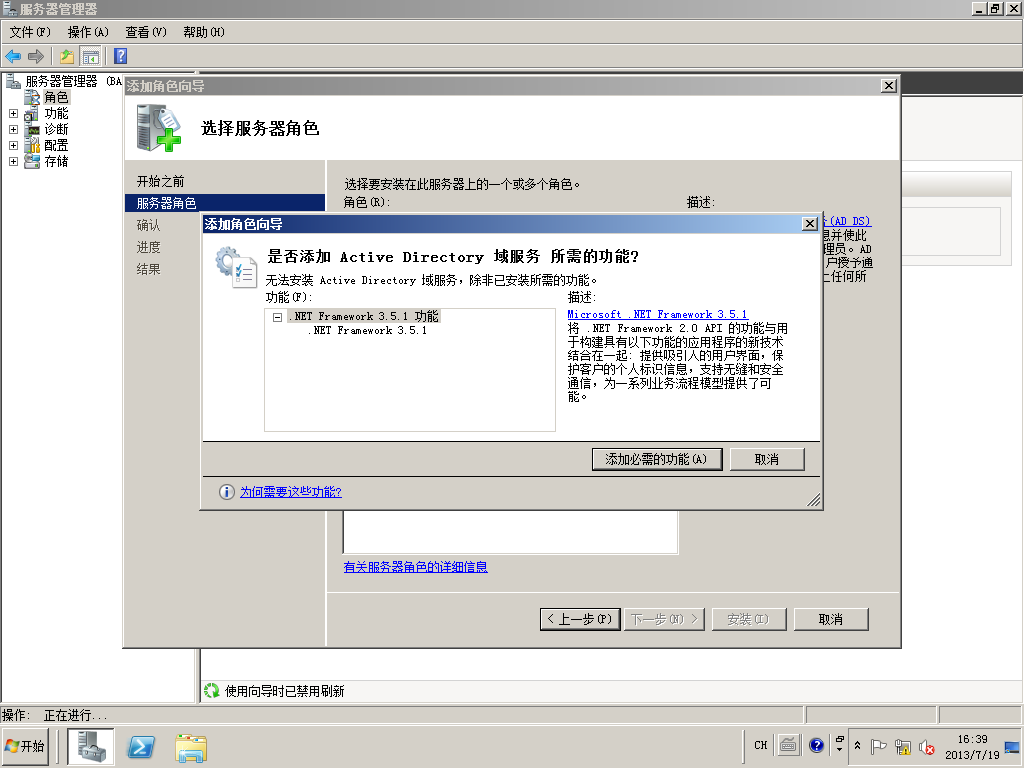

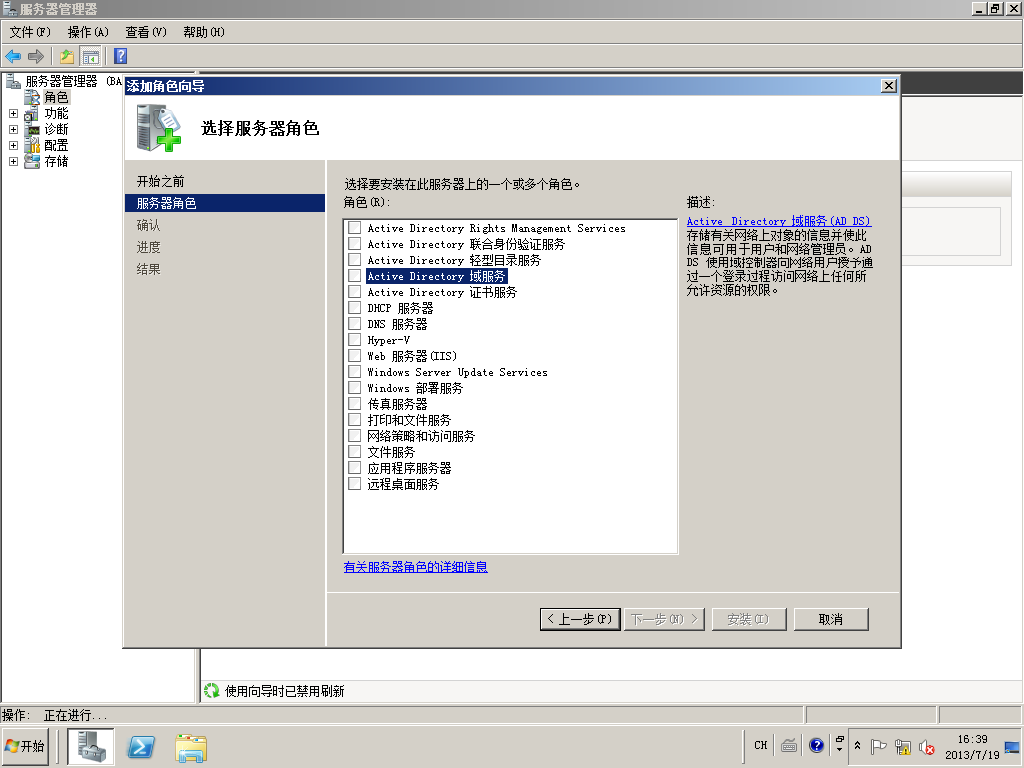

Click Active Directory Domain Services

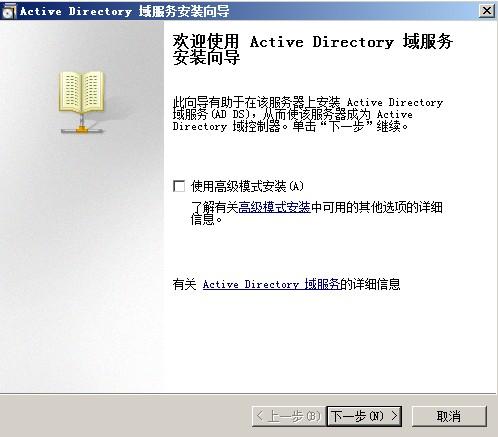

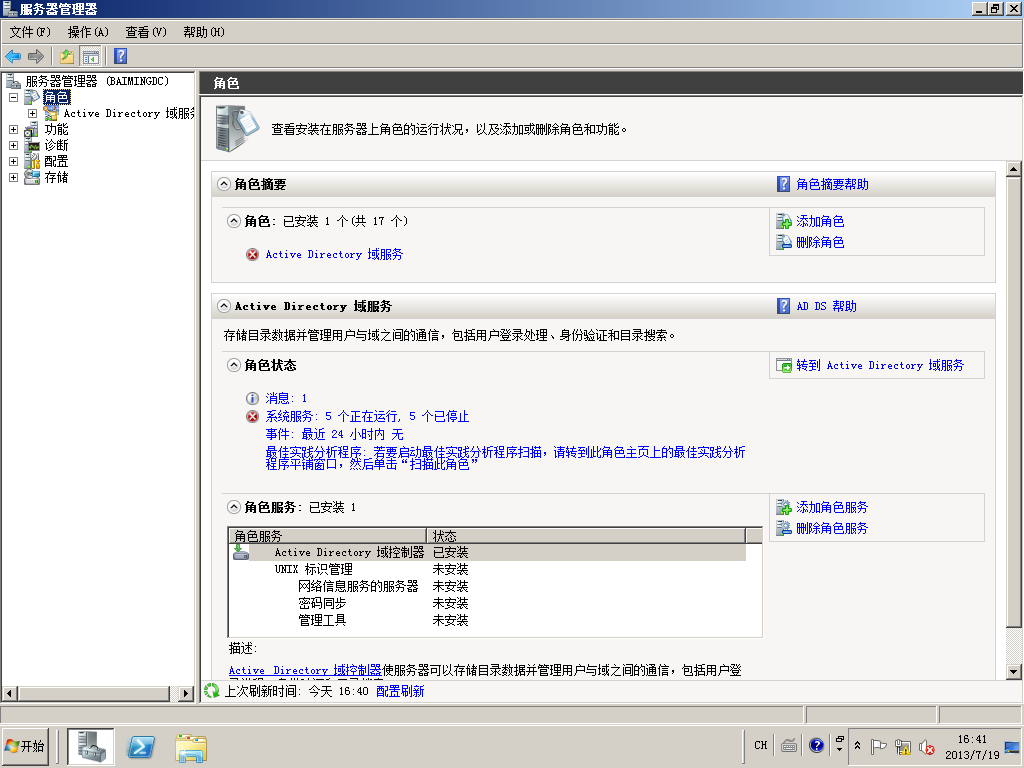

Run AD Domain Services wizard

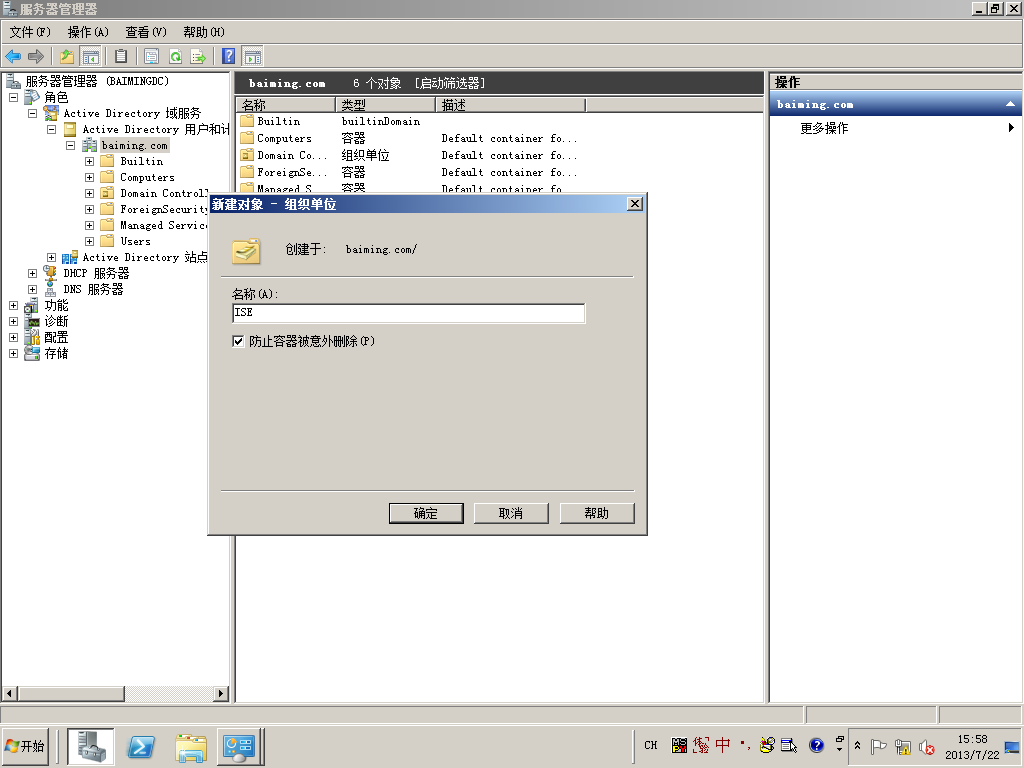

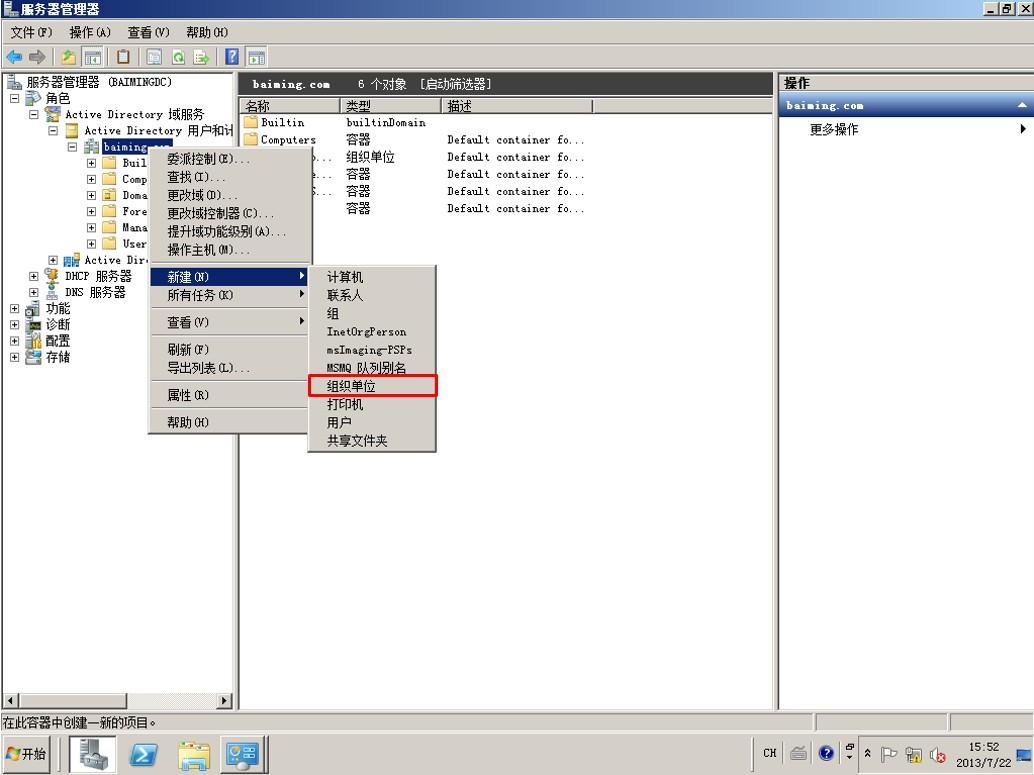

4.2.1 Add new Object Unit
Create User Group：isegroup

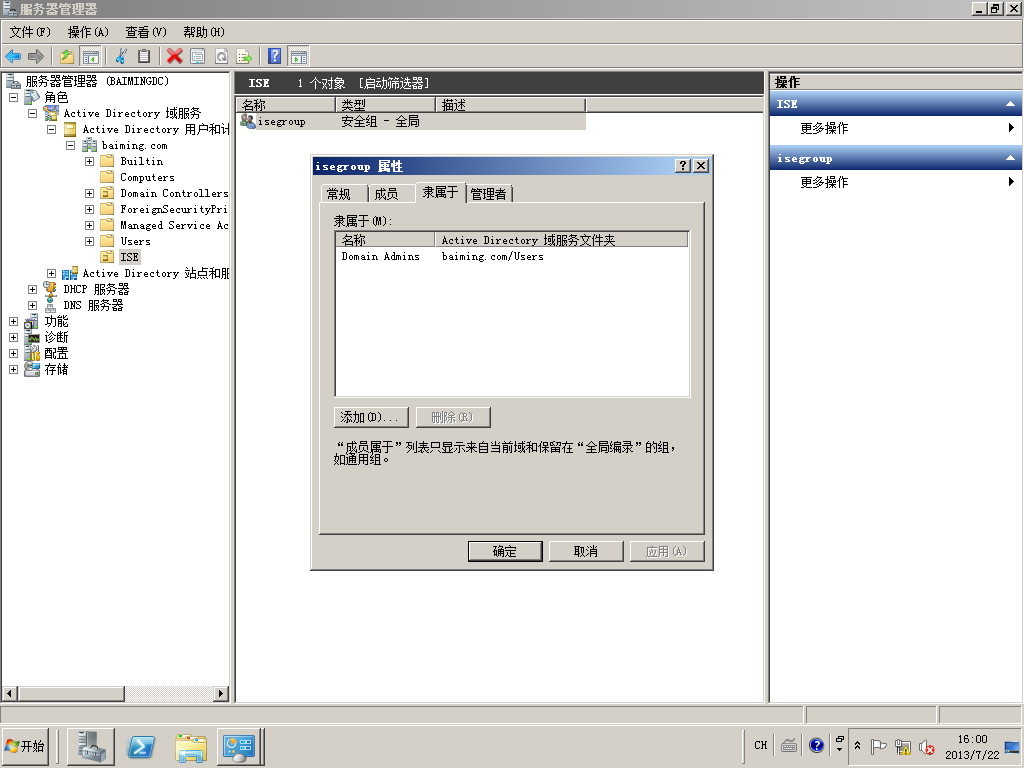

Add Group to domain admin
Create User: iseuser；

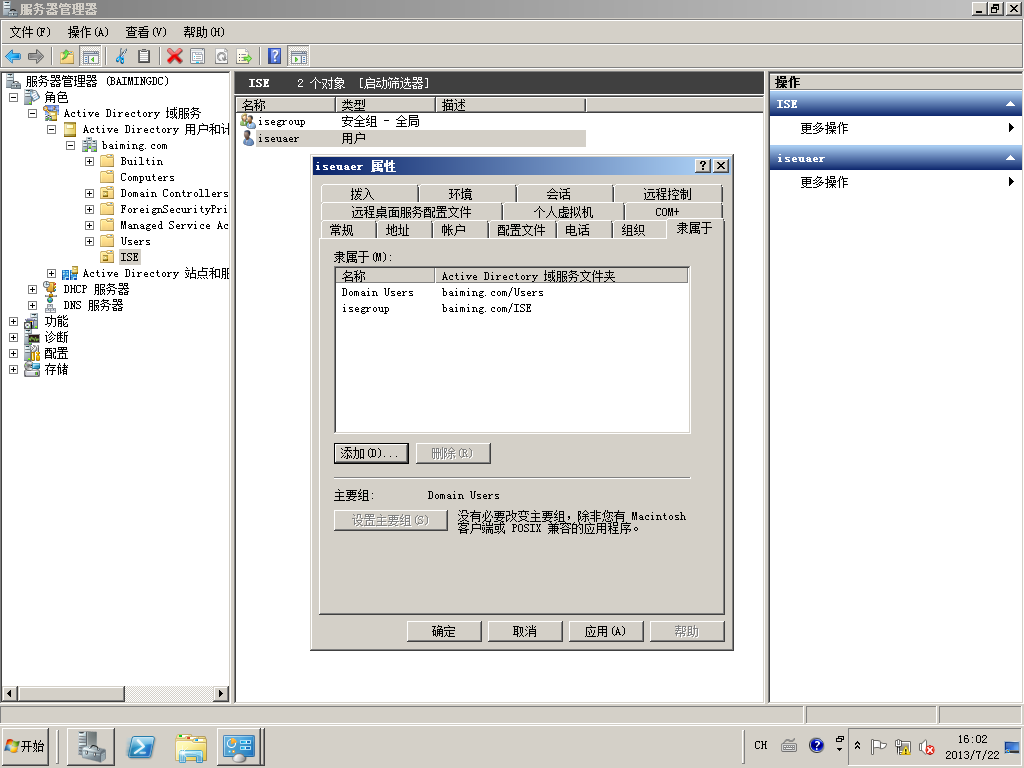

Place Computer into ISE OU and isegroup Group；

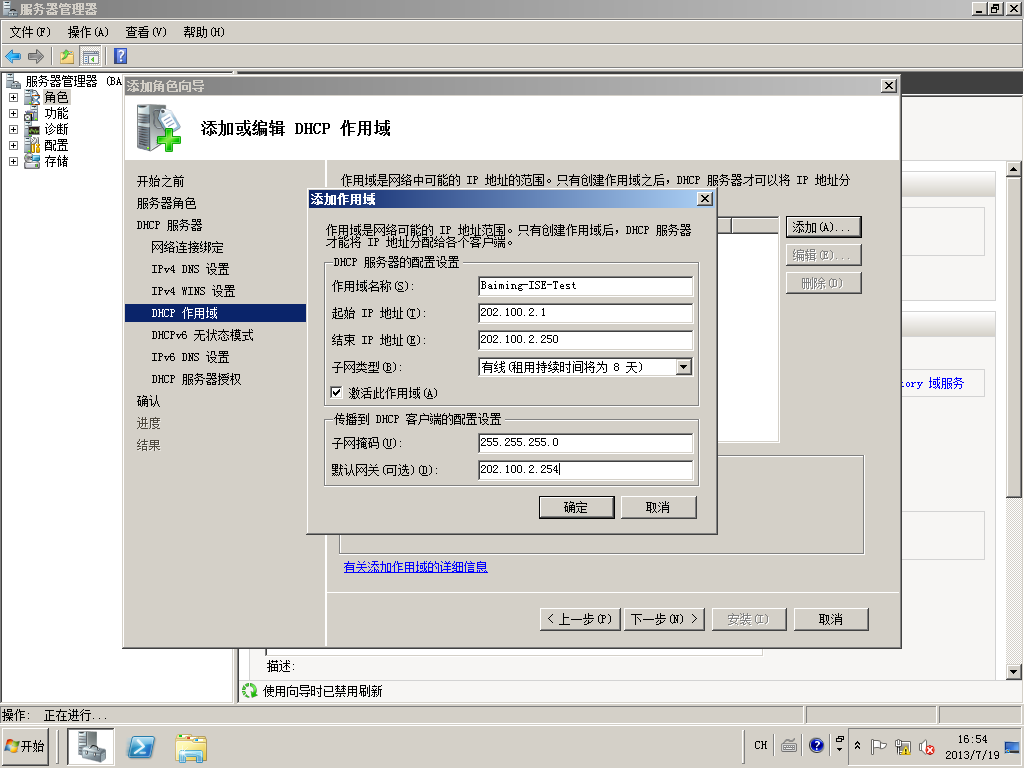

On W2K8 R2 install DHCP server

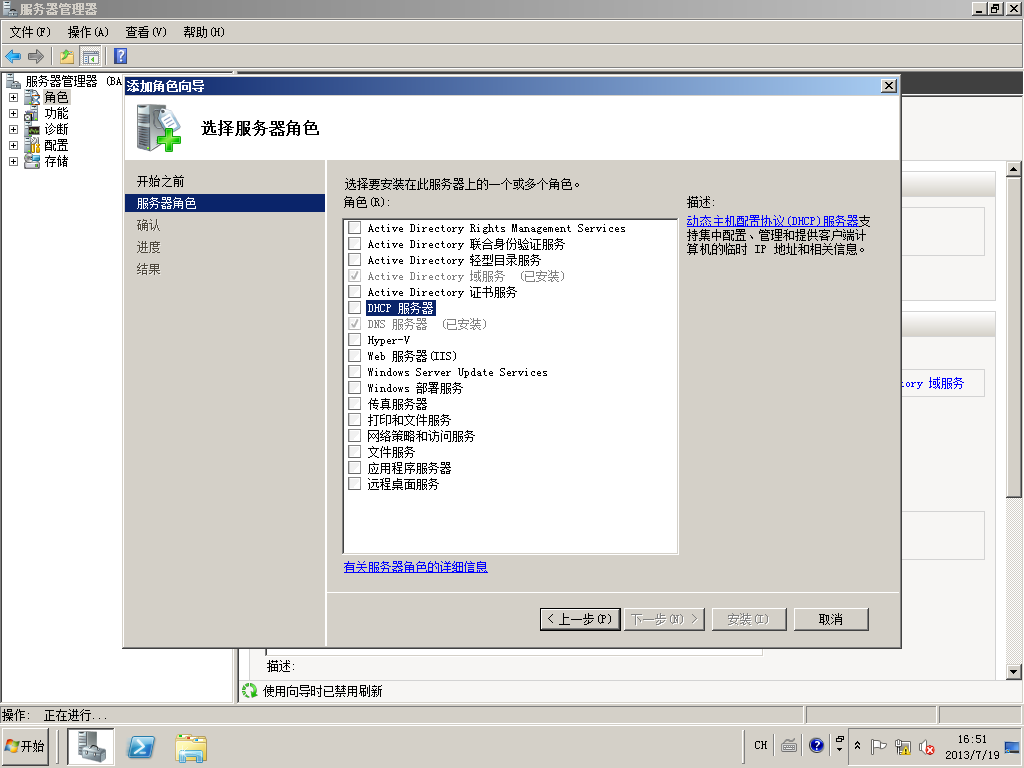

Add New Role

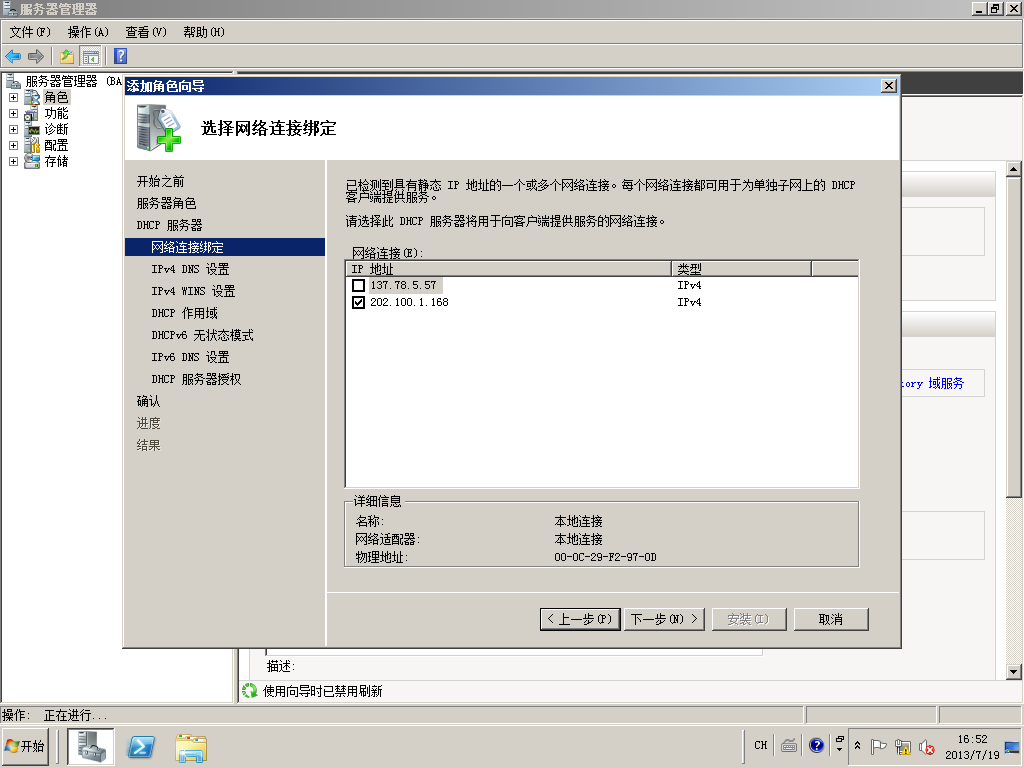

Choose NIC ；

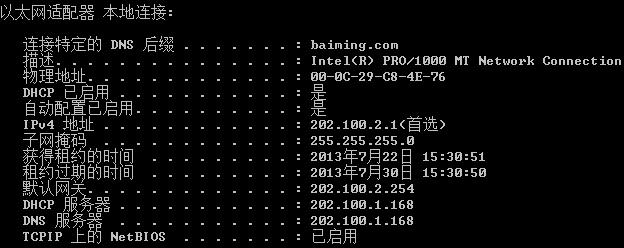

Test Win7-1 DHCP
4.4.2 ISE Join Domain

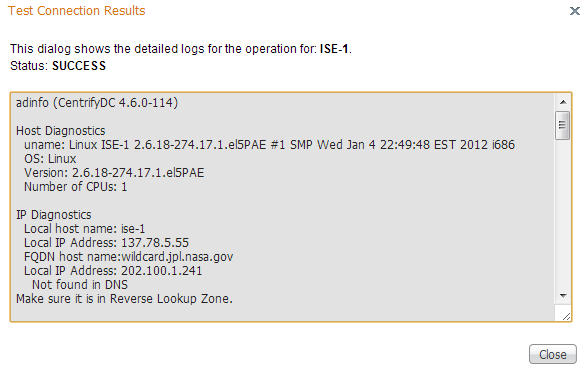

Test Connectivity between ISE and Domain server；
Join Domain
User administrator account when ISE joins domain
Will see ISE-1

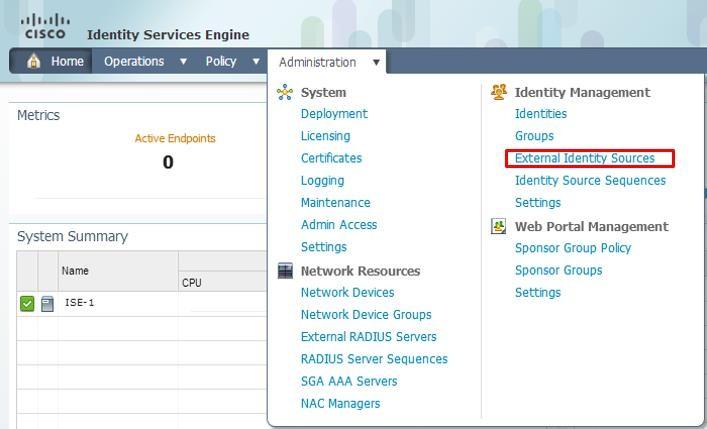

4.4.3 Add Domain Group to ISE

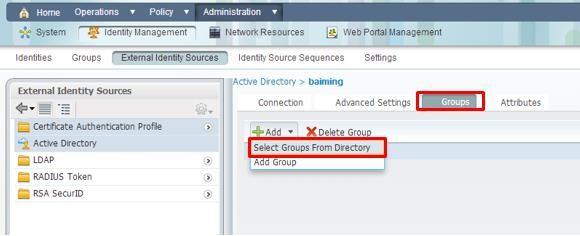

Choose group

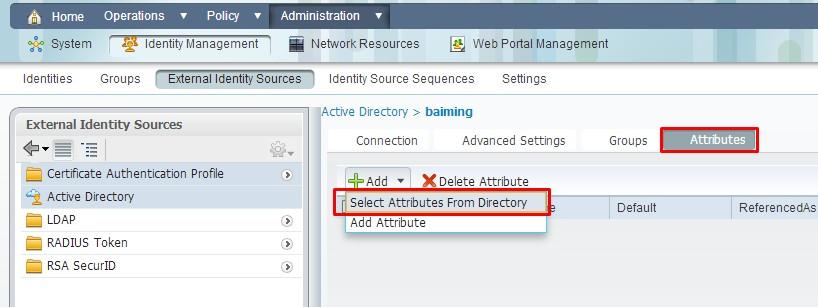

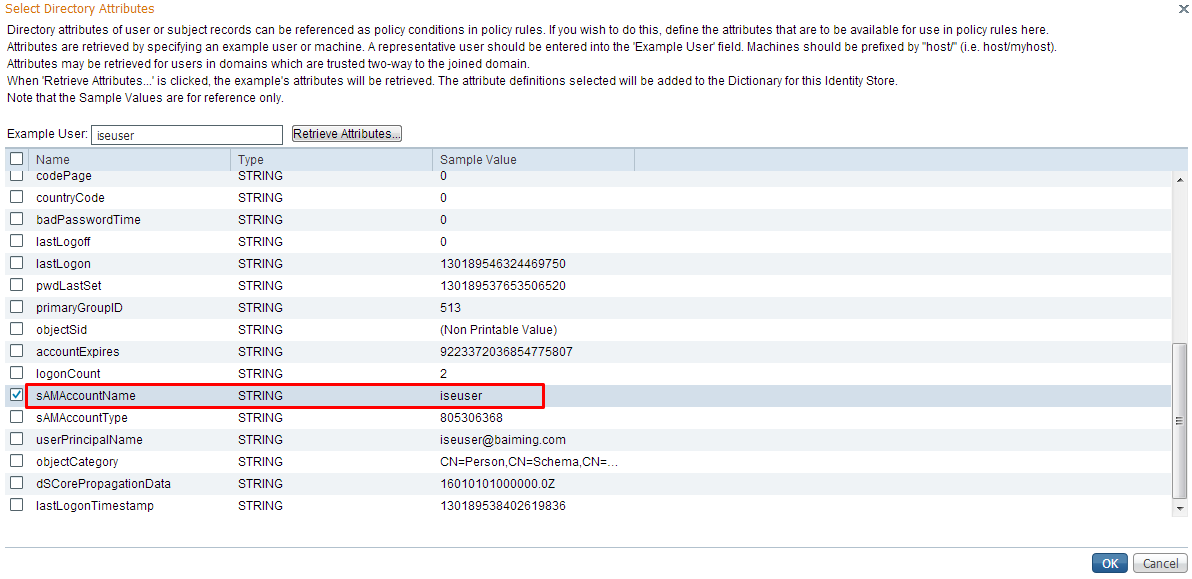

4.4.3.1 Add User attributes
