Cisco TrustSec – ISE (Part1) Installation and Upgrading

                                         Cisco TrustSec – ISE (Part1)

        Installation and Upgrading



1.1.1    ISE Authentication

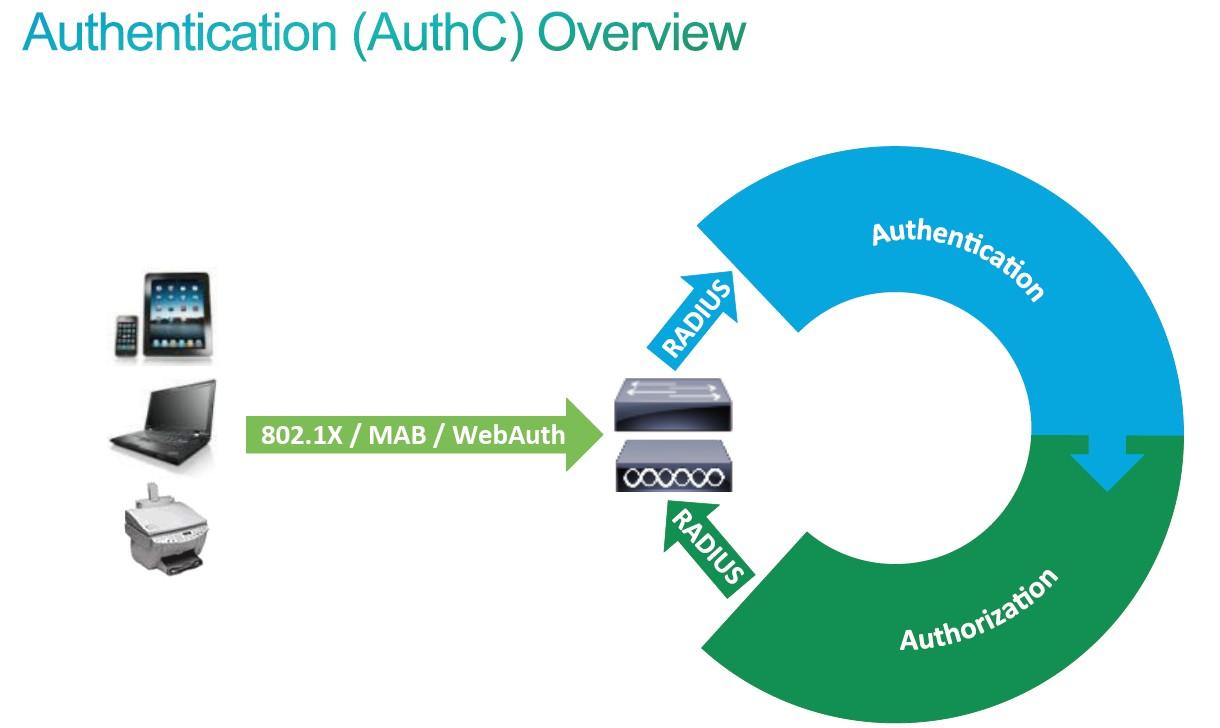

ISE authentication consists of four components:

(1)   Name (Yellow)

2. Condition (Blue)
3. Allow Protocol (Red)
4. Identity Source (Green)

1.1.2    ISE Authorization

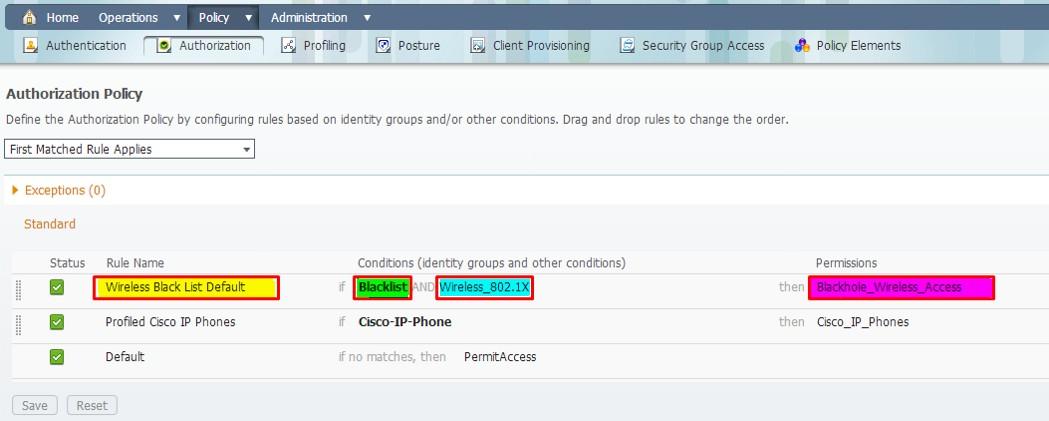

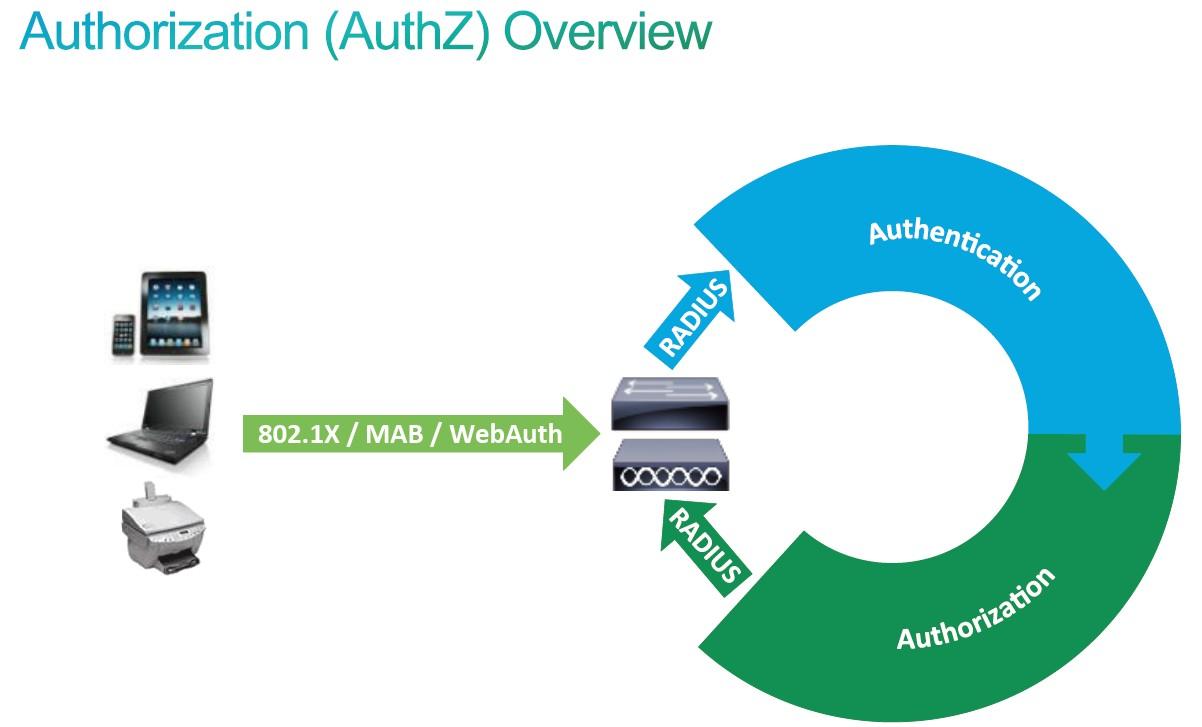

ISE Authorization consists of four components:

(5)   Name (Yellow)

6. Identity Group (Green)
7. Conditions (Blue)
8. Permissions(Red)

2. Lab Environment

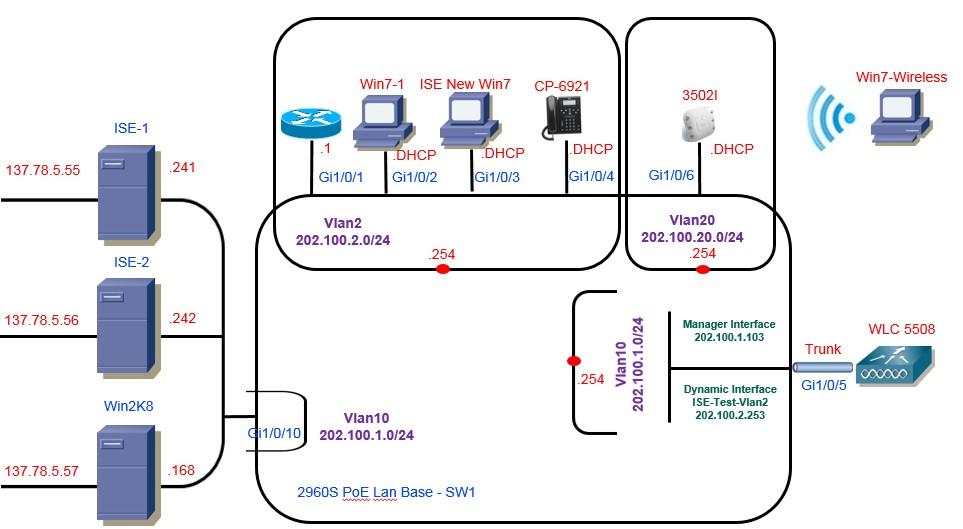

     Topology

     Hardware

WS-C2960S-24PS-L	1
AIR-CT5508-12-K9	1
AIR-CAP3502I-C-K9	1
CP-6921-C-K9	1
GLC-T	1
Cables	multiple
Apple MacBook Air	1
Apple iPhone4	1
Android HTC One	1
Vmware Host  dual NIC	1

3. Install & Upgrade ISE

     Install ISE

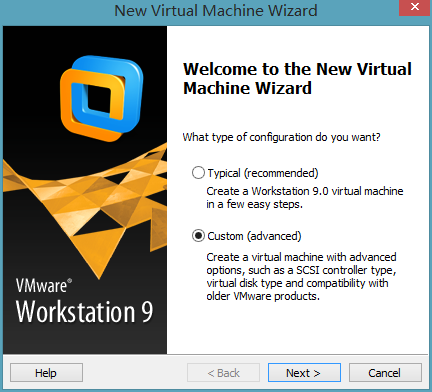

3.1.1    Create VM

3.1.2    Select Version

PS：choose Redhat 5 32 bits

3.1.4 Choose ISE Number of Processors

PS：two CPUs minimum

3.1.5    Configure ISE the amount of memory

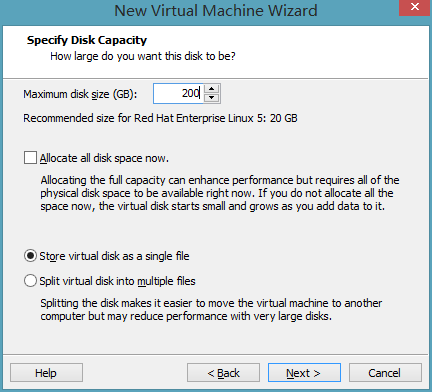

3.1.6    Specify ISE disk size

PS：minimum 200G suggested

PS：ISE has only one port to be administration，and rest of ports cannot be administration

3.1.8    Turn on power

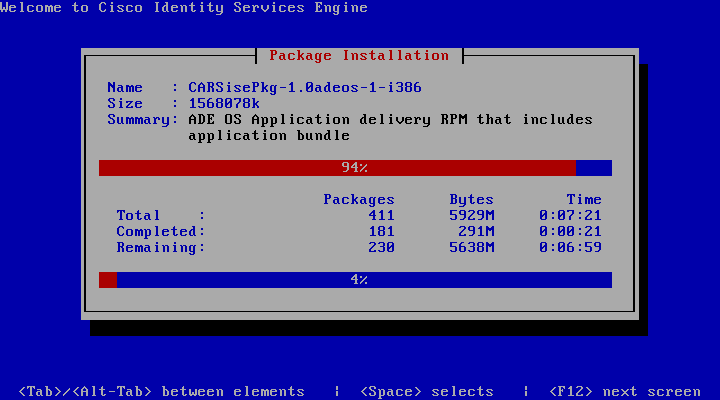

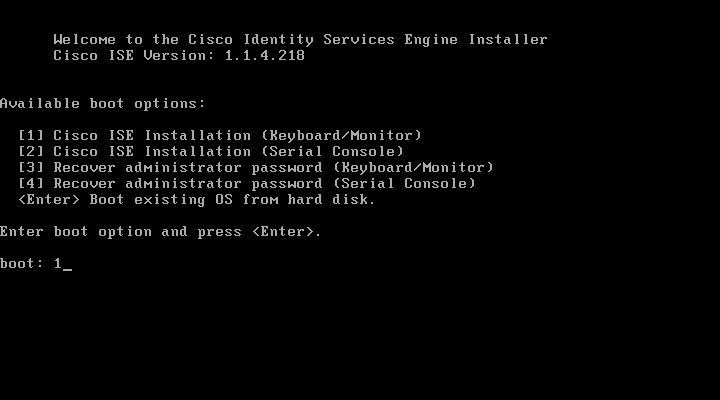

Choose  1，to install the OS

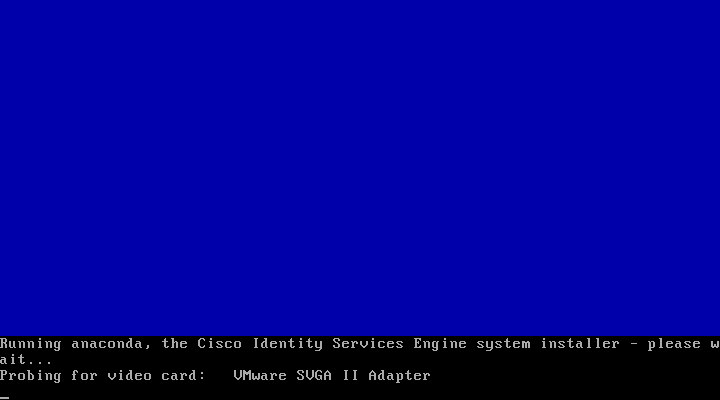

PS：At this moment, the OS is being installed；

3.1.9    Install ISE

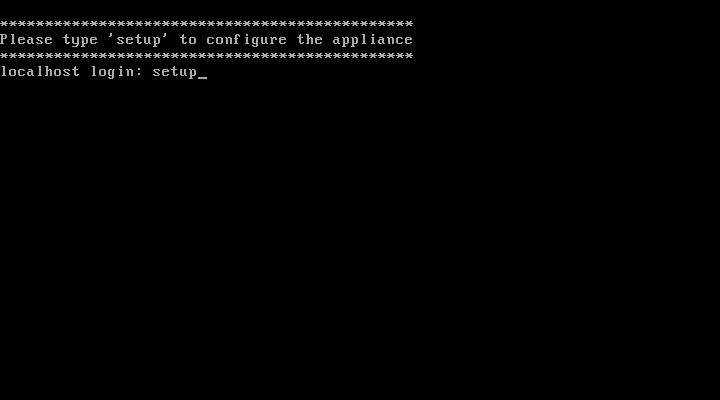

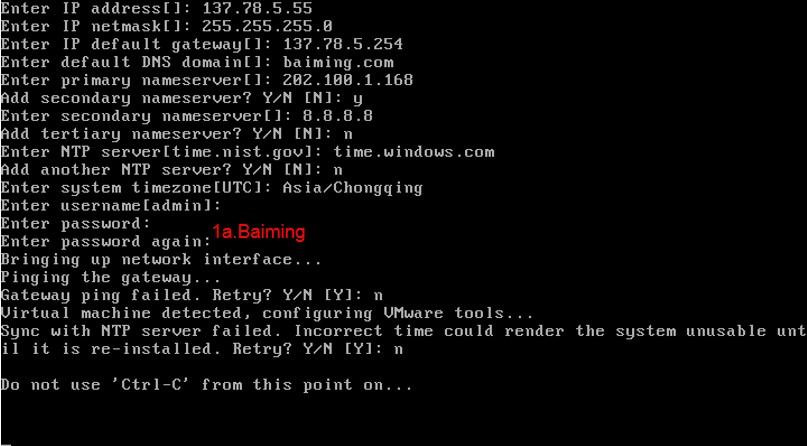

Type setup to begin

PS1：it’s better off that make sure the ip address at this moment, because if change ip address settings later on, it has to be restart services.

PS2：the reason place two DNS server：

(1) First DNS points to AD server；

(2) Second DNS points to internet ，because ISE has to download libraries from cisco；

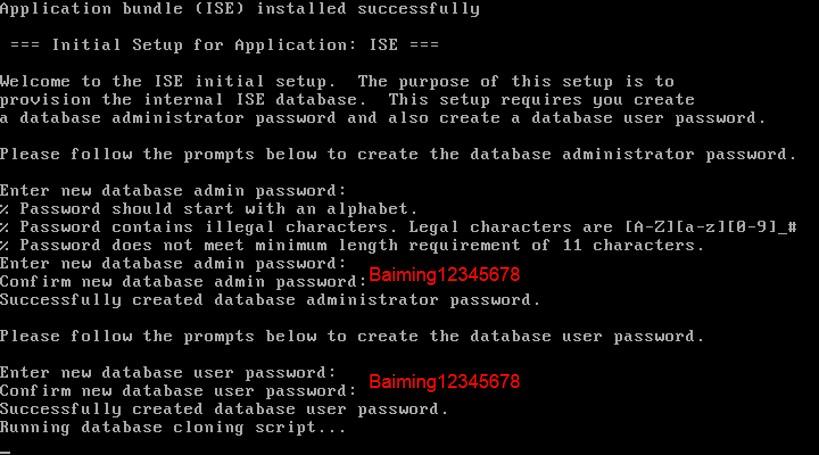

(10) Setup database password

3.1.10    Check ISE services status

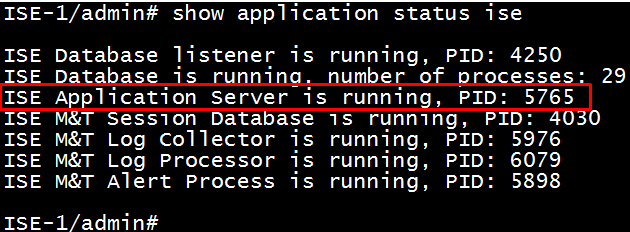

Login to ISE via SSH，and type show application status ise to check if services are enabled.

PS Before ISE Application Server is running, login to ISE Web

     ISE Upgrade & Path

1. ISE Upgrade

Since we installed 1.1.4.218, newer version is not coming out, so skip ；

2. ISE Path(patch)

Load to CD ROM

PS：Patch file shows .gz，you have to convert into ISO and load into VM；(Obviously, you also can upload it into ISE, but I thought ISO would be convenient  )

PS：it takes about 15 minutes，and it will reboot itself afterwards.

Check all patches；
