6. Configure Network Access Device (NAD)

2960S  Sample Configuration

aaa new-model

!

aaa authentication login noise line none

!

line con 0

login authentication noise

!

radius-server host 202.100.1.241 key cisco

!

snmp-server group baiminggroup v3 priv

snmp-server user baiminguser baiminggroup v3 auth md5 12345678 priv des 87654321 snmp-server enable traps

snmp-server host 202.100.1.241 version 3 priv baiminguser

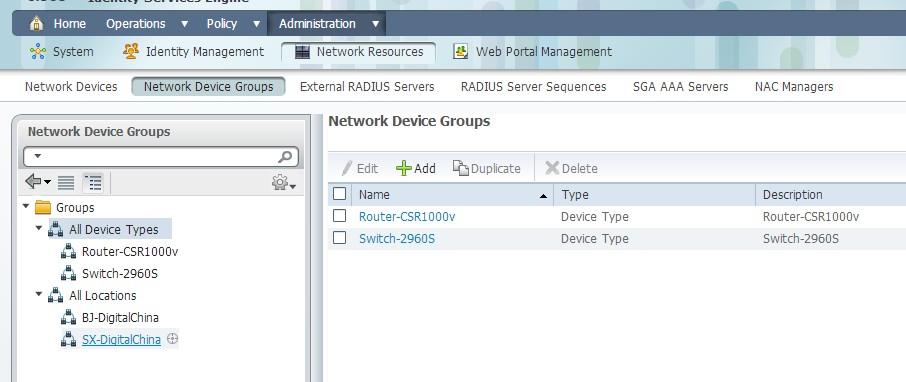

Add Network Device Groups(NDG)

Setup privileges based on device locations and device types；

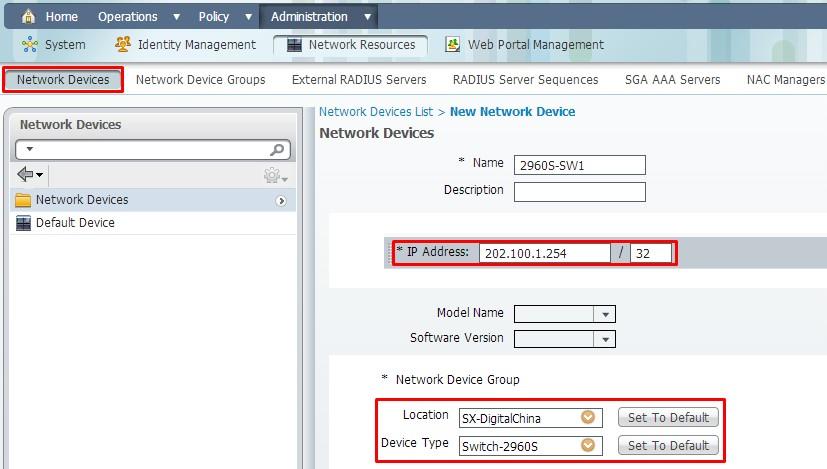

Add Network Device(AAA Client)

PS：The reason why crate Device group is to define different polices based on locations.

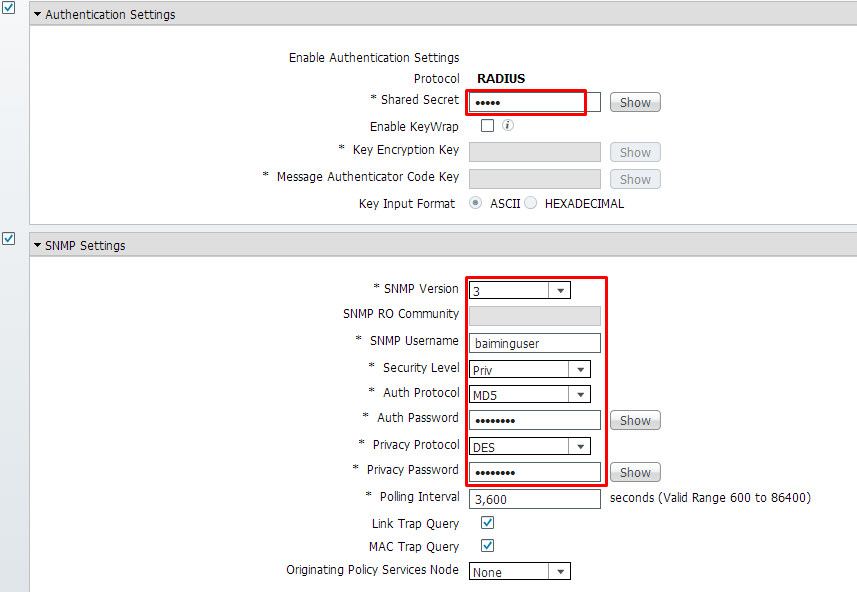

Fill in 2960S Radius Key and SNMP info；

6.3.1    Test Radius Connectivity

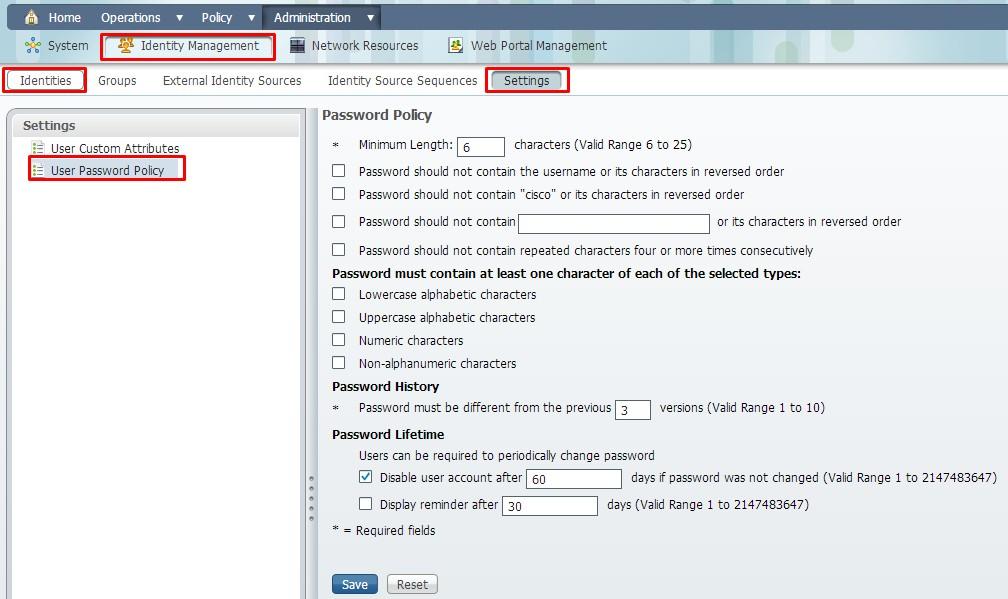

6.3.1.1 Change default user password policy

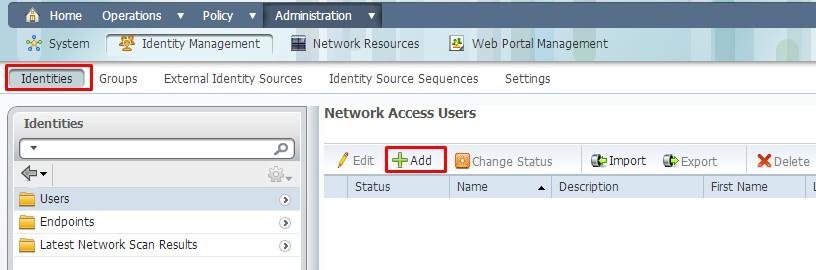

Add user

7. Recommended Switch Configuration

aaa new-model

aaa authentication dot1x default group radius aaa authorization network default group radius

aaa accounting dot1x default start-stop group radius

---Enable AAA DO1X

aaa server radius dynamic-author client 202.100.1.241 server-key cisco

---enable CoA (Change of Authorization)

dot1x system-auth-control

---Global enable Dot1X

ip device tracking

---Trace IP

radius-server attribute 6 on-for-login-auth

---Send the Service-Type attribute in access requests

radius-server attribute 8 include-in-access-req

---Send the Framed-IP-Address attribute in access requests

radius-server attribute 25 access-request include

---Send the Class attribute in access requests

radius-server dead-criteria time 5 tries 3

---Wait 3 x 5 seconds before marking RADIUS server as dead

radius-server host 202.100.1.241 key cisco radius-server vsa send accounting

---Enables vendor-specific attributes to be sent in RAIDUS accounting messages

radius-server vsa send authentication

---In order to enable dACLs, you must first configure your access switch to allow communications using the cisco-av-pair attribute with the valus aaa : event=acl-download. Enter the command shon here in the global configuration of the switch. If you fail to add this command, will result in

failed    authentication/authorization    requests.

ip access-list extended ACL-DEFAULT remark DHCP

permit udp any eq bootpc any eq bootps remark DNS

permit udp any any eq domain remark Ping

permit icmp any any remark TFTP

permit udp any any eq tftp remark Drop all the rest deny    ip any any log

---permit basic traffic

!

ip access-list extended WEB-REDIRECT deny    udp any any eq domain

deny udp any host 202.100.1.241 eq 8905 deny udp any host 202.100.2.254 eq 8905 deny udp any host 202.100.1.241 eq 8906 deny udp any host 202.100.1.241 eq 8909 deny      tcp any host 202.100.1.241 eq 8443

deny tcp any host 202.100.1.241 eq 8905 deny tcp any host 202.100.2.254 eq 8905 deny tcp any host 202.100.1.241 eq 8909 permit ip any any

---redirect web traffic

interface GigabitEthernet1/0/1 description ISE-MAB-DOT1X-WEBAUTH switchport access vlan 2

switchport mode access

ip access-group ACL-DEFAULT in

authentication event fail action next-method

authentication event server dead action authorize vlan 10

authentication event server alive action reinitialize

authentication host-mode multi-auth

authentication open

authentication order mab dot1x

authentication priority dot1x mab

authentication port-control auto

authentication violation restrict

mab

dot1x pae authenticator

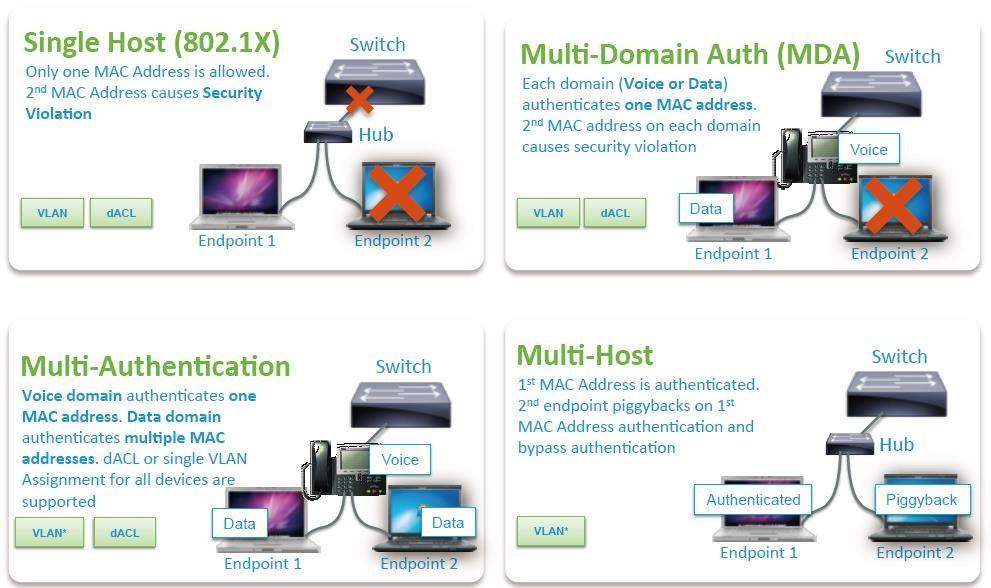

Change of Authorization  Features
