Cisco 9800 WLC and Aruba Clearpass Dot1X and Guest Acess

 Cisco 9800 WLC and Aruba Clearpass Dot1X and Guest Acess

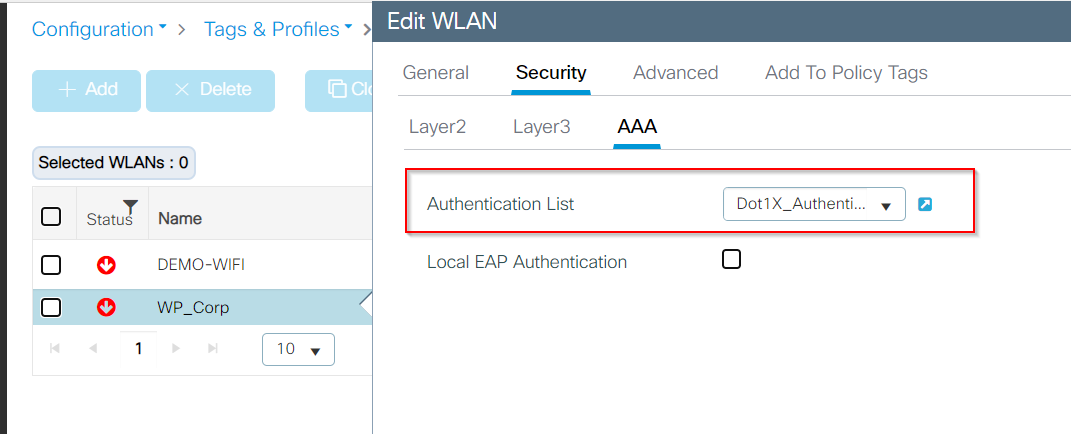

Configure 9800 WLC Integration with Aruba ClearPass - Dot1x



Configure 9800 WLC and Aruba ClearPass - Guest Access

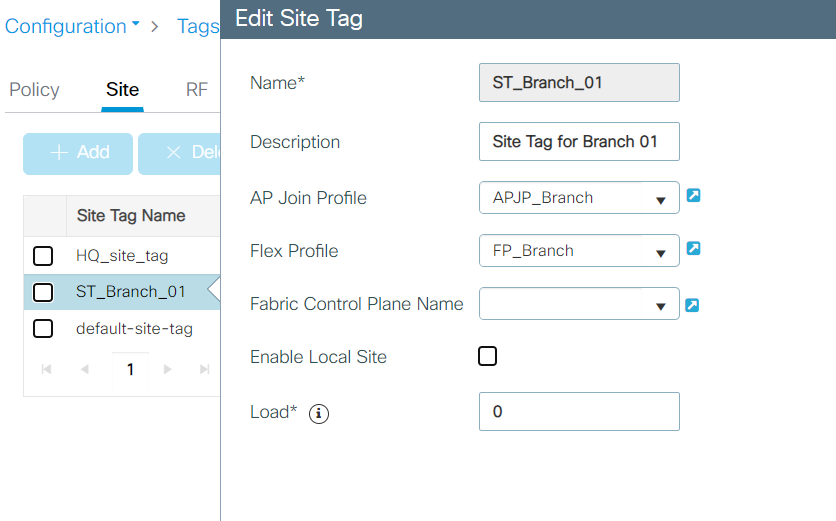

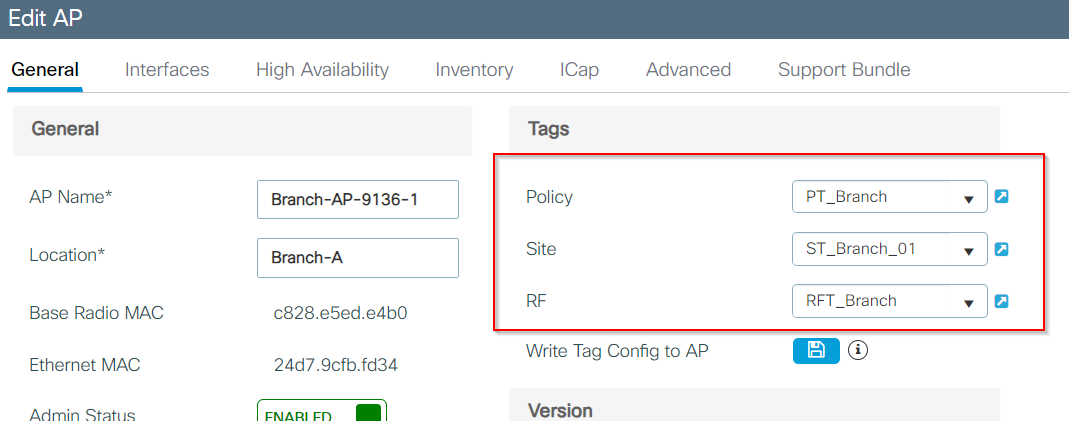

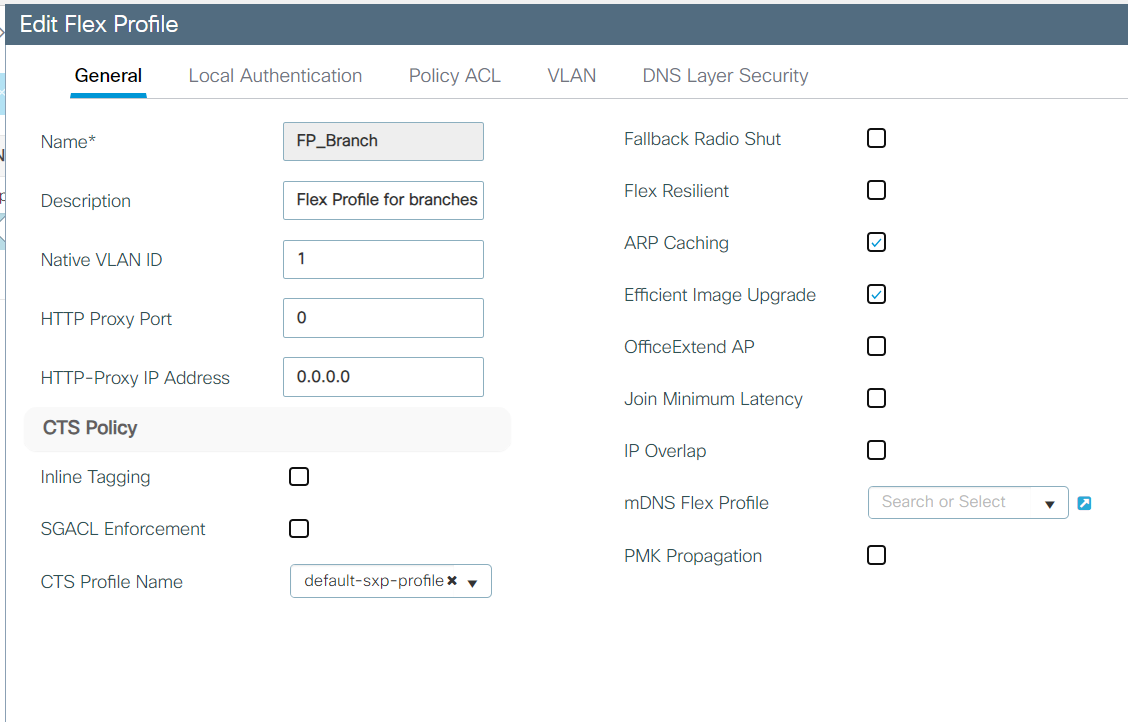

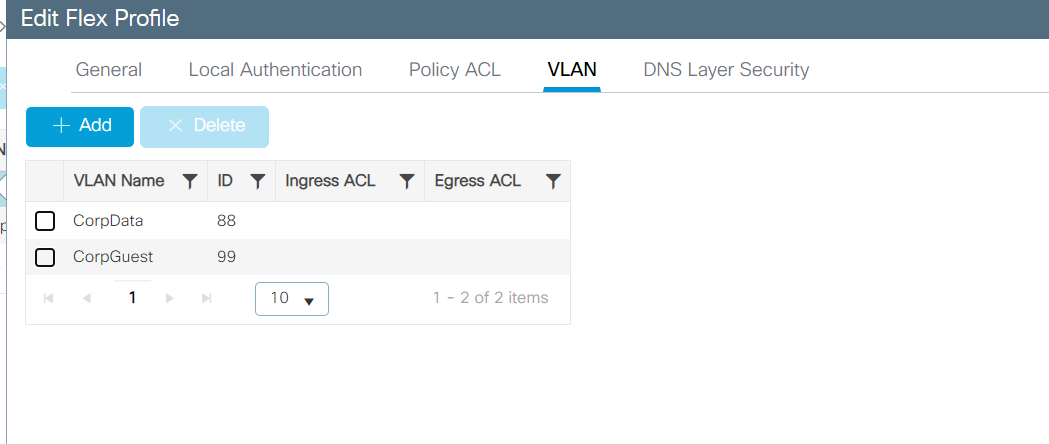

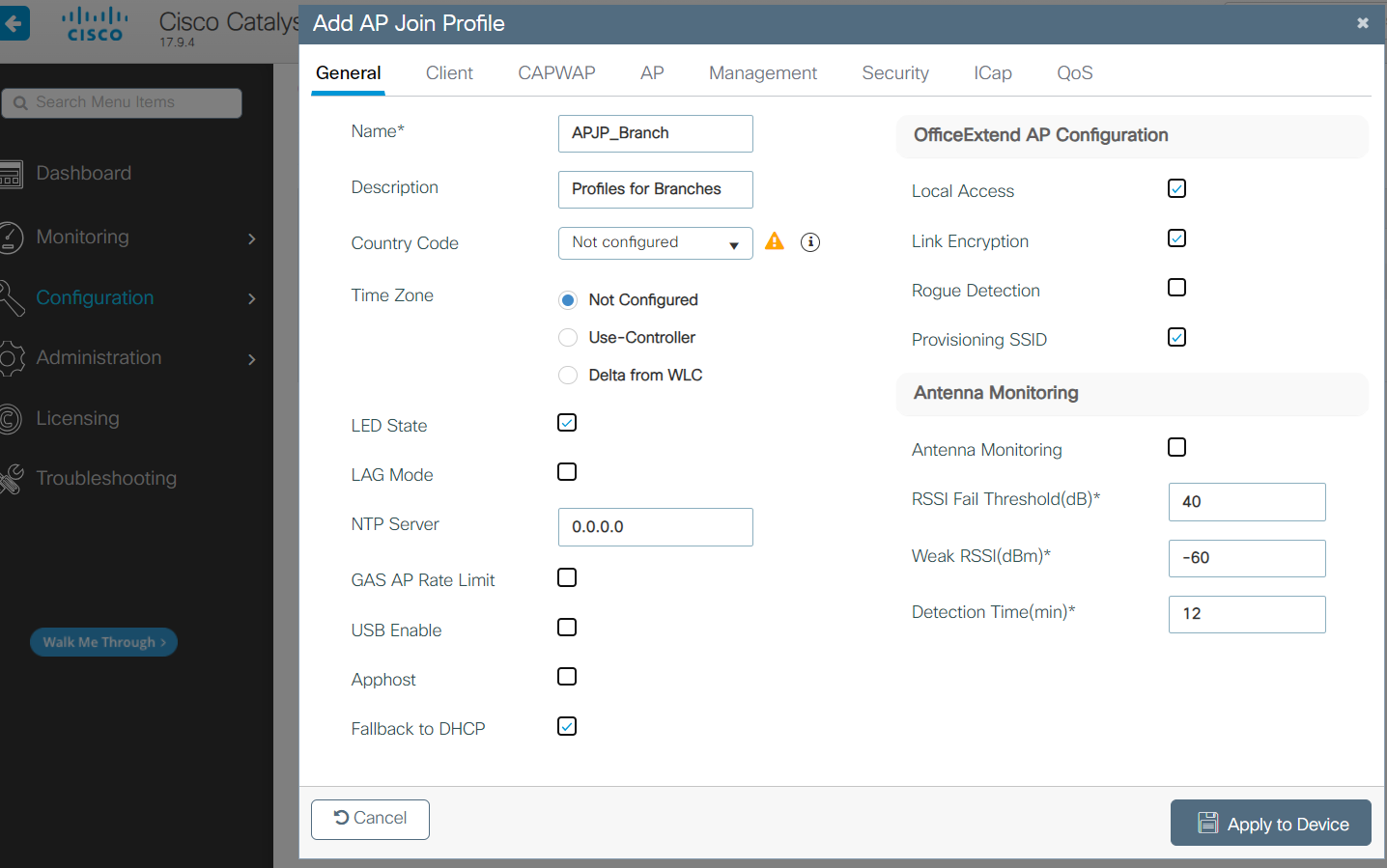

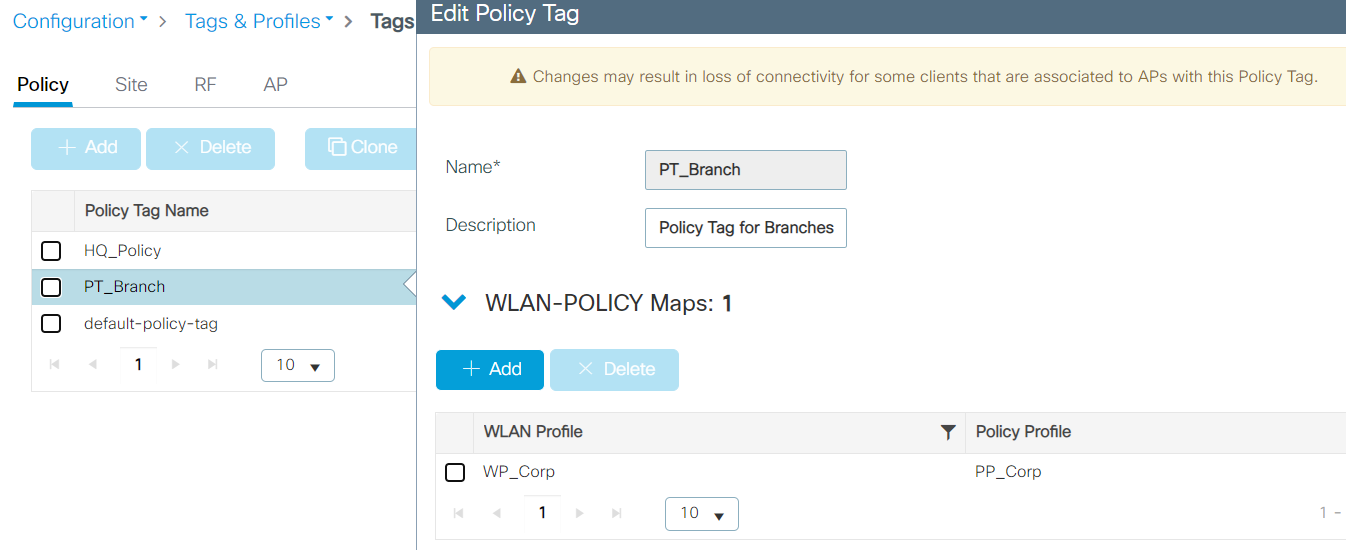

Configure 9800 WLC Integration with Aruba ClearPass - Dot1x & FlexConnect for Branches Deployment



From <https://www.cisco.com/c/en/us/support/docs/wireless/catalyst-9800-series-wireless-controllers/217935-configure-9800-wlc-integration-with-arub.html>

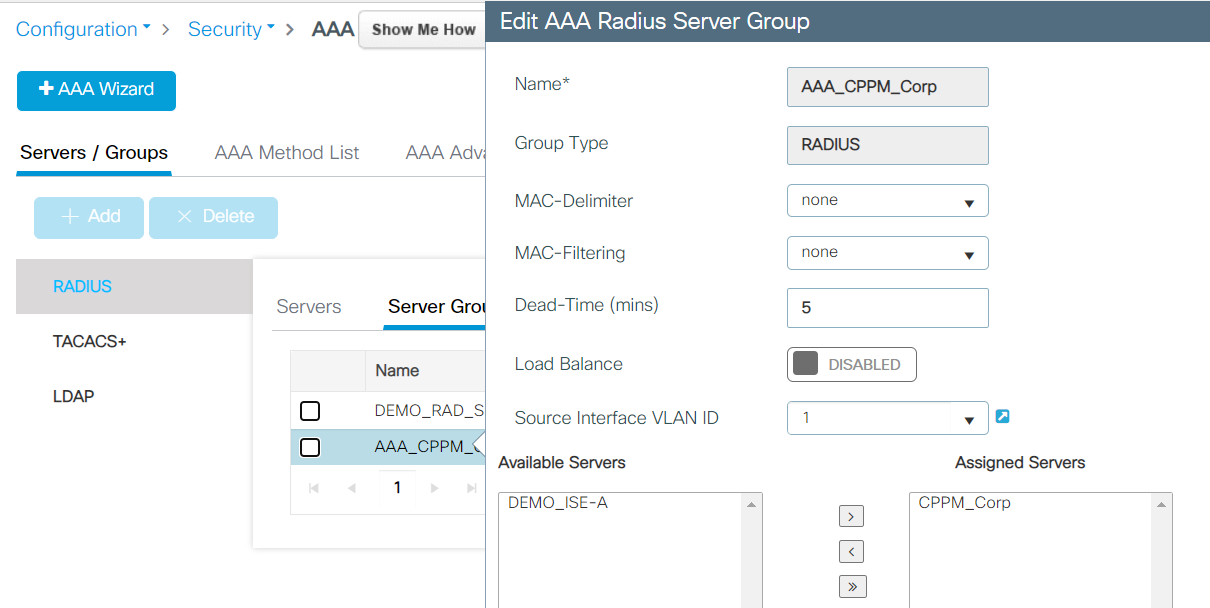

aaa group server radius AAA_CPPM_Corp

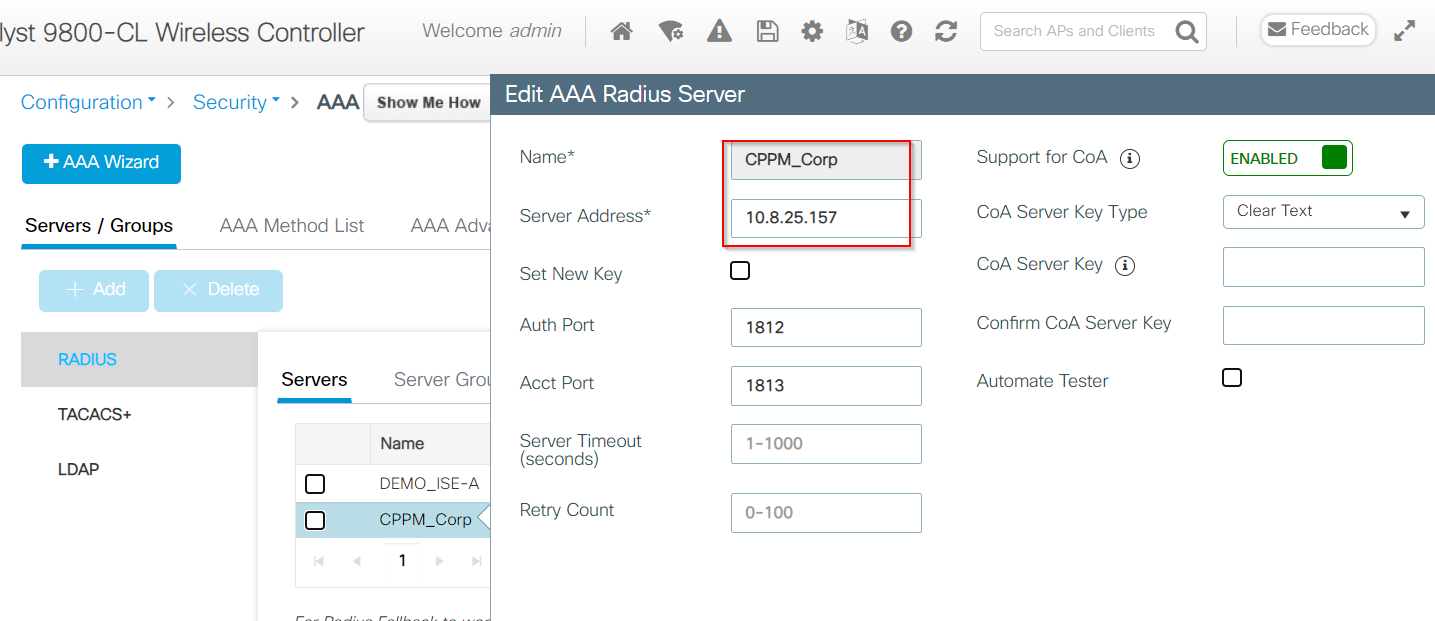

 server name CPPM_Corp

 ip radius source-interface GigabitEthernet1

 deadtime 5

 mac-delimiter colon















Test



-------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------





Configure 9800 WLC and Aruba ClearPass - Guest Access & FlexConnect



From <https://www.cisco.com/c/en/us/support/docs/wireless/catalyst-9800-series-wireless-controllers/217931-configure-9800-wlc-and-aruba-clearpass.html>

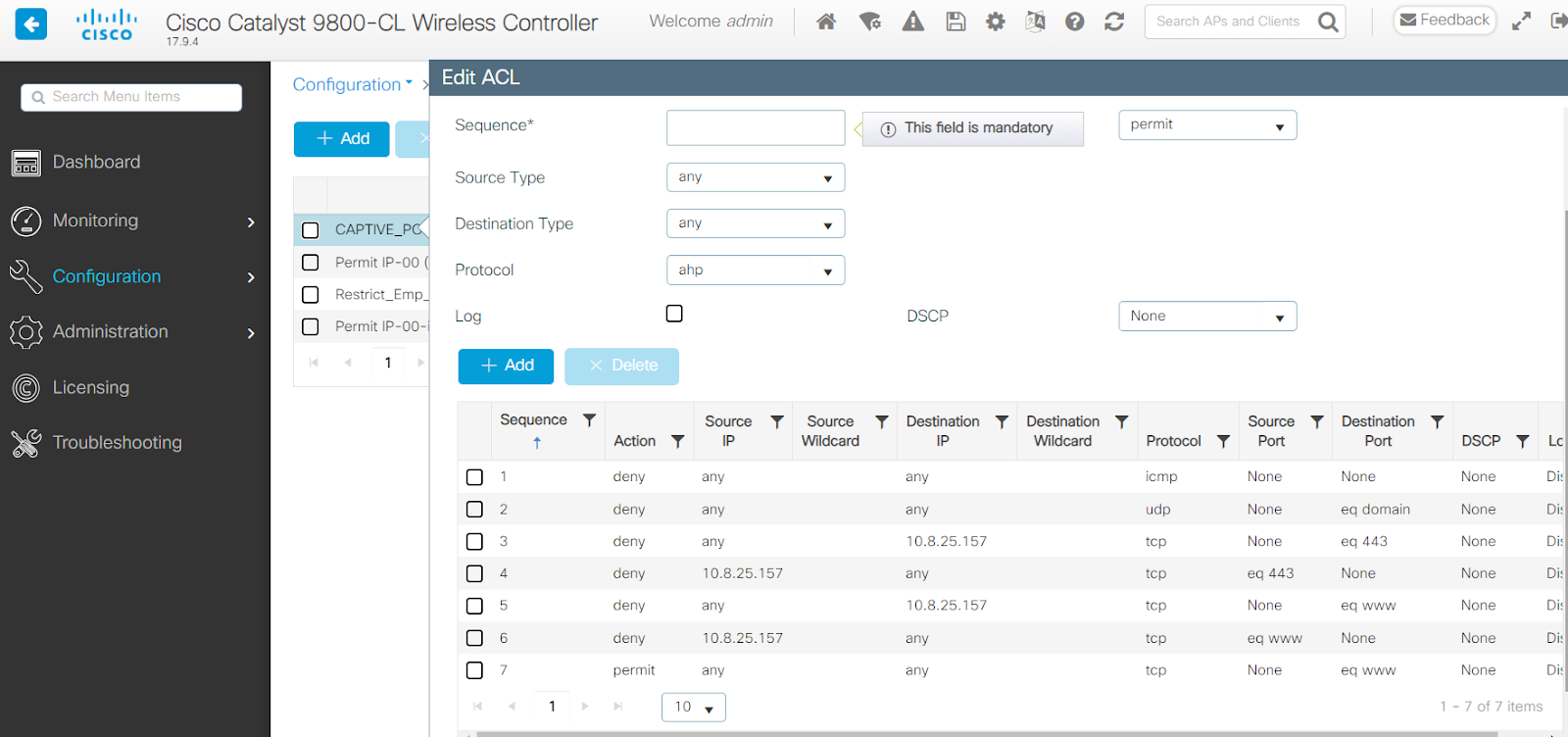

CAPTIVE_PORTAL_REDIRECT



















































Click any endpoint

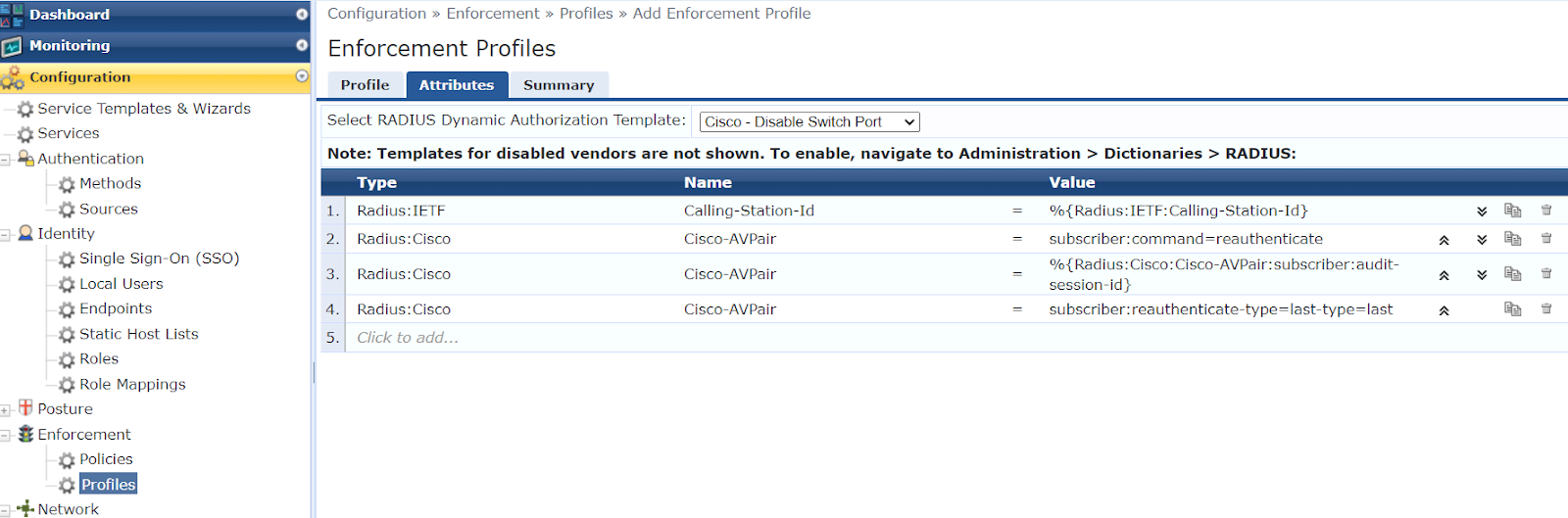

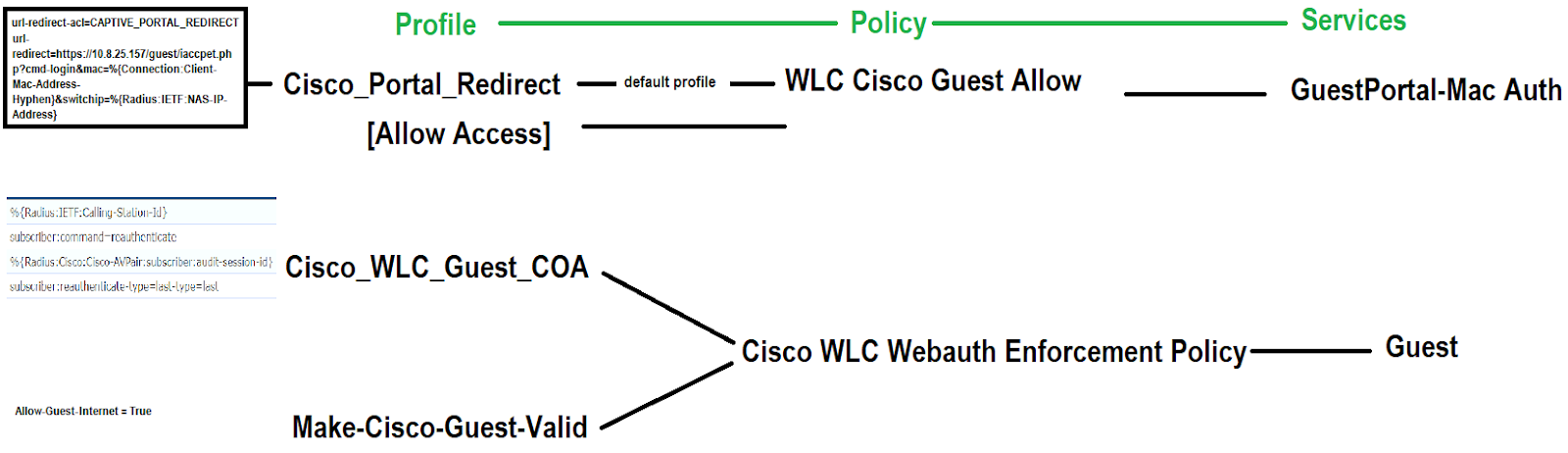

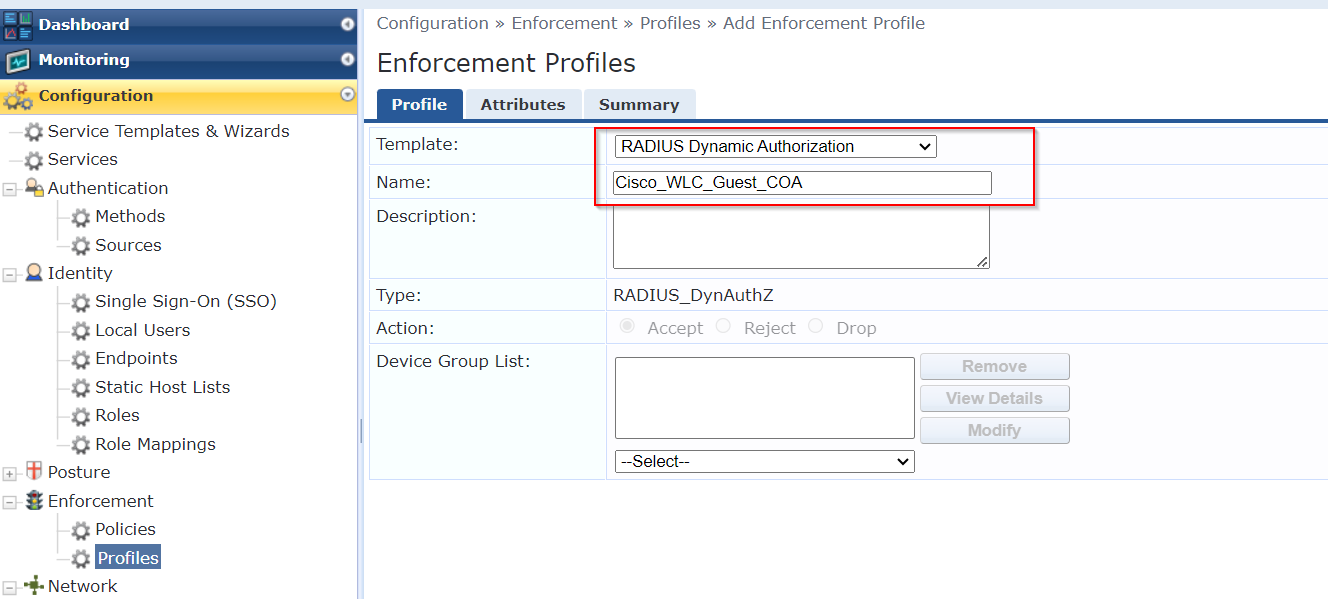

Cisco_WLC_Guest_COA

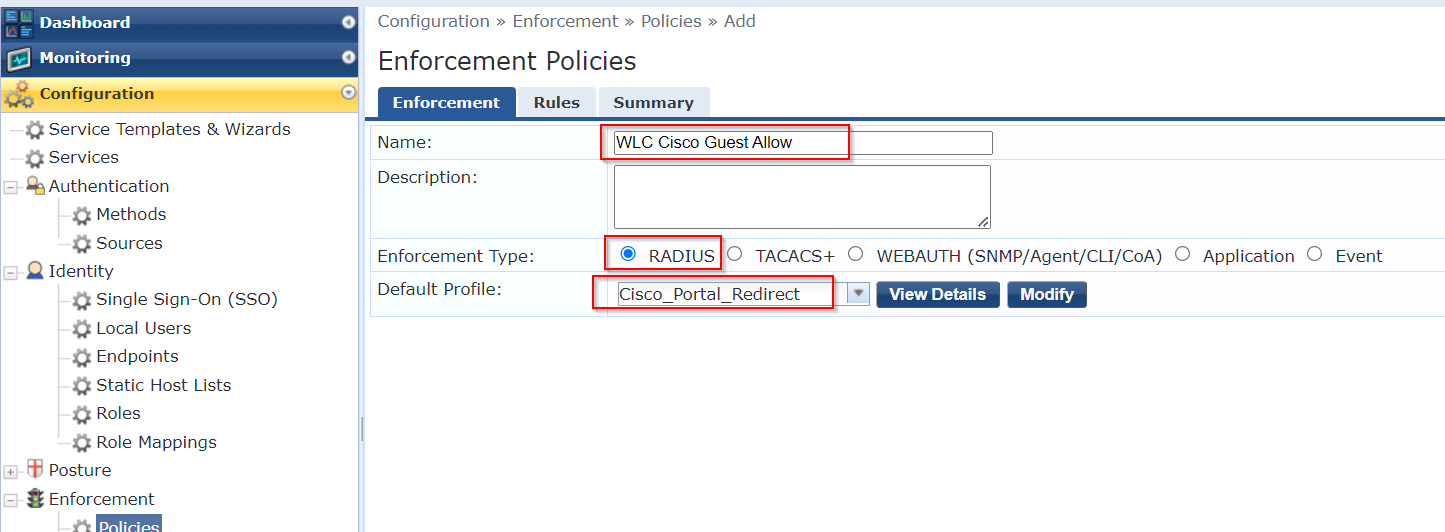

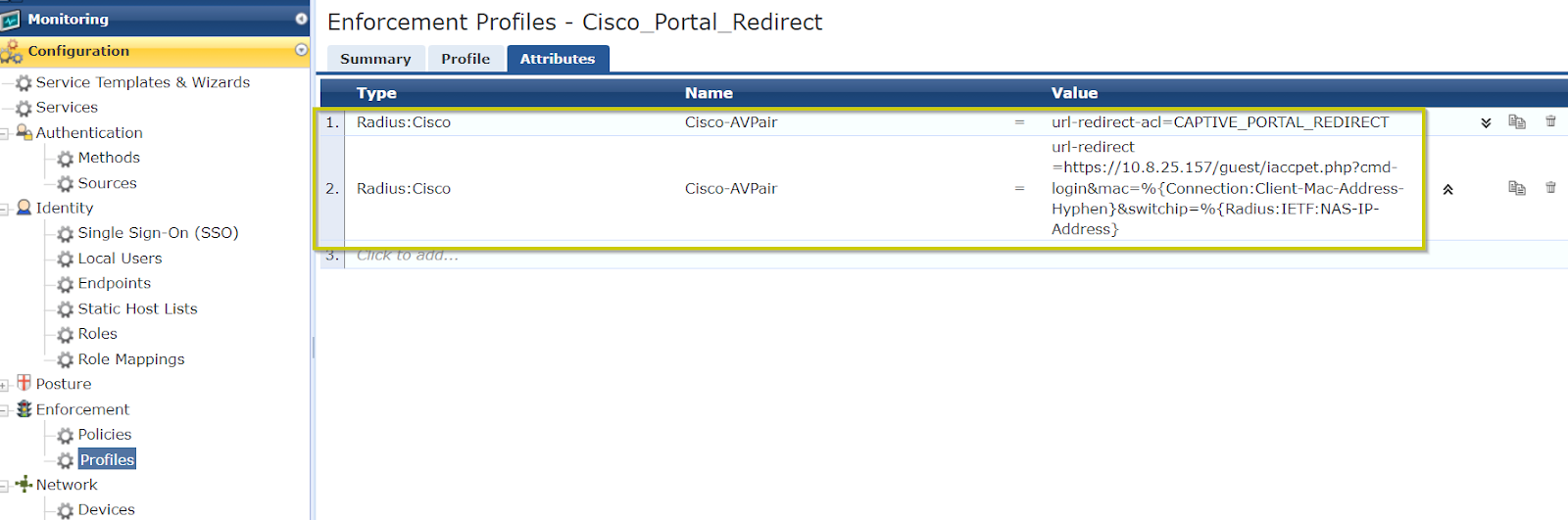

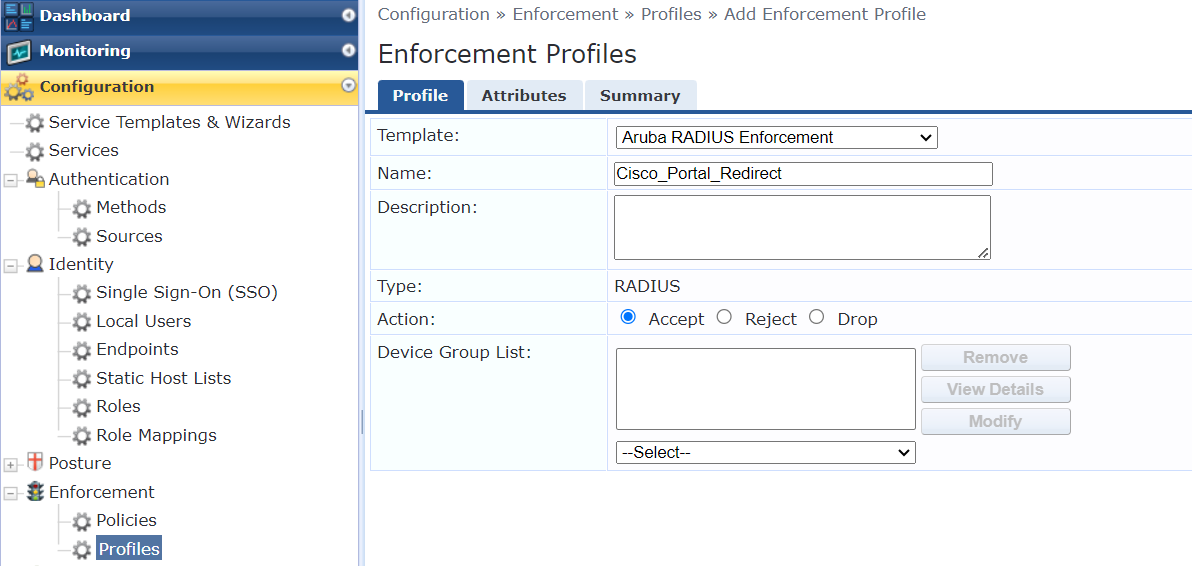

Cisco_Portal_Redirect

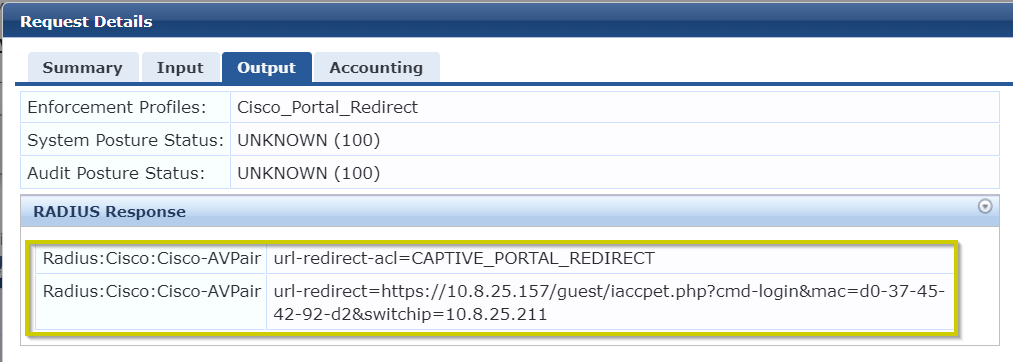

url-redirect-acl=CAPTIVE_PORTAL_REDIRECT

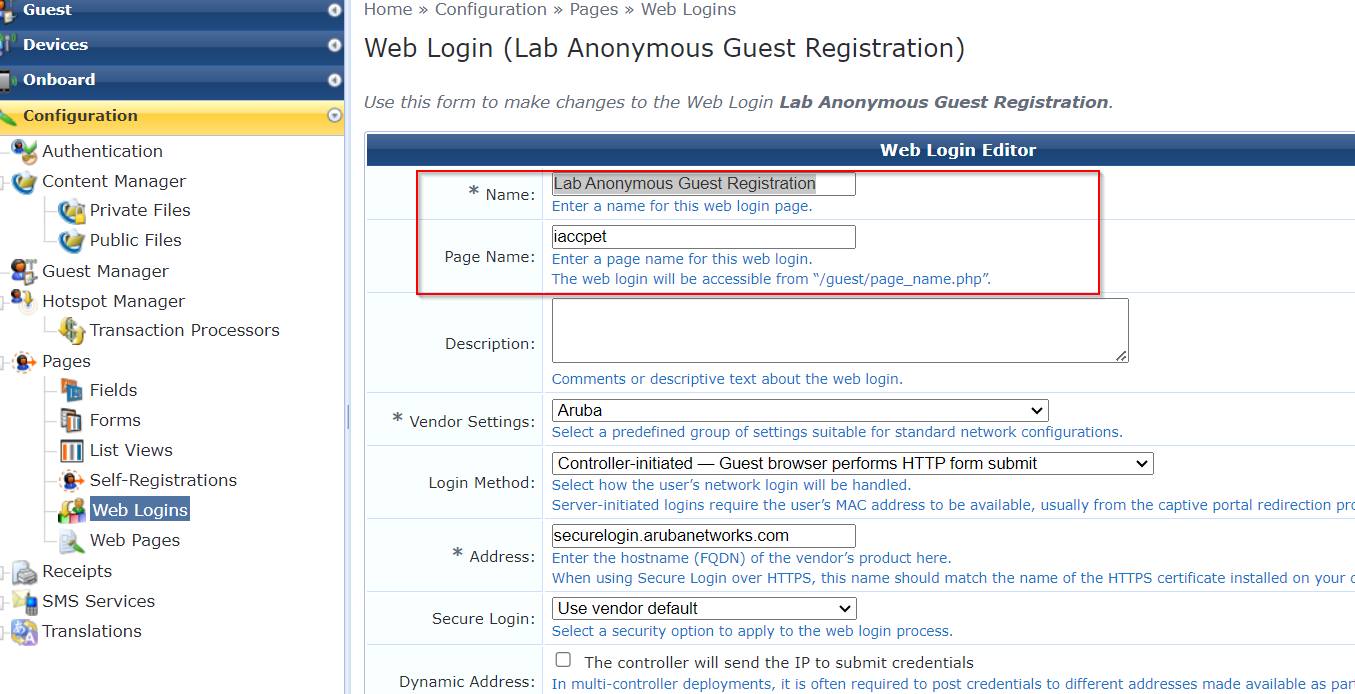

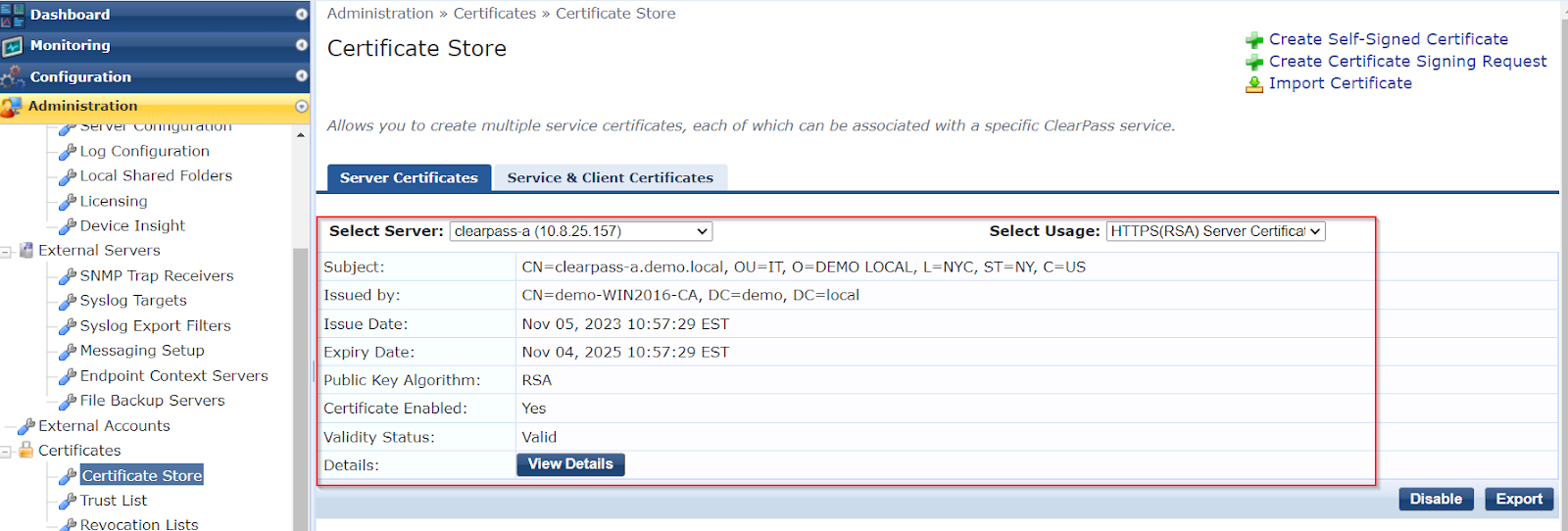

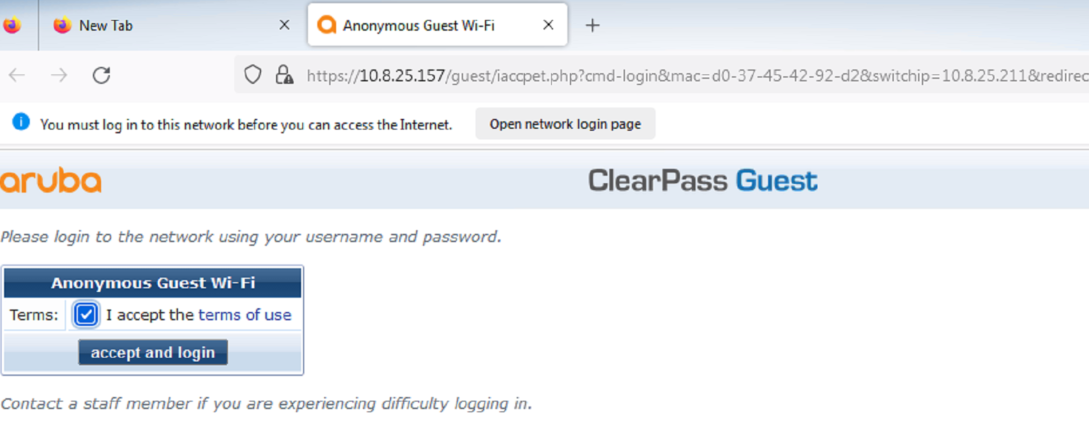

url-redirect=https://10.8.25.157/guest/iaccpet.php?cmd-login&mac=%{Connection:Client-Mac-Address-Hyphen}&switchip=%{Radius:IETF:NAS-IP-Address}

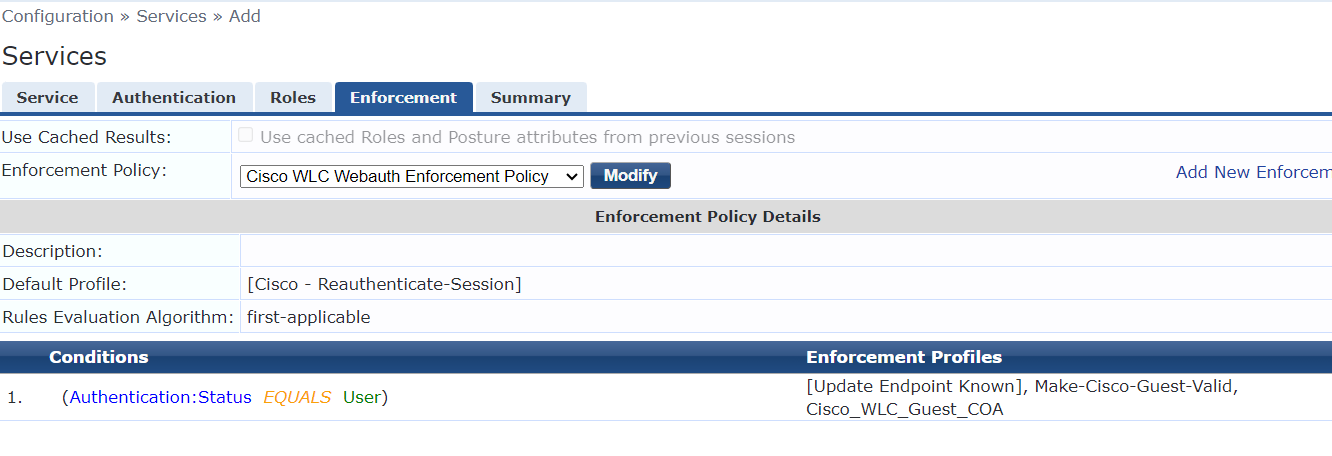

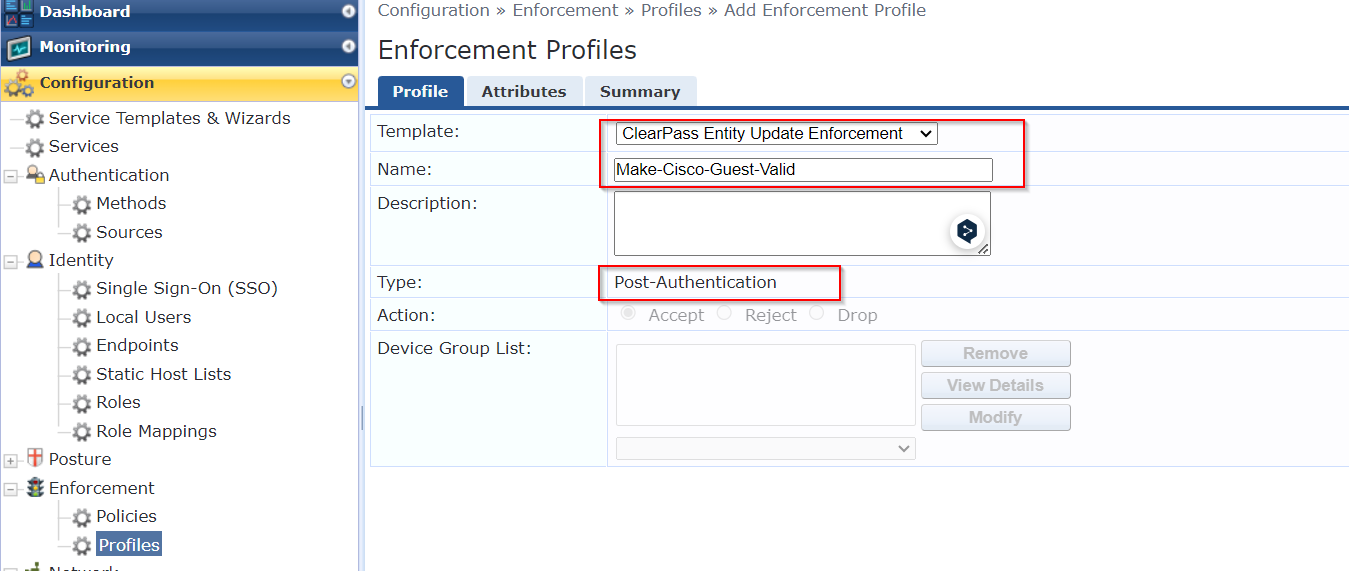

Make-Cisco-Guest-Valid

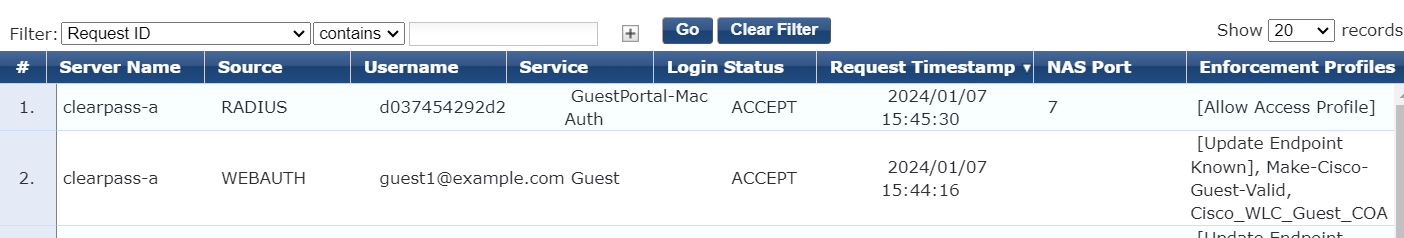

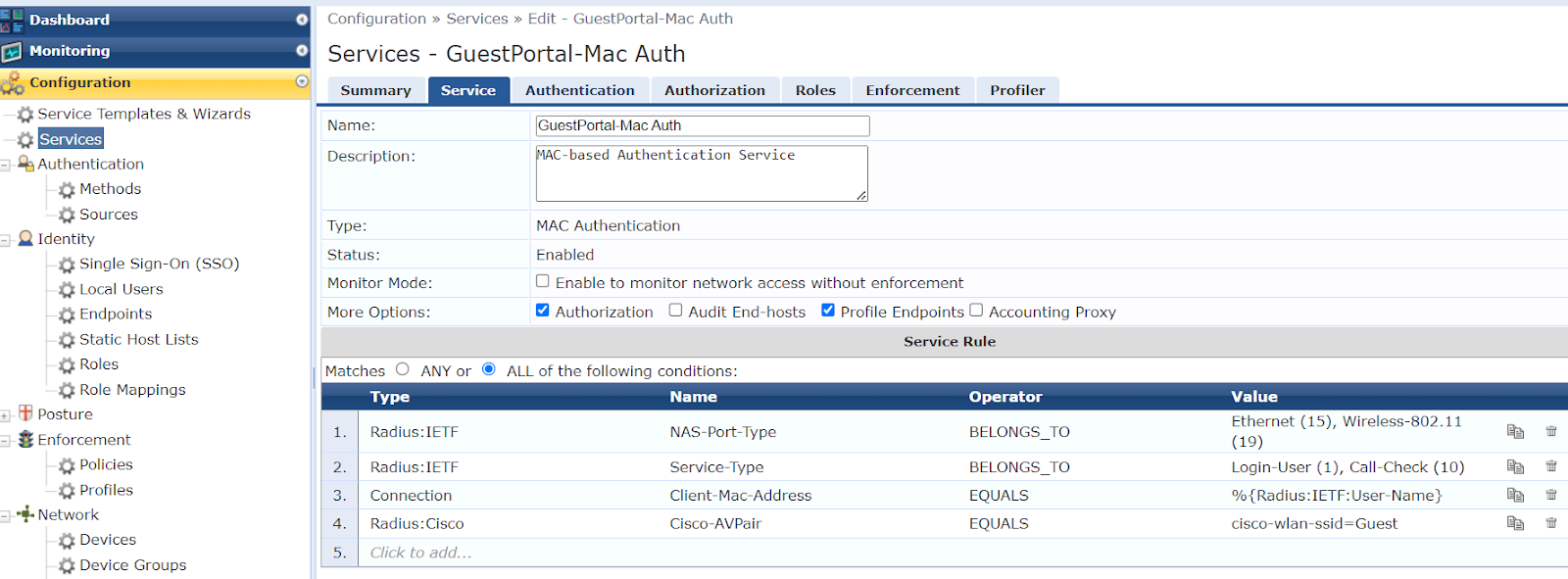

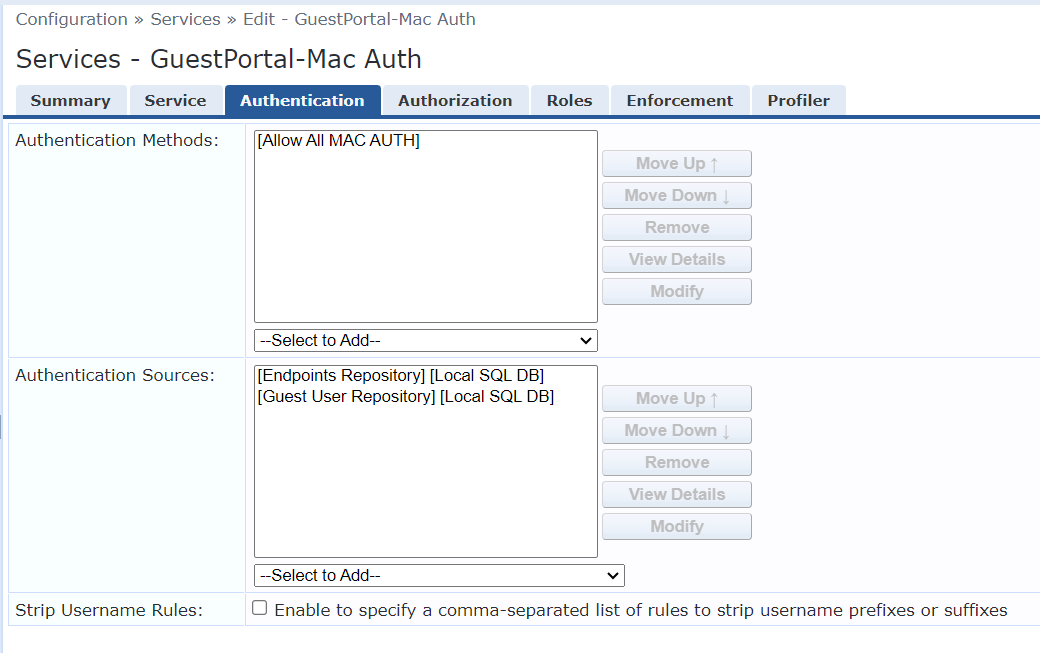

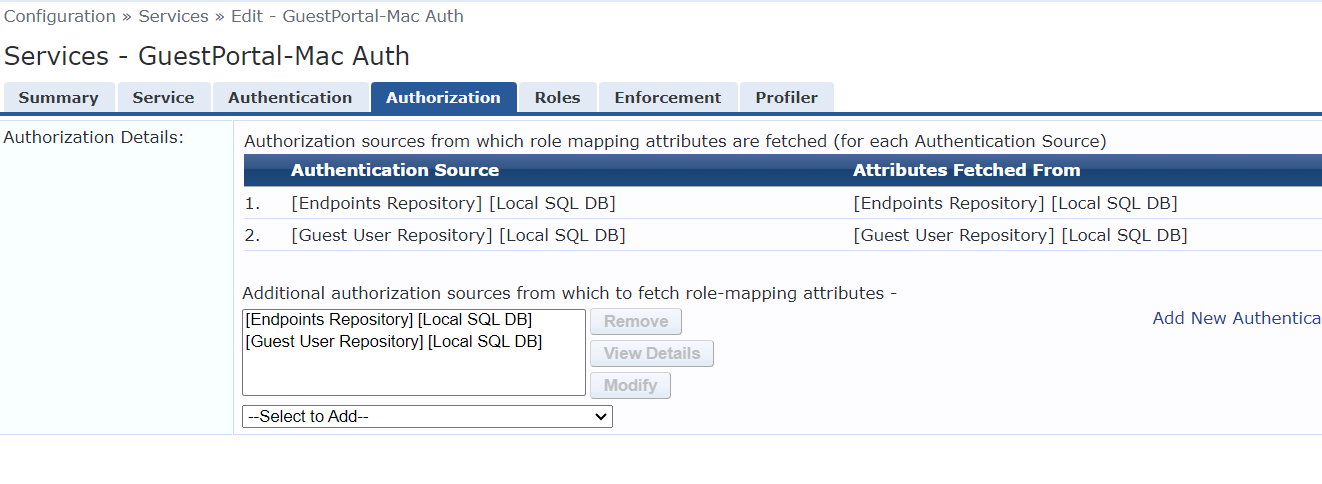

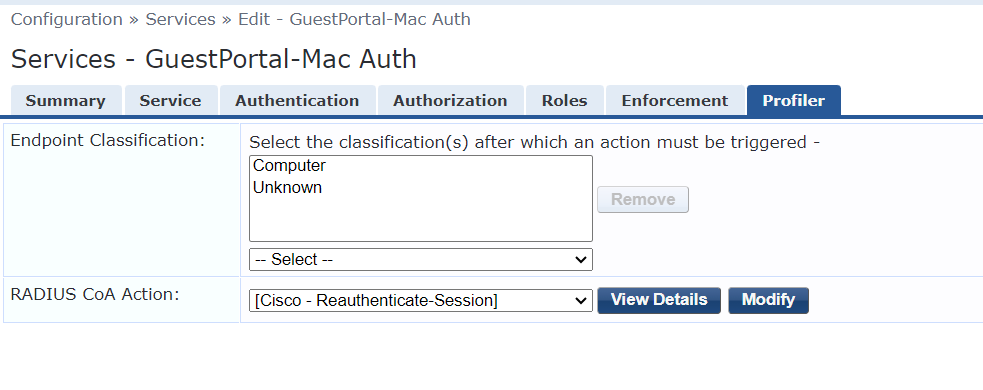

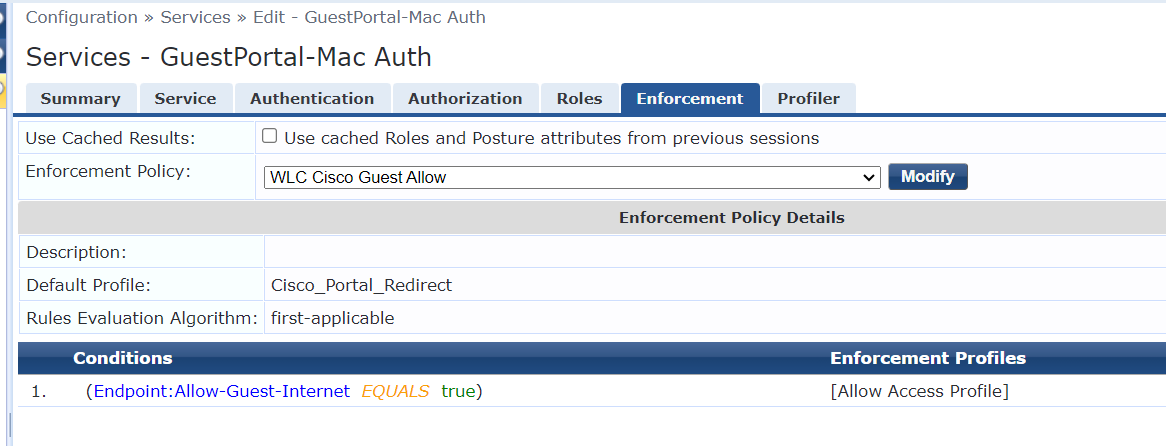

Services: GuestPortal-MAC Auth

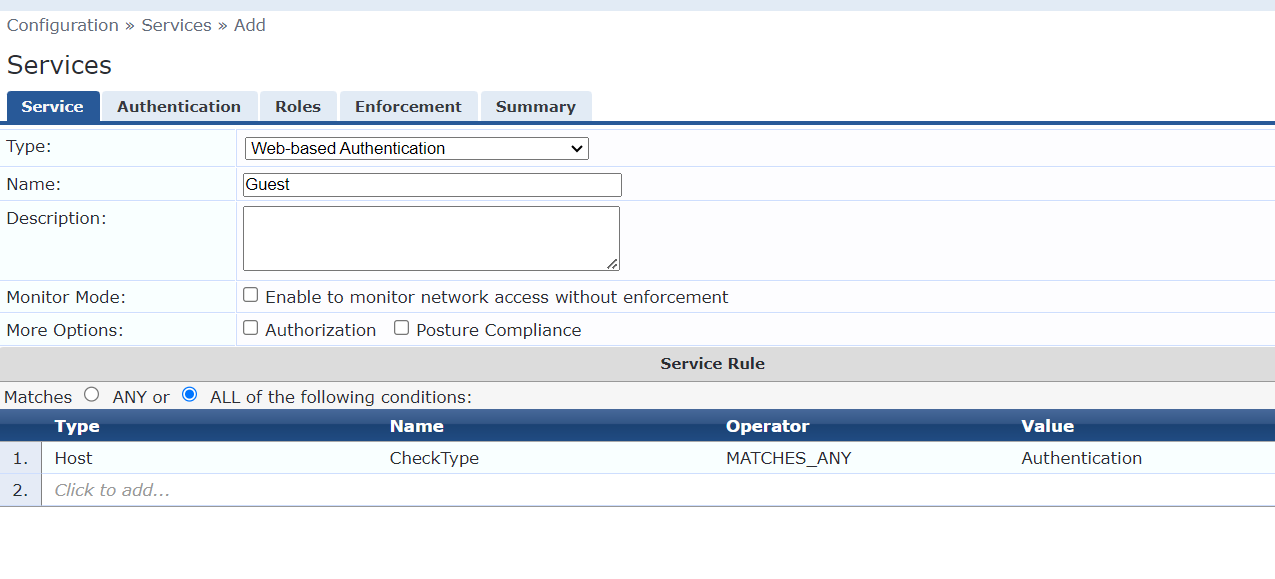

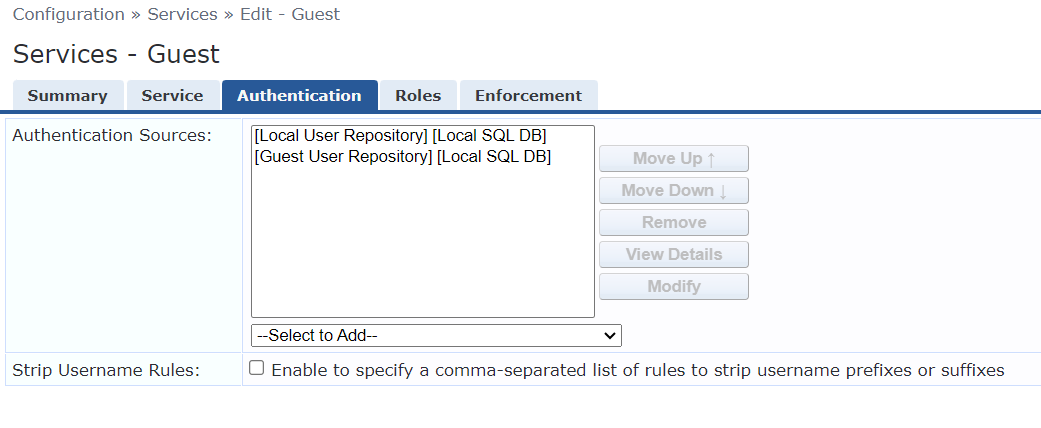

Service: Guest

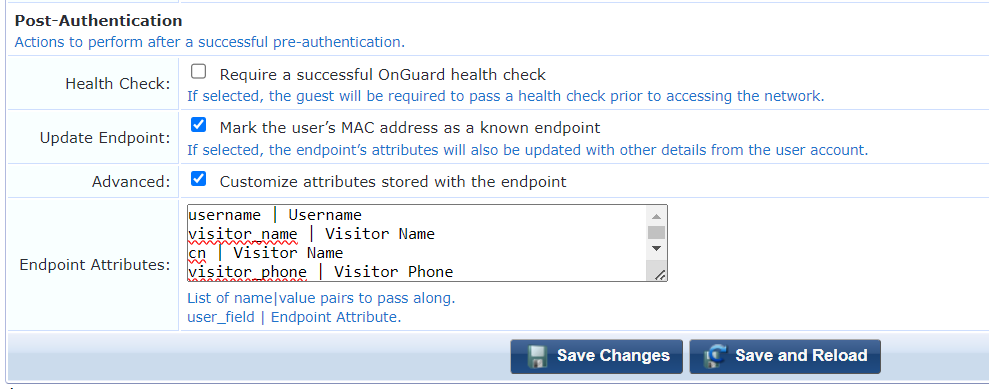

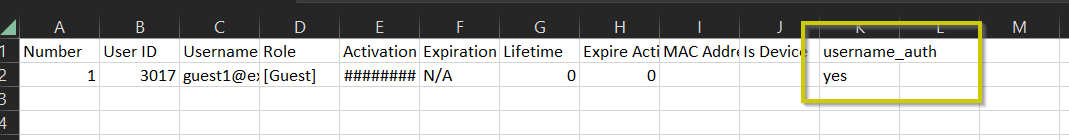

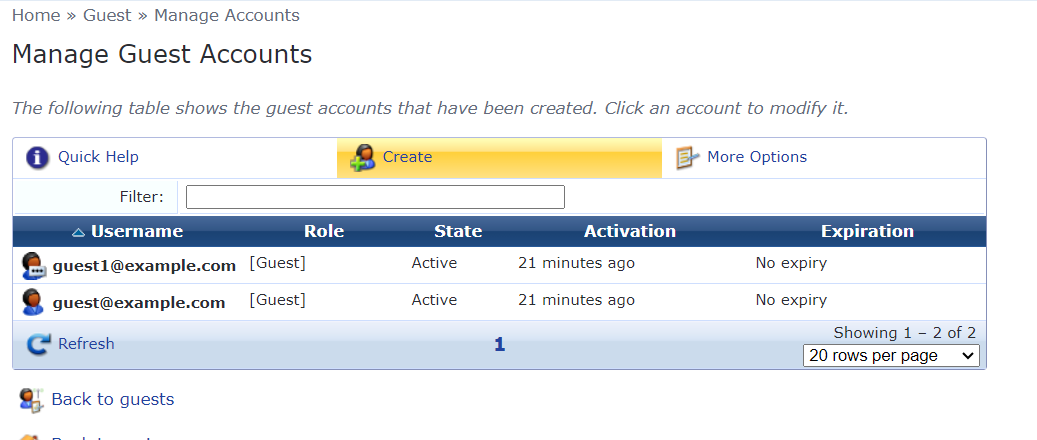

<<GuestManager Accounts 2024-01-07.csv>>



























username | Username

visitor_name | Visitor Name

cn | Visitor Name

visitor_phone | Visitor Phone

email | Email

mail | Email

sponsor_name | Sponsor Name

sponsor_email | Sponsor Email

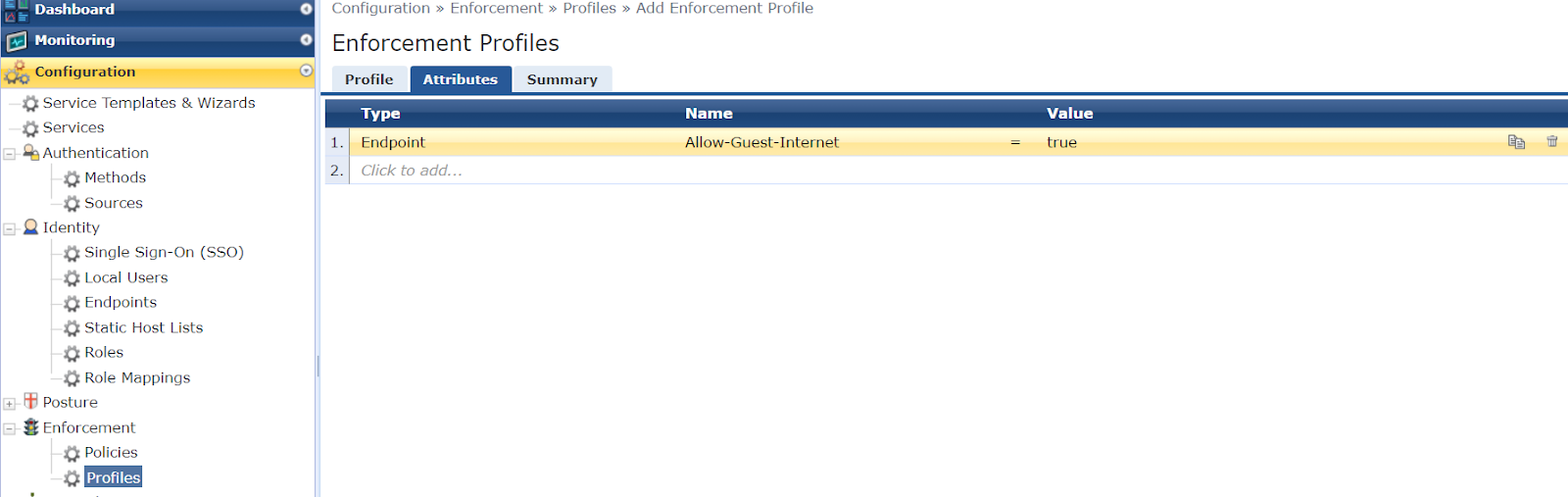

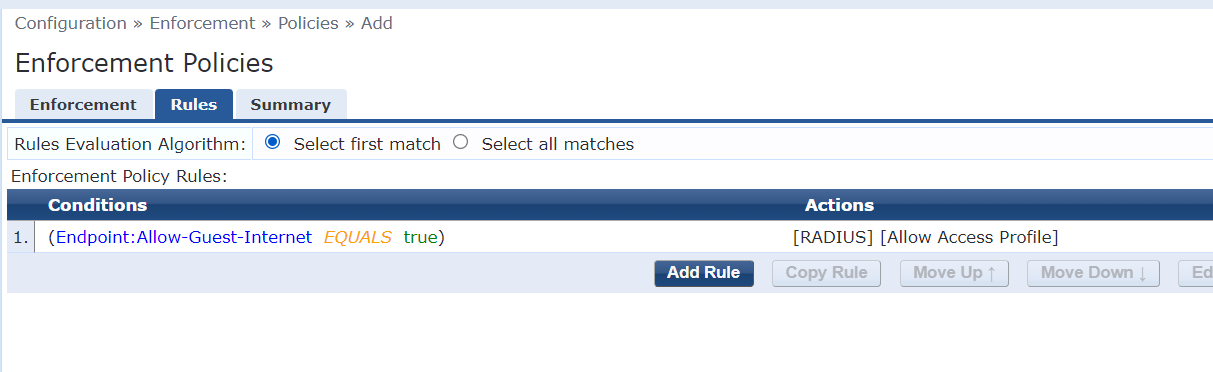

Allow-Guest-Internet | true







Import user

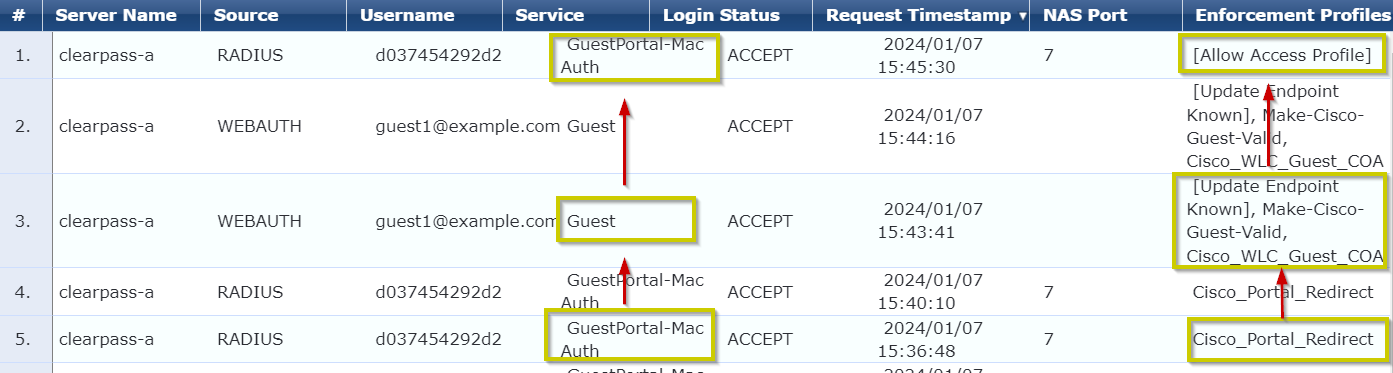

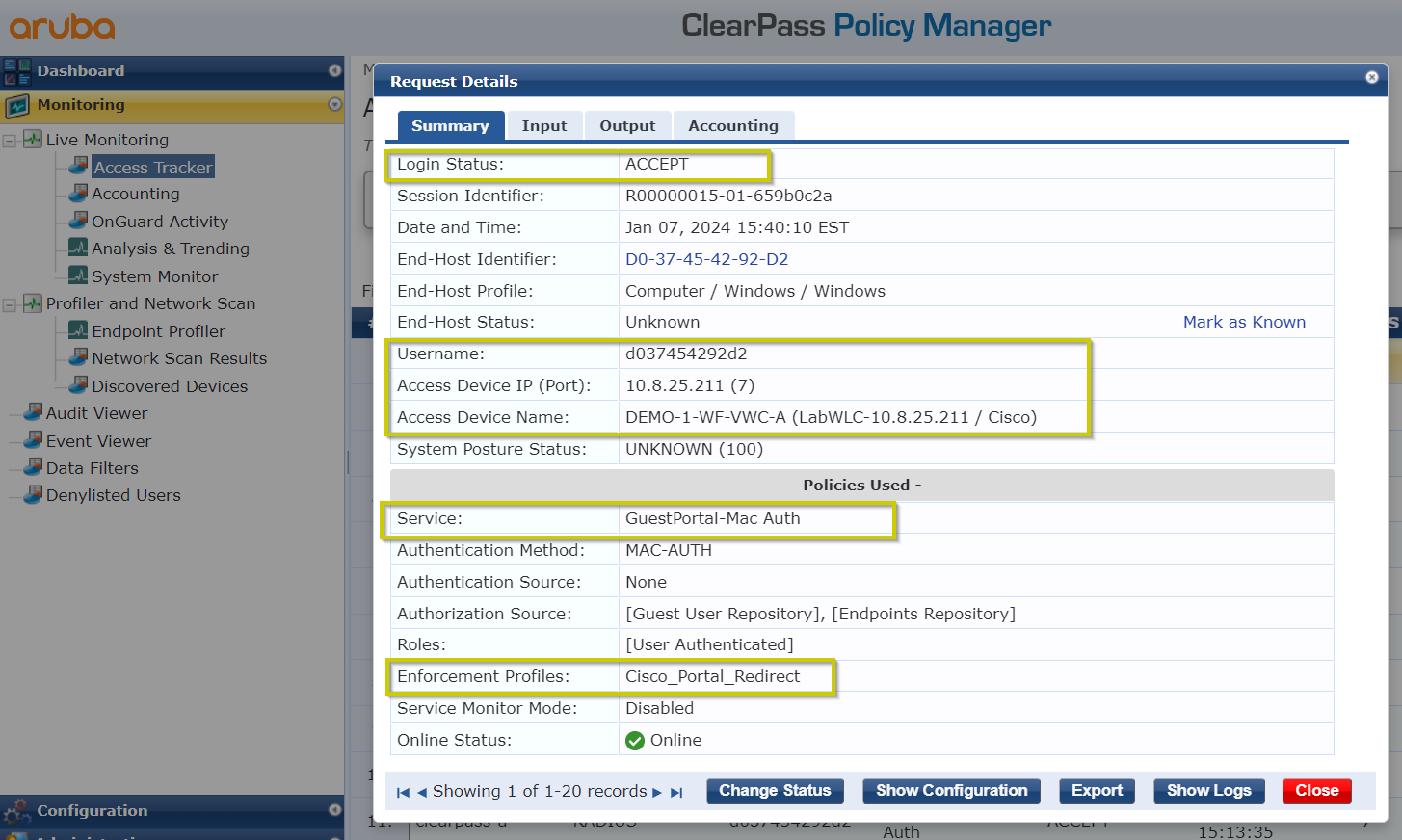

Verify
