ISE Load Balancing Using BIG-IP

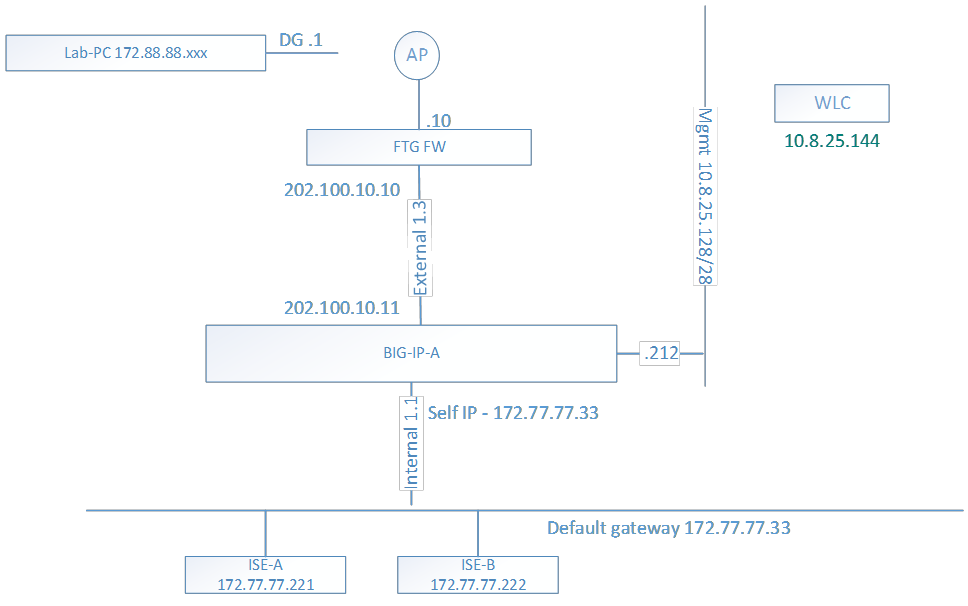

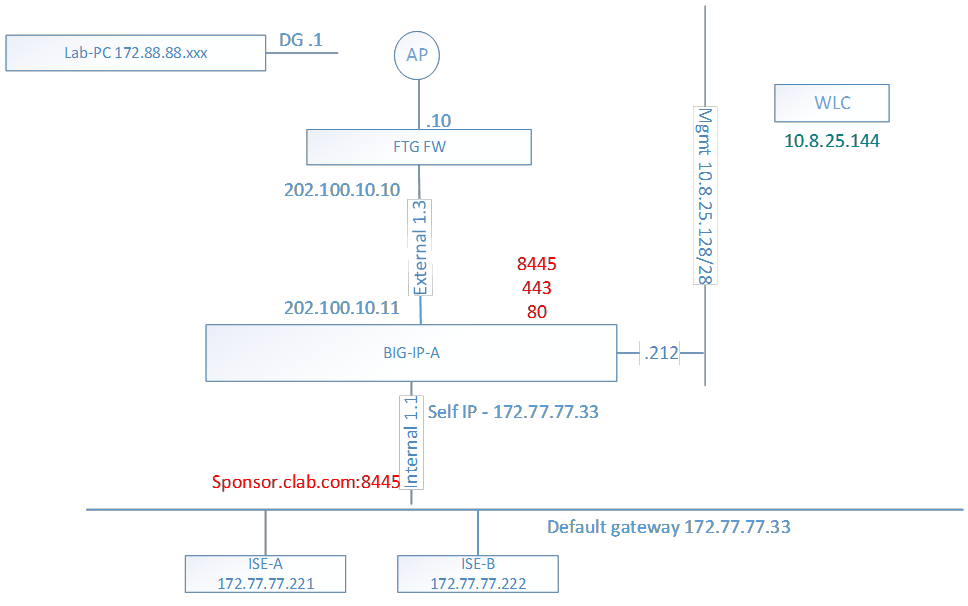

Topology

ISE Cluster

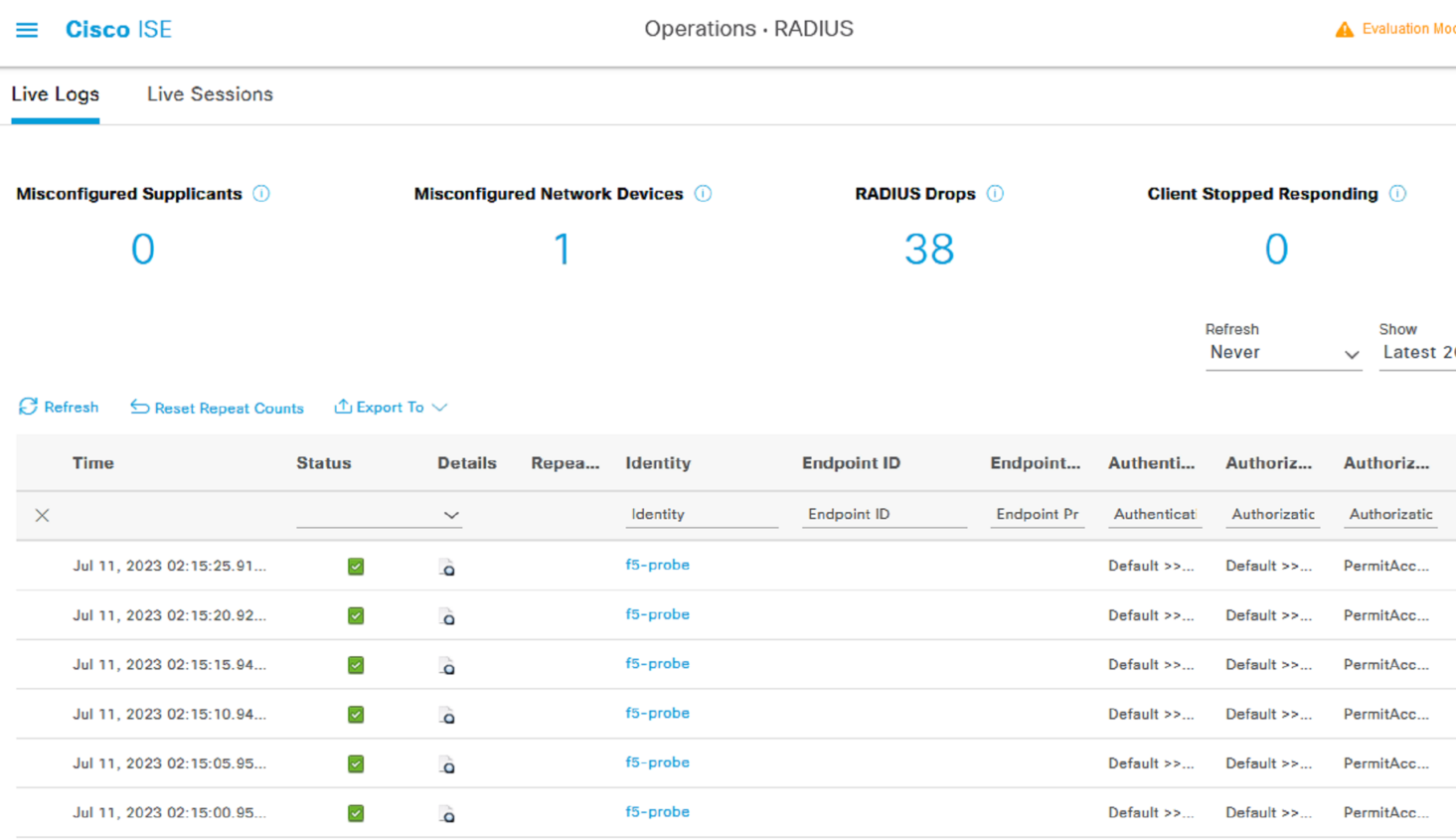

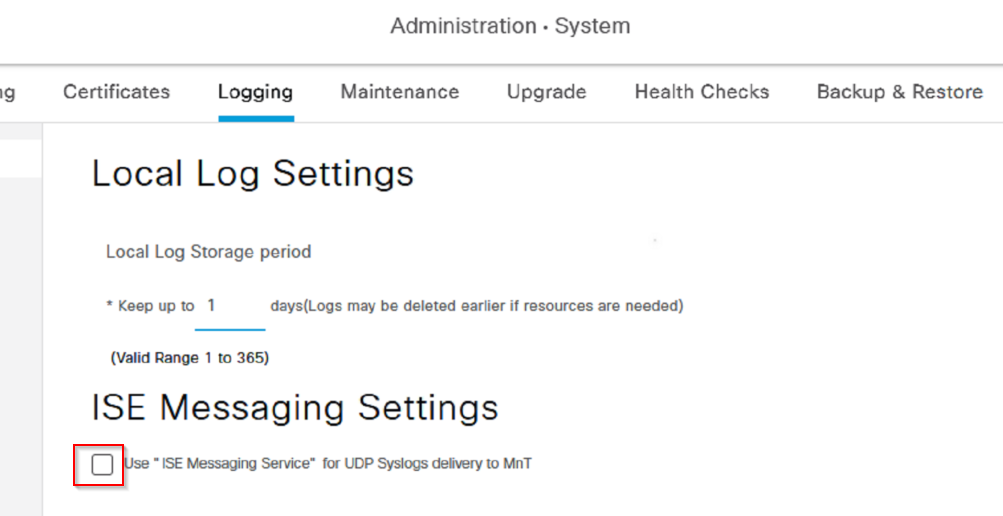

ISE logging

F5 network device

F5 probe user

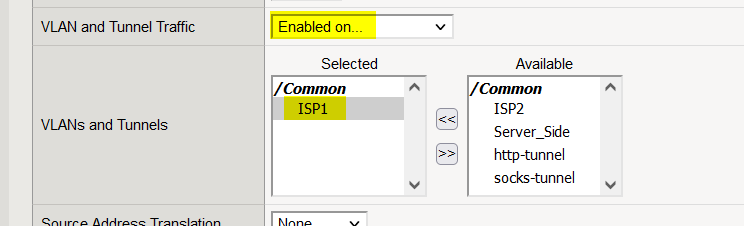

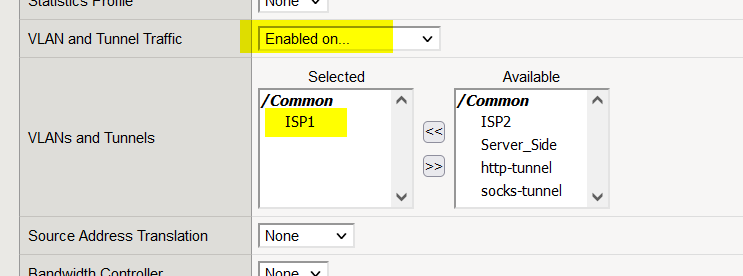

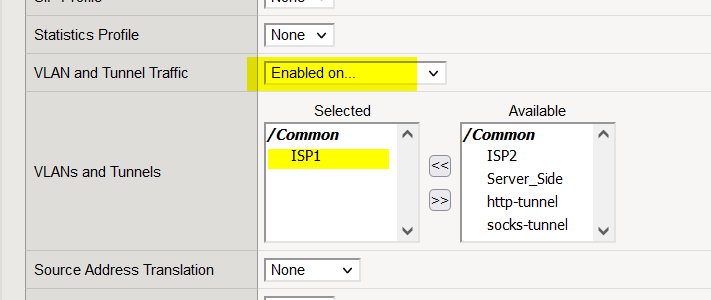

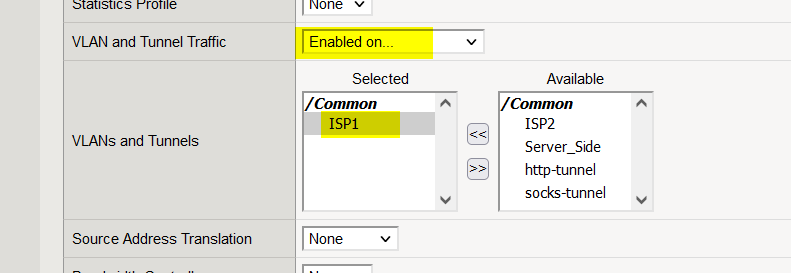

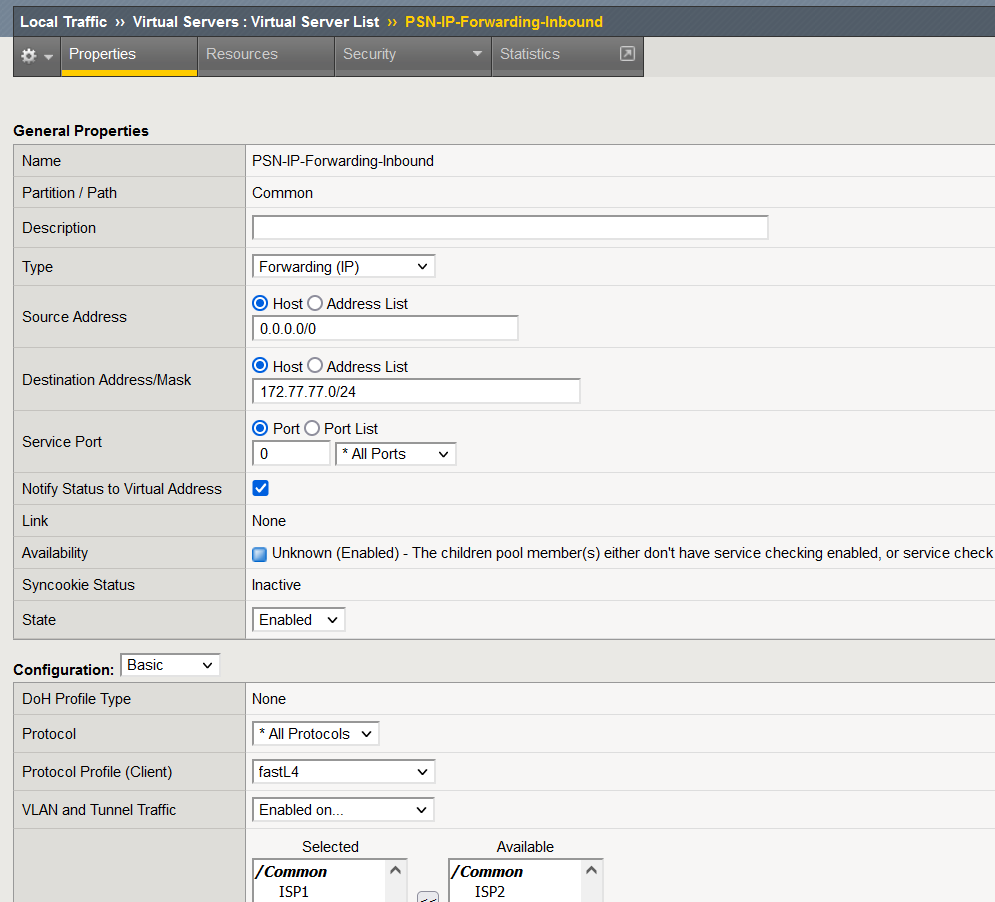

Virtual Server: LTM Forwarding IP Configuration - Inbound

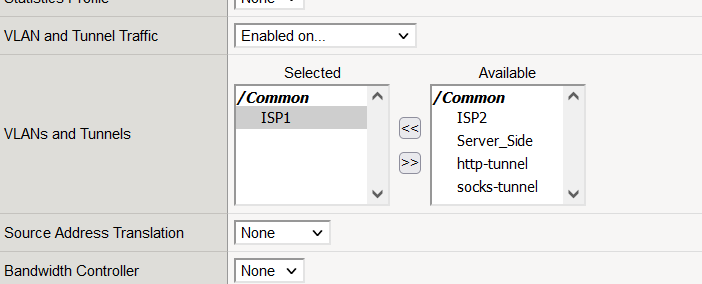

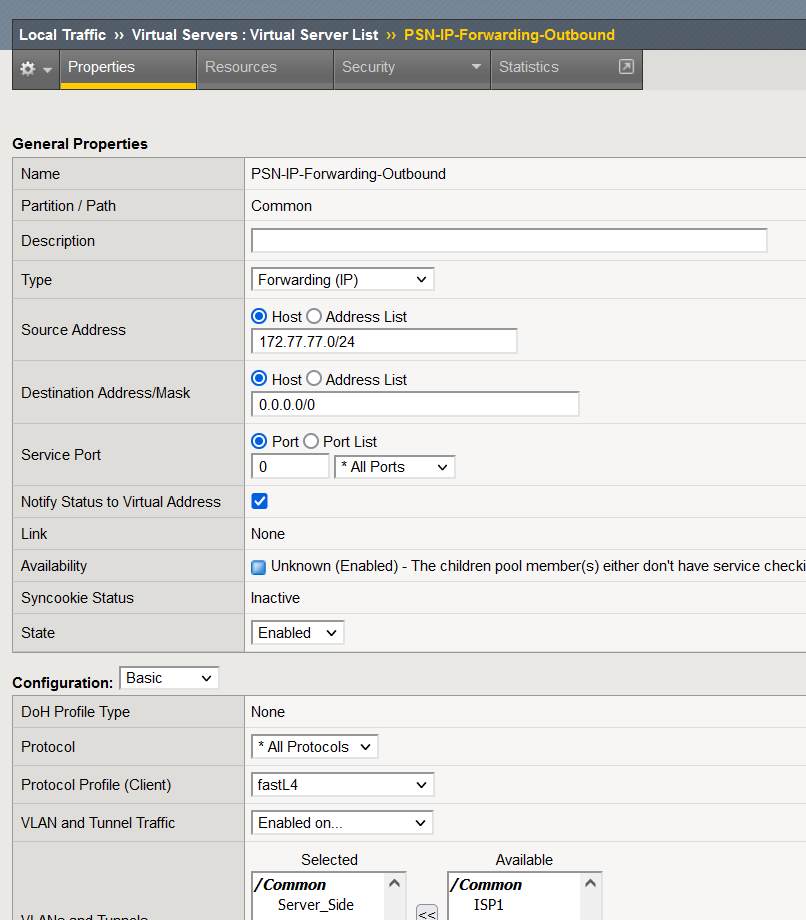

Virtual Server: LTM Forwarding IP Configuration - Outbound

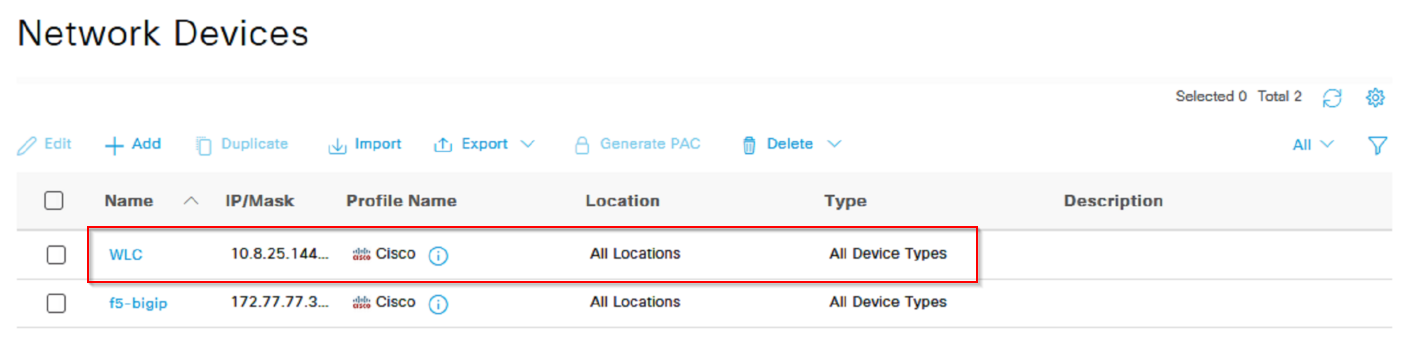

Add WLC as network device and user creation in ISE

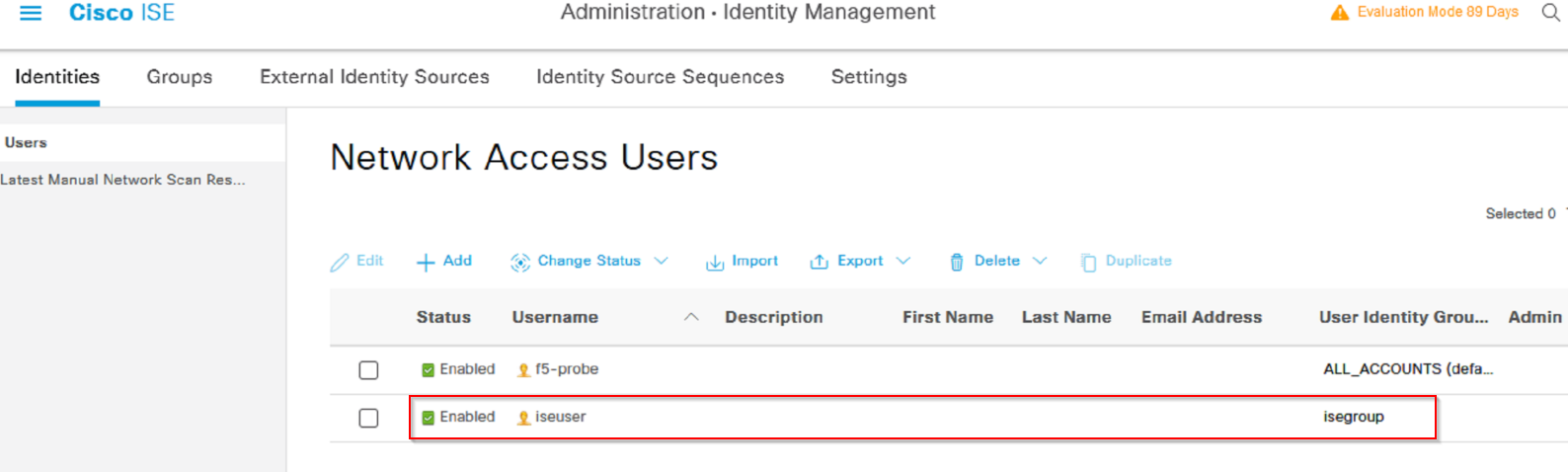

Local user creation

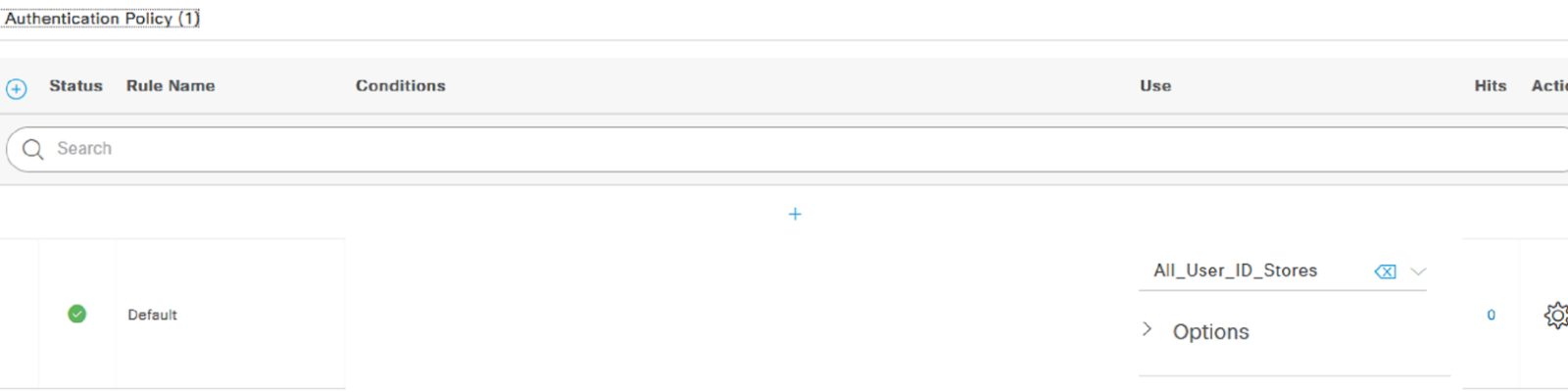

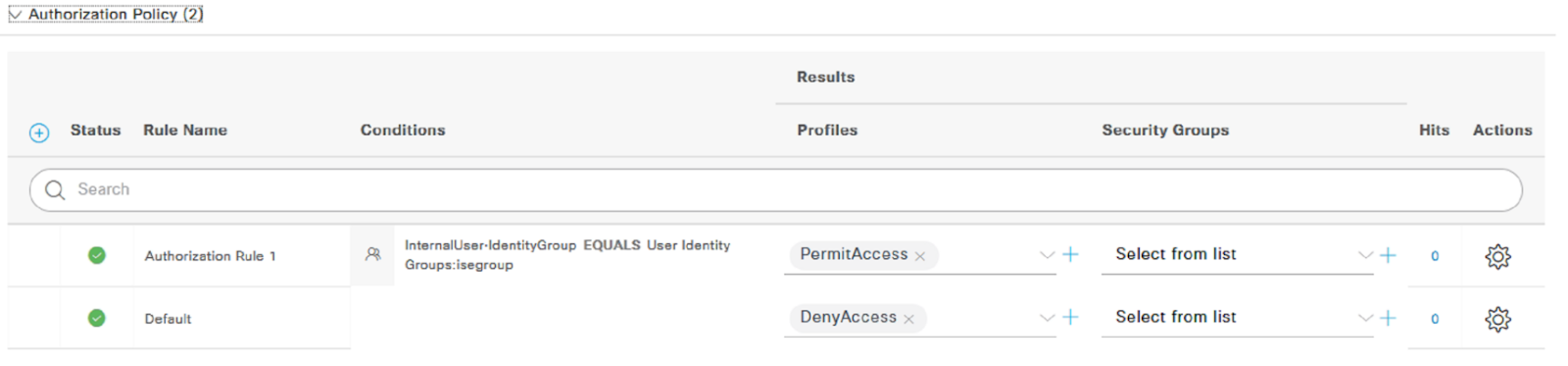

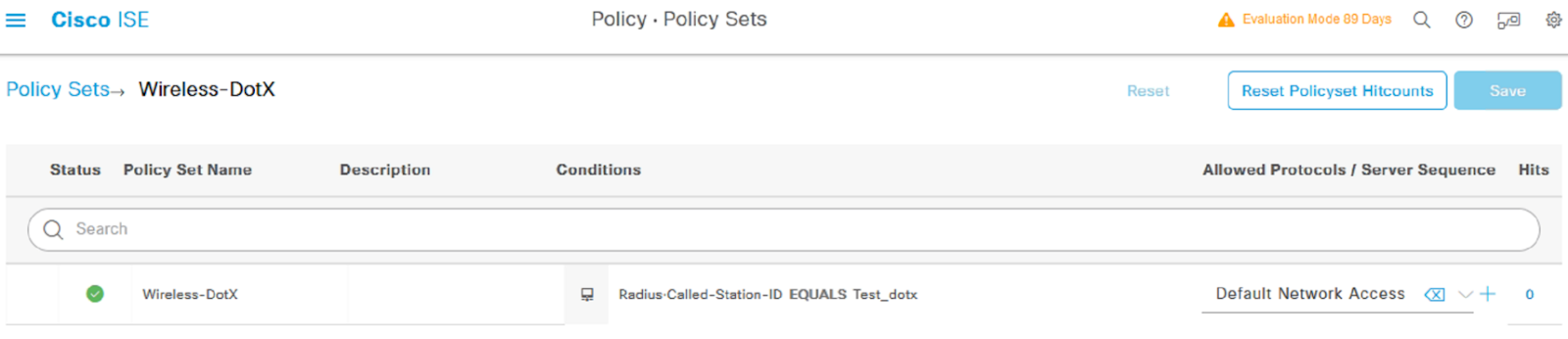

ISE Policy set

Health Monitor: radius_1812

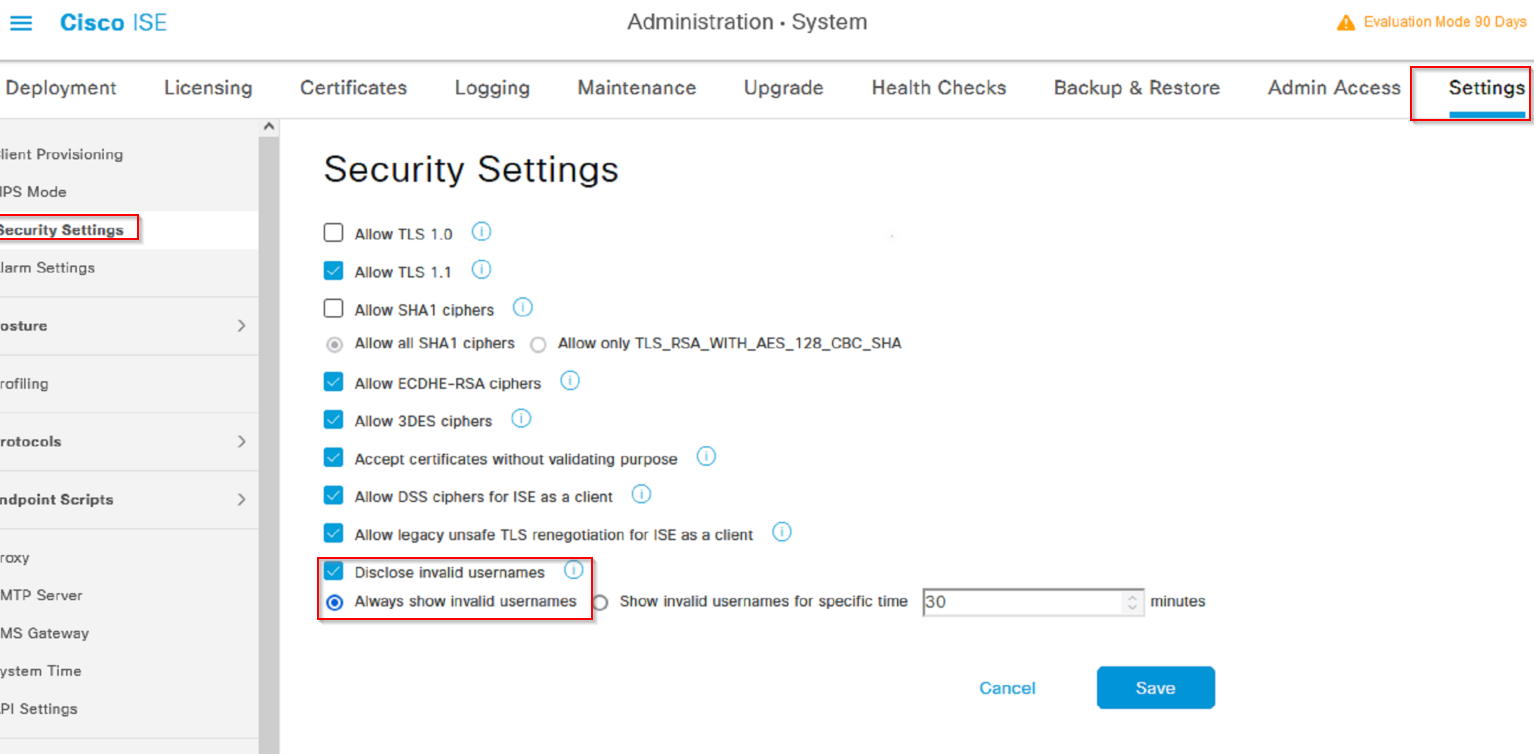

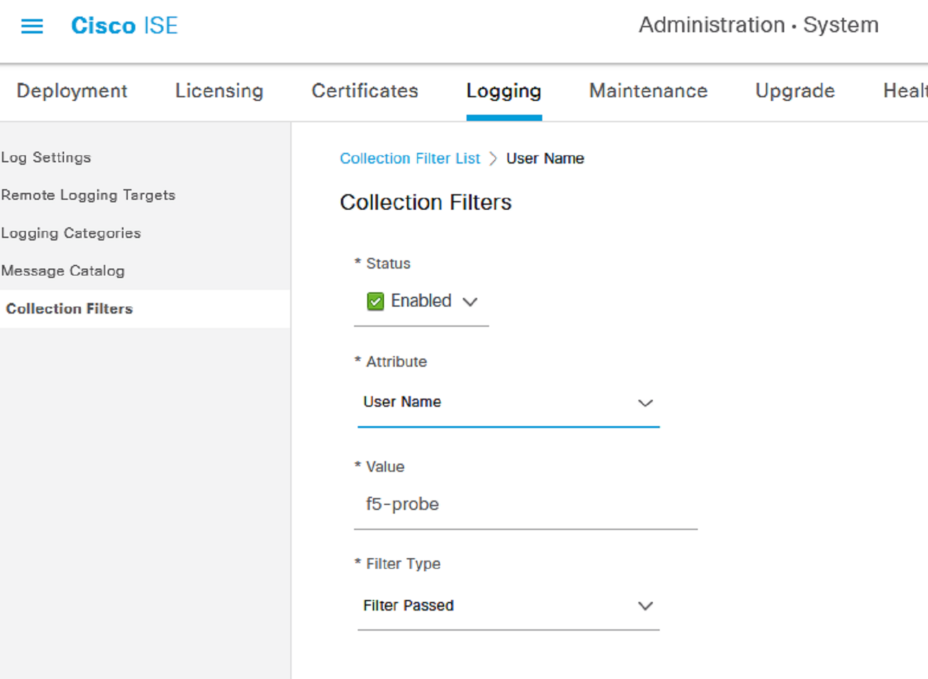

ISE Filtering and Log Suppression

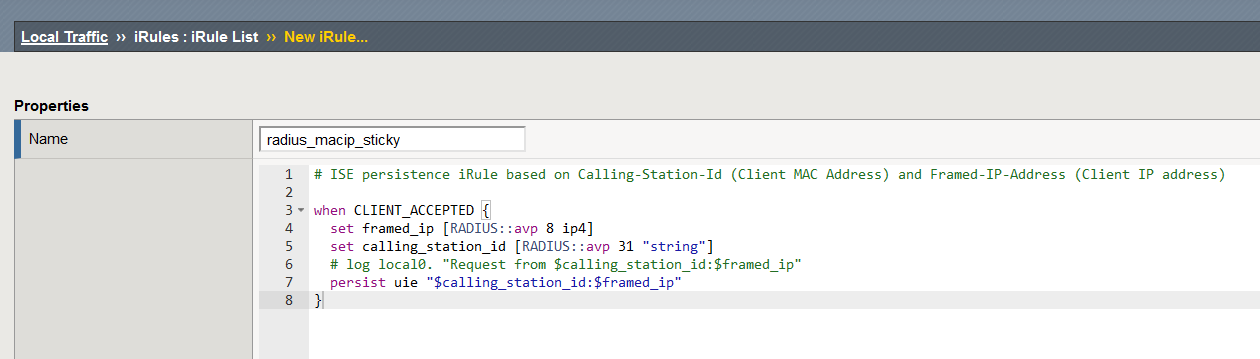

Irule: radius_macip_sticky

# ISE persistence iRule based on Calling-Station-Id (Client MAC Address) and Framed-IP-Address (Client IP address)

when CLIENT_ACCEPTED {

set framed_ip [RADIUS::avp 8 ip4]

set calling_station_id [RADIUS::avp 31 "string"]

# log local0. "Request from $calling_station_id:$framed_ip"

persist uie "$calling_station_id:$framed_ip"

}

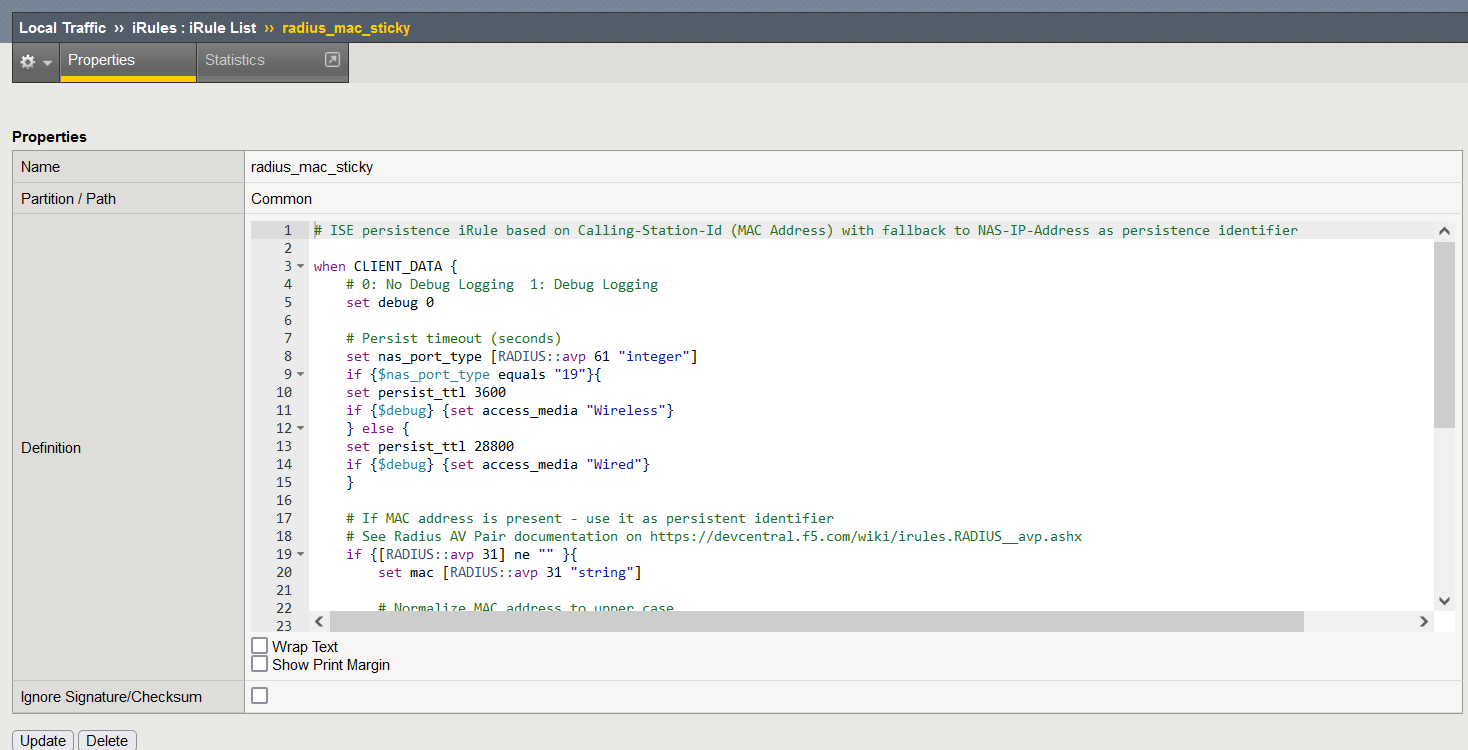

iRule: radius_mac_sticky

# ISE persistence iRule based on Calling-Station-Id (MAC Address) with fallback to NAS-IP-Address as persistence identifier

when CLIENT_DATA {

# 0: No Debug Logging 1: Debug Logging

set debug 0

# Persist timeout (seconds)

set nas_port_type [RADIUS::avp 61 "integer"]

if {$nas_port_type equals "19"}{

set persist_ttl 3600

if {$debug} {set access_media "Wireless"}

} else {

set persist_ttl 28800

if {$debug} {set access_media "Wired"}

}

# If MAC address is present - use it as persistent identifier

# See Radius AV Pair documentation on https://devcentral.f5.com/wiki/irules.RADIUS__avp.ashx

if {[RADIUS::avp 31] ne "" }{

set mac [RADIUS::avp 31 "string"]

# Normalize MAC address to upper case

set mac_up [string toupper $mac]

persist uie $mac_up $persist_ttl

if {$debug} {

set target [persist lookup uie $mac_up]

log local0.alert "Username=[RADIUS::avp 1] MAC=$mac Normal MAC=$mac_up MEDIA=$access_media TARGET=$target"

}

} else {

set nas_ip [RADIUS::avp 4 ip4]

persist uie $nas_ip $persist_ttl

if {$debug} {

set target [persist lookup uie $nas_ip]

log local0.alert "No MAC Address found - Using NAS IP as persist id. Username=[RADIUS::avp 1] NAS IP=$nas_ip MEDIA=$access_media TARGET=$target"

}

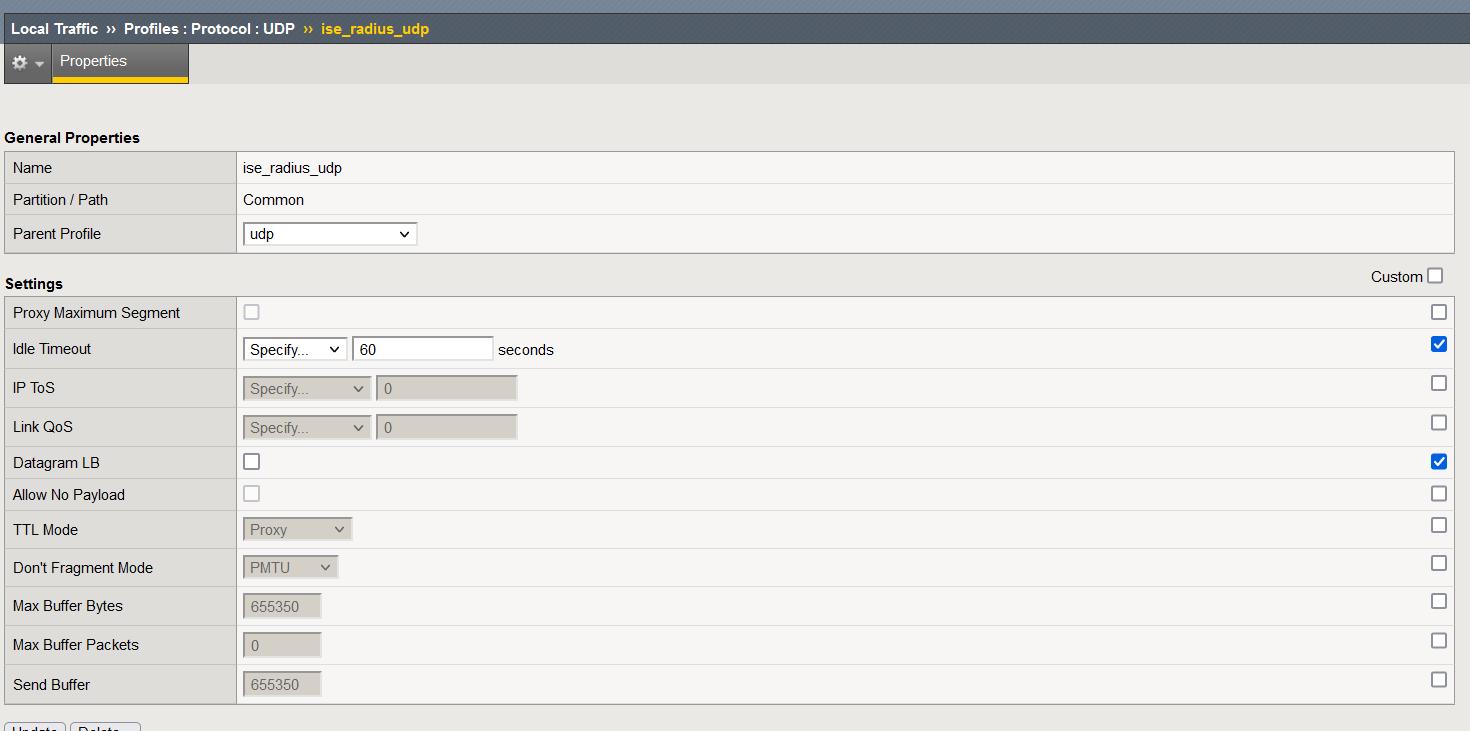

UDP Profile: ise_radius_udp

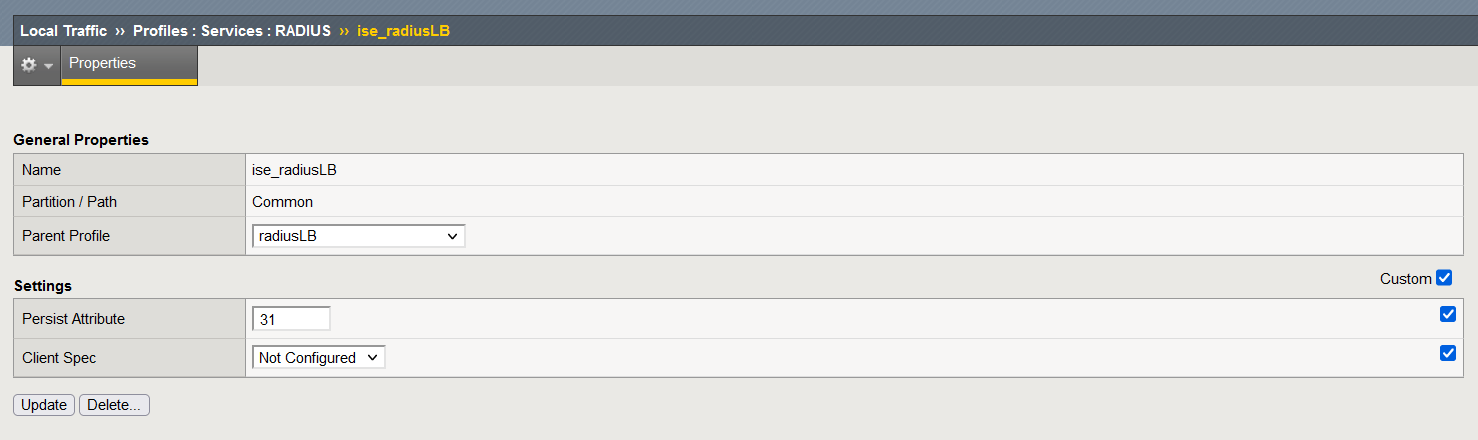

Radius Profile: ise_radiusLB

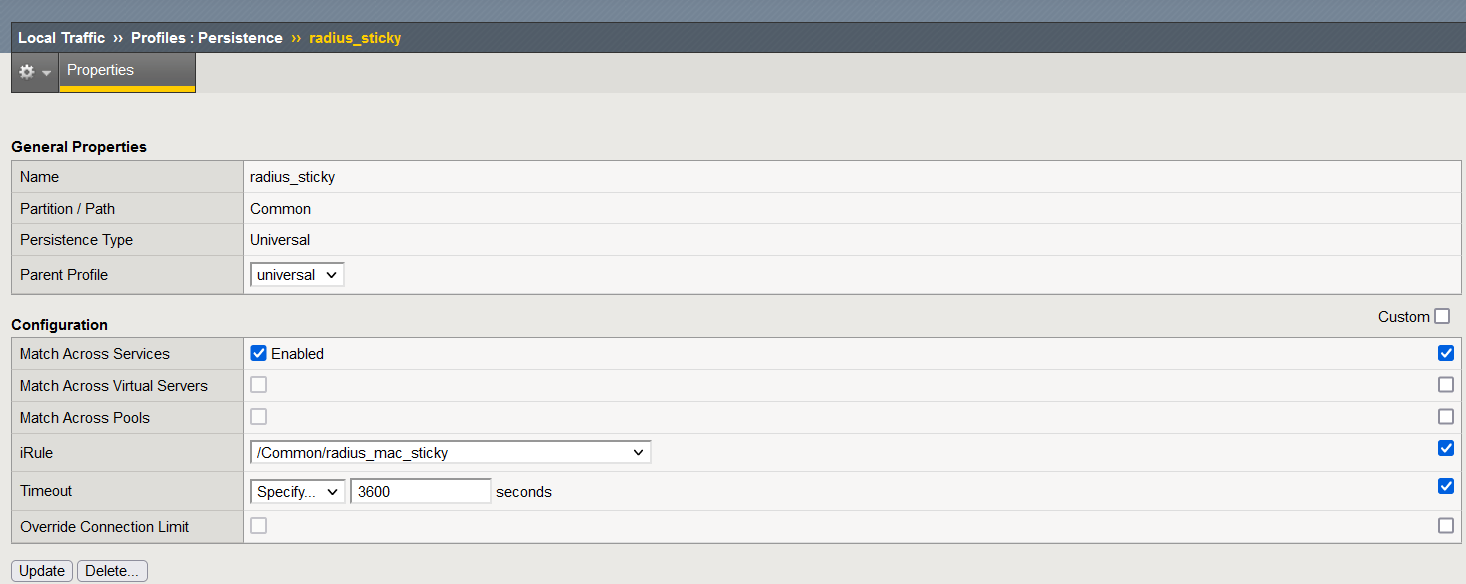

Persistence Profile: radius_sticky

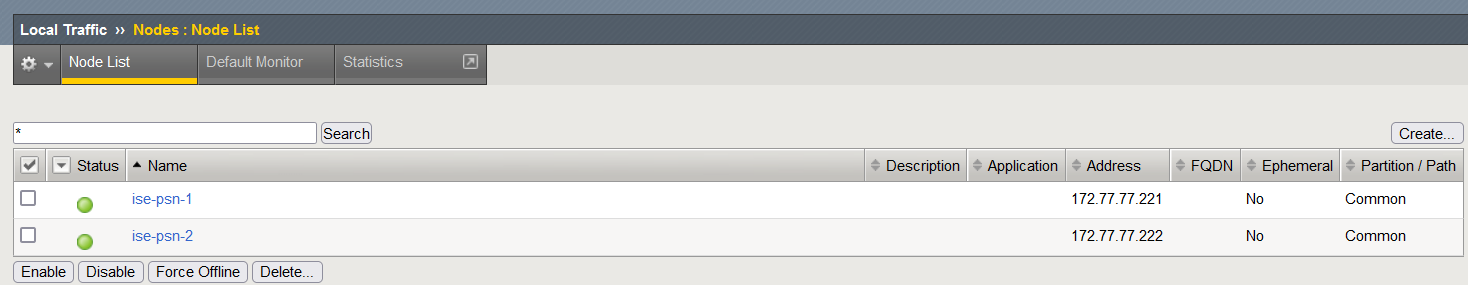

Nodes

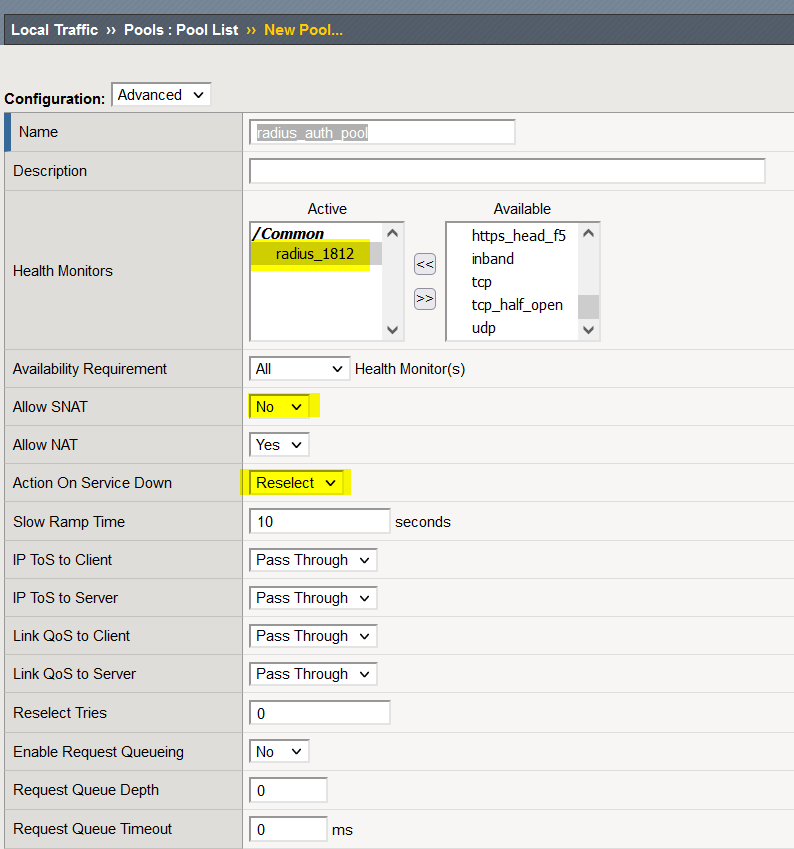

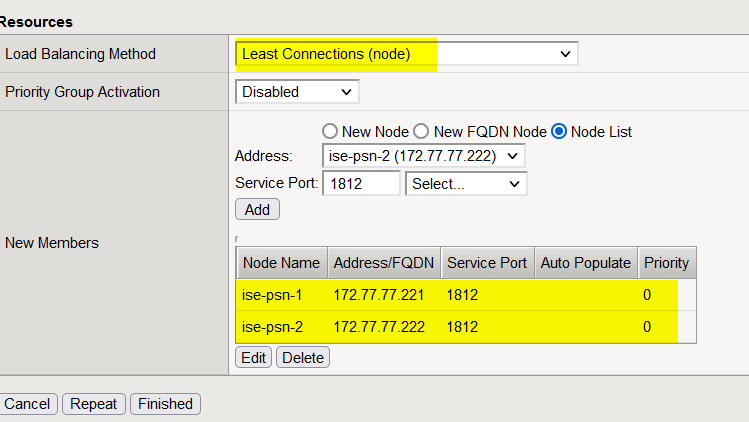

radius_auth_pool

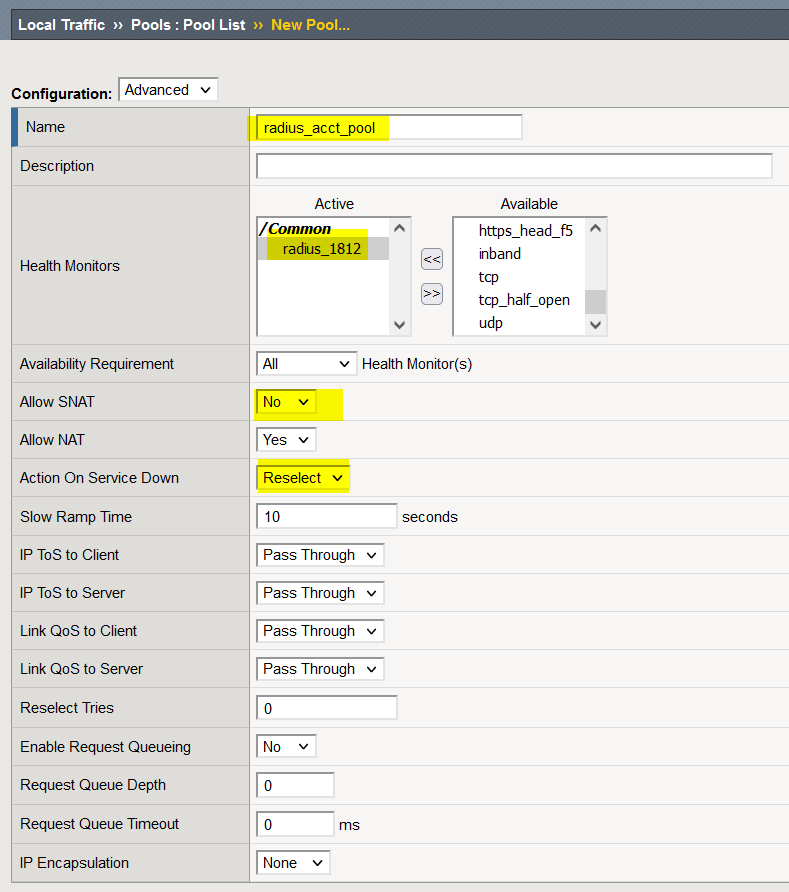

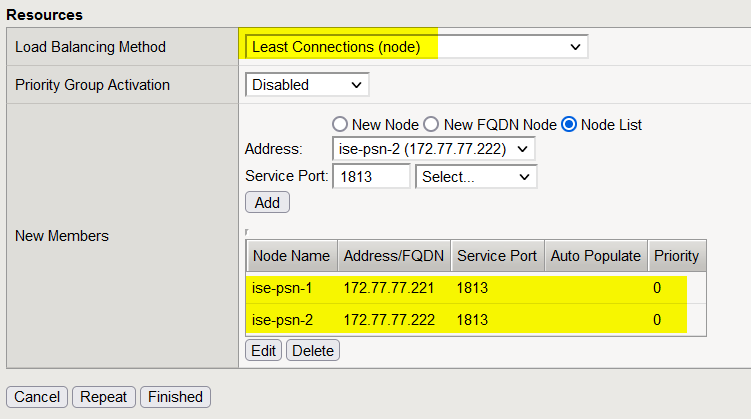

radius_acct_pool

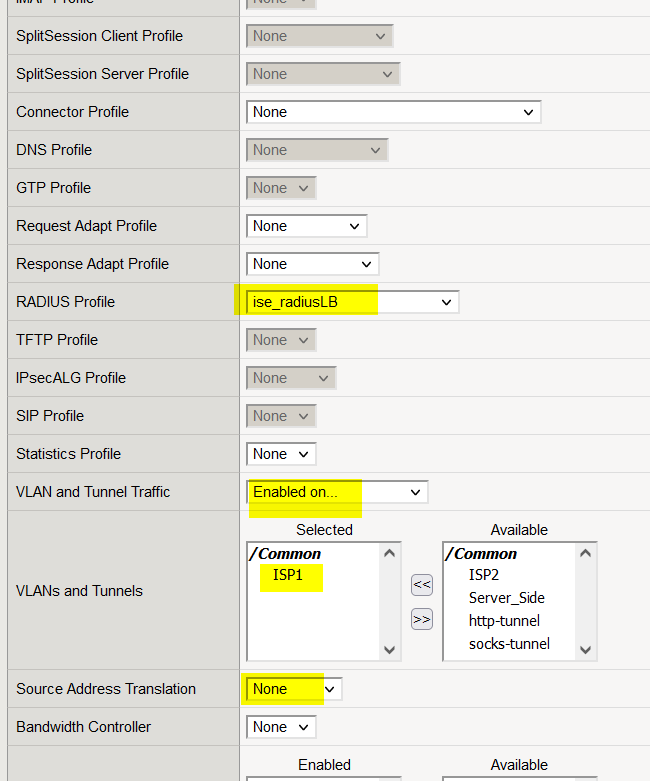

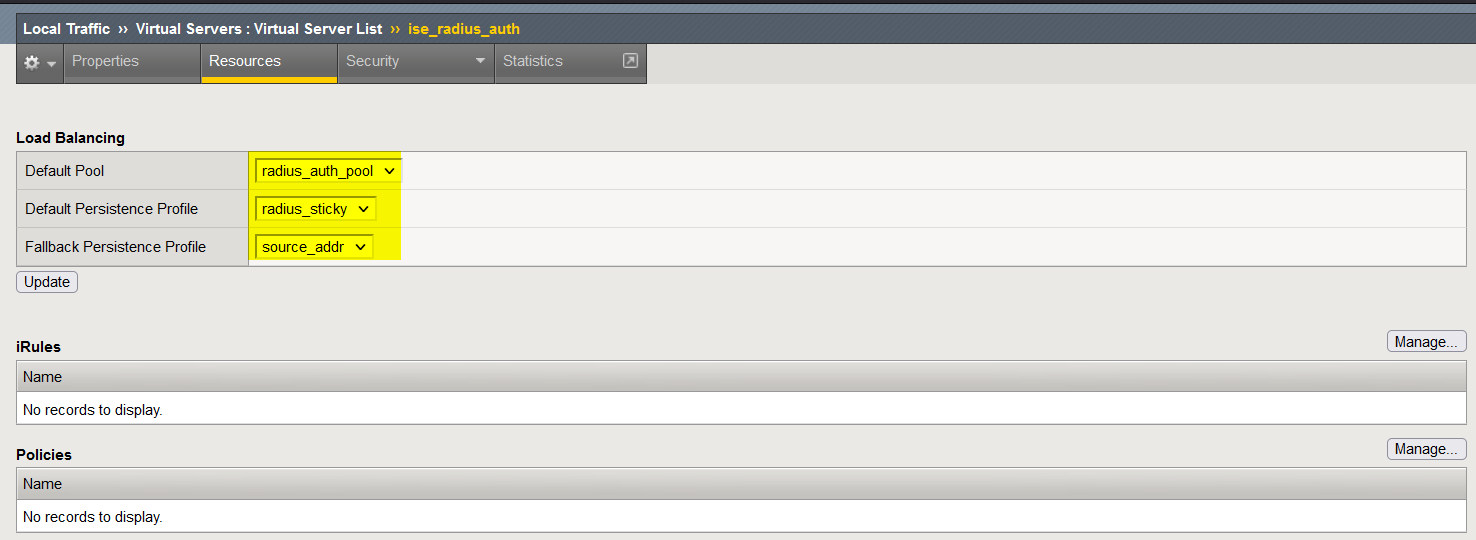

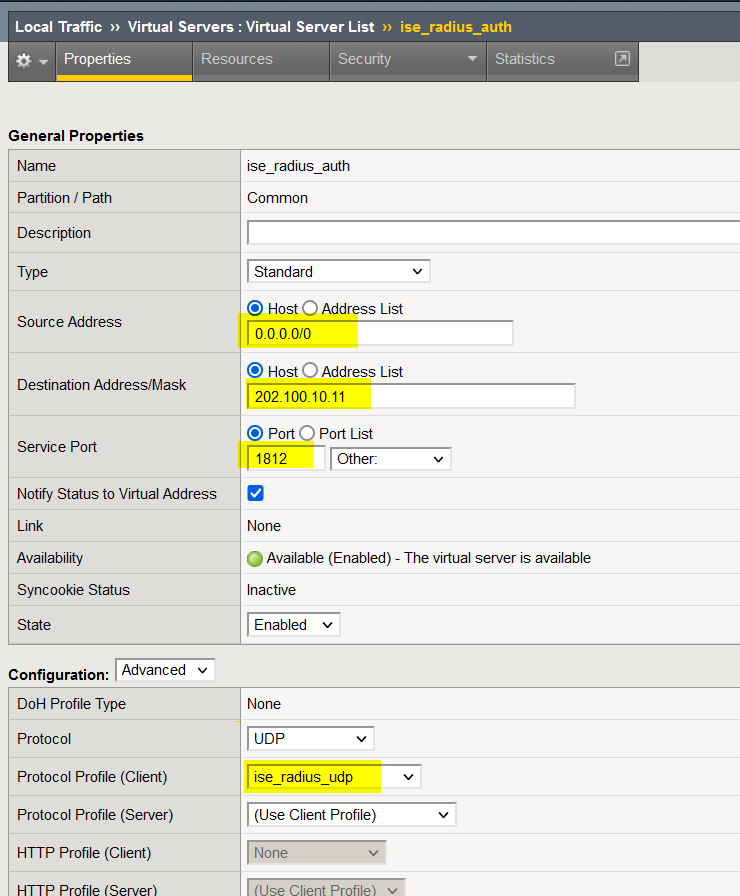

Virtual Server - ise_radius_auth

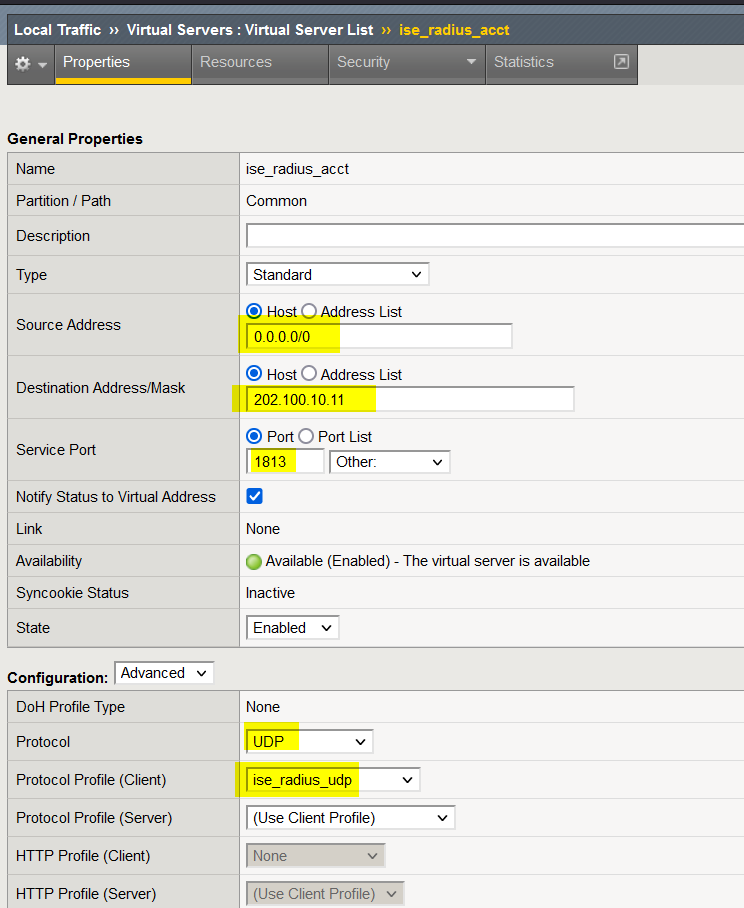

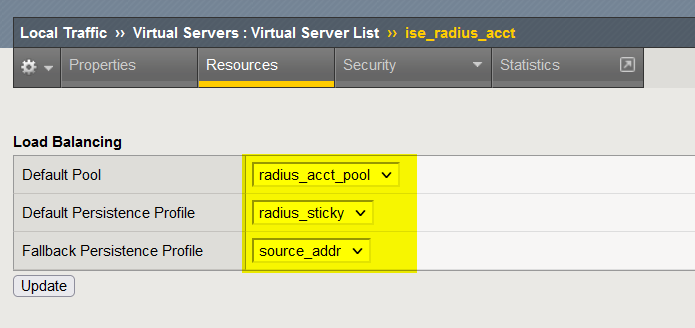

Virtual Server - ise_radius_acct

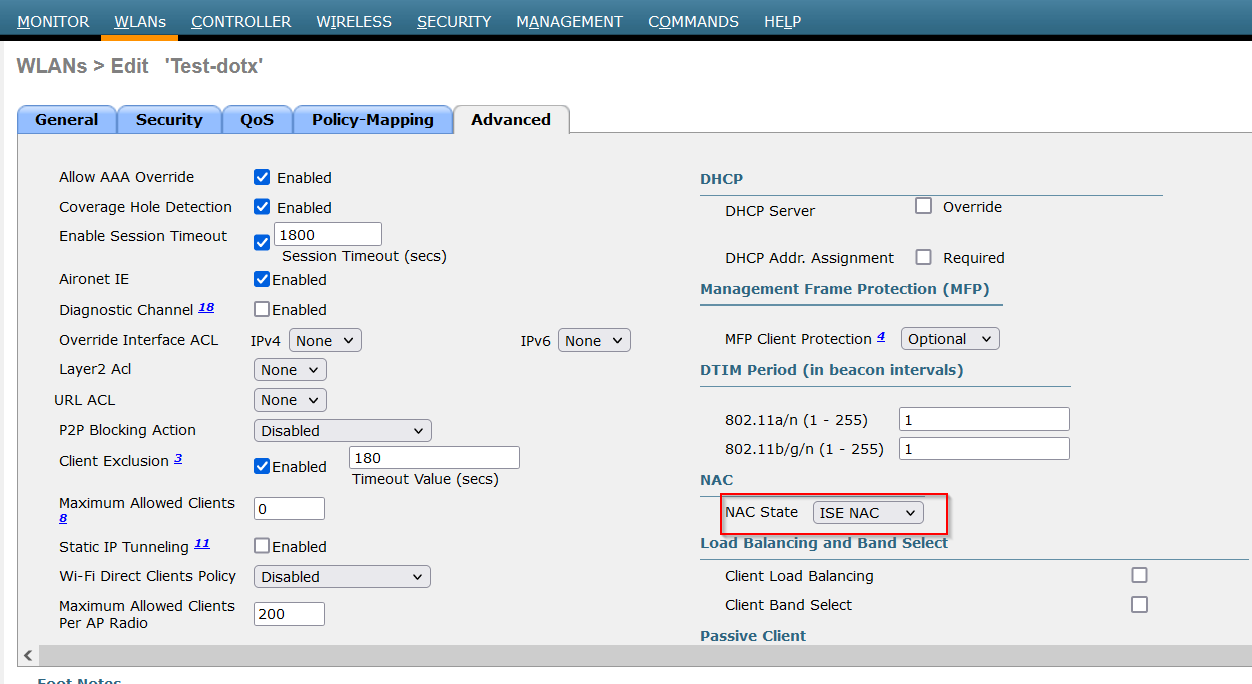

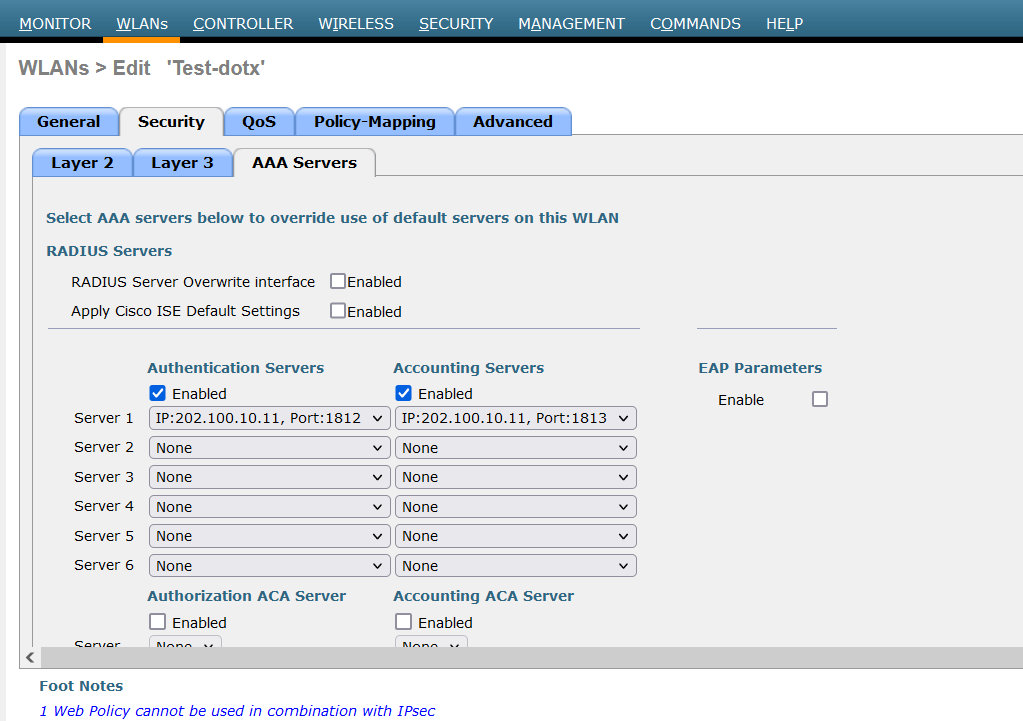

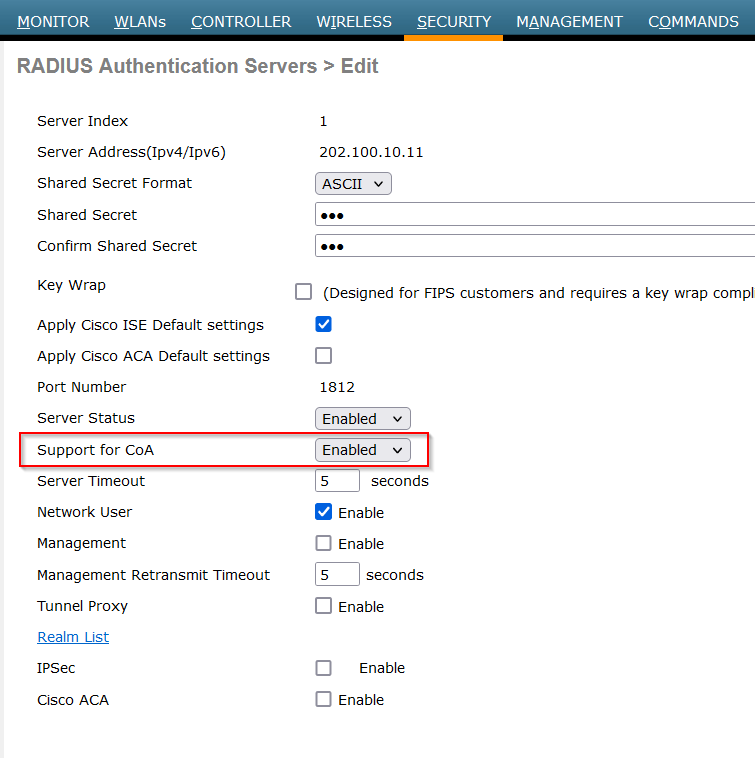

WLC configuration

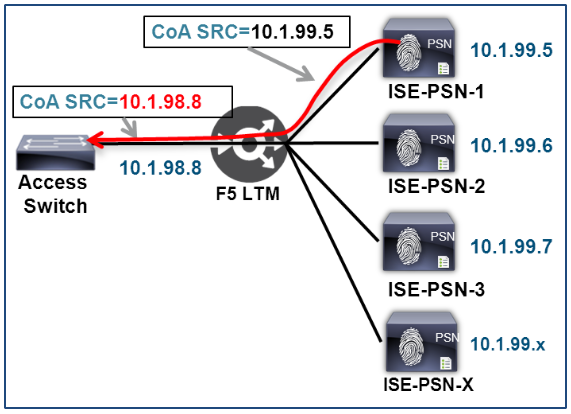

Source NAT for RADIUS CoA

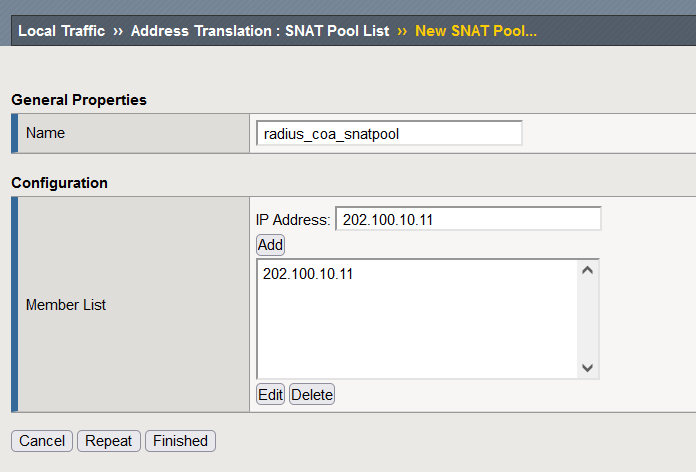

SNAT Pool: radius_coa_snatpool

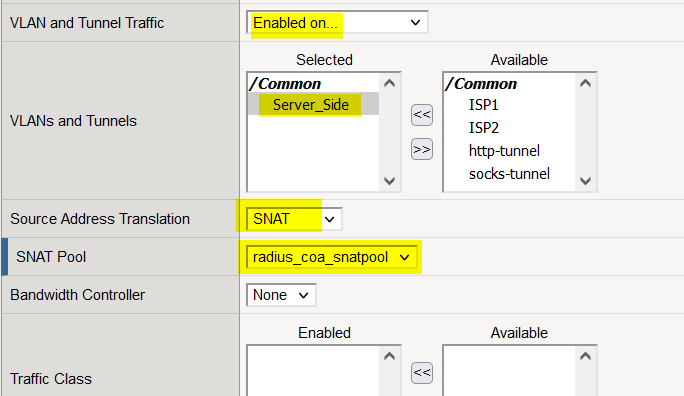

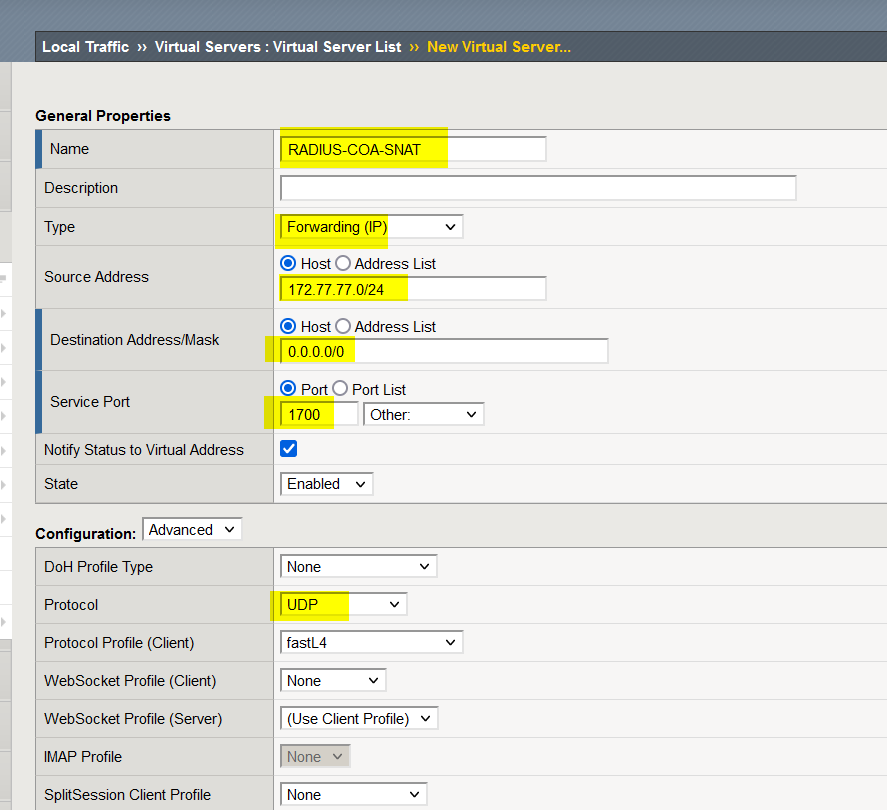

Virtual Server: RADIUS-COA-SNAT

Load Balancing DHCP Profiling Data

interface GigabitEthernet0/1.88

encapsulation dot1Q 88

ip address 172.88.88.1 255.255.255.0

ip helper-address 202.100.10.11 <--- F5 VIP

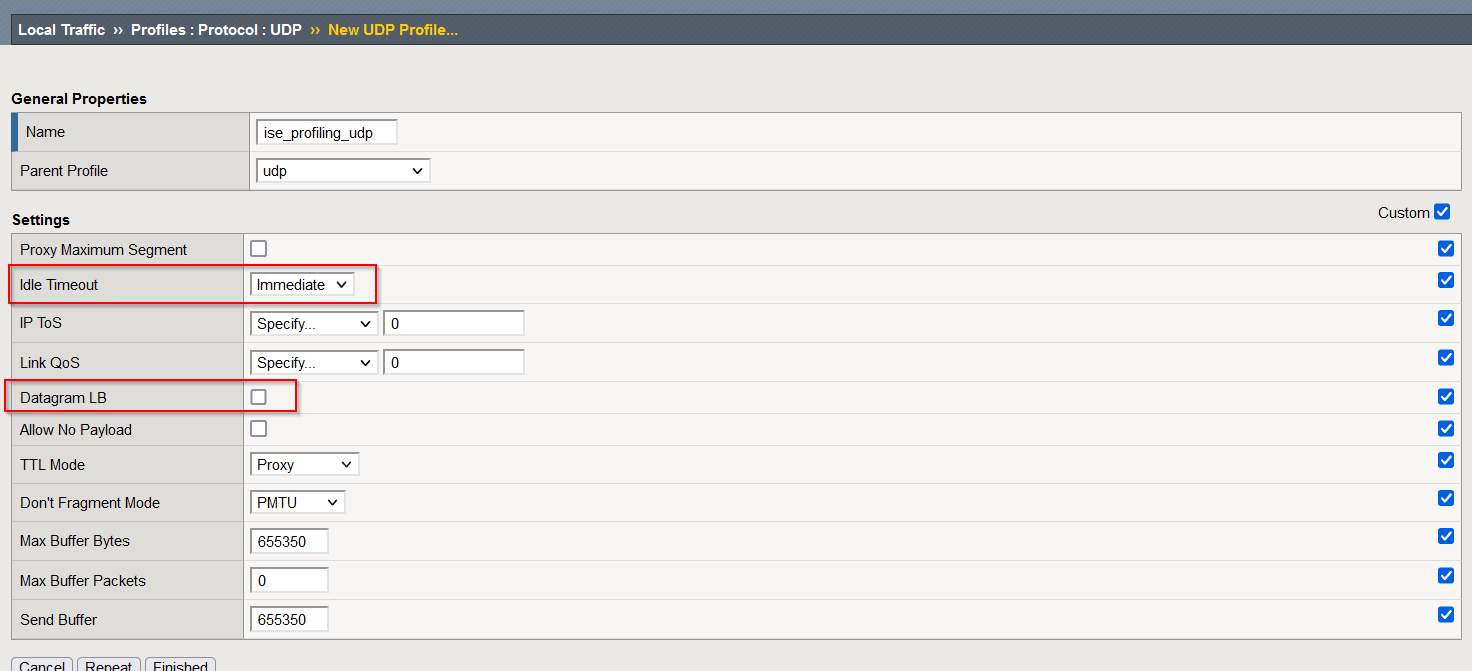

UDP Profile: ise_profiling_udp

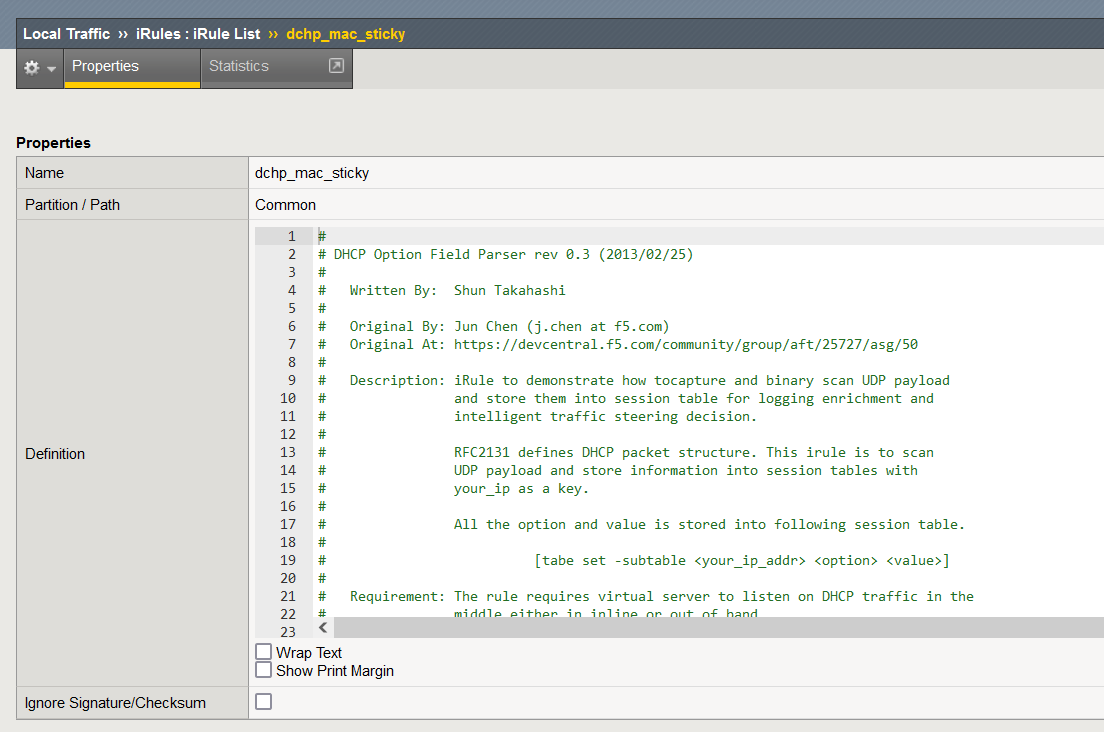

iRule: dchp_mac_sticky

# DHCP Option Field Parser rev 0.3 (2013/02/25)

# Written By: Shun Takahashi

# Original By: Jun Chen (j.chen at f5.com)

# Original At: https://devcentral.f5.com/community/group/aft/25727/asg/50

# Description: iRule to demonstrate how tocapture and binary scan UDP payload

# and store them into session table for logging enrichment and

# intelligent traffic steering decision.

# RFC2131 defines DHCP packet structure. This irule is to scan

# UDP payload and store information into session tables with

# your_ip as a key.

# All the option and value is stored into following session table.

# [tabe set -subtable <your_ip_addr> <option> <value>]

# Requirement: The rule requires virtual server to listen on DHCP traffic in the

# middle either in inline or out of band.

# 1) In-Line to DHCP traffic

# profile udp udp_dhcp {

# allow-no-payload disabled

# app-service none

# datagram-load-balancing disabled

# idle-timeout immediate

# ip-tos-to-client 0

# link-qos-to-client 0

# proxy-mss disabled

# }

# ltm virtual vs_dhcp {

# destination 0.0.0.0:bootps

# ip-protocol udp

# mask any

# profiles {

# udp_dhcp { }

# }

# rules {

# dhcp_sampler

# }

# source 0.0.0.0/0

# translate-address disabled

# vlans {

# local

# }

# vlans-enabled

# }

# 2) Receiving mirrored DHCP stream

# References: RFC 2132 DHCP Options and BOOTP Vendor Extensions

# RFC 1533 DHCP Options and BOOTP Vendor Extensions (Obsoleted)

# RFC 4702 The Dynamic Host Configuration Protocol (DHCP) Client

# Fully Qualified Domain Name (FQDN) Option

timing off

when CLIENT_ACCEPTED priority 100 {

# Rule Name and Version shown in the log

set static::RULE_NAME "Simple DHCP Parser v0.3"

set static::RULE_ID "dhcp_parser"

# 0: No Debug Logging 1: Debug Logging

set debug 1

# Persist timeout (seconds)

set persist_ttl 7200

# Using High-Speed Logging in thie rule

set log_prefix "\[$static::RULE_ID\]([IP::client_addr])"

set log_prefix_d "$log_prefix$debug$"

if {$debug}{log local0.debug "$log_prefix_d ***** iRule: \

$static::RULE_NAME executed *****"}

if { [UDP::payload length] < 200 } {

log local0.info "$log_prefix Ignored due to length$less than 200 octet$"

drop

return

} else {

# BOOTP

binary scan [UDP::payload] ccccH8SB1xa4a4a4a4H2H2H2H2H2H2 \

msg_type hw_type hw_len hops transaction_id seconds\

bootp_flags client_ip_hex your_ip_hex server_ip_hex \

relay_ip_hex m(a) m(b) m(c) m(d) m(e) m(f)

# Put client address into variables for session key

set your_ip [IP::addr $your_ip_hex mask 255.255.255.255]

set client_mac "$m(a):$m(b):$m(c):$m(d):$m(e):$m(f)"

binary scan [UDP::payload] H32H64H128H8 \

padding server_host_name boot_file magic_cookie

if {$debug}{log local0.debug "$log_prefix_d BOOTP: $your_ip $client_mac"}

# DHCP

binary scan [UDP::payload] x240H* dhcp_option_payload

set option_hex 0

set options_length [expr {([UDP::payload length] -240) * 2 }]

for {set i 0} {$i < $options_length} {incr i [expr { $length * 2 + 2 }]} {

# extract option value and convert into decimal

# for human readability

binary scan $dhcp_option_payload x[expr $i]a2 option_hex

set option [expr 0x$option_hex]

# move index to get length field

incr i 2

# extract length value and convert length from Hex string to decimal

binary scan $dhcp_option_payload x[expr $i]a2 length_hex

set length [expr 0x$length_hex]

# extract value field in hexadecimal format

binary scan $dhcp_option_payload x[expr $i + 2]a[expr { $length * 2 }] value_hex

set value ""

switch $option {

61 {

# Client Identifier

# This option is used by DHCP clients to specify their unique

# identifier. DHCP servers use this value to index their database of

# address bindings. This value is expected to be unique for all

# clients in an administrative domain.

binary scan $value_hex a2a* ht id

switch $ht {

01 {

binary scan $id a2a2a2a2a2a2 m(a) m(b) m(c) m(d) m(e) m(f)

set value "$m(a)-$m(b)-$m(c)-$m(d)-$m(e)-$m(f)"

set option61 "$value"

# Normalize MAC address to upper case

set mac_up [string toupper $option61]

}

default {

set value "$id"

}

persist uie $mac_up $persist_ttl

set target [persist lookup uie $mac_up]

if {$debug}{log local0.debug "$log_prefix_d ***** iRule: $static::RULE_NAME competed ***** MAC=$option61 Normal MAC=$mac_up TARGET=$target"}

}

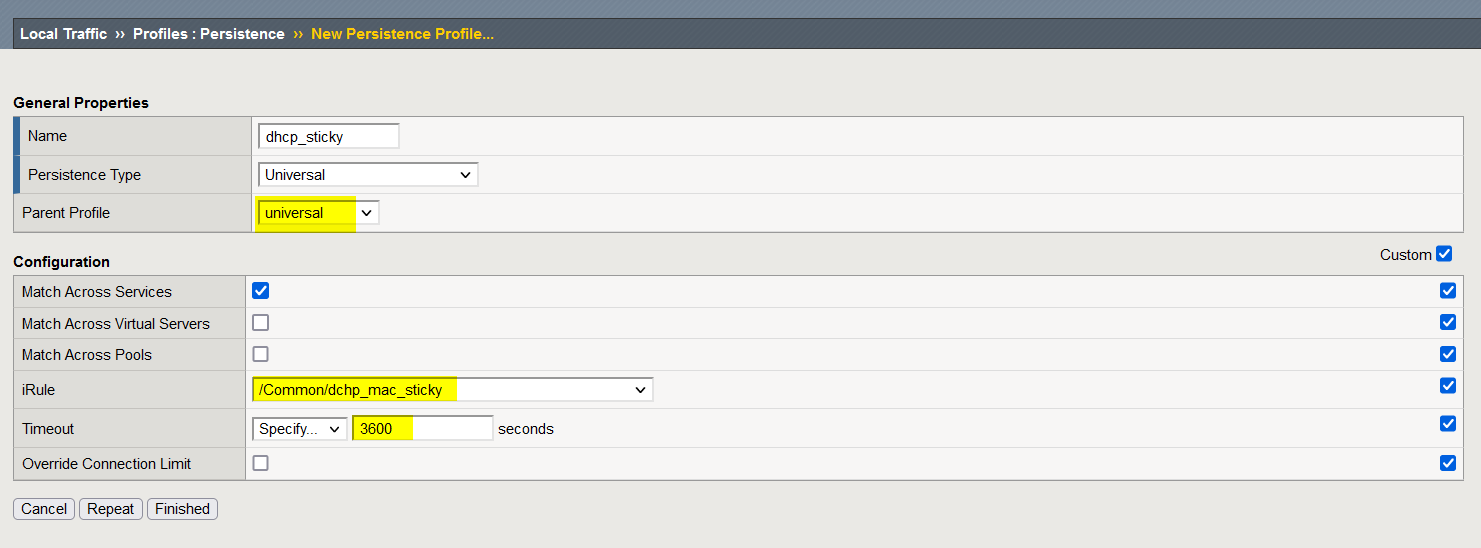

Persistence Profile: dhcp_sticky

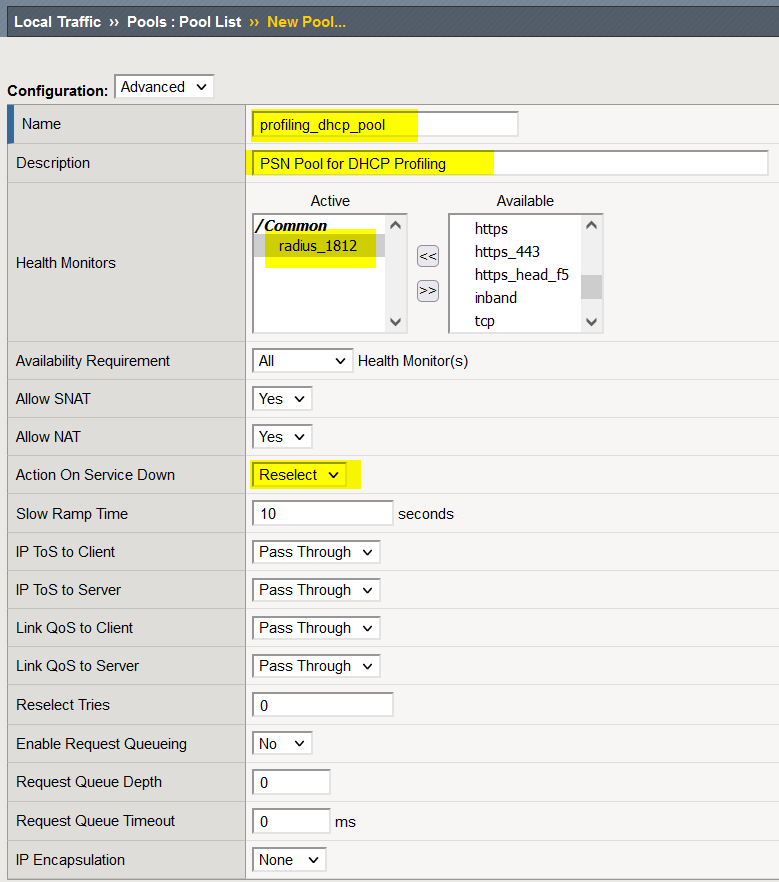

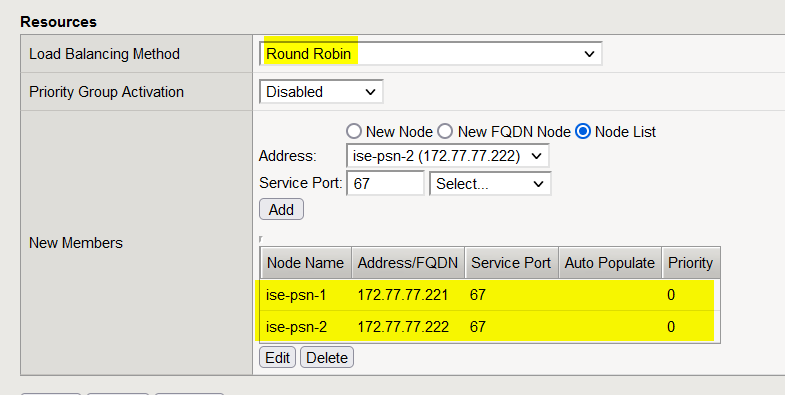

Pool: profiling_dhcp_pool

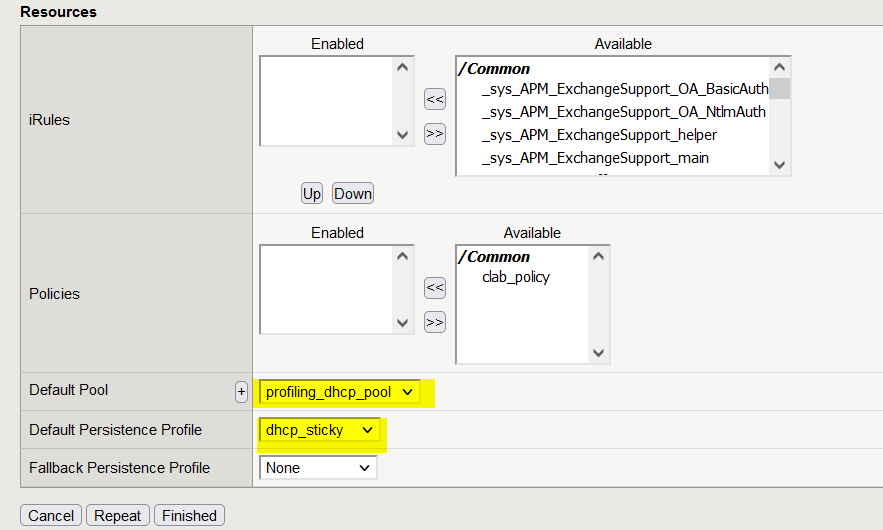

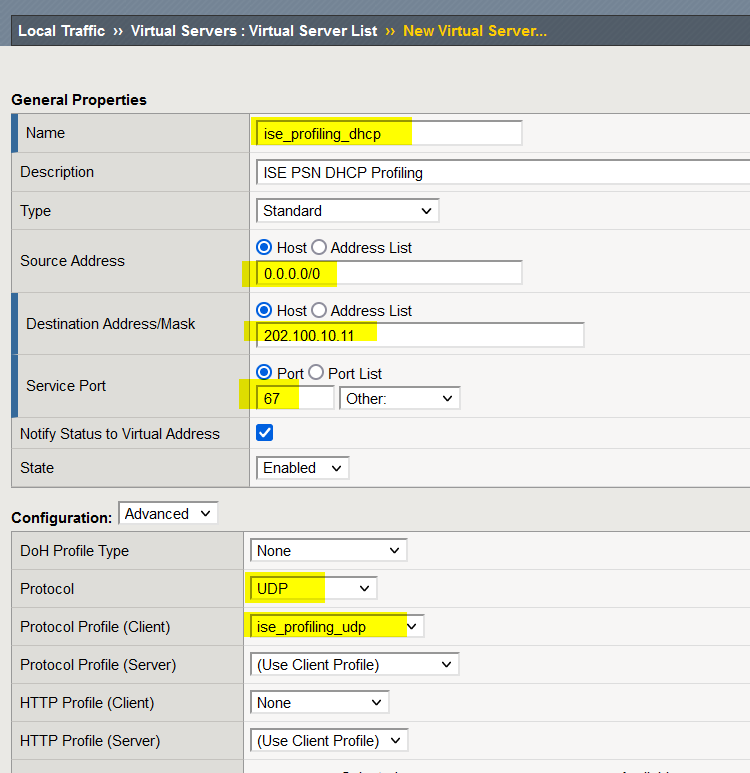

Virtual server: ise_profiling_dhcp

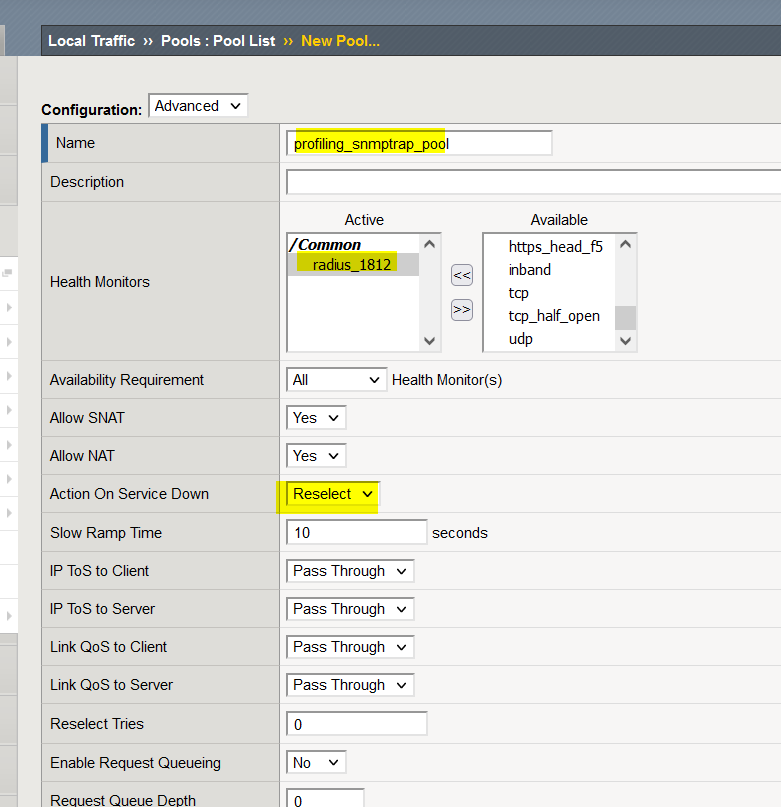

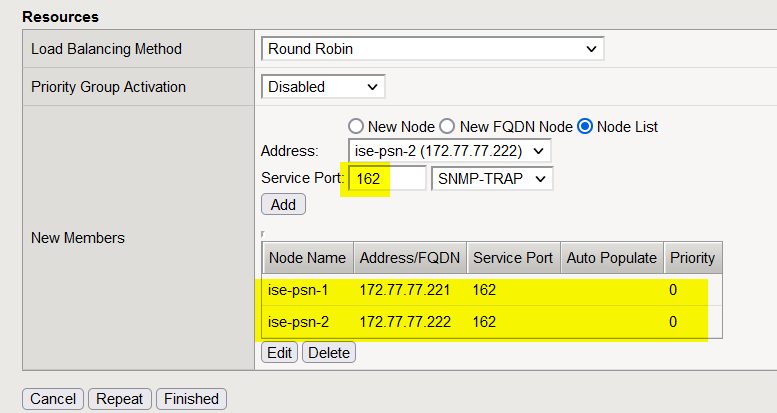

Pool: profiling_snmptrap_pool

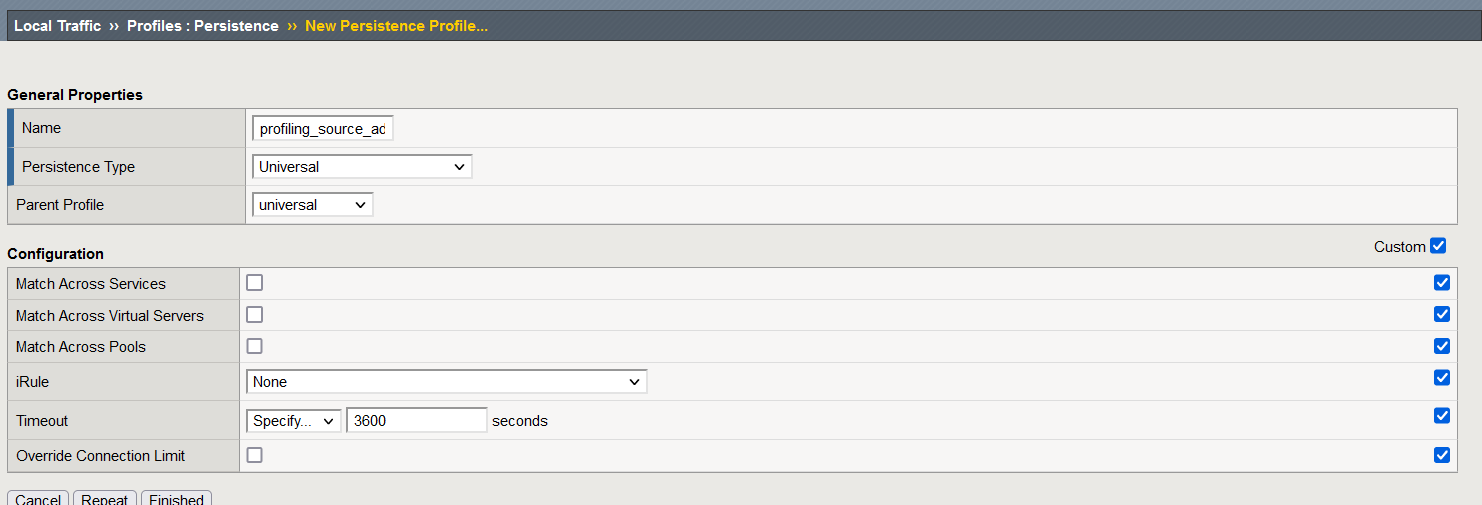

Persistence : profiling_source_addr

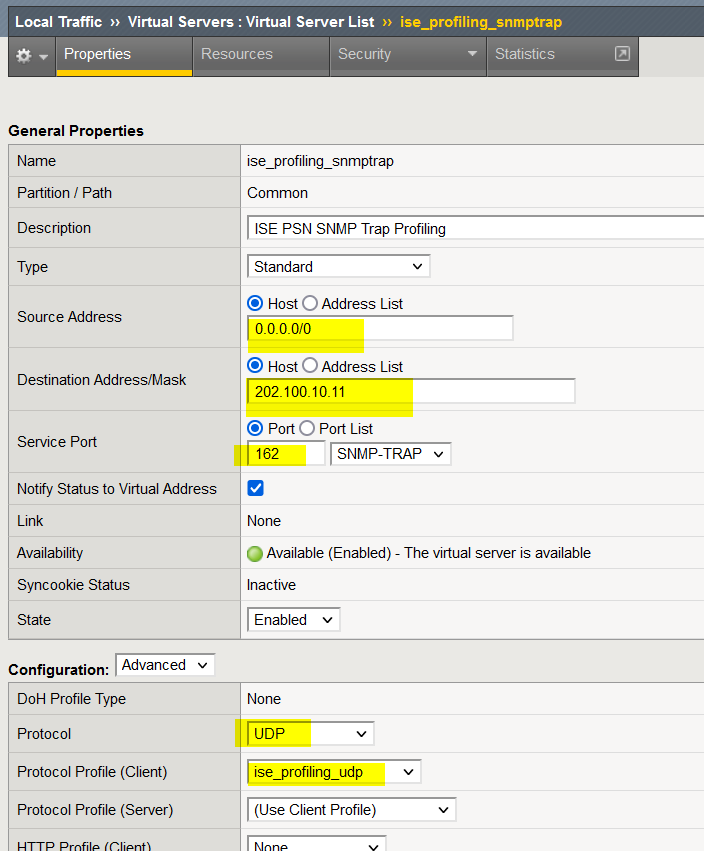

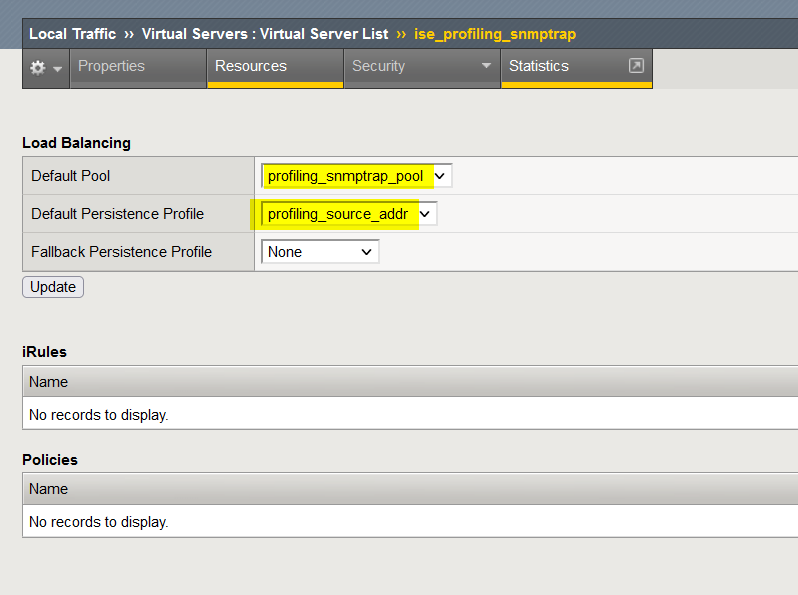

Virtual Server: ise_profiling_snmptrap

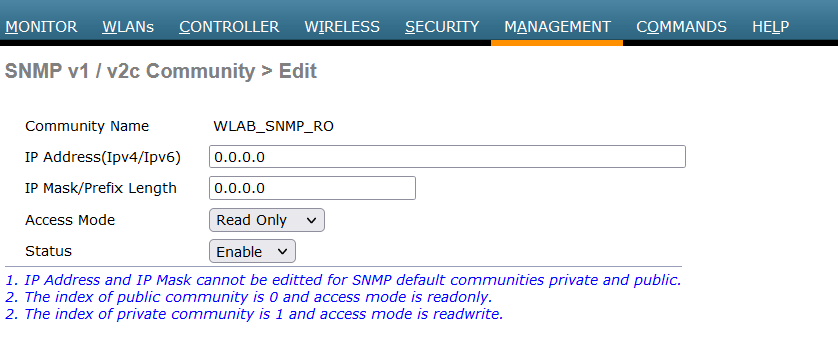

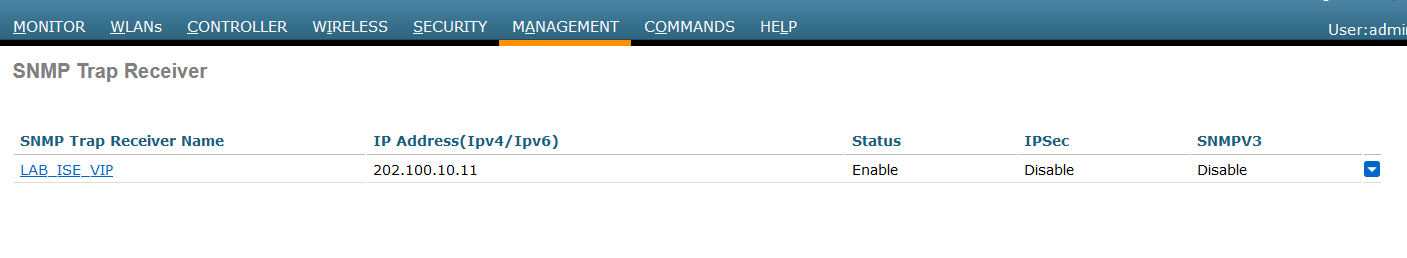

WLC: SNMP trap receiver

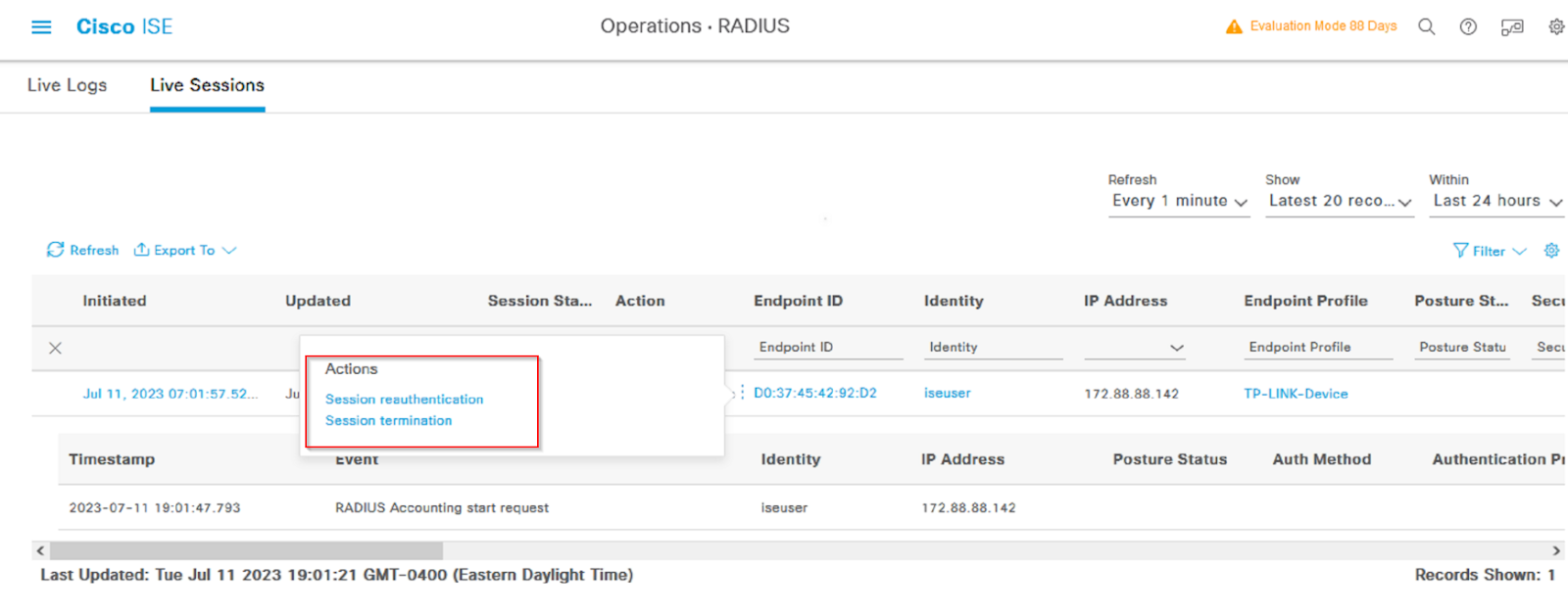

Testing COA

------------------------------------------------------------------------------------------------------------------------------------------------------------

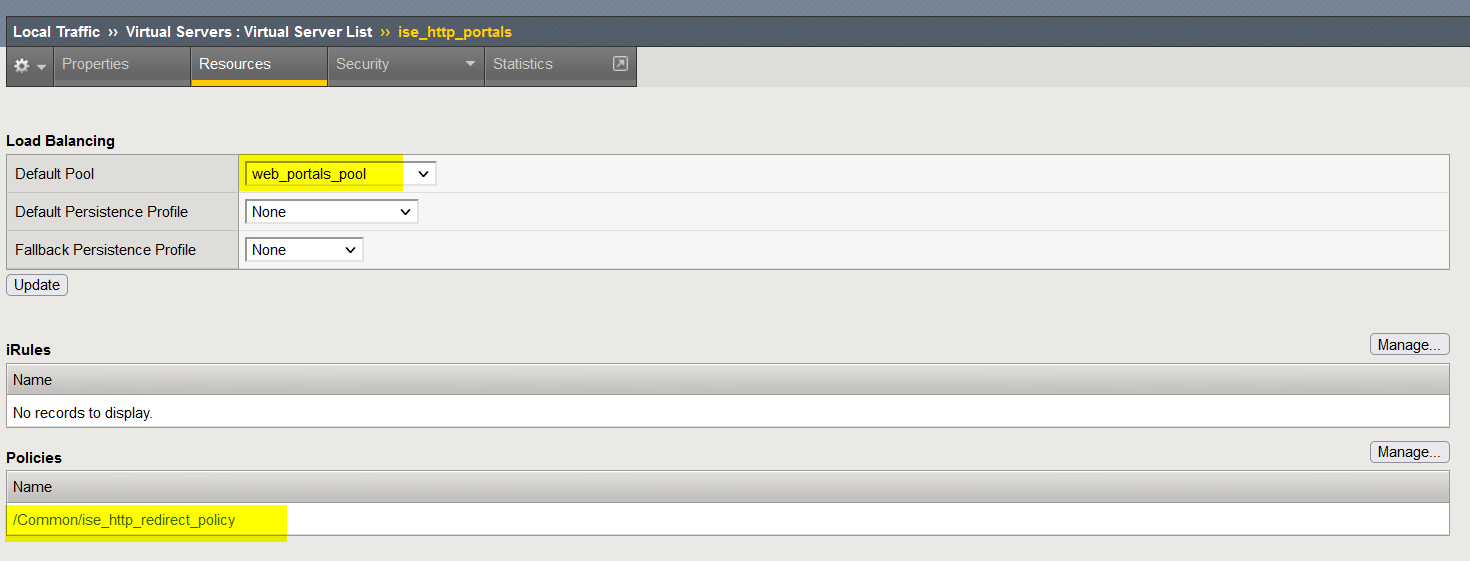

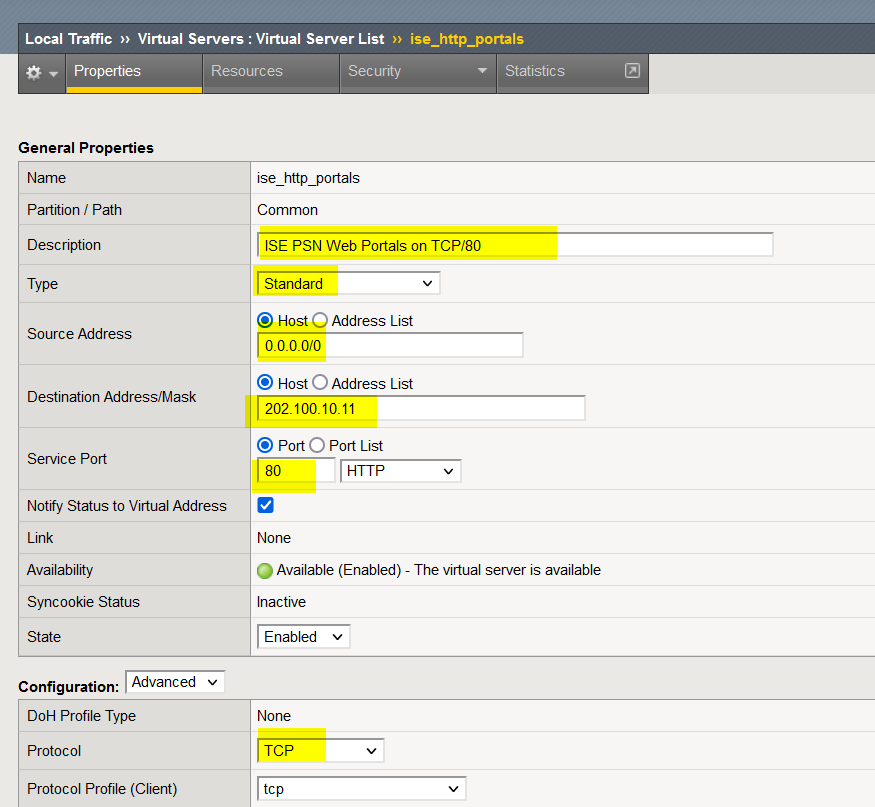

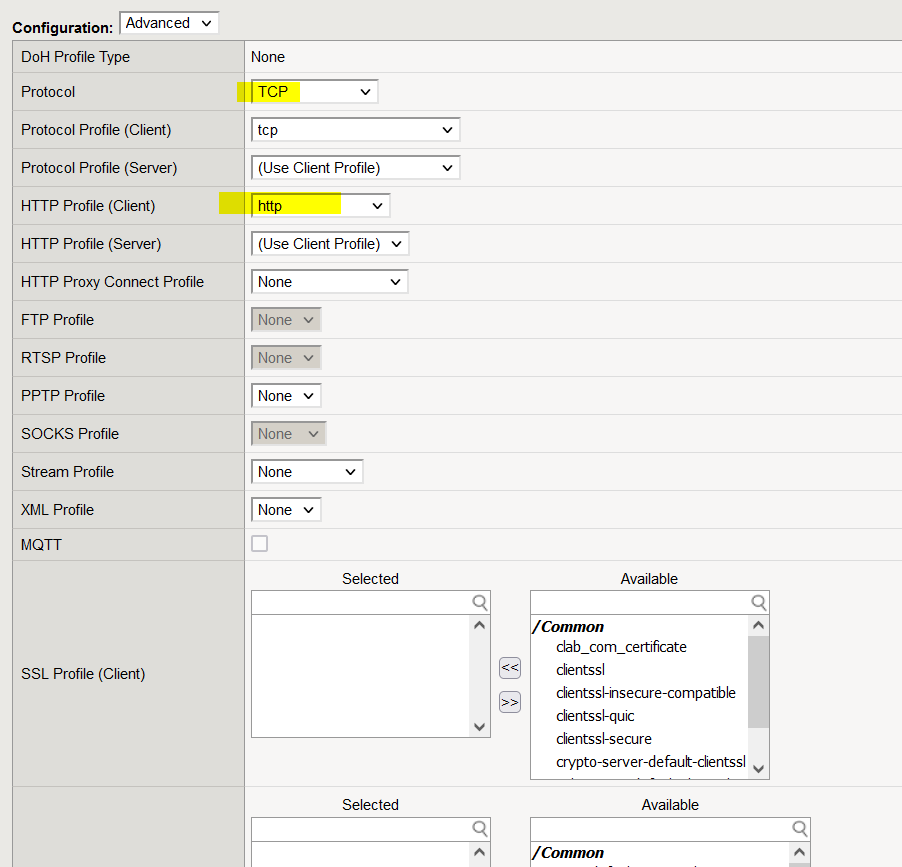

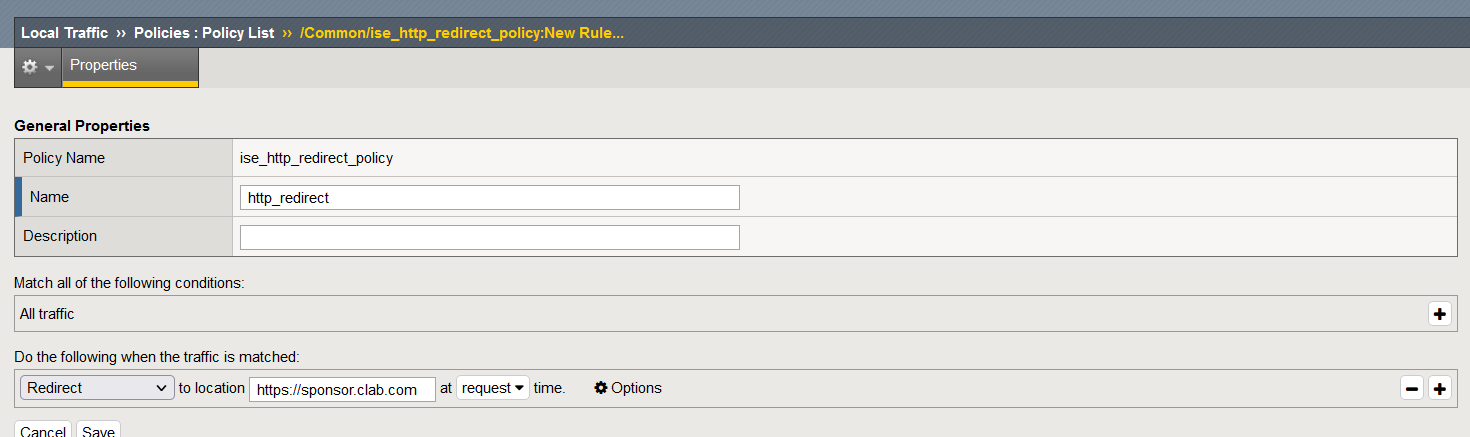

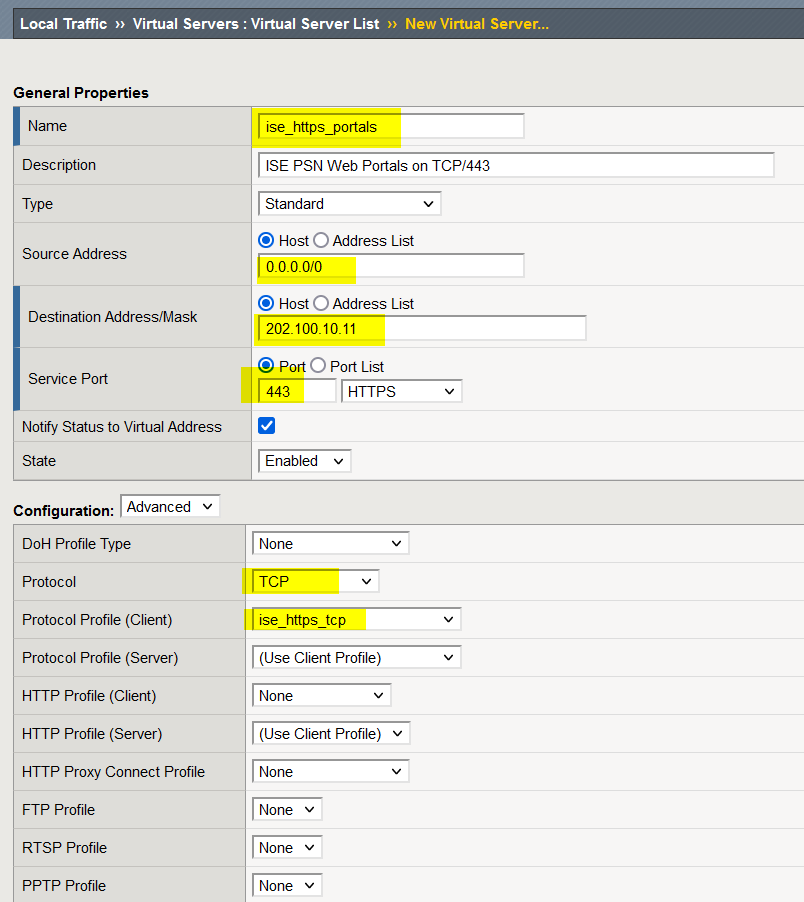

Load Balancing ISE Web Services

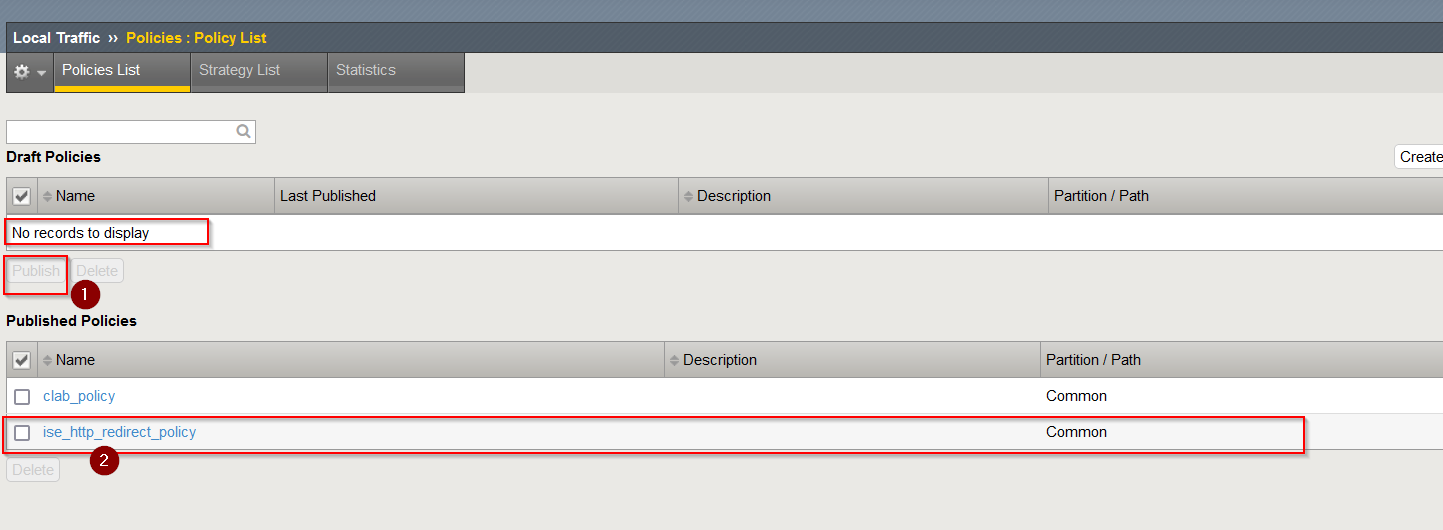

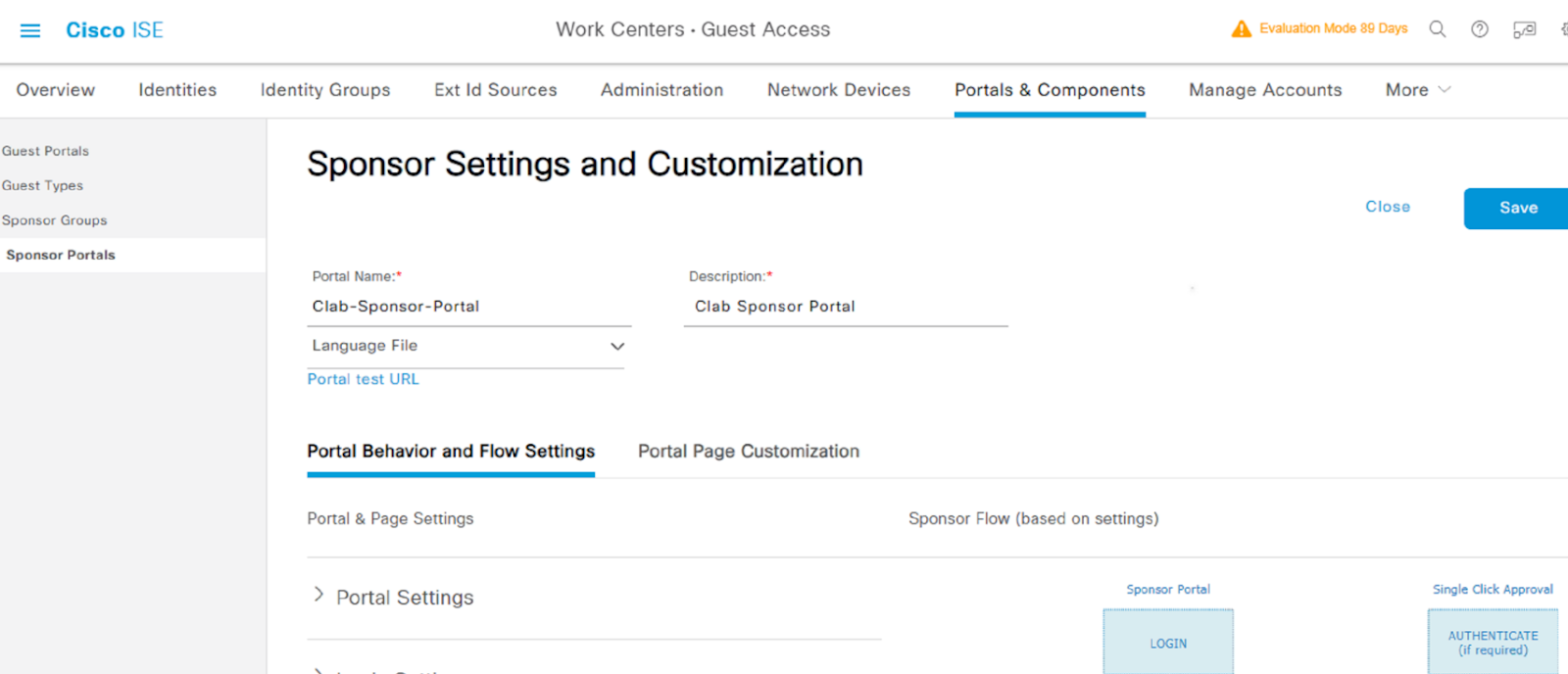

Sponsor portal

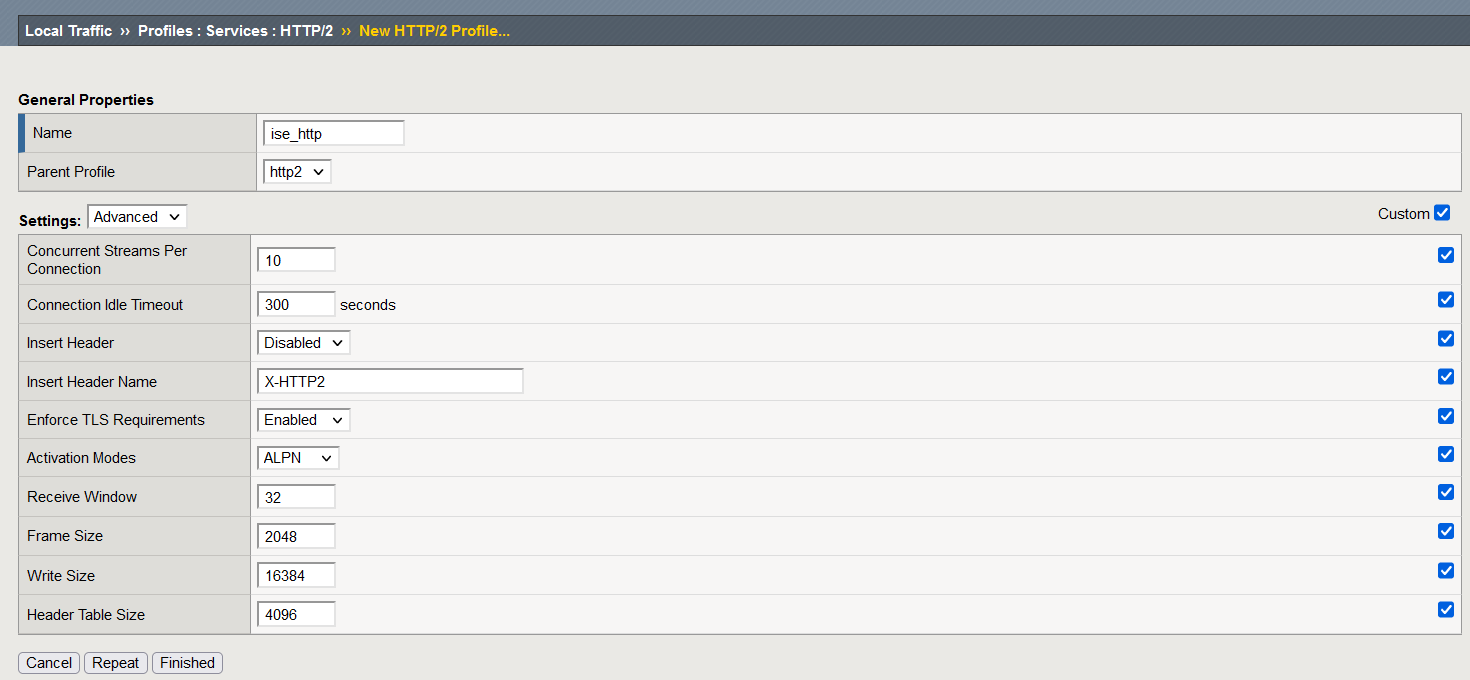

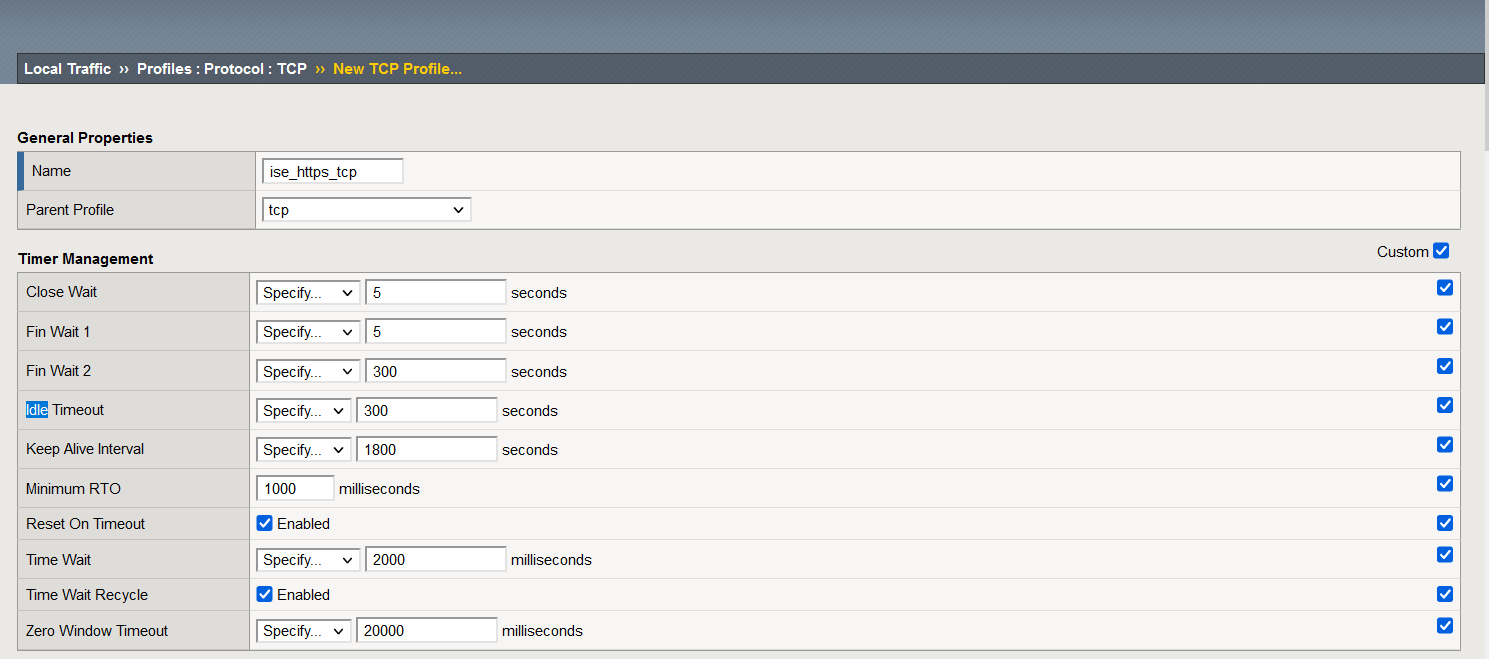

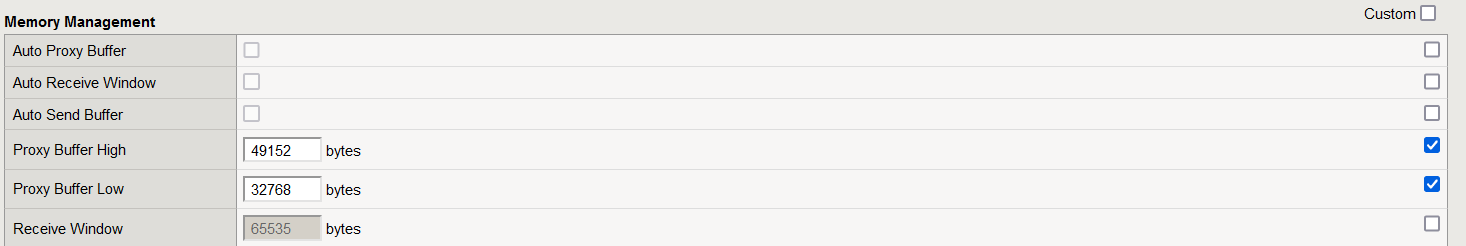

TCP Profile: ise_https_tcp

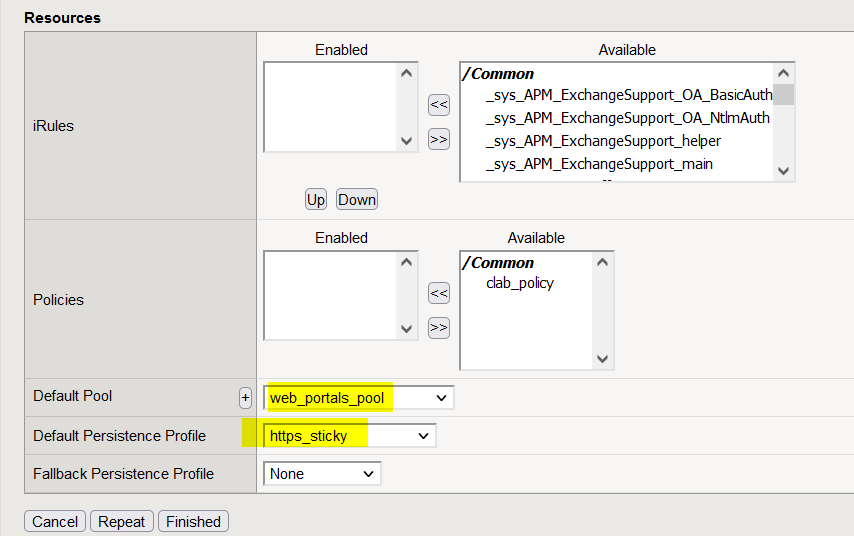

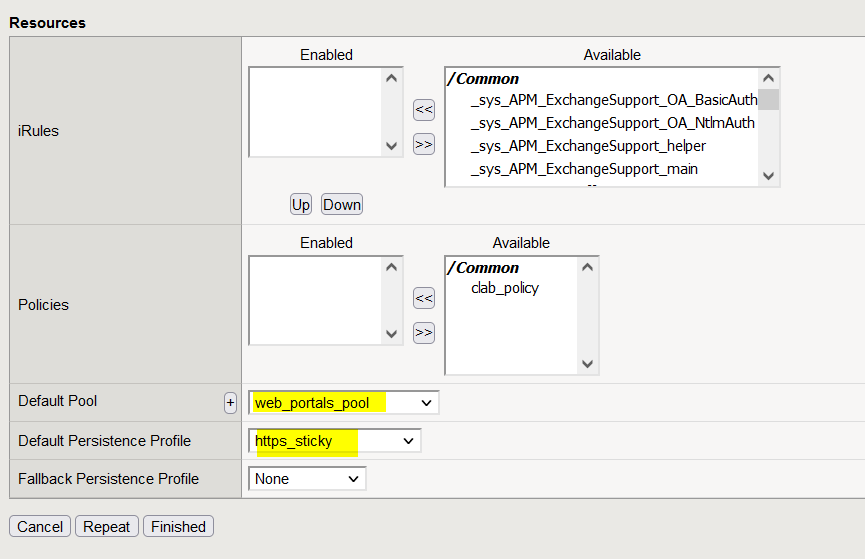

Persistence profile: https_sticky

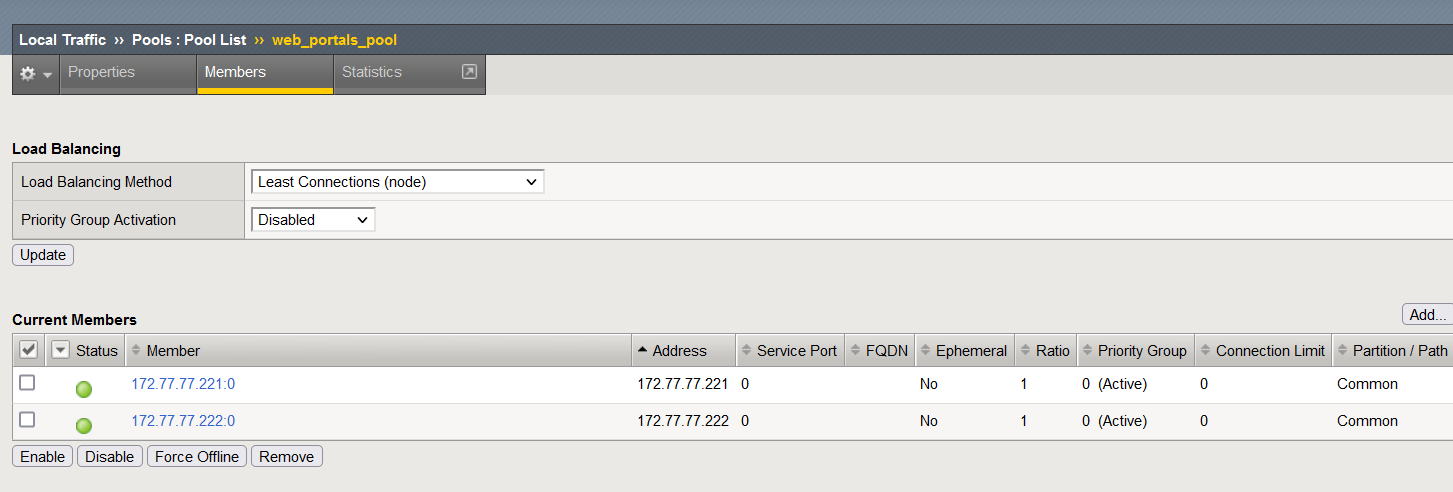

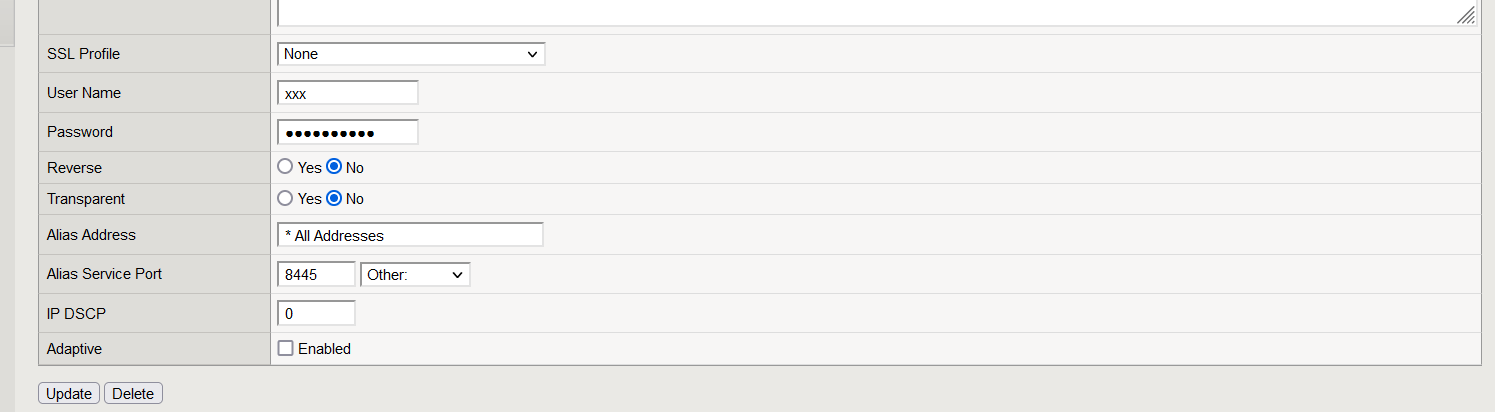

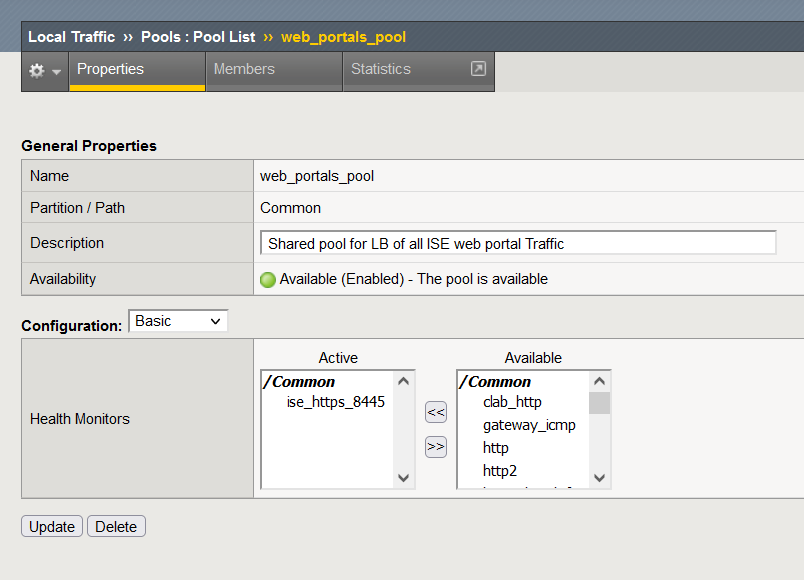

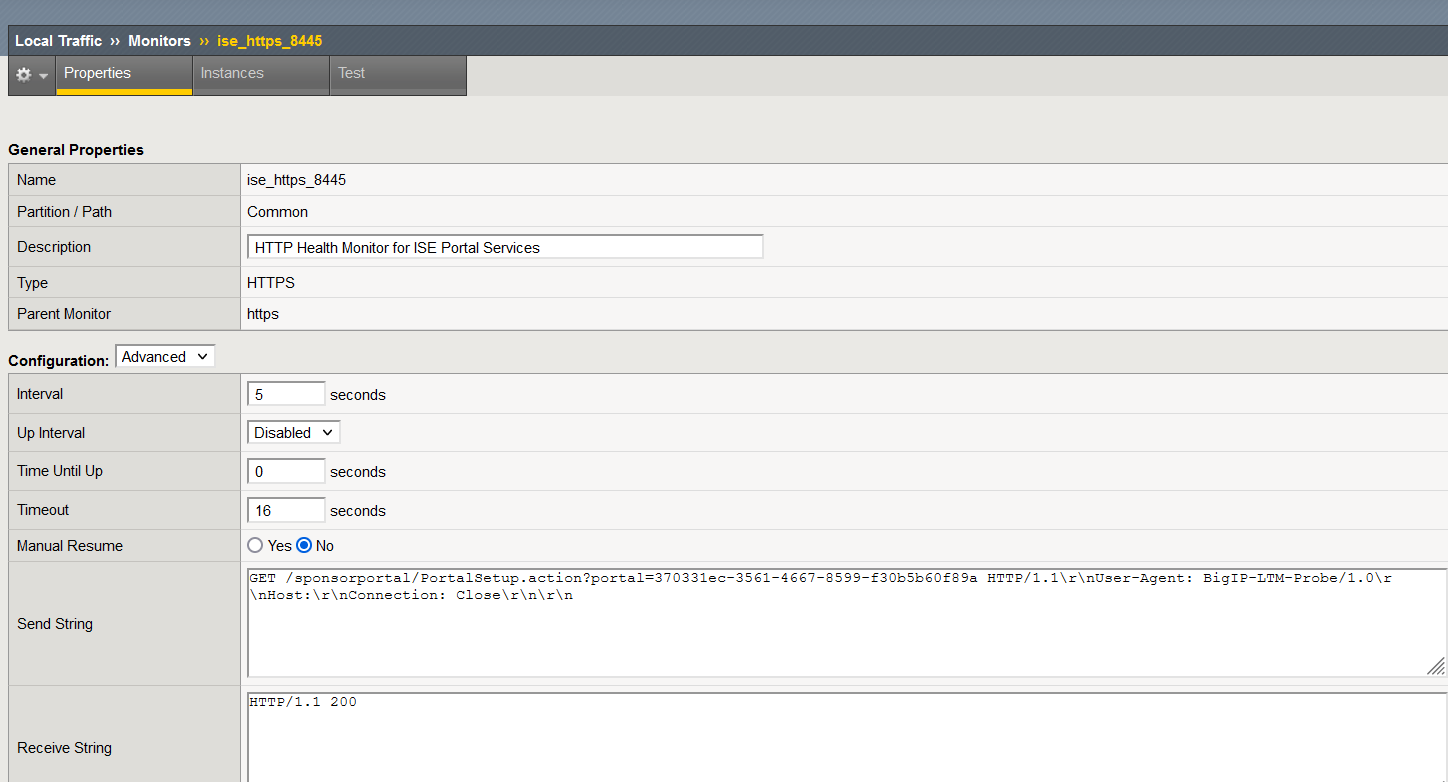

Health Monitor: ise_https_8445

GET /sponsorportal/PortalSetup.action?portal=370331ec-3561-4667-8599-f30b5b60f89a HTTP/1.1\r\nUser-Agent: BigIP-LTM-Probe/1.0\r\nHost:\r\nConnection: Close\r\n\r\n
