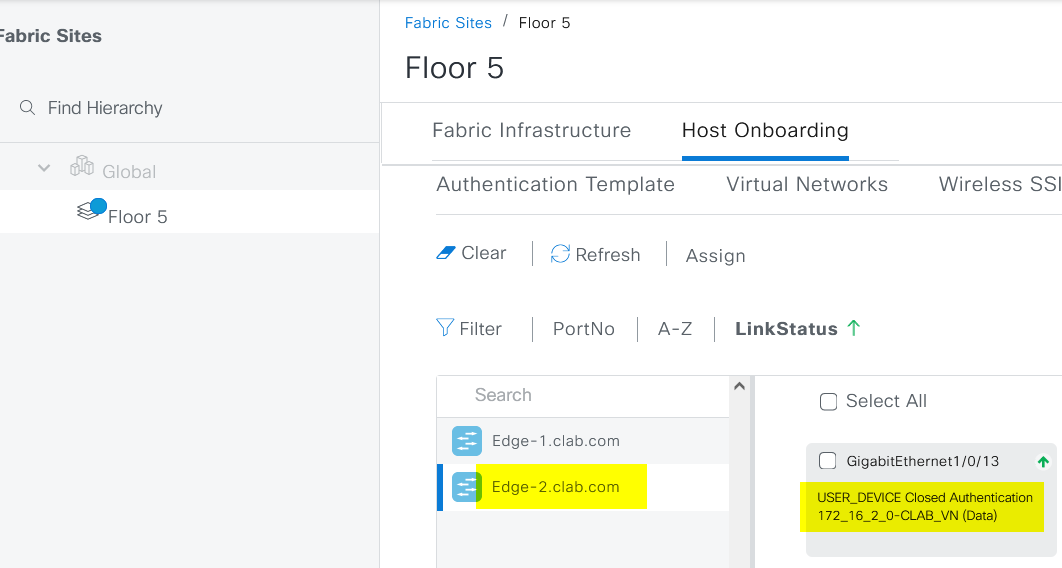

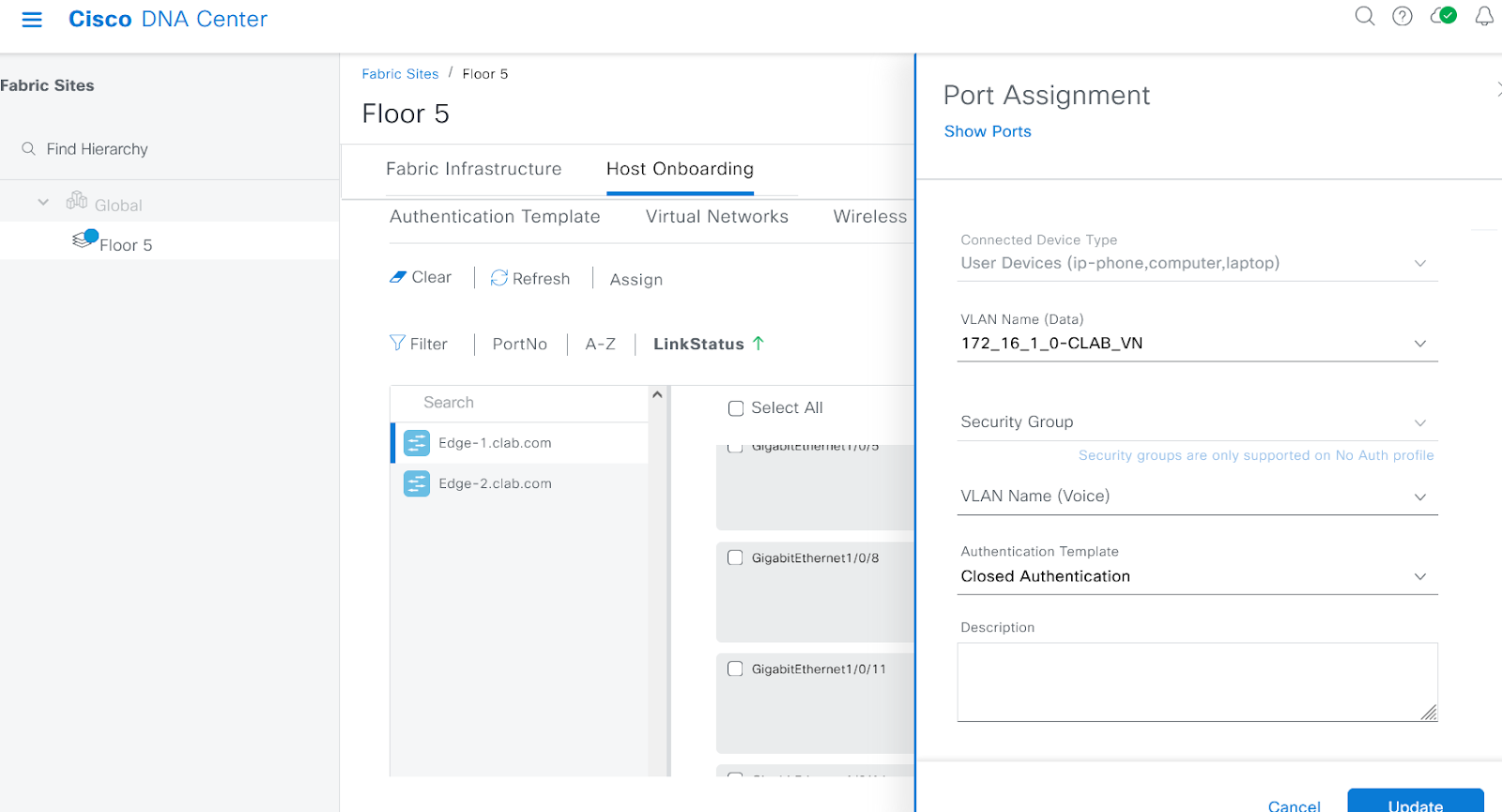

Port assignment

Group-Based Access Control

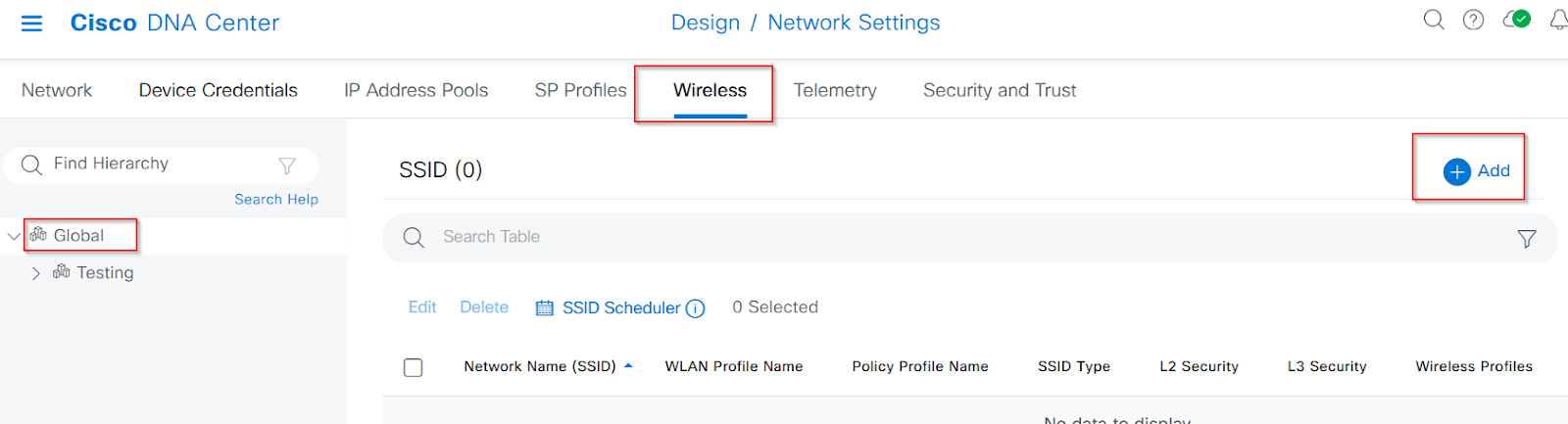

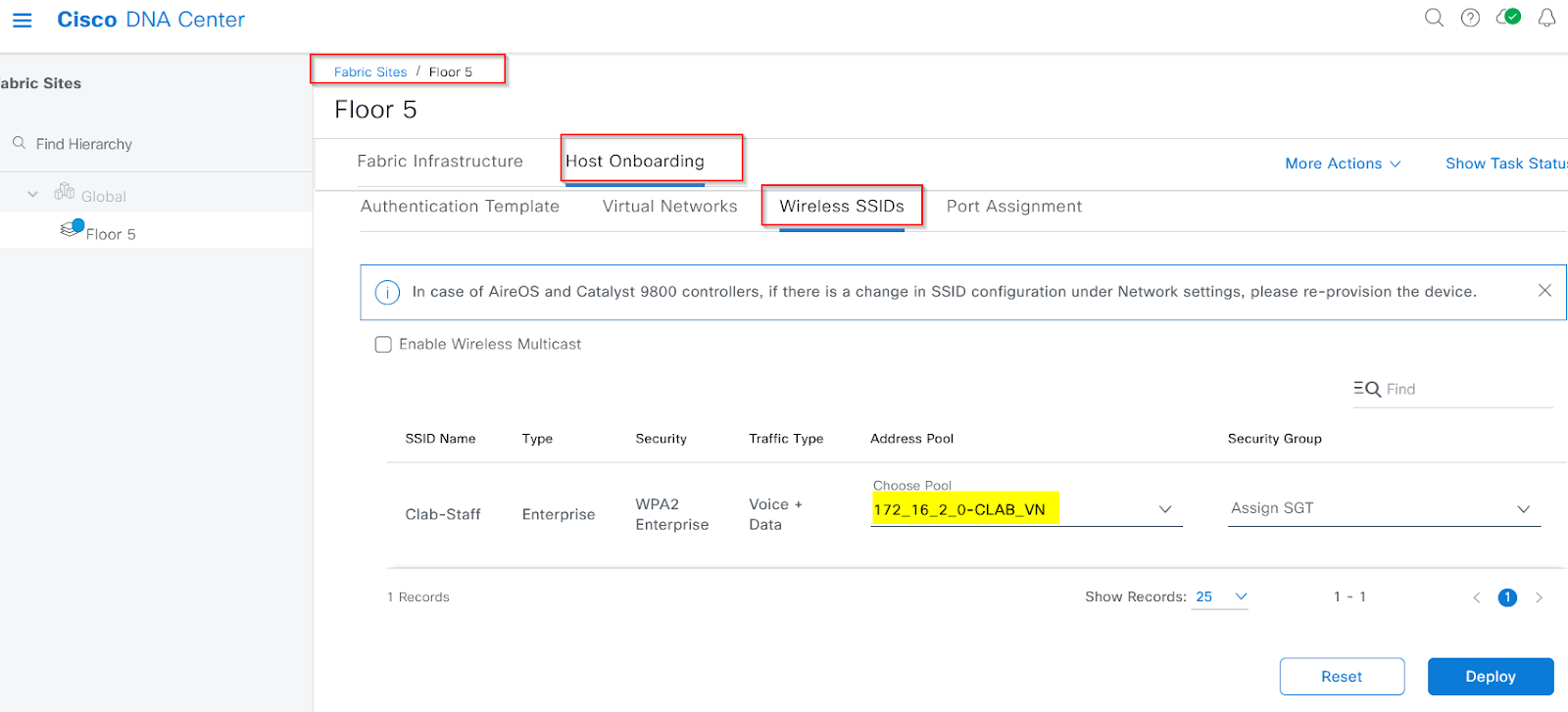

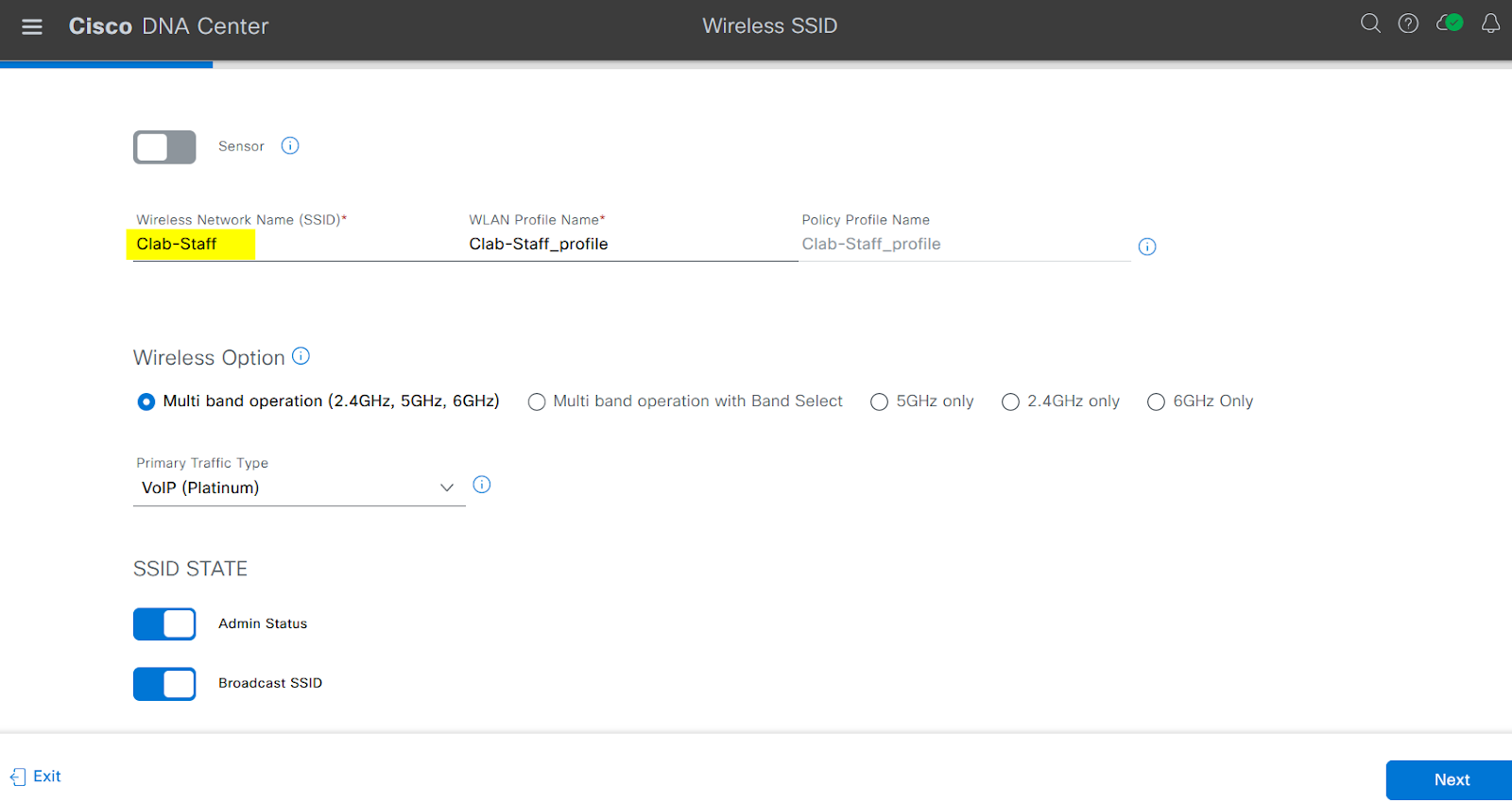

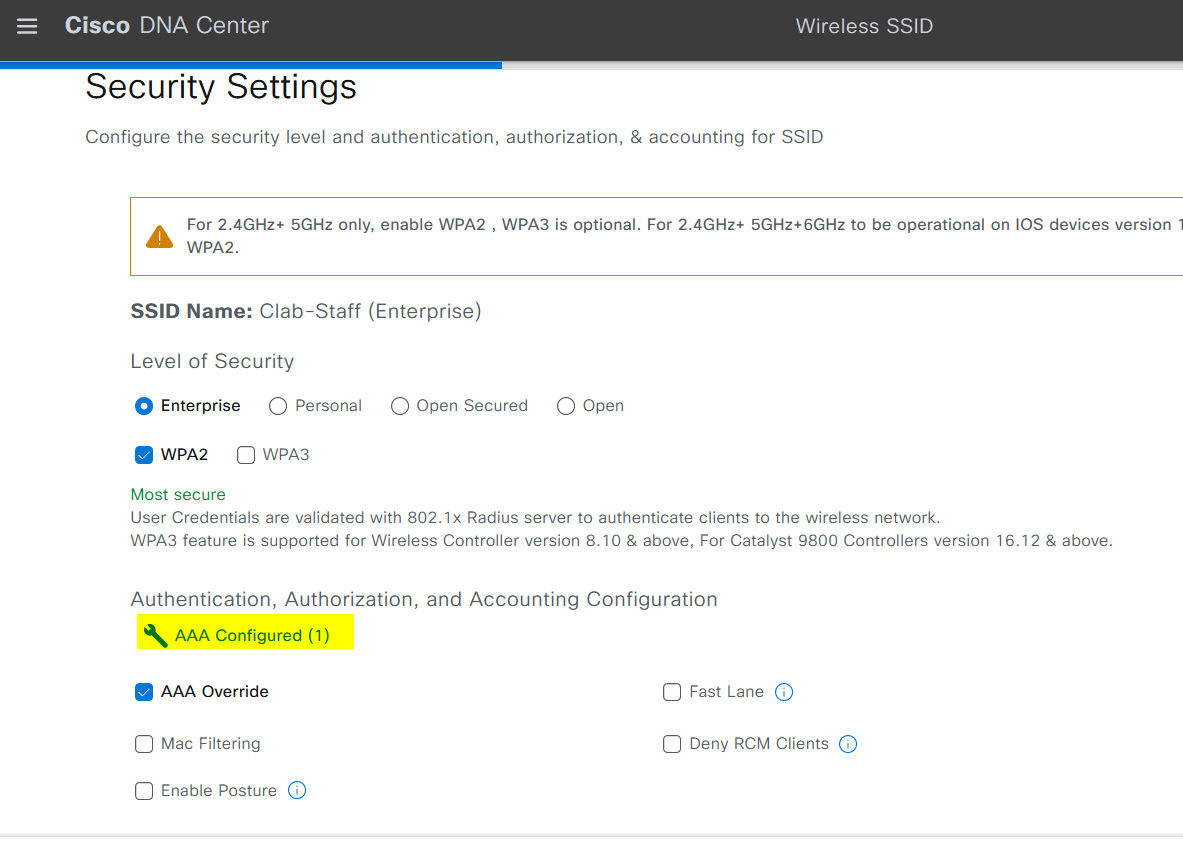

Wireless Fabric

Wireless - SGT Micro-segmentation

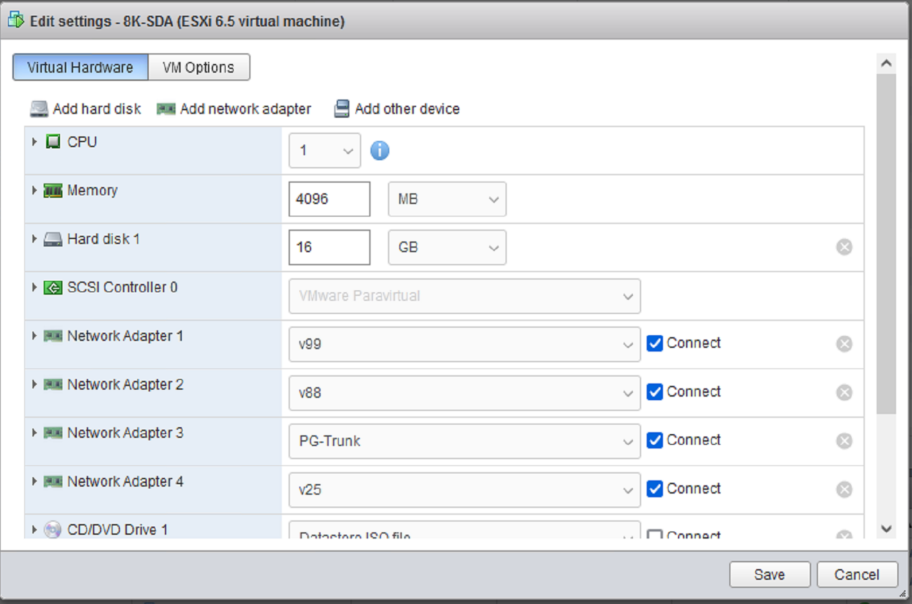

8KV as Fusion Router (Replacing ASAv)

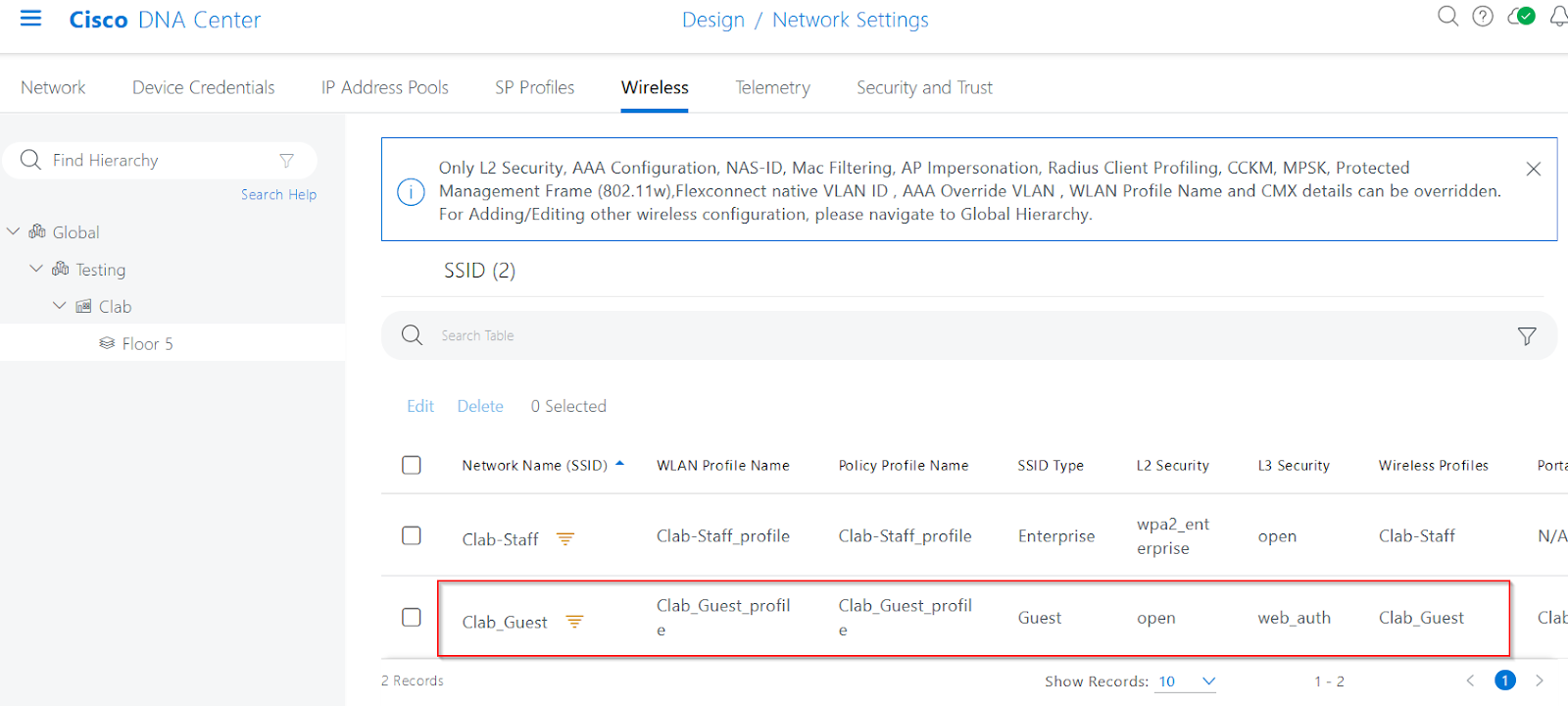

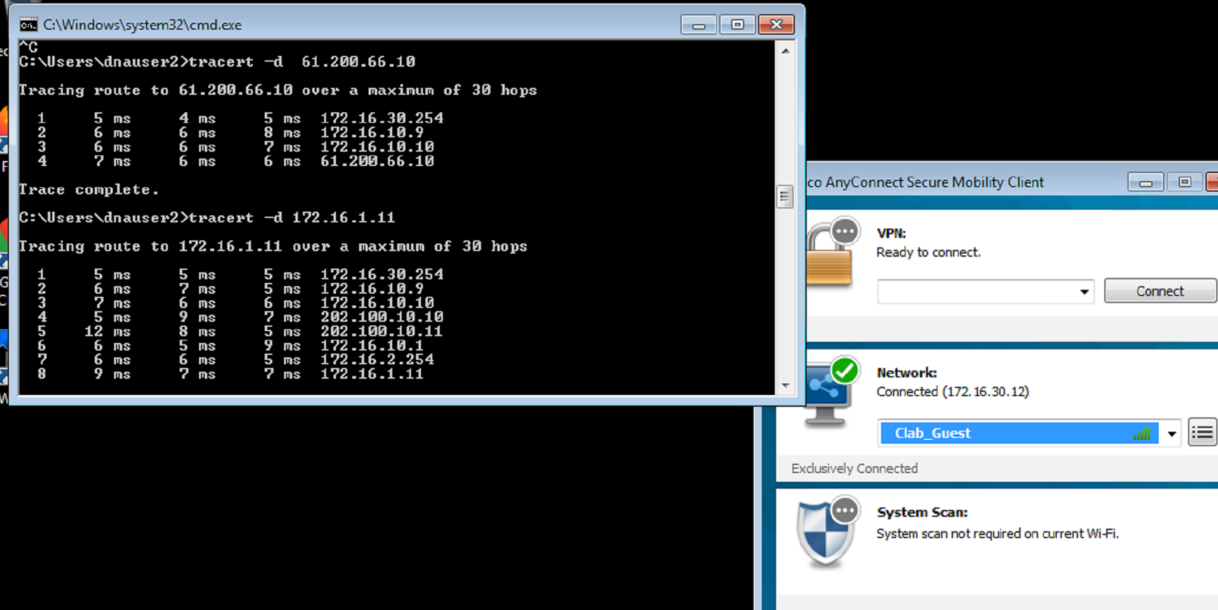

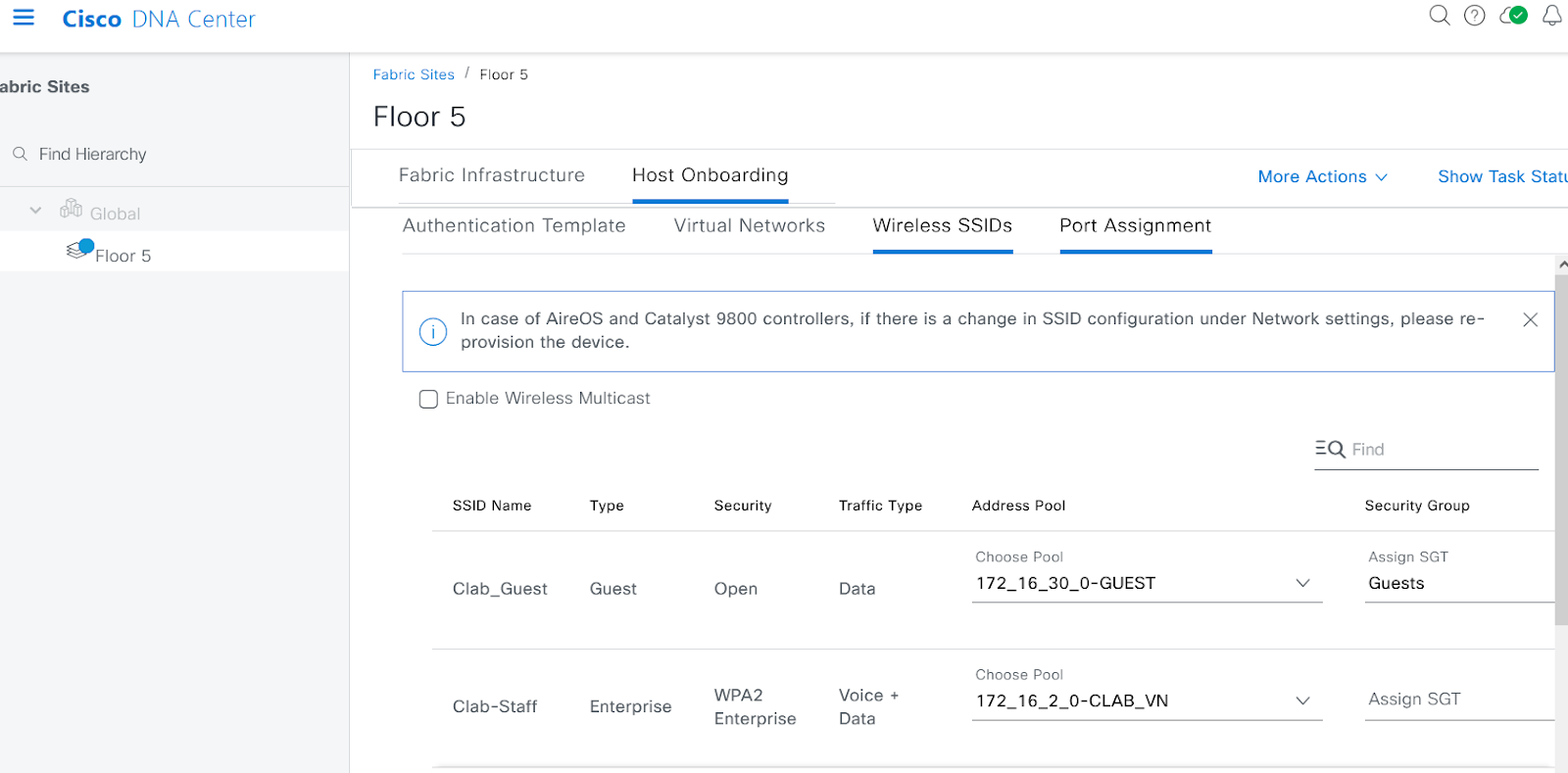

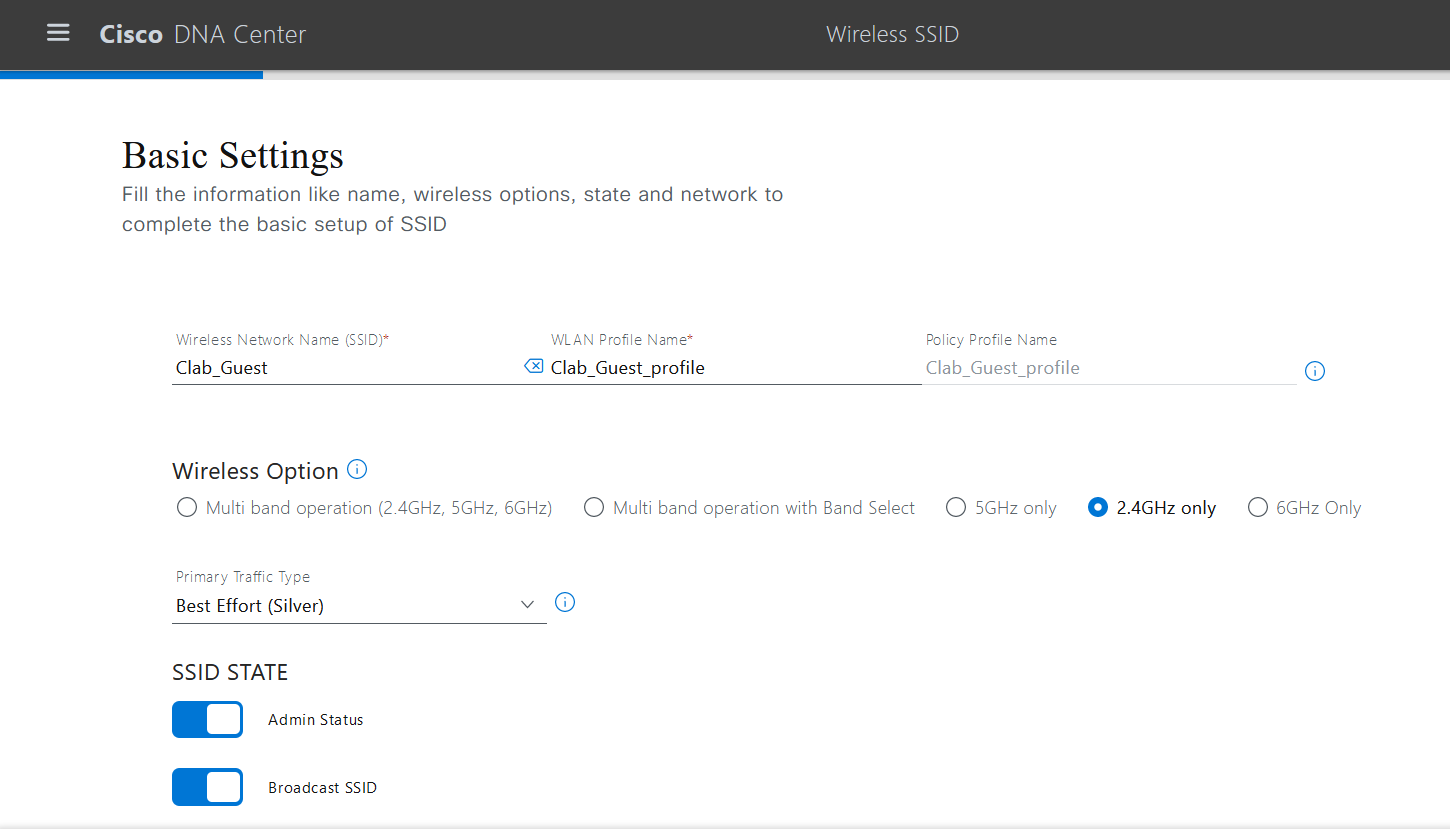

Wireless Guest - Dedicated VN for Guest

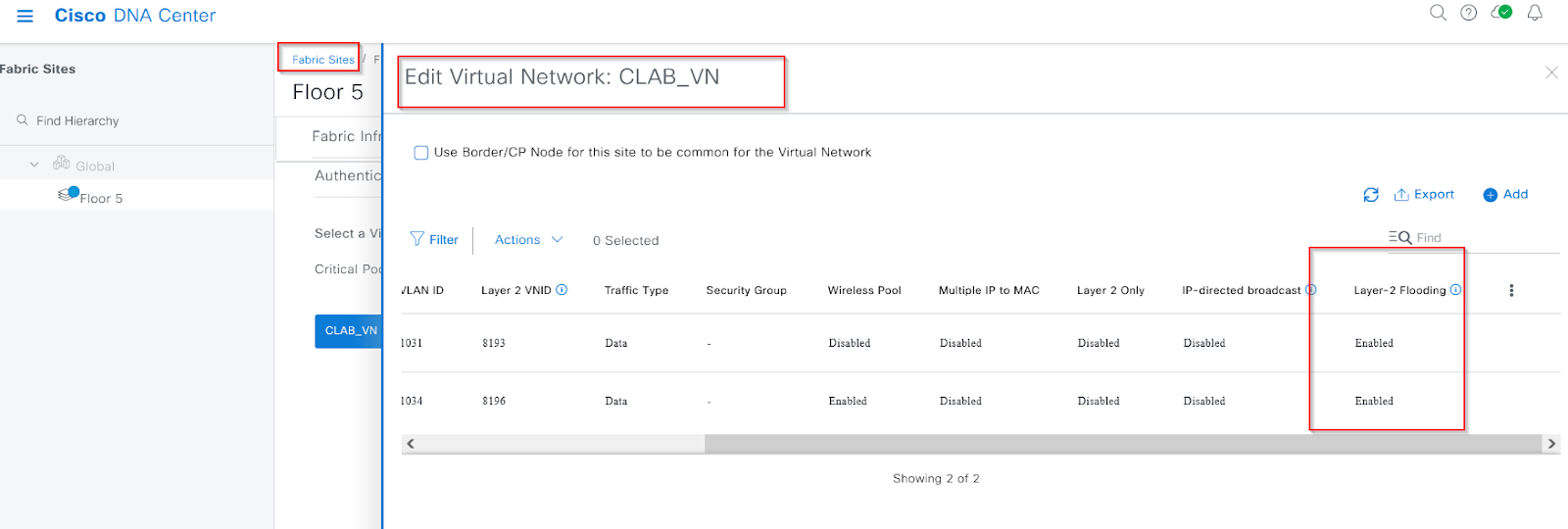

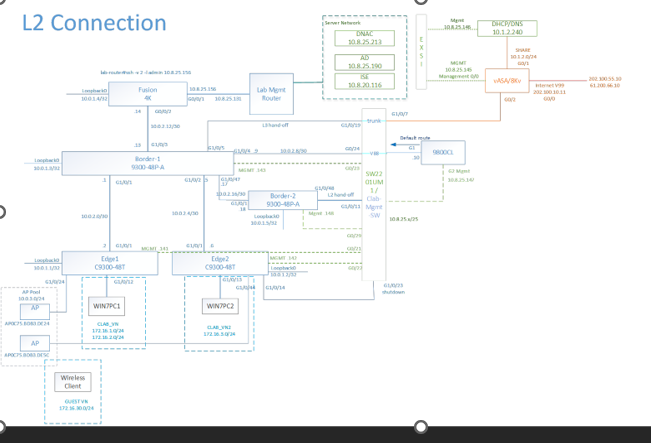

L2 Handoff

DNAC Template

Troubleshooting Host Authentication Issues

Troubleshooting SGT issues

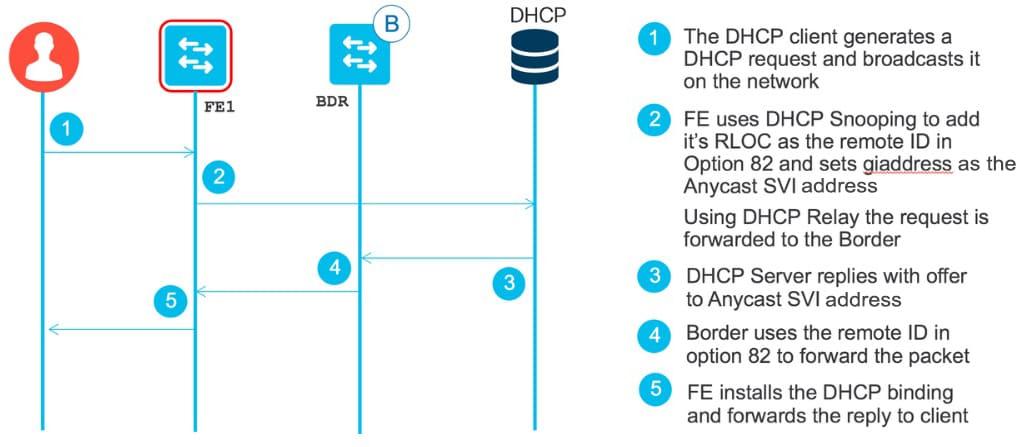

Troubleshooting Host DHCP Onboarding Issue

Appendix A - Fusion router configuration

Multicast

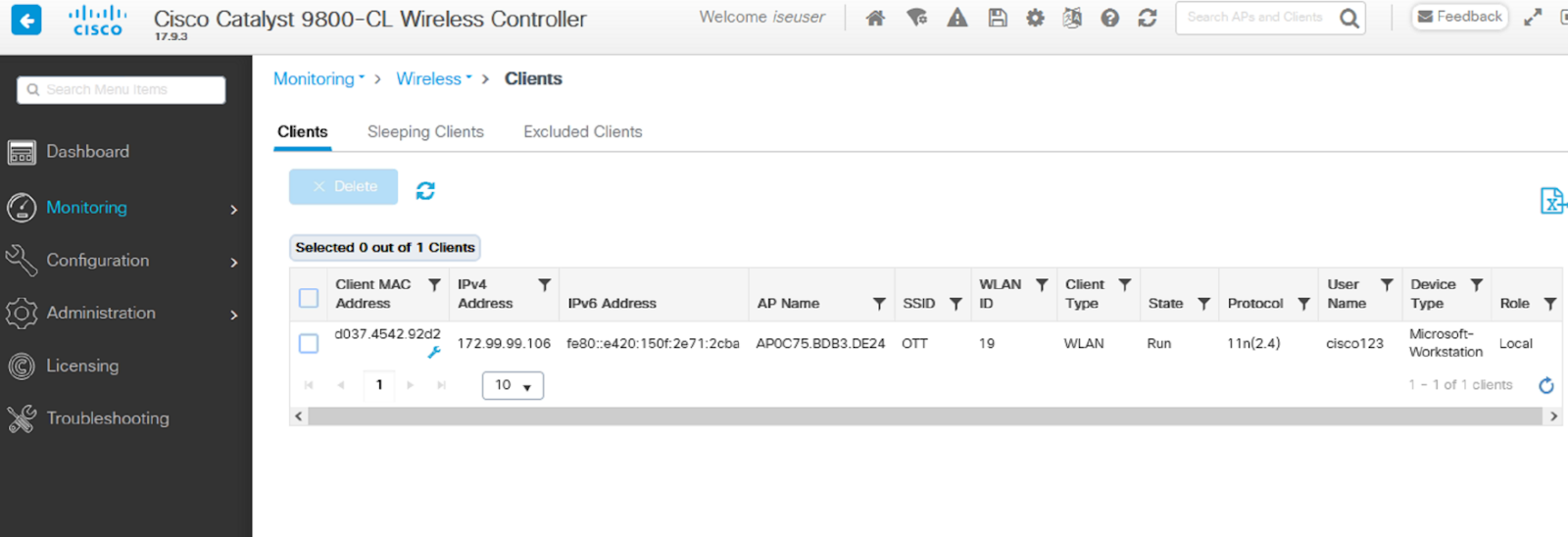

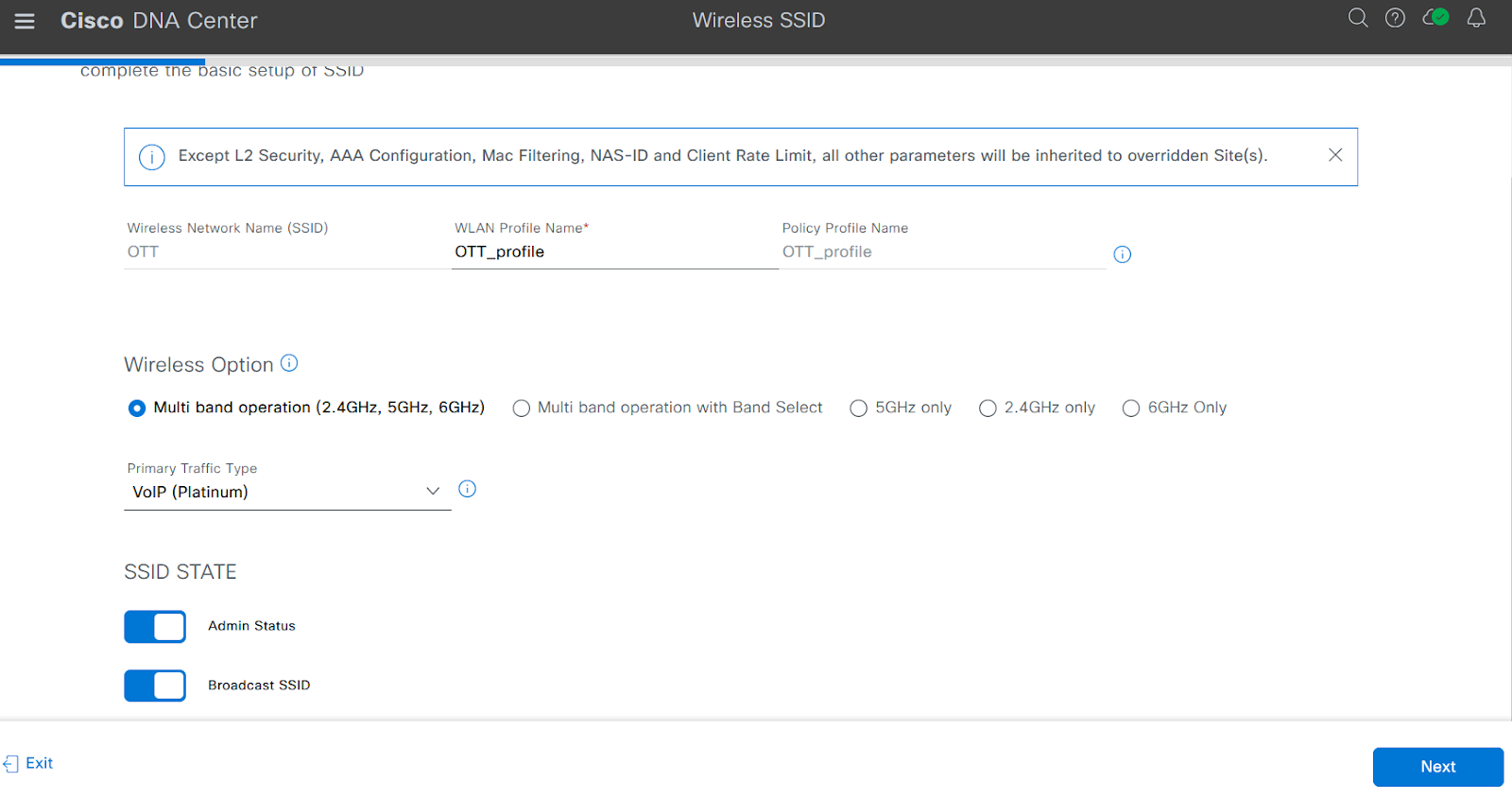

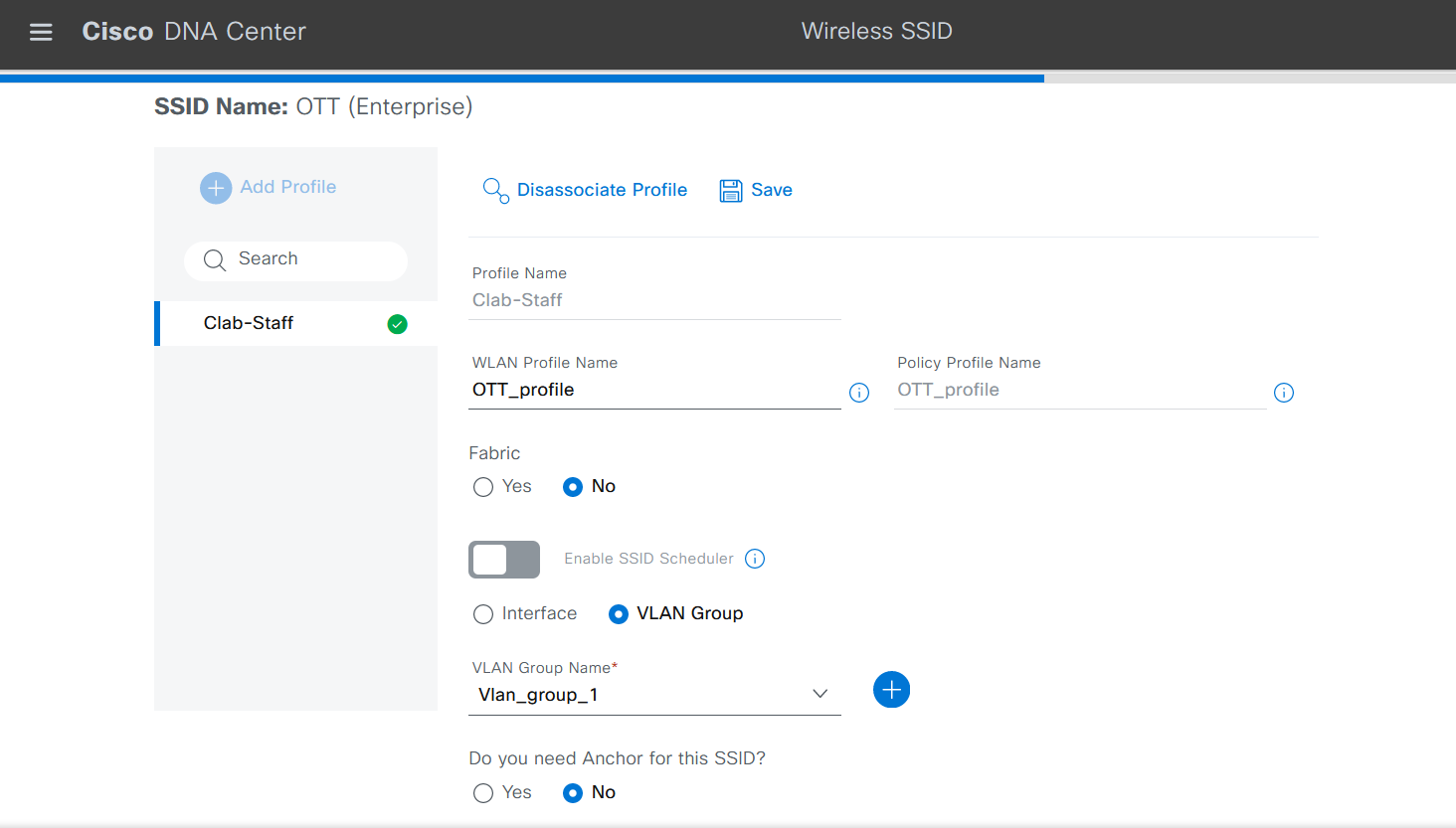

Over the Top Wireless

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Topology

L2

Underlay

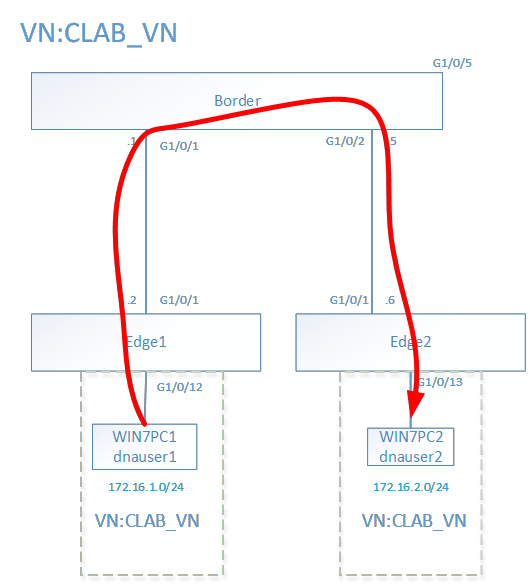

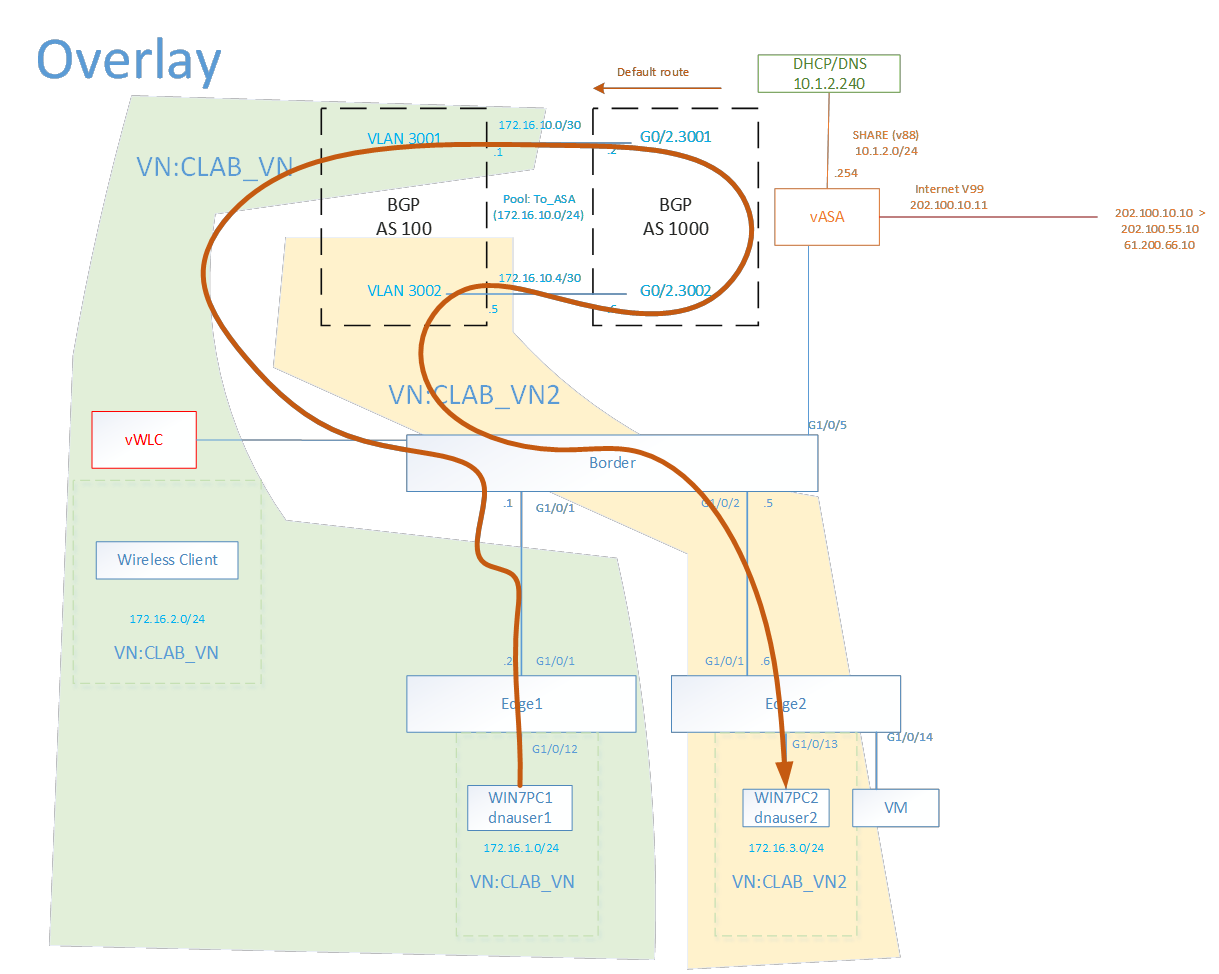

Overlay

--------------------------------------------------------------------------------------------------------------------------------------------------------

Underlay Config

Lab-Router

interface GigabitEthernet0/0.25

encapsulation dot1Q 25

ip address 10.8.25.131 255.255.255.128

ip router isis

interface GigabitEthernet0/0.200

encapsulation dot1Q 200

ip address 10.8.20.125 255.255.255.128

ip router isis

router isis

net 49.0000.0000.0010.00

is-type level-2-only

metric-style transition

Fusion 4K

lab-router#ssh -v 2 -l admin 10.8.25.156

hostname CME-Fusion-A

ip name-server 10.8.25.190

ip domain name clab.com

interface Loopback0

ip address 10.0.1.4 255.255.255.255

ip router isis

interface GigabitEthernet0/0/1

ip address 10.8.25.156 255.255.255.128

ip router isis

interface GigabitEthernet0/0/2

ip address 10.0.2.14 255.255.255.252

ip router isis

mtu 9100

router isis

net 49.0000.0000.0005.00

is-type level-2-only

metric-style transitionexit

CME-Fusion-A(config)#crypto key generate rsa modulus 1024

Border-1

hostname Border-1

system mtu 9100

interface Loopback0

ip address 10.0.1.3 255.255.255.255

ip router isis

interface GigabitEthernet1/0/1

no switchport

ip address 10.0.2.1 255.255.255.252

ip router isis

interface GigabitEthernet1/0/2

no switchport

ip address 10.0.2.5 255.255.255.252

ip router isis

interface GigabitEthernet1/0/3

no switchport

ip address 10.0.2.13 255.255.255.252

ip router isis

interface GigabitEthernet1/0/4

no switchport

ip address 10.0.2.9 255.255.255.252

ip router isis

router isis

net 49.0000.0000.0003.00

is-type level-2-only

metric-style transition

redistribute connected

Edge-1

ip routing

system mtu 9100

interface Loopback0

ip address 10.0.1.1 255.255.255.255

ip router isis

interface GigabitEthernet1/0/1

no switchport

ip address 10.0.2.2 255.255.255.252

ip router isis

router isis

net 49.0000.0000.0001.00

is-type level-2-only

metric-style transition

Edge-2

ip routing

system mtu 9100

interface Loopback0

ip address 10.0.1.2 255.255.255.255

ip router isis

interface GigabitEthernet1/0/1

no switchport

ip address 10.0.2.6 255.255.255.252

ip router isis

router isis

net 49.0000.0000.0002.00

is-type level-2-only

metric-style transition

ASAv

hostname ASAv-a

enable password <Your_Password>1

interface GigabitEthernet0/0

nameif Outside

security-level 0

ip address 202.100.10.11 255.255.255.0

interface GigabitEthernet0/1

nameif SHARE

security-level 50

ip address 10.1.2.254 255.255.255.0

interface Management0/0

no management-only

nameif MGMT

security-level 100

ip address 10.8.25.145 255.255.255.128

isis

object network all_net

subnet 0.0.0.0 0.0.0.0

access-list out extended permit icmp any any

access-list share extended permit icmp any any

access-list share extended permit udp any any eq domain

object network all_net

nat (any,Outside) dynamic interface

access-group out in interface Outside

access-group share in interface SHARE

!conf

router isis

net 49.0000.0000.0011.00

is-type level-2-only

metric-style transition

default-information originate

route Outside 0.0.0.0 0.0.0.0 202.100.10.10 1

route MGMT 10.8.20.119 255.255.255.255 10.8.25.131 1

aaa authentication http console LOCAL

aaa authentication ssh console LOCAL

http server enable

http 0.0.0.0 0.0.0.0 MGMT

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

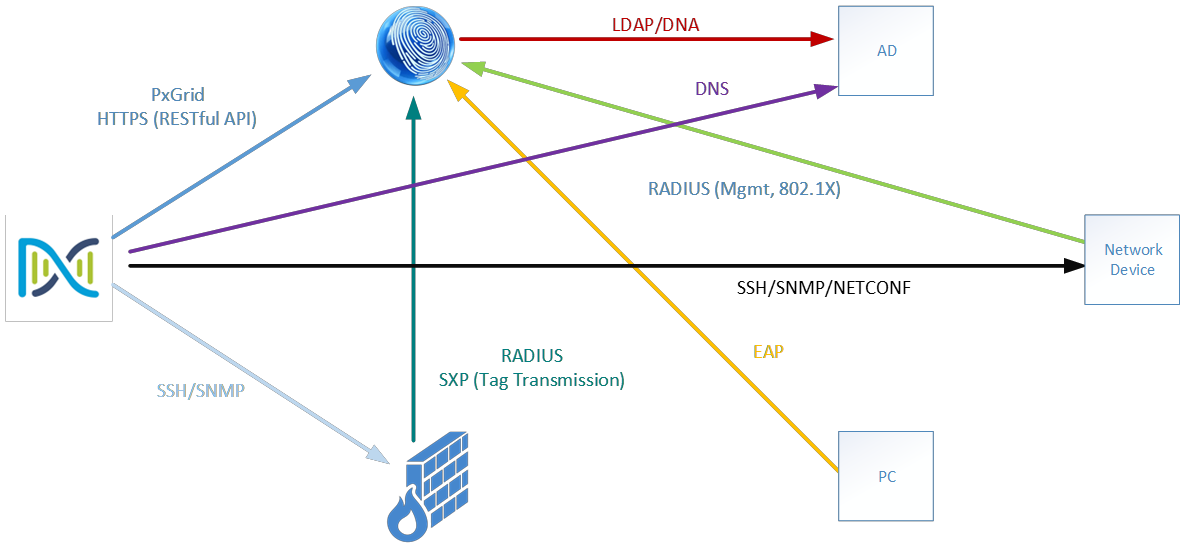

ISE Integration and ASA CTS & SXP

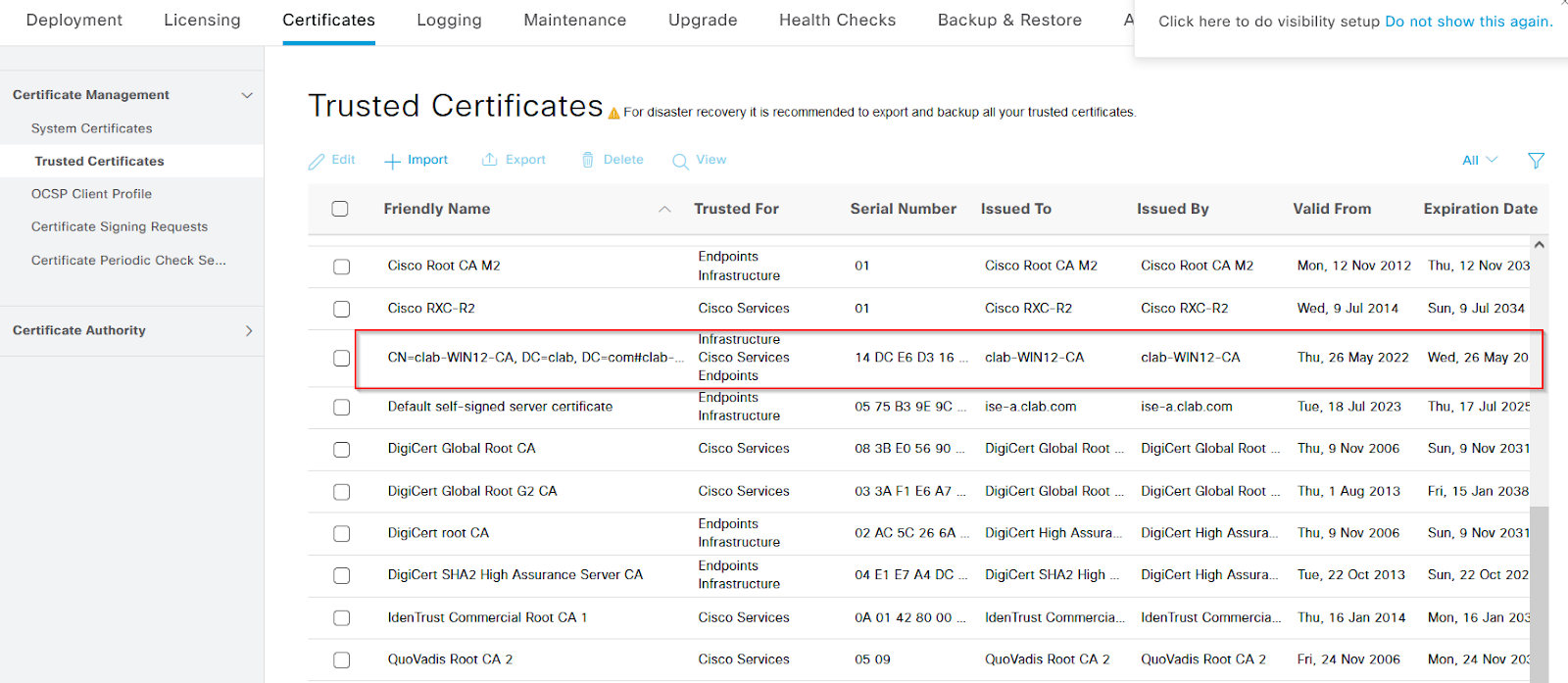

Trusted Certificate

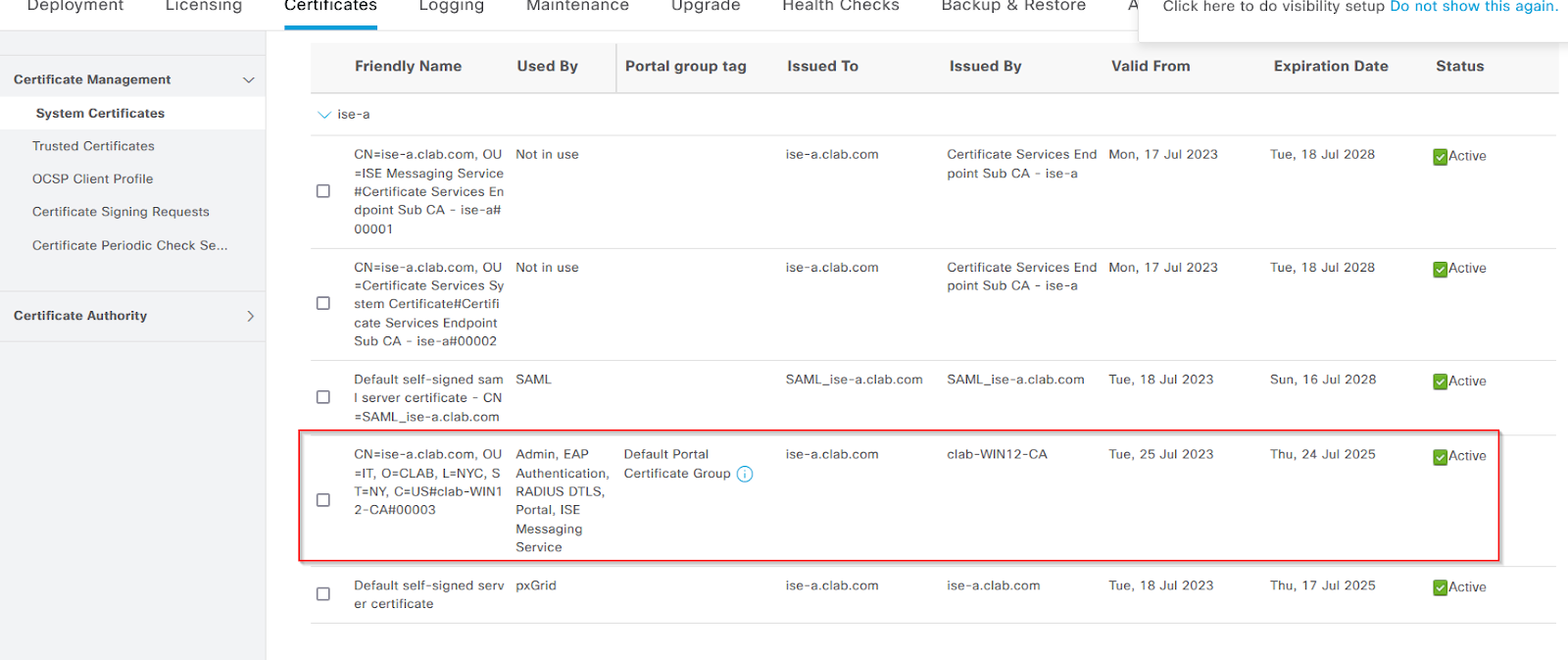

System certificates

Do NOT check "PX-Grid"

Domain

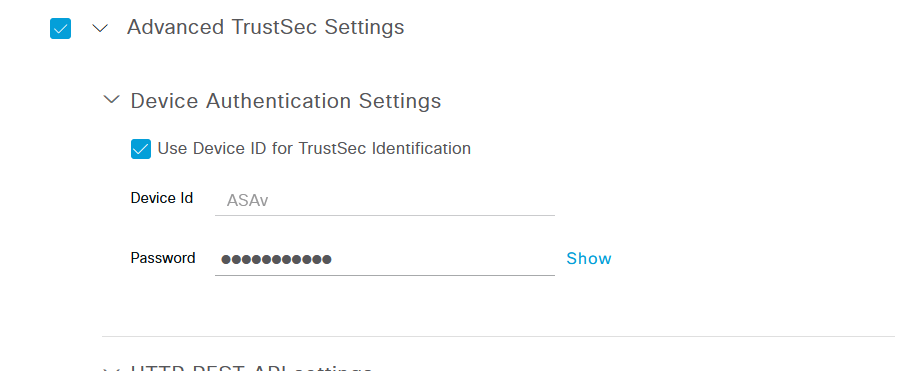

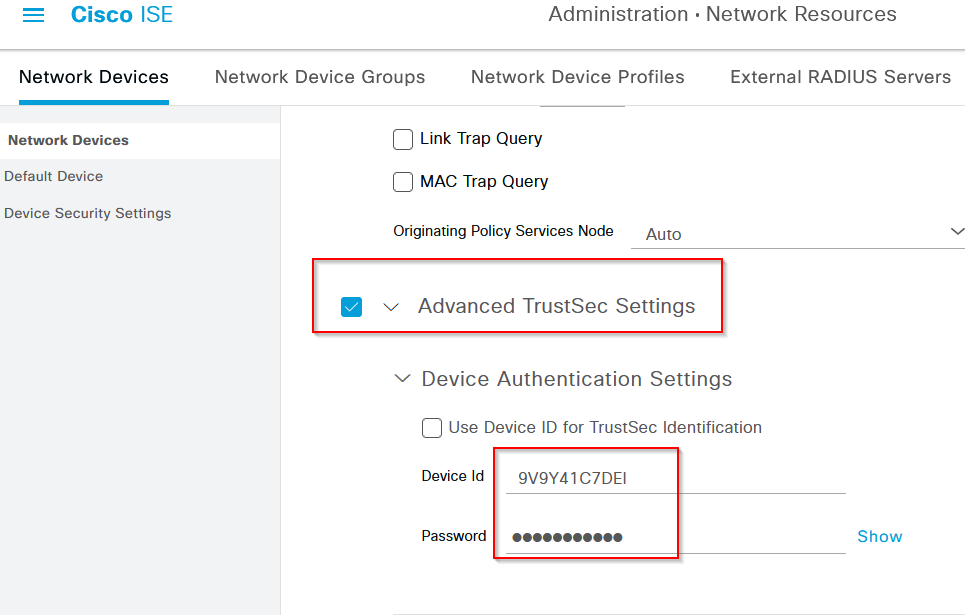

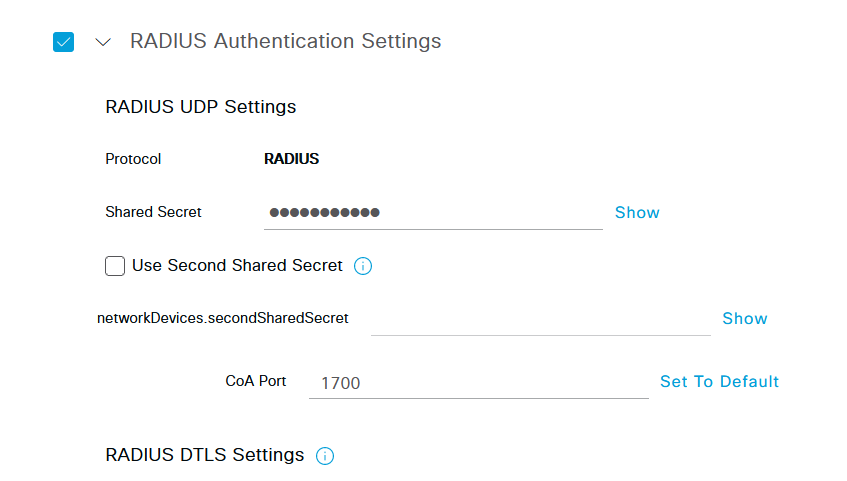

Network Device

1year

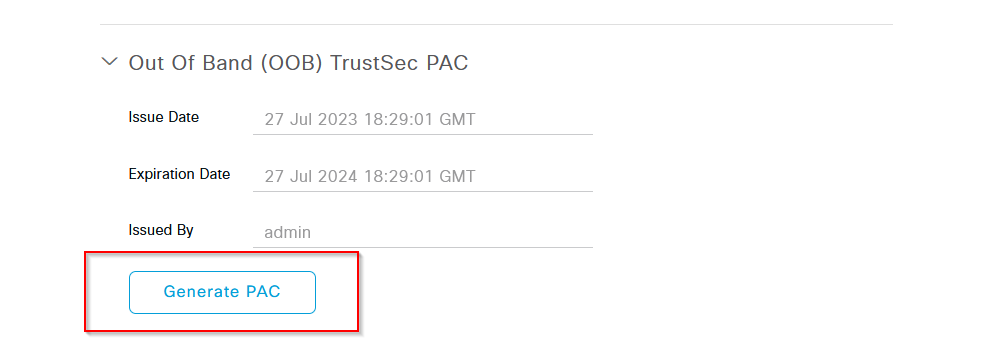

ASDM transfer PAC file

ASAv-a#

cts import-pac flash:/ASAv.pac PASsword <Your_Password>1

aaa-server ISE protocol radius

aaa-server ISE (MGMT) host 10.8.20.116

key *****

cts server-group ISE

ASAv-a# cts refresh environment-data

ASAv-a# show cts environment-data

CTS Environment Data

====================

Status: Active

Last download attempt: Successful

Environment Data Lifetime: 86400 secs

Last update time: 18:31:59 UTC Jul 27 2023

Env-data expires in: 0:23:59:56 (dd:hr:mm:sec)

Env-data refreshes in: 0:23:49:56 (dd:hr:mm:sec)

ASAv-a# test aaa authentication ISE username iseuser password cisco,123

Server IP Address or name: 10.8.20.116

INFO: Attempting Authentication test to IP address (10.8.20.116) (timeout: 12 seconds)

INFO: Authentication Successful

ASAv-a# show cts environment-data sg-table

Security Group Table:

Valid until: 18:31:59 UTC Jul 28 2023

Showing 17 of 17 entries

SG Name SG Tag Type

------- ------ -------------

ANY 65535 unicast

Auditors 9 unicast

BYOD 15 unicast

Contractors 5 unicast

Developers 8 unicast

Development_Servers 12 unicast

Employees 4 unicast

Guests 6 unicast

Network_Services 3 unicast

PCI_Servers 14 unicast

Point_of_Sale_Systems 10 unicast

Production_Servers 11 unicast

Production_Users 7 unicast

Quarantined_Systems 255 unicast

Test_Servers 13 unicast

TrustSec_Devices 2 unicast

Unknown 0 unicast

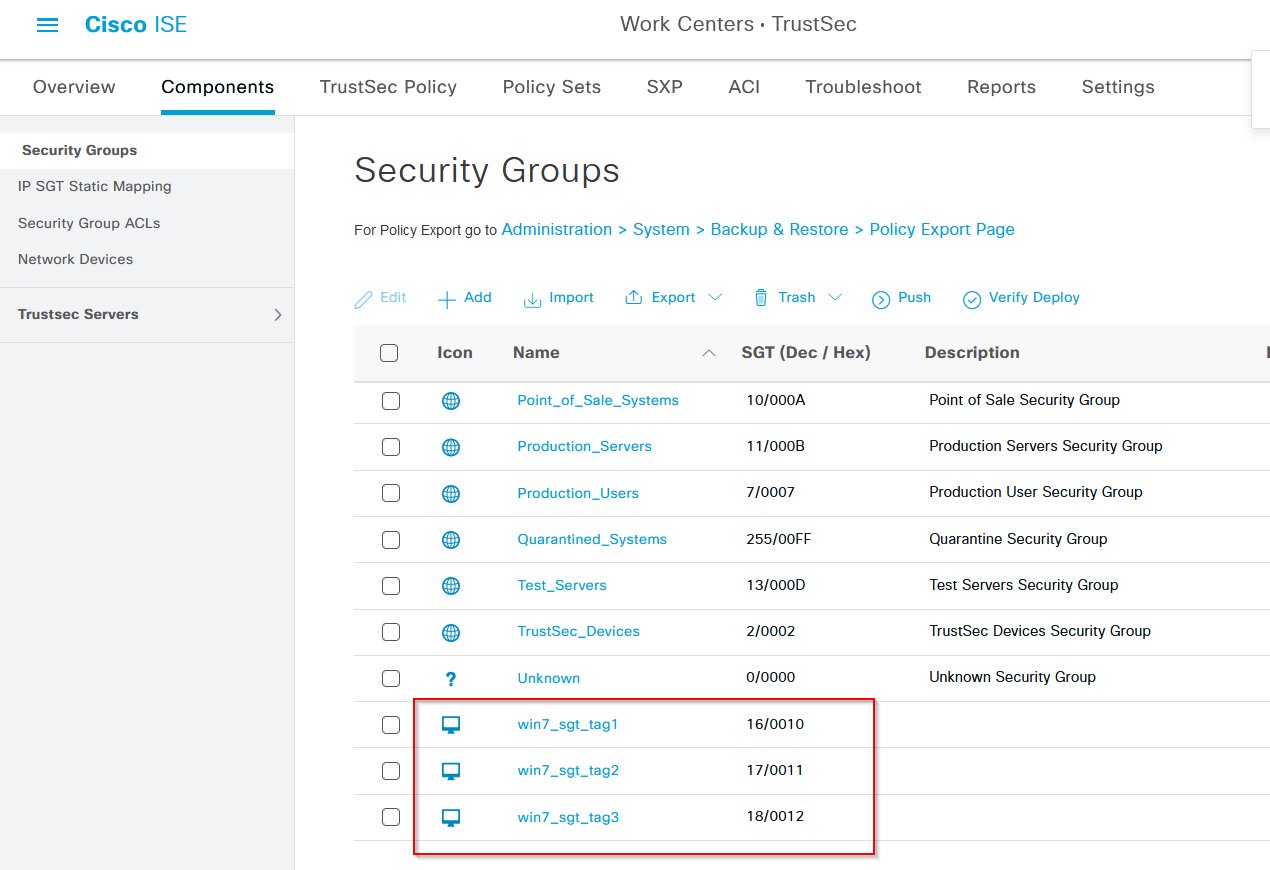

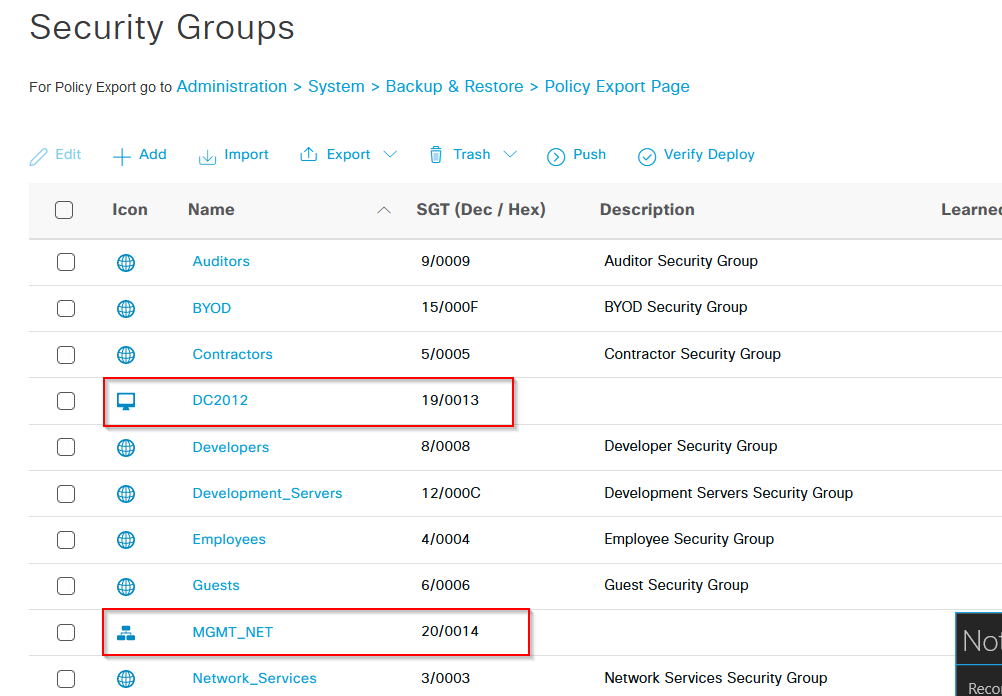

Security groups

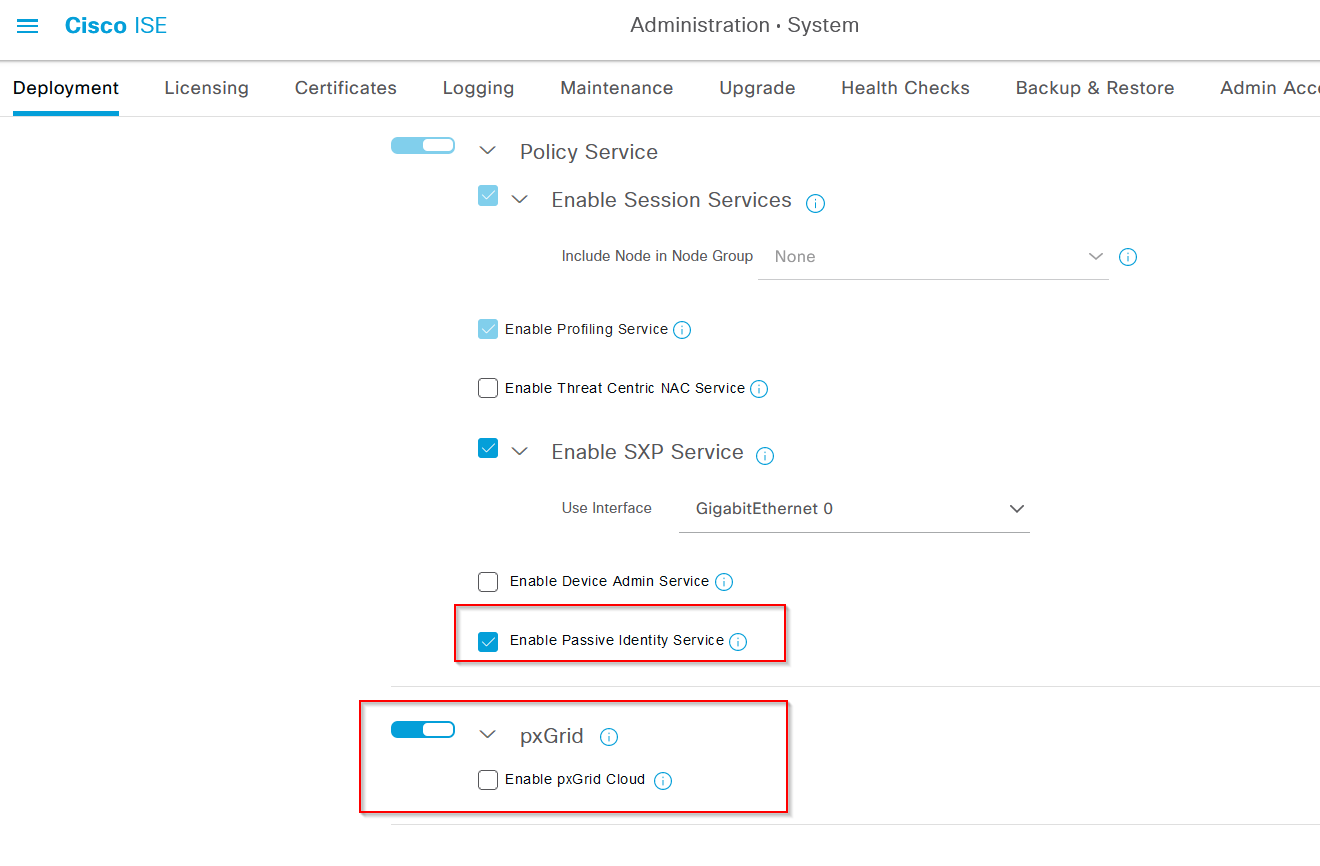

Enable SXP, PassiveID, pxGrid

- SGT Exchange Protocol over TCP (SXP)

IP SGT static mapping

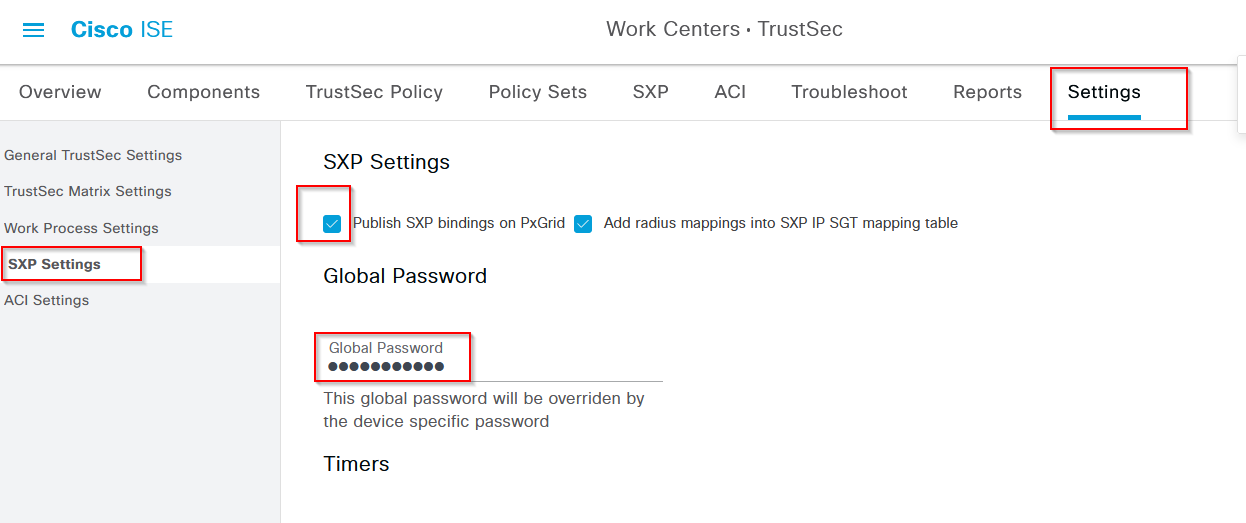

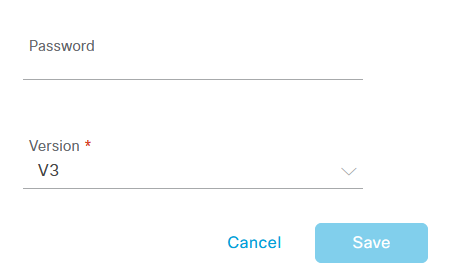

SXP settings

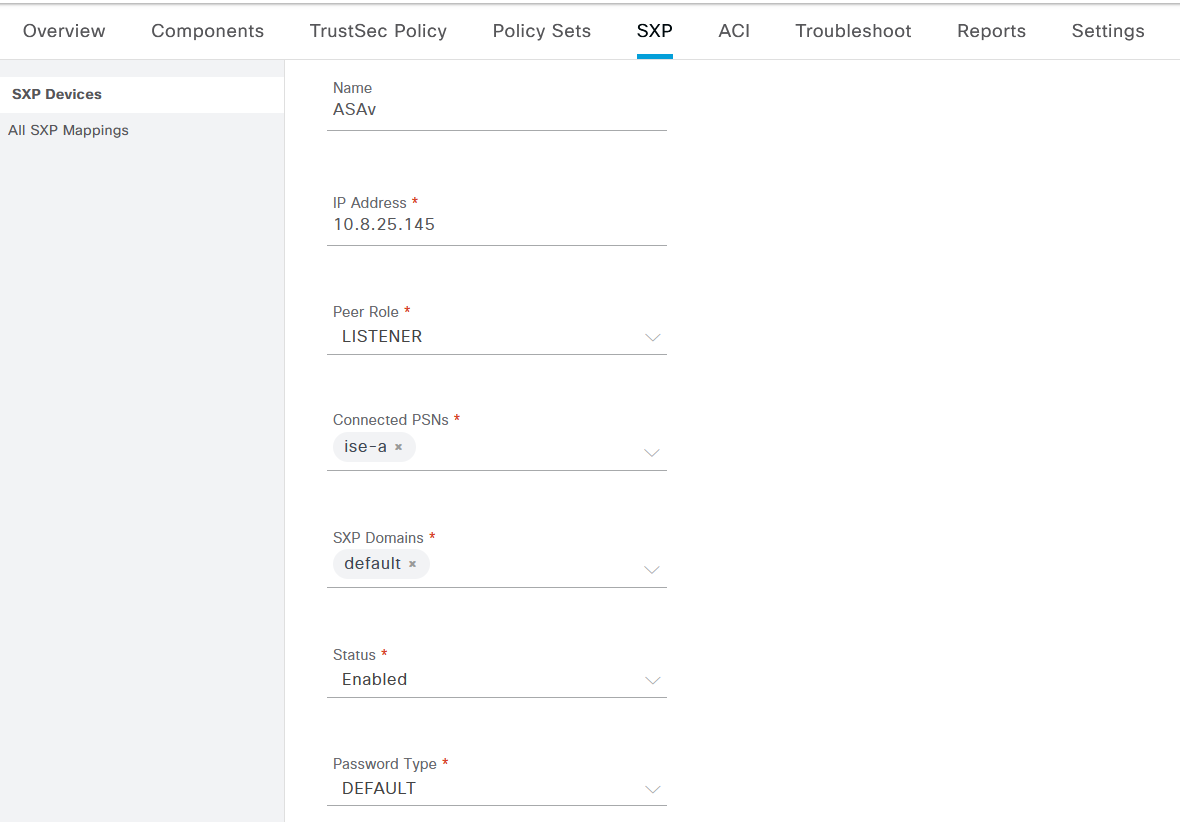

SXP device

cts sxp enable

cts sxp default password <Your_Password>1

cts sxp connection peer 10.8.20.116 source 10.8.25.145 password default mode peer speaker

ASAv-a(config)# show cts sxp connections

SXP : Enabled

Highest version : 3

Default password : Set

Default local IP : Not Set

Delete hold down period : 120 secs

Reconcile period : 120 secs

Retry open period : 120 secs

Retry open timer : Running

Total number of SXP connections: 1

Total number of SXP connections shown: 1

-----------------------------------------------------------

Peer IP : 10.8.20.116

Source IP : 10.8.25.145

Conn status : On

Conn version : 3

Local mode : Listener

Ins number : 1

TCP conn password : Default

Reconciliation timer : Not Running

Delete hold down timer : Not Running

Duration since last state change: 0:00:01:39 (dd:hr:mm:sec)

ASAv-a(config)# show cts sxp sgt-map

Total number of IP-SGT mappings : 3

Total number of IP-SGT mappings shown: 3

SGT : 20

IPv4 : 10.8.20.0/25

Peer IP : 10.8.20.116

Ins Num : 1

Status : Active

SGT : 20

IPv4 : 10.8.25.128/25

Peer IP : 10.8.20.116

Ins Num : 1

Status : Active

SGT : 19

IPv4 : 10.1.2.240

Peer IP : 10.8.20.116

Ins Num : 1

Status : Active

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

ISE Integration Preparation

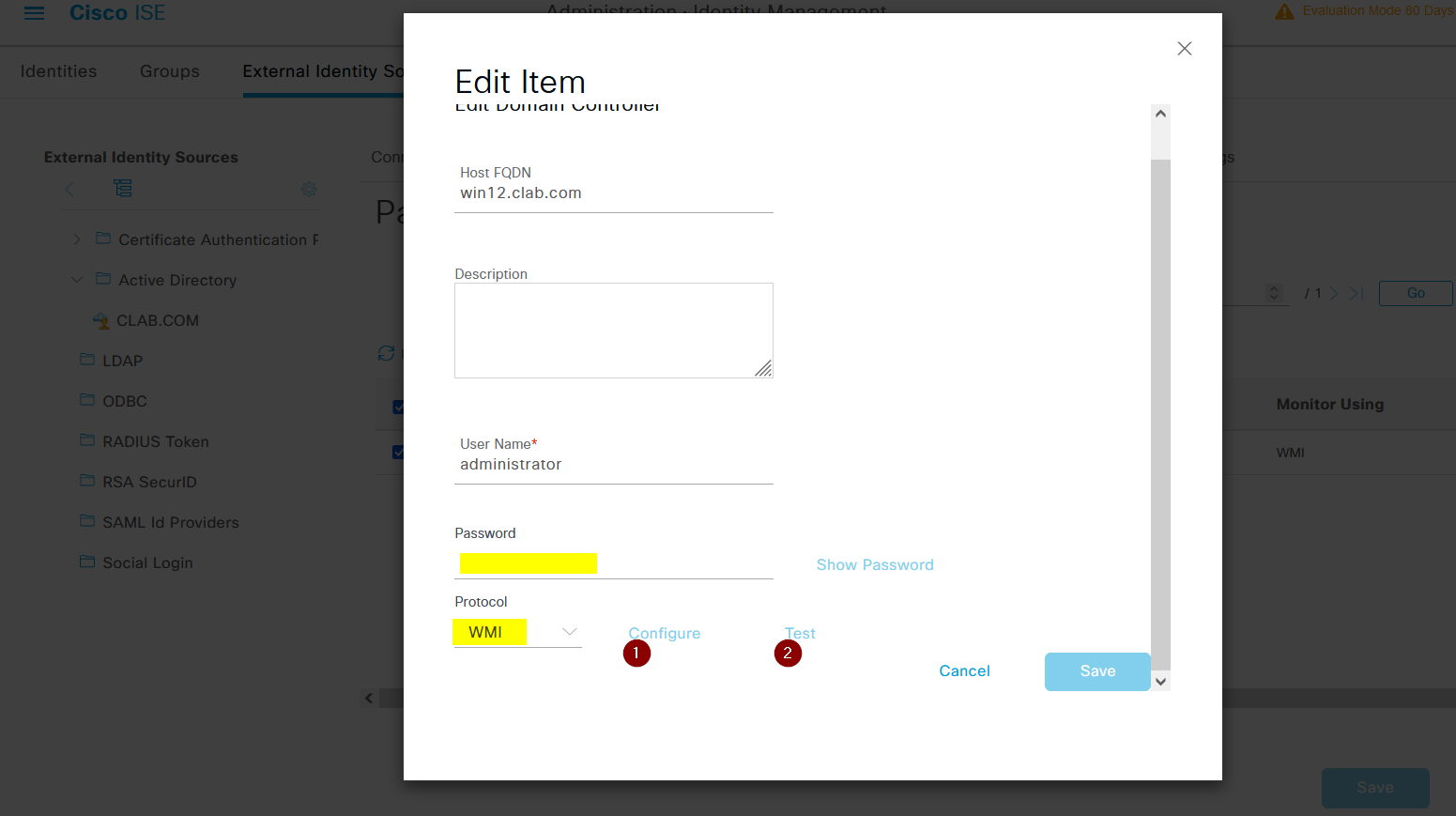

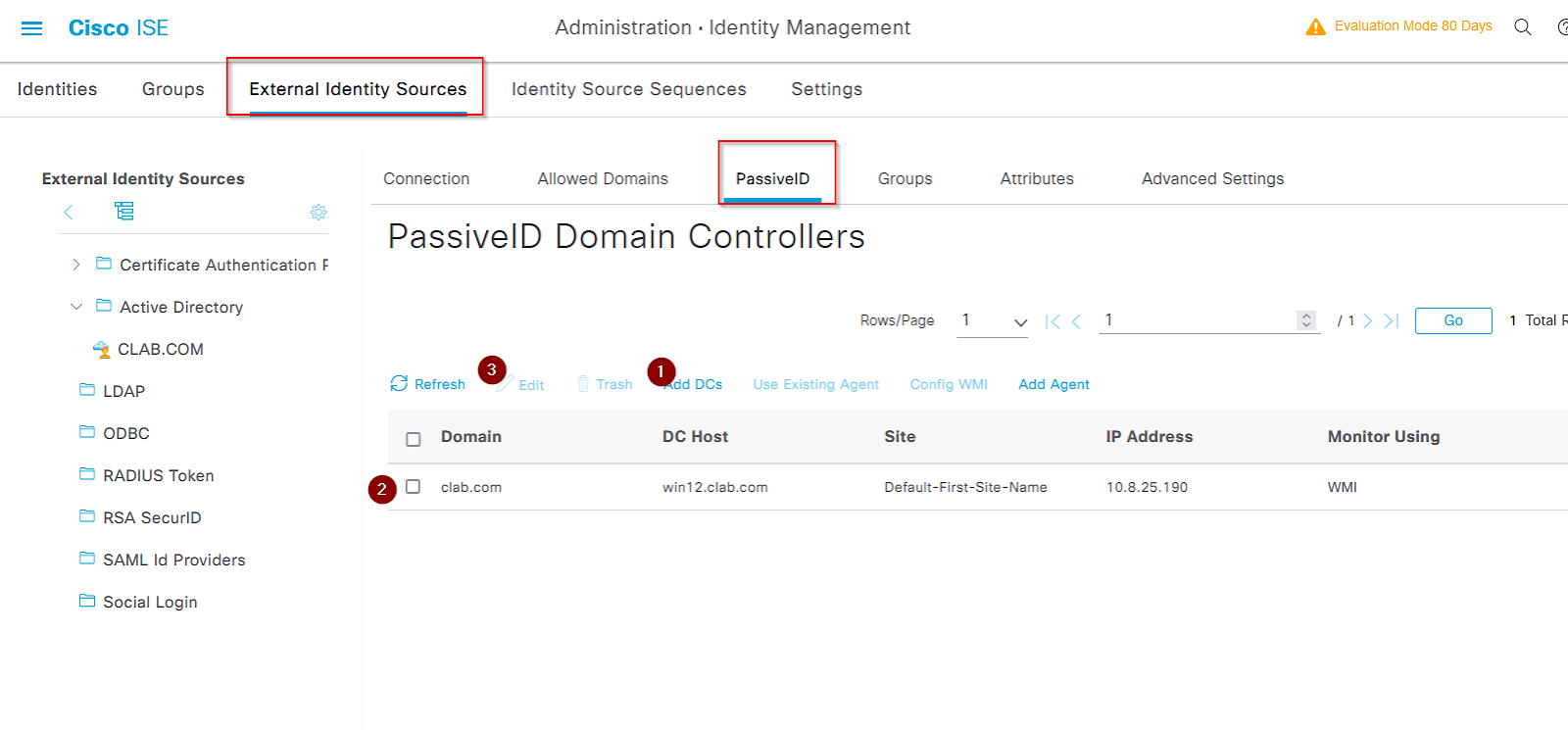

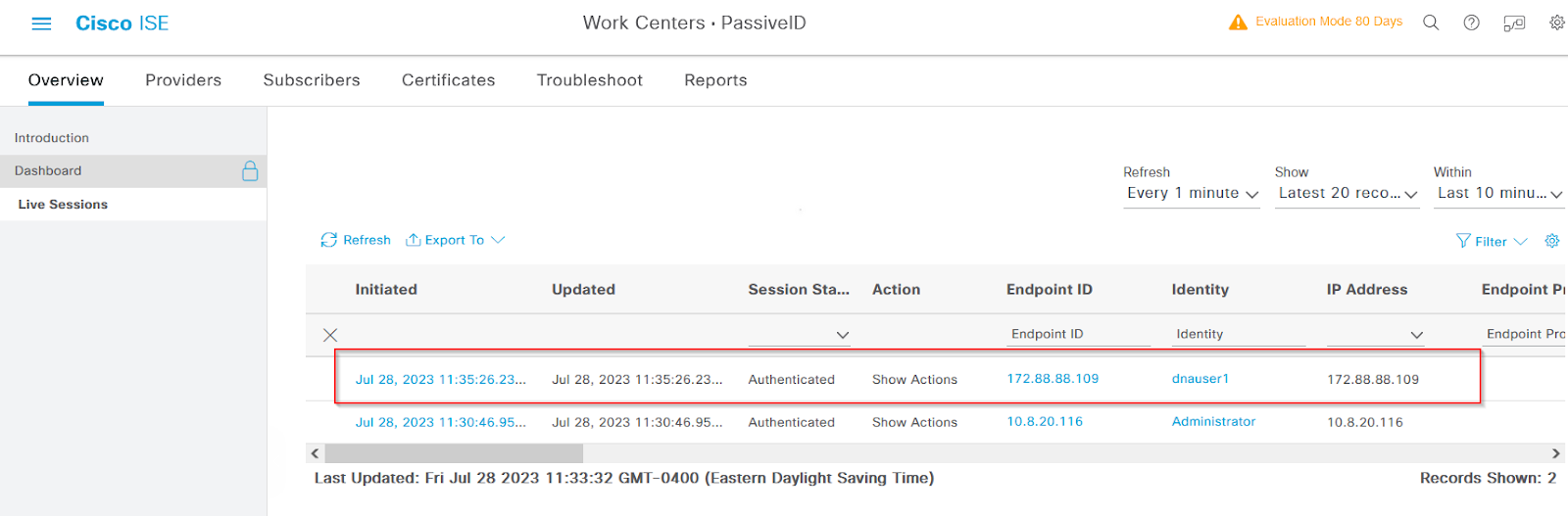

PassiveID Domain

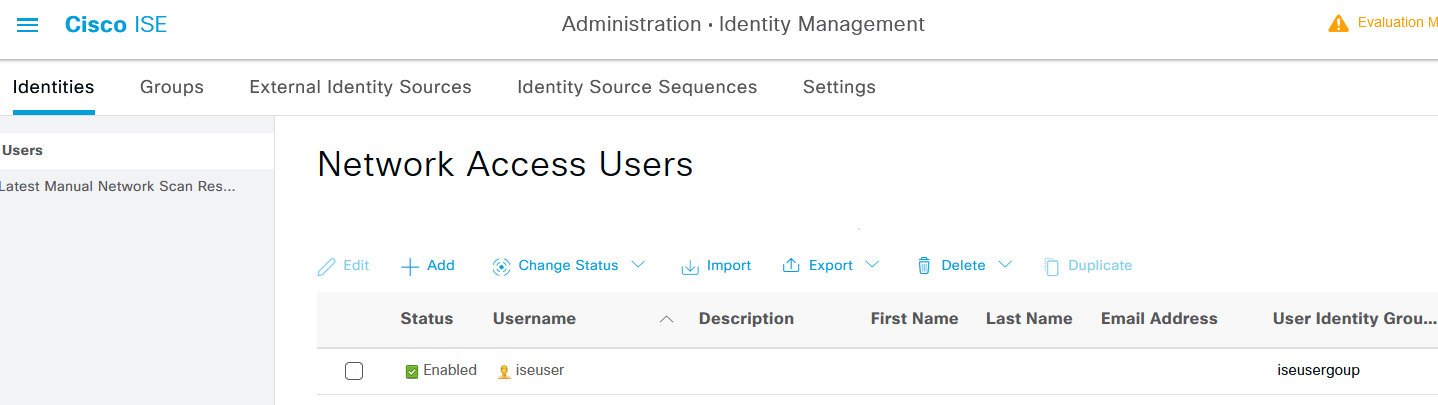

Internal user

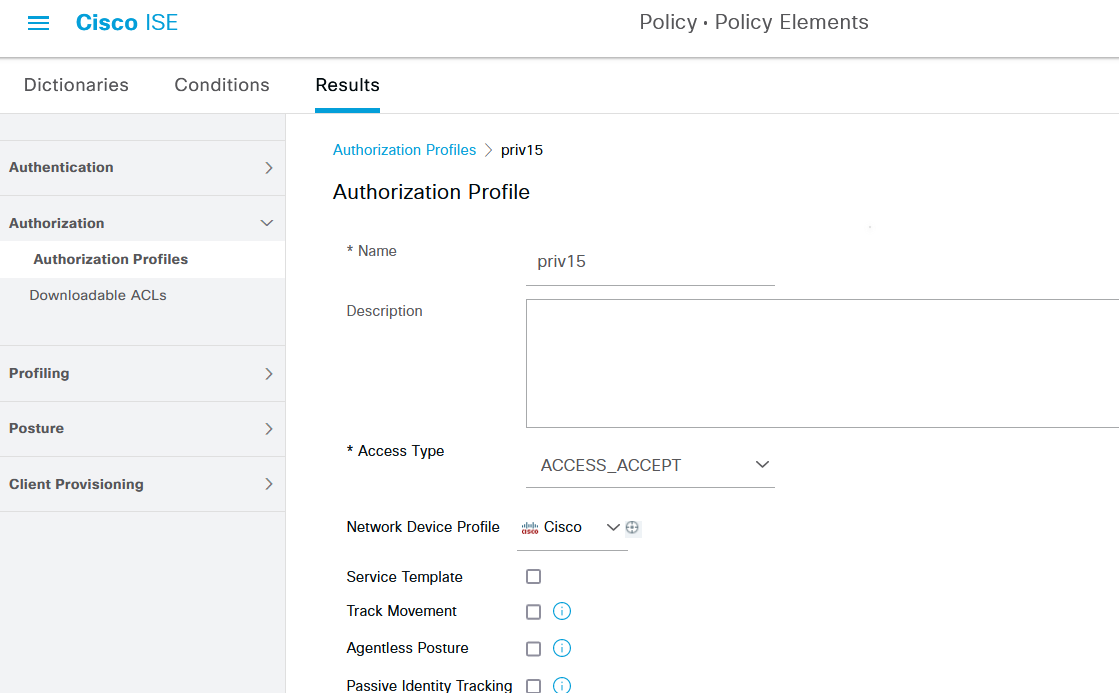

Authorization profile - priv15

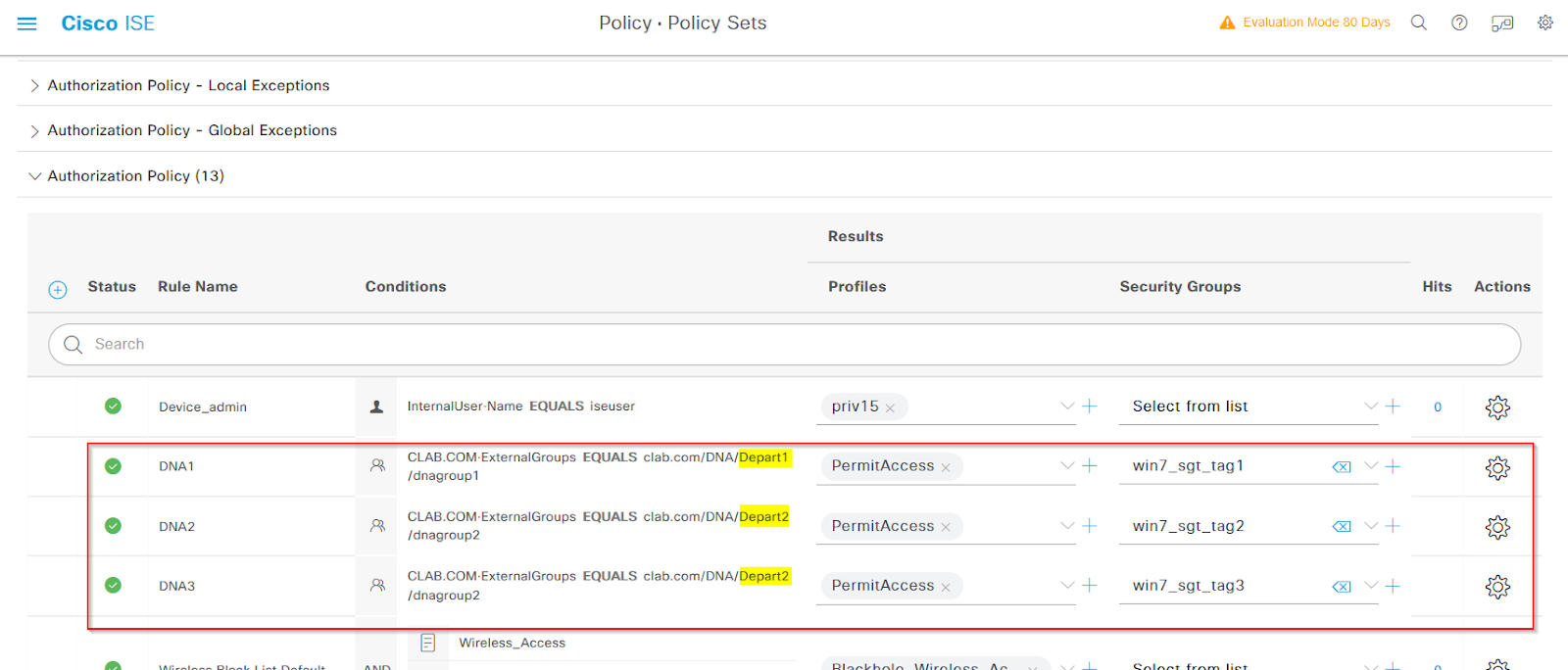

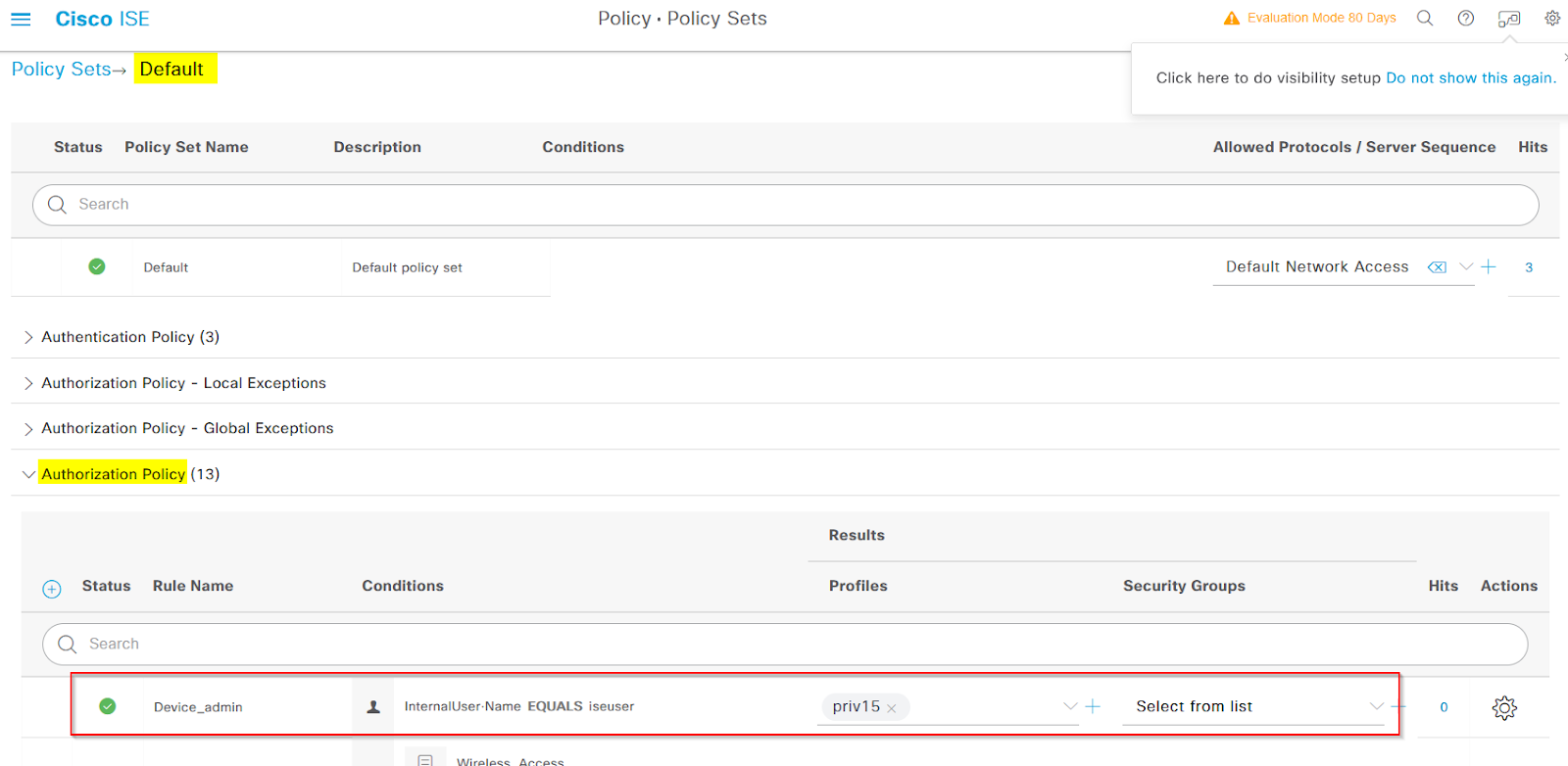

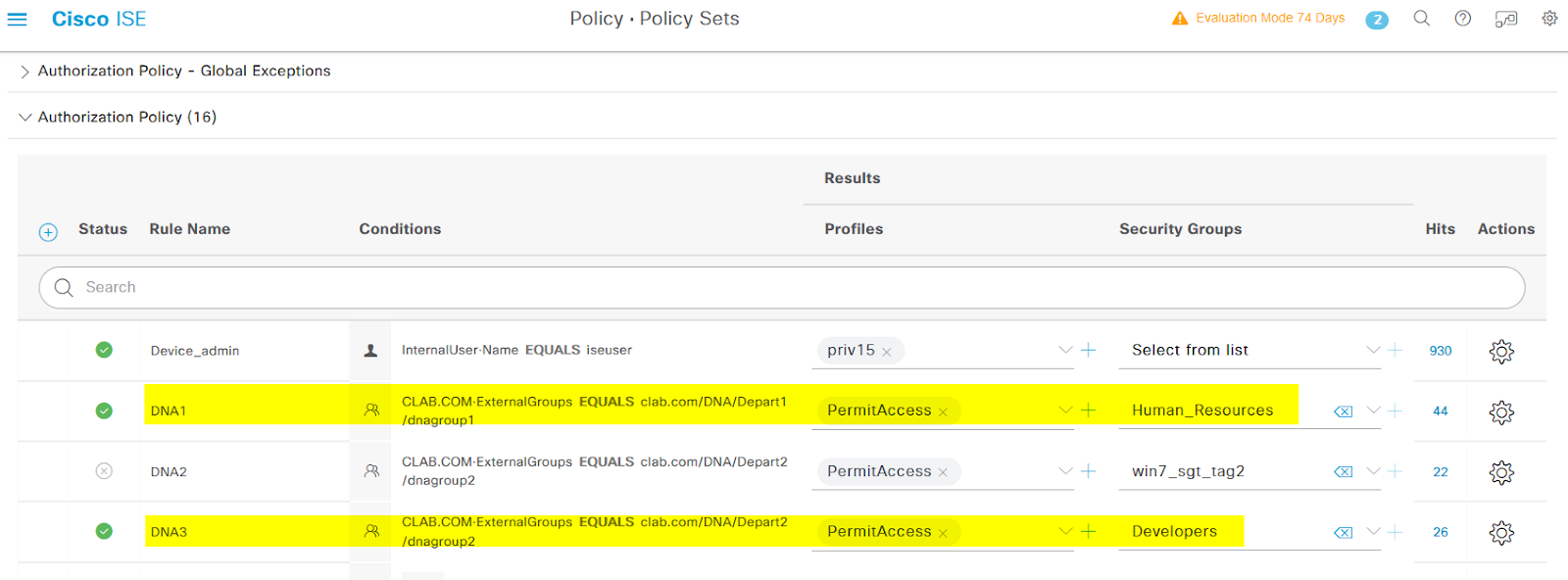

Policy sets - Authorization policy

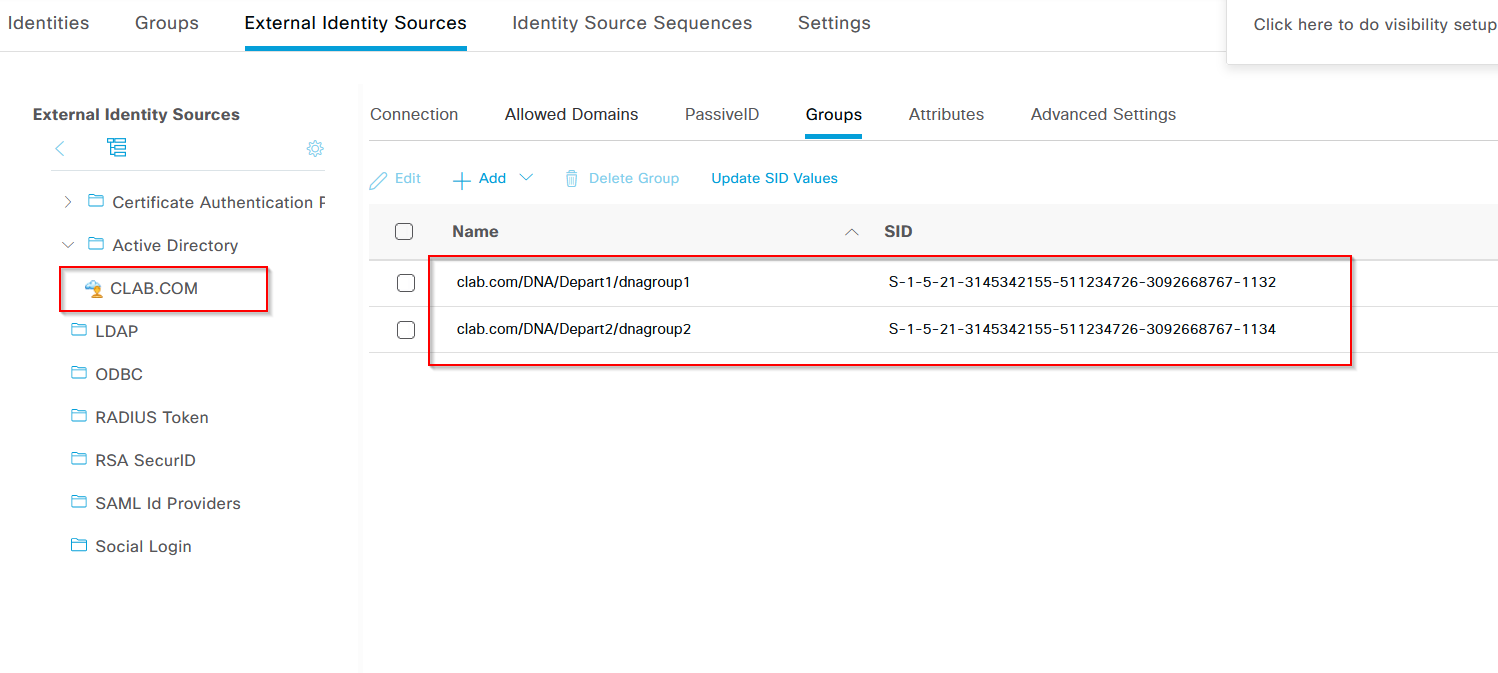

Authorization for External AD group and assign STG tag

Enable ERS

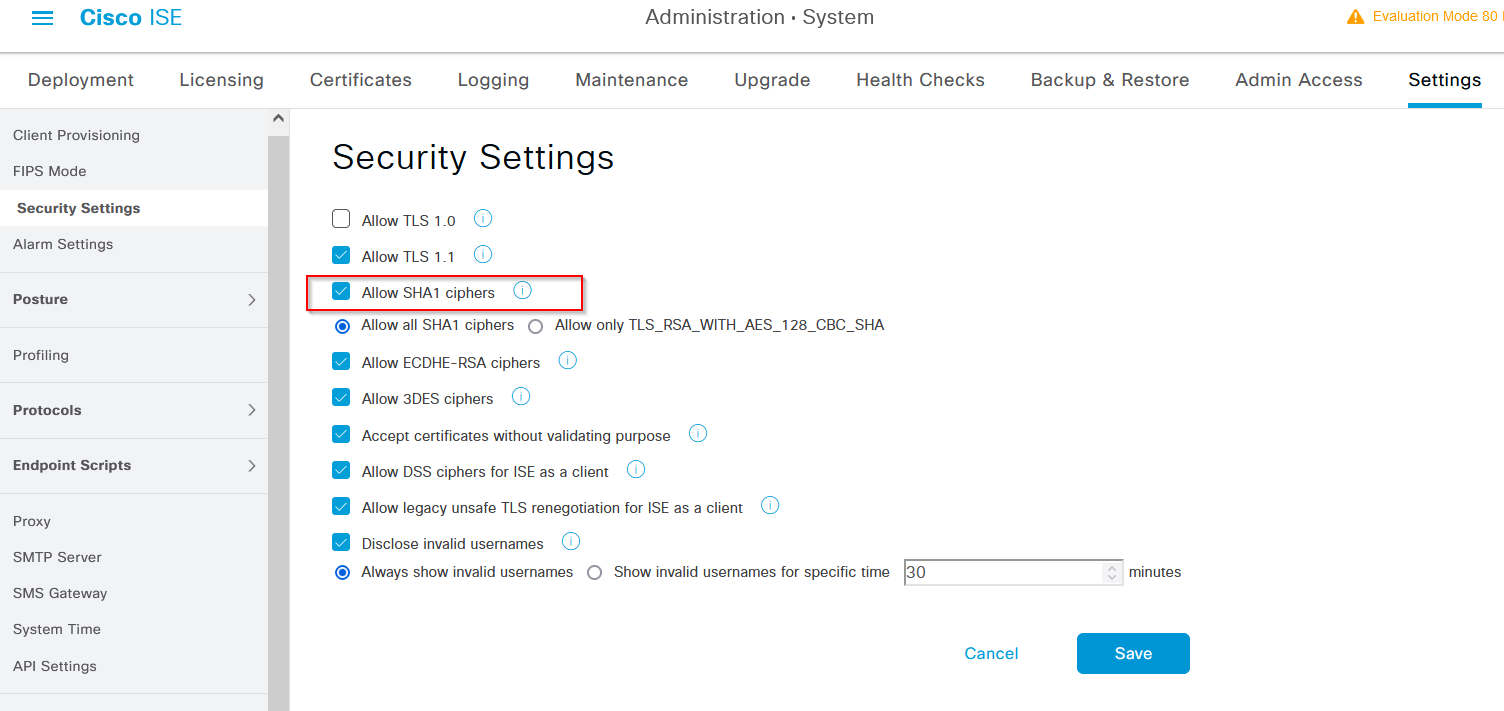

Enable SHA1

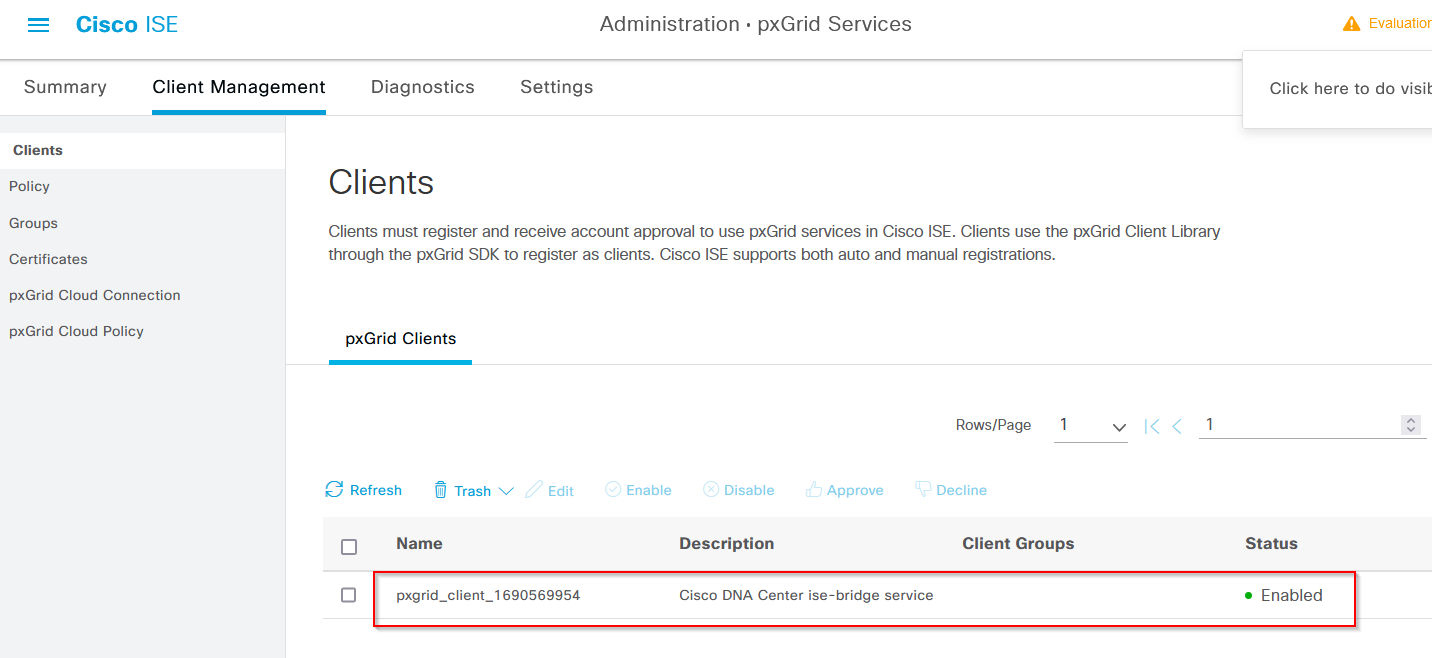

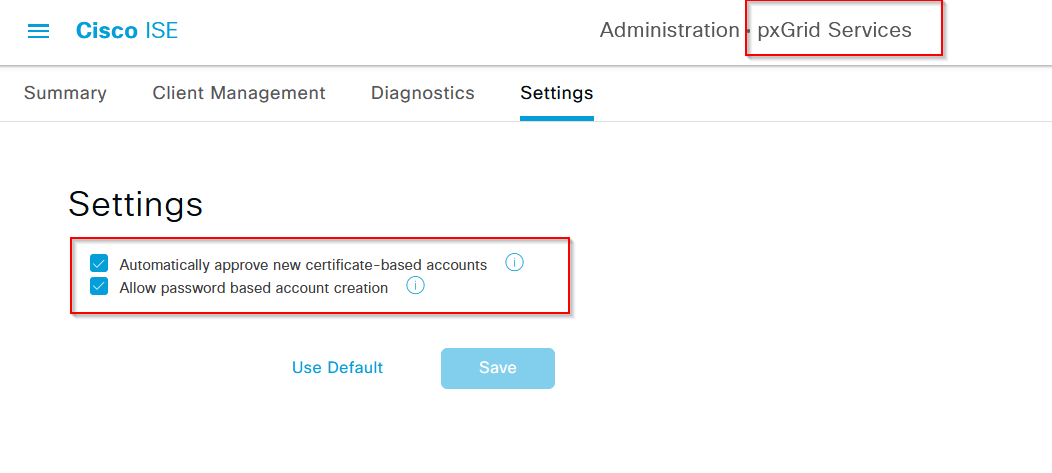

pxGrid auto-approve

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

DNA Integrates with ISE

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

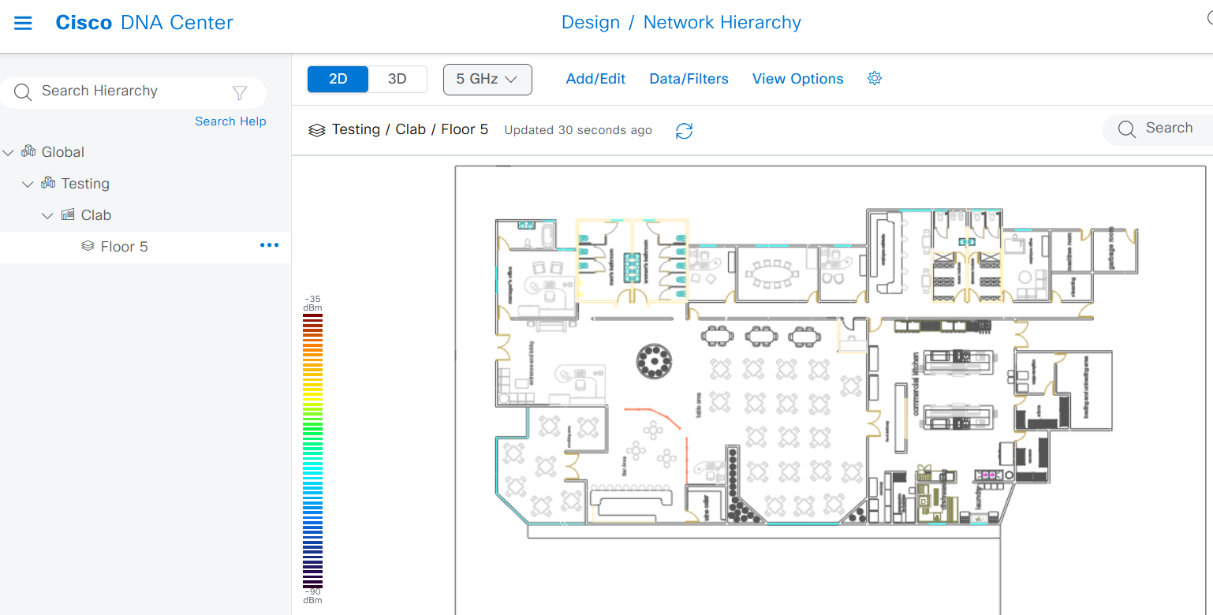

Add network hierarchy

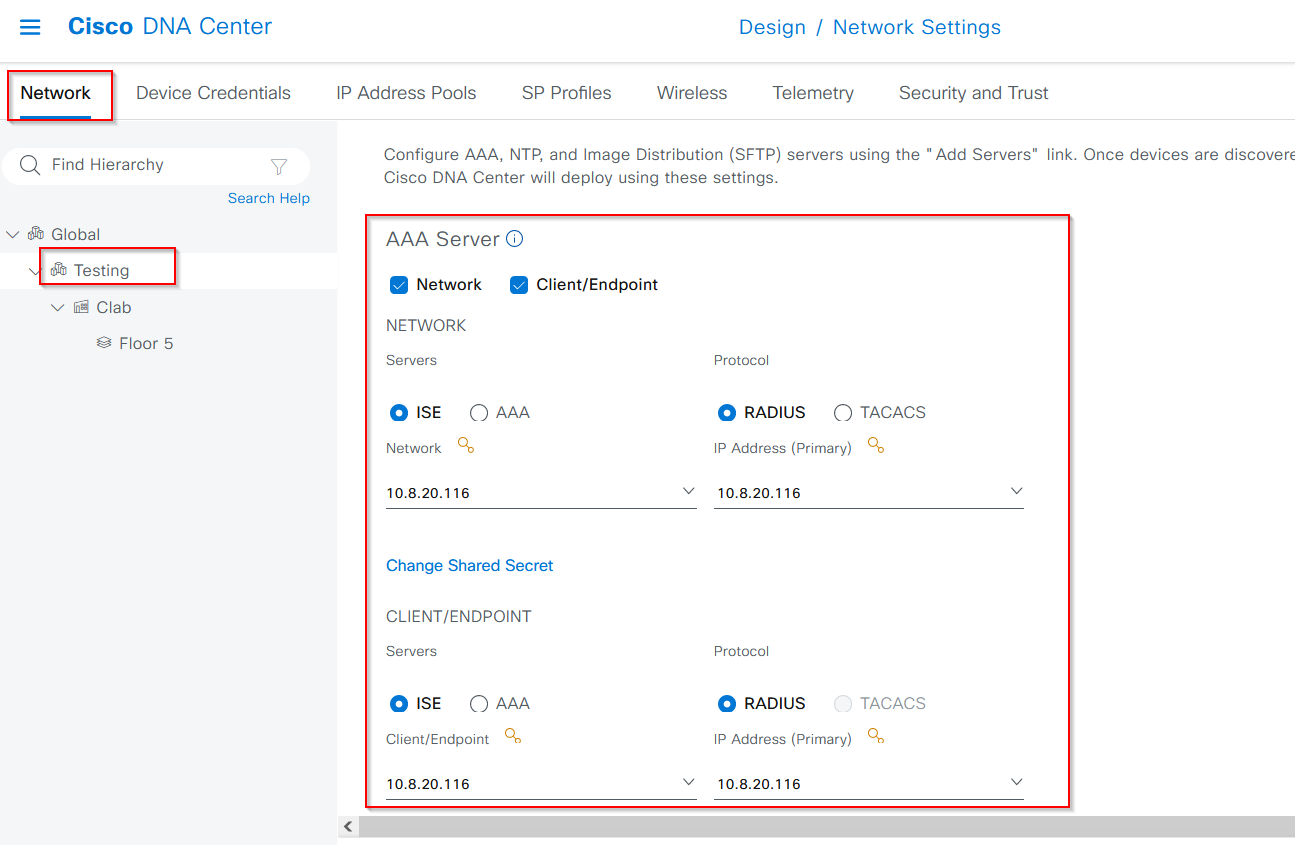

Add AAA server (** Under Global please)

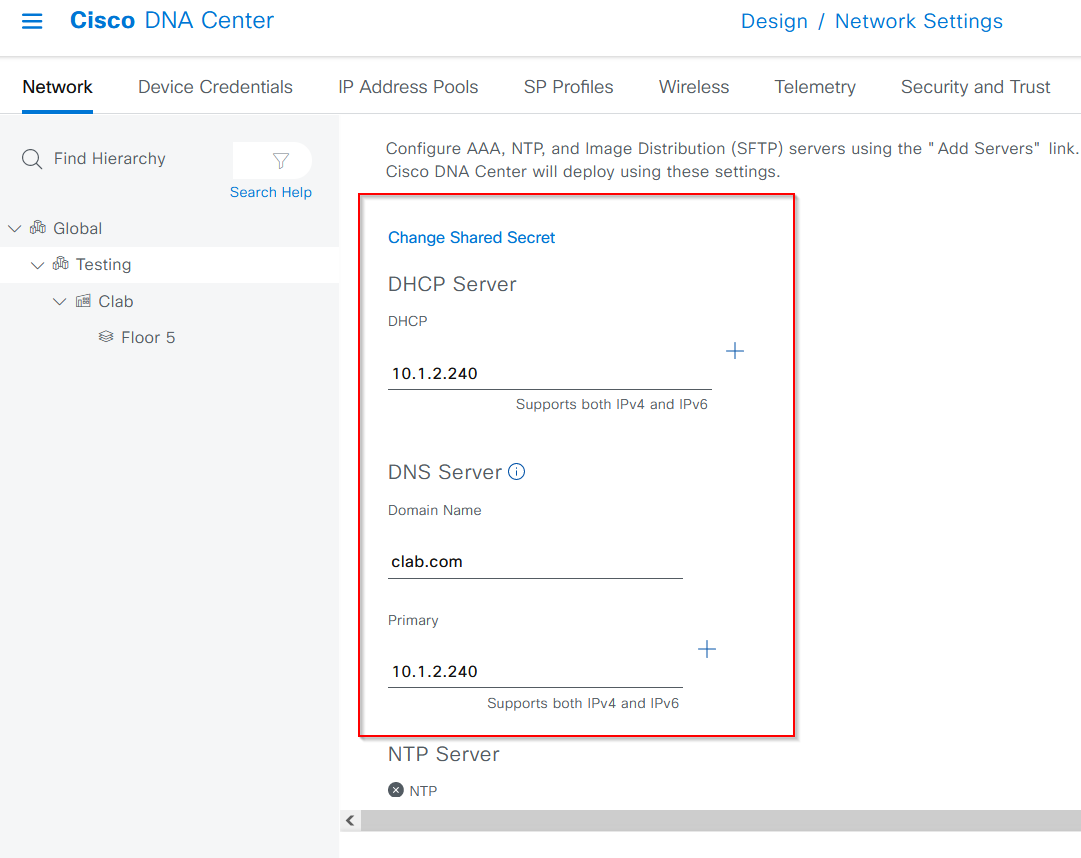

DHCP / DNS/ NTP

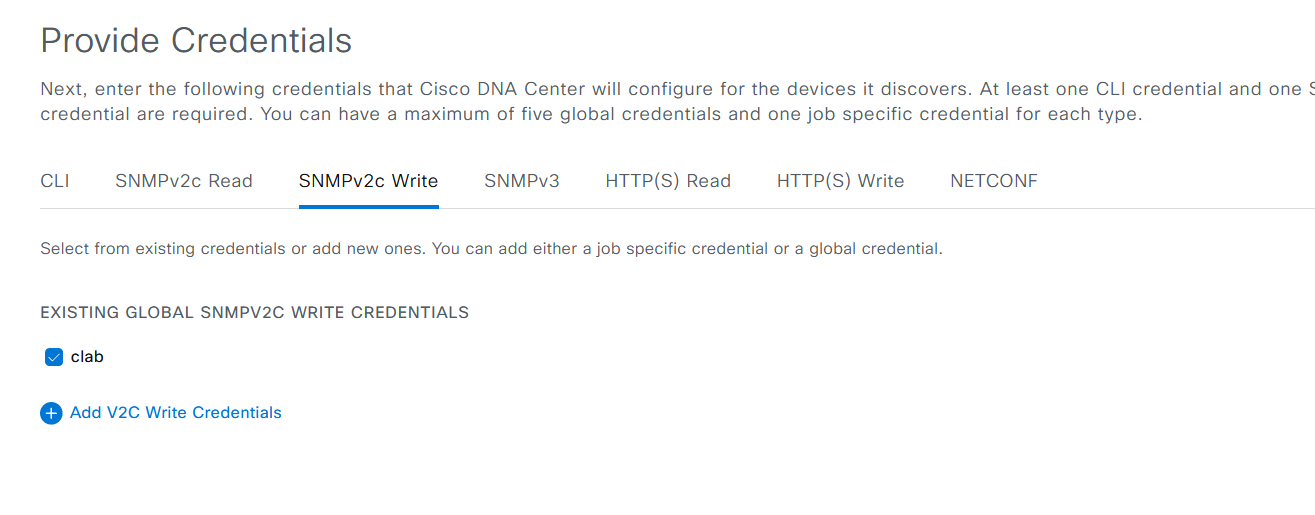

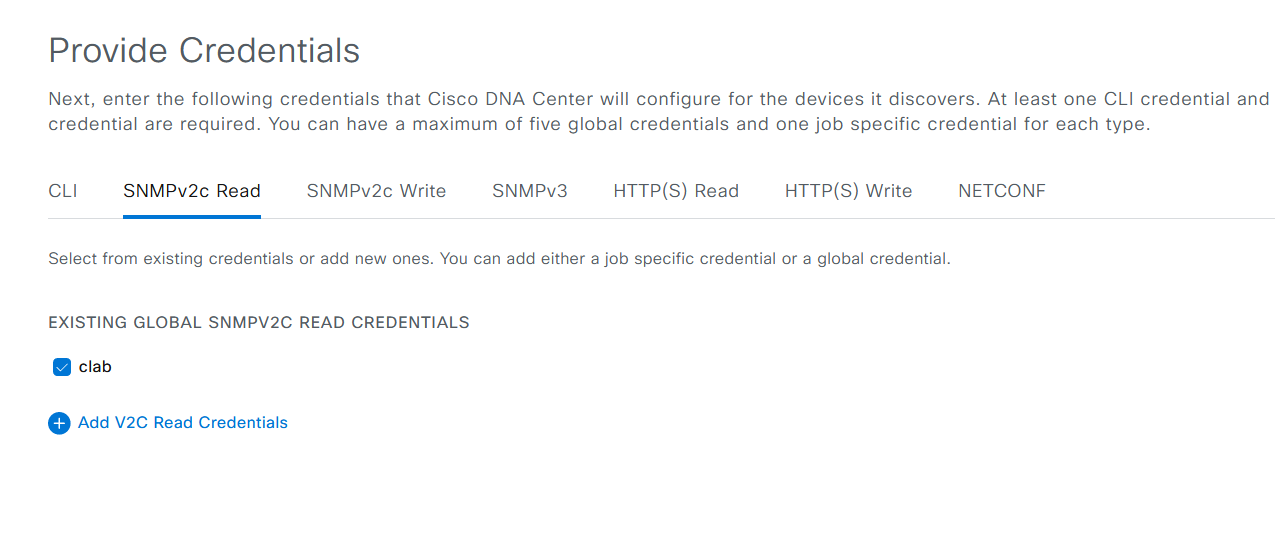

Device credentials

...

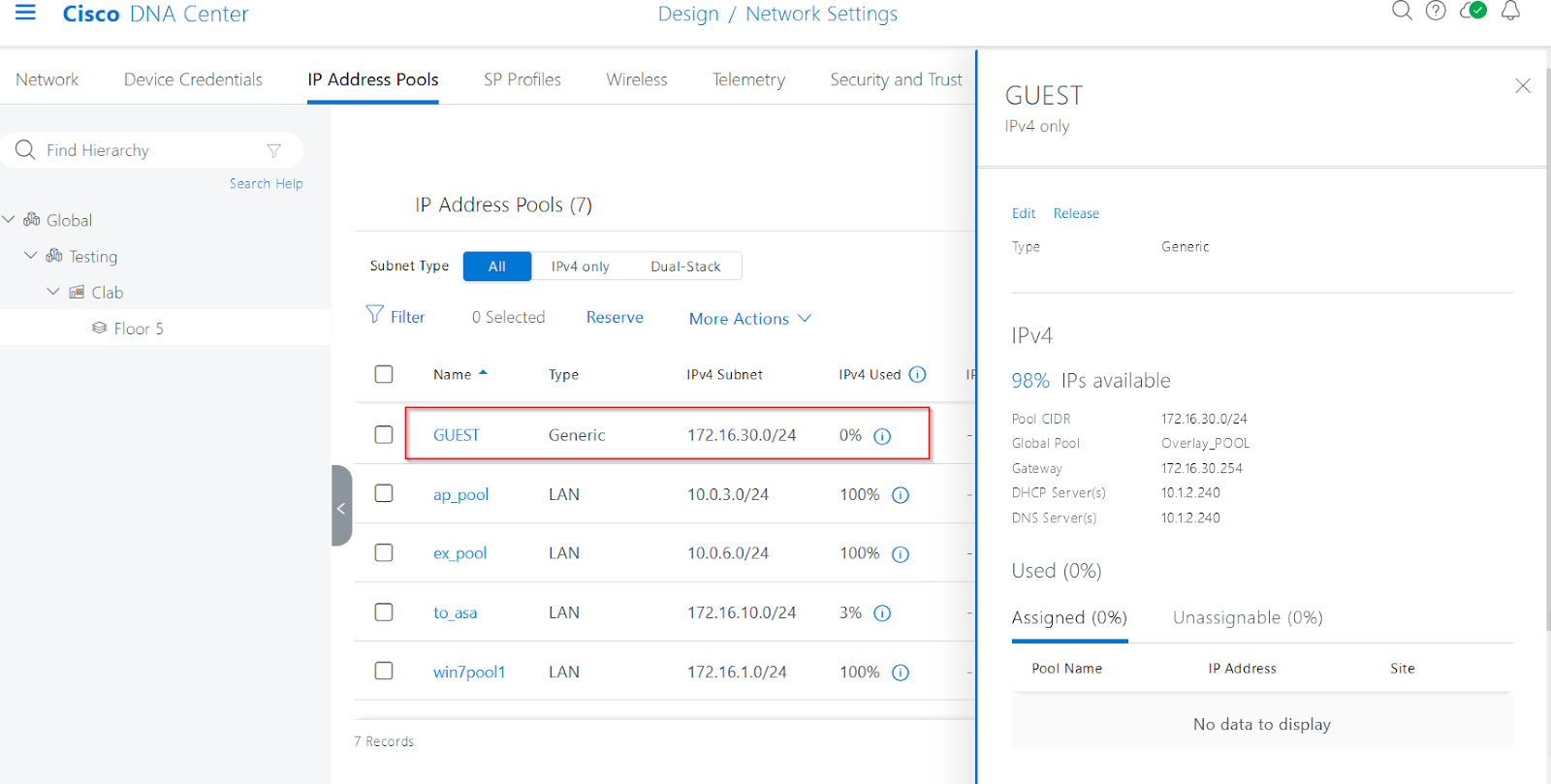

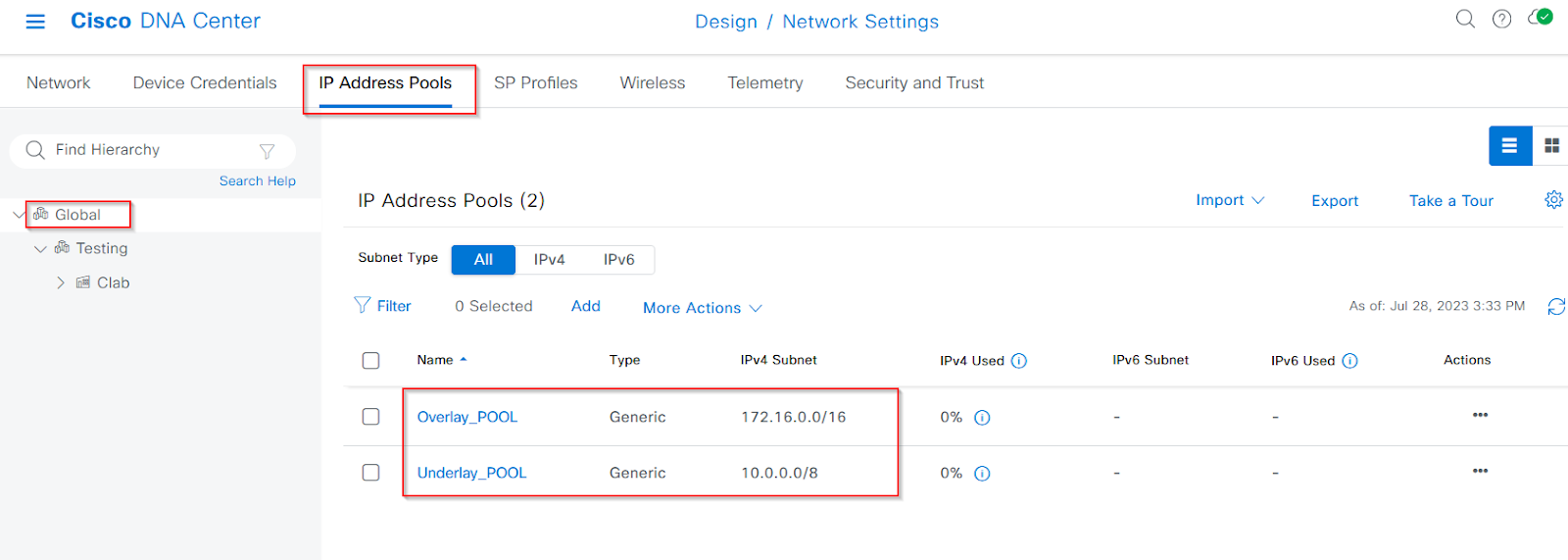

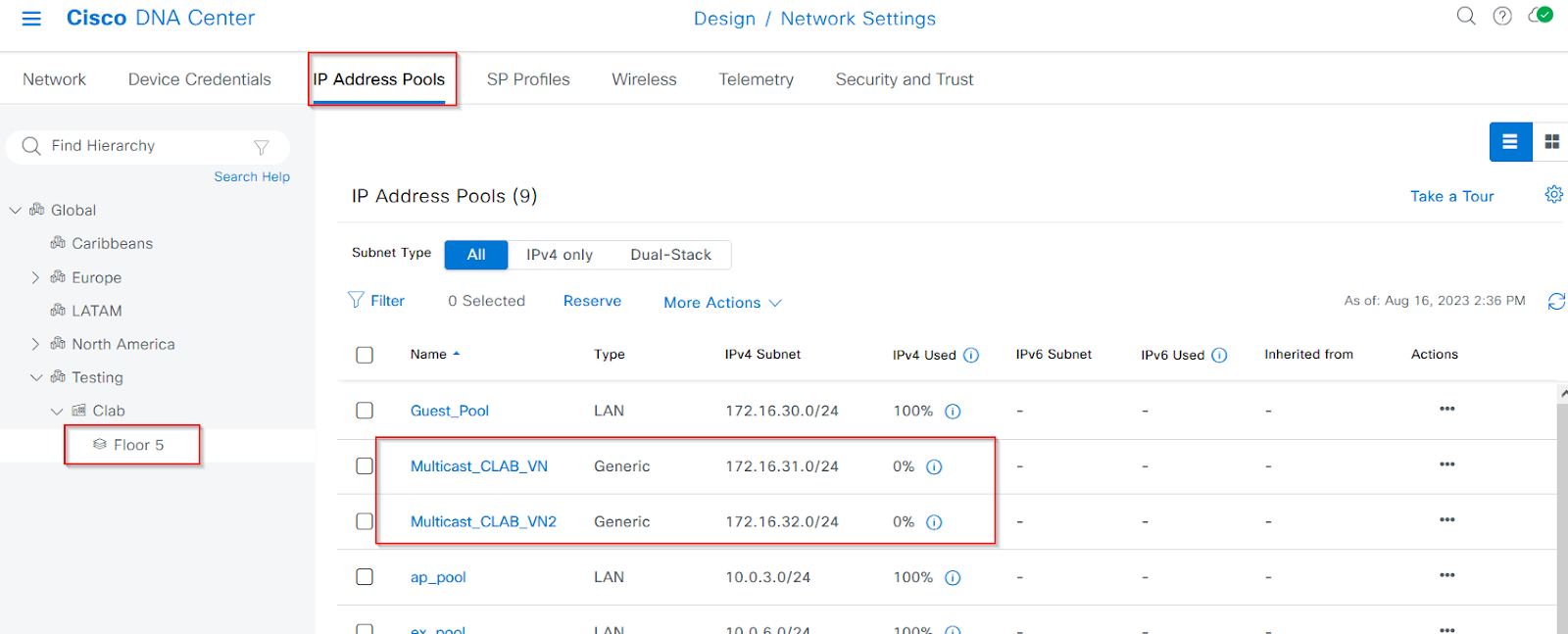

Global Address Pools

Reserve address pools

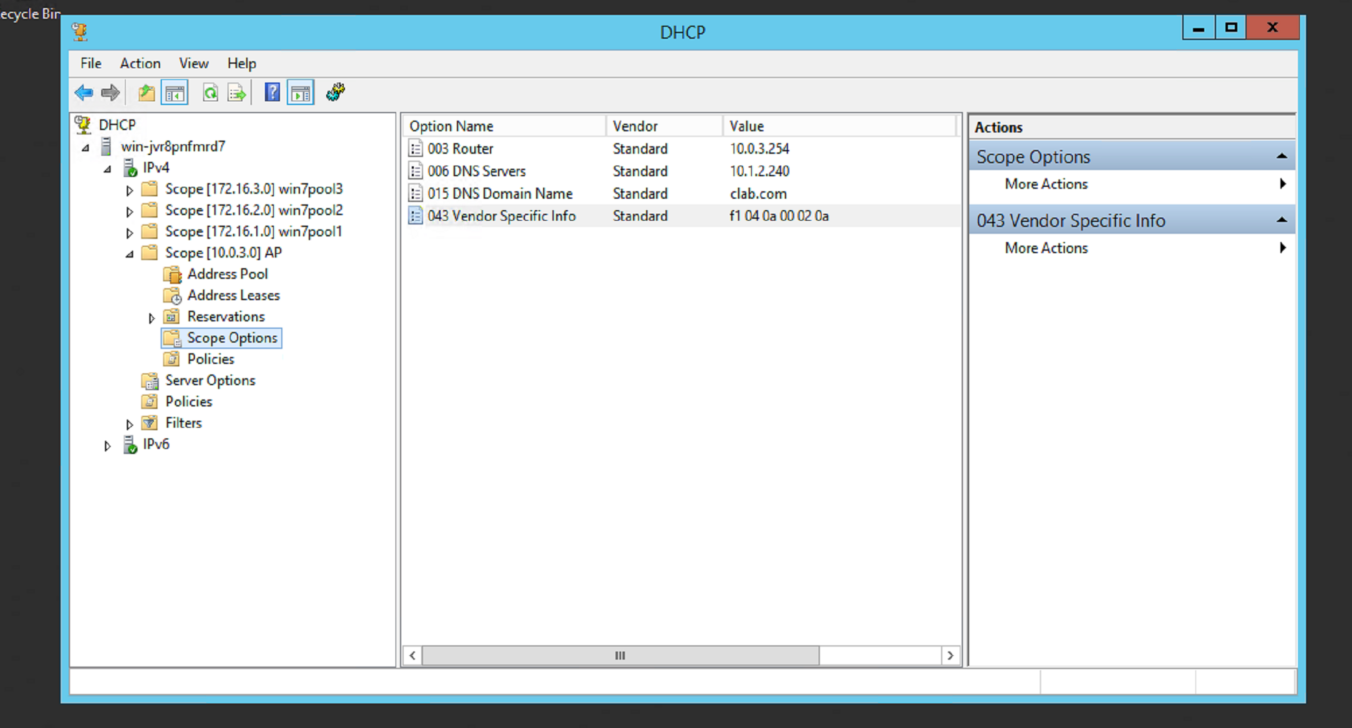

Pools in DHCP server

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

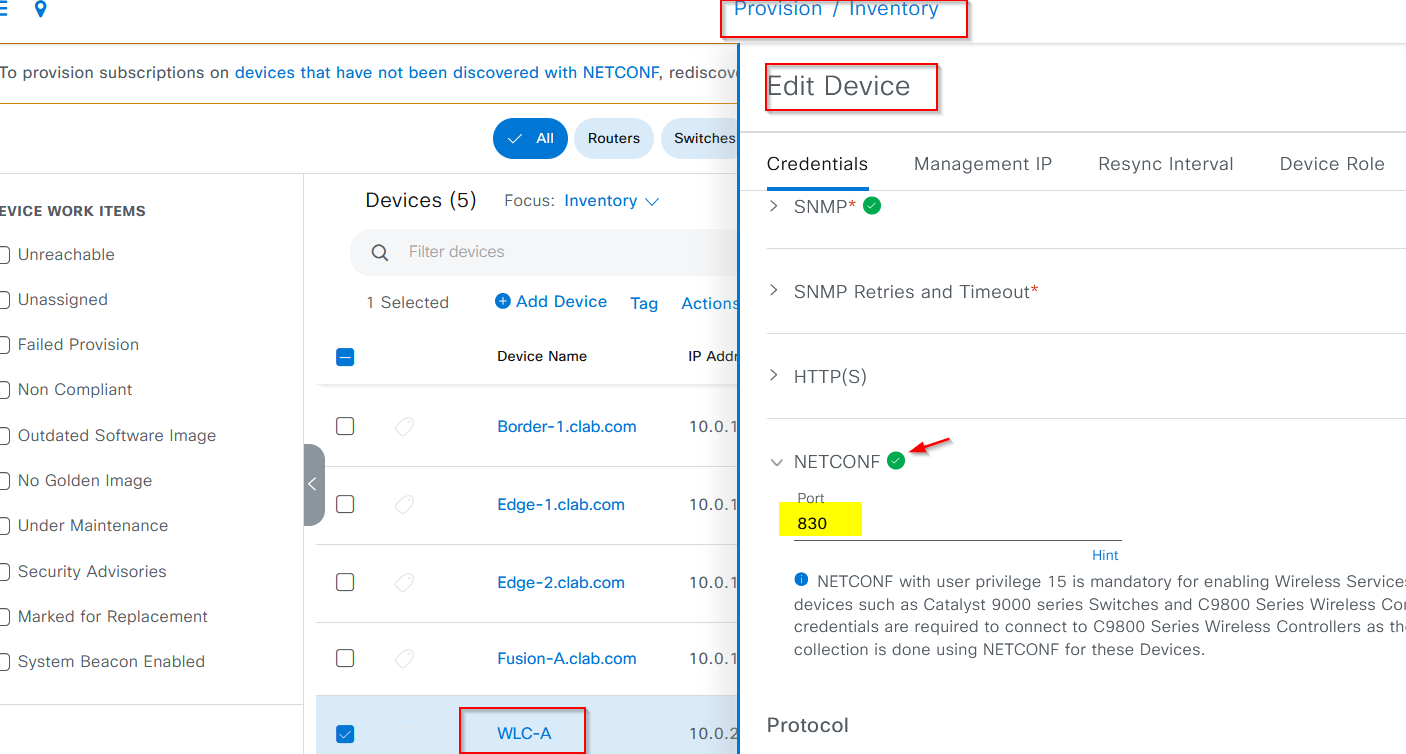

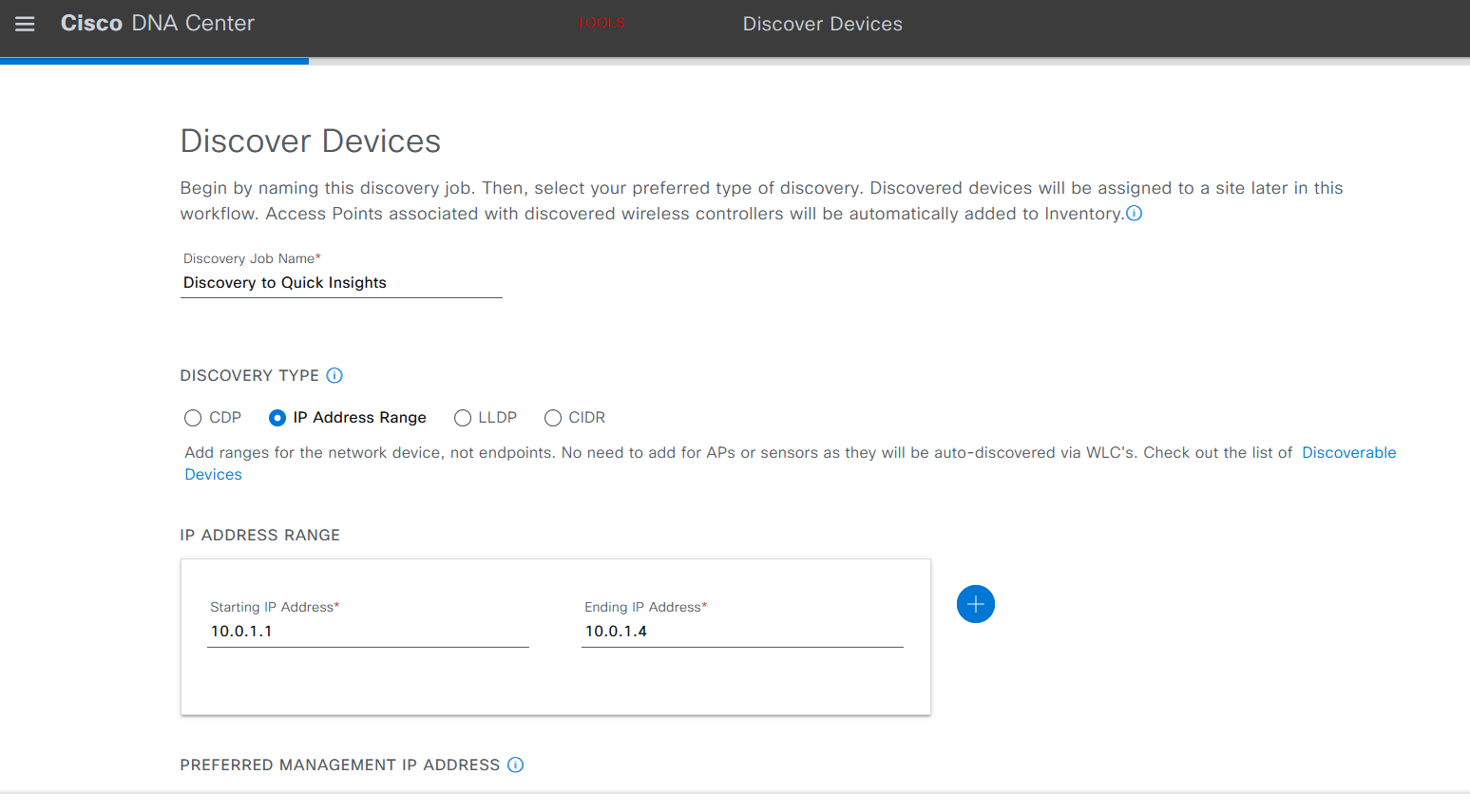

Discovery and Provision

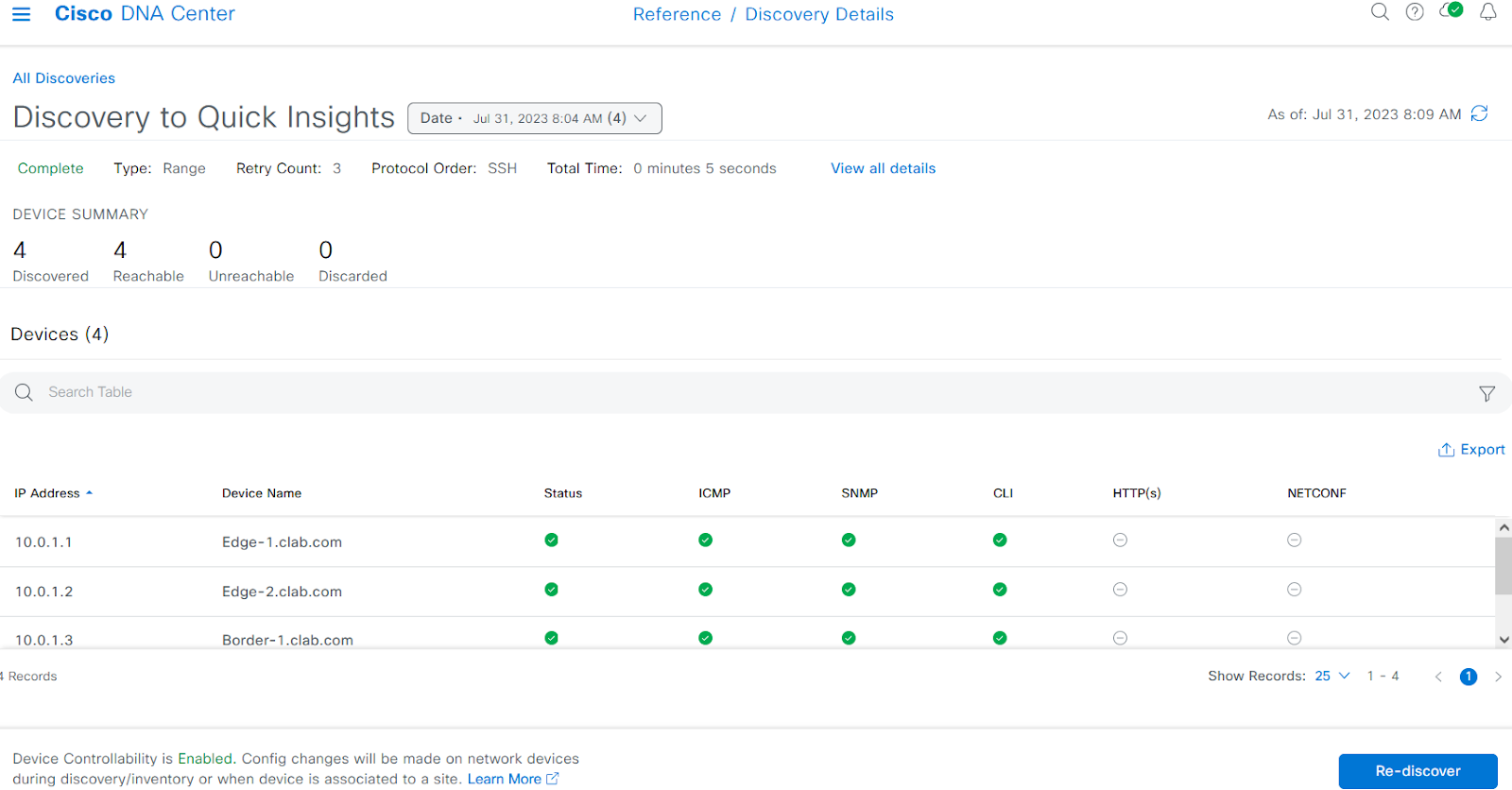

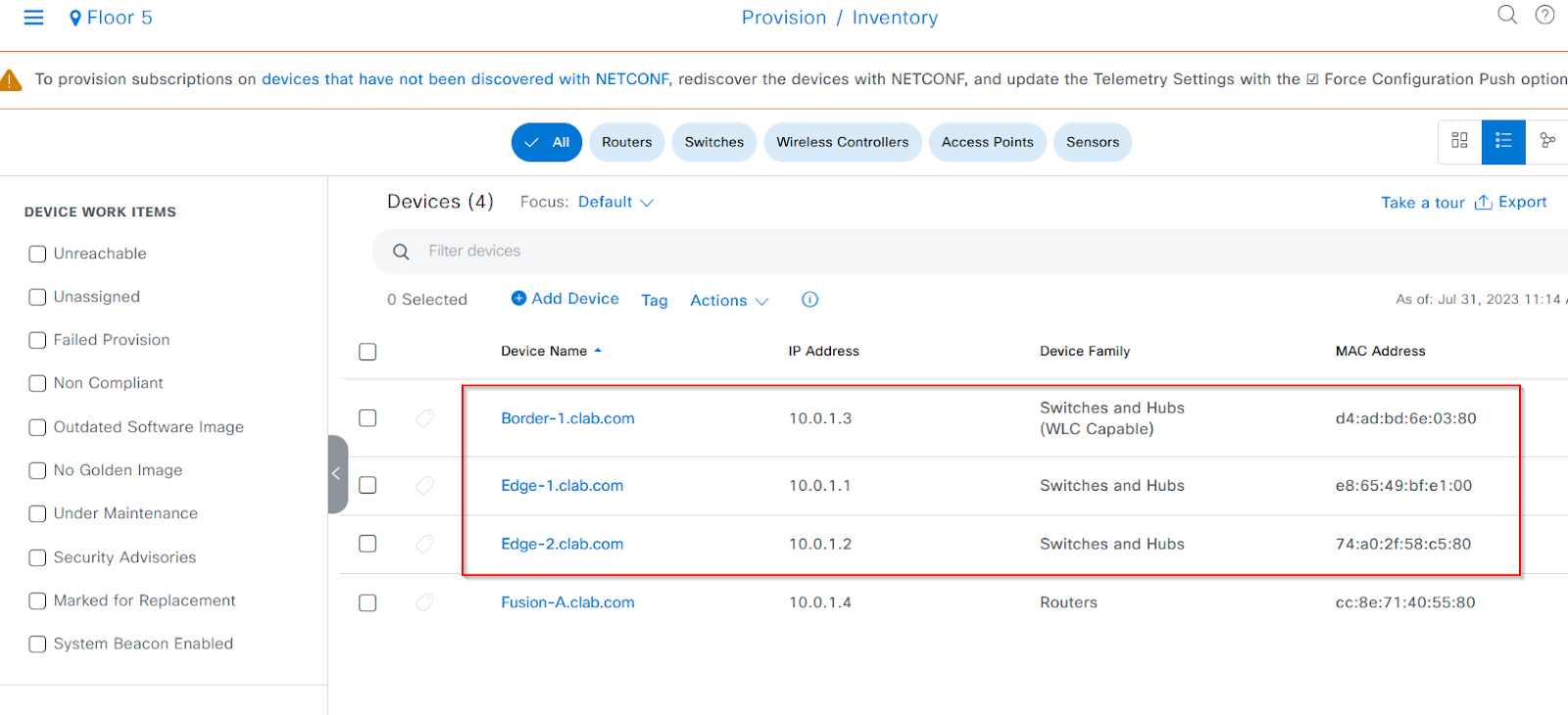

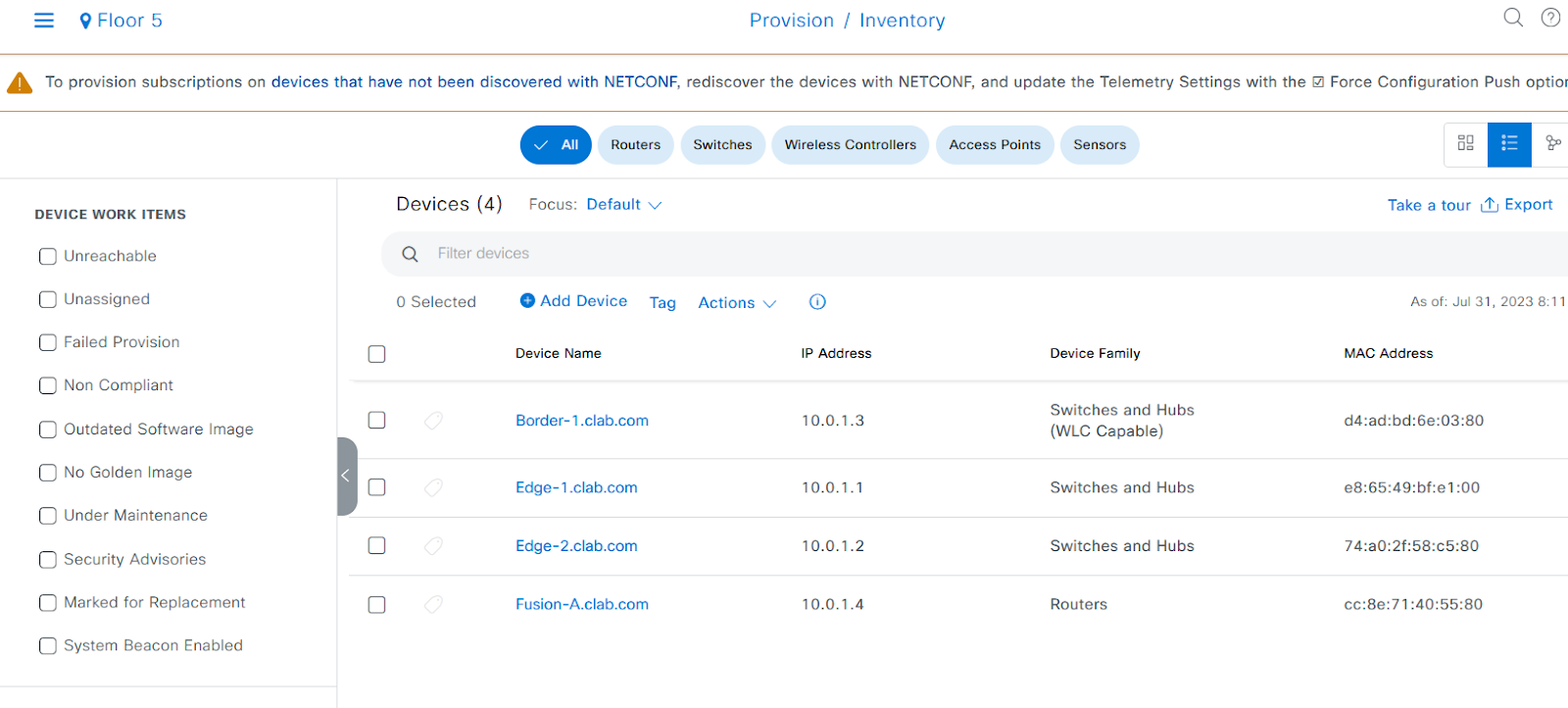

Verify discovery

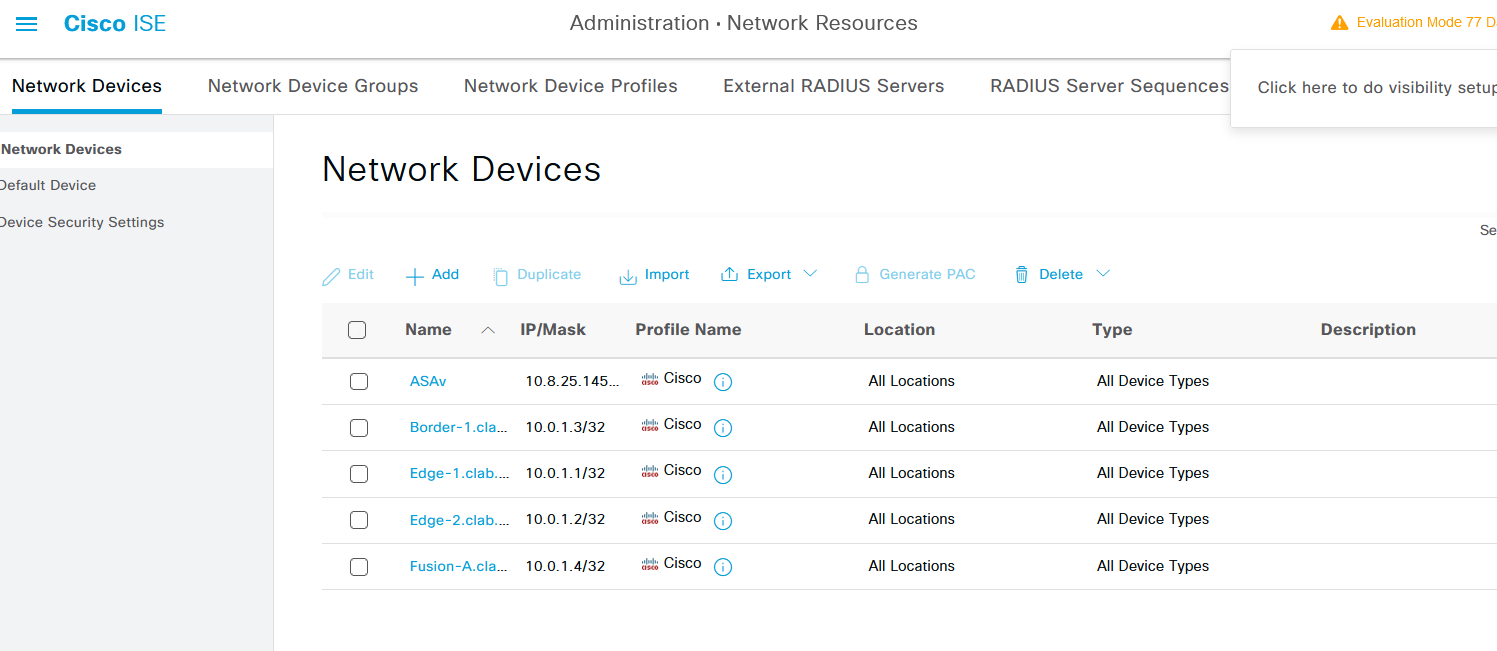

Verify manage devices in ISE

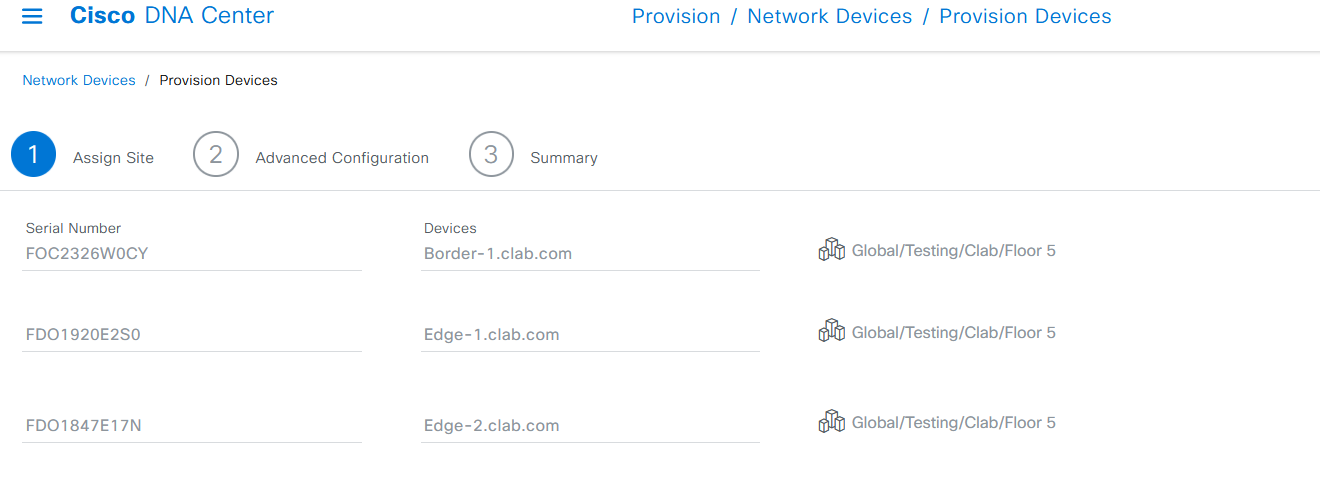

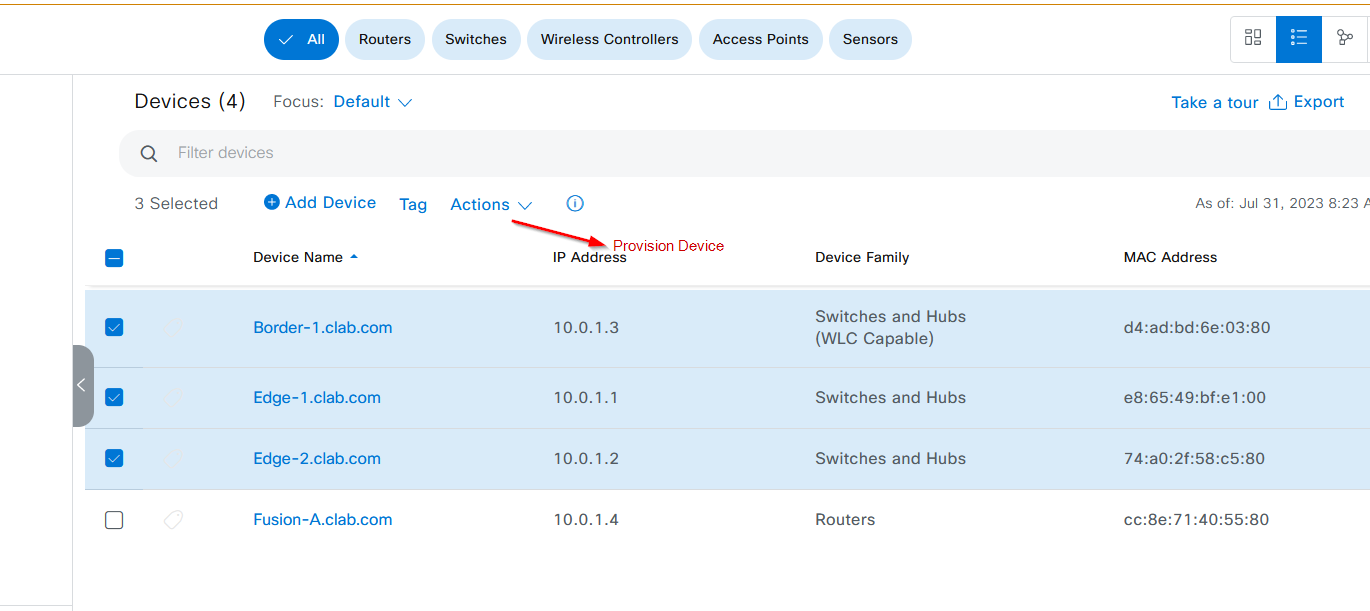

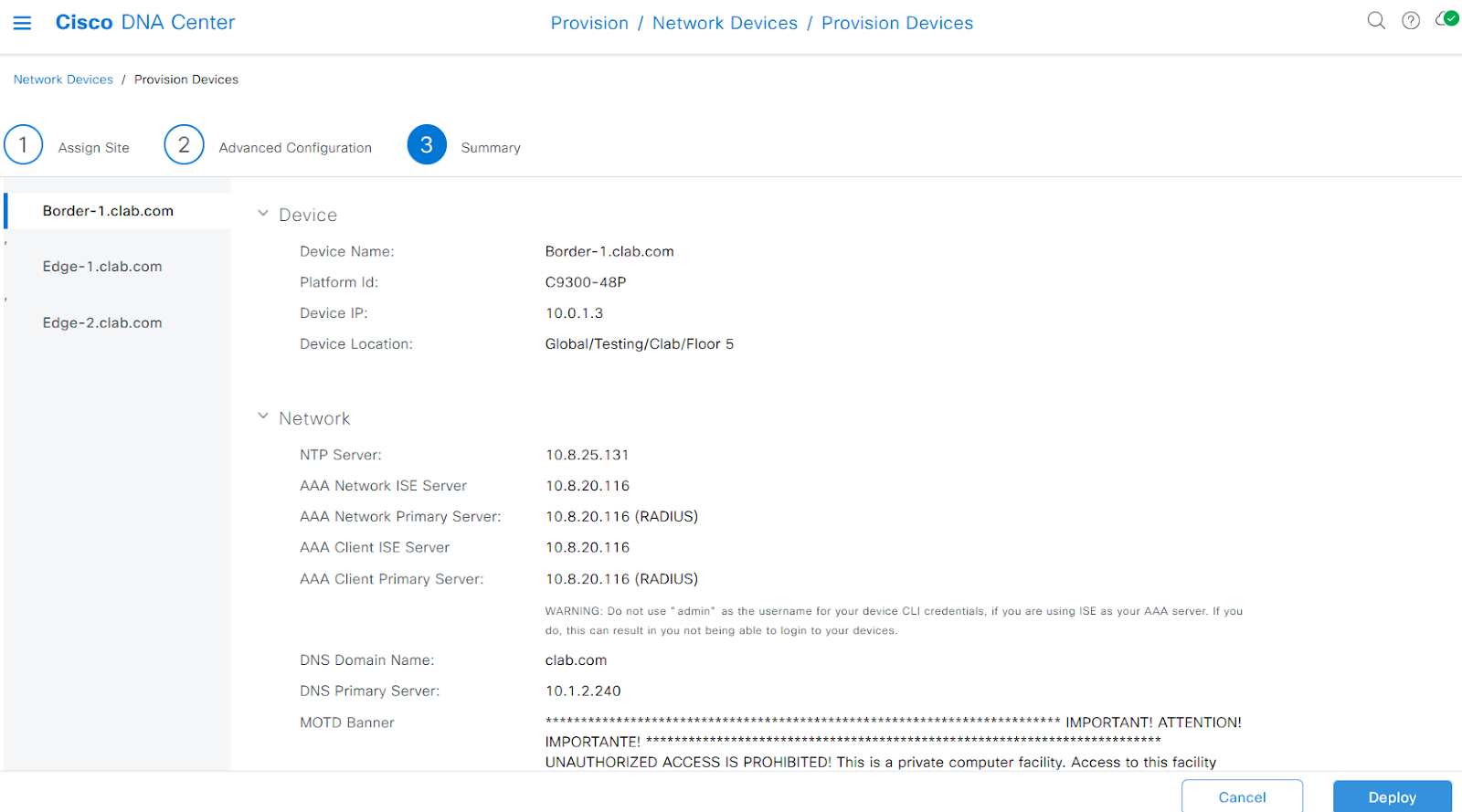

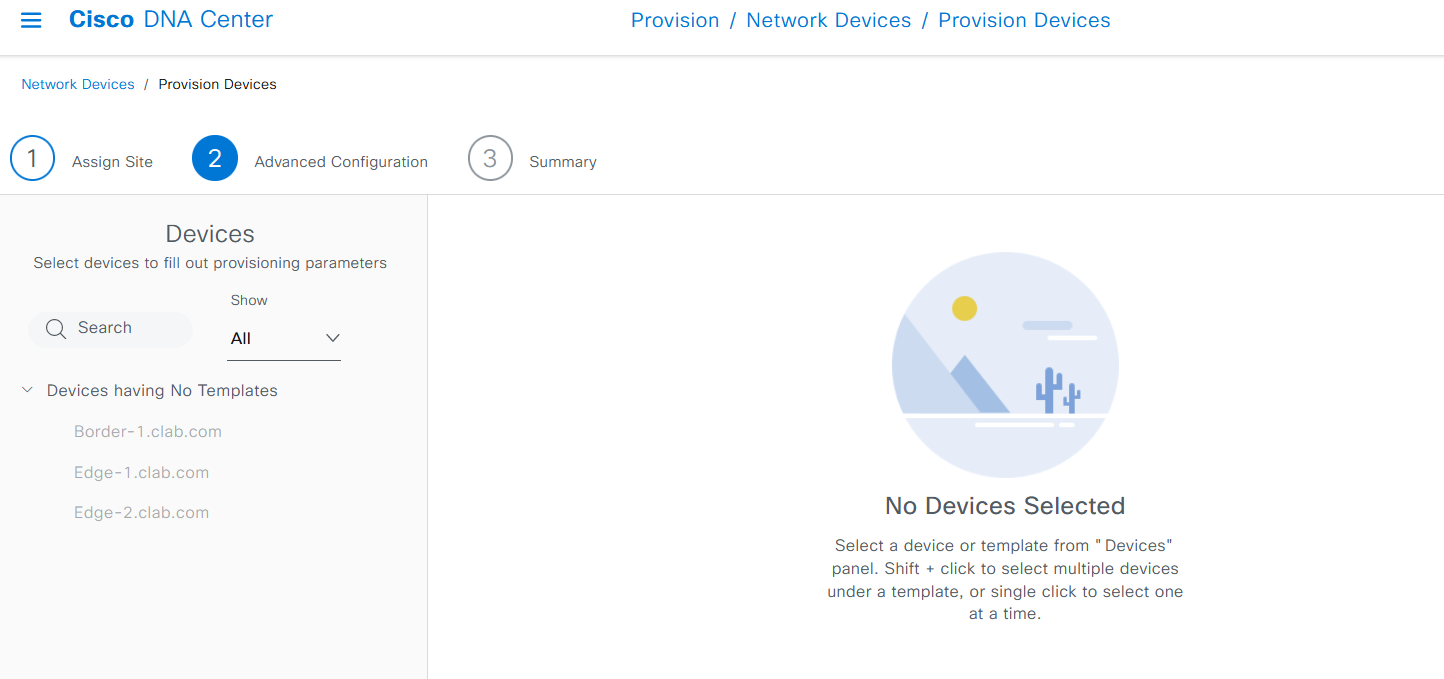

Provision devices except fusion router

Final state

Verify AAA login working

Edge-2#test aaa group dnac-client-radius-group iseuser <Your_Password>1 new-code

Verify CTS working

Border-1# cts refresh environment-data

Environment data download in progress

Border-1#show cts environment-data

CTS Environment Data

====================

Current state = COMPLETE

Last status = Successful

Service Info Table:

Local Device SGT:

SGT tag = 2-00:TrustSec_Devices

Server List Info:

Installed list: CTSServerList1-0001, 1 server(s):

*Server: 10.8.20.116, port 1812, A-ID 911DC573492B20B34B554AE350A823BB

Status = ALIVE

auto-test = TRUE, keywrap-enable = FALSE, idle-time = 60 mins, deadtime = 20 secs

Security Group Name Table:

0-00:Unknown

2-00:TrustSec_Devices

3-00:Network_Services

4-00:Employees

5-00:Contractors

6-00:Guests

…

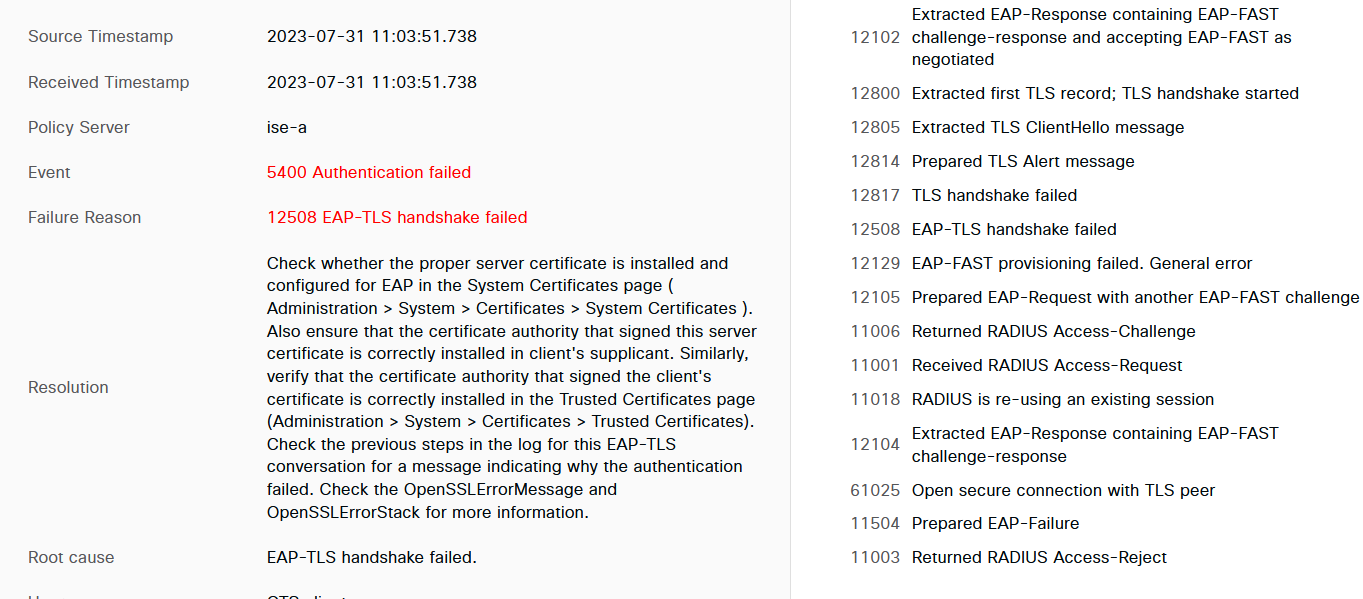

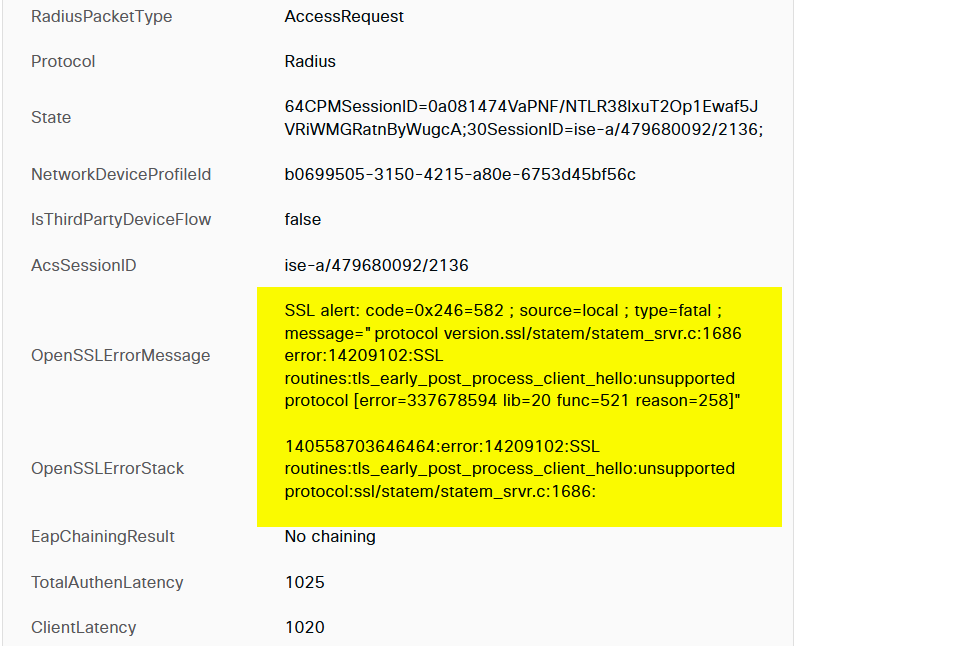

When 3650 switch, CTS will report error "5400 Authentication failed"

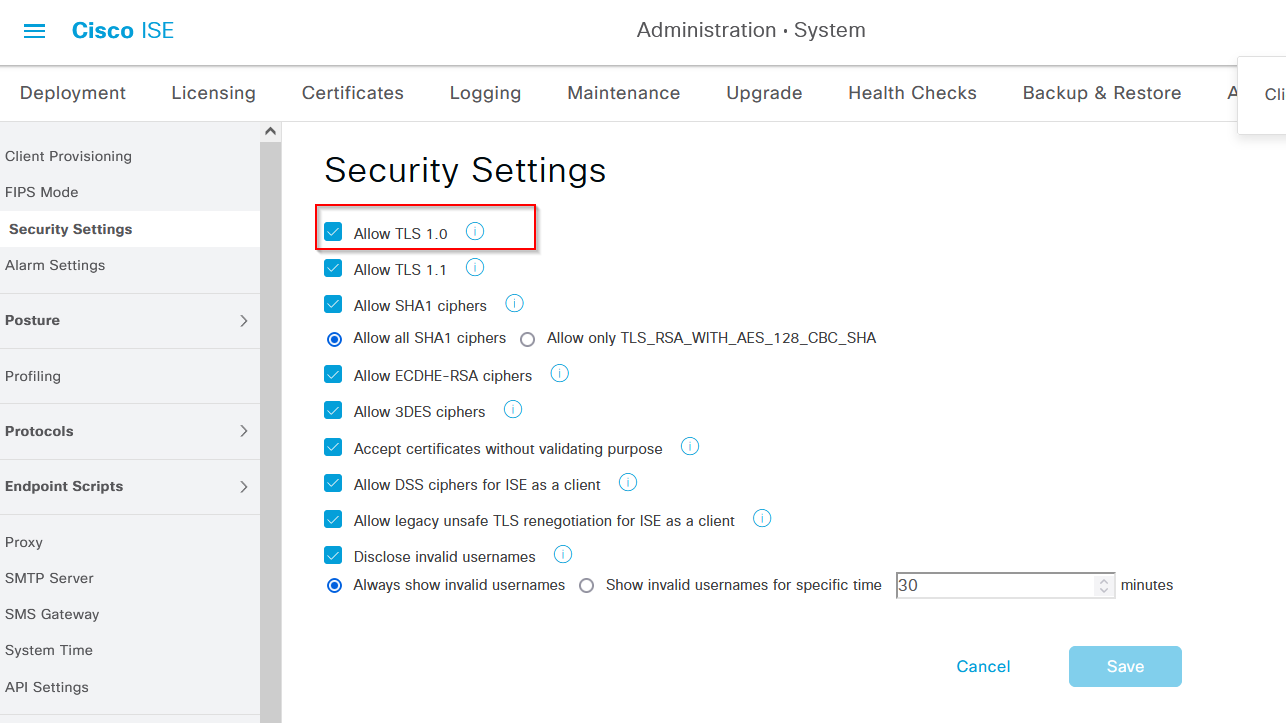

Enable TLS 1.0 to allow CTS pass

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

VN and Tags creations

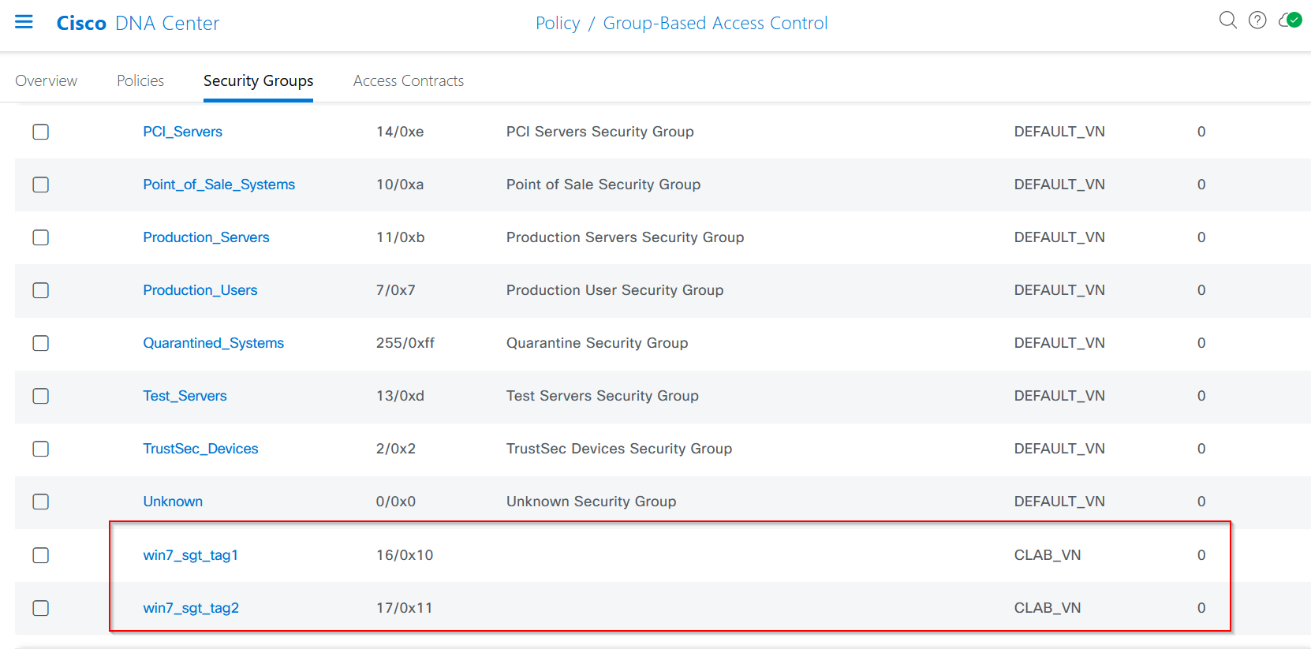

Click start migration to see newly created tags from ISE

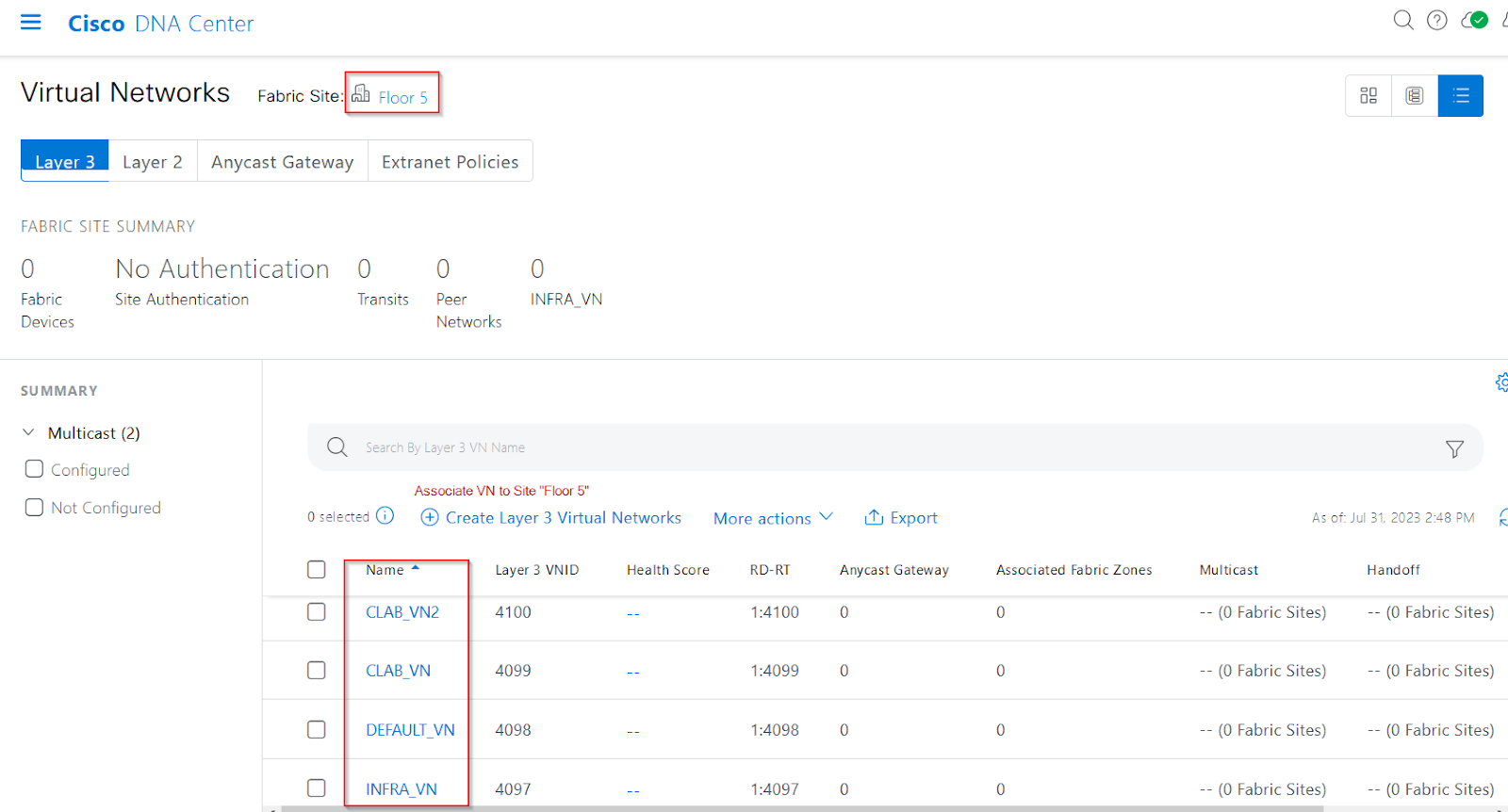

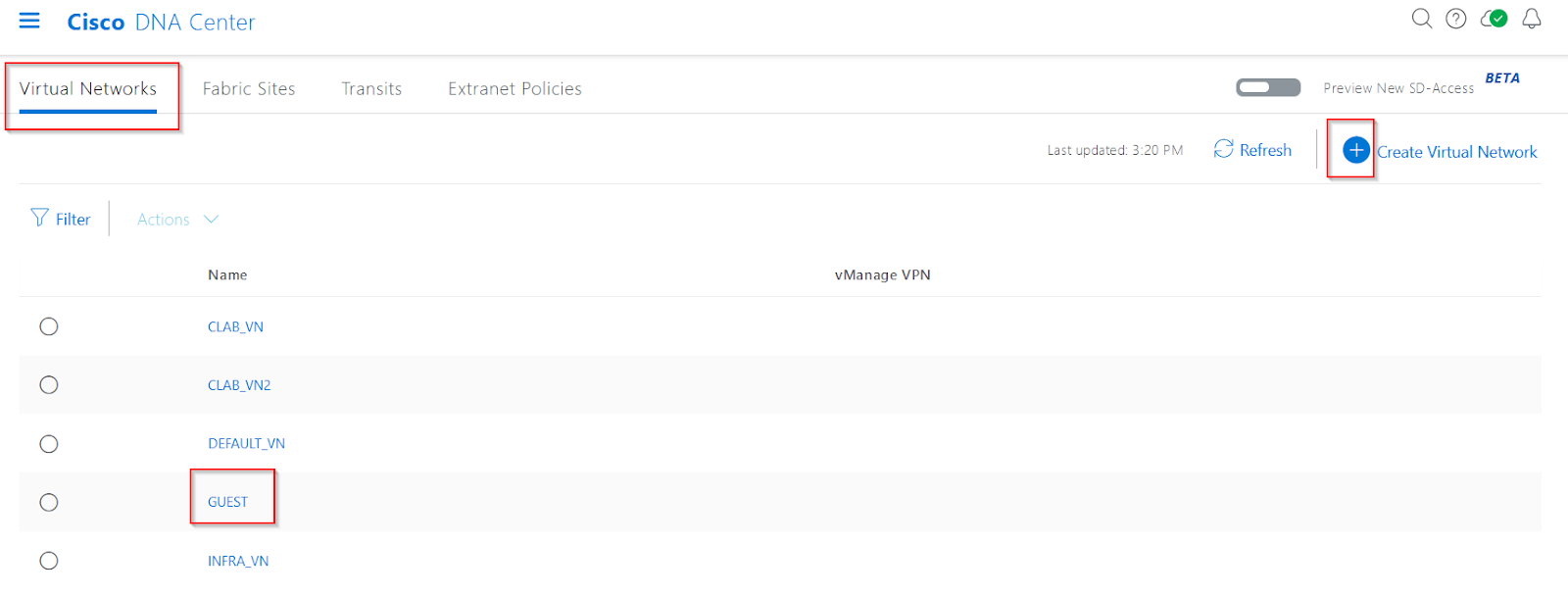

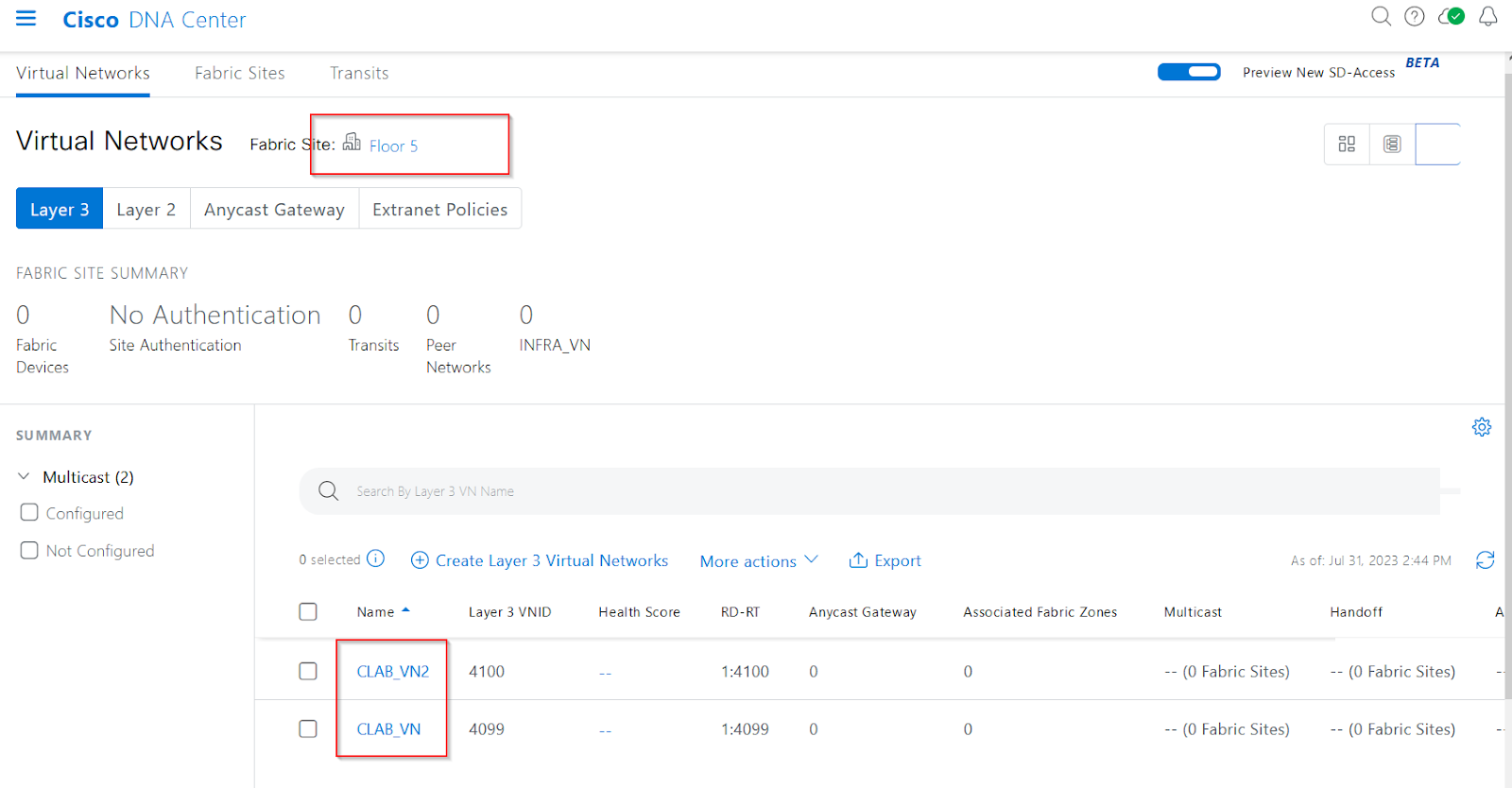

Create VN

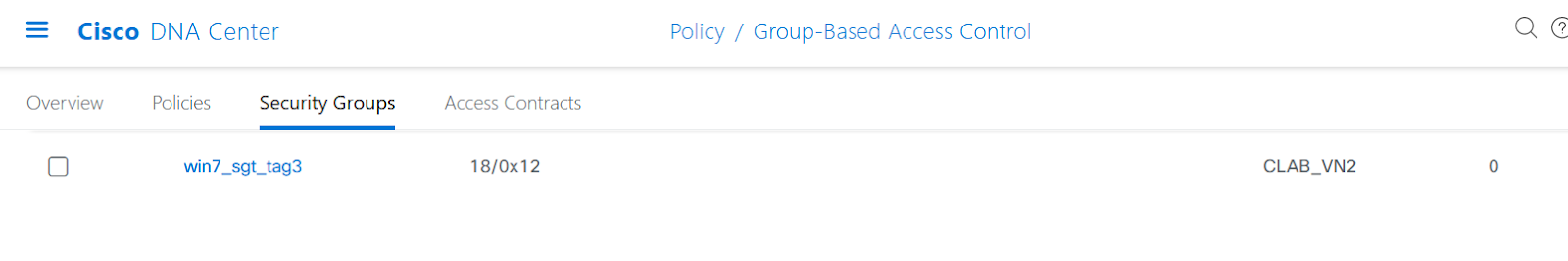

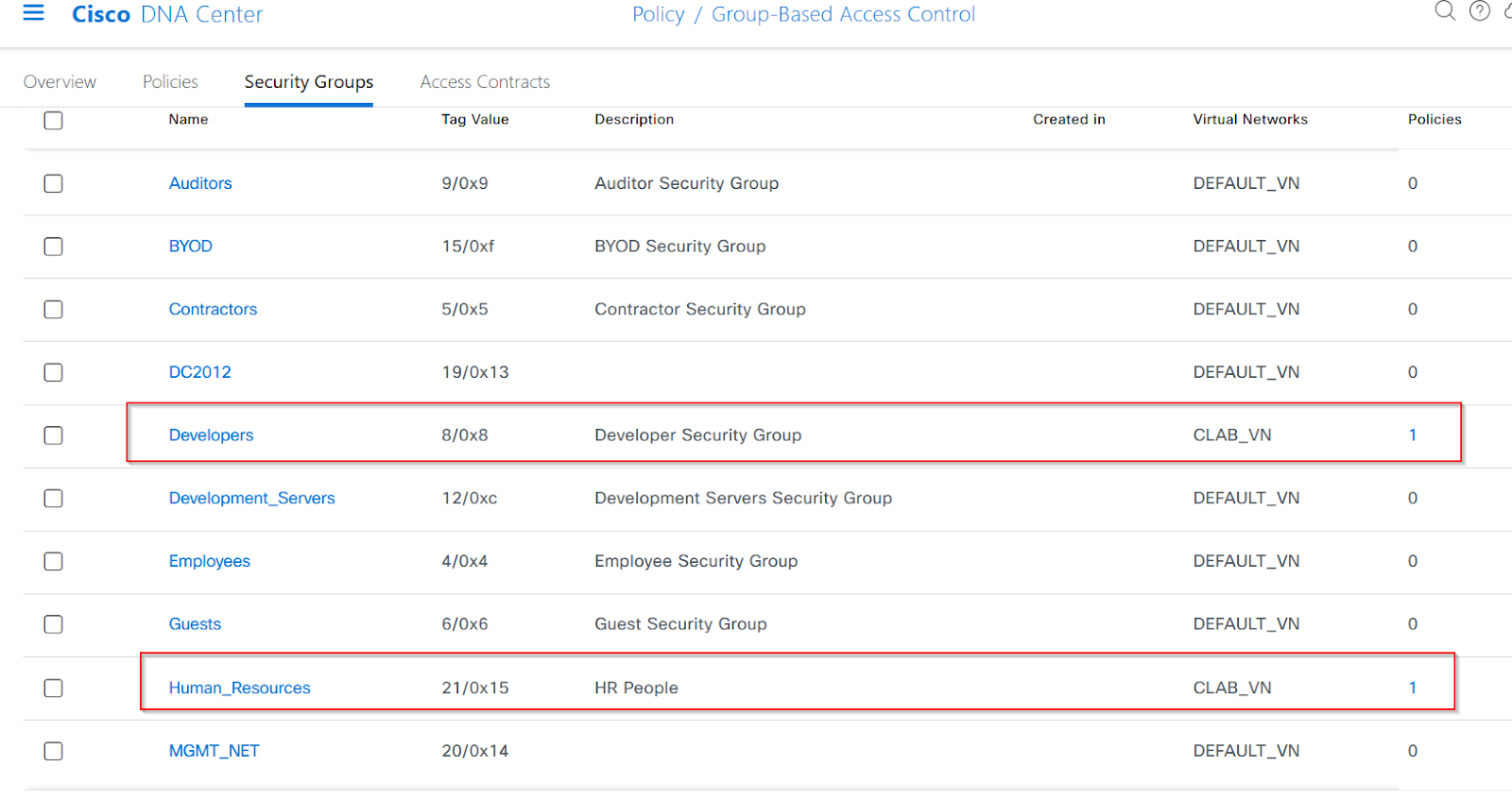

SGT to VN

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

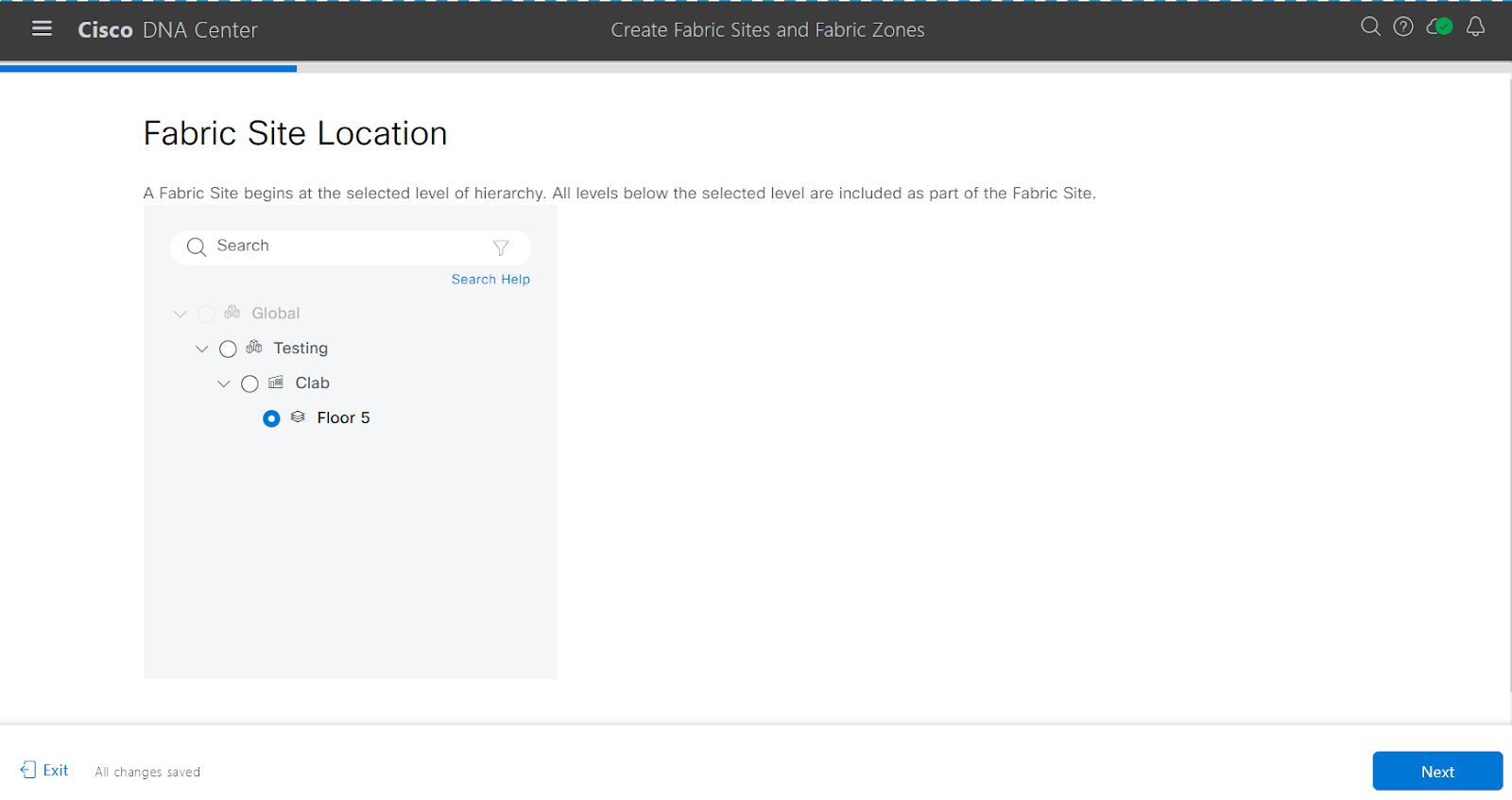

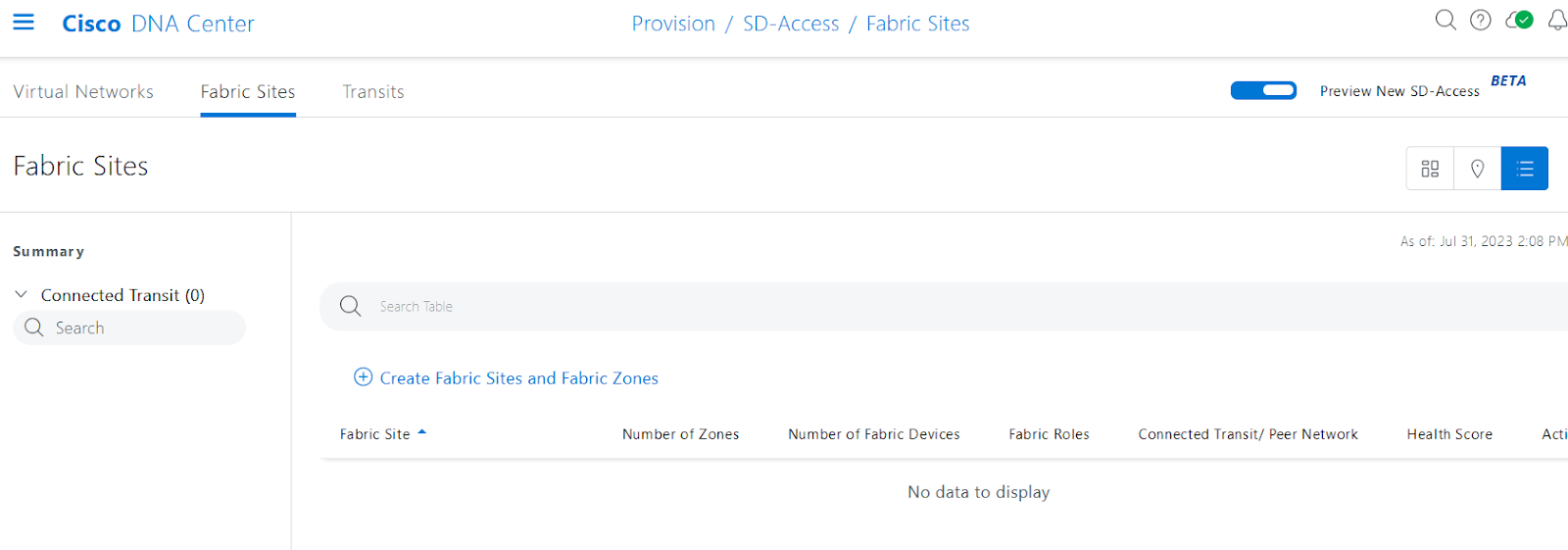

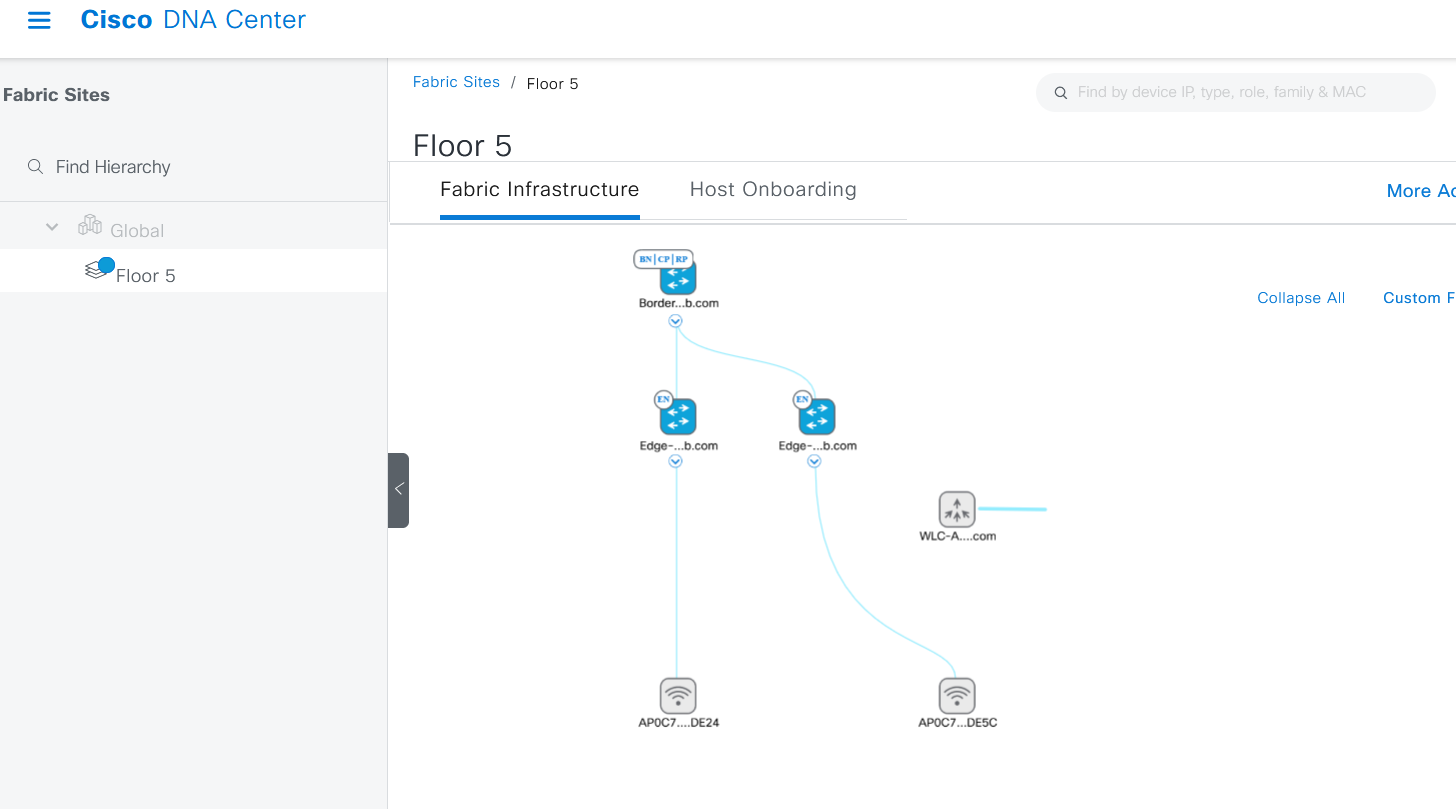

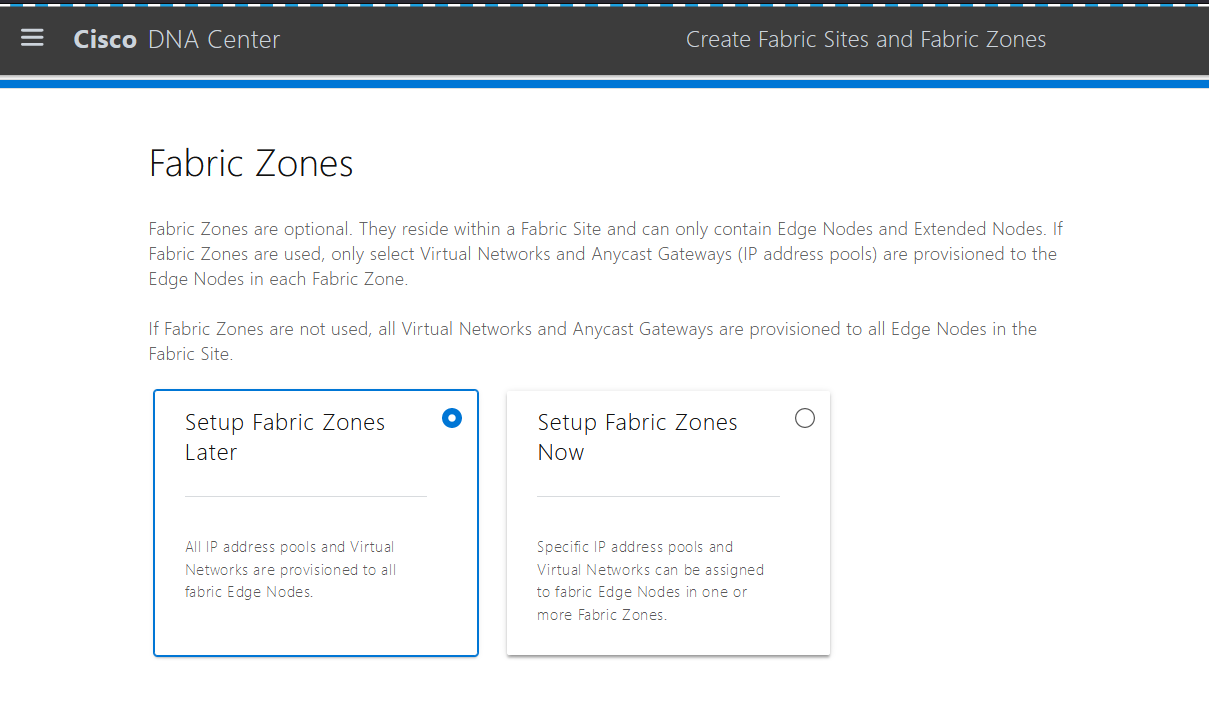

Add and Configure Fabric

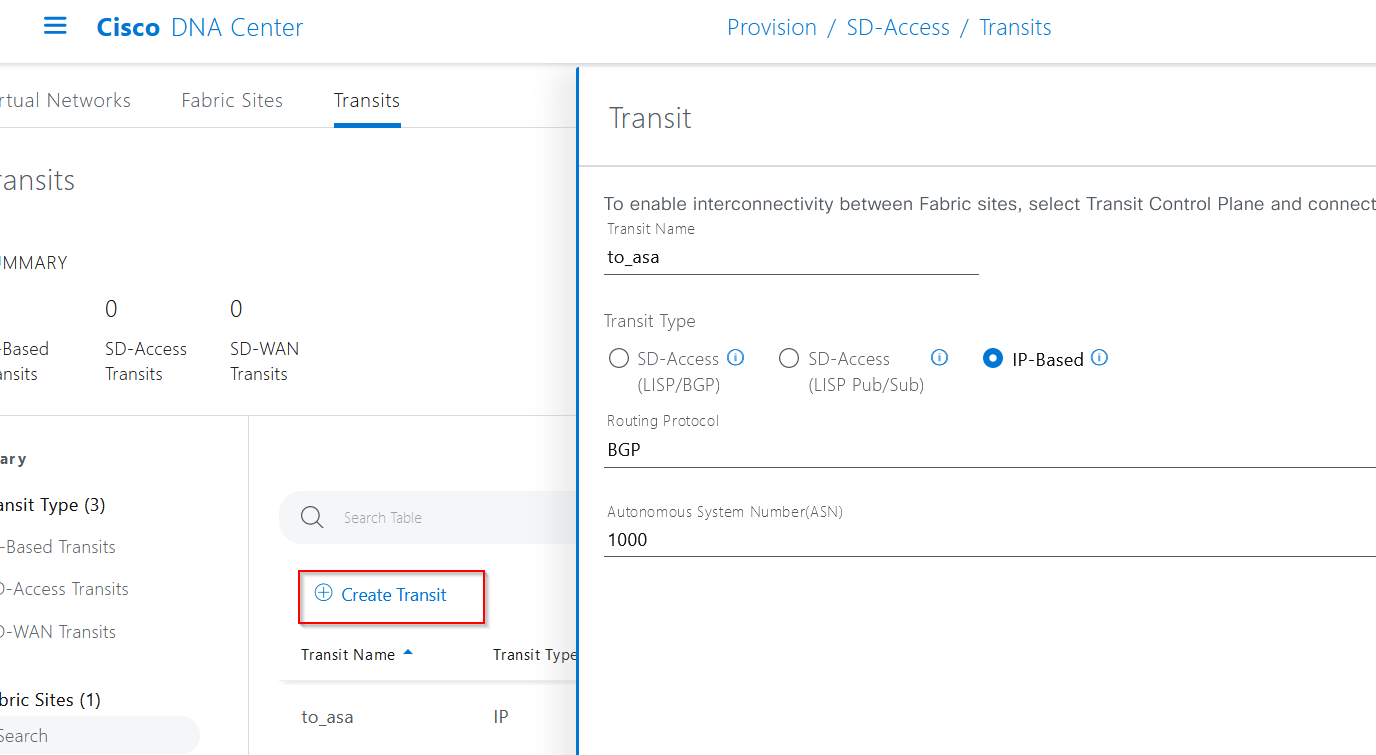

Transit

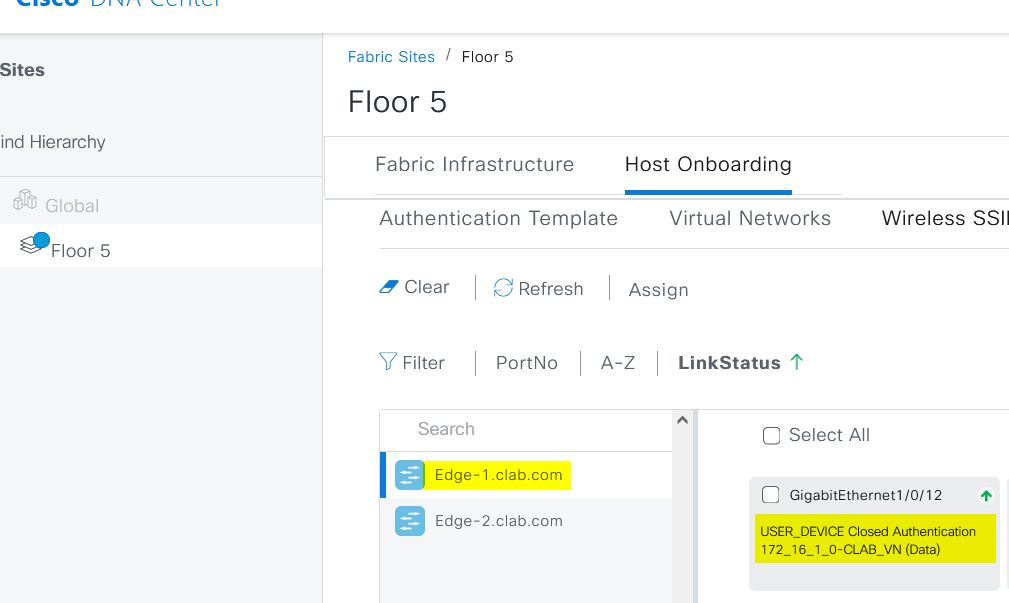

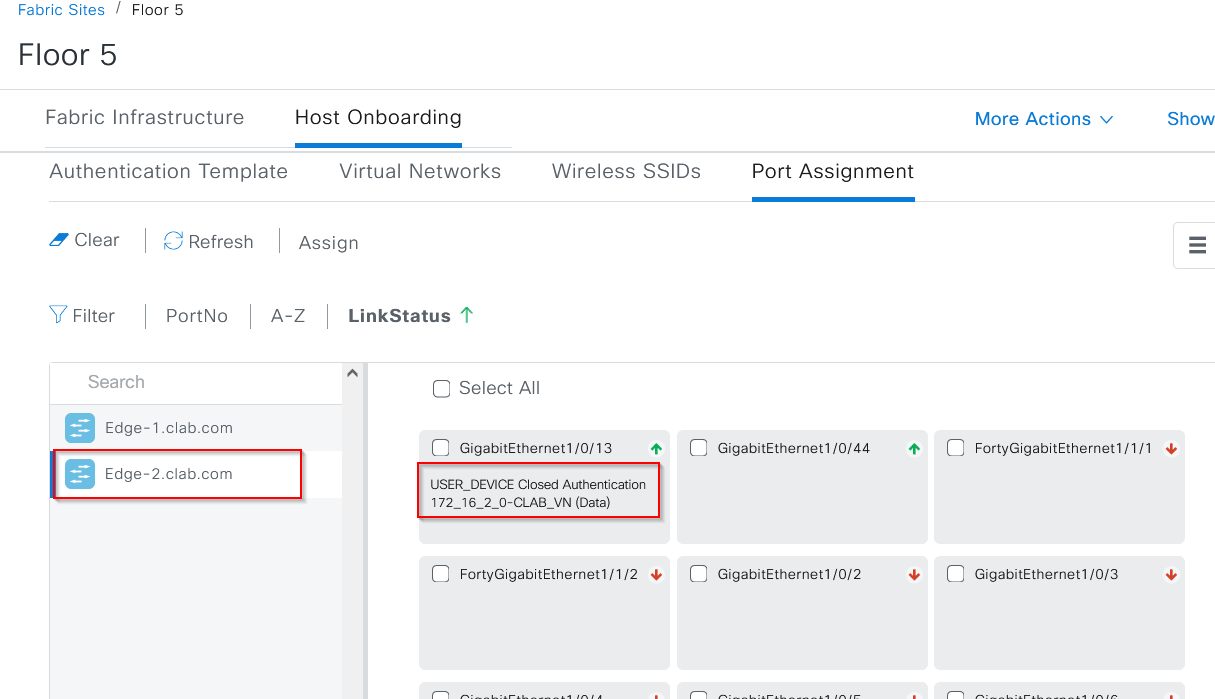

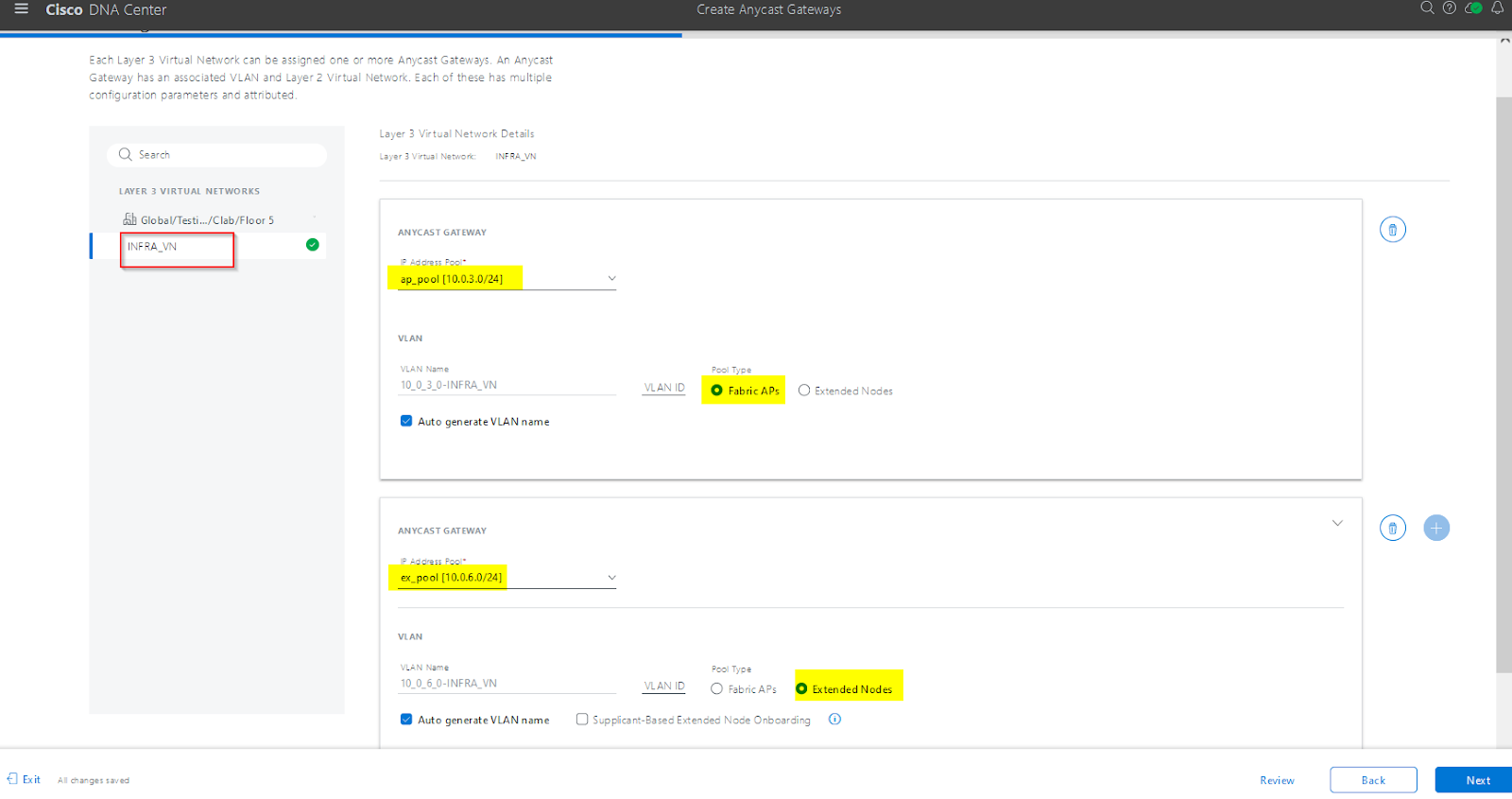

Anycast gateway (Host onboarding)

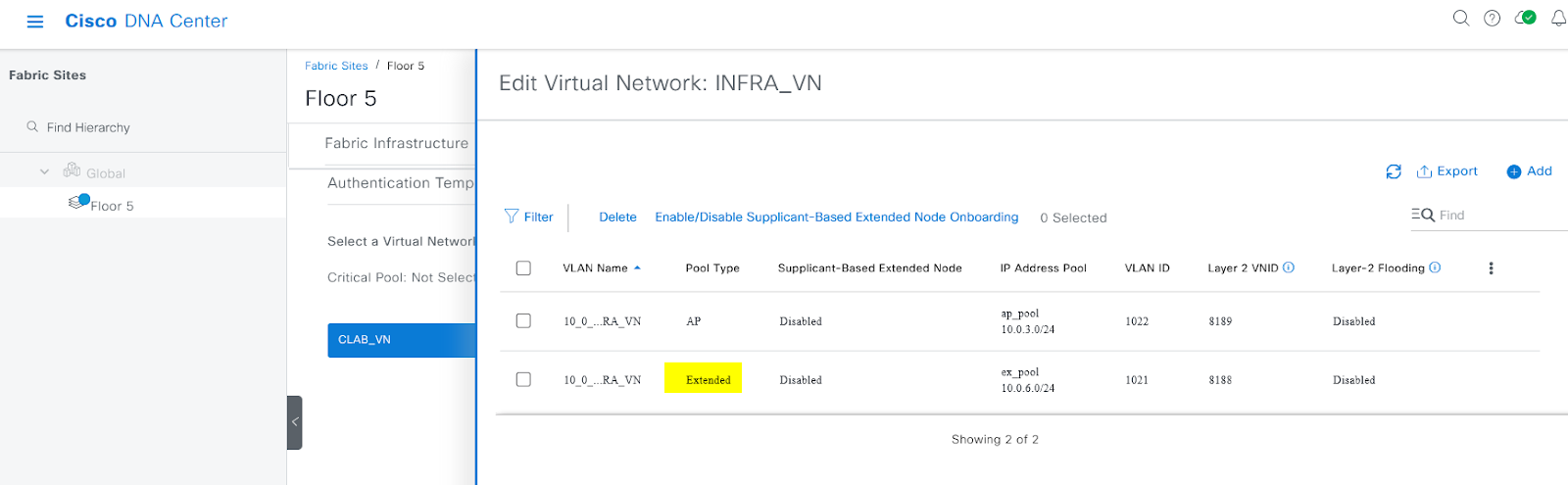

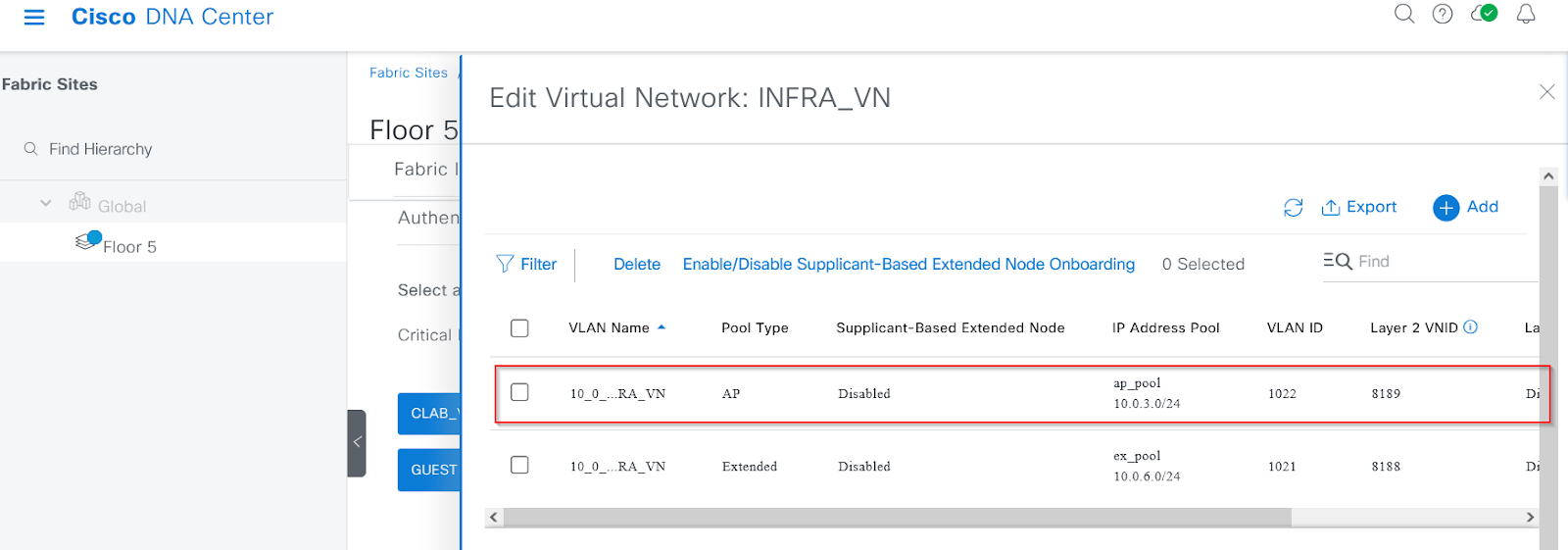

INFRA_VN

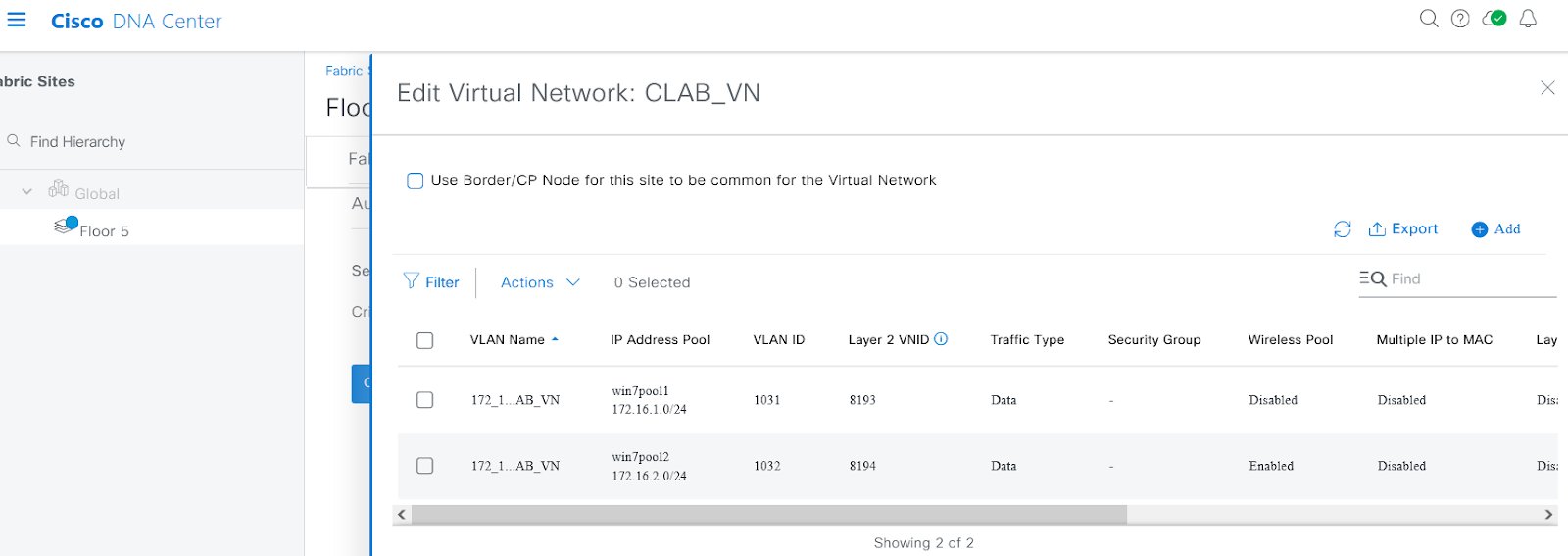

CLAB_VN

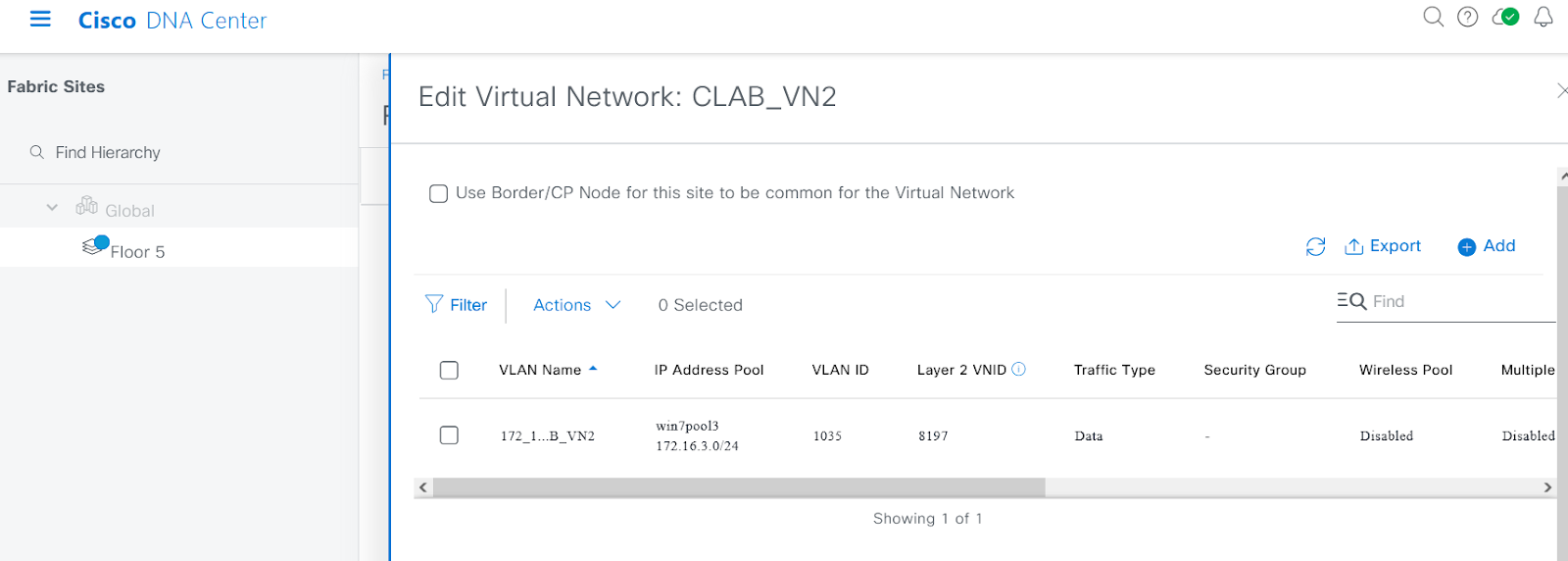

CLAB_VN2

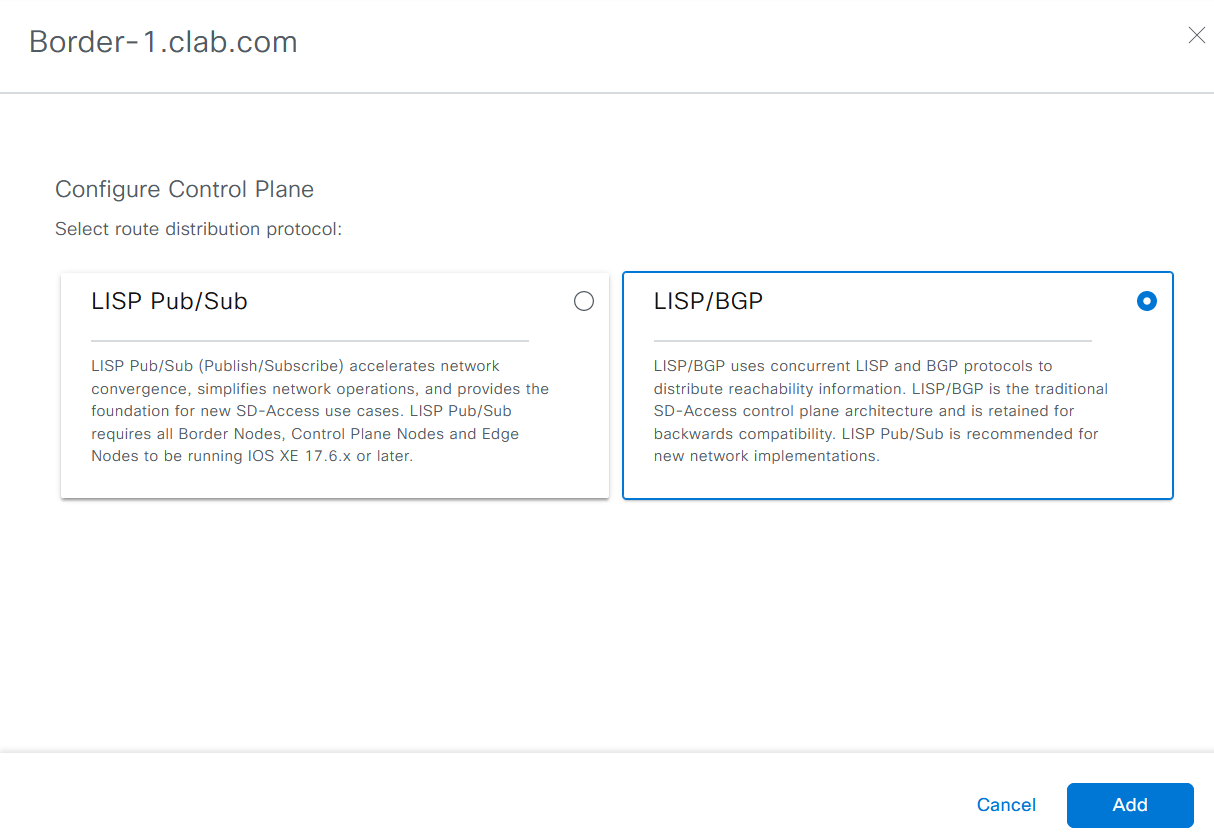

Add border role

Add Control also

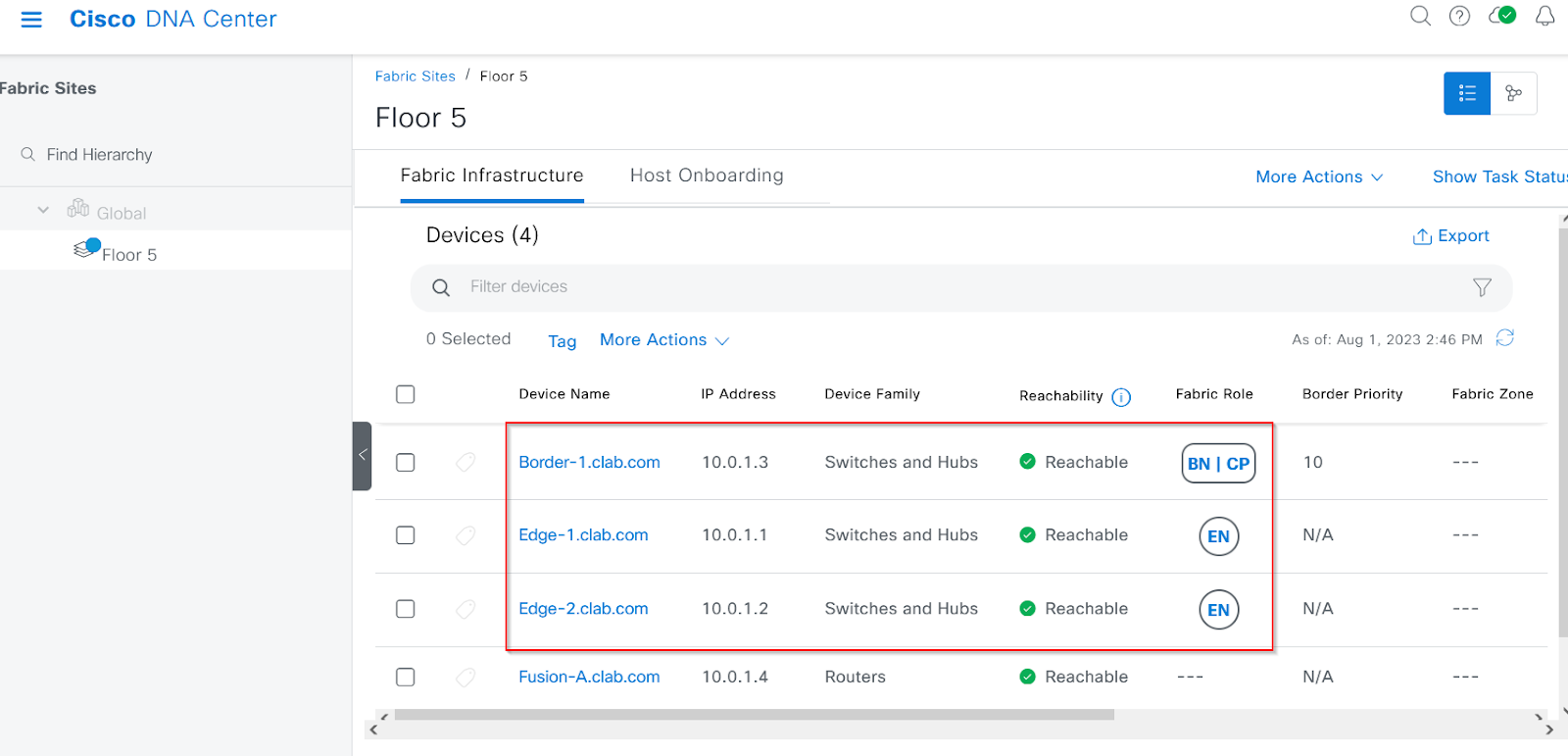

Add Edge

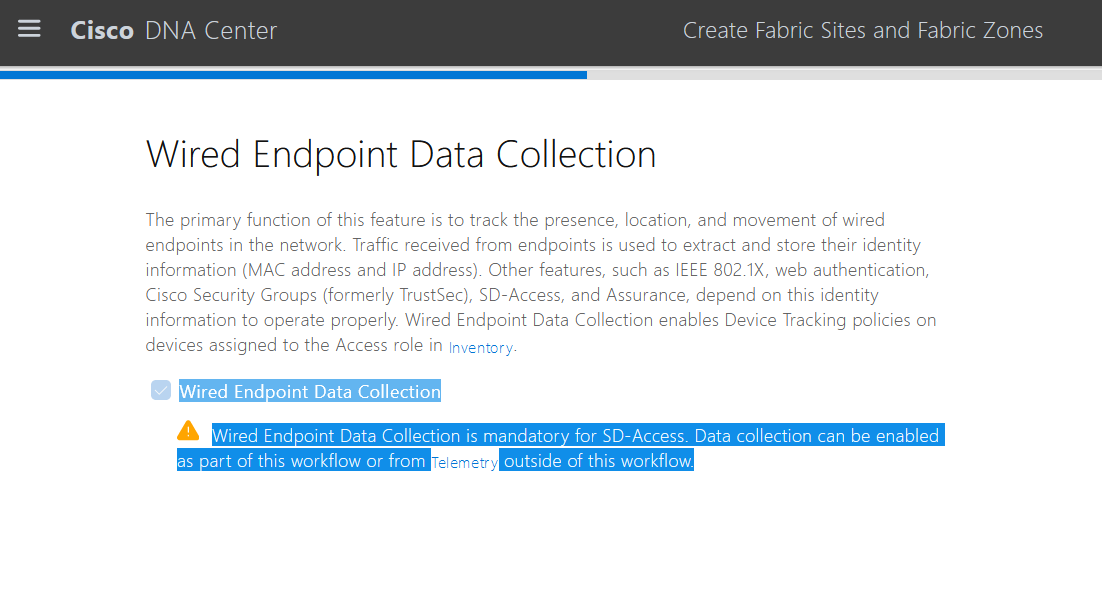

Finally deploy, if failed. Enable Wired Endpoint data collection Telemetry and re-provision

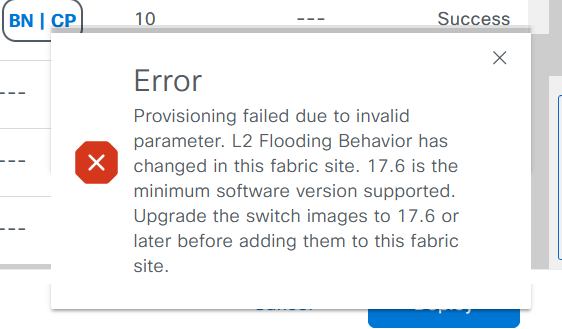

Error when adding Edge node

The fabric only takes 17.6 or later nodes, I replace 3650 with 9300 as Edges!

When added edge, do this to refresh cts data

Edge-1#cts refresh environment-data

Edge-1#show cts environment-data

CTS Environment Data

====================

Current state = COMPLETE

Last status = Successful

Service Info Table:

Local Device SGT:

SGT tag = 2-00:TrustSec_Devices

Server List Info:

Installed list: CTSServerList1-0001, 1 server(s):

*Server: 10.8.20.116, port 1812, A-ID 911DC573492B20B34B554AE350A823BB

Status = DEAD

auto-test = TRUE, keywrap-enable = FALSE, idle-time = 60 mins, deadtime = 20 secs

Security Group Name Table:

0-00:Unknown

2-00:TrustSec_Devices

3-00:Network_Services

…

Border-1#show cts role-based sgt-map vrf CLAB_VN ALL

Verification commands

Border-1#show run | sec router lisp

router lisp

locator-table default

locator-set rloc_677057e3-8eb6-4516-b71d-9cbabcfa3d00

IPv4-interface Loopback0 priority 10 weight 10

auto-discover-rlocs

exit-locator-set

locator default-set rloc_677057e3-8eb6-4516-b71d-9cbabcfa3d00

service ipv4

encapsulation vxlan

//responsible for MR/MS

itr map-resolver 10.0.1.3

etr map-server 10.0.1.3 key 7 110C1F064F46085D022B7C277867657B4B

etr map-server 10.0.1.3 proxy-reply

etr

sgt

no map-cache away-eids send-map-request

//acting as ETR/ITR if doesn't know

proxy-etr

proxy-itr 10.0.1.3

map-server

map-resolver

exit-service-ipv4

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

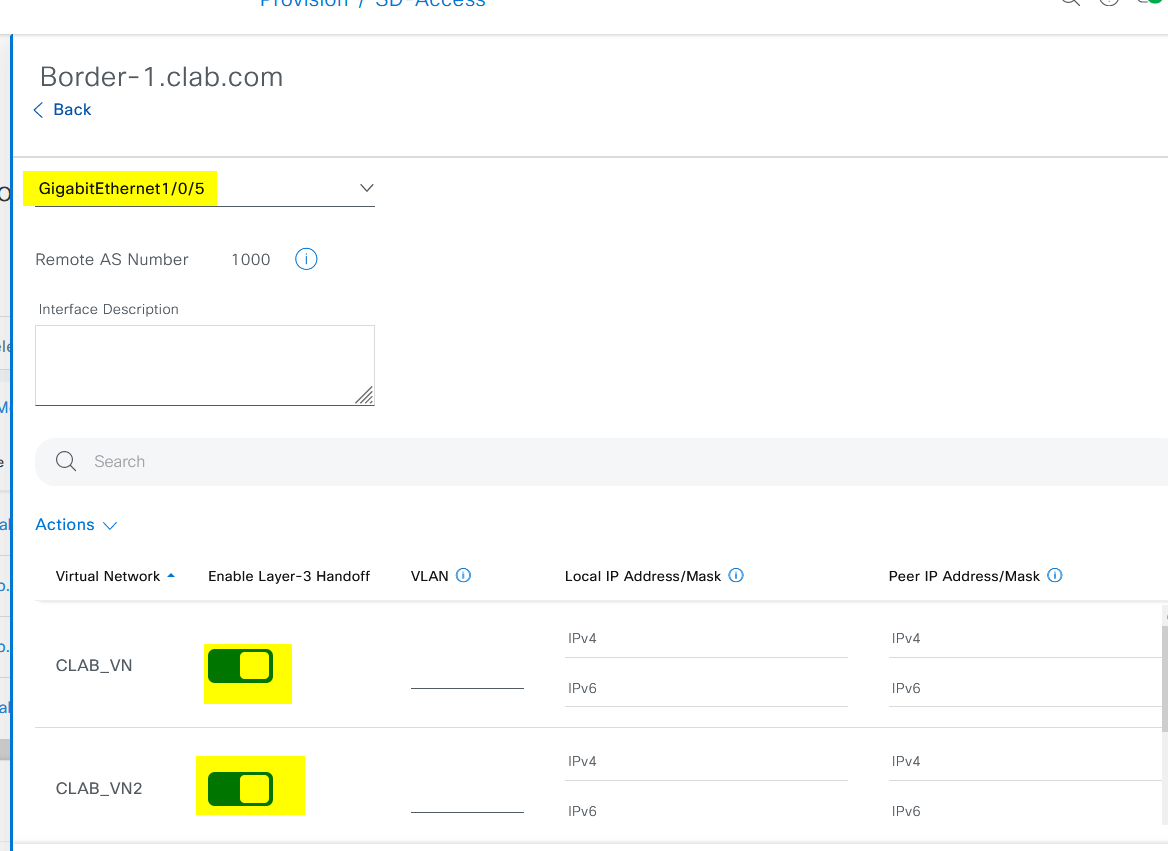

EBGP border with ASA and inline Tagging and CTS Control

ASAv EBGP To Border

interface GigabitEthernet0/2

no nameif

no security-level

no ip address

interface GigabitEthernet0/2.3001

vlan 3001

nameif CLAB_VN

security-level 60

ip address 172.16.10.2 255.255.255.252

interface GigabitEthernet0/2.3002

vlan 3002

nameif CLAB_VN2

security-level 60

ip address 172.16.10.6 255.255.255.252

router bgp 1000

bgp log-neighbor-changes

address-family ipv4 unicast

neighbor 172.16.10.1 remote-as 100

neighbor 172.16.10.1 activate

neighbor 172.16.10.5 remote-as 100

neighbor 172.16.10.5 activate

network 0.0.0.0

no auto-summary

no synchronization

exit-address-family

Allow same security level traffic to talk

ASAv-a(config)# same-security-traffic permit inter-interface

ASAv-a# show nameif

Interface Name Security

GigabitEthernet0/0 Outside 0

GigabitEthernet0/1 SHARE 50

GigabitEthernet0/2.3001 CLAB_VN 60

GigabitEthernet0/2.3002 CLAB_VN2 60

Management0/0 MGMT 100

ASAv-a# show bgp ipv4 unicast summary

BGP router identifier 202.100.10.11, local AS number 1000

BGP table version is 9, main routing table version 9

6 network entries using 1200 bytes of memory

6 path entries using 480 bytes of memory

3/3 BGP path/bestpath attribute entries using 624 bytes of memoryshow bg

1 BGP AS-PATH entries using 24 bytes of memory

0 BGP route-map cache entries using 0 bytes of memory

0 BGP filter-list cache entries using 0 bytes of memory

BGP using 2328 total bytes of memory

BGP activity 6/0 prefixes, 6/0 paths, scan interval 60 secs

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd

172.16.10.1 4 100 7 7 9 0 0 00:01:19 3

172.16.10.5 4 100 7 9 9 0 0 00:01:09 2

Border-1#show ip route vrf CLAB_VN

Routing Table: CLAB_VN

Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, m - OMP

n - NAT, Ni - NAT inside, No - NAT outside, Nd - NAT DIA

i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2

ia - IS-IS inter area, * - candidate default, U - per-user static route

H - NHRP, G - NHRP registered, g - NHRP registration summary

o - ODR, P - periodic downloaded static route, l - LISP

a - application route

+ - replicated route, % - next hop override, p - overrides from PfR

& - replicated local route overrides by connected

Gateway of last resort is 172.16.10.2 to network 0.0.0.0

B* 0.0.0.0/0 [20/0] via 172.16.10.2, 00:01:08

172.16.0.0/16 is variably subnetted, 6 subnets, 3 masks

B 172.16.1.0/24 [200/0], 06:11:58, Null0

C 172.16.1.254/32 is directly connected, Loopback1024

B 172.16.2.0/24 [200/0], 06:11:58, Null0

C 172.16.2.254/32 is directly connected, Loopback1023

C 172.16.10.0/30 is directly connected, Vlan3001

L 172.16.10.1/32 is directly connected, Vlan3001

Border-1#show ip route vrf CLAB_VN2

Routing Table: CLAB_VN2

Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, m - OMP

n - NAT, Ni - NAT inside, No - NAT outside, Nd - NAT DIA

i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2

ia - IS-IS inter area, * - candidate default, U - per-user static route

H - NHRP, G - NHRP registered, g - NHRP registration summary

o - ODR, P - periodic downloaded static route, l - LISP

a - application route

+ - replicated route, % - next hop override, p - overrides from PfR

& - replicated local route overrides by connected

Gateway of last resort is 172.16.10.6 to network 0.0.0.0

B* 0.0.0.0/0 [20/0] via 172.16.10.6, 02:31:34

172.16.0.0/16 is variably subnetted, 4 subnets, 3 masks

B 172.16.3.0/24 [200/0], 1d20h, Null0

C 172.16.3.254/32 is directly connected, Loopback1025

C 172.16.10.4/30 is directly connected, Vlan3002

L 172.16.10.5/32 is directly connected, Vlan3002

ASAv-a# show route bgp

Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, V - VPN

i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2

ia - IS-IS inter area, * - candidate default, U - per-user static route

o - ODR, P - periodic downloaded static route, + - replicated route

SI - Static InterVRF

Gateway of last resort is 202.100.10.10 to network 0.0.0.0

B 172.16.1.0 255.255.255.0 [20/0] via 172.16.10.1, 20:14:45

B 172.16.2.0 255.255.255.0 [20/0] via 172.16.10.1, 20:14:45

B 172.16.3.0 255.255.255.0 [20/0] via 172.16.10.5, 20:14:35

Border-1#show bgp vrf CLAB_VN all summary

Configure Inline Tagging and VLAN CTS Control

//Use the cts manual command to enter the TrustSec manual interface configuration in which policies and the Security Association Protocol (SAP) are configured on the link

ASA

interface GigabitEthernet0/2

cts manual

policy static sgt 65000 trusted

interface GigabitEthernet0/2.3001

cts manual

policy static sgt 65000 trusted

interface GigabitEthernet0/2.3002

cts manual

policy static sgt 65000 trusted

Border-1

cts role-based enforcement

cts role-based enforcement vlan-list 3001-3002

interface GigabitEthernet1/0/5

cts manual

policy static sgt 65000 trusted

Border-1#ping vrf CLAB_VN 172.16.10.2

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 172.16.10.2, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

Border-1#ping vrf CLAB_VN2 172.16.10.6

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 172.16.10.6, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

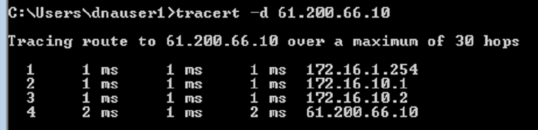

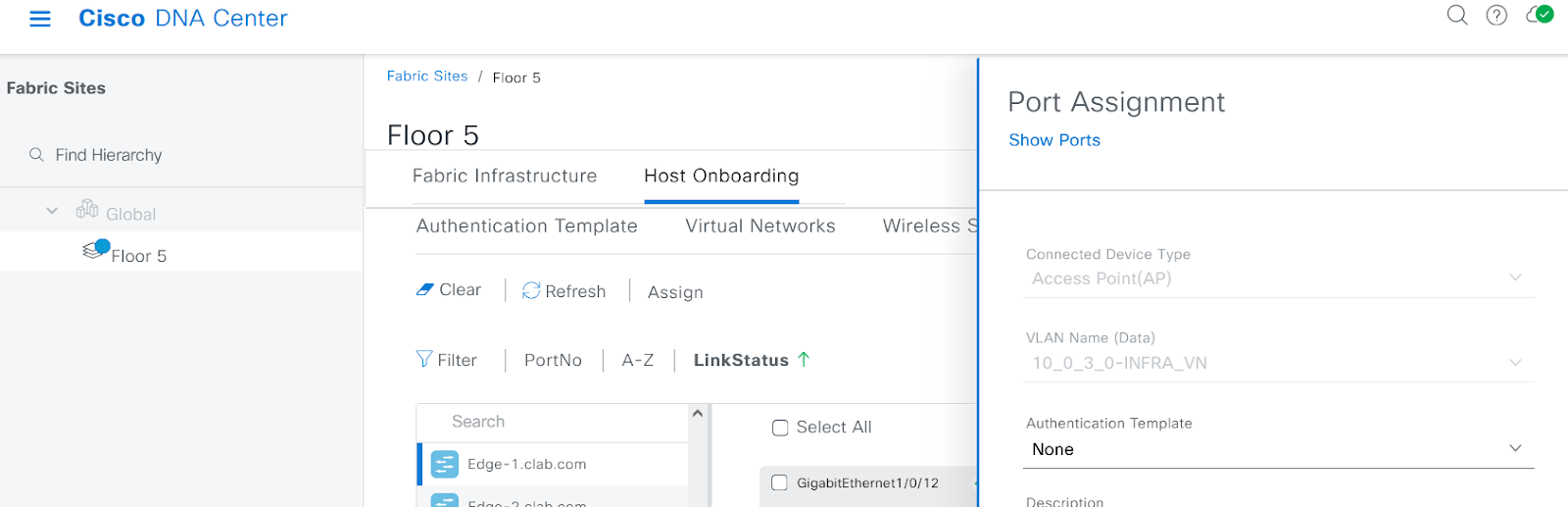

Port assignment

Edge 1

Edge-1#show authentication sessions interface g1/0/12 details

Interface: GigabitEthernet1/0/12

IIF-ID: 0x11CCADA4

MAC Address: 0800.27c9.b24d

IPv6 Address: fe80::71da:5fc9:c57:c853

IPv4 Address: 172.16.1.11

User-Name: dnauser1

Device-type: Microsoft-Workstation

Device-name: WIN7PC1

VRF: CLAB_VN

Status: Authorized

Domain: DATA

Oper host mode: multi-auth

Oper control dir: both

Session timeout: N/A

Acct update timeout: 172800s (local), Remaining: 171164s

Common Session ID: 0202000A0000003CB828DA0B

Acct Session ID: 0x00000015

Handle: 0xa3000032

Current Policy: PMAP_DefaultWiredDot1xClosedAuth_1X_MAB

Local Policies:

Server Policies:

SGT Value: 16

Method status list:

Method State

dot1x Authc Success

Edge -2

Edge-2#show authentication sessions interface g1/0/13 details

Interface: GigabitEthernet1/0/13

IIF-ID: 0x1DE7879F

MAC Address: 0800.27ae.6e19

IPv6 Address: fe80::90c:a06d:645d:ed4b

IPv4 Address: 172.16.3.10

User-Name: dnauser2

Device-type: Microsoft-Workstation

Device-name: WIN7PC2

VRF: CLAB_VN2

Status: Authorized

Domain: DATA

Oper host mode: multi-auth

Oper control dir: both

Session timeout: N/A

Acct update timeout: 172800s (local), Remaining: 172790s

Common Session ID: 0602000A00000021BB9F0801

Acct Session ID: 0x0000004e

Handle: 0xf9000017

Current Policy: PMAP_DefaultWiredDot1xClosedAuth_1X_MAB

Local Policies:

Server Policies:

SGT Value: 17

Method status list:

Method State

dot1x Authc Success

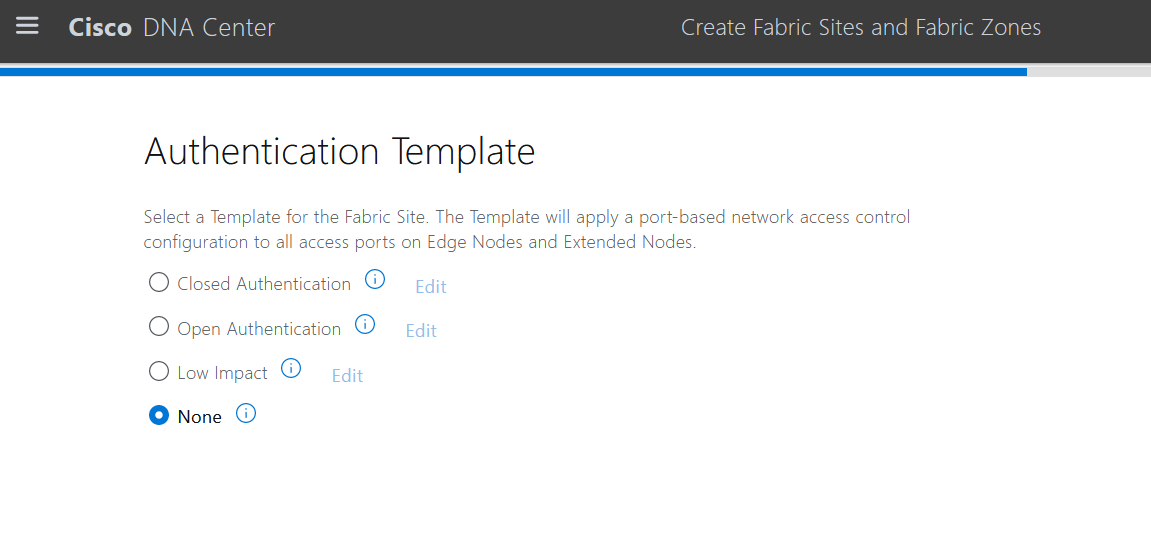

Open VS Closed Authentication

template DefaultWiredDot1xOpenAuth

dot1x pae authenticator

dot1x timeout supp-timeout 7

dot1x max-req 3

switchport mode access

switchport voice vlan 2046

mab

access-session port-control auto

authentication periodic

authentication timer reauthenticate server

service-policy type control subscriber PMAP_DefaultWiredDot1xOpenAuth_1X_MAB

source template DefaultWiredDot1xOpenAuth

template DefaultWiredDot1xClosedAuth

dot1x pae authenticator

dot1x timeout supp-timeout 7

dot1x max-req 3

switchport mode access

switchport voice vlan 2046

mab

//preventing clients or devices from gaining network access before authentication is performed

access-session closed

access-session port-control auto

authentication periodic

authentication timer reauthenticate server

service-policy type control subscriber PMAP_DefaultWiredDot1xClosedAuth_1X_MAB

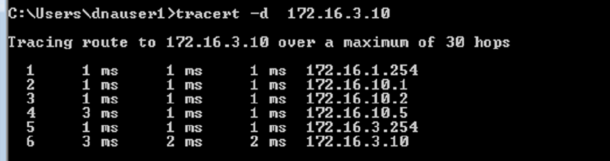

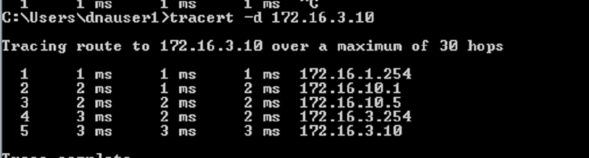

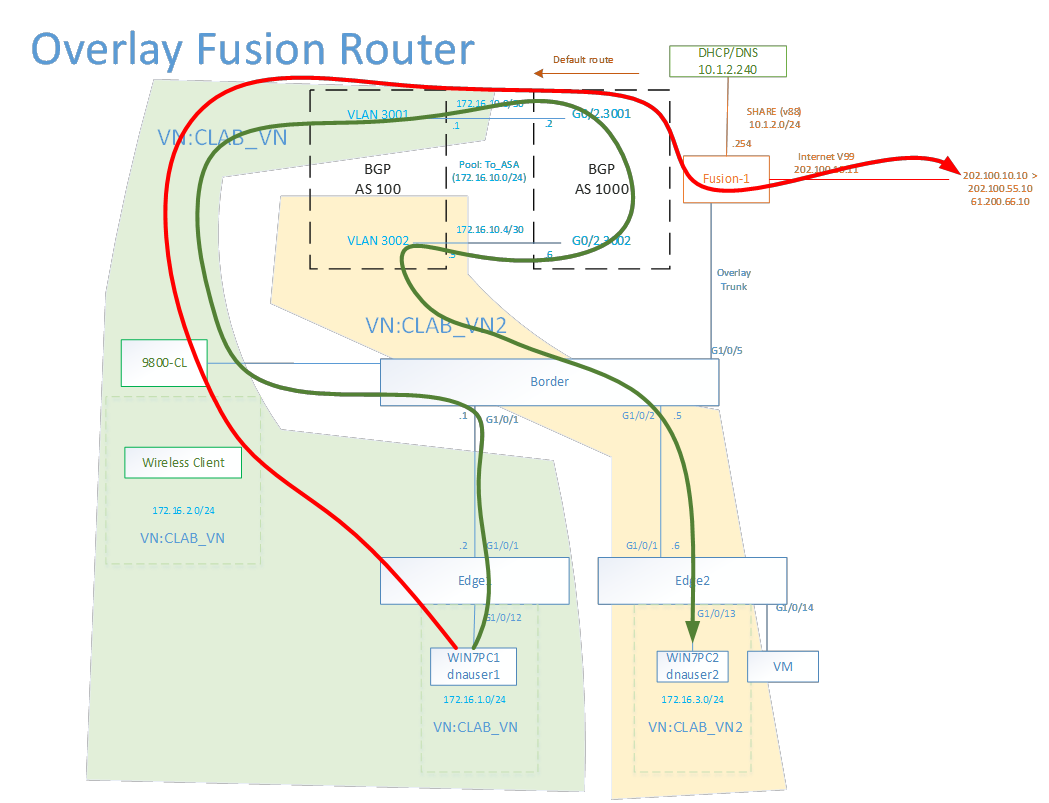

Traffic between VN

Traffic between different SGT in same VN

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Group-Based Access Control

Adding Security Groups

ISE policy authorization to SGT

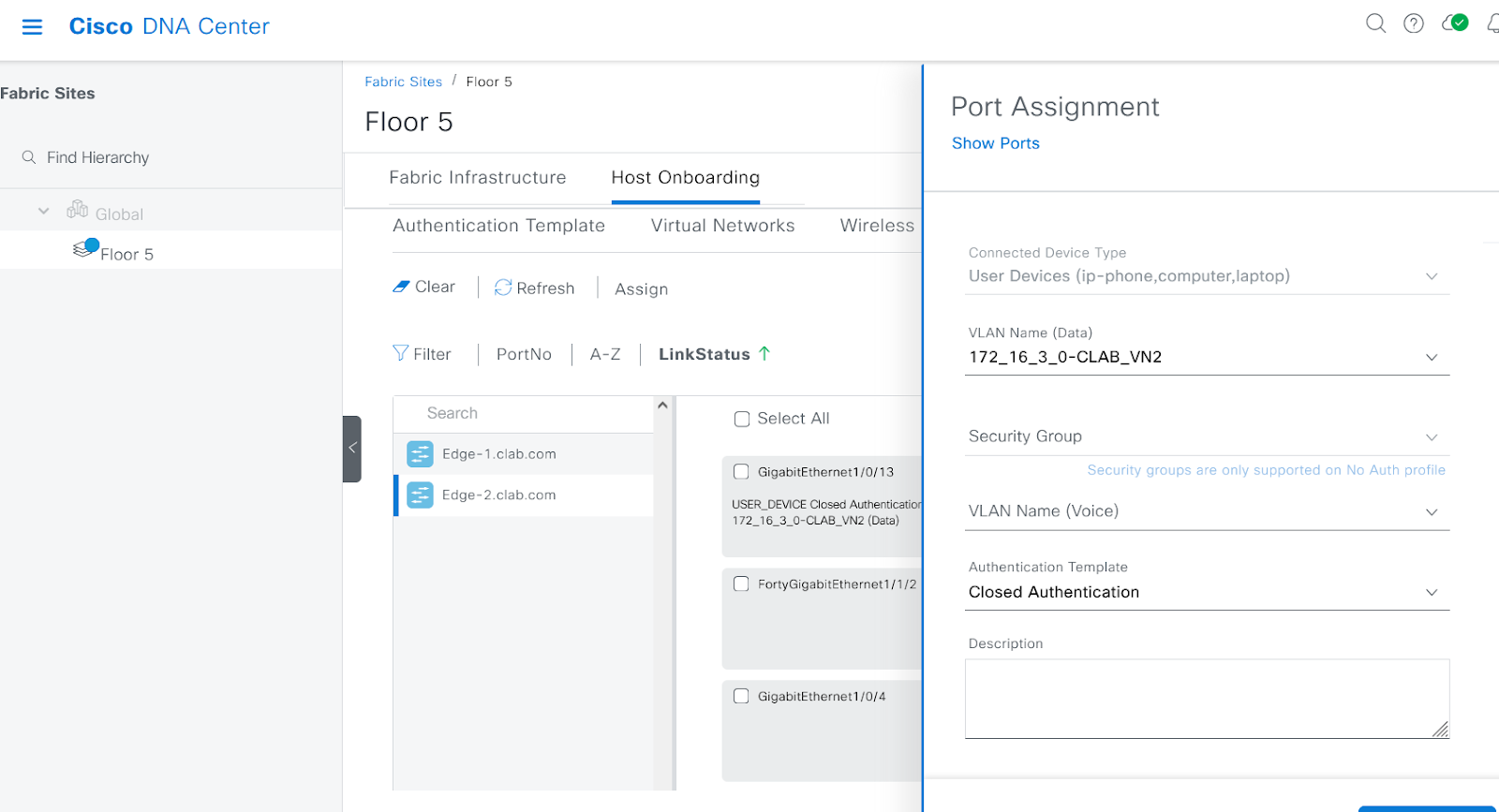

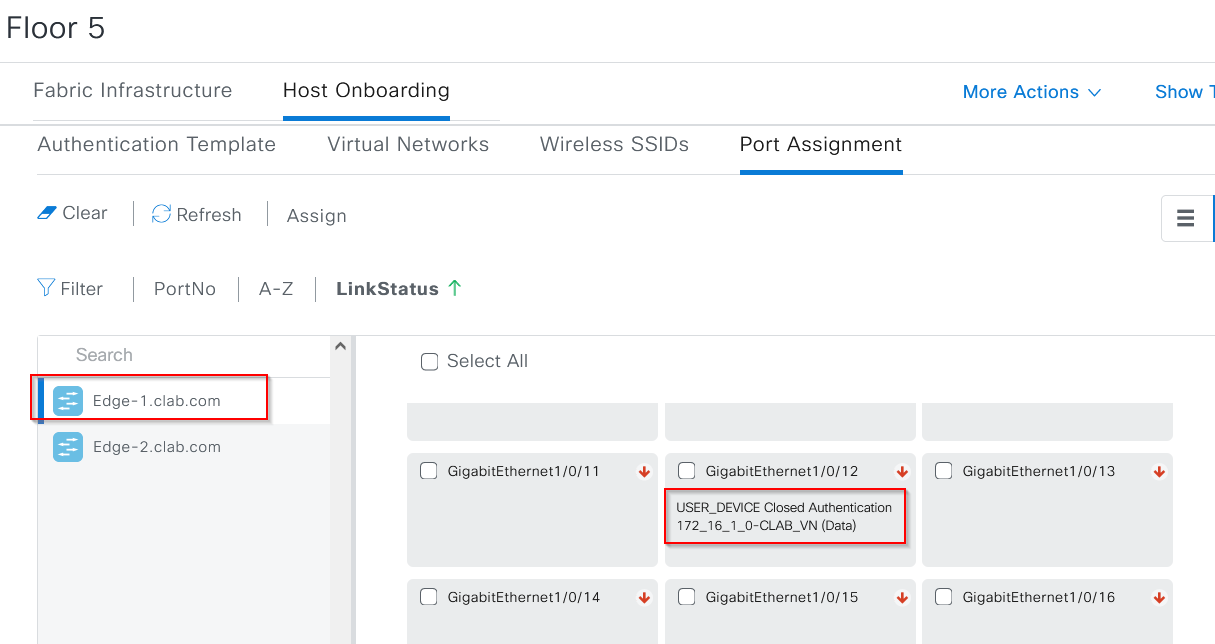

Port assignment

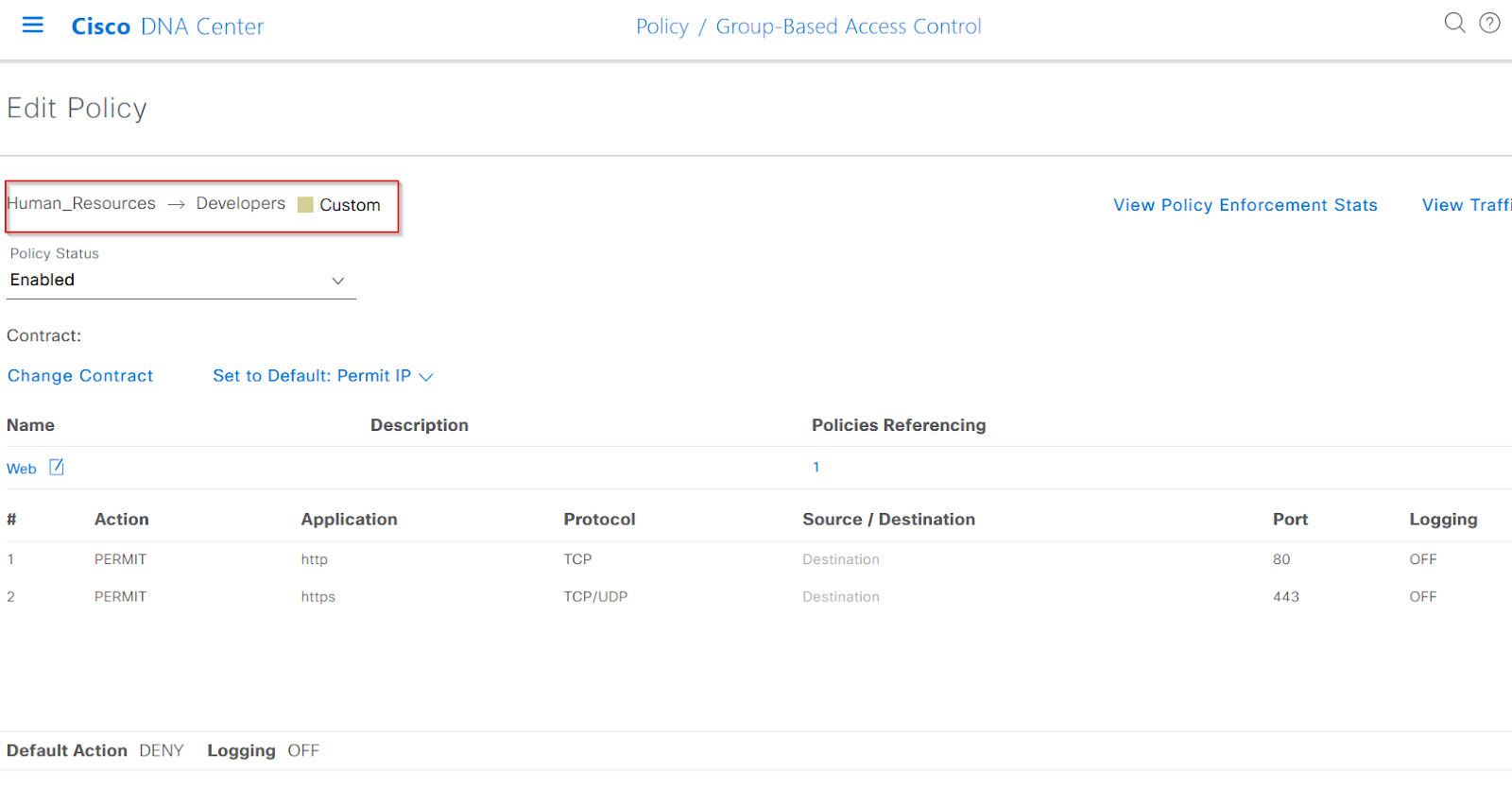

New Contract " Web"

Human Resources --> developer, apply Contact

Apply

Bounce port both switch

Edge-2#show cts role-based permissions

IPv4 Role-based permissions default:

Permit IP-00

IPv4 Role-based permissions from group 21:Human_Resources to group 8:Developers:

Web-02

RBACL Monitor All for Dynamic Policies : FALSE

RBACL Monitor All for Configured Policies : FALSE

Edge-2#show cts role-based counters

Role-based IPv4 counters

From To SW-Denied HW-Denied SW-Permitt HW-Permitt SW-Monitor HW-Monitor

* * 0 0 129671 286365 0 0

21 8 0 88 0 130 0 0

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Wireless Fabric

Initial config

hostname WLC-A

ip domain name clab.com

enable secret 9 $9$KcJZz3qE4vS83k$w9fFhka1xw/9Yg5aMmEVaydslTJQKX4Ht2K6NSizSfw

username admin privilege 15 secret 9 $9$v8J2xvDy3FtUOU$LXDab6e3V07718fxL.v64mrWgA3ZMS/garWu0UKnJpU

username iseuser privilege 15 secret 9 $9$O3jiX6P6If9qbU$FmvGjLPIt4GW/am6DFICGMWBlz/GWVbfOw9Hlsqx5oQ

interface GigabitEthernet1

no switchport

ip address 10.0.2.10 255.255.255.252

negotiation auto

no mop enabled

no mop sysid

interface GigabitEthernet2

no switchport

ip address 10.8.25.147 255.255.255.128

negotiation auto

no mop enabled

no mop sysid

ip route 0.0.0.0 0.0.0.0 10.0.2.9

ip route 10.8.20.119 255.255.255.255 10.8.25.131

line con 0

stopbits 1

line vty 0 4

transport input ssh

line vty 5 15

transport input ssh

wireless management interface g1

Then, rediscovery WLC

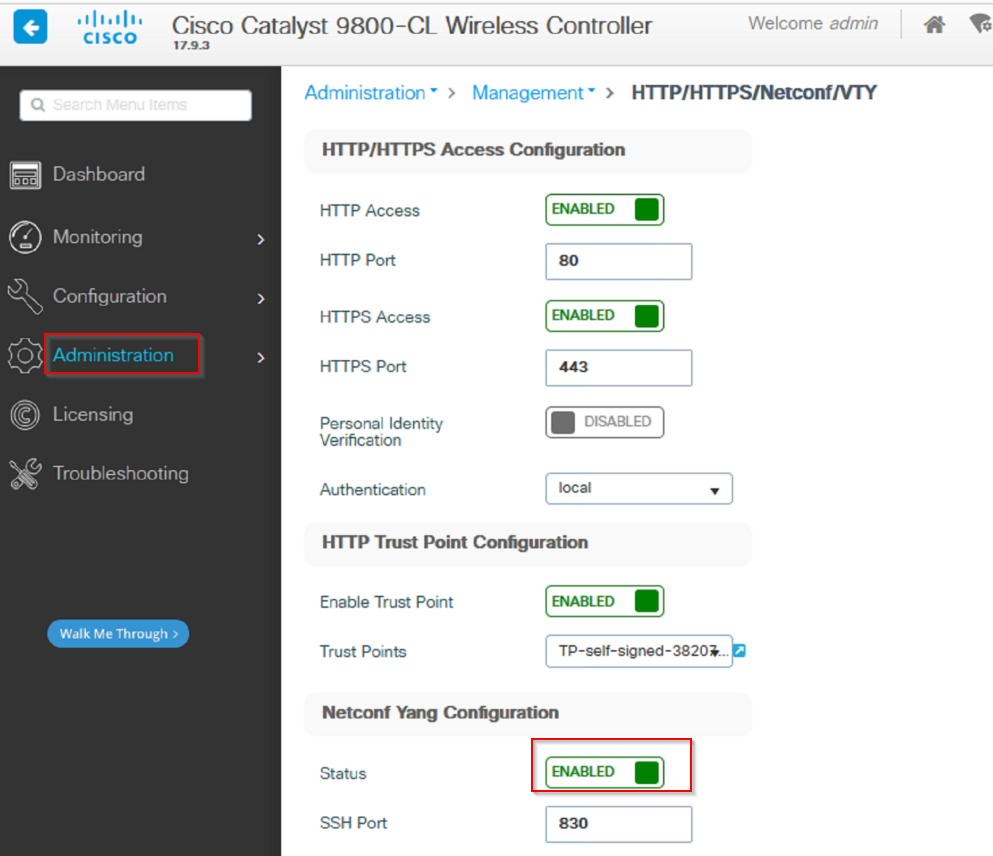

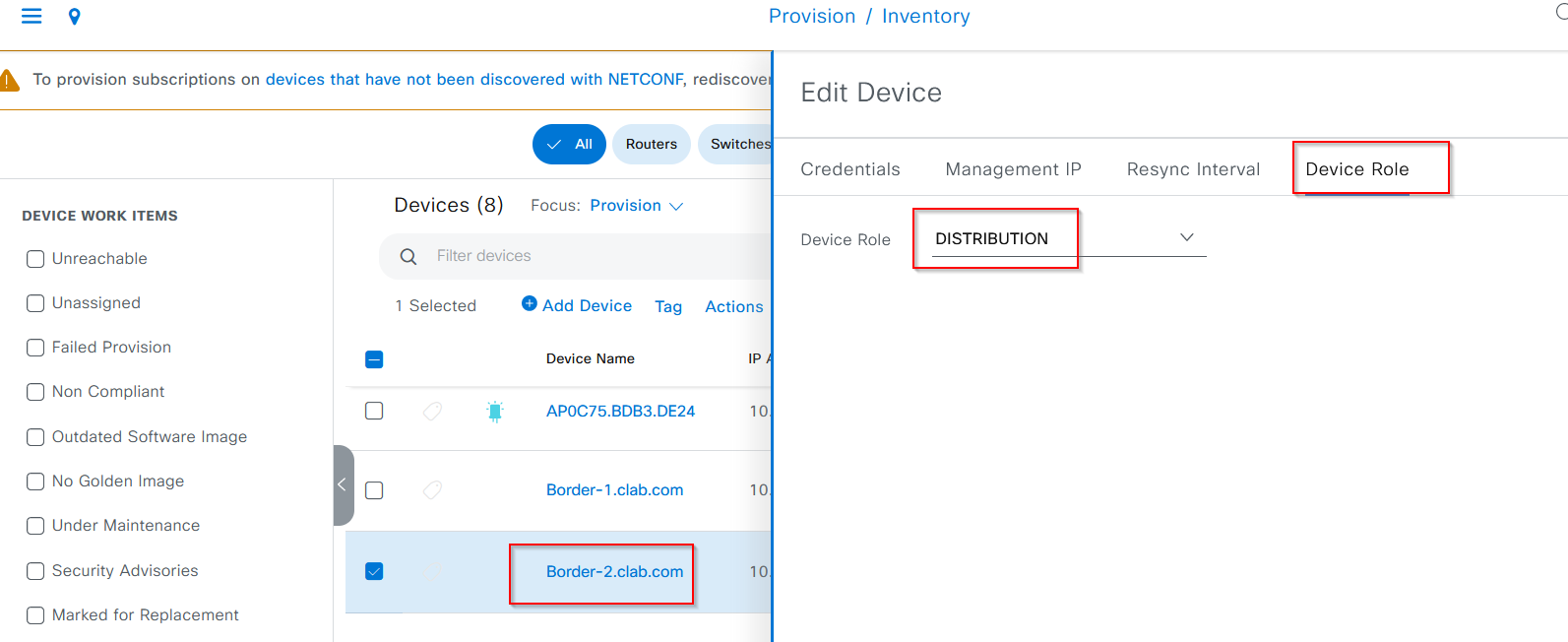

Edit device

WLC-A(config)#no aaa new-model

WLC-A#show run | s username

username admin privilege 15 secret 9 $9$p1Z.7hmQ.KlTnE$9icinHsaeioPq5GtuBgV2wf6zG.2bRE0IlC81GMIzJc

username iseuser privilege 15 secret 9 $9$eR0Br34ScAshHU$A5yDazGdtKyg1XG8RoHYwjUiB5R3V8oPbGXnYG.lJck

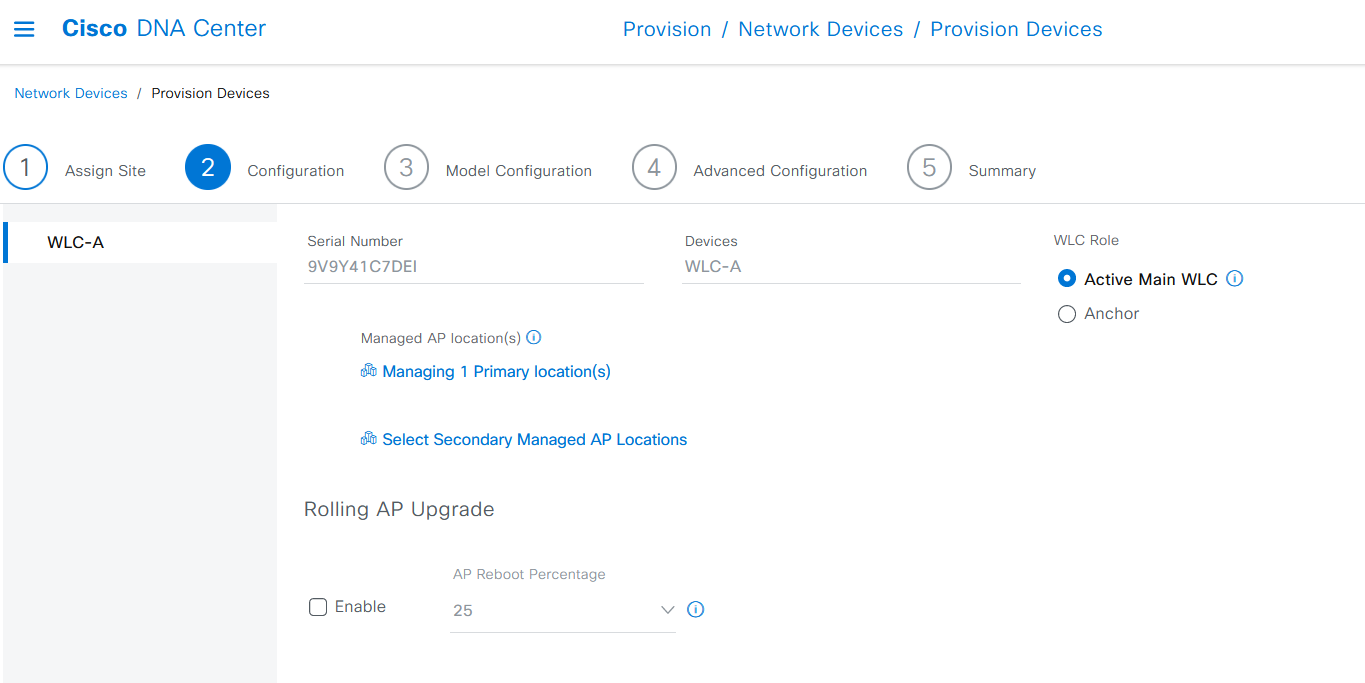

Provision WLC

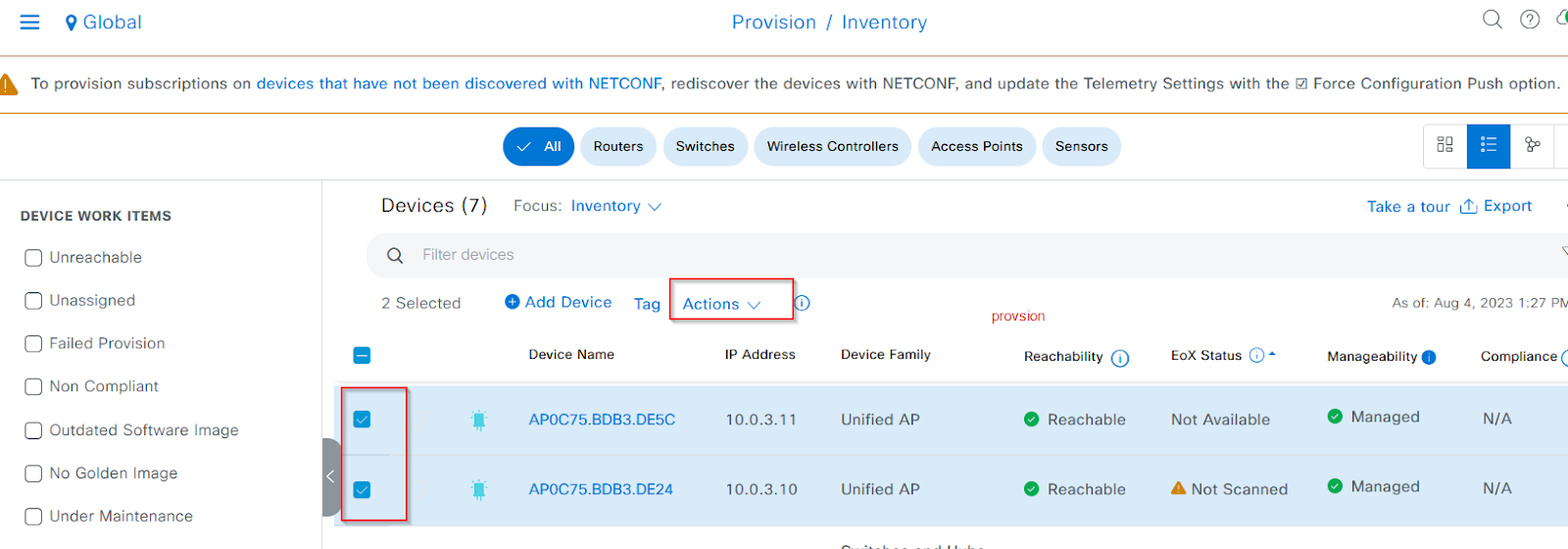

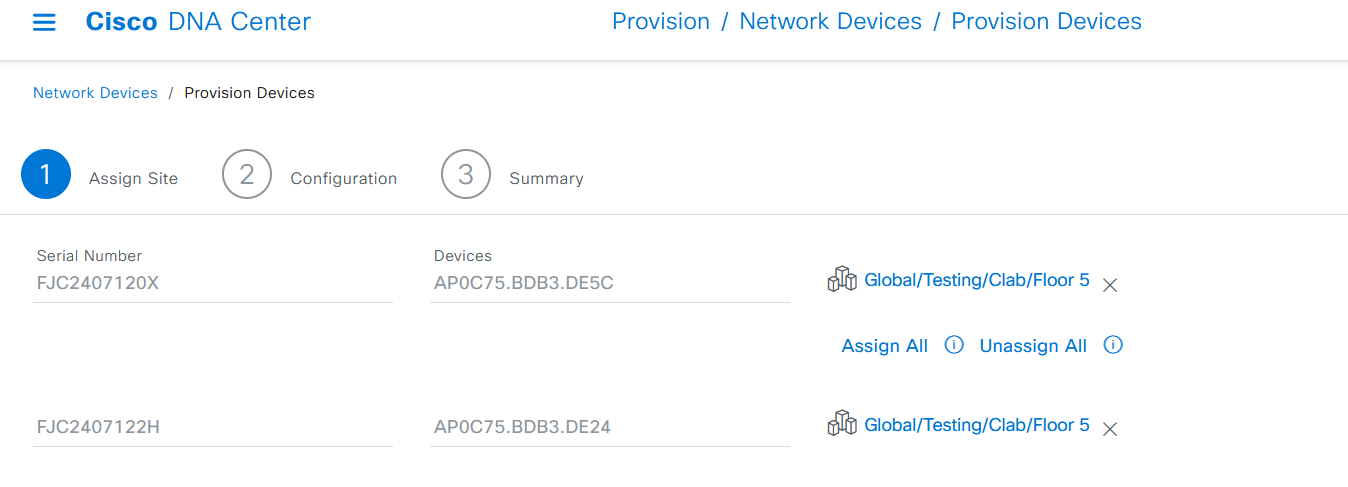

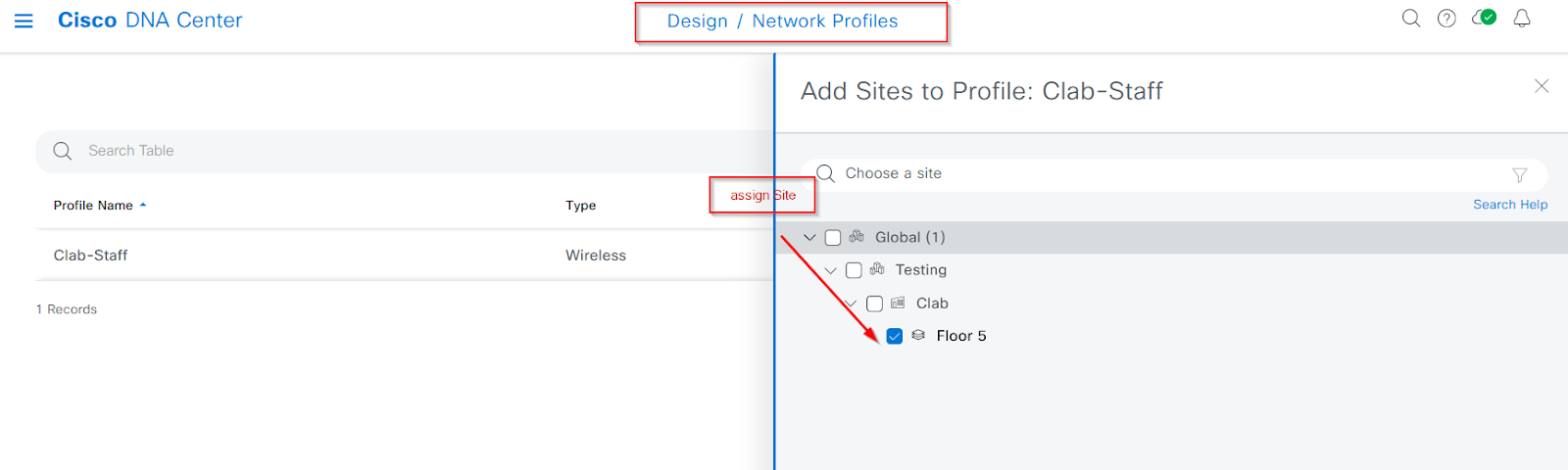

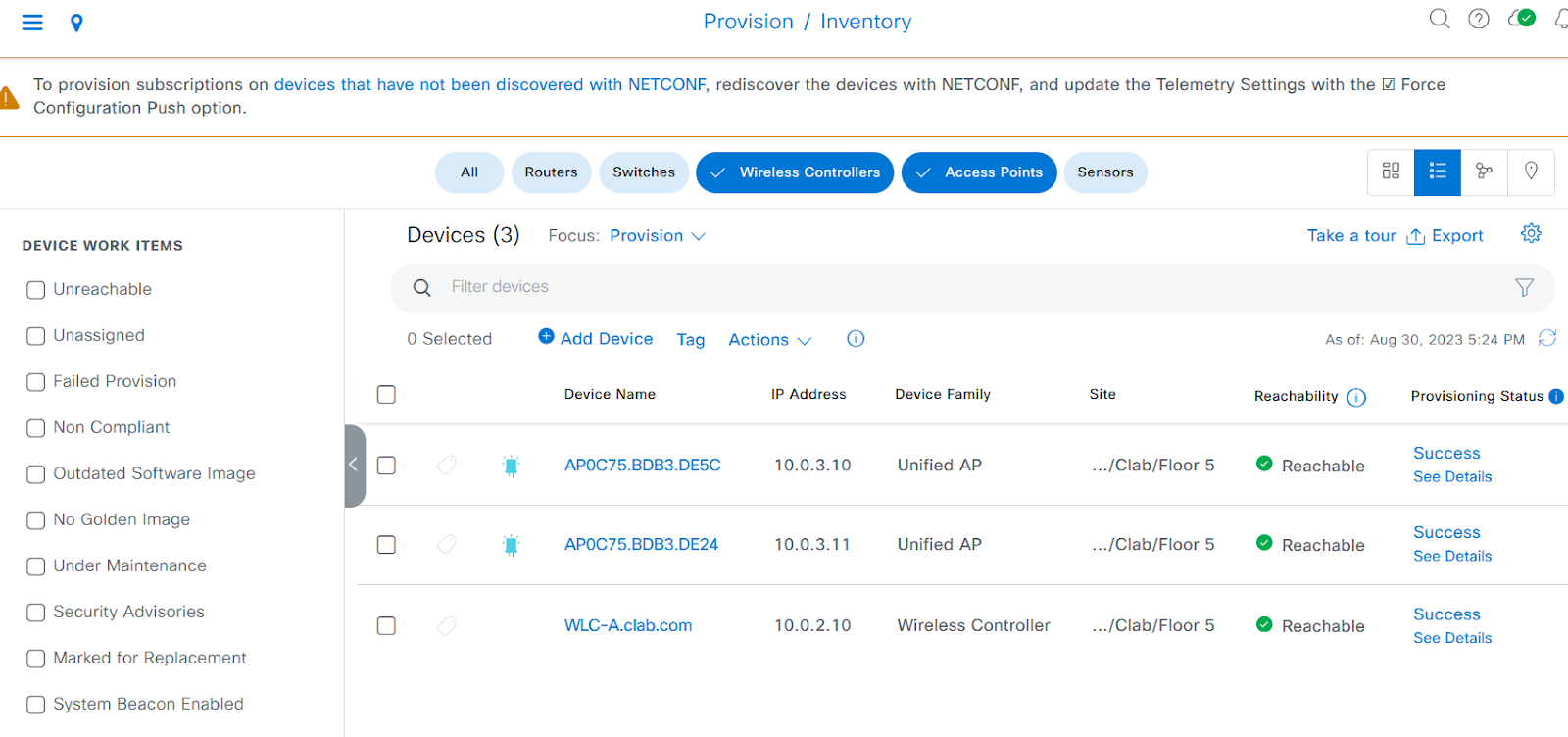

Provision APs

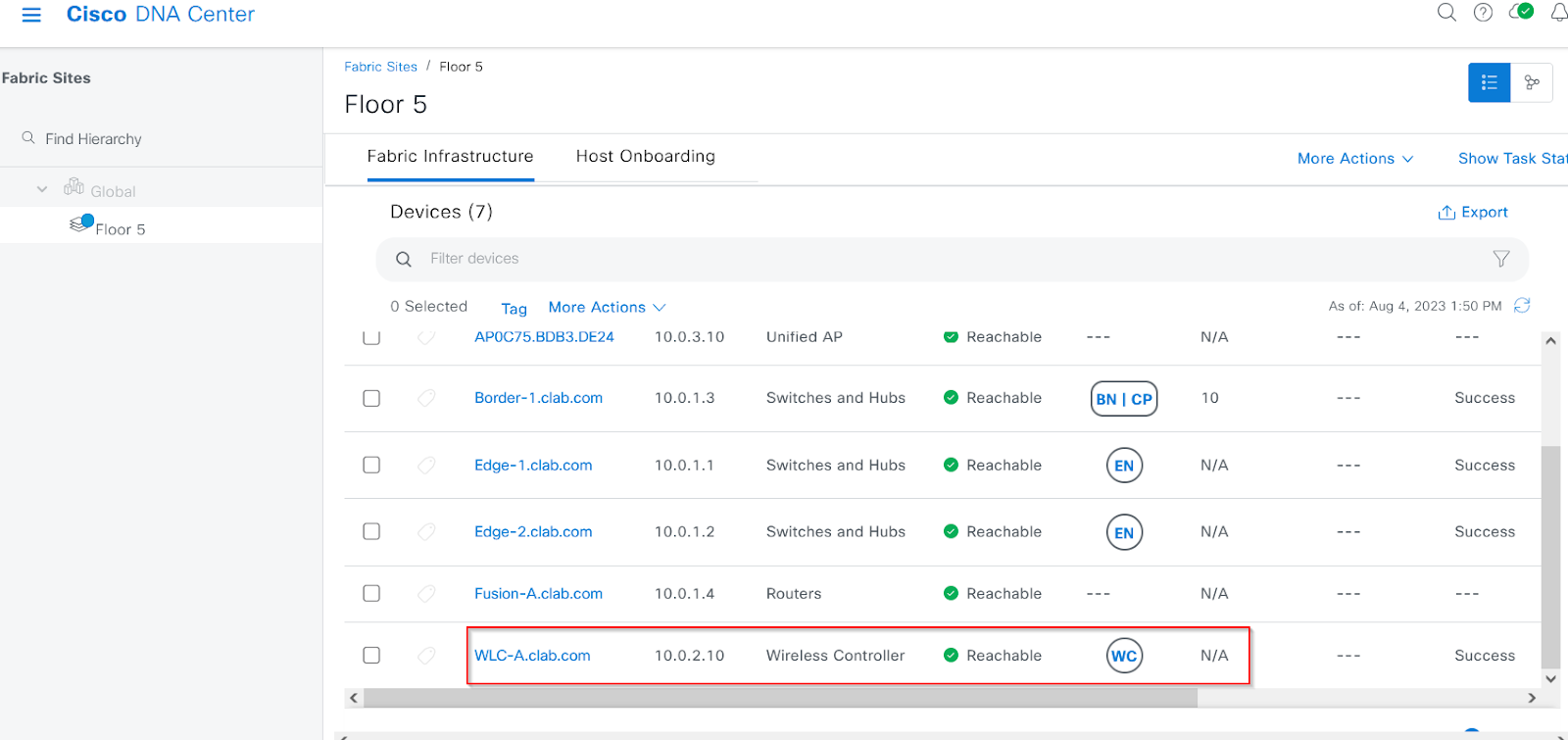

Add WLC into Fabric

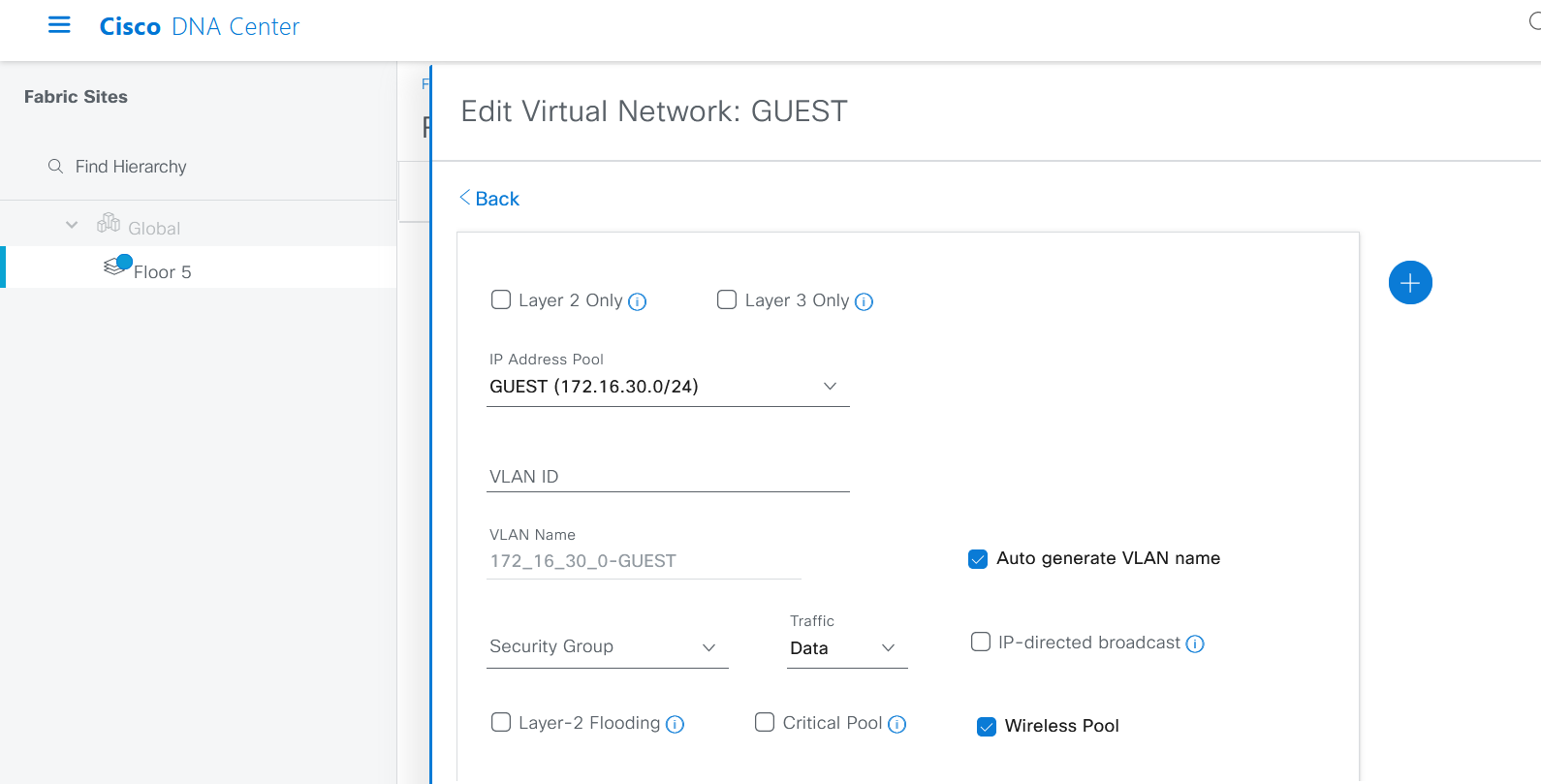

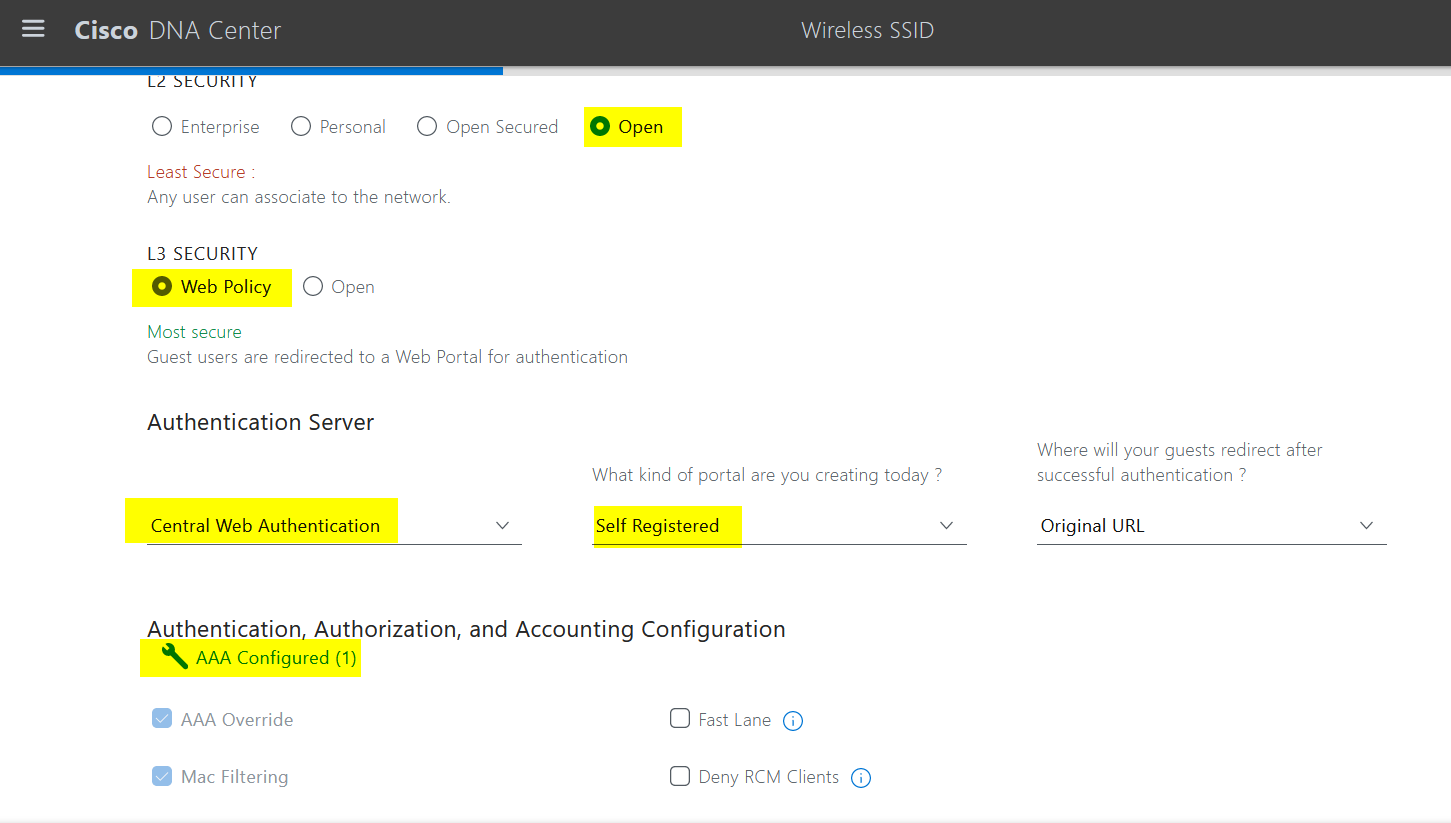

Fabric - wireless SSID

Lastly provision the APs

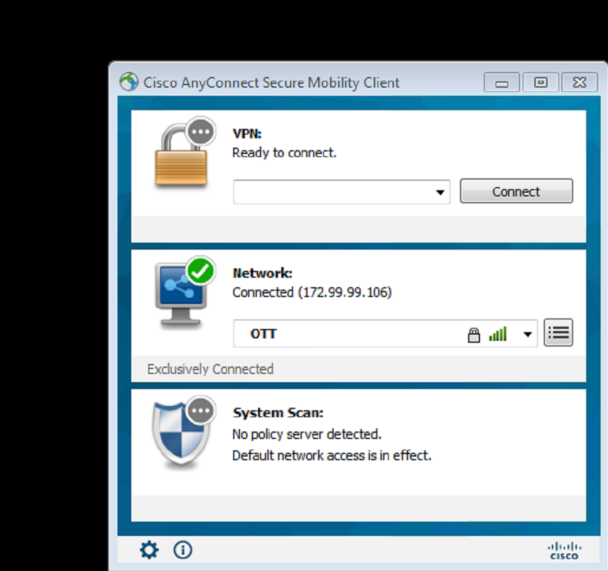

Client needs to request person certificate and connect with EAP-TLS

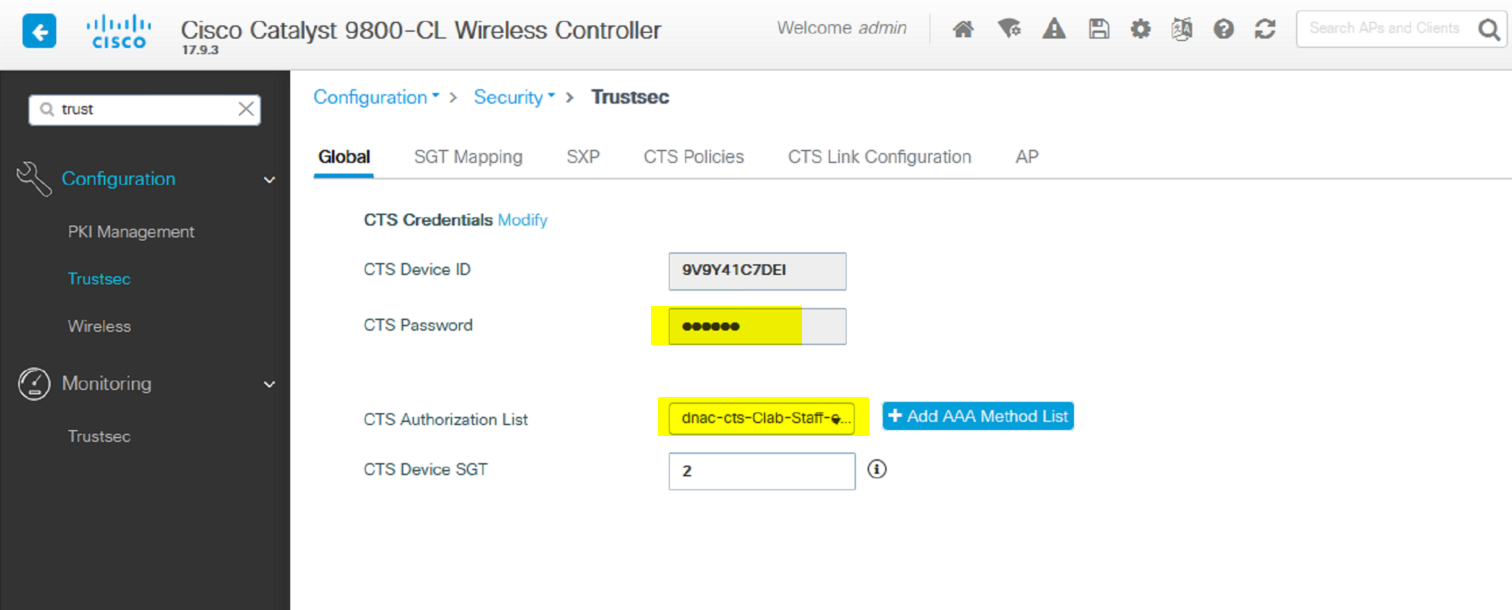

WLC TrustSec

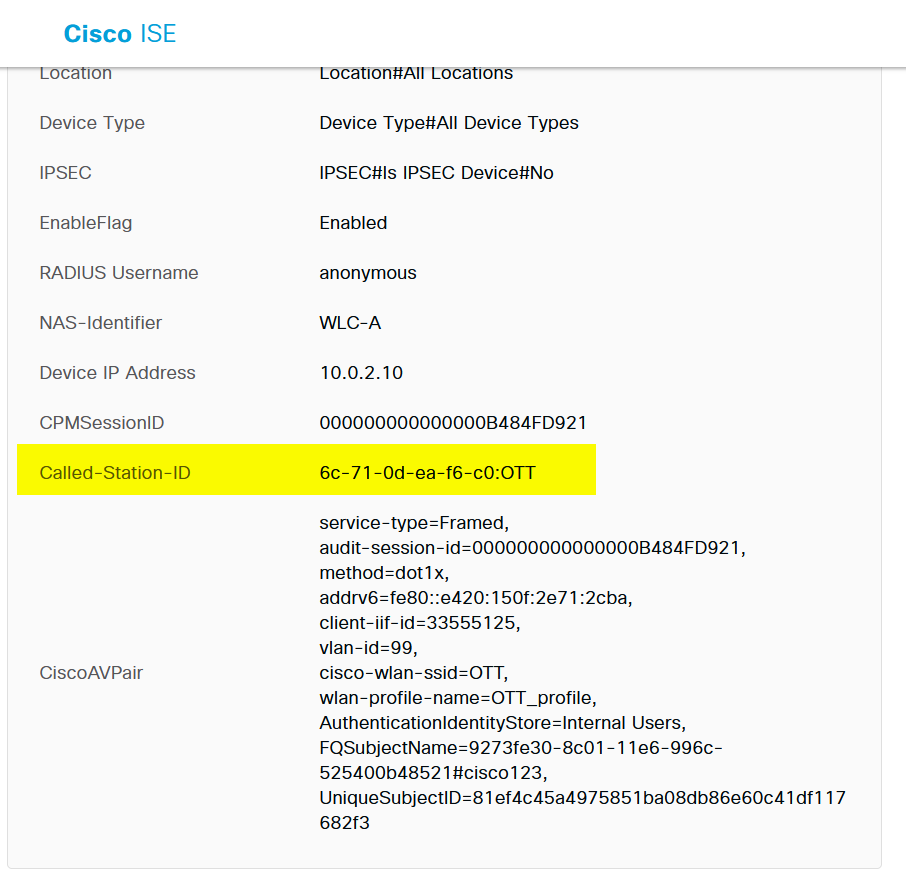

Make sure it is match with network devices in ISE

Edge-1#show access-tunnel summary

Access Tunnels General Statistics:

Number of AccessTunnel Data Tunnels = 1

Name RLOC IP(Source) AP IP(Destination) VRF ID Source Port Destination Port

------ --------------- ------------------ ------ ----------- ----------------

Ac0 10.0.1.1 10.0.3.10 0 N/A 4789

WLC-A#show run | s Clab-Staff_profile

wireless profile fabric Clab-Staff_profile

client-l2-vnid 8196

description Clab-Staff_profile

wireless profile policy Clab-Staff_profile

aaa-override

aaa-policy dnac-aaa-policy-74df41f4484d32b

accounting-list dnac-acct-Clab-Staff-ee09b3f5

no central dhcp

no central switching

cts inline-tagging

cts role-based enforcement

description Clab-Staff_profile

dhcp-tlv-caching

exclusionlist timeout 180

fabric Clab-Staff_profile

http-tlv-caching

radius-profiling

service-policy input platinum-up

service-policy output platinum

no shutdown

wlan Clab-Staff_profile policy Clab-Staff_profile

wlan Clab-Staff_profile 17 Clab-Staff

radio policy dot11 5ghz

security dot1x authentication-list dnac-cts-Clab-Staff-ee09b3f5

no shutdown

Border-1#show lisp site

LISP Site Registration Information

* = Some locators are down or unreachable

# = Some registrations are sourced by reliable transport

Site Name Last Up Who Last Inst EID Prefix

site_uci never no -- 4097 10.0.3.0/24

4d01h yes# 10.0.1.1:42916 4097 10.0.3.10/32

4d00h yes# 10.0.1.2:42723 4097 10.0.3.11/32

never no -- 4097 10.0.6.0/24

never no -- 4099 172.16.1.0/24

1d03h yes# 10.0.1.1:42916 4099 172.16.1.11/32

never no -- 4099 172.16.2.0/24

00:00:12 yes# 10.0.1.2:42723 4099 172.16.2.10/32

never no -- 4100 172.16.3.0/24

3d15h yes# 10.0.1.2:42723 4100 172.16.3.10/32

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

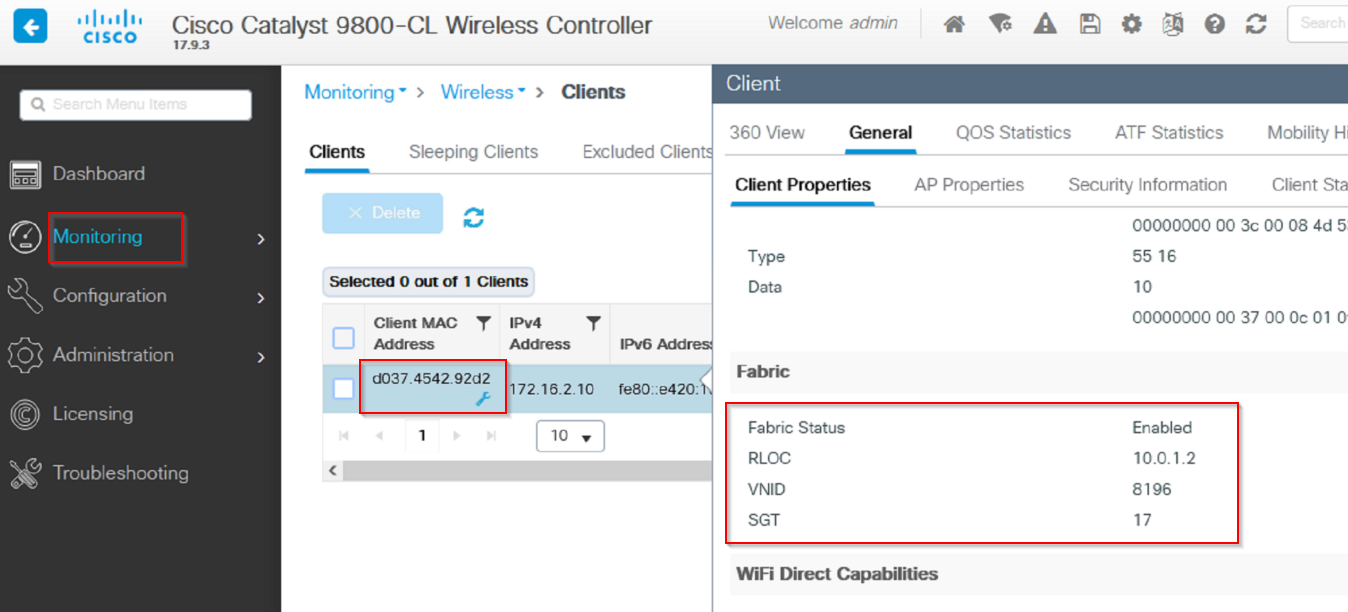

Wireless - SGT Micro-segmentation

Border Config

Border-1#show lisp site

LISP Site Registration Information

* = Some locators are down or unreachable

# = Some registrations are sourced by reliable transport

Site Name Last Up Who Last Inst EID Prefix

site_uci never no -- 4097 10.0.3.0/24

3d00h yes# 10.0.1.1:42916 4097 10.0.3.10/32

2d23h yes# 10.0.1.2:42723 4097 10.0.3.11/32

never no -- 4097 10.0.6.0/24

never no -- 4099 172.16.1.0/24

02:22:07 yes# 10.0.1.1:42916 4099 172.16.1.11/32 wired client

never no -- 4099 172.16.2.0/24

01:17:18 yes# 10.0.1.2:42723 4099 172.16.2.10/32 wireless client

never no -- 4100 172.16.3.0/24

2d14h yes# 10.0.1.2:42723 4100 172.16.3.10/32

interface GigabitEthernet1/0/4

description To vWLC

no switchport

ip address 10.0.2.9 255.255.255.252

ip router isis

cts manual

policy static sgt 2 trusted

End

Border-1#show cts interface

WLC 9800

Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide, Cisco IOS XE Bengaluru 17.5.x

From <https://www.cisco.com/c/en/us/td/docs/wireless/controller/9800/17-5/config-guide/b_wl_17_5_cg/m_config_trustsec_ewlc.html>

cts sxp enable

cts sxp connection peer 10.8.20.116 password none mode local speaker hold-time 0

radius server dnac-radius_10.8.20.116

address ipv4 10.8.20.116 auth-port 1812 acct-port 1813

pac key 7 107D0A16111E13090D0A217A

wireless cts-sxp profile default-sxp-profile

cts sxp enable

wireless profile flex default-flex-profile

cts inline-tagging

cts role-based enforcement

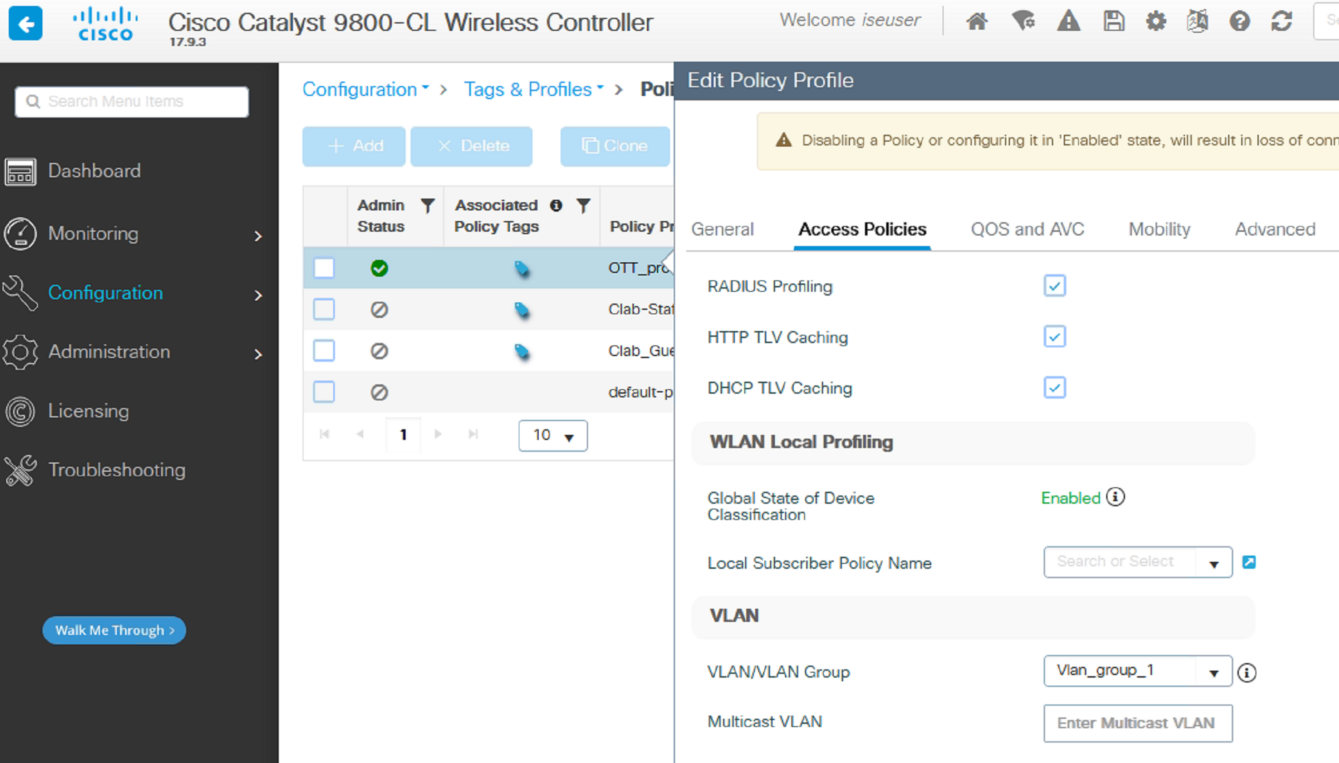

wireless profile policy Clab-Staff_profile

cts inline-tagging

cts role-based enforcement

no shutdown

wireless profile policy default-policy-profile

cts inline-tagging

no shutdown

//Site Tag

wireless tag site ST_Testi_Clab_71e1a_0

description "Site Tag ST_Testi_Clab_71e1a_0"

fabric control-plane default-control-plane

wireless tag policy default-policy-tag

description "default policy-tag"

//Policy Tag

wireless tag policy PT_Testi_Clab_Floor5_92d90

description "PolicyTagName PT_Testi_Clab_Floor5_92d90"

wlan Clab-Staff_profile policy Clab-Staff_profile

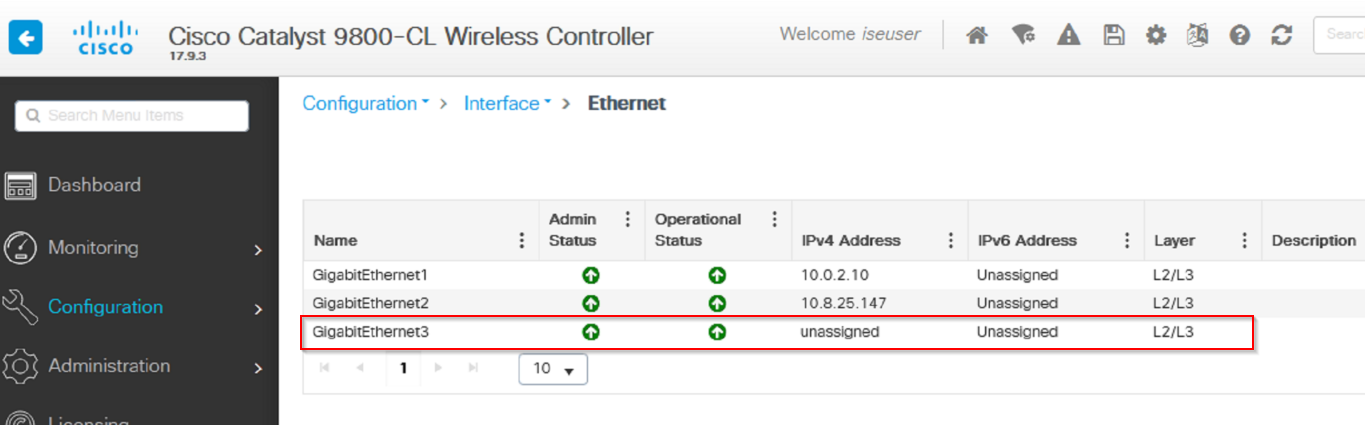

interface GigabitEthernet1

ip address 10.0.2.10 255.255.255.252

cts role-based enforcement

WLC-A#show wireless cts summary

Local Mode CTS Configuration

Policy Profile Name SGACL Enforcement Inline-Tagging Default-Sgt

----------------------------------------------------------------------------------------

Clab-Staff_profile ENABLED ENABLED 0

default-policy-profile DISABLED ENABLED 0

Flex Mode CTS Configuration

Flex Profile Name SGACL Enforcement Inline-Tagging

-----------------------------------------------------------------------

default-flex-profile ENABLED ENABLED

WLC-A#show wireless profile policy detailed Clab-Staff_profile

WLC-A#show cts policy sgt

CTS SGT Policy

===============

….

SGT: 8-15:Developers

SGT Policy Flag: 0xC1400001

RBACL Source List:

Source SGT: 21-07:Human_Resources-0, Destination SGT: 8-15:Developers-0

rbacl_type = 80

rbacl_index = 1

name = Deny_Web_Permit_All-06

IP protocol version = IPV4, IPV6

refcnt = 2

flag = 0xC1000000

stale = FALSE

RBACL ACEs:

deny tcp dst eq 443

deny udp dst eq 443

deny tcp dst eq 80

permit ip

….

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

8KV as Fusion Router (Replacing ASAv)

Border-1 Config review

Border-1#show run | section vrf definition CLAB_VN

vrf definition CLAB_VN

rd 1:4099

address-family ipv4

route-target export 1:4099

route-target import 1:4099

exit-address-family

vrf definition CLAB_VN2

rd 1:4100

address-family ipv4

route-target export 1:4100

route-target import 1:4100

exit-address-family

interface Vlan3001

description vrf interface to External router

vrf forwarding CLAB_VN

ip address 172.16.10.1 255.255.255.252

no ip redirects

ip route-cache same-interface

interface Vlan3002

description vrf interface to External router

vrf forwarding CLAB_VN2

ip address 172.16.10.5 255.255.255.252

no ip redirects

ip route-cache same-interface

End

Border-1#show run | section bgp

router bgp 100

bgp router-id interface Loopback0

bgp log-neighbor-changes

bgp graceful-restart

address-family ipv4

bgp redistribute-internal

bgp aggregate-timer 0

network 10.0.1.3 mask 255.255.255.255

network 10.0.3.254 mask 255.255.255.255

network 10.0.6.254 mask 255.255.255.255

aggregate-address 10.0.6.0 255.255.255.0 summary-only

aggregate-address 10.0.3.0 255.255.255.0 summary-only

redistribute lisp metric 10

exit-address-family

address-family ipv4 vrf CLAB_VN

bgp aggregate-timer 0

network 172.16.1.254 mask 255.255.255.255

network 172.16.2.254 mask 255.255.255.255

network 172.16.10.0 mask 255.255.255.252

aggregate-address 172.16.2.0 255.255.255.0 summary-only

aggregate-address 172.16.1.0 255.255.255.0 summary-only

redistribute lisp metric 10

neighbor 172.16.10.2 remote-as 1000

neighbor 172.16.10.2 update-source Vlan3001

neighbor 172.16.10.2 activate

neighbor 172.16.10.2 weight 65535

exit-address-family

address-family ipv4 vrf CLAB_VN2

bgp aggregate-timer 0

network 172.16.3.254 mask 255.255.255.255

network 172.16.10.4 mask 255.255.255.252

aggregate-address 172.16.3.0 255.255.255.0 summary-only

redistribute lisp metric 10

neighbor 172.16.10.6 remote-as 1000

neighbor 172.16.10.6 update-source Vlan3002

neighbor 172.16.10.6 activate

neighbor 172.16.10.6 weight 65535

exit-address-family

Fusion-1

hostname Fusion-1

vrf definition CLAB_VN

rd 1:4099

address-family ipv4

import ipv4 unicast map Global_Map

export ipv4 unicast map CLAB_VN_Map

route-target export 1:4099

route-target import 1:4099

route-target import 1:4100

exit-address-family

vrf definition CLAB_VN2

rd 1:4100

address-family ipv4

import ipv4 unicast map Global_Map

export ipv4 unicast map CLAB_VN2_Map

route-target export 1:4100

route-target import 1:4100

route-target import 1:4099

exit-address-family

interface GigabitEthernet1

ip address 202.100.10.11 255.255.255.0

negotiation auto

interface GigabitEthernet2

ip address 10.1.2.254 255.255.255.0

negotiation auto

interface GigabitEthernet3

no ip address

negotiation auto

No shutdown

interface GigabitEthernet3.3001

encapsulation dot1Q 3001

vrf forwarding CLAB_VN

ip address 172.16.10.2 255.255.255.252

interface GigabitEthernet3.3002

encapsulation dot1Q 3002

vrf forwarding CLAB_VN2

ip address 172.16.10.6 255.255.255.252

interface GigabitEthernet4

ip address 10.8.25.145 255.255.255.128

ip router isis

negotiation auto

router isis

net 49.0000.0000.0011.00

is-type level-2-only

metric-style transition

default-information originate

router bgp 1000

bgp log-neighbor-changes

address-family ipv4

network 10.1.2.0 mask 255.255.255.0

exit-address-family

address-family ipv4 vrf CLAB_VN

neighbor 172.16.10.1 remote-as 100

neighbor 172.16.10.1 update-source GigabitEthernet3.3001

neighbor 172.16.10.1 activate

neighbor 172.16.10.1 default-originate

exit-address-family

address-family ipv4 vrf CLAB_VN2

neighbor 172.16.10.5 remote-as 100

neighbor 172.16.10.5 update-source GigabitEthernet3.3002

neighbor 172.16.10.5 activate

neighbor 172.16.10.5 default-originate

exit-address-family

ip route 0.0.0.0 0.0.0.0 202.100.10.10

ip route 10.8.20.119 255.255.255.255 10.8.25.131

ip route vrf CLAB_VN 0.0.0.0 0.0.0.0 202.100.10.10 global

ip route vrf CLAB_VN2 0.0.0.0 0.0.0.0 202.100.10.10 global

ip prefix-list CLAB_VN2_Prefix seq 5 permit 172.16.3.0/24

ip prefix-list CLAB_VN_Prefix seq 5 permit 172.16.1.0/24

ip prefix-list CLAB_VN_Prefix seq 10 permit 172.16.2.0/24

ip prefix-list Global_Prefix seq 5 permit 10.1.2.0/24

route-map Global_Map permit 10

match ip address prefix-list Global_Prefix

route-map CLAB_VN_Map permit 10

match ip address prefix-list CLAB_VN_Prefix

route-map CLAB_VN2_Map permit 10

match ip address prefix-list CLAB_VN2_Prefix

Fusion-1#show ip route vrf CLAB_VN

Gateway of last resort is 202.100.10.10 to network 0.0.0.0

S* 0.0.0.0/0 [1/0] via 202.100.10.10

10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks

B 10.1.2.0/24 is directly connected, 00:05:15, GigabitEthernet2

L 10.1.2.254/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 6 subnets, 3 masks

B 172.16.1.0/24 [20/0] via 172.16.10.1, 00:15:22

B 172.16.2.0/24 [20/0] via 172.16.10.1, 00:15:22

B 172.16.3.0/24 [20/0] via 172.16.10.5 (CLAB_VN2), 00:05:15

C 172.16.10.0/30 is directly connected, GigabitEthernet3.3001

L 172.16.10.2/32 is directly connected, GigabitEthernet3.3001

B 172.16.10.4/30 [20/0] via 172.16.10.5 (CLAB_VN2), 00:05:15

Fusion-1#show ip route vrf CLAB_VN2

Gateway of last resort is 202.100.10.10 to network 0.0.0.0

S* 0.0.0.0/0 [1/0] via 202.100.10.10

10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks

B 10.1.2.0/24 is directly connected, 00:04:44, GigabitEthernet2

L 10.1.2.254/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 6 subnets, 3 masks

B 172.16.1.0/24 [20/0] via 172.16.10.1 (CLAB_VN), 00:04:44

B 172.16.2.0/24 [20/0] via 172.16.10.1 (CLAB_VN), 00:04:44

B 172.16.3.0/24 [20/0] via 172.16.10.5, 00:14:54

B 172.16.10.0/30 [20/0] via 172.16.10.1 (CLAB_VN), 00:04:44

C 172.16.10.4/30 is directly connected, GigabitEthernet3.3002

L 172.16.10.6/32 is directly connected, GigabitEthernet3.3002

Border-1#show ip lisp eid-table default map-cache

LISP IPv4 Mapping Cache for LISP 0 EID-table default (IID 4097), 4 entries

10.0.3.0/24, uptime: 1w0d, expires: never, via static-send-map-request

Negative cache entry, action: send-map-request

10.0.3.10/32, uptime: 4d01h, expires: 00:36:14, via map-reply, complete

Locator Uptime State Pri/Wgt Encap-IID

10.0.1.1 4d01h up 10/10 -

10.0.3.11/32, uptime: 3d22h, expires: 01:59:16, via map-reply, complete

Locator Uptime State Pri/Wgt Encap-IID

10.0.1.2 3d22h up 10/10 -

10.0.6.0/24, uptime: 1w0d, expires: never, via static-send-map-request

Negative cache entry, action: send-map-request

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

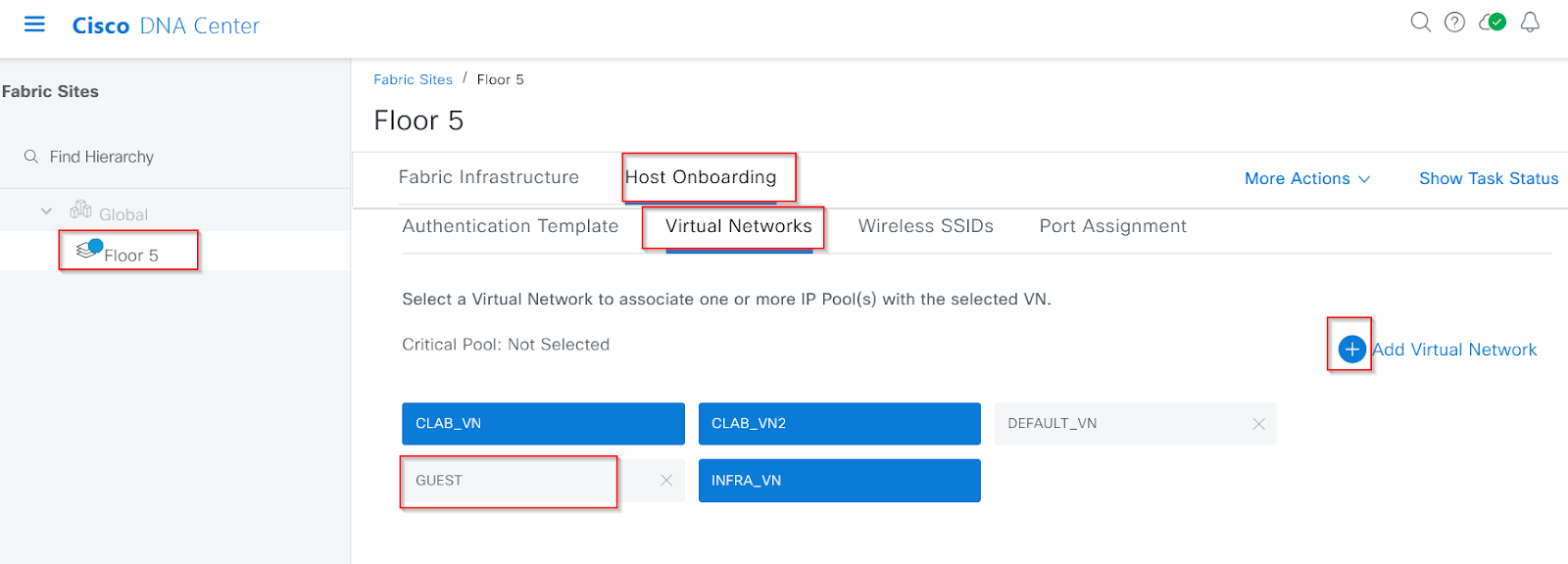

Wireless Guest - Dedicated VN for Guest

Save

Border-1

vlan 3003

name 3003

interface Vlan3003

description vrf interface to External router

vrf forwarding GUEST

ip address 172.16.10.9 255.255.255.252

no ip redirects

ip route-cache same-interface

bfd interval 300 min_rx 300 multiplier 3

no bfd echo

end

Border-1#show run | s bgp

router bgp 100

address-family ipv4 vrf GUEST

bgp aggregate-timer 0

network 172.16.30.254 mask 255.255.255.255

aggregate-address 172.16.30.0 255.255.255.0 summary-only

redistribute lisp metric 10

neighbor 172.16.10.10 remote-as 1000

neighbor 172.16.10.10 update-source Vlan3003

neighbor 172.16.10.10 activate

neighbor 172.16.10.10 weight 65535

exit-address-family

Fusion-1

vrf definition GUEST

rd 1:4101

address-family ipv4

import ipv4 unicast map Global_Map

export ipv4 unicast map GUEST_Map

route-target export 1:4101

route-target import 1:4101

exit-address-family

ip prefix-list GUEST seq 5 permit 172.16.30.0/24

ip prefix-list Global_Prefix seq 5 permit 10.1.2.0/24

route-map Global_Map permit 10

match ip address prefix-list Global_Prefix

route-map GUEST_Map permit 10

match ip address prefix-list GUEST

router bgp 1000

bgp log-neighbor-changes

address-family ipv4

network 10.1.2.0 mask 255.255.255.0

network 10.8.25.128 mask 255.255.255.128

exit-address-family

address-family ipv4 vrf GUEST

neighbor 172.16.10.9 remote-as 100

neighbor 172.16.10.9 update-source GigabitEthernet3.3003

neighbor 172.16.10.9 activate

neighbor 172.16.10.9 default-originate

exit-address-family

ip route vrf GUEST 0.0.0.0 0.0.0.0 202.100.10.10 global

Test:

Border-1#show ip route vrf GUEST

Gateway of last resort is 172.16.10.10 to network 0.0.0.0

B* 0.0.0.0/0 [20/0] via 172.16.10.10, 10:36:17

10.0.0.0/24 is subnetted, 1 subnets

B 10.1.2.0 [20/0] via 172.16.10.10, 10:36:04

172.16.0.0/16 is variably subnetted, 5 subnets, 3 masks

C 172.16.10.8/30 is directly connected, Vlan3003

L 172.16.10.9/32 is directly connected, Vlan3003

B 172.16.30.0/24 [200/0], 11:39:05, Null0

l 172.16.30.12/32 [250/1], 00:22:26, Null0

C 172.16.30.254/32 is directly connected, Loopback1041

Fusion-1#show ip route vrf GUEST

Gateway of last resort is 202.100.10.10 to network 0.0.0.0

S* 0.0.0.0/0 [1/0] via 202.100.10.10

10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks

B 10.1.2.0/24 is directly connected, 00:00:53, GigabitEthernet2

L 10.1.2.254/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 3 subnets, 3 masks

C 172.16.10.8/30 is directly connected, GigabitEthernet3.3003

L 172.16.10.10/32 is directly connected, GigabitEthernet3.3003

B 172.16.30.0/24 [20/0] via 172.16.10.9, 10:35:11

Traffic to Internet and other VNs

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

L2 Handoff

Border-2 initial Configuration

hostname Border-2

ip routing

ip domain name clab.com

system mtu 9100

interface Loopback0

ip address 10.0.1.5 255.255.255.255

ip router isis

interface GigabitEthernet0/0

vrf forwarding Mgmt-vrf

ip address 10.8.25.148 255.255.255.128

negotiation auto

interface GigabitEthernet1/0/1

no switchport

ip address 10.0.2.18 255.255.255.252

ip router isis

router isis

net 49.0000.0000.0012.00

is-type level-2-only

metric-style transition

ip http server

ip http secure-server

ip ftp source-interface GigabitEthernet0/0

ip route vrf Mgmt-vrf 0.0.0.0 0.0.0.0 10.8.25.131

DNAC > Discovery > Provision

Make sure border-2 is DISTRIBUTION device role

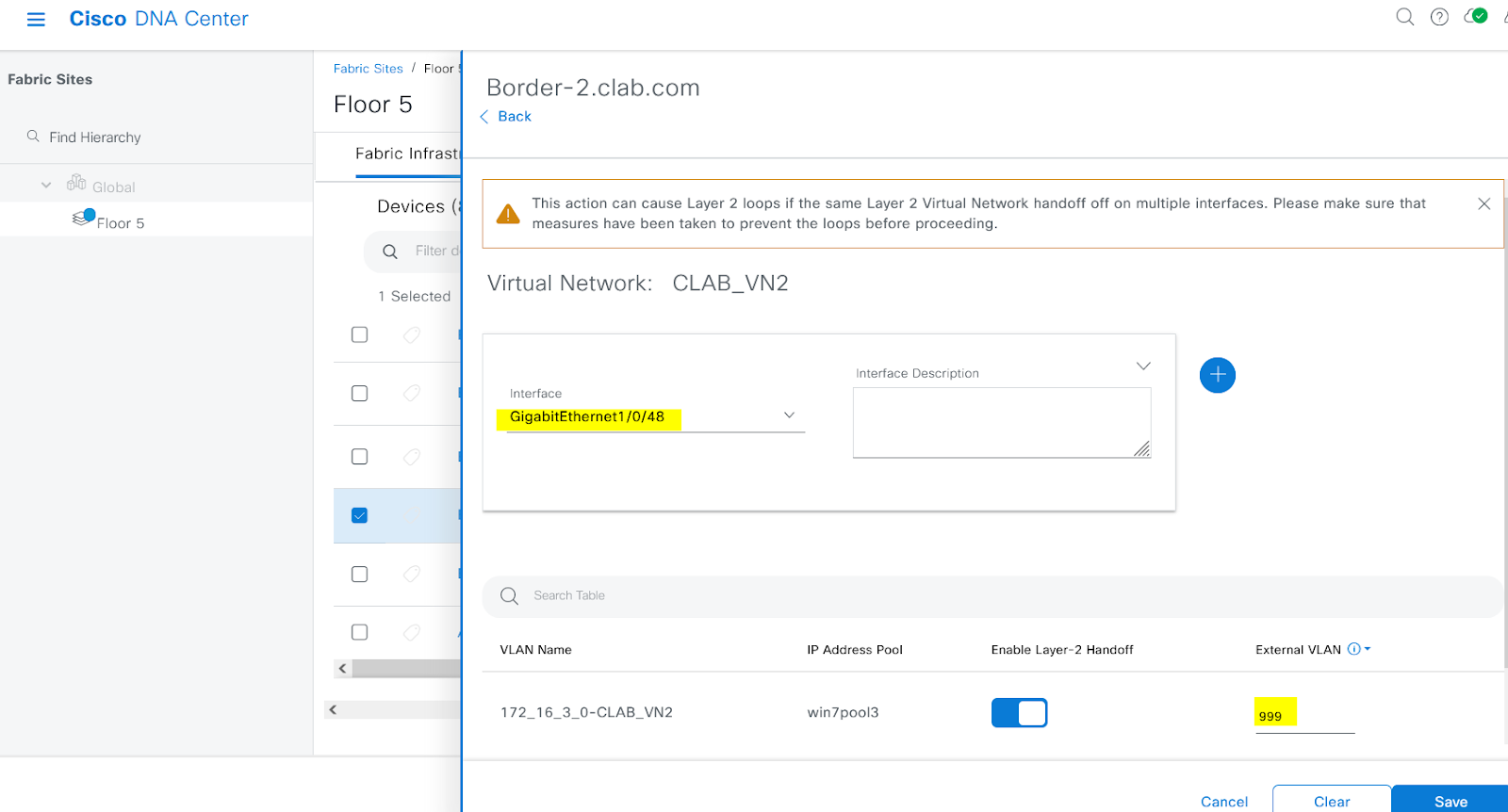

Enable L2 handoff

Border-2#show ip route vrf CLAB_VN2 172.16.3.11

Routing Table: CLAB_VN2

Routing entry for 172.16.3.11/32

Known via "lisp", distance 10, metric 1, type unknown

Last update from 172.16.3.11 on Vlan999, 00:03:29 ago

Routing Descriptor Blocks:

* 172.16.3.11, from 0.0.0.0, 00:03:29 ago, via Vlan999

Route metric is 1, traffic share count is 1

Border-2#show lisp eid-table vrf CLAB_VN2 ipv4 map-cache

LISP IPv4 Mapping Cache for LISP 0 EID-table vrf CLAB_VN2 (IID 4100), 4 entries

0.0.0.0/0, uptime: 00:04:16, expires: never, via static-send-map-request

Encapsulating to proxy ETR

0.0.0.0/1, uptime: 00:03:47, expires: 00:11:12, via map-reply, forward-native

Encapsulating to proxy ETR

172.16.0.0/23, uptime: 00:02:44, expires: 00:12:15, via map-reply, forward-native

Encapsulating to proxy ETR

172.16.3.0/24, uptime: 00:04:16, expires: never, via dynamic-EID, send-map-request

Encapsulating to proxy ETR

Border-1#show lisp site

LISP Site Registration Information

* = Some locators are down or unreachable

# = Some registrations are sourced by reliable transport

Site Name Last Up Who Last Inst EID Prefix

site_uci never no -- 4097 10.0.3.0/24

1d23h yes# 10.0.1.1:44429 4097 10.0.3.10/32

1d23h yes# 10.0.1.2:33692 4097 10.0.3.11/32

never no -- 4097 10.0.6.0/24

never no -- 4099 172.16.1.0/24

2d05h yes# 10.0.1.1:44429 4099 172.16.1.11/32

never no -- 4099 172.16.2.0/24

never no -- 4100 172.16.3.0/24

19:50:01 yes# 10.0.1.2:33692 4100 172.16.3.10/32

00:08:24 yes# 10.0.1.5:47911 4100 172.16.3.11/32

never no -- 4101 172.16.30.0/24

Border-1#show lisp eid-table vrf CLAB_VN2 ipv4 map-cache

LISP IPv4 Mapping Cache for LISP 0 EID-table vrf CLAB_VN2 (IID 4100), 2 entries

172.16.3.10/32, uptime: 22:22:41, expires: 01:37:18, via map-reply, complete

Locator Uptime State Pri/Wgt Encap-IID

10.0.1.2 22:22:41 up 10/10 -

172.16.3.11/32, uptime: 00:08:48, expires: 23:51:11, via map-reply, complete

Locator Uptime State Pri/Wgt Encap-IID

10.0.1.5 00:08:48 up 10/10 -

Border-1#show ip cef vrf CLAB_VN2 172.16.3.11

172.16.3.11/32

nexthop 10.0.1.5 LISP0.4100

Border-2#show ip cef vrf CLAB_VN2 172.16.3.11

172.16.3.11/32

nexthop 172.16.3.11 Vlan999

Border-1#show run int LISP0.4100

interface LISP0.4100

vrf forwarding CLAB_VN2

end

Border-1#show run | s instance-id 4100

instance-id 4100

remote-rloc-probe on-route-change

service ipv4

eid-table vrf CLAB_VN2

database-mapping 172.16.10.4/30 locator-set rloc_677057e3-8eb6-4516-b71d-9cbabcfa3d00

route-export site-registrations

distance site-registrations 250

map-cache site-registration

exit-service-ipv4

exit-instance-id

eid-record instance-id 4100 172.16.3.0/24 accept-more-specifics

Edge-1#lig instance-id 4100 172.16.3.11

Mapping information for EID 172.16.3.11 from 10.0.1.3 with RTT 1 msecs

172.16.3.11/32, uptime: 00:00:31, expires: 23:59:59, via map-reply, complete

Locator Uptime State Pri/Wgt Encap-IID

10.0.1.5 00:00:31 up 10/10 -

Border-2#lig instance-id 4100 172.16.3.11

Mapping information for EID 172.16.3.11 from 10.0.1.5 with RTT 2 msecs

172.16.3.11/32, uptime: 00:00:00, expires: 23:59:59, via map-reply, self, complete

Locator Uptime State Pri/Wgt Encap-IID

10.0.1.5 00:00:00 up, self 10/10 -

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

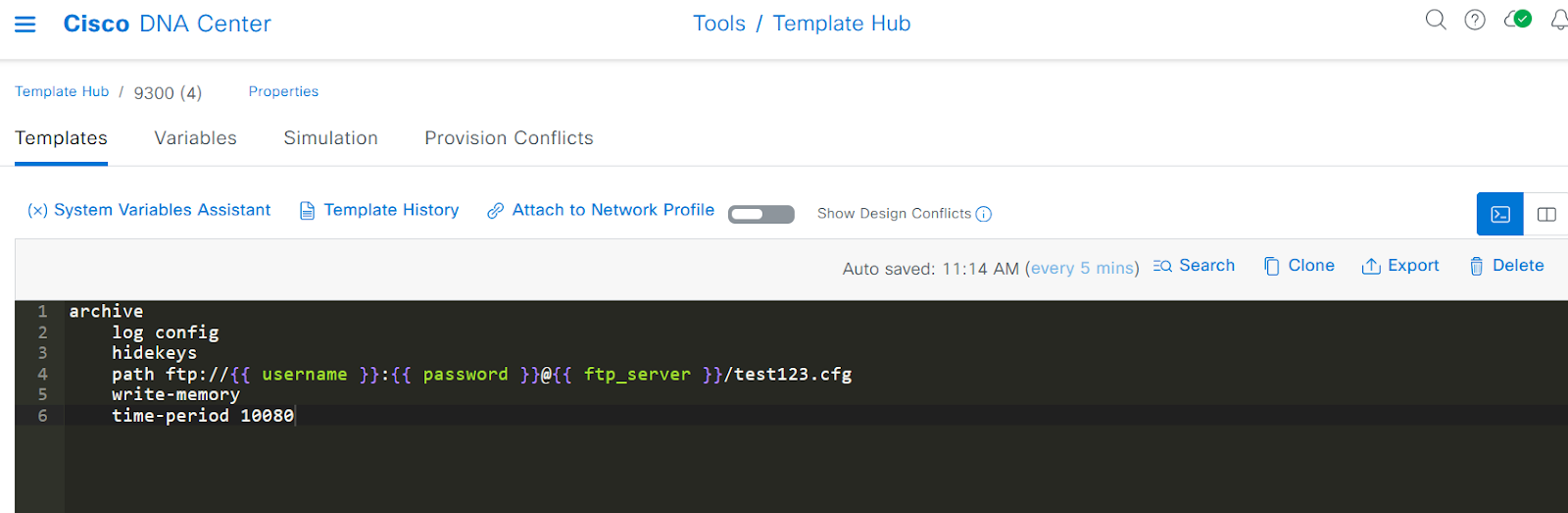

DNAC Template

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Troubleshooting Host Authentication Issues

Edge-1#show aaa server

RADIUS: id 3, priority 1, host 10.8.20.116, auth-port 1812, acct-port 1813, hostname dnac-radius_10.8.20.116

State: current UP,

Edge-1#show authentication sessions interface g1/0/12 details

Interface: GigabitEthernet1/0/12

IIF-ID: 0x1135686C

MAC Address: 0800.27c9.b24d

IPv6 Address: fe80::71da:5fc9:c57:c853

IPv4 Address: 172.16.1.11

User-Name: dnauser1

Device-type: Microsoft-Workstation

Device-name: WIN7PC1

VRF: CLAB_VN

Status: Authorized

Domain: DATA

Oper host mode: multi-auth

Oper control dir: both

Session timeout: N/A

Acct update timeout: 172800s (local), Remaining: 172781s

Common Session ID: 0202000A00000098D76AD55E

Acct Session ID: 0x0000008e

Handle: 0x4200008e

Current Policy: PMAP_DefaultWiredDot1xClosedAuth_1X_MAB

Local Policies:

Server Policies:

SGT Value: 16

Method status list:

Method State

dot1x Authc Success

Edge-1#show cts pac

AID: 911DC573492B20B34B554AE350A823BB

PAC-Info:

PAC-type = Cisco Trustsec

AID: 911DC573492B20B34B554AE350A823BB

I-ID: FCW2327C0A1

A-ID-Info: Identity Services Engine

Credential Lifetime: 19:18:45 UTC Mon Oct 30 2023

PAC-Opaque: 000200B80003000100040010911DC573492B20B34B554AE350A823BB0006009C000301003B377E9290C93844007C5507361148B00000001364C04C8800093A805FAD739773070066B52FEA2D1D066E661F275E7C8834A147546D497F94B0BFE606EC692E402D8C0CE5D8FE64D04270B282A008BCF5D55D3FECF44CFA5ED2D293088C0E71F5DE2F02410EDE8A84DEE5A8804B884A294618D323A3D66FE3BE1E20D152FF59B08DA90E21B6C2FE77A34DFA2F160D104BC2EEC4241CFDE6

Refresh timer is set for 10w4d

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Troubleshooting SGT issues

Edge-1#show cts environment-data

CTS Environment Data

====================

Current state = COMPLETE

Last status = Successful

Service Info Table:

Local Device SGT:

SGT tag = 2-00:TrustSec_Devices

Server List Info:

Installed list: CTSServerList1-0001, 1 server(s):

*Server: 10.8.20.116, port 1812, A-ID 911DC573492B20B34B554AE350A823BB

Status = ALIVE

auto-test = TRUE, keywrap-enable = FALSE, idle-time = 60 mins, deadtime = 20 secs

Security Group Name Table:

0-00:Unknown

2-00:TrustSec_Devices

3-00:Network_Services

4-00:Employees

5-00:Contractors

6-00:Guests

7-00:Production_Users

8-04:Developers

9-00:Auditors

10-00:Point_of_Sale_Systems

11-00:Production_Servers

12-00:Development_Servers

13-00:Test_Servers

14-00:PCI_Servers

15-00:BYOD

16-16:win7_sgt_tag1

17-00:win7_sgt_tag2

18-05:win7_sgt_tag3

19-00:DC2012

20-00:MGMT_NET

21-00:Human_Resources

255-00:Quarantined_Systems

Environment Data Lifetime = 86400 secs

Last update time = 18:29:15 UTC Tue Aug 15 2023

Env-data expires in 0:23:05:11 (dd:hr:mm:sec)

Env-data refreshes in 0:23:05:11 (dd:hr:mm:sec)

Cache data applied = NONE

State Machine is running

Retry_timer (60 secs) is not running

Edge-1#

Edge-1#show cts role-based sgt-map vrf CLAB_VN all

%IPv6 protocol is not enabled in VRF CLAB_VN

Active IPv4-SGT Bindings Information

IP Address SGT Source

============================================

169.254.44.186 17 LOCAL

172.16.1.11 16 LOCAL

172.16.1.254 2 INTERNAL

172.16.2.254 2 INTERNAL

IP-SGT Active Bindings Summary

============================================

Total number of LOCAL bindings = 2

Total number of INTERNAL bindings = 2

Total number of active bindings = 4

Edge-1#show cts rbacl

CTS RBACL Policy

================

RBACL IP Version Supported: IPv4 & IPv6

name = Permit IP-00

IP protocol version = IPV4, IPV6

refcnt = 2

flag = 0xC1000000

stale = FALSE

RBACL ACEs:

permit ip

name = DenyWeb-02

IP protocol version = IPV4, IPV6

refcnt = 2

flag = 0xC1000000

stale = FALSE

RBACL ACEs:

deny tcp dst eq 80

deny tcp dst eq 443

deny udp dst eq 443

permit ip

Edge-1#show cts role-based counters

Role-based IPv4 counters

From To SW-Denied HW-Denied SW-Permitt HW-Permitt SW-Monitor HW-Monitor

* * 0 0 72713 112154 0 0

17 16 0 0 0 0 0 0

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Troubleshooting Host DHCP Onboarding Issue

Edge-1#show run | s ip dhcp

ip dhcp relay information option

ip dhcp snooping vlan 1021-1022,1031,1034-1035,1041

ip dhcp snooping

Debug ip dhcp server packet

.Aug 15 19:34:01.180: DHCPD: broadcasting BOOTREPLY to client 0800.27c9.b24d.

.Aug 15 19:34:01.209: DHCPD: tableid for 172.16.1.254 on Vlan1031 is 14

.Aug 15 19:34:01.209: DHCPD: client's VPN is CLAB_VN.

.Aug 15 19:34:01.209: DHCPD: No option 125

.Aug 15 19:34:01.209: DHCPD: No option 124

.Aug 15 19:34:01.209: DHCPD: Finding a relay for client 0108.0027.c9b2.4d on interface Vlan1031.

.Aug 15 19:34:01.209: DHCPD: Looking up binding using address 172.16.1.254

.Aug 15 19:34:01.209: DHCPD: setting giaddr to 172.16.1.254.

.Aug 15 19:34:01.209: DHCPD: BOOTREQUEST from 0108.0027.c9b2.4d forwarded to 10.1.2.240.

.Aug 15 19:34:01.211: DHCPD: tableid for 172.16.1.254 on LISP0.4099 is 14

.Aug 15 19:34:01.211: DHCPD: client's VPN is .

.Aug 15 19:34:01.211: DHCPD: No option 125

.Aug 15 19:34:01.211: DHCPD: No option 124

.Aug 15 19:34:01.211: DHCPD: forwarding BOOTREPLY to client 0800.27c9.b24d.

.Aug 15 19:34:01.211: DHCPD: Option 125 not present in the msg.

.Aug 15 19:34:01.211: DHCPD: egress Interfce Vlan1031

.Aug 15 19:34:01.211: DHCPD: broadcasting BOOTREPLY to client 0800.27c9.b24d.

.Aug 15 19:34:01.211: DHCPD: Address 172.16.1.11 is not local and is in configured LISP EID space

.Aug 15 19:34:01.211: DHCPD: egress Interface Vlan1031, called by server 0, reply to relay 0, msg type 5

Edge-1#show udp detail

Proto Remote Port Local Port In Out Stat TTY OutputIF

17 10.1.2.240 67 10.0.1.1 67 0 0 2102211 0

Edge-1#show ip dhcp snooping binding

MacAddress IpAddress Lease(sec) Type VLAN Interface

------------------ --------------- ---------- ------------- ---- --------------------

08:00:27:C9:B2:4D 172.16.1.11 690913 dhcp-snooping 1031 GigabitEthernet1/0/12

Total number of bindings: 1

Edge-1#show arp vrf CLAB_VN

Protocol Address Age (min) Hardware Addr Type Interface

Internet 172.16.1.11 1 0800.27c9.b24d ARPA Vlan1031

Edge-1#show device-tracking database

Binding Table has 9 entries, 3 dynamic (limit 200000)

Codes: L - Local, S - Static, ND - Neighbor Discovery, ARP - Address Resolution Protocol, DH4 - IPv4 DHCP, DH6 - IPv6 DHCP, PKT - Other Packet, API - API created

Preflevel flags (prlvl):

0001:MAC and LLA match 0002:Orig trunk 0004:Orig access

0008:Orig trusted trunk 0010:Orig trusted access 0020:DHCP assigned

0040:Cga authenticated 0080:Cert authenticated 0100:Statically assigned

Network Layer Address Link Layer Address Interface vlan prlvl age state Time left

DH4 172.16.1.11 0800.27c9.b24d Gi1/0/12 1031 0024 123s REACHABLE 129 s(690811 s)

LISP local database on the fabric edge

Border-1#show lisp site

LISP Site Registration Information

* = Some locators are down or unreachable

# = Some registrations are sourced by reliable transport

Site Name Last Up Who Last Inst EID Prefix

site_uci never no -- 4097 10.0.3.0/24

never no -- 4097 10.0.6.0/24

never no -- 4099 172.16.1.0/24

00:12:30 yes# 10.0.1.1:44429 4099 172.16.1.11/32

never no -- 4099 172.16.2.0/24

never no -- 4100 172.16.3.0/24

02:22:58 yes# 10.0.1.2:33692 4100 172.16.3.10/32

never no -- 4101 172.16.30.0/24

Edge-1#show ip lisp instance-id 4099 database

LISP ETR IPv4 Mapping Database for LISP 0 EID-table vrf CLAB_VN (IID 4099), LSBs: 0x1

Entries total 2, no-route 0, inactive 0, do-not-register 1

172.16.1.11/32, dynamic-eid 172_16_1_0-CLAB_VN-IPV4, inherited from default locator-set rloc_7729f71c-b0a2-4252-9524-c80902e89755

Uptime: 00:12:48, Last-change: 00:12:48

Domain-ID: local

Service-Insertion: N/A

Locator Pri/Wgt Source State

10.0.1.1 10/10 cfg-intf site-self, reachable

Edge-1#show ip lisp map-cache instance-id 4099

LISP IPv4 Mapping Cache for LISP 0 EID-table vrf CLAB_VN (IID 4099), 5 entries

0.0.0.0/0, uptime: 6d20h, expires: never, via static-send-map-request

Encapsulating to proxy ETR

0.0.0.0/1, uptime: 02:28:35, expires: 00:14:25, via map-reply, forward-native

Encapsulating to proxy ETR

172.16.1.0/24, uptime: 6d20h, expires: never, via dynamic-EID, send-map-request

Encapsulating to proxy ETR

172.16.2.0/24, uptime: 6d20h, expires: never, via dynamic-EID, send-map-request

Encapsulating to proxy ETR

176.0.0.0/4, uptime: 00:00:58, expires: 00:14:01, via map-reply, forward-native

Encapsulating to proxy ETR

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Appendix A - Fusion router configuration

vrf definition CLAB_VN

rd 1:4099

address-family ipv4

import ipv4 unicast map Global_Map

export ipv4 unicast map CLAB_VN_Map

route-target export 1:4099

route-target import 1:4099

route-target import 1:4100

exit-address-family

vrf definition CLAB_VN2

rd 1:4100

address-family ipv4

import ipv4 unicast map Global_Map

export ipv4 unicast map CLAB_VN2_Map

route-target export 1:4100

route-target import 1:4100

route-target import 1:4099

exit-address-family

vrf definition GUEST

rd 1:4101

address-family ipv4

import ipv4 unicast map Global_map

export ipv4 unicast map GUEST_Map

route-target export 1:4101

route-target import 1:4101

exit-address-family

no aaa new-model

interface GigabitEthernet1

ip dhcp client client-id ascii 9CZSIGGOLPC

ip address 202.100.10.11 255.255.255.0

negotiation auto

interface GigabitEthernet2

ip address 10.1.2.254 255.255.255.0

negotiation auto

interface GigabitEthernet3

no ip address

negotiation auto

interface GigabitEthernet3.3001

encapsulation dot1Q 3001

vrf forwarding CLAB_VN

ip address 172.16.10.2 255.255.255.252

interface GigabitEthernet3.3002

encapsulation dot1Q 3002

vrf forwarding CLAB_VN2

ip address 172.16.10.6 255.255.255.252

interface GigabitEthernet3.3003

encapsulation dot1Q 3003

vrf forwarding GUEST

ip address 172.16.10.10 255.255.255.252

interface GigabitEthernet4

ip address 10.8.25.145 255.255.255.128

negotiation auto

router bgp 1000

bgp log-neighbor-changes

address-family ipv4

network 10.1.2.0 mask 255.255.255.0

network 10.8.25.128 mask 255.255.255.128

exit-address-family

address-family ipv4 vrf CLAB_VN

neighbor 172.16.10.1 remote-as 100

neighbor 172.16.10.1 update-source GigabitEthernet3.3001

neighbor 172.16.10.1 activate

neighbor 172.16.10.1 default-originate

exit-address-family

address-family ipv4 vrf CLAB_VN2

neighbor 172.16.10.5 remote-as 100

neighbor 172.16.10.5 update-source GigabitEthernet3.3002

neighbor 172.16.10.5 activate

neighbor 172.16.10.5 default-originate

exit-address-family

address-family ipv4 vrf GUEST

neighbor 172.16.10.9 remote-as 100

neighbor 172.16.10.9 update-source GigabitEthernet3.3003

neighbor 172.16.10.9 activate

neighbor 172.16.10.9 default-originate

exit-address-family

ip route 0.0.0.0 0.0.0.0 202.100.10.10

ip route 10.8.20.119 255.255.255.255 10.8.25.131

ip route vrf CLAB_VN 0.0.0.0 0.0.0.0 202.100.10.10 global

ip route vrf CLAB_VN2 0.0.0.0 0.0.0.0 202.100.10.10 global

ip route vrf GUEST 0.0.0.0 0.0.0.0 202.100.10.10 global

ip prefix-list CLAB_VN seq 5 permit 172.16.1.0/24

ip prefix-list CLAB_VN seq 10 permit 172.16.2.0/24

ip prefix-list CLAB_VN2 seq 5 permit 172.16.3.0/24

ip prefix-list GUEST seq 5 permit 172.16.30.0/24

ip prefix-list Global_Prefix seq 5 permit 10.1.2.0/24

route-map Global_map permit 10

match ip address prefix-list Global_Prefix

route-map Global_Map permit 10

match ip address prefix-list Global_Prefix

route-map CLAB_VN_Map permit 10

match ip address prefix-list CLAB_VN

route-map GUEST_Map permit 10

match ip address prefix-list GUEST

route-map CLAB_VN2_Map permit 10

match ip address prefix-list CLAB_VN2

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Multicast

Border-1(config)#int lo 0

Border-1(config-if)#ip pim sparse-mode

Border-1(config)#int g1/0/1

Border-1(config-if)#ip pim sparse-mode

Border-1(config-if)#int g1/0/2

Border-1(config-if)#ip pim sparse-mode

Border-1(config)#ip multicast-routing

Border-1#show ip pim neighbor

PIM Neighbor Table

Mode: B - Bidir Capable, DR - Designated Router, N - Default DR Priority,

P - Proxy Capable, S - State Refresh Capable, G - GenID Capable,

L - DR Load-balancing Capable

Neighbor Interface Uptime/Expires Ver DR

Address Prio/Mode

10.0.2.14 GigabitEthernet1/0/3 00:00:48/00:01:25 v2 1 / DR S P G

10.0.2.2 GigabitEthernet1/0/1 00:08:04/00:01:32 v2 1 / DR S P G

10.0.2.6 GigabitEthernet1/0/2 00:07:18/00:01:19 v2 1 / DR S P G

Edge-1(config)#int lo0

Edge-1(config-if)#ip pim sparse-mode

Edge-1(config)#int g1/0/1

Edge-1(config-if)#ip pim sparse-mode

Edge-1(config)#ip multicast-routing

Edge-2(config)#int lo 0

Edge-2(config-if)#ip pim sparse-mode

Edge-2(config-if)#exit

Edge-2(config)#int g1/0/1

Edge-2(config-if)#ip pim sparse-mode

Edge-2(config)#ip multicast-routing

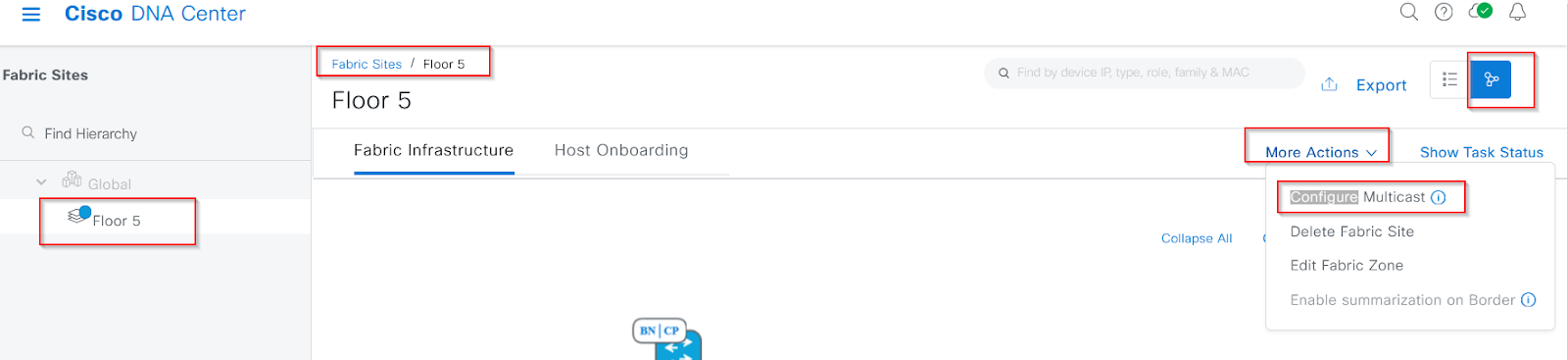

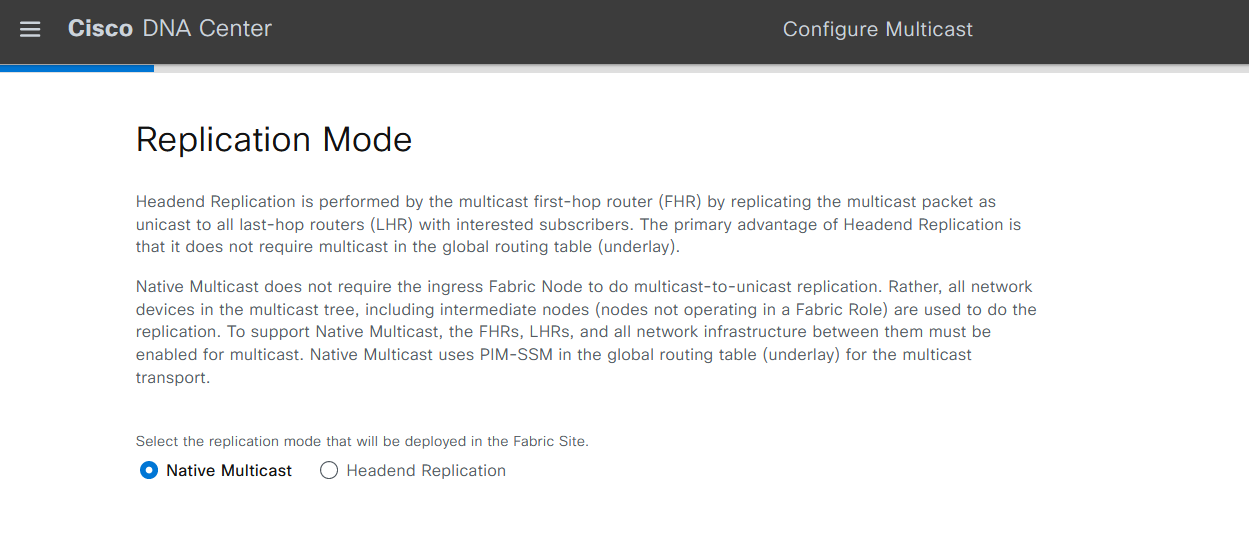

ASM group range 239.0.0.1 - 239.0.1.246

Enable L2 flooding

Border-1#show ip vrf CLAB_VN

Name Default RD Interfaces

CLAB_VN 1:4099 Vl3001

Lo1031

Lo1034

LI0.4099

Lo4099

Tu2

Tu3

Border-1#show run | i multicast-routing

ip multicast-routing

ip multicast-routing vrf CLAB_VN2

Border-1#show run interface LISP0.4099

interface LISP0.4099

vrf forwarding CLAB_VN

ip pim lisp transport multicast

ip pim lisp core-group-range 232.0.0.1 1000

end

ip pim vrf CLAB_VN rp-address 172.16.31.1 ASM_ACL_IPV4_CLAB_VN_172.16.31.1

ip pim vrf CLAB_VN register-source Loopback4099

ip pim vrf CLAB_VN ssm default

Border-1#show run | i pim vrf CLAB_VN

ip pim vrf CLAB_VN2 rp-address 172.16.32.1

ip pim vrf CLAB_VN2 register-source Loopback4100

ip pim vrf CLAB_VN2 ssm default

ip pim vrf CLAB_VN rp-address 172.16.31.1

ip pim vrf CLAB_VN register-source Loopback4099

ip pim vrf CLAB_VN ssm default

Fusion-1

ip prefix-list CLAB_VN seq 15 permit 172.16.31.0/24

ip prefix-list CLAB_VN2 seq 10 permit 172.16.32.0/24

ip prefix-list Global_Prefix seq 10 permit 10.0.1.6/32

Fusion-1#show ip route bgp

172.16.0.0/24 is subnetted, 6 subnets

B 172.16.1.0 [20/0] via 172.16.10.1 (CLAB_VN), 2d00h

B 172.16.2.0 [20/0] via 172.16.10.1 (CLAB_VN), 2d00h

B 172.16.3.0 [20/0] via 172.16.10.5 (CLAB_VN2), 2d00h

B 172.16.30.0 [20/0] via 172.16.10.9 (GUEST), 2d00h

B 172.16.31.0 [20/0] via 172.16.10.1 (CLAB_VN), 00:00:06

B 172.16.32.0 [20/0] via 172.16.10.5 (CLAB_VN2), 00:00:06

Fusion-1#show run | s bgp

router bgp 1000

bgp log-neighbor-changes

address-family ipv4

network 10.0.1.6 mask 255.255.255.255

network 10.1.2.0 mask 255.255.255.0

network 10.8.25.128 mask 255.255.255.128

Fusion-1#show run | s ip msdp

ip msdp peer 172.16.31.1 connect-source Loopback0

ip msdp cache-sa-state

ip msdp originator-id Loopback0

Fusion-1#show run | s ip pim

ip pim rp-address 10.0.1.6 ASM_ACL_IPV4_CLAB_VN_172.16.31.1

ip pim ssm default

Border-1

Border-1#show run | s ip pim

ip pim vrf CLAB_VN rp-address 172.16.31.1 ASM_ACL_IPV4_CLAB_VN_172.16.31.1

ip pim vrf CLAB_VN register-source Loopback4099

ip pim vrf CLAB_VN ssm default

Border-1#show run | s ip msdp

ip msdp vrf CLAB_VN peer 10.0.1.6 connect-source Loopback4099

ip msdp vrf CLAB_VN cache-sa-state

ip msdp vrf CLAB_VN originator-id Loopback4099

Testing

Edge-1#show run int vlan 1031

Building configuration...

Current configuration : 405 bytes

interface Vlan1031

description Configured from Cisco DNA-Center

mac-address 0000.0c9f.f520

vrf forwarding CLAB_VN

ip address 172.16.1.254 255.255.255.0

ip helper-address 10.1.2.240

no ip redirects

ip pim passive

ip route-cache same-interface

ip igmp join-group 239.0.1.99

ip igmp version 3

ip igmp explicit-tracking

no lisp mobility liveness test

lisp mobility 172_16_1_0-CLAB_VN-IPV4

Fusion-1#show run int g2

Building configuration...

Current configuration : 213 bytes

interface GigabitEthernet2

ip address 10.1.2.254 255.255.255.0

ip pim passive

ip route-cache same-interface

ip igmp join-group 239.0.1.99

ip igmp version 3

ip igmp explicit-tracking

negotiation auto

end

C:\Users\Administrator\Desktop\iperf-2.0.9-win32\iperf-2.0.9-win32>iperf -c 234.1.2.3 -u -T 32 -t 3 -i 1 -B 10.1.2.240

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Extended Node

interface GigabitEthernet1/0/14

switchport mode trunk

channel-group 1 mode desirable

end

Edge-2#show run int vlan 1021

interface Vlan1021

description Configured from Cisco DNA-Center

mac-address 0000.0c9f.f6ad

ip address 10.0.6.254 255.255.255.0

ip helper-address global 10.1.2.240

no ip redirects

ip route-cache same-interface

no lisp mobility liveness test

lisp mobility 10_0_6_0-INFRA_VN-IPV4

end

Edge-2#show run | s 10_0_6_0-INFRA_VN-IPV4

lisp mobility 10_0_6_0-INFRA_VN-IPV4

dynamic-eid 10_0_6_0-INFRA_VN-IPV4

database-mapping 10.0.6.0/24 locator-set rloc_d4e88495-a5dd-4d63-bc97-151d2bc297d2

exit-dynamic-eid

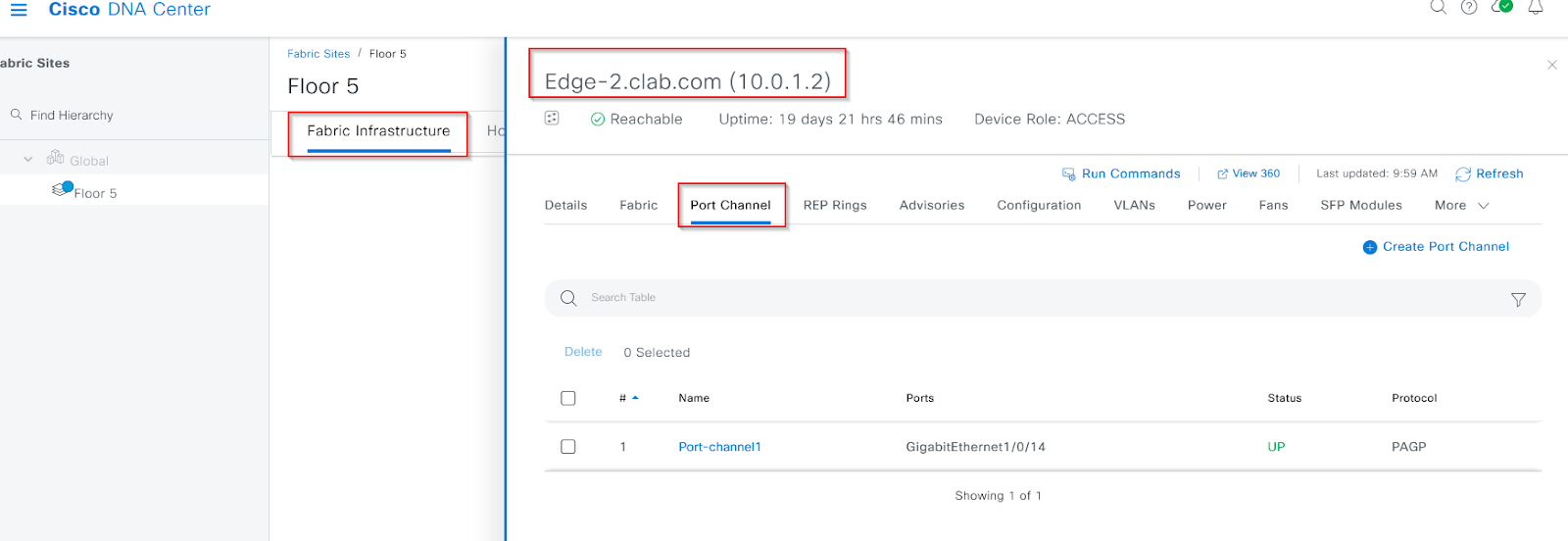

Edge-2#show run | s Port-channel

interface Port-channel1

switchport mode trunk

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

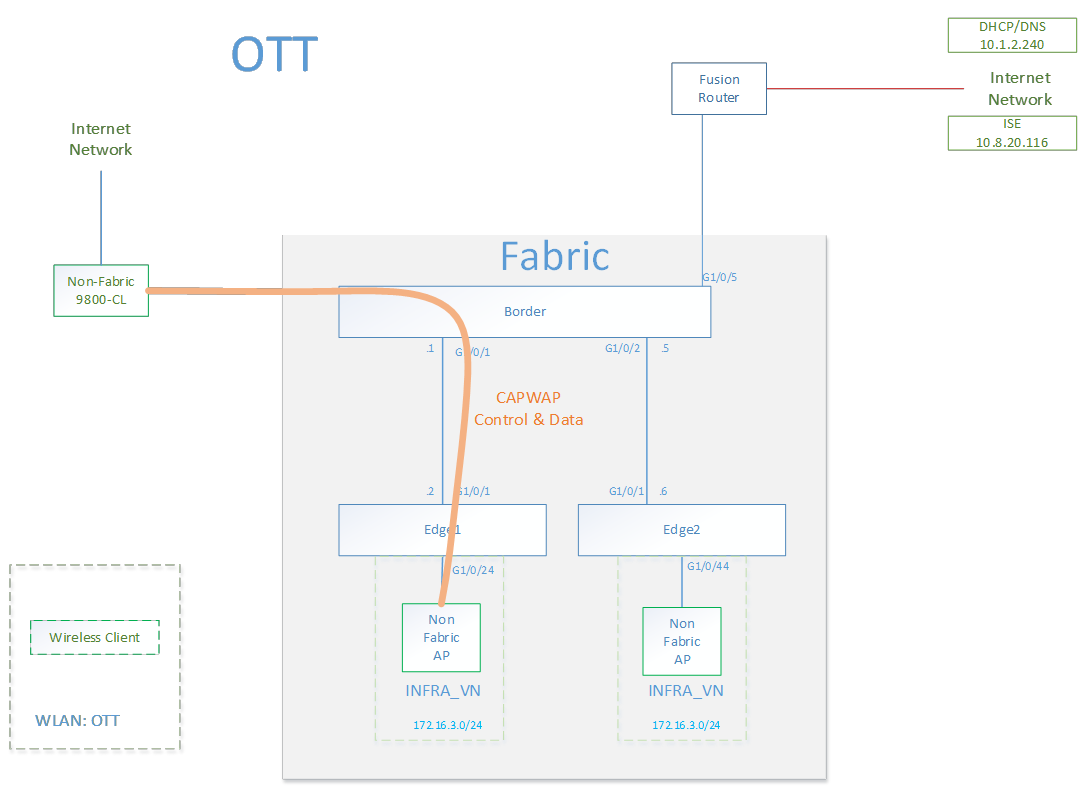

Over the Top Wireless
