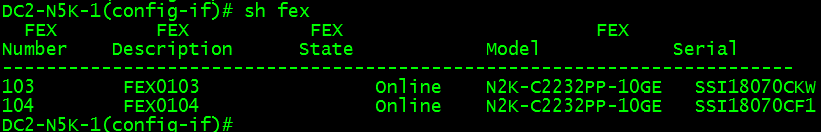

Configure FEX

DC2-N5K-1(config-if)# channel-group 103 DC2-N5K-1(config-if)# no shutdown

DC2-N5K-1(config-if)# int port-channel 103

DC2-N5K-1(config-if)# switchport mode fex-fabric DC2-N5K-1(config-if)# fex associate

103

DC2-N5K-1(config-if)# vpc 103

DC2-N5K-1(config-if)# no shutdown DC2-N5K-1(config-if)# int e1/27-28

DC2-N5K-1(config-if)# channel-group 104 DC2-N5K-1(config-if)# no sh

DC2-N5K-1(config-if)# int port-channel 104 DC2-N5K-1(config-if)# sw mode fex-fabric DC2-N5K-1(config-if)# fex associate 104 DC2-N5K-1(config-if)# vpc 104

DC2-N5K-1(config-if)# no shutdown

DC2-N5K-2(config)# feature fex DC2-N5K-2(config)# int e1/27-28

DC2-N5K-2(config-if)# channel-group 103 DC2-N5K-2(config-if)# no shutdown

DC2-N5K-2(config-if)# int port-channel 103 DC2-N5K-2(config-if)# sw mode fex-fabric DC2-N5K-2(config-if)# fex associate 103 DC2-N5K-2(config-if)# vpc 103

DC2-N5K-2(config-if)# no shutdown DC2-N5K-2(config-if)# int e1/17-18

DC2-N5K-2(config-if)# channel-group 104 DC2-N5K-2(config-if)# no shutdown

DC2-N5K-2(config-if)# int port-channel 104 DC2-N5K-2(config-if)# sw mode fex-fabric DC2-N5K-2(config-if)# fex associate 104 DC2-N5K-2(config-if)# vpc 104

DC2-N5K-2(config-if)# no shutdown
