UCCX7 Connecting to MSSQL5.5

This is a document about how uccx7 uses ODBC driver to connect MySQL 5.5 server and get the values from the database .

feel free to download script for this post

https://drive.google.com/file/d/0B5tzzJsbkWkIbndRZDdkOU1oRVk/edit?usp=sharing

Use sql query to create a test database

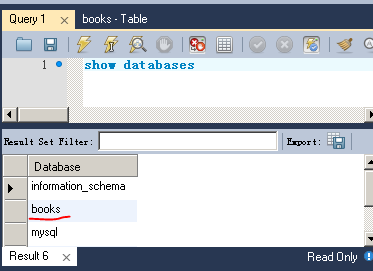

The below command will show created database – books

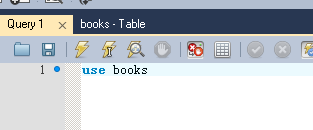

Enter the database

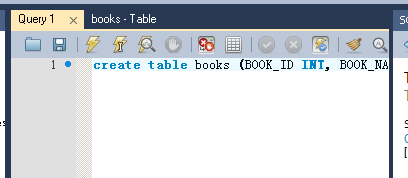

Use the sql query below to create a table

create table books (BOOK_ID INT, BOOK_NAME varchar(20), AUTHOR_NAME varchar(20), BOOK_ISBN int, PUBLISH_YEAR int)

Insert data

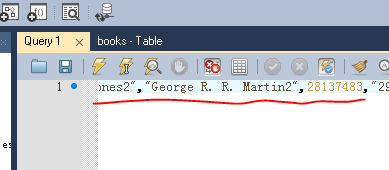

insert into books (BOOK_ID,BOOK_NAME,AUTHOR_NAME,BOOK_ISBN,PUBLISH_YEAR) values (12345,"Game of Trones2","George R. R. Martin2",28137483,"2996")

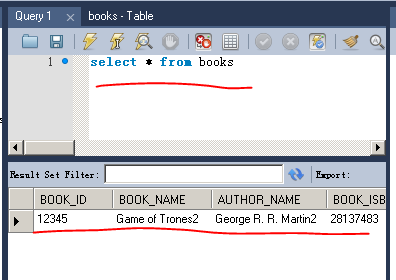

Show the current table with data inserted

Alter column type to text, otherwise, uccx will translate values using Unicode

Install ODBC driver in uccx 7

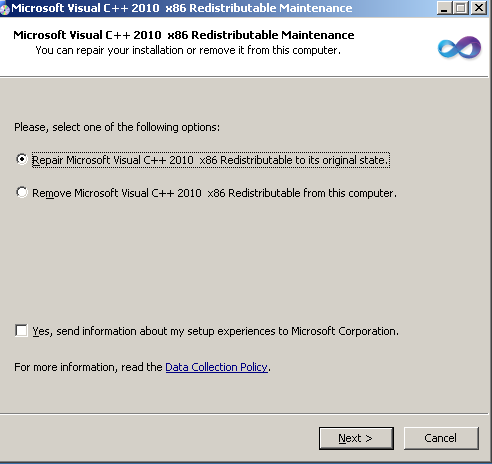

First should install VC++ first

ODBC driver for MySQL

it's better to download noinstall zip file:

http://dev.mysql.com/downloads/connector/odbc/3.51.html

After install the driver, configure connection to MySQL

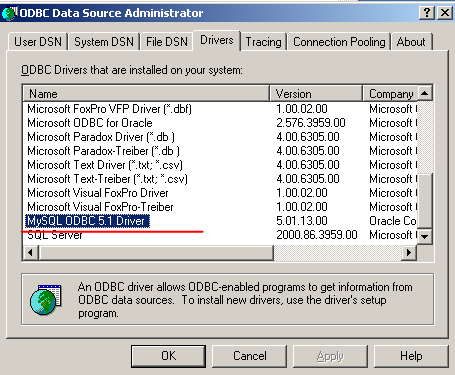

Be sure that driver is properly installed

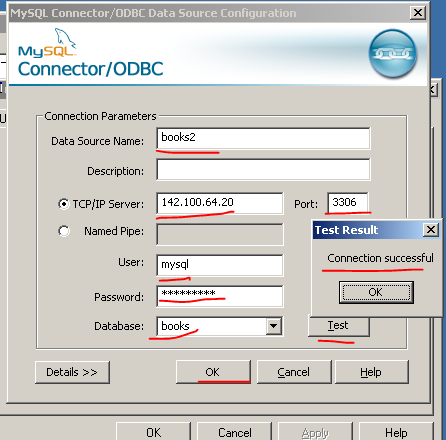

New a new system data source

Test connection

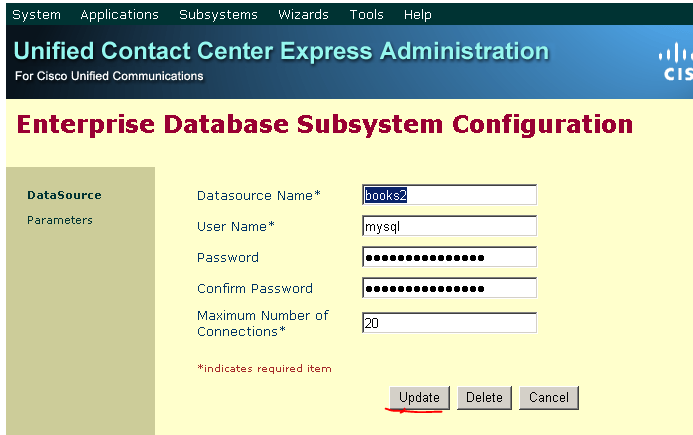

Set up external database in uccx7 configuration page

Open script editor

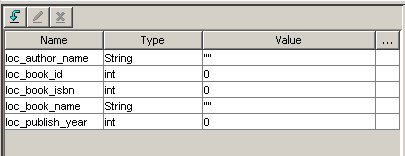

Write in the following variables for captured values to store locally

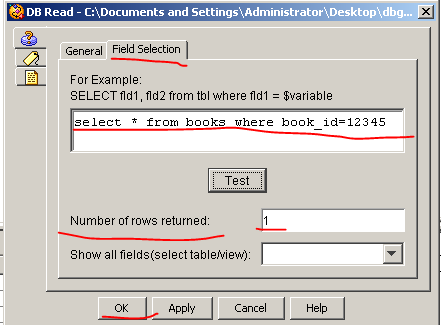

Before get values from database, need to read table using select sql query

“1” seems like a Boolean value, which means the query is properly executed.

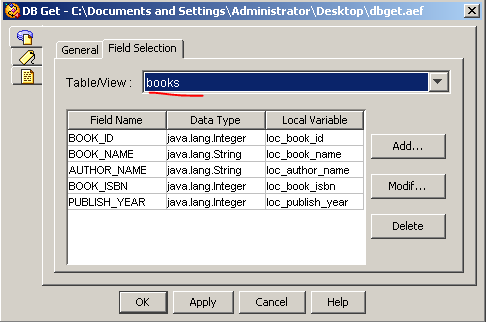

db_get is to store data from database to local variables

Map out variables based on specific databse

Test script

Values are reading properly
