Register VG224 as SCCP Gateway

Configure VG224 as SCCP gateway

1.#base gw configuration#

voice-port 2/0

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/1

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/2

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/3

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/4

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/5

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/6

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/7

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/8

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/9

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/10

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/11

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/12

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/13

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/14

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/15

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/16

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/17

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/18

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/19

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/20

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/21

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/22

 timeouts ringing infinity

 caller-id enable

!

voice-port 2/23

 timeouts ringing infinity

 caller-id enable

2.#base sccp control dial-peer#

dial-peer voice 400 pots

 service stcapp

 port 2/0

!

dial-peer voice 401 pots

 service stcapp

 port 2/1

!

dial-peer voice 402 pots

 service stcapp

 port 2/2

!

dial-peer voice 403 pots

 service stcapp

 port 2/3

!

dial-peer voice 404 pots

 service stcapp

 port 2/4

!

dial-peer voice 405 pots

 service stcapp

 port 2/5

!

dial-peer voice 406 pots

 service stcapp

 port 2/6

!

dial-peer voice 407 pots

 service stcapp

 port 2/7

!

dial-peer voice 408 pots

 service stcapp

 port 2/8

!

dial-peer voice 409 pots

 service stcapp

 port 2/9

!

dial-peer voice 410 pots

 service stcapp

 port 2/10

!

dial-peer voice 411 pots

 service stcapp

 port 2/11

!

dial-peer voice 412 pots

 service stcapp

 port 2/12

!

dial-peer voice 413 pots

 service stcapp

 port 2/13

!

dial-peer voice 414 pots

 service stcapp

 port 2/14

!

dial-peer voice 415 pots

 service stcapp

 port 2/15

!

dial-peer voice 416 pots

 service stcapp

 port 2/16

!

dial-peer voice 417 pots

 service stcapp

 port 2/17

!

dial-peer voice 418 pots

 service stcapp

 port 2/18

!

dial-peer voice 419 pots

 service stcapp

 port 2/19

!

dial-peer voice 420 pots

 service stcapp

 port 2/20

!

dial-peer voice 421 pots

 service stcapp

 port 2/21

!

dial-peer voice 422 pots

 service stcapp

 port 2/22

!

dial-peer voice 423 pots

 service stcapp

 port 2/23

!

3.#base sccp configuration#

sccp local FastEthernet0/0

sccp ccm x.x.x.x identifier 1 version 7.0+

sccp ccm y.y.y.y identifier 2 version 7.0+

sccp ccm group 1

 bind interface fastethernet 0/0

 associate ccm 1 priority 1

 associate ccm 2 priority 2

 connect retries 32

 connect interval 5

 switchback method graceful

stcapp ccm-group 5

stcapp

!

stcapp feature access-code

!

stcapp feature speed-dial

!

stcapp feature default

4.#fax#

voice service voip

fax protocol t38 nse force

6.#CM#

A.

B.

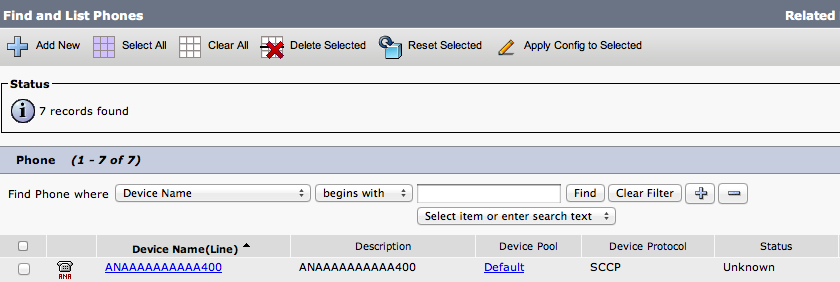

   MAC is the last ten digits of Fa0/0. if you are configuring FAX, please turn on the T.38 fax relay



D.

E．

F．enter 2/0 port, and setup DN

G.

configure DN

H．

7.type sccp command to register
