setting up IPMA in CUCM

IPMA  Logical Diagram:

Step 1

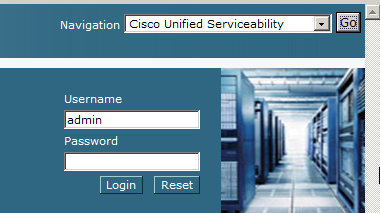

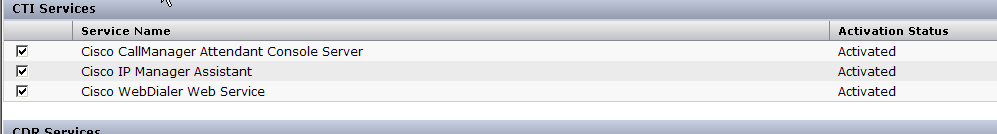

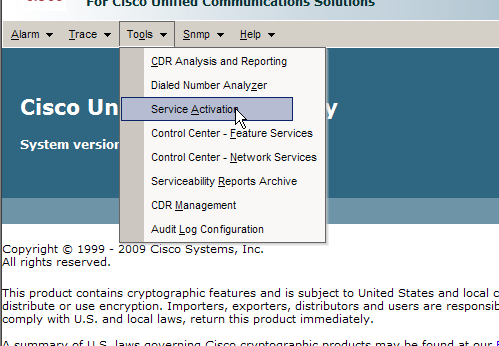

In Cisco Unified Serviceability, activate the Cisco IP Manager Assistant service in the Service Activation window.

Step 2:

Configure system administration parameters:

•Add three partitions.

 Call routing  >  Class of control  >  Partition

 Partition : CNSHA_ Everyone ( all user line except manager )

          CNSHA_IPMA  (IPMA Route Point )

          CNSHA_Manager (Manager user line )

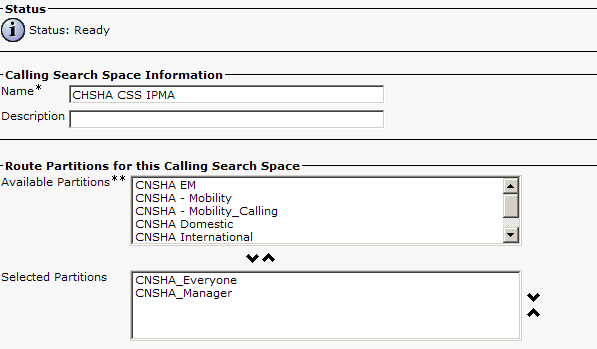

•Add one calling search spaces.（Creat CSS for Route Point: CNSHA CSS IPMA）

Call routing  >  Class of control  >  Call search space

Step 5: creat IPMA Service

http://10.204.33.249:8080/ma/servlet/MAService?cmd=doPhoneService&Name=#DEVICENAME#

Step 6: Create IPMA Route Point XXXX

Add xxxx to CNSHA CSS IPMA

Step 7: Set IPMA System service

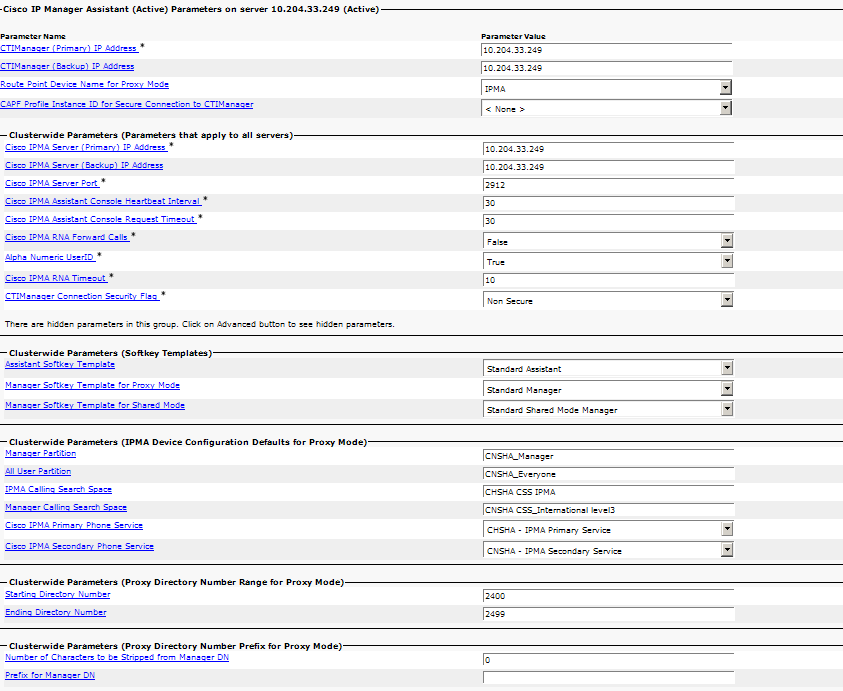

System > Service Parameter > server 10.204.33.249 > service cisco ip manager assistant

Configure manager and assistant Cisco Unified IP Phone parameters:

CTIManager (Primary) IP Address : 10.204.33.249

Cisco IPMA Server (Backup) IP Address: 10.204.33.249

Route Point Device Name for Proxy Mode :IPMA

Cisco IPMA Server (Primary) IP Address :10.204.33.249

Cisco IPMA Server (Backup) IP Address :10.204.33.249

Manager Partition : CNSHA_Manager

All User Partition : CNSHA_Everyone

IPMA Calling Search Space : CHSHA CSS IPMA

Manager Calling Search Space : CNSHA CSS_International level3

Cisco IPMA Primary Phone Service :CNSHA – IPMA Primary Service

Cisco IPMA Secondary Phone Service :CNSHA – IPMA Secondary Service

Starting Directory Number :2400

Ending Directory Number :2499

Step8: Reset IPMA service .
